0.96寸OLED取模教程——字符与图片取模

1.汉字取模

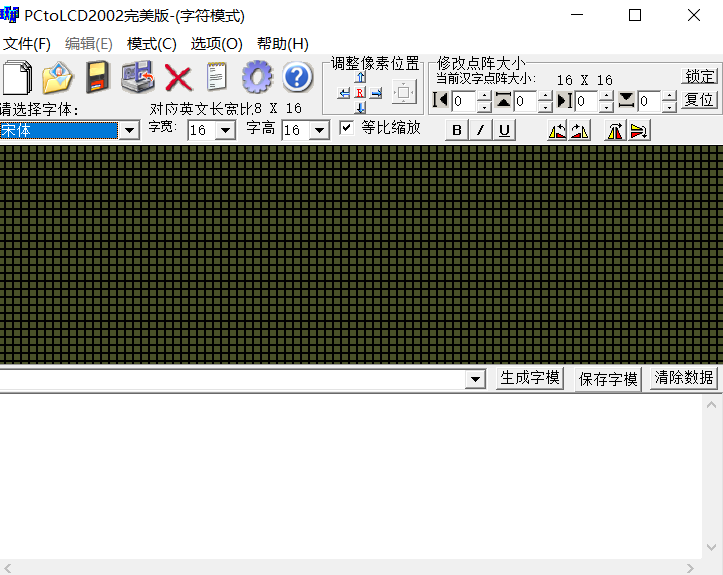

1.1.打开取模软件

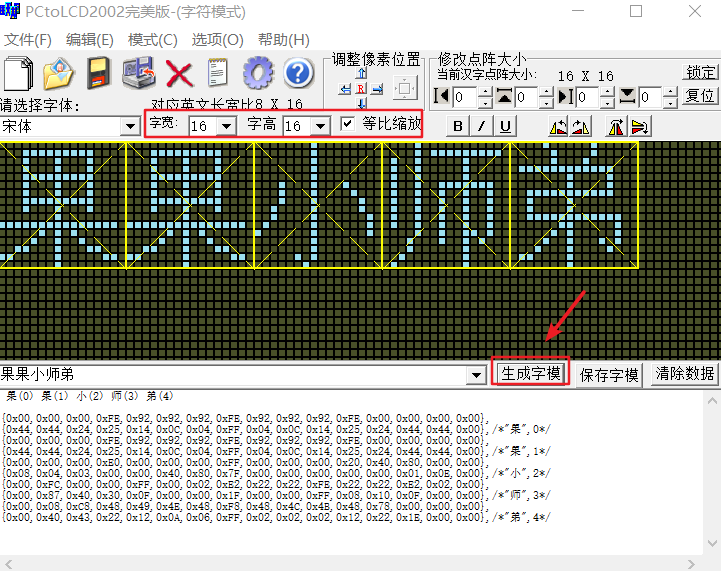

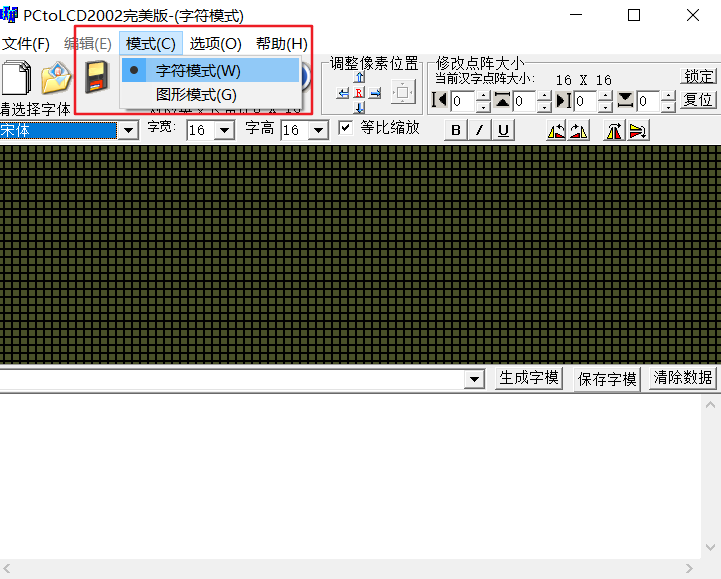

1.2.选择字符模式

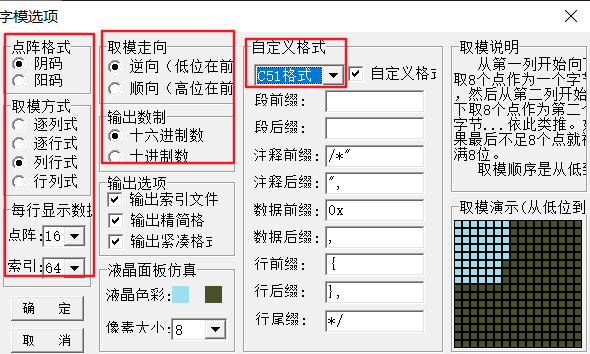

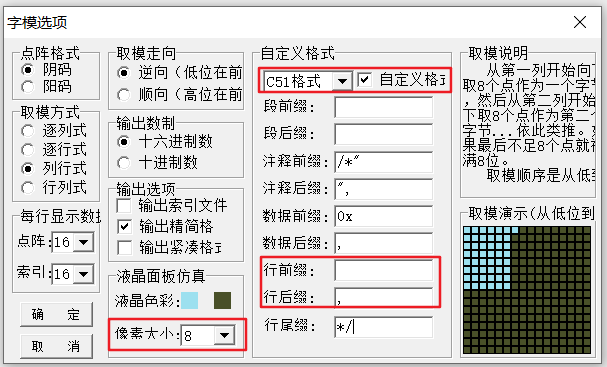

1.3 设置取模方式

1.4 编写代码

unsigned char hanzi[][16]=
{
   //将上面生成的字模放到这里
{0x00,0x00,0x00,0xFE,0x92,0x92,0x92,0xFE,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x00},
{0x44,0x44,0x24,0x25,0x14,0x0C,0x04,0xFF,0x04,0x0C,0x14,0x25,0x24,0x44,0x44,0x00},/*"果",0*/
{0x00,0x00,0x00,0xFE,0x92,0x92,0x92,0xFE,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x00},
{0x44,0x44,0x24,0x25,0x14,0x0C,0x04,0xFF,0x04,0x0C,0x14,0x25,0x24,0x44,0x44,0x00},/*"果",1*/
{0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x20,0x40,0x80,0x00,0x00},
{0x08,0x04,0x03,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x01,0x0E,0x00},/*"小",2*/
{0x00,0xFC,0x00,0x00,0xFF,0x00,0x02,0xE2,0x22,0x22,0xFE,0x22,0x22,0xE2,0x02,0x00},
{0x00,0x87,0x40,0x30,0x0F,0x00,0x00,0x1F,0x00,0x00,0xFF,0x08,0x10,0x0F,0x00,0x00},/*"师",3*/
{0x00,0x08,0xC8,0x48,0x49,0x4E,0x48,0xF8,0x48,0x4C,0x4B,0x48,0x78,0x00,0x00,0x00},
{0x00,0x40,0x43,0x22,0x12,0x0A,0x06,0xFF,0x02,0x02,0x02,0x12,0x22,0x1E,0x00,0x00},/*"弟",4*/
};

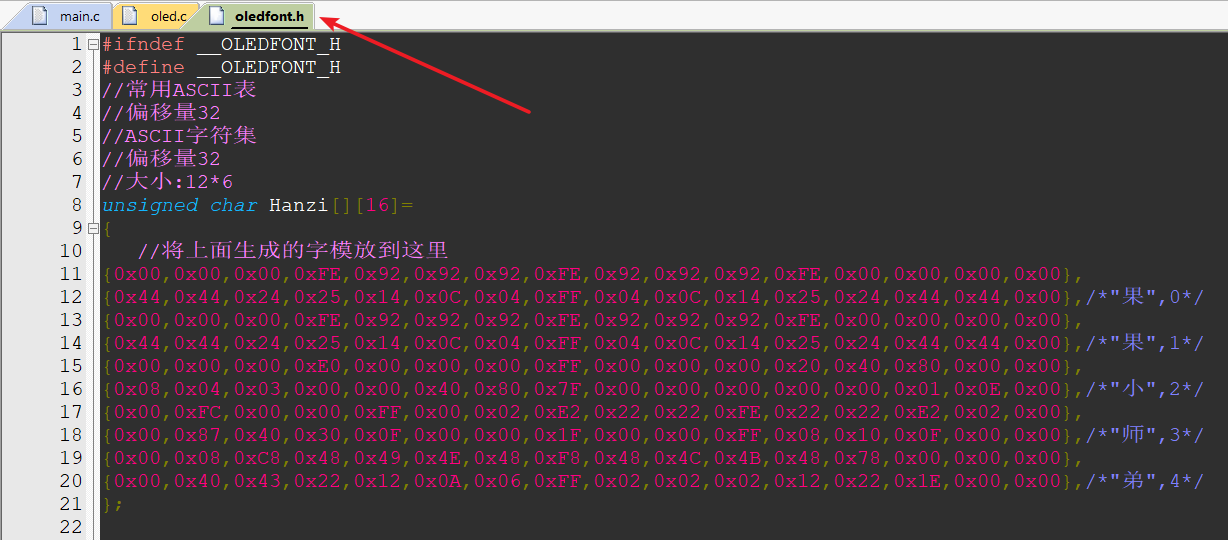

将上面的代码复制到oledfont.h文件中

1.5 显示汉字

在主函数中调用相应的函数就可以显示汉字

OLED_ShowCHinese16x16(0, 0,0,Hanzi);//果(0)
OLED_ShowCHinese16x16(16,0,1,Hanzi);//果(1)
OLED_ShowCHinese16x16(32,0,2,Hanzi);//小(2)
OLED_ShowCHinese16x16(48,0,3,Hanzi);//师(3)
OLED_ShowCHinese16x16(64,0,4,Hanzi);//弟(4)

2.图片取模

2.1.打开取模软件

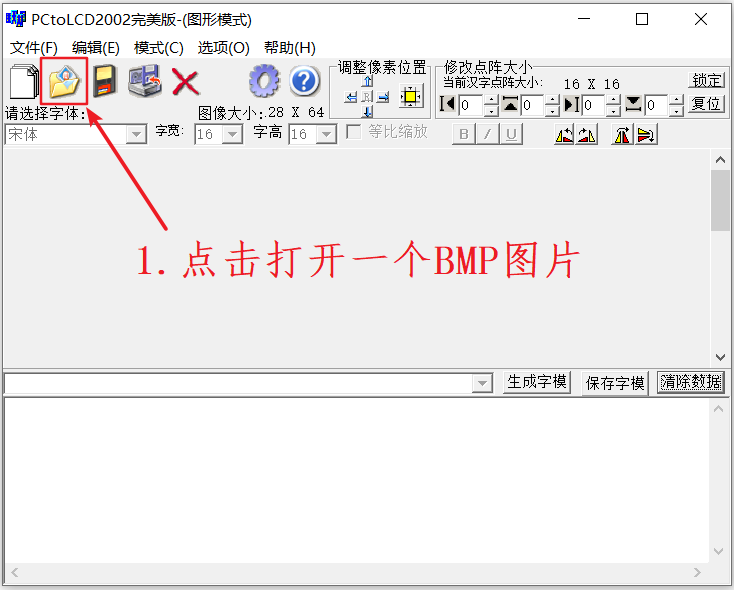

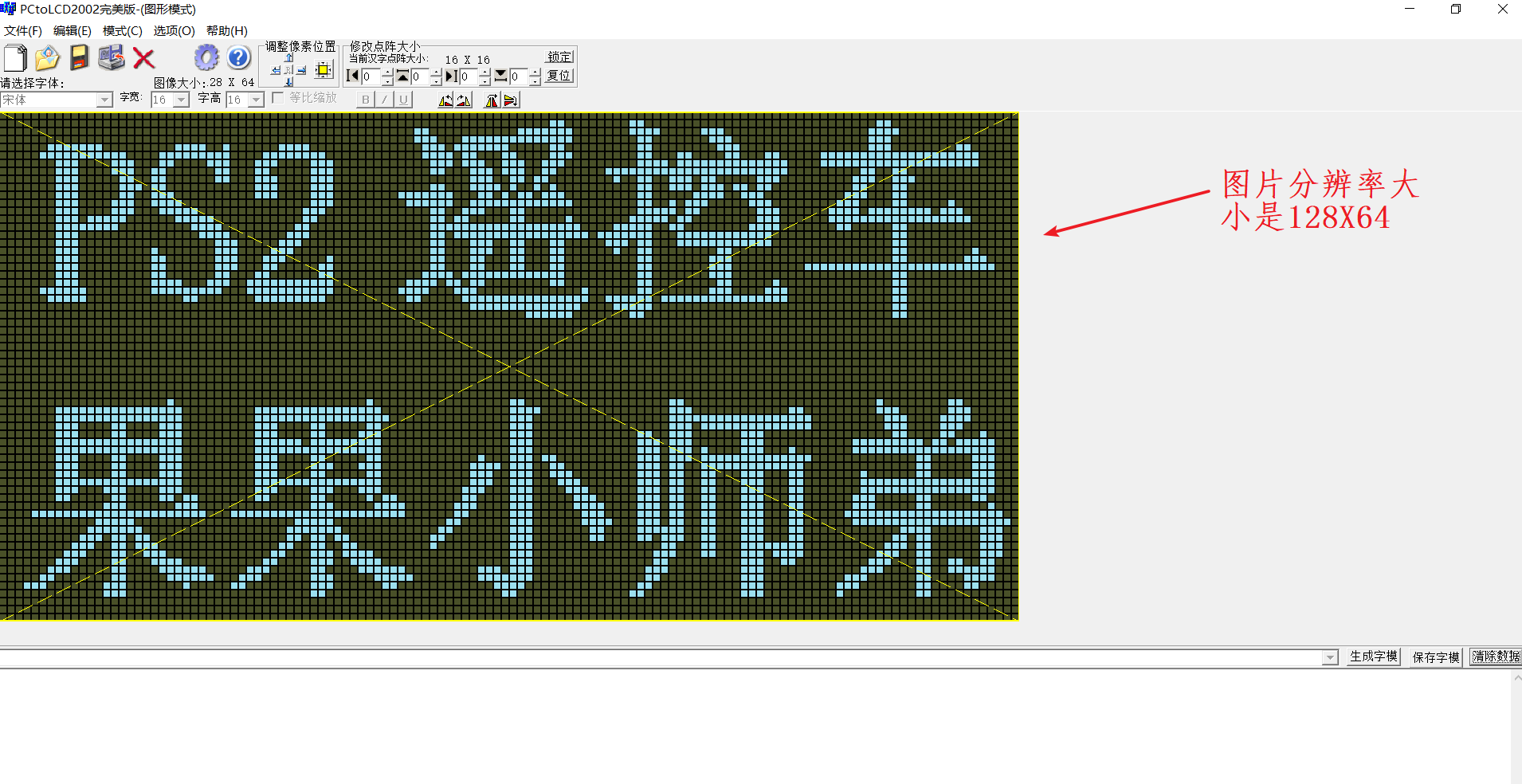

2.2.打开一张BMP图片

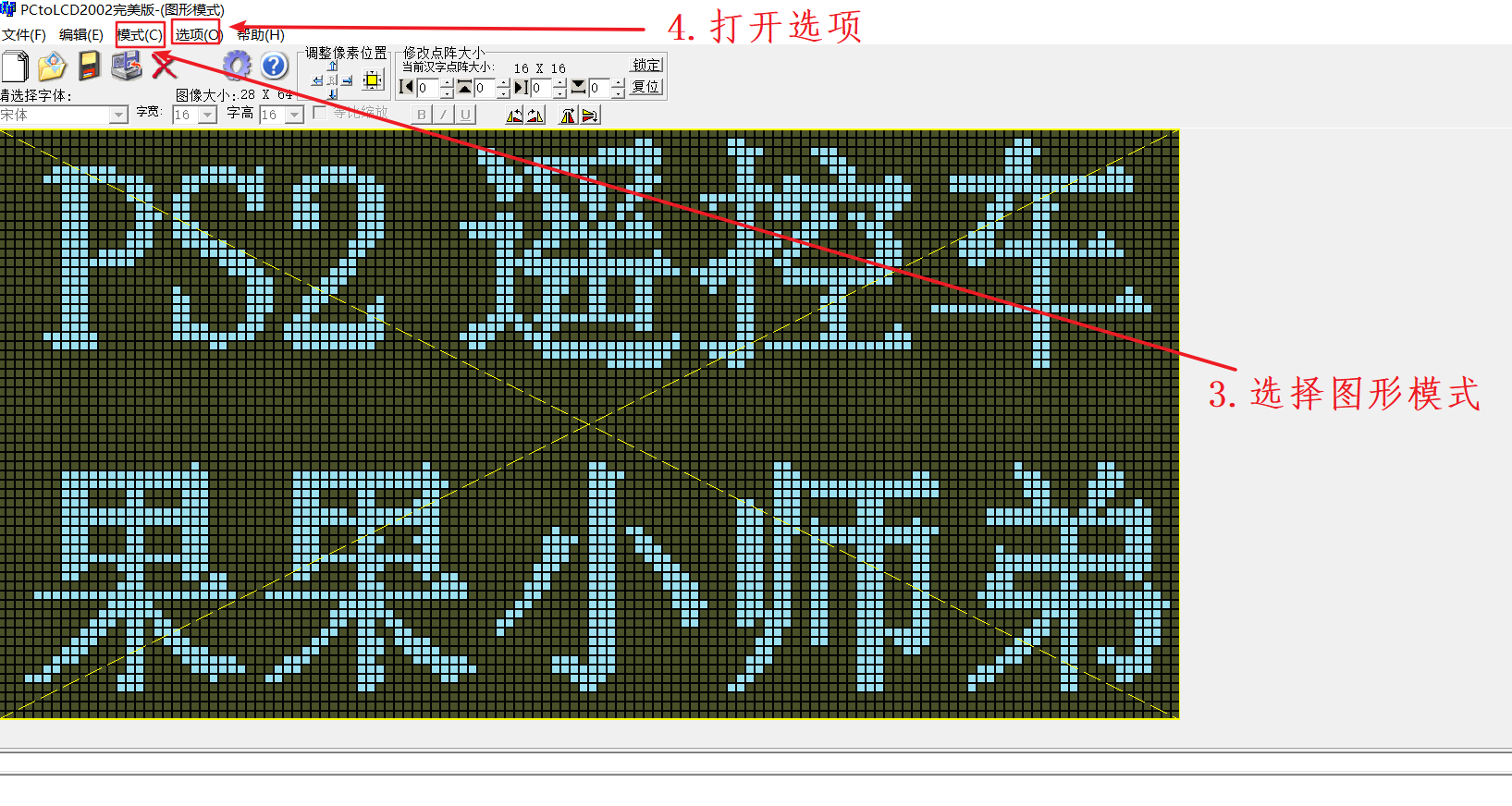

2.3.选择图形模式

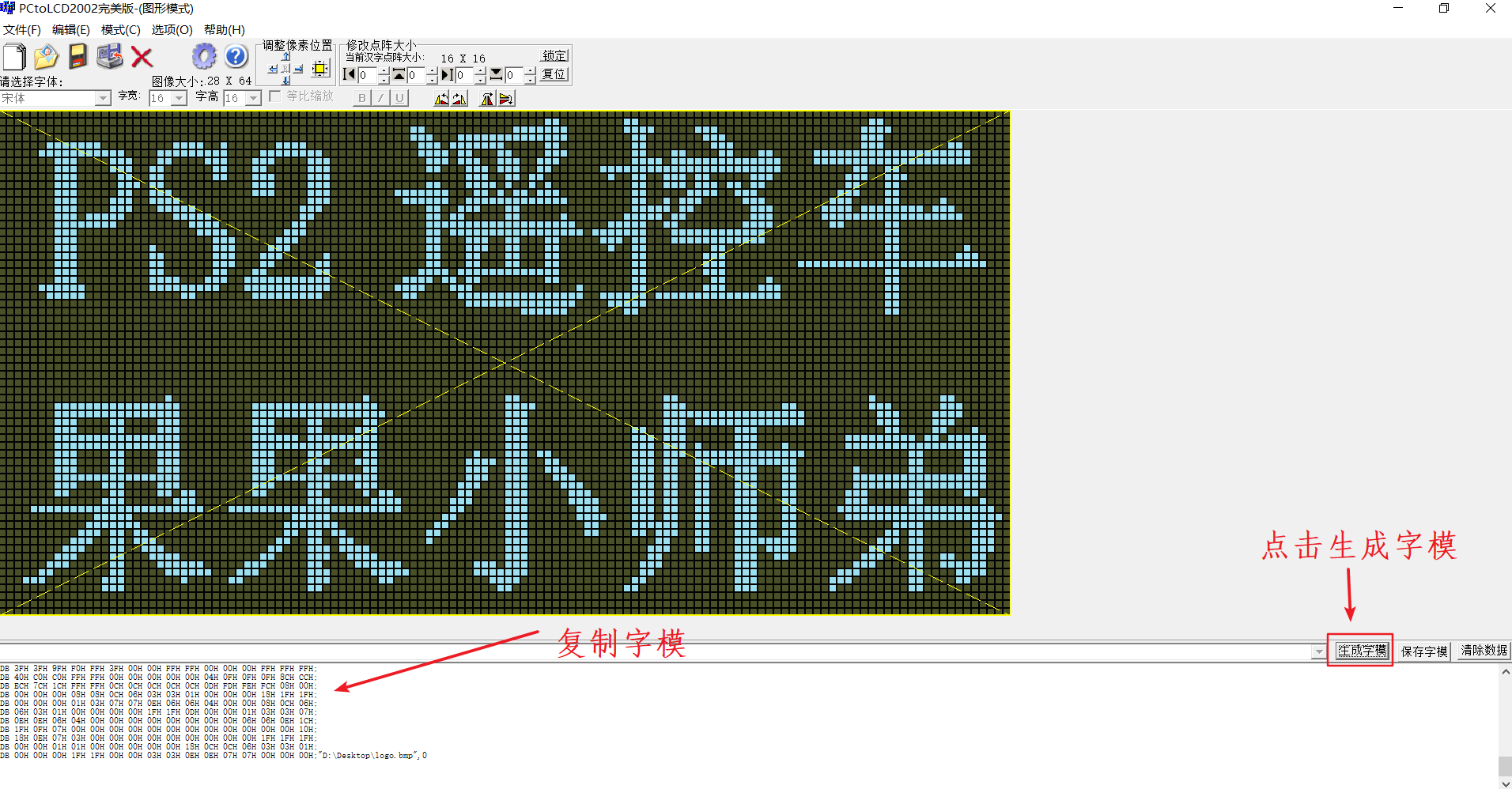

2.4.生成代码

方法与生成字模的代码方法相同
