自定义渲染 (XComponent)

概述

XComponent组件作为一种渲染组件，可用于EGL/OpenGLES和媒体数据写入，通过使用XComponent持有的“NativeWindow”来渲染画面，通常用于满足开发者较为复杂的自定义渲染需求，例如相机预览流的显示和游戏画面的渲染。其可通过指定type字段来实现不同的渲染方式，分别为XComponentType.SURFACE和XComponentType.TEXTURE。对于SURFACE类型，开发者将定制的绘制内容单独展示到屏幕上。对于TEXTURE类型，开发者将定制的绘制内容和XComponent组件的内容合成后展示到屏幕上。

目前XComponent组件主要有两个应用场景。一个是Native XComponent场景，在native层获取Native XComponent实例，在native侧注册XComponent的生命周期回调，以及触摸、鼠标、按键等事件回调。另一个是ArkTS XComponent场景，在ArkTS侧获取SurfaceId，生命周期回调、触摸、鼠标、按键等事件回调等均在ArkTS侧触发。

自绘制原理说明

XComponent持有一个surface，开发者能通过调用NativeWindow等接口，申请并提交Buffer至图形队列，以此方式将自绘制内容传送至该surface。XComponent负责将此surface整合进UI界面，其中展示的内容正是开发者传送的自绘制内容。surface的默认位置与大小与XComponent组件一致，开发者可利用setXComponentSurfaceRect接口自定义调整surface的位置和大小。

说明

当开发者传输的绘制内容包含透明元素时，surface区域的显示效果会与下方内容进行合成展示。例如，若传输的内容完全透明，且XComponent的背景色被设置为黑色，同时Surface保持默认的大小与位置，则最终显示的将是一片黑色区域。

Native XComponent场景

本场景在Native侧使用ArkUI NDK 接口创建XComponent组件进行自定义绘制。具体步骤包括：创建组件，获取NativeXComponent实例，注册XComponent的生命周期回调及触摸、鼠标、按键等事件回调，通过回调获取NativeWindow，使用OpenGL ES/EGL接口在XComponent组件上进行图形绘制，最后在ArkTS层使用ContentSlot占位组件进行挂载显示。针对Native XComponent的主要开发场景如下：

  • 利用Native XComponent提供的接口注册XComponent的生命周期和事件回调。
  • 在这些回调中进行初始化环境、获取当前状态、响应各类事件的开发。
  • 利用NativeWindow和EGL接口开发自定义绘制内容以及申请和提交Buffer到图形队列。

约束条件：

构造XComponent时需要根据需要的type使用对应的节点类型。

说明

  1. Native侧的OH_NativeXComponent缓存在字典中，其key需要保证其唯一性，当对应的XComponent销毁后，需要及时从字典里将其删除。

  2. 多个XComponent开发时，缓存Native侧资源需要保证key是唯一的，key推荐使用id+随机数或者surfaceId。

接口说明

接口名描述
OH_NativeXComponent_GetXComponentId(OH_NativeXComponent* component, char* id, uint64_t* size)获取XComponent的id。
OH_NativeXComponent_GetXComponentSize(OH_NativeXComponent* component, const void* window, uint64_t* width, uint64_t* height)获取XComponent持有的surface的大小。
OH_NativeXComponent_GetXComponentOffset(OH_NativeXComponent* component, const void* window, double* x, double* y)获取XComponent持有的surface相对其父组件左顶点的偏移量。
OH_NativeXComponent_GetTouchEvent(OH_NativeXComponent* component, const void* window, OH_NativeXComponent_TouchEvent* touchEvent)获取由XComponent触发的触摸事件。touchEvent内的具体属性值可参考OH_NativeXComponent_TouchEvent。
OH_NativeXComponent_GetTouchPointToolType(OH_NativeXComponent* component, uint32_t pointIndex, OH_NativeXComponent_TouchPointToolType* toolType)获取XComponent触摸点的工具类型。
OH_NativeXComponent_GetTouchPointTiltX(OH_NativeXComponent* component, uint32_t pointIndex, float* tiltX)获取XComponent触摸点处相对X轴的倾斜角度。
OH_NativeXComponent_GetTouchPointTiltY(OH_NativeXComponent* component, uint32_t pointIndex, float* tiltY)获取XComponent触摸点处相对Y轴的倾斜角度。
OH_NativeXComponent_GetMouseEvent(OH_NativeXComponent* component, const void* window, OH_NativeXComponent_MouseEvent* mouseEvent)获取由XComponent触发的鼠标事件。
OH_NativeXComponent_RegisterCallback(OH_NativeXComponent* component, OH_NativeXComponent_Callback* callback)为此OH_NativeXComponent实例注册生命周期和触摸事件回调。
OH_NativeXComponent_RegisterMouseEventCallback(OH_NativeXComponent* component, OH_NativeXComponent_MouseEvent_Callback* callback)为此OH_NativeXComponent实例注册鼠标事件回调。
OH_NativeXComponent_RegisterFocusEventCallback(OH_NativeXComponent* component, void (*callback)(OH_NativeXComponent* component, void* window))为此OH_NativeXComponent实例注册获得焦点事件回调。
OH_NativeXComponent_RegisterKeyEventCallback(OH_NativeXComponent* component, void (*callback)(OH_NativeXComponent* component, void* window))为此OH_NativeXComponent实例注册按键事件回调。
OH_NativeXComponent_RegisterBlurEventCallback(OH_NativeXComponent* component, void (*callback)(OH_NativeXComponent* component, void* window))为此OH_NativeXComponent实例注册失去焦点事件回调。
OH_NativeXComponent_GetKeyEvent(OH_NativeXComponent* component, OH_NativeXComponent_KeyEvent** keyEvent)获取由XComponent触发的按键事件。
OH_NativeXComponent_GetKeyEventAction(OH_NativeXComponent_KeyEvent* keyEvent, OH_NativeXComponent_KeyAction* action)获取按键事件的动作。
OH_NativeXComponent_GetKeyEventCode(OH_NativeXComponent_KeyEvent* keyEvent, OH_NativeXComponent_KeyCode* code)获取按键事件的键码值。
OH_NativeXComponent_GetKeyEventSourceType(OH_NativeXComponent_KeyEvent* keyEvent, OH_NativeXComponent_EventSourceType* sourceType)获取按键事件的输入源类型。
OH_NativeXComponent_GetKeyEventDeviceId(OH_NativeXComponent_KeyEvent* keyEvent, int64_t* deviceId)获取按键事件的设备ID。
OH_NativeXComponent_GetKeyEventTimestamp(OH_NativeXComponent_KeyEvent* keyEvent, int64_t* timestamp)获取按键事件的时间戳。
OH_ArkUI_QueryModuleInterfaceByName(ArkUI_NativeAPIVariantKind type, const char* structName)获取指定类型的Native模块接口集合。
OH_ArkUI_GetNodeContentFromNapiValue(napi_env env, napi_value value, ArkUI_NodeContentHandle* content)获取ArkTS侧创建的NodeContent对象映射到native侧的ArkUI_NodeContentHandle。
OH_ArkUI_NodeContent_SetUserData(ArkUI_NodeContentHandle content, void* userData)在NodeContent对象上保存自定义数据。
OH_ArkUI_NodeContentEvent_GetNodeContentHandle(ArkUI_NodeContentEvent* event)获取触发事件的NodeContent对象。
OH_ArkUI_NodeContent_GetUserData(ArkUI_NodeContentHandle content)获取在NodeContent对象上保存的自定义数据。
OH_ArkUI_NodeContentEvent_GetEventType(ArkUI_NodeContentEvent* event)获取触发NodeContent事件的事件类型。
OH_ArkUI_NodeContent_AddNode(ArkUI_NodeContentHandle content, ArkUI_NodeHandle node)将一个ArkUI组件节点添加到对应的NodeContent对象下。
OH_ArkUI_NodeContent_RegisterCallback(ArkUI_NodeContentHandle content, ArkUI_NodeContentCallback callback)注册NodeContent事件函数。
OH_NativeXComponent_GetNativeXComponent(ArkUI_NodeHandle node)基于Native接口创建的组件实例获取OH_NativeXComponent类型的指针。

说明

上述接口不支持跨线程访问。

XComponent销毁（onSurfaceDestroyed回调触发后）时会释放上述接口中获取的OH_NativeXComponent和window对象。如果再次使用获取的对象，有可能会导致使用野指针或空指针的崩溃问题。

开发步骤

以下步骤以SURFACE类型为例，描述了如何使用XComponent组件调用Node-API接口来创建EGL/GLES环境，实现在主页面绘制图形，并可以改变图形的颜色。

  1. 在界面中定义XComponent。

    import nativeNode from 'libnativenode.so';
import {NodeContent} from '@kit.ArkUI';


@Entry
@Component
struct Index {
  @State currentStatus: string = "init";
  private nodeContent: NodeContent = new NodeContent();
  aboutToAppear():void{
    // 通过C-API创建节点，并添加到管理器nodeContent上
    nativeNode.createNativeNode(this.nodeContent);
  }


  build() {
    Column() {
      Row() {
        Text('Native XComponent Sample')
        .fontSize('24fp')
        .fontWeight(500)
        .margin({
            left: 24,
            top: 12
        })
      }
      .margin({ top: 24 })
      .width('100%')
      .height(56)


      Column({ space: 10 }) {
        // 显示nodeContent管理器里存放的Native侧的组件
        ContentSlot(this.nodeContent);


        Text(this.currentStatus)
        .fontSize('24fp')
        .fontWeight(500)
      }
      .onClick(() => {
        let hasChangeColor: boolean = false;
        // 获取当前绘制内容状态
        if (nativeNode.getStatus()) {
          hasChangeColor = nativeNode.getStatus().hasChangeColor;
        }
        if (hasChangeColor) {
          this.currentStatus = "change color";
        }
      })
      .margin({
        top: 27,
        left: 12,
        right: 12
      })
      .height('40%')
      .width('90%')


      Row() {
        Button('Draw Star')
        .fontSize('16fp')
        .fontWeight(500)
        .margin({ bottom: 24 })
        .onClick(() => {
          // 调用drawPattern绘制内容
          nativeNode.drawPattern();
          let hasDraw: boolean = false;
          // 获取当前绘制内容状态
          if (nativeNode.getStatus()) {
            hasDraw = nativeNode.getStatus().hasDraw;
          }
          if (hasDraw) {
            this.currentStatus = "draw star";
          }
        })
        .width('53.6%')
        .height(40)
      }
      .width('100%')
      .justifyContent(FlexAlign.Center)
      .alignItems(VerticalAlign.Bottom)
      .layoutWeight(1)
    }
    .width('100%')
    .height('100%')
  }
}

  2. Node-API模块注册。

    #include <hilog/log.h>
#include "common/common.h"
#include "manager/plugin_manager.h"


// 在napi_init.cpp文件中，Init方法注册接口函数，从而将封装的C++方法传递出来，供ArkTS侧调用
EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
    // ...
    // 向ArkTS侧暴露接口
    napi_property_descriptor desc[] = {
        {"createNativeNode", nullptr, PluginManager::createNativeNode, nullptr, nullptr, nullptr,
        napi_default, nullptr },
        {"getStatus", nullptr, PluginManager::GetXComponentStatus, nullptr, nullptr,
        nullptr, napi_default, nullptr},
        {"drawPattern", nullptr, PluginManager::NapiDrawPattern, nullptr, nullptr,
        nullptr, napi_default, nullptr}
    };
    if (napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc) != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "Init", "napi_define_properties failed");
        return nullptr;
    }
    return exports;
}
EXTERN_C_END


// 编写接口的描述信息，根据实际需要可以修改对应参数
static napi_module nativerenderModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    // 入口函数
    .nm_register_func = Init,// 指定加载对应模块时的回调函数
    // 模块名称
    .nm_modname =
        "nativerender", // 指定模块名称，对于XComponent相关开发，这个名称必须和ArkTS侧XComponent中libraryname的值保持一致
    .nm_priv = ((void *)0),
    .reserved = {0}};


// __attribute__((constructor))修饰的方法由系统自动调用，使用Node-API接口napi_module_register()传入模块描述信息进行模块注册
extern "C" __attribute__((constructor)) void RegisterModule(void) { napi_module_register(&nativerenderModule); }

  3. 注册XComponent事件回调，使用Node-API实现XComponent事件回调函数。

    (1) 定义surface创建成功，发生改变，销毁和XComponent的touch事件回调接口。

    // 在头文件中定义PluginManager类
class PluginManager {
public:
    static OH_NativeXComponent_Callback callback_;
    PluginManager();
    ~PluginManager();
    static PluginManager* GetInstance()
    {
        return &PluginManager::pluginManager_;
    }

    static napi_value createNativeNode(napi_env env, napi_callback_info info);
    static napi_value GetXComponentStatus(napi_env env, napi_callback_info info);
    static napi_value NapiDrawPattern(napi_env env, napi_callback_info info);

    // CAPI XComponent
    void OnSurfaceChanged(OH_NativeXComponent* component, void* window);
    void OnSurfaceDestroyed(OH_NativeXComponent* component, void* window);
    void DispatchTouchEvent(OH_NativeXComponent* component, void* window);
    void OnSurfaceCreated(OH_NativeXComponent* component, void* window);


public:
    EGLCore *eglcore_;
    uint64_t width_;
    uint64_t height_;
    OH_NativeXComponent_TouchEvent touchEvent_;
    static int32_t hasDraw_;
    static int32_t hasChangeColor_;


private:
    static PluginManager pluginManager_;
    std::unordered_map<std::string, OH_NativeXComponent*> nativeXComponentMap_;
    std::unordered_map<std::string, PluginManager*> pluginManagerMap_;
};
    // 定义一个函数OnSurfaceCreatedCB()，封装初始化环境与绘制背景
void OnSurfaceCreatedCB(OH_NativeXComponent *component, void *window) {
    // ...
    // 初始化环境与绘制背景
    auto *pluginManger = PluginManager::GetInstance();
    pluginManger->OnSurfaceCreated(component, window);
}


// 定义一个函数OnSurfaceChangedCB()
void OnSurfaceChangedCB(OH_NativeXComponent *component, void *window) {
    // ...
    auto *pluginManger = PluginManager::GetInstance();
    // 封装OnSurfaceChanged方法
    pluginManger->OnSurfaceChanged(component, window);
}


// 定义一个函数OnSurfaceDestroyedCB()，将PluginRender类内释放资源的方法Release()封装在其中
void OnSurfaceDestroyedCB(OH_NativeXComponent *component, void *window) {
    // ...
    auto *pluginManger = PluginManager::GetInstance();
    pluginManger->OnSurfaceDestroyed(component, window);
}


// 定义一个函数DispatchTouchEventCB()，响应触摸事件时触发该回调
void DispatchTouchEventCB(OH_NativeXComponent *component, void *window) {
    // ...
    auto *pluginManger = PluginManager::GetInstance();
    pluginManger->DispatchTouchEvent(component, window);
}

    (2) 定义createNativeNode方法，暴露到ArkTS侧的createNativeNode()方法会执行该方法。

    napi_value PluginManager::createNativeNode(napi_env env, napi_callback_info info)
{
    if ((env == nullptr) || (info == nullptr)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "CreateNativeNode env or info is null");
        return nullptr;
    }
    size_t argCnt = 2;
    napi_value args[2] = { nullptr, nullptr };
    if (napi_get_cb_info(env, info, &argCnt, args, nullptr, nullptr) != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "CreateNativeNode napi_get_cb_info failed");
    }
    if (argCnt != ARG_CNT) {
        napi_throw_type_error(env, NULL, "Wrong number of arguments");
        return nullptr;
    }
    ArkUI_NodeContentHandle nodeContentHandle_ = nullptr;
    OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &nodeContentHandle_);
    nodeAPI = reinterpret_cast<ArkUI_NativeNodeAPI_1*>(
        OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_NODE, "ArkUI_NativeNodeAPI_1")
    );
    std::string tag = value2String(env, args[1]);
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "tag=%{public}s", tag.c_str());
    int32_t ret = OH_ArkUI_NodeContent_SetUserData(nodeContentHandle_, new std::string(tag));
    if (ret != ARKUI_ERROR_CODE_NO_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "setUserData failed error=%{public}d", ret);
    }
    if (nodeAPI != nullptr && nodeAPI->createNode != nullptr && nodeAPI->addChild != nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                    "CreateNativeNode tag=%{public}s", tag.c_str());
        auto nodeContentEvent = [](ArkUI_NodeContentEvent *event) {
            ArkUI_NodeContentHandle handle = OH_ArkUI_NodeContentEvent_GetNodeContentHandle(event);
            std::string *userDate = reinterpret_cast<std::string*>(OH_ArkUI_NodeContent_GetUserData(handle));
            if (OH_ArkUI_NodeContentEvent_GetEventType(event) == NODE_CONTENT_EVENT_ON_ATTACH_TO_WINDOW) {
                ArkUI_NodeHandle testNode;
                if (userDate) {
                    testNode = CreateNodeHandle(*userDate);
                    delete userDate;
                    userDate = nullptr;
                } else {
                    testNode = CreateNodeHandle("noUserData");
                }
                OH_ArkUI_NodeContent_AddNode(handle, testNode);
            }
        };
        OH_ArkUI_NodeContent_RegisterCallback(nodeContentHandle_, nodeContentEvent);
    }
    return nullptr;
}


ArkUI_NodeHandle CreateNodeHandle(const std::string &tag)
{
    ArkUI_NodeHandle column = nodeAPI->createNode(ARKUI_NODE_COLUMN);
    ArkUI_NumberValue value[] = {480};
    ArkUI_NumberValue value1[] = {{.u32 = 15}, {.f32 = 15}};
    ArkUI_AttributeItem item = {value, 1, "changeSize"};
    ArkUI_AttributeItem item1 = {value1, 2};
    nodeAPI->setAttribute(column, NODE_WIDTH, &item);
    value[0].f32 = COLUMN_MARGIN;
    nodeAPI->setAttribute(column, NODE_MARGIN, &item);
    // 创建XComponent组件
    xc = nodeAPI->createNode(ARKUI_NODE_XCOMPONENT);
    // 设置XComponent组件属性
    value[0].u32 = ARKUI_XCOMPONENT_TYPE_SURFACE;
    nodeAPI->setAttribute(xc, NODE_XCOMPONENT_TYPE, &item);
    nodeAPI->setAttribute(xc, NODE_XCOMPONENT_ID, &item);
    nodeAPI->setAttribute(xc, NODE_XCOMPONENT_SURFACE_SIZE, &item1);
    ArkUI_NumberValue focusable[] = {1};
    focusable[0].i32 = 1;
    ArkUI_AttributeItem focusableItem = {focusable, 1};
    nodeAPI->setAttribute(xc, NODE_FOCUSABLE, &focusableItem);
    ArkUI_NumberValue valueSize[] = {480};
    ArkUI_AttributeItem itemSize = {valueSize, 1};
    valueSize[0].f32 = XC_WIDTH;
    nodeAPI->setAttribute(xc, NODE_WIDTH, &itemSize);
    valueSize[0].f32 = XC_HEIGHT;
    nodeAPI->setAttribute(xc, NODE_HEIGHT, &itemSize);
    ArkUI_AttributeItem item2 = {value, 1, "ndkxcomponent"};
    nodeAPI->setAttribute(xc, NODE_ID, &item2);

    auto *nativeXComponent = OH_NativeXComponent_GetNativeXComponent(xc);
    if (!nativeXComponent) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetNativeXComponent error");
        return column;
    }
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetNativeXComponent success");
    // 注册XComponent回调函数
    OH_NativeXComponent_RegisterCallback(nativeXComponent, &PluginManager::callback_);
    auto typeRet = nodeAPI->getAttribute(xc, NODE_XCOMPONENT_TYPE);
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "xcomponent type: %{public}d",
                typeRet->value[0].i32);
    auto idRet = nodeAPI->getAttribute(xc, NODE_XCOMPONENT_ID);
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "xcomponent id: %{public}s",
                idRet->string);
    nodeAPI->addChild(column, xc);
    return column;
}

    (3) 定义NapiDrawPattern方法，暴露到ArkTS侧的drawPattern()方法会执行该方法。

    napi_value PluginManager::NapiDrawPattern(napi_env env, napi_callback_info info) {
    // ...
    // 获取环境变量参数
    napi_value thisArg;
    if (napi_get_cb_info(env, info, nullptr, nullptr, &thisArg, nullptr) != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "NapiDrawPattern: napi_get_cb_info fail");
        return nullptr;
    }


    auto *pluginManger = PluginManager::GetInstance();
    // 调用绘制方法
    pluginManger->eglcore_->Draw(hasDraw_);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "PluginManager", "render->eglCore_->Draw() executed");

    return nullptr;
}

  4. 初始化环境，包括初始化可用的EGLDisplay、确定可用的surface配置、创建渲染区域surface、创建并关联上下文等。

    void EGLCore::UpdateSize(int width, int height) {
    // width_和height_在头文件中定义
    width_ = width;
    height_ = height;
    if (width_ > 0) {
        widthPercent_ = FIFTY_PERCENT * height_ / width_;
    }
}


bool EGLCore::EglContextInit(void *window, int width, int height) {
    // ...
    UpdateSize(width, height);
    eglWindow_ = static_cast<EGLNativeWindowType>(window);


    // 初始化display
    eglDisplay_ = eglGetDisplay(EGL_DEFAULT_DISPLAY);
    if (eglDisplay_ == EGL_NO_DISPLAY) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglGetDisplay: unable to get EGL display");
        return false;
    }


    // 初始化EGL
    EGLint majorVersion;
    EGLint minorVersion;
    if (!eglInitialize(eglDisplay_, &majorVersion, &minorVersion)) {
        OH_LOG_Print(
            LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglInitialize: unable to get initialize EGL display");
        return false;
    }


    // 选择配置
    const EGLint maxConfigSize = 1;
    EGLint numConfigs;
    if (!eglChooseConfig(eglDisplay_, ATTRIB_LIST, &eglConfig_, maxConfigSize, &numConfigs)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglChooseConfig: unable to choose configs");
        return false;
    }
    // 创建环境
    return CreateEnvironment();
    }
    bool EGLCore::CreateEnvironment() {
    // 创建surface
    if (eglWindow_ == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglWindow_ is null");
        return false;
    }
    eglSurface_ = eglCreateWindowSurface(eglDisplay_, eglConfig_, eglWindow_, NULL);
    if (eglSurface_ == nullptr) {
        OH_LOG_Print(
            LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglCreateWindowSurface: unable to create surface");
        return false;
    }


    // 创建context
    eglContext_ = eglCreateContext(eglDisplay_, eglConfig_, EGL_NO_CONTEXT, CONTEXT_ATTRIBS);
    if (!eglMakeCurrent(eglDisplay_, eglSurface_, eglSurface_, eglContext_)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglMakeCurrent failed");
        return false;
    }


    // 创建program
    program_ = CreateProgram(VERTEX_SHADER, FRAGMENT_SHADER);
    if (program_ == PROGRAM_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "CreateProgram: unable to create program");
        return false;
    }
    return true;
}


GLuint EGLCore::CreateProgram(const char* vertexShader, const char* fragShader) {
    if ((vertexShader == nullptr) || (fragShader == nullptr)) {
        OH_LOG_Print(
            LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram: vertexShader or fragShader is null");
        return PROGRAM_ERROR;
    }


    GLuint vertex = LoadShader(GL_VERTEX_SHADER, vertexShader);
    if (vertex == PROGRAM_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram vertex error");
        return PROGRAM_ERROR;
    }


    GLuint fragment = LoadShader(GL_FRAGMENT_SHADER, fragShader);
    if (fragment == PROGRAM_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram fragment error");
        return PROGRAM_ERROR;
    }


    GLuint program = glCreateProgram();
    if (program == PROGRAM_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram program error");
        glDeleteShader(vertex);
        glDeleteShader(fragment);
        return PROGRAM_ERROR;
    }


    // The gl function has no return value.
    glAttachShader(program, vertex);
    glAttachShader(program, fragment);
    glLinkProgram(program);


    GLint linked;
    glGetProgramiv(program, GL_LINK_STATUS, &linked);
    if (linked != 0) {
        glDeleteShader(vertex);
        glDeleteShader(fragment);
        return program;
    }


    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram linked error");
    GLint infoLen = 0;
    glGetProgramiv(program, GL_INFO_LOG_LENGTH, &infoLen);
    if (infoLen > 1) {
        char* infoLog = (char*)malloc(sizeof(char) * (infoLen + 1));
        memset(infoLog, 0, infoLen + 1);
        glGetProgramInfoLog(program, infoLen, nullptr, infoLog);
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glLinkProgram error = %s", infoLog);
        free(infoLog);
        infoLog = nullptr;
    }
    glDeleteShader(vertex);
    glDeleteShader(fragment);
    glDeleteProgram(program);
    return PROGRAM_ERROR;
}


GLuint EGLCore::LoadShader(GLenum type, const char* shaderSrc) {
    if ((type <= 0) || (shaderSrc == nullptr)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glCreateShader type or shaderSrc error");
        return PROGRAM_ERROR;
    }


    GLuint shader = glCreateShader(type);
    if (shader == 0) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glCreateShader unable to load shader");
        return PROGRAM_ERROR;
    }


    // The gl function has no return value.
    glShaderSource(shader, 1, &shaderSrc, nullptr);
    glCompileShader(shader);


    GLint compiled;
    glGetShaderiv(shader, GL_COMPILE_STATUS, &compiled);
    if (compiled != 0) {
        return shader;
    }


    GLint infoLen = 0;
    glGetShaderiv(shader, GL_INFO_LOG_LENGTH, &infoLen);
    if (infoLen <= 1) {
        glDeleteShader(shader);
        return PROGRAM_ERROR;
    }


    char *infoLog = (char*)malloc(sizeof(char) * (infoLen + 1));
    if (infoLog != nullptr) {
        memset(infoLog, 0, infoLen + 1);
        glGetShaderInfoLog(shader, infoLen, nullptr, infoLog);
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glCompileShader error = %s", infoLog);
        free(infoLog);
        infoLog = nullptr;
    }
    glDeleteShader(shader);
    return PROGRAM_ERROR;
}

  5. 渲染功能实现。

    (1) 绘制背景。

    // ...
// 绘制背景颜色 #f4f4f4
const GLfloat BACKGROUND_COLOR[] = { 244.0f / 255, 244.0f / 255, 244.0f / 255, 1.0f };


// 绘制图案颜色
const GLfloat DRAW_COLOR[] = {126.0f / 255, 143.0f / 255, 251.0f / 255, 1.0f};


// 绘制图案改变后的颜色
const GLfloat CHANGE_COLOR[] = {146.0f / 255, 214.0f / 255, 204.0f / 255, 1.0f};


// 绘制背景顶点
const GLfloat BACKGROUND_RECTANGLE_VERTICES[] = {
    -1.0f, 1.0f,
    1.0f, 1.0f,
    1.0f, -1.0f,
    -1.0f, -1.0f
};
// ...
    // 绘制背景颜色
void EGLCore::Background() {
    GLint position = PrepareDraw();
    if (position == POSITION_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Background get position failed");
        return;
    }


    if (!ExecuteDraw(position, BACKGROUND_COLOR, BACKGROUND_RECTANGLE_VERTICES,
                     sizeof(BACKGROUND_RECTANGLE_VERTICES))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Background execute draw failed");
        return;
    }


    if (!FinishDraw()) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Background FinishDraw failed");
        return;
    }
}


// 绘前准备，获取position，创建成功时position值从0开始
GLint EGLCore::PrepareDraw() {
    if ((eglDisplay_ == nullptr) || (eglSurface_ == nullptr) || (eglContext_ == nullptr) ||
        (!eglMakeCurrent(eglDisplay_, eglSurface_, eglSurface_, eglContext_))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "PrepareDraw: param error");
        return POSITION_ERROR;
    }


    // The gl function has no return value.
    glViewport(DEFAULT_X_POSITION, DEFAULT_Y_POSITION, width_, height_);
    glClearColor(GL_RED_DEFAULT, GL_GREEN_DEFAULT, GL_BLUE_DEFAULT, GL_ALPHA_DEFAULT);
    glClear(GL_COLOR_BUFFER_BIT);
    glUseProgram(program_);


    return glGetAttribLocation(program_, POSITION_NAME);
}


// 依据传入参数在指定区域绘制指定颜色
bool EGLCore::ExecuteDraw(GLint position, const GLfloat *color, const GLfloat shapeVertices[], unsigned long vertSize) {
    if ((position > 0) || (color == nullptr) || (vertSize / sizeof(shapeVertices[0])) != SHAPE_VERTICES_SIZE) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ExecuteDraw: param error");
        return false;
    }


    // The gl function has no return value.
    glVertexAttribPointer(position, POINTER_SIZE, GL_FLOAT, GL_FALSE, 0, shapeVertices);
    glEnableVertexAttribArray(position);
    glVertexAttrib4fv(1, color);
    glDrawArrays(GL_TRIANGLE_FAN, 0, TRIANGLE_FAN_SIZE);
    glDisableVertexAttribArray(position);


    return true;
}


// 结束绘制操作
bool EGLCore::FinishDraw() {
    // 强制刷新缓冲
    glFlush();
    glFinish();
    return eglSwapBuffers(eglDisplay_, eglSurface_);
}

    (2) 绘制图形。

    void EGLCore::Draw(int& hasDraw) {
    flag_ = false;
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "EGLCore", "Draw");
    GLint position = PrepareDraw();
    if (position == POSITION_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw get position failed");
        return;
    }


    // 绘制背景
    if (!ExecuteDraw(position, BACKGROUND_COLOR,
                    BACKGROUND_RECTANGLE_VERTICES, sizeof(BACKGROUND_RECTANGLE_VERTICES))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw background failed");
        return;
    }

    // 将五角星分为五个四边形，计算其中一个四边形的四个顶点
    GLfloat rotateX = 0;
    GLfloat rotateY = FIFTY_PERCENT * height_;
    GLfloat centerX = 0;
    GLfloat centerY = -rotateY * (M_PI / 180 * 54) * (M_PI / 180 * 18);
    GLfloat leftX = -rotateY * (M_PI / 180 * 18);
    GLfloat leftY = 0;
    GLfloat rightX = rotateY * (M_PI / 180 * 18);
    GLfloat rightY = 0;


    // 确定绘制四边形的顶点，使用绘制区域的百分比表示
    const GLfloat shapeVertices[] = {
        centerX / width_, centerY / height_,
        leftX / width_, leftY / height_,
        rotateX / width_, rotateY / height_,
        rightX / width_, rightY / height_
    };

    if (!ExecuteDrawStar(position, DRAW_COLOR, shapeVertices, sizeof(shapeVertices))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw star failed");
        return;
    }

    GLfloat rad = M_PI / 180 * 72;
    for (int i = 0; i < NUM_4; ++i) {
        // 旋转得其他四个四边形的顶点
        Rotate2d(centerX, centerY, &rotateX, &rotateY, rad);
        Rotate2d(centerX, centerY, &leftX, &leftY, rad);
        Rotate2d(centerX, centerY, &rightX, &rightY, rad);

        // 确定绘制四边形的顶点，使用绘制区域的百分比表示
        const GLfloat shapeVertices[] = {
                centerX / width_, centerY / height_,
                leftX / width_, leftY / height_,
                rotateX / width_, rotateY / height_,
                rightX / width_, rightY / height_
        };

        // 绘制图形
        if (!ExecuteDrawStar(position, DRAW_COLOR, shapeVertices, sizeof(shapeVertices))) {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw shape failed");
            return;
        }
    }


    // 结束绘制
    if (!FinishDraw()) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw FinishDraw failed");
        return;
    }
    hasDraw = 1;


    flag_ = true;
}

    (3) 改变颜色，重新画一个大小相同颜色不同的图形，与原图形替换，达到改变颜色的效果。

    void EGLCore::ChangeColor(int& hasChangeColor) {
    if (!flag_) {
        return;
    }
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor");
    GLint position = PrepareDraw();
    if (position == POSITION_ERROR) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor get position failed");
        return;
    }


    // 绘制背景
    if (!ExecuteDraw(position, BACKGROUND_COLOR,
                    BACKGROUND_RECTANGLE_VERTICES, sizeof(BACKGROUND_RECTANGLE_VERTICES))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor execute draw background failed");
        return;
    }


    // 确定绘制四边形的顶点，使用绘制区域的百分比表示
    GLfloat rotateX = 0;
    GLfloat rotateY = FIFTY_PERCENT * height_;
    GLfloat centerX = 0;
    GLfloat centerY = -rotateY * (M_PI / 180 * 54) * (M_PI / 180 * 18);
    GLfloat leftX = -rotateY * (M_PI / 180 * 18);
    GLfloat leftY = 0;
    GLfloat rightX = rotateY * (M_PI / 180 * 18);
    GLfloat rightY = 0;


    // 确定绘制四边形的顶点，使用绘制区域的百分比表示
    const GLfloat shapeVertices[] = {
        centerX / width_, centerY / height_,
        leftX / width_, leftY / height_,
        rotateX / width_, rotateY / height_,
        rightX / width_, rightY / height_
    };

    // 使用新的颜色绘制
    if (!ExecuteDrawNewStar(position, CHANGE_COLOR, shapeVertices, sizeof(shapeVertices))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw star failed");
        return;
    }


    GLfloat rad = M_PI / 180 * 72;
    for (int i = 0; i < NUM_4; ++i) {
        // 旋转得其他四个四边形的顶点
        Rotate2d(centerX, centerY, &rotateX, &rotateY, rad);
        Rotate2d(centerX, centerY, &leftX, &leftY, rad);
        Rotate2d(centerX, centerY, &rightX, &rightY, rad);

        // 确定绘制四边形的顶点，使用绘制区域的百分比表示
        const GLfloat shapeVertices[] = {
                centerX / width_, centerY / height_,
                leftX / width_, leftY / height_,
                rotateX / width_, rotateY / height_,
                rightX / width_, rightY / height_
        };


        // 使用新的颜色绘制
        if (!ExecuteDrawNewStar(position, CHANGE_COLOR, shapeVertices, sizeof(shapeVertices))) {
            OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw shape failed");
            return;
        }
    }


    // 结束绘制
    if (!FinishDraw()) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor FinishDraw failed");
    }
    hasChangeColor = 1;
}


bool EGLCore::ExecuteDrawNewStar(
   GLint position, const GLfloat* color, const GLfloat shapeVertices[], unsigned long vertSize) {
   if ((position > 0) || (color == nullptr) || (vertSize / sizeof(shapeVertices[0])) != SHAPE_VERTICES_SIZE) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ExecuteDraw: param error");
        return false;
    }


    // The gl function has no return value.
    glVertexAttribPointer(position, POINTER_SIZE, GL_FLOAT, GL_FALSE, 0, shapeVertices);
    glEnableVertexAttribArray(position);
    glVertexAttrib4fv(1, color);
    glDrawArrays(GL_TRIANGLE_FAN, 0, TRIANGLE_FAN_SIZE);
    glDisableVertexAttribArray(position);


   return true;
}

  6. 释放相关资源。

    (1) EGLCore类下创建Release()方法，释放初始化环境时申请的资源，包含窗口display、渲染区域surface、环境上下文context等。

    void EGLCore::Release() {
    // 释放surface
    if ((eglDisplay_ == nullptr) || (eglSurface_ == nullptr) || (!eglDestroySurface(eglDisplay_, eglSurface_))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Release eglDestroySurface failed");
    }
    // 释放context
    if ((eglDisplay_ == nullptr) || (eglContext_ == nullptr) || (!eglDestroyContext(eglDisplay_, eglContext_))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Release eglDestroyContext failed");
    }
    // 释放display
    if ((eglDisplay_ == nullptr) || (!eglTerminate(eglDisplay_))) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Release eglTerminate failed");
    }
}

  7. CMakeLists，使用CMake工具链将C++源代码编译成动态链接库文件。

    # 设置CMake最小版本
cmake_minimum_required(VERSION 3.4.1)
# 项目名称
project(XComponent)


set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})
add_definitions(-DOHOS_PLATFORM)
# 设置头文件搜索目录
include_directories(
    ${NATIVERENDER_ROOT_PATH}
    ${NATIVERENDER_ROOT_PATH}/include
)
# 添加名为nativerender的动态库，库文件名为libnativerender.so，添加cpp文件
add_library(nativerender SHARED
    render/egl_core.cpp
    render/plugin_render.cpp
    manager/plugin_manager.cpp
    napi_init.cpp
)


find_library(
    EGL-lib
    EGL
)


find_library(
    GLES-lib
    GLESv3
)


find_library(
    hilog-lib
    hilog_ndk.z
)


find_library(
    libace-lib
    ace_ndk.z
)


find_library(
    libnapi-lib
    ace_napi.z
)


find_library(
    libuv-lib
    uv
)
# 添加构建需要链接的库
target_link_libraries(nativerender PUBLIC
    ${EGL-lib} ${GLES-lib} ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib})

ArkTS XComponent场景

与Native XComponent不同，ArkTS XComponent通过在ArkTS侧获取SurfaceId，布局信息、生命周期回调、触摸、鼠标、按键等事件回调等均在ArkTS侧触发，按需传递到Native侧进行处理。主要开发场景如下：

  • 基于ArkTS侧获取的SurfaceId，在Native侧调用OH_NativeWindow_CreateNativeWindowFromSurfaceId接口创建出NativeWindow实例。
  • 利用NativeWindow和EGL接口开发自定义绘制内容以及申请和提交Buffer到图形队列。
  • ArkTS侧获取生命周期、事件等信息传递到Native侧处理。

说明

  1. Native侧的NativeWindow缓存在字典中，其key需要保证其唯一性，当对应的XComponent销毁后，需要及时从字典里将其删除。

  2. 对于使用typeNode创建的SURFACE或TEXTURE类型的XComponent组件，由于typeNode组件的生命周期与声明式组件存在差异，组件在创建后的缓冲区尺寸为未设置状态，因此在开始绘制内容之前，应调用OH_NativeWindow_NativeWindowHandleOpt接口进行缓冲区尺寸设置。

  3. 多个XComponent开发时，缓存Native侧资源需要保证key是唯一的，key推荐使用id+随机数或者surfaceId。

接口说明

ArkTS侧的XComponentController

接口名描述
getXComponentSurfaceId(): string获取XComponent对应Surface的ID。
onSurfaceCreated(surfaceId: string): void当XComponent持有的Surface创建后进行该回调。
onSurfaceChanged(surfaceId: string, rect: SurfaceRect): void当XComponent持有的Surface大小改变后（包括首次创建时的大小改变）进行该回调。
onSurfaceDestroyed(surfaceId: string): void当XComponent持有的Surface销毁后进行该回调。

Native侧

接口名描述
int32_t OH_NativeWindow_CreateNativeWindowFromSurfaceId (uint64_t surfaceId, OHNativeWindow **window )通过surfaceId创建对应的OHNativeWindow。
void OH_NativeWindow_DestroyNativeWindow (OHNativeWindow* window)将OHNativeWindow对象的引用计数减1，当引用计数为0的时候，该OHNativeWindow对象会被析构掉。

开发步骤

以下步骤以SURFACE类型为例，描述了如何使用XComponent组件在ArkTS侧传入SurfaceId，在native侧创建NativeWindow实例，然后创建EGL/GLES环境，实现在主页面绘制图形，并可以改变图形的颜色。

  1. 在界面中定义XComponent。

    // 函数声明，在cpp/types/libnativerender/Index.d.ts中定义
type XComponentContextStatus = {
    hasDraw: boolean,
    hasChangeColor: boolean,
};
export const SetSurfaceId: (id: BigInt) => any;
export const ChangeSurface: (id: BigInt, w: number, h: number) =>any;
export const DrawPattern: (id: BigInt) => any;
export const GetXComponentStatus: (id: BigInt) => XComponentContextStatus
export const ChangeColor: (id: BigInt) => any;
export const DestroySurface: (id: BigInt) => any;
    import nativeRender from 'libnativerender.so';


// 重写XComponentController，设置生命周期回调
class MyXComponentController extends XComponentController {
    onSurfaceCreated(surfaceId: string): void {
        console.log(`onSurfaceCreated surfaceId: ${surfaceId}`)
        nativeRender.SetSurfaceId(BigInt(surfaceId));
    }


    onSurfaceChanged(surfaceId: string, rect: SurfaceRect): void {
        console.log(`onSurfaceChanged surfaceId: ${surfaceId}, rect: ${JSON.stringify(rect)}}`)
        // 在onSurfaceChanged中调用ChangeSurface绘制内容
        nativeRender.ChangeSurface(BigInt(surfaceId), rect.surfaceWidth, rect.surfaceHeight)
    }


    onSurfaceDestroyed(surfaceId: string): void {
        console.log(`onSurfaceDestroyed surfaceId: ${surfaceId}`)
        nativeRender.DestroySurface(BigInt(surfaceId))
    }
}


@Entry
@Component
struct Index {
    @State currentStatus: string = "index";
    xComponentController: XComponentController = new MyXComponentController();


    build() {
        Column() {
            //...
            //在xxx.ets 中定义 XComponent
            Column({ space: 10 }) {
                XComponent({
                    type: XComponentType.SURFACE,
                    controller: this.xComponentController
                })
            Text(this.currentStatus)
                .fontSize('24fp')
                .fontWeight(500)
            }
            .onClick(() => {
                let surfaceId = this.xComponentController.getXComponentSurfaceId()
                nativeRender.ChangeColor(BigInt(surfaceId))
                let hasChangeColor: boolean = false;
                if (nativeRender.GetXComponentStatus(BigInt(surfaceId))) {
                    hasChangeColor = nativeRender.GetXComponentStatus(BigInt(surfaceId)).hasChangeColor;
                }
                if (hasChangeColor) {
                    this.currentStatus = "change color";
                }
            })


            //...
            Row() {
                Button('Draw Star')
                    .fontSize('16fp')
                    .fontWeight(500)
                    .margin({ bottom: 24 })
                    .onClick(() => {
                        let surfaceId = this.xComponentController.getXComponentSurfaceId()
                        nativeRender.DrawPattern(BigInt(surfaceId))
                        let hasDraw: boolean = false;
                        if (nativeRender.GetXComponentStatus(BigInt(surfaceId))) {
                            hasDraw = nativeRender.GetXComponentStatus(BigInt(surfaceId)).hasDraw;
                        }
                        if (hasDraw) {
                            this.currentStatus = "draw star"
                        }
                    })
                    .width('53.6%')
                    .height(40)
            }
            .width('100%')
            .justifyContent(FlexAlign.Center)
            .alignItems(VerticalAlign.Bottom)
            .layoutWeight(1)
        }
        .width('100%')
        .height('100%')
    }
}

  2. Node-API模块注册。

    #include <hilog/log.h>
#include "common/common.h"
#include "manager/plugin_manager.h"
namespace NativeXComponentSample {
// 在napi_init.cpp文件中，Init方法注册接口函数，从而将封装的C++方法传递出来，供ArkTS侧调用
EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
    // ...
    // 向ArkTS侧暴露接口SetSurfaceId(),ChangeSurface(),DestroySurface(),
    // DrawPattern(),ChangeColor(),GetXComponentStatus()
    napi_property_descriptor desc[] = {
        {"SetSurfaceId", nullptr, PluginManager::SetSurfaceId, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"ChangeSurface", nullptr, PluginManager::ChangeSurface, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"DestroySurface", nullptr, PluginManager::DestroySurface, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"DrawPattern", nullptr, PluginManager::DrawPattern, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"ChangeColor", nullptr, PluginManager::ChangeColor, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"GetXComponentStatus", nullptr, PluginManager::GetXComponentStatus, nullptr, nullptr, nullptr, napi_default,
         nullptr}};
    if (napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc) != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "Init", "napi_define_properties failed");
        return nullptr;
    }
    return exports;
}
EXTERN_C_END
// 编写接口的描述信息，根据实际需要可以修改对应参数
static napi_module nativerenderModule = {.nm_version = 1,
                                         .nm_flags = 0,
                                         .nm_filename = nullptr,
                                         // 入口函数
                                         .nm_register_func = Init,
                                         // 模块名称
                                         .nm_modname = "nativerender",
                                         .nm_priv = ((void *)0),
                                         .reserved = {0}};
} // namespace NativeXComponentSample
// __attribute__((constructor))修饰的方法由系统自动调用，使用Node-API接口napi_module_register()传入模块描述信息进行模块注册
extern "C" __attribute__((constructor)) void RegisterModule(void) {
    napi_module_register(&NativeXComponentSample::nativerenderModule);
}

  3. 上述注册的六个函数在native侧具体实现。

    // PluginManager类定义
class PluginManager {
public:
    ~PluginManager();
    static PluginRender *GetPluginRender(int64_t &id);
    static napi_value ChangeColor(napi_env env, napi_callback_info info);
    static napi_value DrawPattern(napi_env env, napi_callback_info info);
    static napi_value SetSurfaceId(napi_env env, napi_callback_info info);
    static napi_value ChangeSurface(napi_env env, napi_callback_info info);
    static napi_value DestroySurface(napi_env env, napi_callback_info info);
    static napi_value GetXComponentStatus(napi_env env, napi_callback_info info);


public:
    static std::unordered_map<int64_t, PluginRender *> pluginRenderMap_;
    static std::unordered_map<int64_t, OHNativeWindow *> windowMap_;
};


// 解析从ArkTS侧传入的surfaceId，此处surfaceId是一个64位int值
int64_t ParseId(napi_env env, napi_callback_info info) {
    if ((env == nullptr) || (info == nullptr)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ParseId", "env or info is null");
        return -1;
    }
    size_t argc = 1;
    napi_value args[1] = {nullptr};
    if (napi_ok != napi_get_cb_info(env, info, &argc, args, nullptr, nullptr)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ParseId", "GetContext napi_get_cb_info failed");
        return -1;
    }
    int64_t value = 0;
    bool lossless = true;
    if (napi_ok != napi_get_value_bigint_int64(env, args[0], &value, &lossless)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ParseId", "Get value failed");
        return -1;
    }
    return value;
}


// 设置SurfaceId，基于SurfaceId完成对NativeWindow的初始化
napi_value PluginManager::SetSurfaceId(napi_env env, napi_callback_info info) {
    int64_t surfaceId = ParseId(env, info);
    OHNativeWindow *nativeWindow;
    PluginRender *pluginRender;
    if (windowMap_.find(surfaceId) == windowMap_.end()) {
        OH_NativeWindow_CreateNativeWindowFromSurfaceId(surfaceId, &nativeWindow);
        windowMap_[surfaceId] = nativeWindow;
    }
    if (pluginRenderMap_.find(surfaceId) == pluginRenderMap_.end()) {
        pluginRender = new PluginRender(surfaceId);
        pluginRenderMap_[surfaceId] = pluginRender;
    }
    pluginRender->InitNativeWindow(nativeWindow);
    return nullptr;
}


void PluginRender::InitNativeWindow(OHNativeWindow *window) {
    eglCore_->EglContextInit(window); // 参考Native XComponent场景 EglContextInit的实现
}


// 根据传入的surfaceId、width、height实现surface大小的变动
napi_value PluginManager::ChangeSurface(napi_env env, napi_callback_info info) {
    if ((env == nullptr) || (info == nullptr)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "ChangeSurface: OnLoad env or info is null");
        return nullptr;
    }
    int64_t surfaceId = 0;
    size_t argc = 3;
    napi_value args[3] = {nullptr};


    if (napi_ok != napi_get_cb_info(env, info, &argc, args, nullptr, nullptr)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "ChangeSurface: GetContext napi_get_cb_info failed");
        return nullptr;
    }
    bool lossless = true;
    int index = 0;
    if (napi_ok != napi_get_value_bigint_int64(env, args[index++], &surfaceId, &lossless)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get value failed");
        return nullptr;
    }
    double width;
    if (napi_ok != napi_get_value_double(env, args[index++], &width)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get width failed");
        return nullptr;
    }
    double height;
    if (napi_ok != napi_get_value_double(env, args[index++], &height)) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get height failed");
        return nullptr;
    }
    auto pluginRender = GetPluginRender(surfaceId);
    if (pluginRender == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get pluginRender failed");
        return nullptr;
    }
    pluginRender->UpdateNativeWindowSize(width, height);
    return nullptr;
}


void PluginRender::UpdateNativeWindowSize(int width, int height) {
    eglCore_->UpdateSize(width, height); // 参考Native XComponent场景 UpdateSize的实现
    if (!hasChangeColor_ && !hasDraw_) {
        eglCore_->Background(); // 参考Native XComponent场景 Background的实现
    }
}


// 销毁surface
napi_value PluginManager::DestroySurface(napi_env env, napi_callback_info info) {
    int64_t surfaceId = ParseId(env, info);
    auto pluginRenderMapIter = pluginRenderMap_.find(surfaceId);
    if (pluginRenderMapIter != pluginRenderMap_.end()) {
        delete pluginRenderMapIter->second;
        pluginRenderMap_.erase(pluginRenderMapIter);
    }
    auto windowMapIter = windowMap_.find(surfaceId);
    if (windowMapIter != windowMap_.end()) {
        OH_NativeWindow_DestroyNativeWindow(windowMapIter->second);
        windowMap_.erase(windowMapIter);
    }
    return nullptr;
}


// 实现EGL绘画逻辑
napi_value PluginManager::DrawPattern(napi_env env, napi_callback_info info) {
    int64_t surfaceId = ParseId(env, info);
    auto pluginRender = GetPluginRender(surfaceId);
    if (pluginRender == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "DrawPattern: Get pluginRender failed");
        return nullptr;
    }
    pluginRender->DrawPattern();
    return nullptr;
}


PluginRender *PluginManager::GetPluginRender(int64_t &id) {
    if (pluginRenderMap_.find(id) != pluginRenderMap_.end()) {
        return pluginRenderMap_[id];
    }
    return nullptr;
}


void PluginRender::DrawPattern() {
    eglCore_->Draw(hasDraw_); // 参考Native XComponent场景 Draw实现
}


// 实现改变绘制图形颜色的功能
napi_value PluginManager::ChangeColor(napi_env env, napi_callback_info info) {
    int64_t surfaceId = ParseId(env, info);
    auto pluginRender = GetPluginRender(surfaceId);
    if (pluginRender == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeColor: Get pluginRender failed");
        return nullptr;
    }
    pluginRender->ChangeColor(); // 参考Native XComponent场景 ChangeColor实现
    return nullptr;
}


void PluginRender::ChangeColor() { eglCore_->ChangeColor(hasChangeColor_); }


// 获得xcomponent状态，并返回至ArkTS侧
napi_value PluginManager::GetXComponentStatus(napi_env env, napi_callback_info info) {
    int64_t surfaceId = ParseId(env, info);
    auto pluginRender = GetPluginRender(surfaceId);
    if (pluginRender == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "GetXComponentStatus: Get pluginRender failed");
        return nullptr;
    }
    napi_value hasDraw;
    napi_value hasChangeColor;
    napi_status ret = napi_create_int32(env, pluginRender->HasDraw(), &(hasDraw));
    if (ret != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "GetXComponentStatus: napi_create_int32 hasDraw_ error");
        return nullptr;
    }
    ret = napi_create_int32(env, pluginRender->HasChangedColor(), &(hasChangeColor));
    if (ret != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "GetXComponentStatus: napi_create_int32 hasChangeColor_ error");
        return nullptr;
    }
    napi_value obj;
    ret = napi_create_object(env, &obj);
    if (ret != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "GetXComponentStatus: napi_create_object error");
        return nullptr;
    }
    ret = napi_set_named_property(env, obj, "hasDraw", hasDraw);
    if (ret != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "GetXComponentStatus: napi_set_named_property hasDraw error");
        return nullptr;
    }
    ret = napi_set_named_property(env, obj, "hasChangeColor", hasChangeColor);
    if (ret != napi_ok) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager",
                     "GetXComponentStatus: napi_set_named_property hasChangeColor error");
        return nullptr;
    }
    return obj;
}


int32_t PluginRender::HasDraw() { return hasDraw_; }


int32_t PluginRender::HasChangedColor() { return hasChangeColor_; }

  4. 配置具体的CMakeLists，使用CMake工具链将C++源代码编译成动态链接库文件。

    # 设置CMake最小版本.
cmake_minimum_required(VERSION 3.4.1)
# 项目名称
project(XComponent)


set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})
add_definitions(-DOHOS_PLATFORM)
# 设置头文件搜索目录
include_directories(
    ${NATIVERENDER_ROOT_PATH}
    ${NATIVERENDER_ROOT_PATH}/include
)
# 添加名为nativerender的动态库，库文件名为libnativerender.so，添加cpp文件
add_library(nativerender SHARED
    render/egl_core.cpp
    render/plugin_render.cpp
    manager/plugin_manager.cpp
    napi_init.cpp
)


find_library(
    # Sets the name of the path variable.
    EGL-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    EGL
)


find_library(
    # Sets the name of the path variable.
    GLES-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    GLESv3
)


find_library(
    # Sets the name of the path variable.
    hilog-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    hilog_ndk.z
)


find_library(
    # Sets the name of the path variable.
    libace-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    ace_ndk.z
)


find_library(
    # Sets the name of the path variable.
    libnapi-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    ace_napi.z
)


find_library(
    # Sets the name of the path variable.
    libuv-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    uv
)
# 添加构建需要链接的库
target_link_libraries(nativerender PUBLIC
    ${EGL-lib} ${GLES-lib} ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib} libnative_window.so)

生命周期说明

开发者在ArkTS侧使用如下代码即可用XComponent组件进行利用EGL/OpenGLES渲染的开发。

@Builder
function myComponent() {
  XComponent({ id: 'xcomponentId1', type: XComponentType.SURFACE, libraryname: 'nativerender' })
    .onLoad((context) => {})
    .onDestroy(() => {})
}

onLoad事件

使用场景：当需要用到native侧注册的方法，可以考虑调用。

触发时刻：XComponent准备好surface后触发。

参数context：其上面挂载了暴露在模块上的Native方法，使用方法类似于利用 import context from "libnativerender.so" 直接加载模块后获得的context实例。

时序：

​ Native XComponent场景：

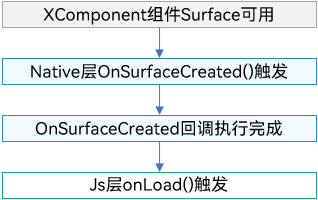

​ onLoad事件的触发和surface相关，其和Native侧的OnSurfaceCreated的时序如下图：

​ ArkTS XComponent场景：

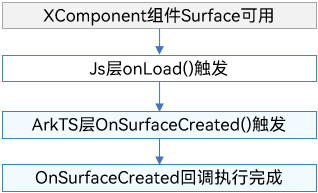

​ onLoad事件的触发和surface相关，其和ArkTS侧的OnSurfaceCreated的时序如下图：

onDestroy事件

触发时刻：XComponent组件被销毁时触发，与一般ArkUI的组件销毁时机一致。

使用场景：和onLoad事件对应，如果在onLoad申请了内存，可以在这里进行释放。

时序：

​ Native XComponent场景：

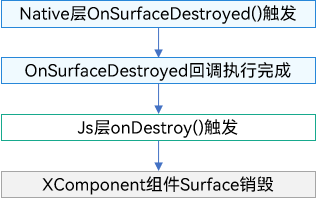

​ onDestroy事件的触发和surface相关，其和Native侧的OnSurfaceDestroyed的时序如下图：

​ ArkTS XComponent场景：

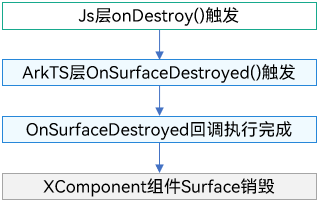

​ onDestroy事件的触发和surface相关，其和ArkTS侧的OnSurfaceDestroyed的时序如下图：

​

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
