两跨连续梁影响线绘制(二)

一、题目描述：

1.用户输入L1和L2的值，求D点弯矩影响线；

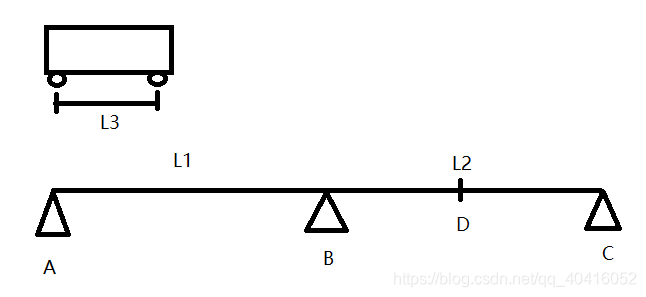

2.车辆在此连续梁上前后任意移动，求出车辆对D点产生的弯矩最大效应系数。

二、 效果

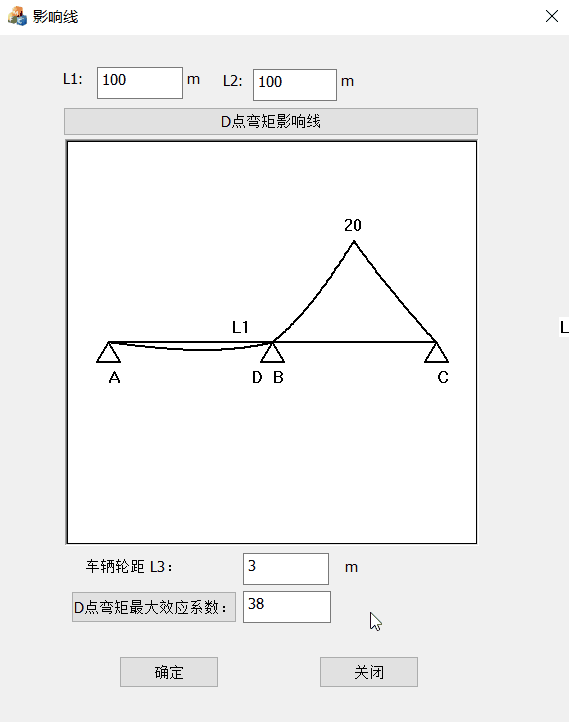

MFC：

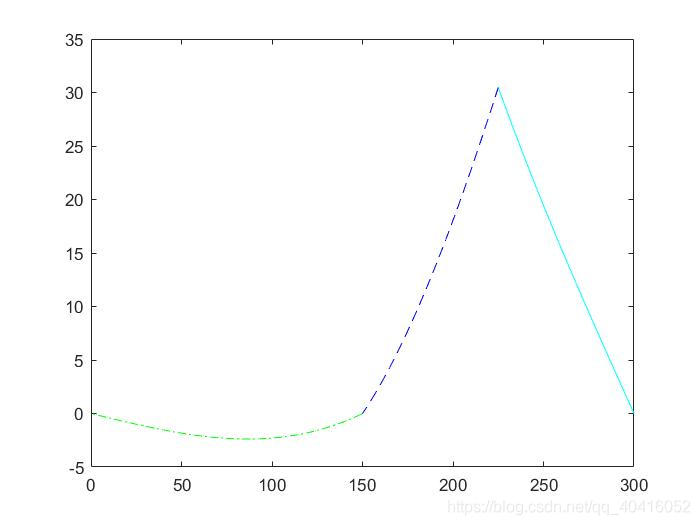

matlab:



 三、主要代码

CCalculation.p

#include "stdafx.h"
#include "CCalculation.h"
#include <math.h>

CCalculation::CCalculation(void)
{
}


CCalculation::CCalculation(const double l1,const double l2)
	:m_dL1(l1),m_dL2(l2)
{

}

CCalculation::CCalculation(const double l1,const double l2,const double l3)
	:m_dL1(l1),m_dL2(l2),m_dL3(l3)
{

}

CCalculation::~CCalculation(void)
{
}


void CCalculation::Initlize(void)
{
	m_dL1 = 100;
	m_dL2 = 100;
	m_dL3 = 3;
}

double CCalculation::GetInfluenceY(const double x) const
{
	double dL1=GetSpanL1();
	double dL2=GetSpanL2();
	double dL=GetLength();
	double dResult = 0;
	assert(x>=0);
	//单位力Fp从右向左移动
	if (x>=0 && x<=dL2/2.0) //第二跨(右)
	{
		dResult = ((pow(x,3)+x*pow(dL2,2))/dL2+2.0*dL1*x)/(4.0*(dL1+dL2));
		return dResult;
	}
	else if(x>dL2/2.0 && x<=dL2) //第二跨(左)
	{
		dResult = (pow(dL2-x,2)*(x+2*dL2)/dL2+2.0*dL1*(dL2-x))/(4.0*(dL1+dL2));
		return dResult;
	}
	else //if(x>dL2 && x<=dL)//第一跨
	{
		//使用力法计算拐点弯矩M1和M2
		double dDelta1=(2.0*dL1+dL2)/6.0;
		double dY1=(dL1+dL2-x)/dL1;
		double dY2=(dL1+dL2-x)*(x-dL2)/dL1;
		double dP=(dL1+dL2-x)*dY2*dY1/3.0+(x-dL2)*dY2*(2.0*dY1/3.0+1.0/3.0)/2.0;
		double dM1=-dP/dDelta1;
		double dM2=dY1*dM1+dY2;
		//计算影响线
		double a=2.0*(dL1+dL2-x)/dL1;
		double dDelta2=4.0*(dL1+dL2)/3.0;
		double dP1 = (dL1+dL2-x)*dM2*a/3.0;
		double dP2 = (x-dL2)*(2.0*dM2*a+4.0*dM1+2.0*dM2+dM1*a)/6.0;
		double dP3 = 5.0*dM1/12.0;
		double dp = dP1 + dP2 + dP3;
		dResult = -dp/dDelta2;
		return dResult;
	}

}

//计算效应系数
double CCalculation::GetEffectCoeffient() const
{
	double dInfluenceLineMaxY = 0;
	double dAllLength = GetLength();
	double dLength1 = GetSpanL1();
	double dLength2 = GetSpanL2();
	double dLength3 = GetSpanL3();

	double dTempY = 0;
	CPoint MaxPoint(0,0);
	//找到最大效用系数
	for (int i = 0;i <= dAllLength; i++)  //车辆从右向左运行
	{
		dTempY = GetInfluenceY(i);
		if (abs(dTempY) > abs(dInfluenceLineMaxY))
		{
			dInfluenceLineMaxY = dTempY;
			MaxPoint.x = i;
			MaxPoint.y = (int)dInfluenceLineMaxY;
		}
	}

	CPoint MaxPoint2(0,0);
	if (MaxPoint.x < dLength2) //若最大点在BC跨
	{
		MaxPoint2.x = MaxPoint.x + (int)dLength3;
		MaxPoint2.y = (int)GetInfluenceY(MaxPoint2.x);
	}
	else //若最大点在AB跨
	{
		MaxPoint2.x = MaxPoint.x - (int)dLength3;
		MaxPoint2.y = (int)GetInfluenceY(MaxPoint2.x);
	}
	return abs(MaxPoint.y + MaxPoint2.y);
}

double CCalculation::GetSpanL1() const
{
	return m_dL1;
}

double CCalculation::GetSpanL2() const
{
	return m_dL2;
}

double CCalculation::GetSpanL3() const
{
	return m_dL3;
}

double CCalculation::GetLength() const
{
	return m_dL1+m_dL2;
}

CDrawLine.cpp

#include "stdafx.h"
#include "CDrawLine.h"

#include "resource.h"
#include "CCalculation.h"
#include "InfluenceLineDlg.h"

CDrawLine::CDrawLine(void)
{

}

CDrawLine::~CDrawLine(void)
{
}

void CDrawLine::DrawInfulenceLine(CWnd *pWnd,double dLength1,double dLength2) const
{
	CRect rect;
	pWnd->GetClientRect(&rect);
	CDC *pDC = pWnd->GetDC();
	pWnd->Invalidate();
	pWnd->UpdateWindow();


	//将背景颜色为白色
	CBrush newBrush;
	CBrush *pOldBrush;
	newBrush.CreateSolidBrush(RGB(255,255,255));
	pOldBrush = pDC->SelectObject(&newBrush);
	pDC->Rectangle(rect);
	pDC->SelectObject(pOldBrush);
	newBrush.DeleteObject();

	//创建黑色画笔
	CPen newPen;
	CPen *pOldPen;
	newPen.CreatePen(PS_SOLID, 2, RGB(0,0,0));
	pOldPen = pDC->SelectObject(&newPen);

	CCalculation Cal(dLength1,dLength2);
	double dL = Cal.GetLength();
	double dL1 = Cal.GetSpanL1();
	double dL2 = Cal.GetSpanL2();

	int nWidth = rect.Width();
	int nHeight = rect.Height();

	//绘制横轴
	CPoint StartPt(nWidth/10,nHeight/2);
	CPoint EndPt(9*nWidth/10,nHeight/2);
	pDC->MoveTo(StartPt);
	pDC->LineTo(EndPt);

	//绘制三角形支座
	CPoint Pt1[4];
	Pt1[0] = StartPt;
	Pt1[1] = CPoint(StartPt.x-12, StartPt.y+20);
	Pt1[2] = CPoint(StartPt.x+12, StartPt.y+20);
	Pt1[3] = StartPt;
	pDC->Polyline(Pt1, 4);

	CPoint MiddlePt(nWidth/10+(int)(dL1*(8*nWidth/10)/dL), nHeight/2);
	CPoint Pt2[4];
	Pt2[0] = MiddlePt;
	Pt2[1] = CPoint(MiddlePt.x-12, MiddlePt.y+20);
	Pt2[2] = CPoint(MiddlePt.x+12,  MiddlePt.y+20);
	Pt2[3] = MiddlePt;
	pDC->Polyline(Pt2, 4);

	CPoint Pt3[4];
	Pt3[0] = EndPt;
	Pt3[1] = CPoint(EndPt.x-12, EndPt.y+20);
	Pt3[2] = CPoint(EndPt.x+12, EndPt.y+20);
	Pt3[3] = EndPt;
	pDC->Polyline(Pt3, 4);

	//在图中输出支座编号A、B、C
	pDC->TextOut(StartPt.x,StartPt.y+25,_T("A"));
	pDC->TextOut(MiddlePt.x,MiddlePt.y+25,_T("B"));
	pDC->TextOut(EndPt.x,EndPt.y+25,_T("C"));
	pDC->TextOut((MiddlePt.x+EndPt.x-MiddlePt.x)/2,MiddlePt.y+25,_T("D"));
	//在图中输出跨度编号L1、L2
	pDC->TextOut(StartPt.x+(MiddlePt.x+StartPt.x)/2,StartPt.y-25,_T("L1"));
	pDC->TextOut(MiddlePt.x+(EndPt.x+MiddlePt.x)/2,StartPt.y-25,_T("L2"));

	//绘制影响线
	int nX=0;
	int nY=0;
	int nTemp = 0;
	double dResultY = 0;
	CPoint CoorMaxDraw(0,nHeight/2);  //记录BC跨影响线最大值的图形坐标点
	CPoint CoorMaxReal(0,0);          //记录BC跨影响线最大值的计算真实值
	/*CPoint CoorMinDraw(0,nHeight/2);  //记录AB跨影响线最大值的图形坐标点
	CPoint CoorMinReal(0,0);          //记录AB跨影响线最大值的计算真实值*/
	for (int i = 0;i <=(int)dL; i++)
	{
		nTemp = (int)dL - i;
		nX=nWidth/10+(nTemp*8*nWidth/10)/(int)dL;
		dResultY = Cal.GetInfluenceY(i);
		nY=(int)((double)nHeight/2 - dResultY*5.0);
		pDC->LineTo(nX,nY);
		//记录BC跨影响线最大点
		int nTempY = -(nY-nHeight/2);
		int nTempDrawMaxY = -(CoorMaxDraw.y -nHeight/2);
		if (nTempY >= nTempDrawMaxY)
		{
			CoorMaxDraw.x = nX;
			CoorMaxDraw.y = nY;
			CoorMaxReal.x = i;
			CoorMaxReal.y = (int)dResultY;
		}
		//记录AB跨影响线最大点
		/*int nTempDrawMinY = -(CoorMinDraw.y -nHeight/2);
		if (nTempY < nTempDrawMinY)
		{
			CoorMinDraw.x = nX;
			CoorMinDraw.y = nY;
			CoorMinReal.x = i;
			CoorMinReal.y = (int)dResultY;
		}*/
	}

	//输出BC跨最大弯矩影响系数
	CString strY2=_T("");
	strY2.Format(_T("%d"),CoorMaxReal.y);
	pDC->TextOut(CoorMaxDraw.x-10,CoorMaxDraw.y-25,strY2);

	//输出AB跨最大弯矩影响系数
	/*CString strY1=_T("");
	strY1.Format(_T("%d"),abs(CoorMinReal.y));
	pDC->TextOut(CoorMinDraw.x-15,CoorMinDraw.y+5,strY1);*/

	pDC->SelectObject(pOldPen);
	newPen.DeleteObject();
}

InfluenceLineDlg.cpp

// InfluenceLineDlg.cpp : 实现文件
//

#include "stdafx.h"
#include "InfluenceLine.h"
#include "InfluenceLineDlg.h"
#include "afxdialogex.h"
#include "CCalculation.h"
#include "CDrawLine.h"

#ifdef _DEBUG
#define new DEBUG_NEW
#endif


// 用于应用程序“关于”菜单项的 CAboutDlg 对话框

class CAboutDlg : public CDialogEx
{
public:
	CAboutDlg();

// 对话框数据
	enum { IDD = IDD_ABOUTBOX };

	protected:
	virtual void DoDataExchange(CDataExchange* pDX);    // DDX/DDV 支持

// 实现
protected:
	DECLARE_MESSAGE_MAP()
};

CAboutDlg::CAboutDlg() : CDialogEx(CAboutDlg::IDD)
{
}

void CAboutDlg::DoDataExchange(CDataExchange* pDX)
{
	CDialogEx::DoDataExchange(pDX);
}

BEGIN_MESSAGE_MAP(CAboutDlg, CDialogEx)
END_MESSAGE_MAP()


// CInfluenceLineDlg 对话框



CInfluenceLineDlg::CInfluenceLineDlg(CWnd* pParent /*=NULL*/)
	: CDialogEx(CInfluenceLineDlg::IDD, pParent)
	, m_dLength3(0)
	, m_dEffCoeff(0)
{
	m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
	CCalculation calInit;
	calInit.Initlize();

	m_dLength1 = calInit.GetSpanL1();
	m_dLength2 = calInit.GetSpanL2();
	m_dLength3 = calInit.GetSpanL3();
	m_dEffCoeff = calInit.GetEffectCoeffient();
}

void CInfluenceLineDlg::DoDataExchange(CDataExchange* pDX)
{
	CDialogEx::DoDataExchange(pDX);
	DDX_Text(pDX, IDC_EDIT1, m_dLength1);
	DDX_Text(pDX, IDC_EDIT2, m_dLength2);
	DDX_Control(pDX, IDC_INFLUENCELINE_DRAW, m_picDraw);
	DDX_Text(pDX, IDC_EDIT4, m_dLength3);
	DDX_Text(pDX, IDC_EDIT_COEFFICIENT, m_dEffCoeff);
}

BEGIN_MESSAGE_MAP(CInfluenceLineDlg, CDialogEx)
	ON_WM_SYSCOMMAND()
	ON_WM_PAINT()
	ON_WM_QUERYDRAGICON()
	ON_BN_CLICKED(IDC_BUTTON_INFLUENCELINE, &CInfluenceLineDlg::OnBnClickedButtonInfluenceline)
	ON_BN_CLICKED(IDC_BUTTON_EFFECT_COEFFIENT, &CInfluenceLineDlg::OnBnClickedButtonEffectCoeffient)
END_MESSAGE_MAP()


// CInfluenceLineDlg 消息处理程序

BOOL CInfluenceLineDlg::OnInitDialog()
{
	CDialogEx::OnInitDialog();


	// 将“关于...”菜单项添加到系统菜单中。

	// IDM_ABOUTBOX 必须在系统命令范围内。
	ASSERT((IDM_ABOUTBOX & 0xFFF0) == IDM_ABOUTBOX);
	ASSERT(IDM_ABOUTBOX < 0xF000);

	CMenu* pSysMenu = GetSystemMenu(FALSE);
	if (pSysMenu != NULL)
	{
		BOOL bNameValid;
		CString strAboutMenu;
		bNameValid = strAboutMenu.LoadString(IDS_ABOUTBOX);
		ASSERT(bNameValid);
		if (!strAboutMenu.IsEmpty())
		{
			pSysMenu->AppendMenu(MF_SEPARATOR);
			pSysMenu->AppendMenu(MF_STRING, IDM_ABOUTBOX, strAboutMenu);
		}
	}

	// 设置此对话框的图标。当应用程序主窗口不是对话框时，框架将自动
	//  执行此操作
	SetIcon(m_hIcon, TRUE);			// 设置大图标
	SetIcon(m_hIcon, FALSE);		// 设置小图标

	// TODO: 在此添加额外的初始化代码


	return TRUE;  // 除非将焦点设置到控件，否则返回 TRUE
}

void CInfluenceLineDlg::OnSysCommand(UINT nID, LPARAM lParam)
{
	if ((nID & 0xFFF0) == IDM_ABOUTBOX)
	{
		CAboutDlg dlgAbout;
		dlgAbout.DoModal();
	}
	else
	{
		CDialogEx::OnSysCommand(nID, lParam);
	}
}

// 如果向对话框添加最小化按钮，则需要下面的代码
//  来绘制该图标。对于使用文档/视图模型的 MFC 应用程序，
//  这将由框架自动完成。

void CInfluenceLineDlg::OnPaint()
{
	if (IsIconic())
	{
		CPaintDC dc(this); // 用于绘制的设备上下文

		SendMessage(WM_ICONERASEBKGND, reinterpret_cast<WPARAM>(dc.GetSafeHdc()), 0);

		// 使图标在工作区矩形中居中
		int cxIcon = GetSystemMetrics(SM_CXICON);
		int cyIcon = GetSystemMetrics(SM_CYICON);
		CRect rect;
		GetClientRect(&rect);
		int x = (rect.Width() - cxIcon + 1) / 2;
		int y = (rect.Height() - cyIcon + 1) / 2;

		// 绘制图标
		dc.DrawIcon(x, y, m_hIcon);

	}
	else
	{
		CDialogEx::OnPaint();
		//初始化影响线
		CWnd *pWnd = GetDlgItem(IDC_INFLUENCELINE_DRAW);

		CDrawLine Draw;
		Draw.DrawInfulenceLine(pWnd,m_dLength1,m_dLength2);
	}
}

//当用户拖动最小化窗口时系统调用此函数取得光标
//显示。
HCURSOR CInfluenceLineDlg::OnQueryDragIcon()
{
	return static_cast<HCURSOR>(m_hIcon);
}


//绘制影响线按钮
void CInfluenceLineDlg::OnBnClickedButtonInfluenceline()
{
	// TODO: 在此添加控件通知处理程序代码
	UpdateData(TRUE);

	if (m_dLength1<30 || m_dLength1>160 || m_dLength2<30 || m_dLength2>160)
	{
		 AfxMessageBox(_T("连续梁适用跨度为30~160m!"));
		 return;
	}

	//绘制影响线
	CWnd *pWnd = GetDlgItem(IDC_INFLUENCELINE_DRAW);

	CDrawLine Draw;
	Draw.DrawInfulenceLine(pWnd,m_dLength1,m_dLength2);
}

//计算效应系数按钮
void CInfluenceLineDlg::OnBnClickedButtonEffectCoeffient()
{
	// TODO: 在此添加控件通知处理程序代码
	UpdateData(TRUE);
	if (m_dLength3<2 || m_dLength3>10 )
	{
		AfxMessageBox(_T("车辆前后轮间距应为2~10m!"));
		return;
	}
	CCalculation calEfCo(m_dLength1,m_dLength2,m_dLength3);
	m_dEffCoeff = calEfCo.GetEffectCoeffient();
	UpdateData(FALSE);
}

四、项目完整代码实现

 链接：https://pan.baidu.com/s/19M8uqqfaS8c9JCDG9Tn3Vg
提取码：v52z

五、附录

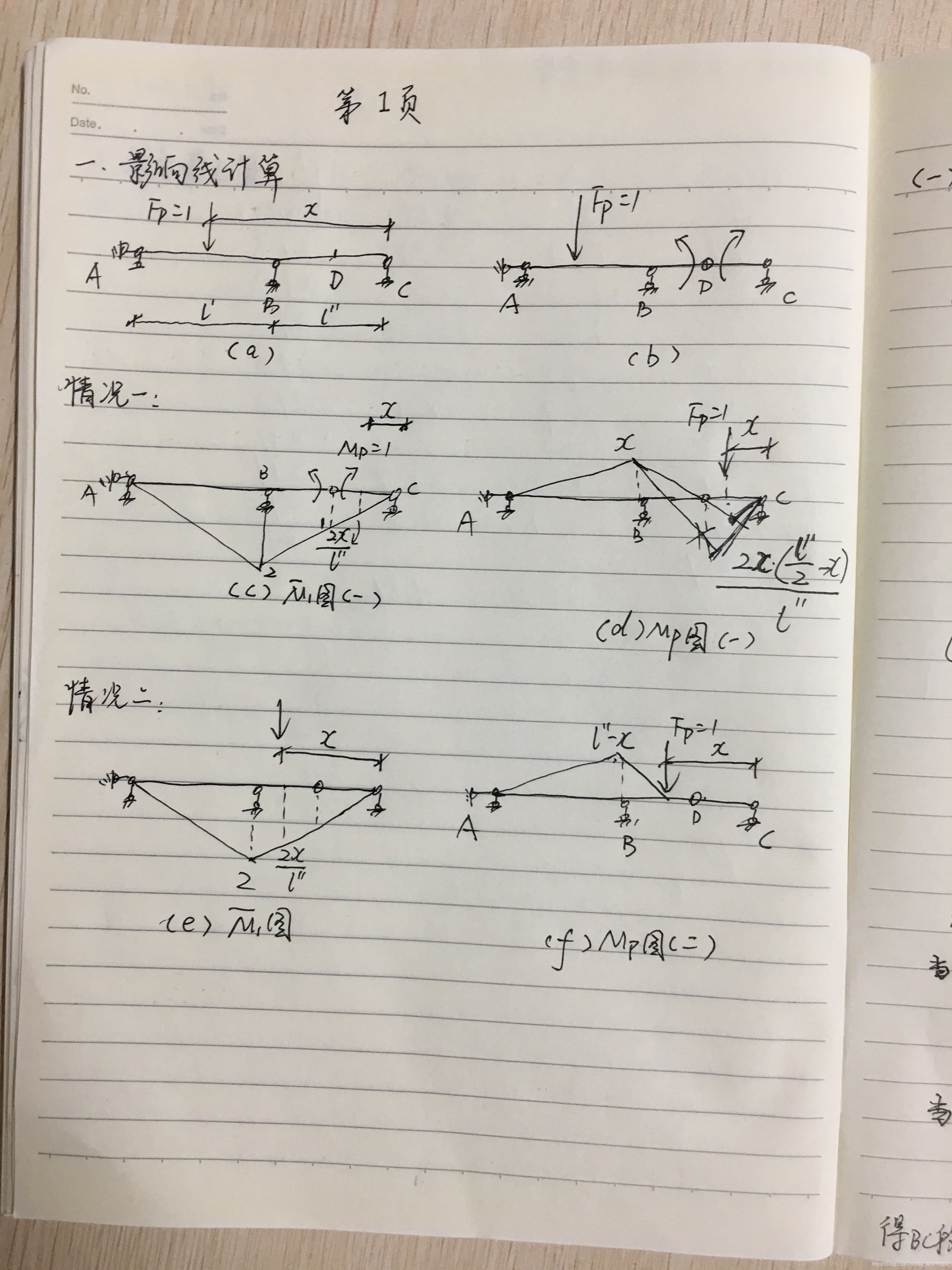

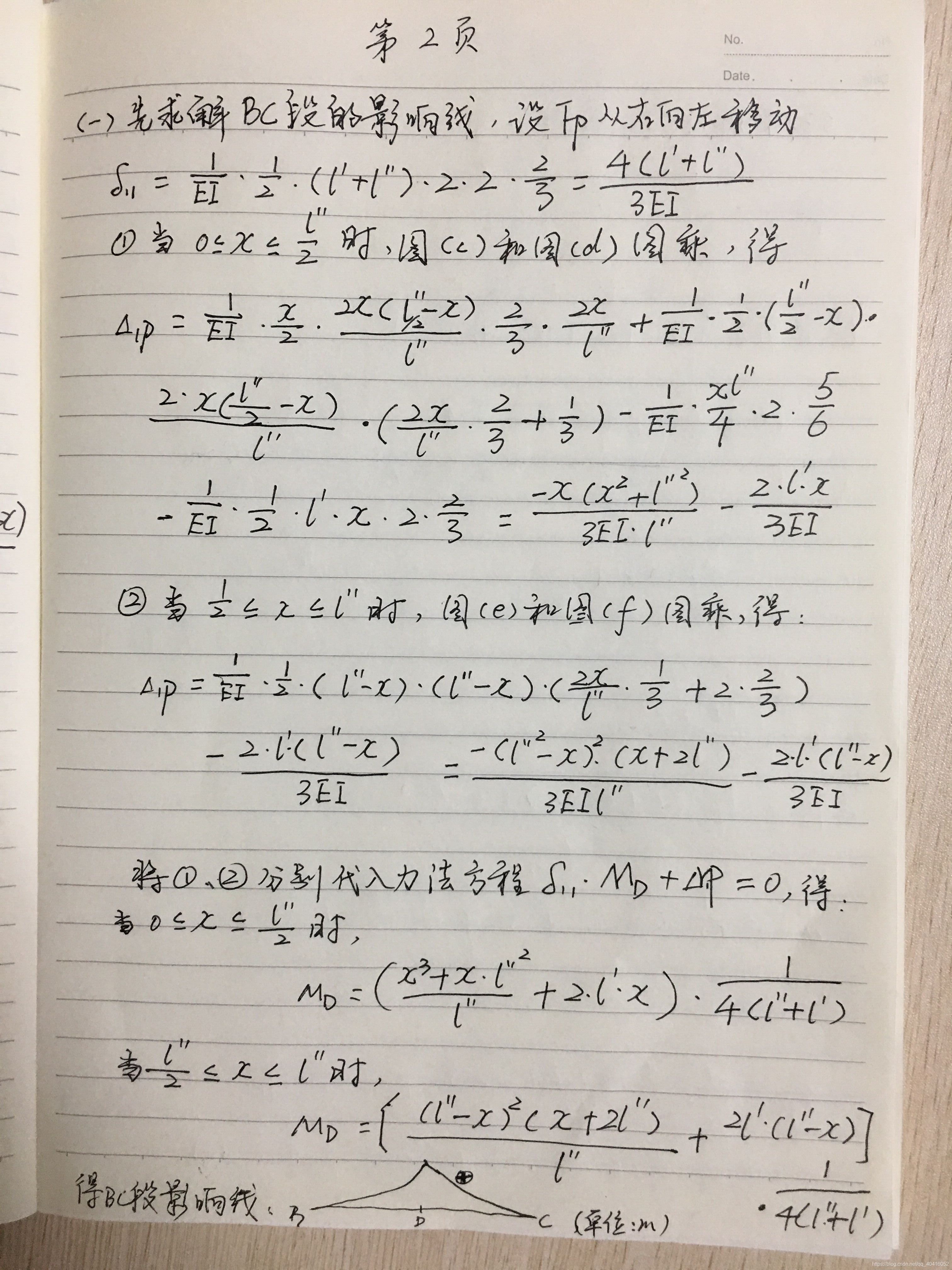

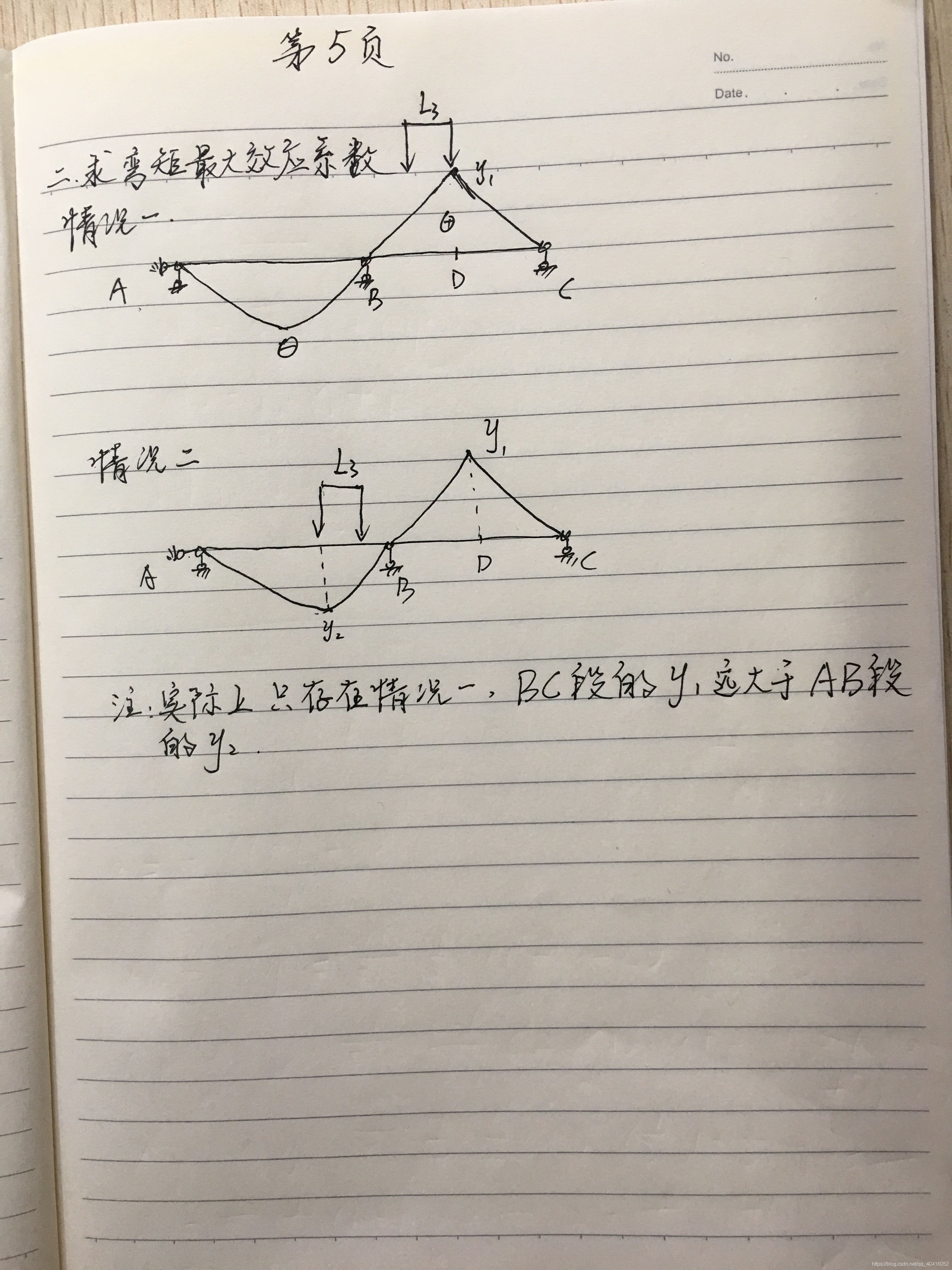

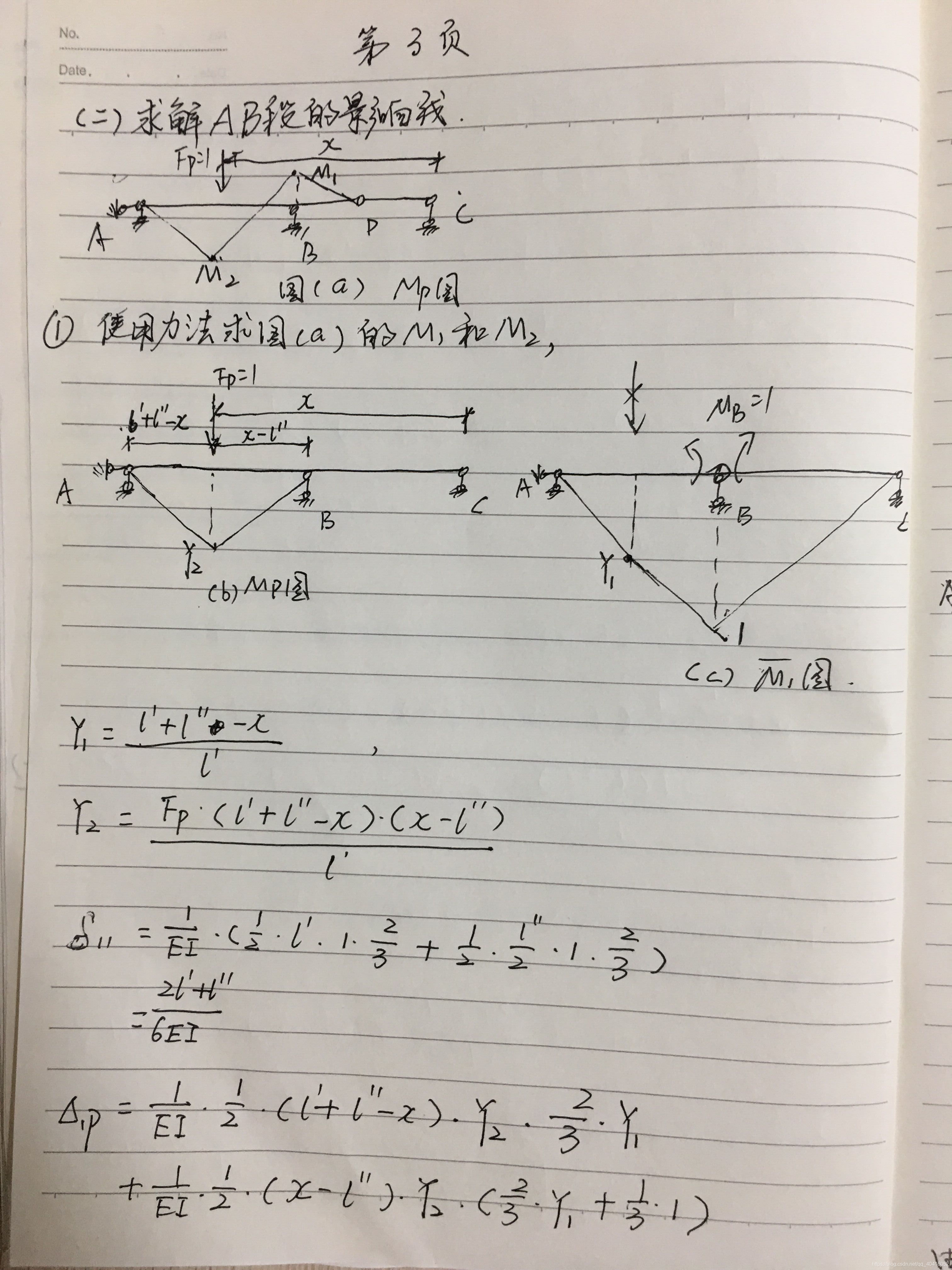

影响线计算：
