SpringBoot 整合钉钉群机器人，自动发送异常信息到钉钉群

一、配置钉钉机器人

打开钉钉群聊天窗口，点击右上角三个点。
在群资料页面，点击【智能群助手】。
点击【添加机器人】。
选择自定义。

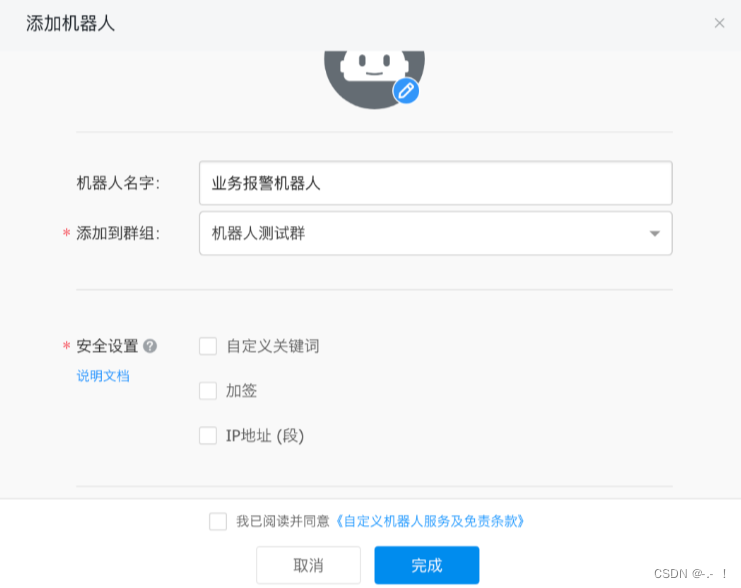

1、输入机器人名字，选择要发送消息的群 。
2、完成必要的安全设置，至少选择一种。
3、当选择了自定义关键词的时候，在发送报警信息时一定要带上关键词。
4、完成设置后，复制机器人的 Webhook 地址，后面用于向这个群发送消息。

https://oapi.dingtalk.com/robot/send?access_token=XXX

二、全局异常处理

1、自定义业务异常类

某些业务需要进行业务回滚，但 spring 的事务只针对 RuntimeException 进行回滚操作，所以需要回滚就要继承 RuntimeException。

public class CommonException extends RuntimeException{

    private Integer errCode;

    private String errMsg;

    public Integer getErrCode() {
        return errCode;
    }

    public void setErrCode(Integer errCode) {
        this.errCode = errCode;
    }

    public String getErrMsg() {
        return errMsg;
    }

    public void setErrMsg(String errMsg) {
        this.errMsg = errMsg;
    }

    public CommonException(Integer errCode, String errMsg) {
        this.errCode = errCode;
        this.errMsg = errMsg;
    }

    public CommonException(String errMsg, Throwable e) {
        super(errMsg);
        this.errMsg = errMsg;
    }
}

2、全局异常处理类

@ControllerAdvice
@Component
@Slf4j
public class CommonExceptionHandler {

    @Autowired
    private GlobalUtils globalUtils;

    @ExceptionHandler
    @ResponseBody
    @ResponseStatus(HttpStatus.OK)
    public Result handle(Exception exception) throws ApiException {

        if (exception instanceof CommonException) {
            log.error(exception.getMessage(), exception);
            CommonException e = (CommonException) exception;
            log.error("捕获到异常,异常代码为{},异常信息为{}", e.getErrCode(), e.getErrMsg());
            //发送异常信息到钉钉机器人
            globalUtils.globalMsg(exception);
            return Result.error(new CodeMsg(e.getErrCode(), e.getErrMsg()));

        } else if (exception instanceof HttpMessageNotReadableException) {
            log.error("前台传入JSON格式错误");
            //发送异常信息到钉钉机器人
            globalUtils.globalMsg(exception);
            return Result.error(CodeMsg.JSON_ERR);

        } else {
            //发送异常信息到钉钉机器人
            globalUtils.globalMsg(exception);
            log.error("捕获到异常错误");
            return Result.error(CodeMsg.FILES);
        }

    }
}

三、工具类

1、CodeMsg 类

public class CodeMsg {

    private int code;
    private String msg;

    public CodeMsg(int code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public CodeMsg() {
    }

    public int getCode() {
        return code;
    }

    public void setCode(int code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    public static CodeMsg SUCCESS = new CodeMsg(200, "success");

    public static CodeMsg FILES = new CodeMsg(300, "未知错误");
    public static CodeMsg JSON_ERR = new CodeMsg(300, "JSON格式错误");

}

2、Result 类

@ApiModel(value = "响应结果")
public class Result<T> {

    @ApiModelProperty(position = 0, value = "状态码", required = true, example = "200200")
    private int code;

    @ApiModelProperty(position = 1, value = "响应信息", required = true, example = "success")
    private String msg;

    @ApiModelProperty(position = 2, value = "响应数据", required = true)
    private T data;

    public int getCode() {
        return code;
    }

    public void setCode(int code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    public T getData() {
        return data;
    }

    public void setData(T data) {
        this.data = data;
    }

    /**
     * 成功时候的调用
     */
    public static <T> Result<T> success(T data) {
        return new Result<T>(data);
    }

    /**
     * 失败时候的调用
     */
    public static <T> Result<T> error(CodeMsg codeMsg) {
        return new Result<T>(codeMsg);
    }

    /**
     * 成功的构造函数
     * @param data
     */
    private Result(T data) {
        this.code = 000000;//默认000000是成功
        this.msg = "SUCCESS";
        this.data = data;
    }

    public Result(int code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public Result(int code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }

    public Result(CodeMsg codeMsg, T data) {
        this.code = codeMsg.getCode();
        this.msg = codeMsg.getMsg();
        this.data = data;
    }

    /**
     * 失败的构造函数
     * @param code
     * @param msg
     */
    public Result(CodeMsg codeMsg) {
        if (codeMsg != null) {
            this.code = codeMsg.getCode();
            this.msg = codeMsg.getMsg();
        }
    }
}

3、GlobalUtils 类

@Component
public class GlobalUtils {

    @Autowired
    private DingDing dingDing;

    public void globalMsg(Exception exception) throws ApiException {
        StringWriter sw = new StringWriter();
        PrintWriter pw = new PrintWriter(sw, true);
        exception.printStackTrace(pw);
        String stackTraceString = sw.getBuffer().toString();
        dingDing.sendMsg(stackTraceString);
    }
}

四、整合钉钉机器人

1、Pom 导入依赖

<dependency>
     <groupId>com.aliyun</groupId>
     <artifactId>alibaba-dingtalk-service-sdk</artifactId>
     <version>1.0.1</version>
</dependency>

2、发送信息的工具类

自定义机器人支持文本、链接、markdown、FeedCard 消息类型等。

@Component
public class DingDing {

    public OapiRobotSendResponse sendMsg(String stackTraceString) throws ApiException {
        String qm = qm();
        // 前面复制的机器人 Webhook 地址，放进来，后面加上签名
        DingTalkClient client = new DefaultDingTalkClient("https://oapi.dingtalk.com/robot/send?access_token=XXX" + qm + "");

        OapiRobotSendRequest request = new OapiRobotSendRequest();
        request.setMsgtype("text");
        OapiRobotSendRequest.Text text = new OapiRobotSendRequest.Text();
        text.setContent("警报：" + stackTraceString + "");
        request.setText(text);
        OapiRobotSendRequest.At at = new OapiRobotSendRequest.At();
        at.setAtMobiles(Collections.singletonList("132xxxxxxxx"));
        // isAtAll类型如果不为Boolean，请升级至最新SDK
//      at.setIsAtAll(true);
//      at.setAtUserIds(Arrays.asList("109929","32099"));
//      request.setAt(at);

//      request.setMsgtype("link");
//      OapiRobotSendRequest.Link link = new OapiRobotSendRequest.Link();
//      link.setMessageUrl("https://www.dingtalk.com/");
//      link.setPicUrl("");
//      link.setTitle("时代的火车向前开");
//      link.setText("警报: 这个即将发布的新版本，创始人xx称它为红树林。而在此之前，每当面临重大升级，产品经理们都会取一个应景的代号，这一次，为什么是红树林");
//      request.setLink(link);

//      request.setMsgtype("markdown");
//      OapiRobotSendRequest.Markdown markdown = new OapiRobotSendRequest.Markdown();
//      markdown.setTitle("杭州天气");
//      markdown.setText("警报: #### 杭州天气 @156xxxx8827\n" +
//              "> 9度，西北风1级，空气良89，相对温度73%\n\n" +
//              "> ![screenshot](https://gw.alicdn.com/tfs/TB1ut3xxbsrBKNjSZFpXXcXhFXa-846-786.png)\n"  +
//              "> ###### 10点20分发布 [天气](http://www.thinkpage.cn/) \n");
//      request.setMarkdown(markdown);
        return client.execute(request);
    }

    @SneakyThrows
    public static String qm() {
        Long timestamp = System.currentTimeMillis();
        String secret = "this is secret";
        String stringToSign = timestamp + "\n" + secret;
        Mac mac = Mac.getInstance("HmacSHA256");
        mac.init(new SecretKeySpec(secret.getBytes(StandardCharsets.UTF_8), "HmacSHA256"));
        byte[] signData = mac.doFinal(stringToSign.getBytes(StandardCharsets.UTF_8));
        String sign = URLEncoder.encode(new String(Base64.encodeBase64(signData)), "UTF-8");
        System.out.println(sign);
        return "&timestamp=" + timestamp + "&sign=" + sign + "";
    }
}

3、测试启动

控制类

@RestController
@RequestMapping("/permit-through/")
public class DingDingController {

    @Resource
    private TestService testService;

    @GetMapping("/testw")
    public Result test() {
        testService.test();
        return new Result(CodeMsg.FILES);
    }

}

接口类

public interface TestService {

    public void test();

}

实现类

@Service
public class TestServiceImpl implements TestService {

    @Override
    public void test() {
        int i = 1 / 0;
    }

}

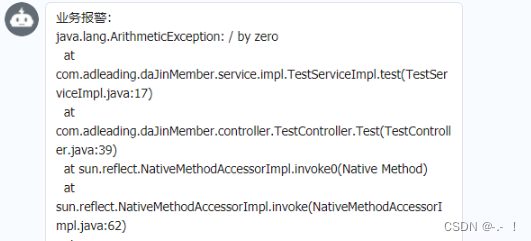

群里显示结果
