spatial attention method

self-attention

Alt

#adapted from https://github.com/ZhugeKongan/Attention-mechanism-implementation/tree/main
import torch
import torch.nn as nn
class Self_Attn(nn.Module):
    """ Self attention Layer"""
    def __init__(self,in_dim,activation):
        super(Self_Attn,self).__init__()
        self.chanel_in = in_dim
        self.activation = activation

        self.query_conv = nn.Conv2d(in_channels = in_dim , out_channels = in_dim//8 , kernel_size= 1)
        self.key_conv = nn.Conv2d(in_channels = in_dim , out_channels = in_dim//8 , kernel_size= 1)
        self.value_conv = nn.Conv2d(in_channels = in_dim , out_channels = in_dim , kernel_size= 1)
        self.gamma = nn.Parameter(torch.zeros(1))

        self.softmax  = nn.Softmax(dim=-1) #
    def forward(self,x):
        """
            inputs :
                x : input feature maps( B X C X W X H)
            returns :
                out : self attention value + input feature
                attention: B X N X N (N is Width*Height)
        """
        m_batchsize,C,width ,height = x.size()
        proj_query  = self.query_conv(x).view(m_batchsize,-1,width*height).permute(0,2,1) # B X CX(N)
        proj_key =  self.key_conv(x).view(m_batchsize,-1,width*height) # B X C x (*W*H)
        energy =  torch.bmm(proj_query,proj_key) # transpose check
        attention = self.softmax(energy) # BX (N) X (N)
        proj_value = self.value_conv(x).view(m_batchsize,-1,width*height) # B X C X N

        out = torch.bmm(proj_value,attention.permute(0,2,1) )
        out = out.view(m_batchsize,C,width,height)

        out = self.gamma*out + x
        return out,attention

Non-local Attention

在这里插入图片描述

import torch
from torch import nn
from torch.nn import functional as F
class NonLocalBlock(nn.Module):
    def __init__(self, channel):
        super(NonLocalBlock, self).__init__()
        self.inter_channel = channel // 2
        self.conv_phi = nn.Conv2d(in_channels=channel, out_channels=self.inter_channel, kernel_size=1, stride=1,padding=0, bias=False)
        self.conv_theta = nn.Conv2d(in_channels=channel, out_channels=self.inter_channel, kernel_size=1, stride=1, padding=0, bias=False)
        self.conv_g = nn.Conv2d(in_channels=channel, out_channels=self.inter_channel, kernel_size=1, stride=1, padding=0, bias=False)
        self.softmax = nn.Softmax(dim=1)
        self.conv_mask = nn.Conv2d(in_channels=self.inter_channel, out_channels=channel, kernel_size=1, stride=1, padding=0, bias=False)

    def forward(self, x):
        # [N, C, H , W]
        b, c, h, w = x.size()
        # [N, C/2, H * W]
        x_phi = self.conv_phi(x).view(b, c, -1)
        # [N, H * W, C/2]
        x_theta = self.conv_theta(x).view(b, c, -1).permute(0, 2, 1).contiguous()
        x_g = self.conv_g(x).view(b, c, -1).permute(0, 2, 1).contiguous()
        # [N, H * W, H * W]
        mul_theta_phi = torch.matmul(x_theta, x_phi)
        mul_theta_phi = self.softmax(mul_theta_phi)
        # [N, H * W, C/2]
        mul_theta_phi_g = torch.matmul(mul_theta_phi, x_g)
        # [N, C/2, H, W]
        mul_theta_phi_g = mul_theta_phi_g.permute(0,2,1).contiguous().view(b,self.inter_channel, h, w)
        # [N, C, H , W]
        mask = self.conv_mask(mul_theta_phi_g)
        out = mask + x
        return out

class _NonLocalBlockND(nn.Module):
"""
default 3d
"""
    def __init__(self, in_channels, inter_channels=None, dimension=3, sub_sample=True, bn_layer=True):
        super(_NonLocalBlockND, self).__init__()

        assert dimension in [1, 2, 3]

        self.dimension = dimension
        self.sub_sample = sub_sample

        self.in_channels = in_channels
        self.inter_channels = inter_channels

        if self.inter_channels is None:
            self.inter_channels = in_channels // 2
            if self.inter_channels == 0:
                self.inter_channels = 1

        if dimension == 3:
            conv_nd = nn.Conv3d
            max_pool_layer = nn.MaxPool3d(kernel_size=(1, 2, 2))
            bn = nn.BatchNorm3d
        elif dimension == 2:
            conv_nd = nn.Conv2d
            max_pool_layer = nn.MaxPool2d(kernel_size=(2, 2))
            bn = nn.BatchNorm2d
        else:
            conv_nd = nn.Conv1d
            max_pool_layer = nn.MaxPool1d(kernel_size=(2))
            bn = nn.BatchNorm1d

        self.g = conv_nd(in_channels=self.in_channels, out_channels=self.inter_channels,
                         kernel_size=1, stride=1, padding=0)

        if bn_layer:
            self.W = nn.Sequential(
                conv_nd(in_channels=self.inter_channels, out_channels=self.in_channels,
                        kernel_size=1, stride=1, padding=0),
                bn(self.in_channels)
            )
            nn.init.constant_(self.W[1].weight, 0)
            nn.init.constant_(self.W[1].bias, 0)
        else:
            self.W = conv_nd(in_channels=self.inter_channels, out_channels=self.in_channels,
                             kernel_size=1, stride=1, padding=0)
            nn.init.constant_(self.W.weight, 0)
            nn.init.constant_(self.W.bias, 0)

        self.theta = conv_nd(in_channels=self.in_channels, out_channels=self.inter_channels,
                             kernel_size=1, stride=1, padding=0)

        self.phi = conv_nd(in_channels=self.in_channels, out_channels=self.inter_channels,
                           kernel_size=1, stride=1, padding=0)

        self.concat_project = nn.Sequential(
            nn.Conv2d(self.inter_channels * 2, 1, 1, 1, 0, bias=False),
            nn.ReLU()
        )

        if sub_sample:
            self.g = nn.Sequential(self.g, max_pool_layer)
            self.phi = nn.Sequential(self.phi, max_pool_layer)

    def forward(self, x, return_nl_map=False):
        '''
        :param x: (b, c, t, h, w)
        :param return_nl_map: if True return z, nl_map, else only return z.
        :return:
        '''

        batch_size = x.size(0)

        g_x = self.g(x).view(batch_size, self.inter_channels, -1)
        g_x = g_x.permute(0, 2, 1)

        # (b, c, N, 1)
        theta_x = self.theta(x).view(batch_size, self.inter_channels, -1, 1)
        # (b, c, 1, N)
        phi_x = self.phi(x).view(batch_size, self.inter_channels, 1, -1)

        h = theta_x.size(2)
        w = phi_x.size(3)
        theta_x = theta_x.repeat(1, 1, 1, w)
        phi_x = phi_x.repeat(1, 1, h, 1)

        concat_feature = torch.cat([theta_x, phi_x], dim=1)
        f = self.concat_project(concat_feature)
        b, _, h, w = f.size()
        f = f.view(b, h, w)

        N = f.size(-1)
        f_div_C = f / N

        y = torch.matmul(f_div_C, g_x)
        y = y.permute(0, 2, 1).contiguous()
        y = y.view(batch_size, self.inter_channels, *x.size()[2:])
        W_y = self.W(y)
        z = W_y + x

        if return_nl_map:
            return z, f_div_C
        return z


class NONLocalBlock1D(_NonLocalBlockND):
    def __init__(self, in_channels, inter_channels=None, sub_sample=True, bn_layer=True):
        super(NONLocalBlock1D, self).__init__(in_channels,
                                              inter_channels=inter_channels,
                                              dimension=1, sub_sample=sub_sample,
                                              bn_layer=bn_layer)


class NONLocalBlock2D(_NonLocalBlockND):
    def __init__(self, in_channels, inter_channels=None, sub_sample=True, bn_layer=True):
        super(NONLocalBlock2D, self).__init__(in_channels,
                                              inter_channels=inter_channels,
                                              dimension=2, sub_sample=sub_sample,
                                              bn_layer=bn_layer)


class NONLocalBlock3D(_NonLocalBlockND):
    def __init__(self, in_channels, inter_channels=None, sub_sample=True, bn_layer=True,):
        super(NONLocalBlock3D, self).__init__(in_channels,
                                              inter_channels=inter_channels,
                                              dimension=3, sub_sample=sub_sample,
                                              bn_layer=bn_layer)


if __name__ == '__main__':
    import torch
    model = NonLocalBlock(channel=16)
    print(model)

    input = torch.randn(1, 16, 64, 64)
    out = model(input)
    print(out.shape)
    for (sub_sample_, bn_layer_) in [(True, True), (False, False), (True, False), (False, True)]:
        img = torch.zeros(2, 3, 20)
        net = NONLocalBlock1D(3, sub_sample=sub_sample_, bn_layer=bn_layer_)
        out = net(img)
        print(out.size())

        img = torch.zeros(2, 3, 20, 20)
        net = NONLocalBlock2D(3, sub_sample=sub_sample_, bn_layer=bn_layer_)
        out = net(img)
        print(out.size())

        img = torch.randn(2, 3, 8, 20, 20)
        net = NONLocalBlock3D(3, sub_sample=sub_sample_, bn_layer=bn_layer_)
        out = net(img)
        print(out.size())
   #不改变输入

Channel domain attention method

SENet

SENet
Base SE

import torch.nn as nn
import torch.nn.functional as F


class SE(nn.Module):

    def __init__(self, in_chnls, ratio):
        super(SE, self).__init__()
        self.squeeze = nn.AdaptiveAvgPool2d((1, 1))
        self.compress = nn.Conv2d(in_chnls, in_chnls // ratio, 1, 1, 0)
        self.excitation = nn.Conv2d(in_chnls // ratio, in_chnls, 1, 1, 0)

    def forward(self, x):
        out = self.squeeze(x)
        out = self.compress(out)
        out = F.relu(out)
        out = self.excitation(out)
        return x*F.sigmoid(out)

SE variants

import torch
import torch.nn as nn
import torchvision

#v1
class cSE_Module(nn.Module):
    def __init__(self, channel,ratio = 16):
        super(cSE_Module, self).__init__()
        self.squeeze = nn.AdaptiveAvgPool2d(1)
        self.excitation = nn.Sequential(
                nn.Linear(in_features=channel, out_features=channel // ratio),
                nn.ReLU(inplace=True),
                nn.Linear(in_features=channel // ratio, out_features=channel),
                nn.Sigmoid()
            )
    def forward(self, x):
        b, c, _, _ = x.size()
        y = self.squeeze(x).view(b, c)
        z = self.excitation(y).view(b, c, 1, 1)
        return x * z.expand_as(x)

#v2
class sSE_Module(nn.Module):
    def __init__(self, channel):
        super(sSE_Module, self).__init__()
        self.spatial_excitation = nn.Sequential(
                nn.Conv2d(in_channels=channel, out_channels=1, kernel_size=1,stride=1,padding=0),
                nn.Sigmoid()
            )
    def forward(self, x):
        z = self.spatial_excitation(x)
        return x * z.expand_as(x)

#v1+v2
class scSE_Module(nn.Module):
    def __init__(self, channel,ratio = 16):
        super(scSE_Module, self).__init__()
        self.cSE = cSE_Module(channel,ratio)
        self.sSE = sSE_Module(channel)

    def forward(self, x):
        return self.cSE(x) + self.sSE(x)


if __name__=='__main__':
    # model = cSE_Module(channel=16)
    # model = sSE_Module(channel=16)
    model = scSE_Module(channel=16)
    print(model)

    input = torch.randn(1, 16, 64, 64)
    out = model(input)
    #output=input
    print(out.shape)

SKNet

在这里插入图片描述

import torch.nn as nn
import torch


class SKConv(nn.Module):
    def __init__(self, features, WH, M, G, r, stride=1, L=32):
        super(SKConv, self).__init__()
        d = max(int(features / r), L)
        self.M = M
        self.features = features
        self.convs = nn.ModuleList([])
        for i in range(M):
            # 使用不同kernel size的卷积
            self.convs.append(
                nn.Sequential(
                    nn.Conv2d(features,
                              features,
                              kernel_size=3 + i * 2,
                              stride=stride,
                              padding=1 + i,
                              groups=G), nn.BatchNorm2d(features),
                    nn.ReLU(inplace=False)))

        self.fc = nn.Linear(features, d)
        self.fcs = nn.ModuleList([])
        for i in range(M):
            self.fcs.append(nn.Linear(d, features))
        self.softmax = nn.Softmax(dim=1)

    def forward(self, x):
        for i, conv in enumerate(self.convs):
            fea = conv(x).unsqueeze_(dim=1)
            if i == 0:
                feas = fea
            else:
                feas = torch.cat([feas, fea], dim=1)
        fea_U = torch.sum(feas, dim=1)
        fea_s = fea_U.mean(-1).mean(-1)
        fea_z = self.fc(fea_s)
        for i, fc in enumerate(self.fcs):
            print(i, fea_z.shape)
            vector = fc(fea_z).unsqueeze_(dim=1)
            print(i, vector.shape)
            if i == 0:
                attention_vectors = vector
            else:
                attention_vectors = torch.cat([attention_vectors, vector],
                                              dim=1)
        attention_vectors = self.softmax(attention_vectors)
        attention_vectors = attention_vectors.unsqueeze(-1).unsqueeze(-1)
        fea_v = (feas * attention_vectors).sum(dim=1)
        return fea_v


if __name__ == "__main__":
    t = torch.ones((32, 256, 24, 24))
    sk = SKConv(256, WH=1, M=2, G=1, r=2)
    out = sk(t)
    print(out.shape)
    #out=in

Hybrid domain attention method

CBAM

在这里插入图片描述
包括channel attention and spatial attention module

import torch
from torch import nn
from torch.nn import functional as F



class ChannelAttention(nn.Module):
    def __init__(self, in_planes, ratio=16):
        super(ChannelAttention, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.max_pool = nn.AdaptiveMaxPool2d(1)
        self.shared_MLP = nn.Sequential(
            nn.Conv2d(in_planes, in_planes // ratio, 1, bias=False),
            nn.ReLU(),
            nn.Conv2d(in_planes // ratio, in_planes, 1, bias=False)
        )
        # self.fc1 = nn.Conv2d(in_planes, in_planes // ratio, 1, bias=False)
        # self.relu1 = nn.ReLU()
        # self.fc2 = nn.Conv2d(in_planes // ratio, in_planes, 1, bias=False)

        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out =self.shared_MLP(self.avg_pool(x))# self.fc2(self.relu1(self.fc1(self.avg_pool(x))))
        max_out =self.shared_MLP(self.max_pool(x))# self.fc2(self.relu1(self.fc1(self.max_pool(x))))
        out = avg_out + max_out
        return self.sigmoid(out)


class SpatialAttention(nn.Module):
    def __init__(self, kernel_size=7):
        super(SpatialAttention, self).__init__()

        assert kernel_size in (3, 7), 'kernel size must be 3 or 7'
        padding = 3 if kernel_size == 7 else 1

        self.conv1 = nn.Conv2d(2, 1, kernel_size, padding=padding, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = torch.mean(x, dim=1, keepdim=True)
        max_out, _ = torch.max(x, dim=1, keepdim=True)
        x = torch.cat([avg_out, max_out], dim=1)
        x = self.conv1(x)
        return self.sigmoid(x)


class CBAM(nn.Module):
    def __init__(self, planes):
        super(CBAM, self).__init__()
        self.ca = ChannelAttention(planes)
        self.sa = SpatialAttention()

    def forward(self, x):
        x = self.ca(x) * x
        x = self.sa(x) * x
        return x

if __name__ == '__main__':
    img = torch.randn(16, 32, 20, 20)
    net = CBAM(32)
    print(net)
    out = net(img)
    print(out.size())
    #out =in

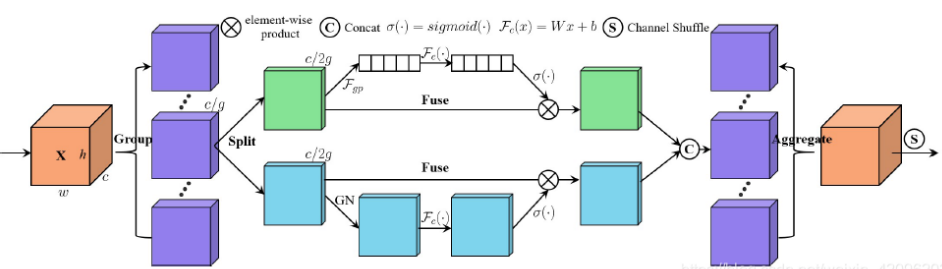

SA-Net

在这里插入图片描述

import torch
import torch.nn as nn
from torch.nn.parameter import Parameter
class sa_layer(nn.Module):
    """Constructs a Channel Spatial Group module.

    Args:
        k_size: Adaptive selection of kernel size
    """

    def __init__(self, channel, groups=64):
        super(sa_layer, self).__init__()
        self.groups = groups
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.cweight = Parameter(torch.zeros(1, channel // (2 * groups), 1, 1))
        self.cbias = Parameter(torch.ones(1, channel // (2 * groups), 1, 1))
        self.sweight = Parameter(torch.zeros(1, channel // (2 * groups), 1, 1))
        self.sbias = Parameter(torch.ones(1, channel // (2 * groups), 1, 1))

        self.sigmoid = nn.Sigmoid()
        self.gn = nn.GroupNorm(channel // (2 * groups), channel // (2 * groups))

    @staticmethod
    def channel_shuffle(x, groups):
        b, c, h, w = x.shape

        x = x.reshape(b, groups, -1, h, w)
        x = x.permute(0, 2, 1, 3, 4)

        # flatten
        x = x.reshape(b, -1, h, w)

        return x

    def forward(self, x):
        b, c, h, w = x.shape

        x = x.reshape(b * self.groups, -1, h, w)
        x_0, x_1 = x.chunk(2, dim=1)

        # channel attention
        xn = self.avg_pool(x_0)
        xn = self.cweight * xn + self.cbias
        xn = x_0 * self.sigmoid(xn)

        # spatial attention
        xs = self.gn(x_1)
        xs = self.sweight * xs + self.sbias
        xs = x_1 * self.sigmoid(xs)

        # concatenate along channel axis
        out = torch.cat([xn, xs], dim=1)
        out = out.reshape(b, -1, h, w)

        out = self.channel_shuffle(out, 2)
        return out

DANet

在这里插入图片描述

import torch
import torch.nn as nn
import torch.nn.functional as F

class _PositionAttentionModule(nn.Module):
    """ Position attention module"""

    def __init__(self, in_channels, **kwargs):
        super(_PositionAttentionModule, self).__init__()
        self.conv_b = nn.Conv2d(in_channels, in_channels // 8, 1)
        self.conv_c = nn.Conv2d(in_channels, in_channels // 8, 1)
        self.conv_d = nn.Conv2d(in_channels, in_channels, 1)
        self.alpha = nn.Parameter(torch.zeros(1))
        self.softmax = nn.Softmax(dim=-1)

    def forward(self, x):
        batch_size, _, height, width = x.size()
        feat_b = self.conv_b(x).view(batch_size, -1, height * width).permute(0, 2, 1)
        feat_c = self.conv_c(x).view(batch_size, -1, height * width)
        attention_s = self.softmax(torch.bmm(feat_b, feat_c))
        feat_d = self.conv_d(x).view(batch_size, -1, height * width)
        feat_e = torch.bmm(feat_d, attention_s.permute(0, 2, 1)).view(batch_size, -1, height, width)
        out = self.alpha * feat_e + x

        return out


class _ChannelAttentionModule(nn.Module):
    """Channel attention module"""

    def __init__(self, **kwargs):
        super(_ChannelAttentionModule, self).__init__()
        self.beta = nn.Parameter(torch.zeros(1))
        self.softmax = nn.Softmax(dim=-1)

    def forward(self, x):
        batch_size, _, height, width = x.size()
        feat_a = x.view(batch_size, -1, height * width)
        feat_a_transpose = x.view(batch_size, -1, height * width).permute(0, 2, 1)
        attention = torch.bmm(feat_a, feat_a_transpose)
        attention_new = torch.max(attention, dim=-1, keepdim=True)[0].expand_as(attention) - attention
        attention = self.softmax(attention_new)

        feat_e = torch.bmm(attention, feat_a).view(batch_size, -1, height, width)
        out = self.beta * feat_e + x

        return out


class _DAHead(nn.Module):
    def __init__(self, in_channels, nclass, aux=True, norm_layer=nn.BatchNorm2d, norm_kwargs=None, **kwargs):
        super(_DAHead, self).__init__()
        self.aux = aux
        inter_channels = in_channels // 4
        self.conv_p1 = nn.Sequential(
            nn.Conv2d(in_channels, inter_channels, 3, padding=1, bias=False),
            norm_layer(inter_channels, **({} if norm_kwargs is None else norm_kwargs)),
            nn.ReLU(True)
        )
        self.conv_c1 = nn.Sequential(
            nn.Conv2d(in_channels, inter_channels, 3, padding=1, bias=False),
            norm_layer(inter_channels, **({} if norm_kwargs is None else norm_kwargs)),
            nn.ReLU(True)
        )
        self.pam = _PositionAttentionModule(inter_channels, **kwargs)
        self.cam = _ChannelAttentionModule(**kwargs)
        self.conv_p2 = nn.Sequential(
            nn.Conv2d(inter_channels, inter_channels, 3, padding=1, bias=False),
            norm_layer(inter_channels, **({} if norm_kwargs is None else norm_kwargs)),
            nn.ReLU(True)
        )
        self.conv_c2 = nn.Sequential(
            nn.Conv2d(inter_channels, inter_channels, 3, padding=1, bias=False),
            norm_layer(inter_channels, **({} if norm_kwargs is None else norm_kwargs)),
            nn.ReLU(True)
        )
        self.out = nn.Sequential(
            nn.Dropout(0.1),
            nn.Conv2d(inter_channels, nclass, 1)
        )
        if aux:
            self.conv_p3 = nn.Sequential(
                nn.Dropout(0.1),
                nn.Conv2d(inter_channels, nclass, 1)
            )
            self.conv_c3 = nn.Sequential(
                nn.Dropout(0.1),
                nn.Conv2d(inter_channels, nclass, 1)
            )

    def forward(self, x):
        feat_p = self.conv_p1(x)
        feat_p = self.pam(feat_p)
        feat_p = self.conv_p2(feat_p)

        feat_c = self.conv_c1(x)
        feat_c = self.cam(feat_c)
        feat_c = self.conv_c2(feat_c)

        feat_fusion = feat_p + feat_c

        outputs = []
        fusion_out = self.out(feat_fusion)
        outputs.append(fusion_out)
        if self.aux:
            p_out = self.conv_p3(feat_p)
            c_out = self.conv_c3(feat_c)
            outputs.append(p_out)
            outputs.append(c_out)

        return tuple(outputs)

global context attention

import torch
import torch.nn as nn
import torchvision


class GlobalContextBlock(nn.Module):
    def __init__(self,
                 inplanes,
                 ratio,
                 pooling_type='att',
                 fusion_types=('channel_add', )):
        super(GlobalContextBlock, self).__init__()
        assert pooling_type in ['avg', 'att']
        assert isinstance(fusion_types, (list, tuple))
        valid_fusion_types = ['channel_add', 'channel_mul']
        assert all([f in valid_fusion_types for f in fusion_types])
        assert len(fusion_types) > 0, 'at least one fusion should be used'
        self.inplanes = inplanes
        self.ratio = ratio
        self.planes = int(inplanes * ratio)
        self.pooling_type = pooling_type
        self.fusion_types = fusion_types
        if pooling_type == 'att':
            self.conv_mask = nn.Conv2d(inplanes, 1, kernel_size=1)
            self.softmax = nn.Softmax(dim=2)
        else:
            self.avg_pool = nn.AdaptiveAvgPool2d(1)
        if 'channel_add' in fusion_types:
            self.channel_add_conv = nn.Sequential(
                nn.Conv2d(self.inplanes, self.planes, kernel_size=1),
                nn.LayerNorm([self.planes, 1, 1]),
                nn.ReLU(inplace=True),  # yapf: disable
                nn.Conv2d(self.planes, self.inplanes, kernel_size=1))
        else:
            self.channel_add_conv = None
        if 'channel_mul' in fusion_types:
            self.channel_mul_conv = nn.Sequential(
                nn.Conv2d(self.inplanes, self.planes, kernel_size=1),
                nn.LayerNorm([self.planes, 1, 1]),
                nn.ReLU(inplace=True),  # yapf: disable
                nn.Conv2d(self.planes, self.inplanes, kernel_size=1))
        else:
            self.channel_mul_conv = None

    def spatial_pool(self, x):
        batch, channel, height, width = x.size()
        if self.pooling_type == 'att':
            input_x = x
            # [N, C, H * W]
            input_x = input_x.view(batch, channel, height * width)
            # [N, 1, C, H * W]
            input_x = input_x.unsqueeze(1)
            # [N, 1, H, W]
            context_mask = self.conv_mask(x)
            # [N, 1, H * W]
            context_mask = context_mask.view(batch, 1, height * width)
            # [N, 1, H * W]
            context_mask = self.softmax(context_mask)
            # [N, 1, H * W, 1]
            context_mask = context_mask.unsqueeze(-1)
            # [N, 1, C, 1]
            context = torch.matmul(input_x, context_mask)
            # [N, C, 1, 1]
            context = context.view(batch, channel, 1, 1)
        else:
            # [N, C, 1, 1]
            context = self.avg_pool(x)

        return context

    def forward(self, x):
        # [N, C, 1, 1]
        context = self.spatial_pool(x)

        out = x
        if self.channel_mul_conv is not None:
            # [N, C, 1, 1]
            channel_mul_term = torch.sigmoid(self.channel_mul_conv(context))
            out = out * channel_mul_term
        if self.channel_add_conv is not None:
            # [N, C, 1, 1]
            channel_add_term = self.channel_add_conv(context)
            out = out + channel_add_term

        return out


if __name__=='__main__':
    model = GlobalContextBlock(inplanes=16, ratio=0.25)
    print(model)

    input = torch.randn(1, 16, 64, 64)
    out = model(input)
    print(out.shape)
    #out=in

triplet atention

triplet:介绍

# !/usr/bin/env python
# -- coding: utf-8 --
# @Time : 2020/10/30 14:30
# @Author : liumin
# @File : TripletAttention.py

import torch
import torch.nn as nn
import torchvision


class ChannelPool(nn.Module):
    def forward(self, x):
        return torch.cat( (torch.max(x,1)[0].unsqueeze(1), torch.mean(x,1).unsqueeze(1)), dim=1 )


class SpatialGate(nn.Module):
    def __init__(self):
        super(SpatialGate, self).__init__()

        self.channel_pool = ChannelPool()
        self.conv = nn.Sequential(
            nn.Conv2d(in_channels=2, out_channels=1, kernel_size=7, stride=1, padding=3),
            nn.BatchNorm2d(1)
        )
        self.sigmod = nn.Sigmoid()

    def forward(self, x):
        out = self.conv(self.channel_pool(x))
        return out * self.sigmod(out)


class TripletAttention(nn.Module):
    def __init__(self, spatial=True):
        super(TripletAttention, self).__init__()
        self.spatial = spatial
        self.height_gate = SpatialGate()
        self.width_gate = SpatialGate()
        if self.spatial:
            self.spatial_gate = SpatialGate()

    def forward(self, x):
        x_perm1 = x.permute(0, 2, 1, 3).contiguous()
        x_out1 = self.height_gate(x_perm1)
        x_out1 = x_out1.permute(0, 2, 1, 3).contiguous()

        x_perm2 = x.permute(0, 3, 2, 1).contiguous()
        x_out2 = self.width_gate(x_perm2)
        x_out2 = x_out2.permute(0, 3, 2, 1).contiguous()

        if self.spatial:
            x_out3 = self.spatial_gate(x)
            return (1/3) * (x_out1 + x_out2 + x_out3)
        else:
            return (1/2) * (x_out1 + x_out2)



if __name__=='__main__':
    model = TripletAttention()
    print(model)

    input = torch.randn(1, 16, 256, 256)
    out = model(input)
    print(out.shape)
    #out =in
