RVEA算法

1 目标函数

$$\underset{X}{\min }f(X)=(f_1(X),f_2(X),...,f_M(X))$$

2 预备知识

参考向量个数 $N=C_{H+M-1}^{M-1}$， $H$为边长分成的份数， $M$是目标的个数

from pymoo.algorithms.moo.rvea import RVEA
from pymoo.optimize import minimize
from pymoo.problems import get_problem
from pymoo.util.ref_dirs import get_reference_directions
from pymoo.visualization.scatter import Scatter

problem = get_problem("dtlz1", n_obj=3)

ref_dirs = get_reference_directions("das-dennis", 3, n_partitions=12)

algorithm = RVEA(ref_dirs)

res = minimize(problem,
               algorithm,
               termination=('n_gen', 400),
               seed=1,
               verbose=False)

plot = Scatter()
plot.add(problem.pareto_front(ref_dirs), plot_type="surface", color="black", alpha=0.7)
plot.add(res.F, color="red")
plot.show(block=True)

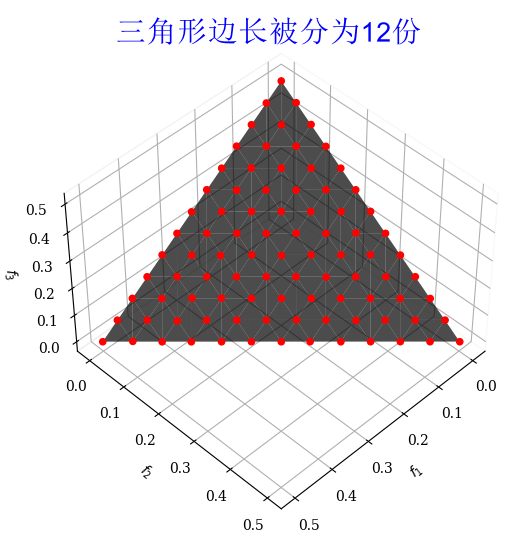

此代码中$$H=n\_partitions=12M=n\_obj=3$$

故最终的参考向量个数$$N=C_{12+3-1}^{3-1}=C_{14}^2=91$$

每个参考向量需要单位化：$$v_i=\frac{u_i}{||u_i||}$$

参考向量的相似度$$cos\theta =\frac{v_1\bullet v_2}{||v_1||||v_2||}$$

3 参考向量引导选择

• 理想向量：$$Z_t^{min}=(Z_{t,1}^{min},Z_{t,2}^{min},...,Z_{t,m}^{min})$$代表每个目标函数的最小值组成的向量

• 目标向量平移：因为参考向量是以坐标系原点为中心的，因此需要将目标函数都平移到坐标系原点：${\text{f}}_{t,i}^{\prime }={\text{f}}_{t,i}-Z_t^{min}$，${\text{f}}_{t,i}$表示第$t$次迭代中第$i$个个体的目标函数向量

• 种群划分：种群里面的每个个体按照到参考向量的最小夹角，与离得最近的目标向量归为一个集合体【与目标向量的余弦值最大】

c o s θ t , i , j = f t , i ′ ∙ v t , j ∣ ∣ f t , i ′ ∣ ∣ P ˉ t , k = { I t , i ∣ k = argmax i ∈ { 1 , 2 , . . . , N } c o s θ t , i , j } \begin{align} & cos \theta_{t, i, j} = \frac{\text{f}_{t, i}^{\prime} \bullet \pmb{v}_{t, j}}{||\text{f}_{t, i}^{\prime}||} \\ & \bar{P}_{t, k} = \{I_{t, i}|k = \underset{i \in \{1, 2, ..., N\}}{\text{argmax}} cos \theta_{t, i, j}\} \end{align} ​cosθt,i,j​=∣∣ft,i′​∣∣ft,i′​∙vt,j​​Pˉt,k​={It,i​∣k=i∈{1,2,...,N}argmax​cosθt,i,j​}​​

• 角度惩罚距离
  d t , i , j = ( 1 + P ( θ t , i , j ) ) ∙ ∣ ∣ f t , i ′ ∣ ∣ P ( θ t , i , j ) = M . ( t t m a x ) α . θ t , i , j γ v t , j γ v t , j = min ⁡ i ∈ { 1 , 2 , . . . , N } , i ≠ j < v t , i , v t , j >          最小角 \begin{align} d_{t, i, j} &= (1 + P(\theta_{t, i, j})) \bullet ||\text f_{t, i}^{\prime}|| \\ P(\theta_{t, i, j}) &= M . (\frac{t}{t_{max}}) ^\alpha . \frac{\theta_{t, i, j}}{\gamma_{\pmb v_{t, j}}} \\ \gamma_{\pmb v_{t, j}} &= \min_{i \in \{1, 2, ..., N\}, i \neq j} <\pmb v_{t, i}, \pmb v_{t, j}> \;\;\;\; \text{最小角} \end{align} dt,i,j​P(θt,i,j​)γvt,j​​​=(1+P(θt,i,j​))∙∣∣ft,i′​∣∣=M.(tmax​t​)α.γvt,j​​θt,i,j​​=i∈{1,2,...,N},i=jmin​<vt,i​,vt,j​>最小角​​

4 更新参考向量

$$v_{t+1,i}=\frac{v_{0,i}\circ (Z_{t+1}^{max}-Z_{t+1}^{min})}{||v_{0,i}\circ (Z_{t+1}^{max}-Z_{t+1}^{min})||}$$

5 流程

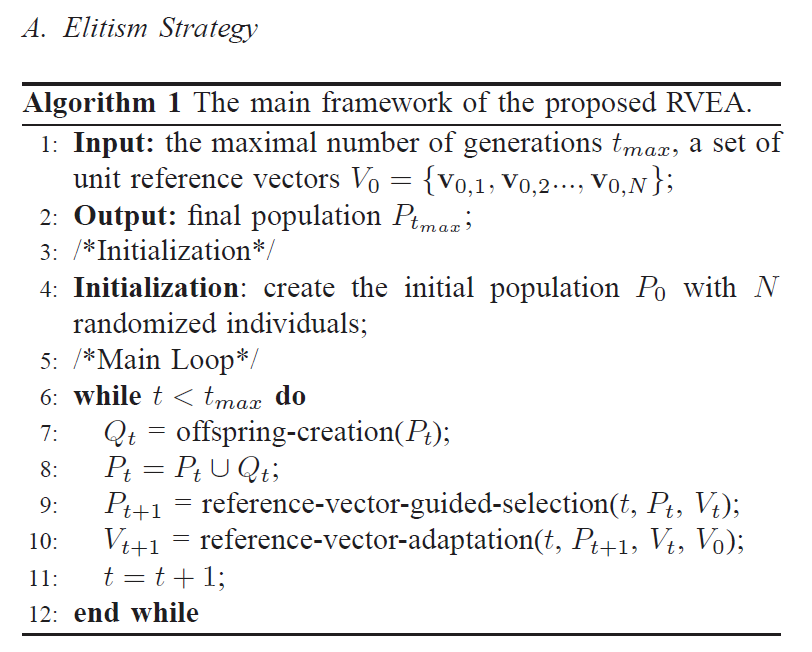

整体流程

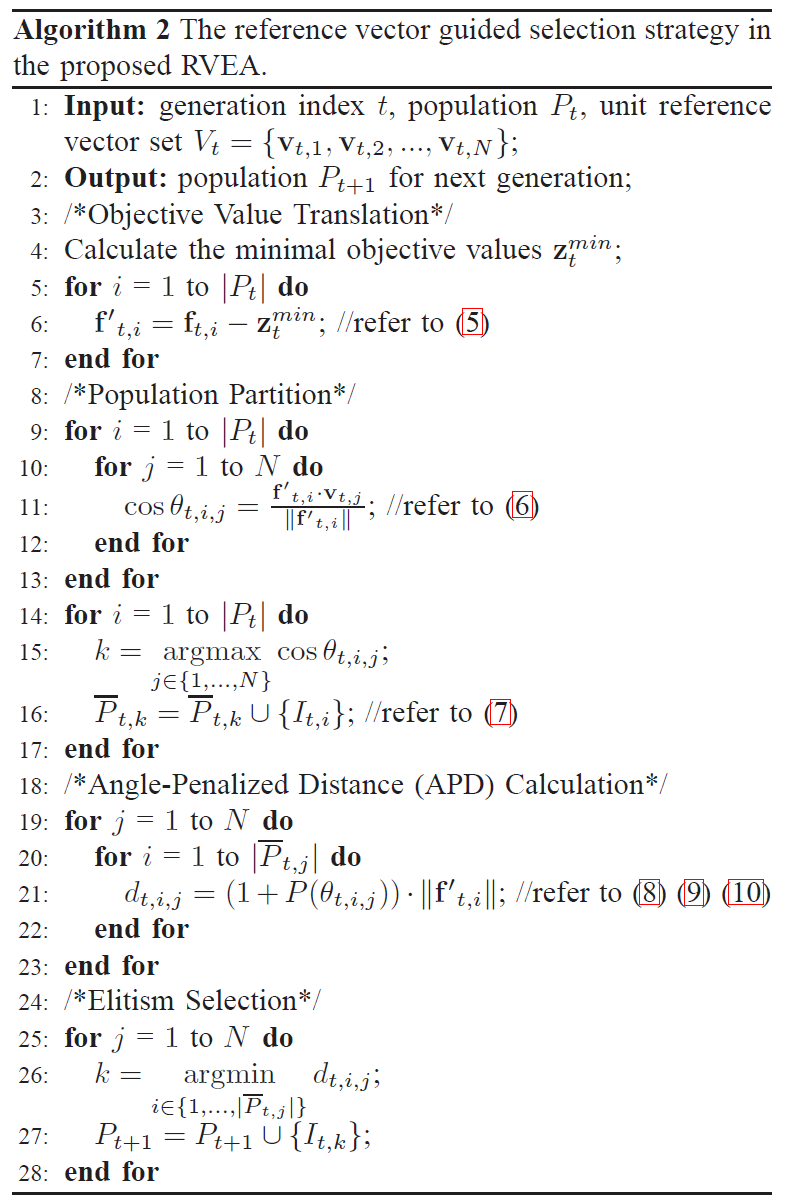

参考向量指导选择

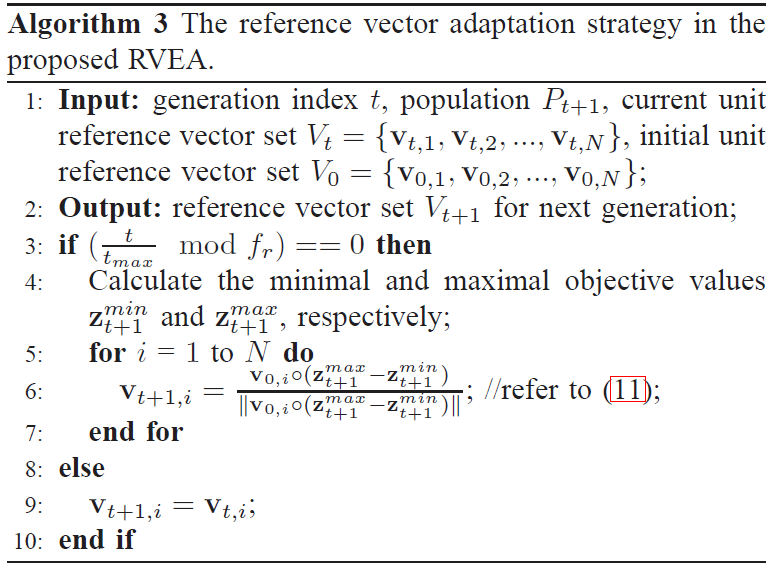

更新参考向量

fr通常设置为$0.2$

alpha通常设置为$2$

t_max通常设置为$400$

6 代码

import numpy as np
from matplotlib import pyplot as plt
from pymoo.util.ref_dirs import get_reference_directions
import geatpy as ea
from pymoo.visualization.scatter import Scatter

class DTLZ1(ea.Problem):  # 继承Problem父类
    def __init__(self, M=3, Dim=None):  # M : 目标维数；Dim : 决策变量维数
        name = 'DTLZ1'  # 初始化name（函数名称，可以随意设置）
        maxormins = [1] * M  # 初始化maxormins（目标最小最大化标记列表，1：最小化该目标；-1：最大化该目标）
        if Dim is None:
            Dim = M + 4  # 初始化Dim（决策变量维数）
        varTypes = np.array([0] * Dim)  # 初始化varTypes（决策变量的类型，0：实数；1：整数）
        lb = [0] * Dim  # 决策变量下界
        ub = [1] * Dim  # 决策变量上界
        lbin = [1] * Dim  # 决策变量下边界（0表示不包含该变量的下边界，1表示包含）
        ubin = [1] * Dim  # 决策变量上边界（0表示不包含该变量的上边界，1表示包含）
        # 调用父类构造方法完成实例化
        ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

    def evalVars(self, Vars):  # 目标函数
        XM = Vars[:, (self.M - 1):]
        g = 100 * (self.Dim - self.M + 1 + np.sum(((XM - 0.5) ** 2 - np.cos(20 * np.pi * (XM - 0.5))), 1,
                                                  keepdims=True))
        ones_metrix = np.ones((Vars.shape[0], 1))
        f = 0.5 * np.hstack([np.fliplr(np.cumprod(Vars[:, :self.M - 1], 1)), ones_metrix]) * np.hstack(
            [ones_metrix, 1 - Vars[:, range(self.M - 2, -1, -1)]]) * (1 + g)
        return f


if __name__ == '__main__':
    M = 3  # 目标函数的个数
    ref_dirs0 = get_reference_directions("das-dennis", M, n_partitions=12)  # 初始化参考向量

    N = ref_dirs0.shape[0]  # 参考向量的大小
    dim = 7  # 决策变量的维度

    for i in range(ref_dirs0.shape[0]):
        ref_dirs0[i] = ref_dirs0[i] / np.linalg.norm(ref_dirs0[i])

    ref_dirs = np.copy(ref_dirs0)

    pop = np.random.random((100, dim))

    crossover = ea.Recsbx(XOVR=1, n=30)  # 交叉
    mutation = ea.Mutpolyn(Pm=1 / dim)  # 变异

    lb = np.array([0] * dim)
    ub = np.array([1] * dim)
    varsType = np.array([0] * dim)

    problem = DTLZ1()
    t_max = 400
    alpha = 2
    fr = 0.2
    for t in range(t_max):
        print(t)
        children = crossover.do(pop)
        children = mutation.do('RI', children, np.array([lb, ub, varsType]))

        pop = np.row_stack((pop, children))  # 合并种群
        ObjV = problem.evalVars(pop)  # 计算种群的目标值

        # ==================   参考向量指导选择  ==================
        z_min = np.min(ObjV, axis=0)  # 计算最优点

        # =======================    更新参考向量   ==============================
        if np.mod(t / t_max, fr) == 0:
            z_max = np.max(ObjV, axis=0)  # 计算最差点
            for j in range(N):
                ref_dirs[j] = np.multiply(ref_dirs0[j], z_max - z_min)
                ref_dirs[j] = ref_dirs[j] / np.linalg.norm(ref_dirs[j])
        # =======================    更新参考向量   ==============================

        ObjV_1 = ObjV - z_min   # 目标值转换到坐标轴
        pop_size = pop.shape[0]

        theta_set = np.full((pop_size, N), np.nan)  # 根据目标值与参考点之间的夹角，划分种群
        for i in range(pop_size):
            for j in range(N):
                cos_theta = ObjV_1[i].dot(ref_dirs[j]) / np.maximum(np.linalg.norm(ObjV_1[i]), 1e-64)
                theta_set[i, j] = np.arccos(cos_theta)

        partition = [[] for _ in range(N)]   # 划分为 N 个种群

        for i in range(pop_size):
            k = np.argmin(theta_set[i])
            partition[k].append(i)

        gamma = np.full((N, N), np.nan)  # 参考向量之间的夹角
        for i in range(N):
            for j in range(N):
                if i == j:
                    gamma[i, j] = np.pi
                    continue
                gamma[i, j] = np.arccos(ref_dirs[i].dot(ref_dirs[j]))

        gamma = np.min(gamma, axis=1)

        apd_partition = [[] for _ in range(N)]

        for j in range(N):  # 设置角度惩罚
            partiton_j = partition[j]
            for i in partiton_j:
                p_theta = M * np.power(t / t_max, alpha) * (theta_set[i, j] / gamma[j])
                apd = (1 + p_theta) * np.linalg.norm(ObjV_1[i])
                apd_partition[j].append(apd)
        # ==================   参考向量指导选择   =====================

        # ====================   精英选择   ========================
        survivor = []
        for j in range(N):
            partiton_j = partition[j]
            if not partiton_j:
                continue
            k = np.argmin(apd_partition[j])
            survivor.append(partiton_j[k])
        pop = pop[survivor]
        # ====================   精英选择   =======================

    ObjV = problem.evalVars(pop)
    print(ObjV.shape)

    plot = Scatter()
    plot.add(ObjV)
    plot.show()

7 运行效果
