JSVM的安装与运行

Jsvm的安装稍简单，只需要将jsvm文件夹拷贝进虚拟机，再进行make就好了。具体操作如下：

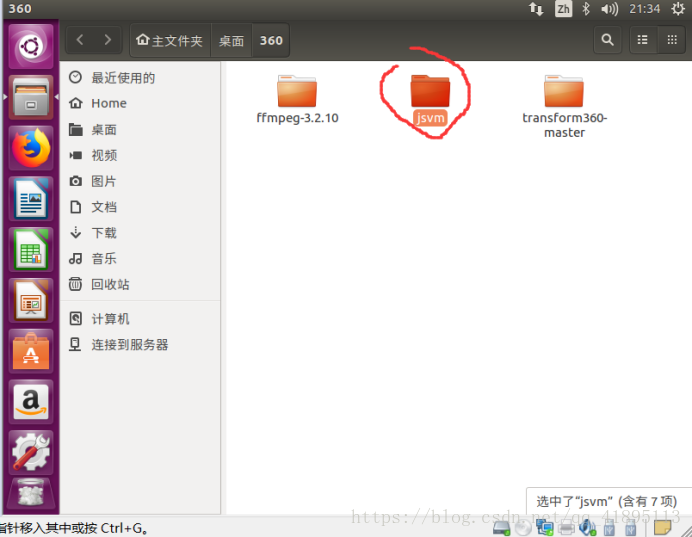

解压后找到JSVM文件夹，将文件全部复制到虚拟机

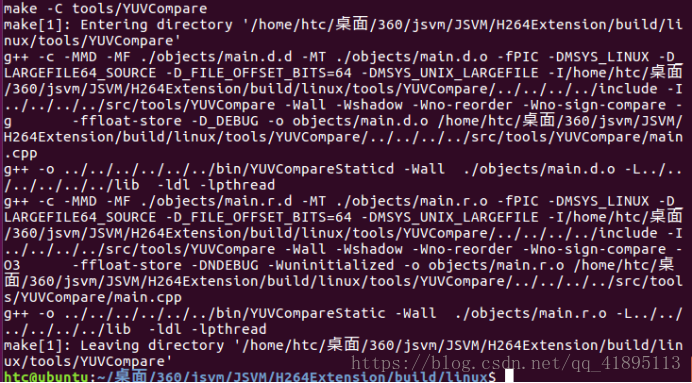

打开终端，进入jsvm->JSVM->H264Extension->build->linux，进行make



这样就安装好了

编码尝试

首先尝试单层编码模式，回到jsvm目录下，进入bin文件夹，新建文档，我命名为one_level.cfg,打开文档，复制配置信息，具体如下：

# JSVM Configuration File in AVC mode   #====================== GENERAL ================================================ AVCMode                 1          # must be one for AVC simulations InputFile               input.yuv  # input file OutputFile              stream.264 # bitstream file ReconFile               rec.yuv    # reconstructed file SourceWidth             352        # input  frame width SourceHeight            288        # input  frame height FrameRate               25.0       # frame rate [Hz] FramesToBeEncoded       300        # number of frames   #====================== CODING ================================================= SymbolMode              1          # 0=CAVLC, 1=CABAC Enable8x8Transform      1          # 8x8 luma trafo (0:diabled, 1:enabled) ConstrainedIntraPred    0          # constrained intra prediction (0:off, 1:on) ScalingMatricesPresent  1          # scaling matrices (0:flat, 1:default) BiPred8x8Disable        0          # disable bi-predicted blocks smaller than 8x8 MCBlocksLT8x8Disable    0          # blocks smaller than 8x8 are disabled BasisQP                 31         # Quantization parameters   #====================== STRUCTURE ============================================== DPBSize                 16         # decoded picture buffer in frames NumRefFrames            16
