网络工程师的Python之路——TextFSM

本文参考了知乎专栏的两位大佬的文章，此Blog仅用于记录学习各种TextFSM模板的书写
朱嘉盛
弈心

参考阅读

网络工程师的Python之路–汇总
关于TextFSM的详细解读，点击如下URLTextFSM：强无敌的配置解析利器-全面解读

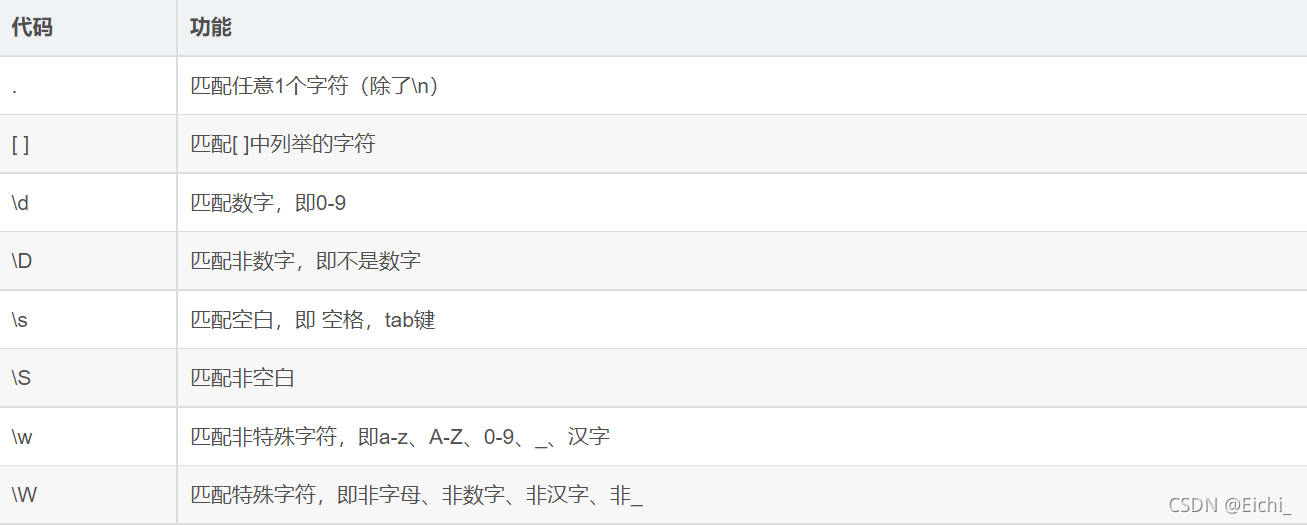

重点核心（正则内容）

正则如何匹配，不做过多赘述，再后续的数据整形中品味正则是如何使用的

tracert信息的TextFSM整形

模板文件位置：位于同级目录下template目录下的stracert.template

Value ID (\d+)
Value Hop (\S+)

Start
 ^ ${ID} ${Hop} +\d+ -> Record

标准格式写法注意事项：

• 变量声明后空一行；每一个变量就是一个rule
• Start顶头写且换行后至少空一格；^后面就是之前定义的rule
• 最后一个 -> Record代表识别到后把之前识别的都写入一条记录；箭头的左右侧必须有空格

def tracer(str1):
    info = TextFSM(open('template\stracert.template')).ParseText(str1)  # <class 'list'>
    print(TextFSM(open('template\stracert.template')).header)
    return  info


str1 = '''
<R1>tracert 192.5.5.5
tracert 192.5.5.5
 traceroute to  192.5.5.5(192.5.5.5), max hops: 30 ,packet length: 40,press CTRL_C to break
 1 36.1.1.6 60 ms  50 ms  10 ms
 2 67.1.1.7 100 ms  90 ms  80 ms
 3 78.1.1.8 90 ms  80 ms  60 ms
 4 59.1.1.9 100 ms  90 ms  80 ms
 5 59.1.1.5 90 ms  100 ms  60 ms
'''

if __name__ == "__main__":
    key = tracer(str1)
    print(key)

执行：

['ID', 'Hop']
[['1', '36.1.1.6'], ['2', '67.1.1.7'], ['3', '78.1.1.8'], ['4', '59.1.1.9'], ['5', '59.1.1.5']]

可以看到，这样就将半结构化的string整形成了list，至此就可以随意提取任何想要的信息，比如此时我想要看第4跳到哪了？

if __name__ == "__main__":
    key = tracer(str1)
    print(key)
    print(type(key))
    print(key[3])

 ['ID', 'Hop']
[['1', '36.1.1.6'], ['2', '67.1.1.7'], ['3', '78.1.1.8'], ['4', '59.1.1.9'], ['5', '59.1.1.5']]
<class 'list'>
['4', '59.1.1.9']

若想要提取第4跳的IP就继续增加[]

if __name__ == "__main__":
    key = tracer(str1)
    print(key)
    print(type(key))
    print(key[3])
    print(key[3][1])

['ID', 'Hop']
[['1', '36.1.1.6'], ['2', '67.1.1.7'], ['3', '78.1.1.8'], ['4', '59.1.1.9'], ['5', '59.1.1.5']]
<class 'list'>
['4', '59.1.1.9']
59.1.1.9

version信息的整形

模板内容

Value version (\d+.\d+\(\d+\)\w+\d+)
Value linux (\S+)
Value time (\d+\s+hours, \d+\s+minutes)
Value image (\S+)

Start
 ^\s+Version: Version\s+${version}
 ^\s+Linux Software\s+${linux}
 ^\s+Router uptime is\s+${time}
 ^\s+System image file is\s+${image} -> Record

def version(str):
    info = TextFSM(open('template\sversion.template')).ParseTextToDicts(str)  # <class 'list'>
    print(TextFSM(open('template\sversion.template')).header)
    return  info
str2 = '''
Router#sho version
    Cisco IOS Software
    Linux Software (I86BI_LINUX-ADVENTERPRISEK9-M)
    Version: Version 15.4(2)T4
    DEVELOPMENT TEST SOFTWARE
    Technical Support: http://www.cisco.com/techsupport
    Copyright (c) 1986-2015 by Cisco Systems, Inc.
    Compiled Thu 08-Oct-15 21:21 by prod_rel_team

    ROM: Bootstrap program is Linux

    Router uptime is 14 hours, 41 minutes
    System returned to ROM by reload at 0
    System image file is "unix:/opt/unetlab/addons/iol/bin/L3_ADVENTERPRISEK9_M_15.4_2T.bin"
    Last reload reason: Unknown reason
'''


if __name__ == "__main__":
    key = version(str2)
    print(key)
    print(type(key))
执行结果：
['version', 'linux', 'time', 'image']
[{'version': '15.4(2)T4', 'linux': '(I86BI_LINUX-ADVENTERPRISEK9-M)', 'time': '14 hours, 41 minutes', 'image': '"unix:/opt/unetlab/addons/iol/bin/L3_ADVENTERPRISEK9_M_15.4_2T.bin"'}]
<class 'list'>
