1、首先申请一个百度地图开发者账号

http://lbsyun.baidu.com/apiconsole/key#/home

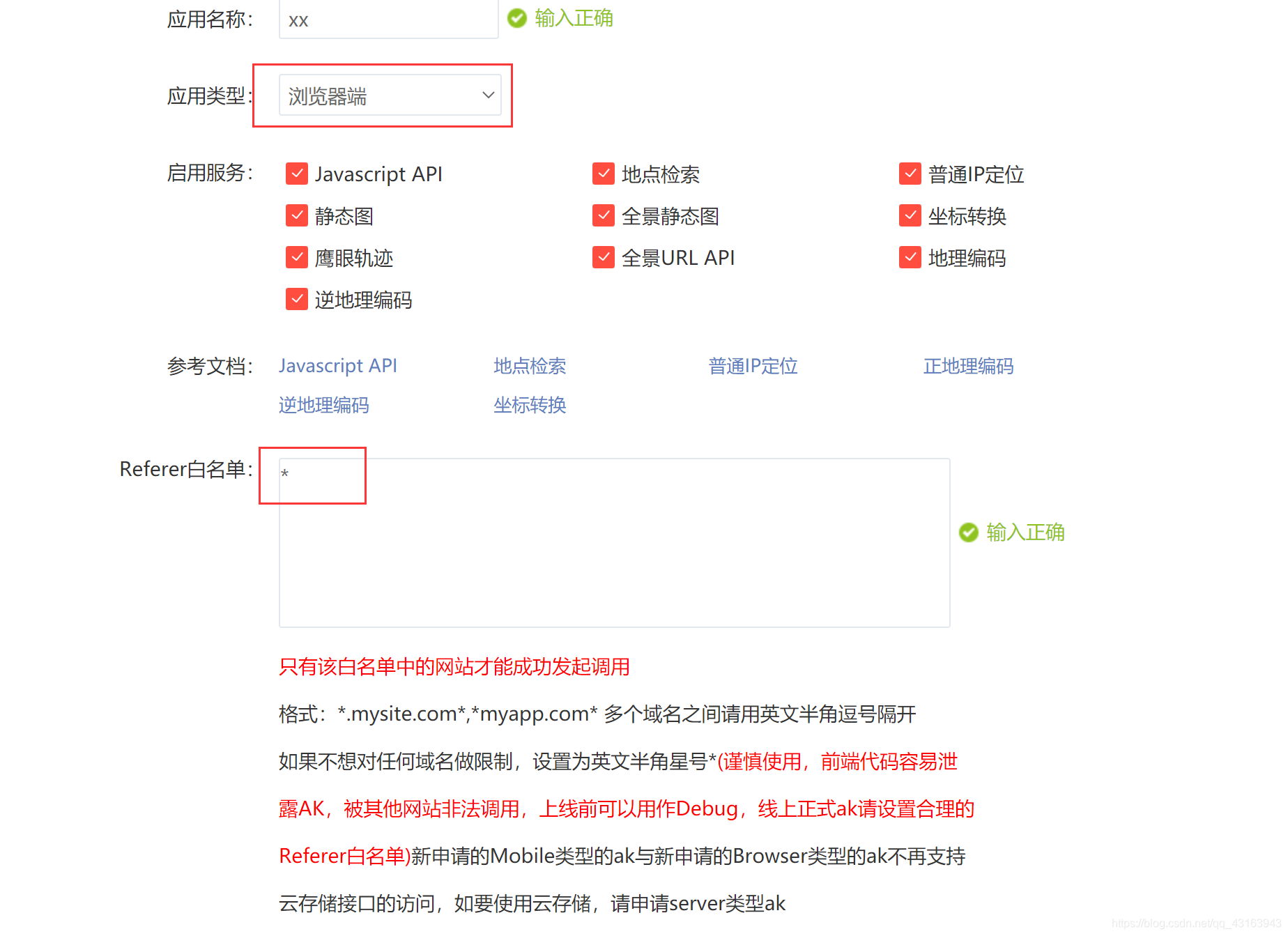

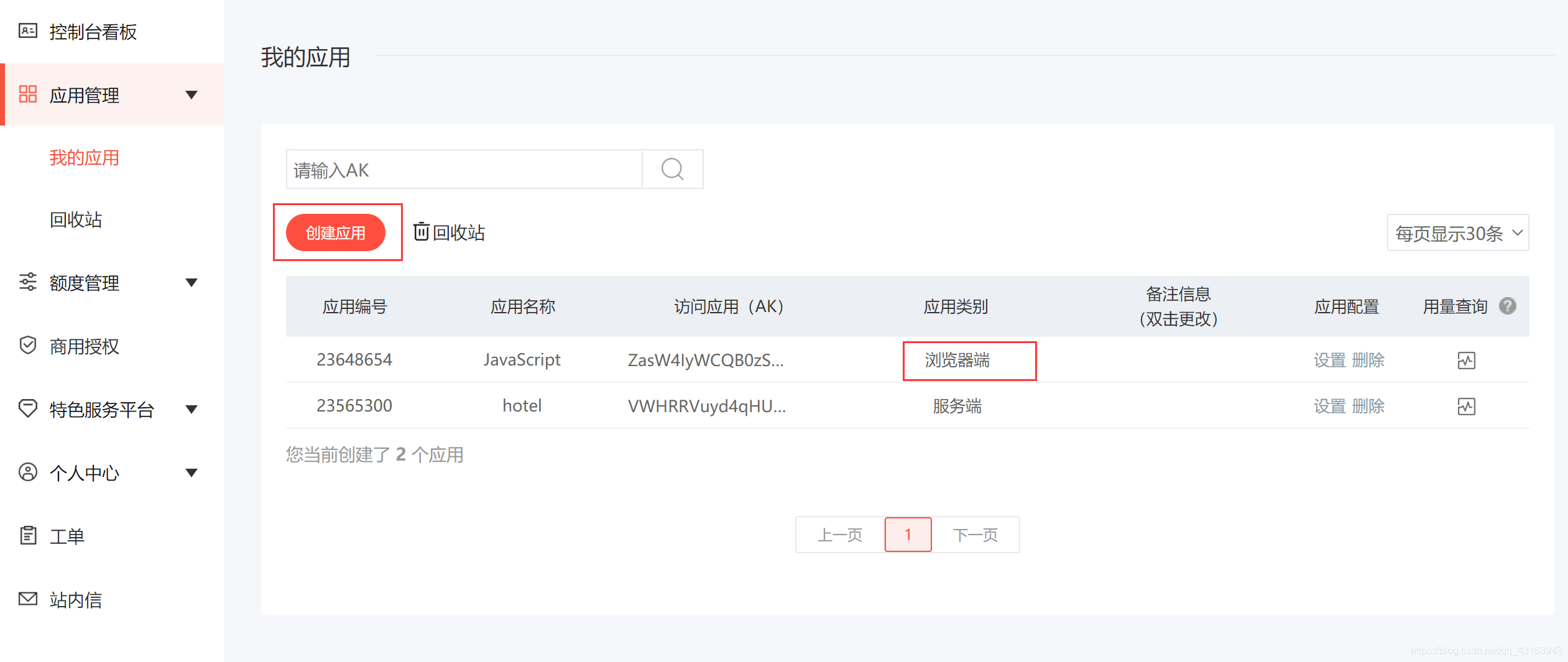

2、创建一个应用，应用类别选择浏览器端

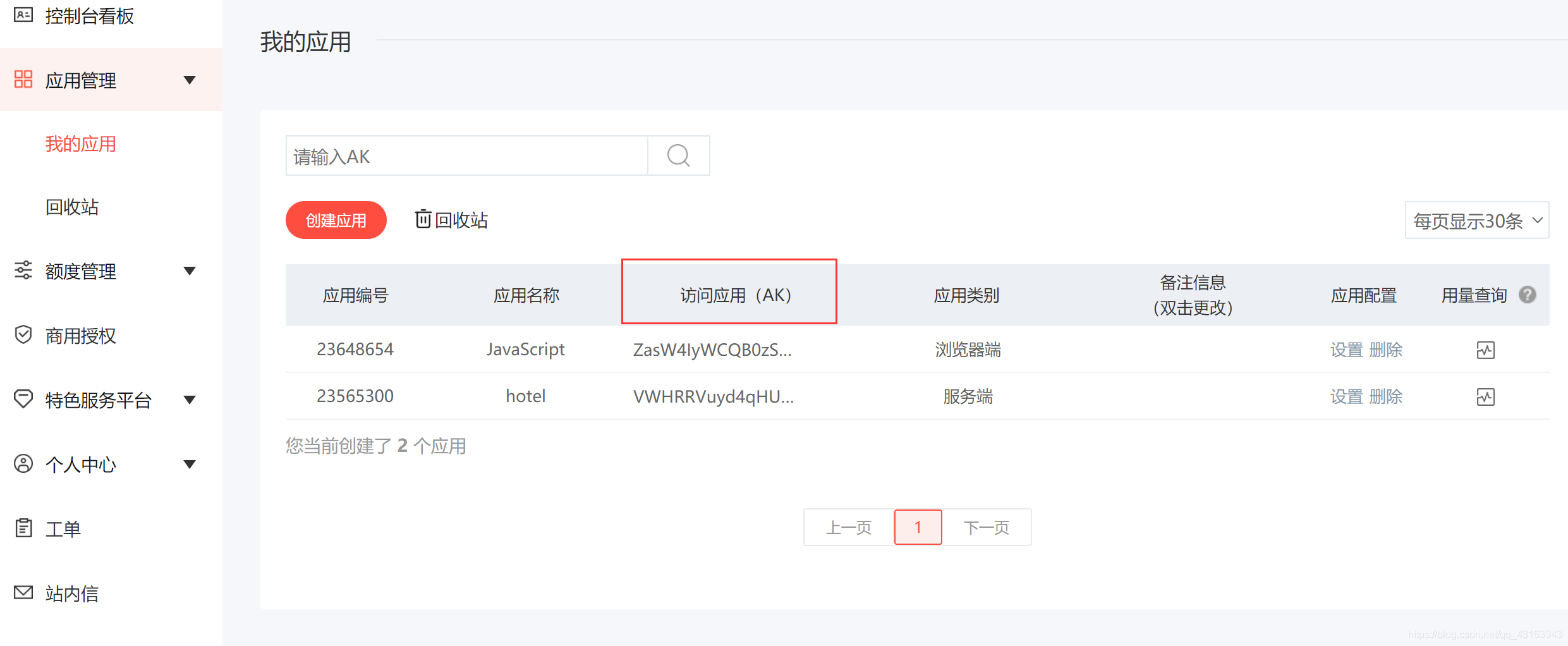

3、在我的应用里可以拿到自己的ak

4、入门案例

demo01.html

<!DOCTYPE html>
<html>
<head>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no" />
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>Hello, World</title>
    <style type="text/css">
        html{height:100%}
        body{height:100%;margin:0px;padding:0px}
        #container{height:100%}
    </style>
    <script type="text/javascript" src="https://api.map.baidu.com/api?v=1.0&type=webgl&ak=ZasW4IyWCQB0zSRXLlN0L7sy2jKAG9">
    </script>
</head>

<body>
<div id="container"></div>
<script type="text/javascript">
    var map = new BMapGL.Map("container");
    // 创建地图实例
    var point = new BMapGL.Point(116.404, 39.915);
    // 创建点坐标
    map.centerAndZoom(point, 15);
    // 初始化地图，设置中心点坐标和地图级别
</script>
</body>
</html>

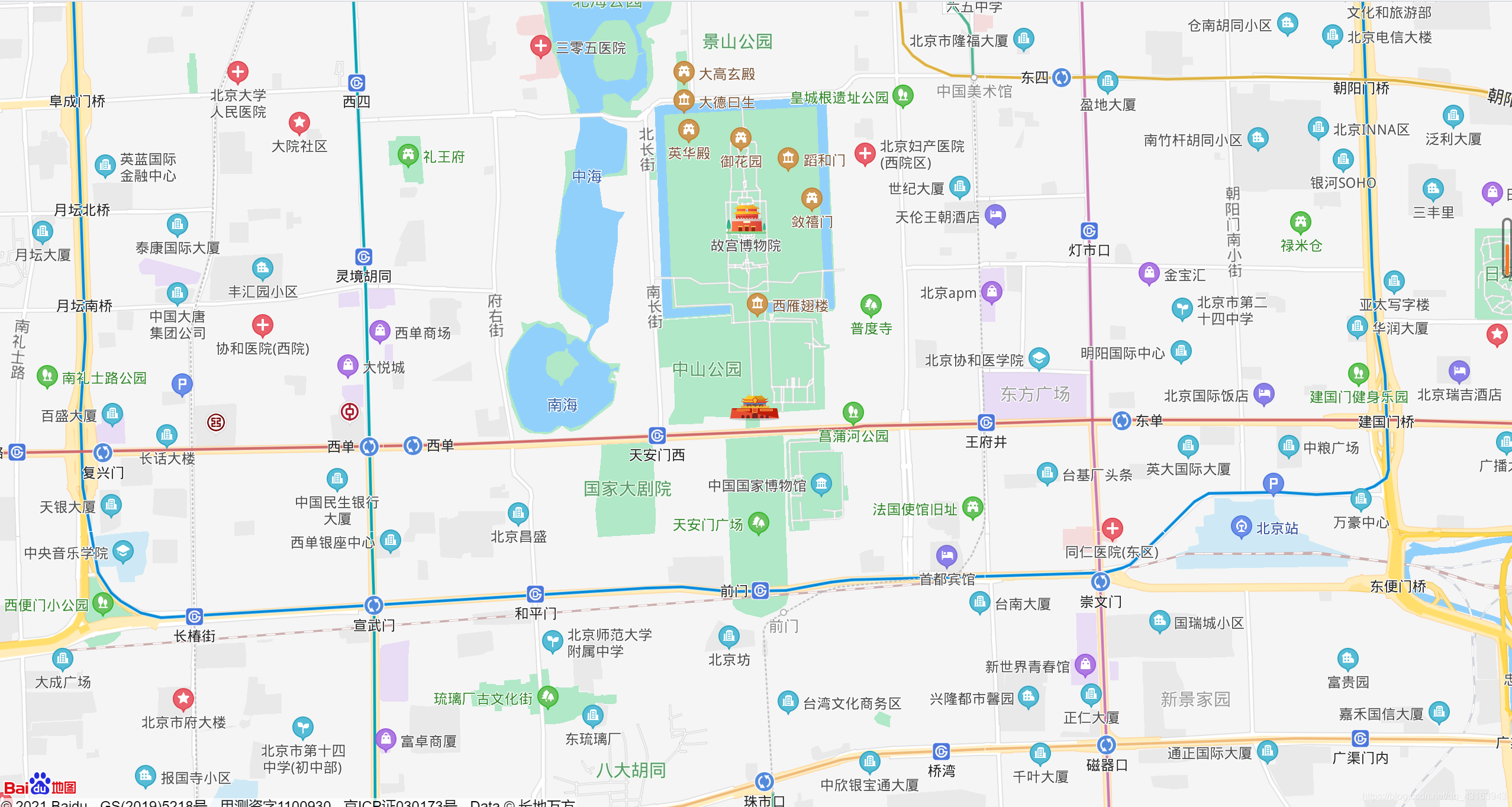

结果：

5、简单的地图api调用

有需要应该查看相关的官方地图api

demo01.html

<!DOCTYPE html>
<html>
<head>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no" />
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>Hello, World</title>
    <style type="text/css">
        html{height:80%}
        body{height:80%;margin:0px;padding:0px}
        #container{height:80%}
    </style>
    <script type="text/javascript" src="https://api.map.baidu.com/api?v=1.0&type=webgl&ak=ZasW4IyWCQB0zSRXLlN0L7sy2jKAG">
    </script>
</head>

<body>
<div id="container"></div>
<script type="text/javascript">
    var map = new BMapGL.Map("container");

    //开启鼠标滚轮缩放
    map.enableScrollWheelZoom(true);

    // 创建地图实例
    var point = new BMapGL.Point(107.875425,31.089558);
    // 创建点坐标
    map.centerAndZoom(point, 15);
    // 初始化地图，设置中心点坐标和地图级别

    //设置地图旋转角度
    map.setHeading(64.5);

    //设置地图的倾斜角度
    map.setTilt(73);

    map.setMapType(BMAP_EARTH_MAP);      // 设置地图类型为地球模式

    var scaleCtrl = new BMapGL.ScaleControl();  // 添加比例尺控件
    map.addControl(scaleCtrl);
    var zoomCtrl = new BMapGL.ZoomControl();  // 添加缩放控件
    map.addControl(zoomCtrl);
    var cityCtrl = new BMapGL.CityListControl();  // 添加城市列表控件
    map.addControl(cityCtrl);

</script>
</body>
</html>

demo02.html

<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no" />
    <style type="text/css">
        body, html{width: 100%;height: 100%;margin:0;font-family:"微软雅黑";}
        #allmap{height:500px;width:100%;}
        #r-result{width:100%;}
    </style>
    <script type="text/javascript" src="//api.map.baidu.com/api?type=webgl&v=1.0&ak=ZasW4IyWCQB0zSRXLlN0L7sy2jKAG"></script>
    <title>添加/删除覆盖物</title>
</head>
<body>
<div id="allmap"></div>
<div id="r-result">
    <input type="button" onclick="add_overlay();" value="添加覆盖物" />
    <input type="button" onclick="remove_overlay();" value="删除覆盖物" />
</div>
</body>
</html>
<script type="text/javascript">
    // 百度地图API功能
    var map = new BMapGL.Map("allmap");
    var point = new BMapGL.Point(116.404, 39.915);
    map.centerAndZoom(point, 15);

    var marker = new BMapGL.Marker(new BMapGL.Point(116.404, 39.915)); // 创建点
    var polyline = new BMapGL.Polyline([
        new BMapGL.Point(116.399, 39.910),
        new BMapGL.Point(116.405, 39.920),
        new BMapGL.Point(116.425, 39.900)
    ], {strokeColor:"blue", strokeWeight:2, strokeOpacity:0.5});   //创建折线

    var circle = new BMapGL.Circle(point,500,{strokeColor:"blue", strokeWeight:2, strokeOpacity:0.5}); //创建圆

    var polygon = new BMapGL.Polygon([
        new BMapGL.Point(116.387112,39.920977),
        new BMapGL.Point(116.385243,39.913063),
        new BMapGL.Point(116.394226,39.917988),
        new BMapGL.Point(116.401772,39.921364),
        new BMapGL.Point(116.41248,39.927893)
    ], {strokeColor:"blue", strokeWeight:2, strokeOpacity:0.5});  //创建多边形

    var pStart = new BMapGL.Point(116.392214,39.918985);
    var pEnd = new BMapGL.Point(116.41478,39.911901);
    var rectangle = new BMapGL.Polygon([
        new BMapGL.Point(pStart.lng,pStart.lat),
        new BMapGL.Point(pEnd.lng,pStart.lat),
        new BMapGL.Point(pEnd.lng,pEnd.lat),
        new BMapGL.Point(pStart.lng,pEnd.lat)
    ], {strokeColor:"blue", strokeWeight:2, strokeOpacity:0.5});  //创建矩形

    //添加覆盖物
    function add_overlay(){
        map.addOverlay(marker);            //增加点
        map.addOverlay(polyline);          //增加折线
        map.addOverlay(circle);            //增加圆
        map.addOverlay(polygon);           //增加多边形
        map.addOverlay(rectangle);         //增加矩形
    }
    //清除覆盖物
    function remove_overlay(){
        map.clearOverlays();
    }
    add_overlay();
</script>

多看百度地图API
