一.为什么要了解左偏树?
主要是一般的堆虽然插入、删除、取最值表现较好,但涉及到两个堆进行合并时,时间复杂度较高——左偏堆就是用来解决这个合并的问题的,当然后续还会学习斐波那契堆,那个也能有较好的时间复杂度
二.左偏树长什么样子?
三.左偏数的性质

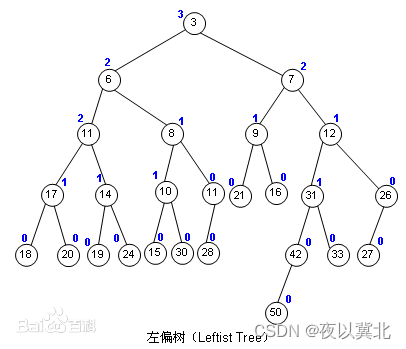

- 如上图所示,节点内的数字表示键值,这个键值的特点就是当前节点的键值一定小于子节点的键值(和小顶堆一样);
- 其次是节点上面的蓝色数字,表示“距离”,“距离”的定义是里当前节点最近的外节点的距离,外节点就是没有子节点或者只有一个子节点的节点(比如上图的50和42这种),当然如果节点本身是外节点,那节点的“距离”就是0;
- 左偏树保证节点的左子节点的距离不小于右子节点的距离——即左子节点的距离等于右子节点的距离+1,因此也定义空节点的距离为-1;
另外,一个N节点的左偏树的根节点的距离最大为log(N+1)-1。
四.左偏树的操作
1.merge
有两个小顶堆,其中x和y分别为两个小顶堆的堆顶,x.val <= y.val
由于合并后要形成的也是小顶堆,索引合并好的堆顶还是x,因此递归合并 x的子节点(随便一边都行) 和 y
合并完后如果破坏了x的左偏性质,就要交换x的左右子节点
交换完后再计算x的距离(右子节点的距离+1)
2.push和pop
push就是新建一个新的节点和要push的堆合并一下就行
pop是只能pop堆顶节点,即用两个左右子节点合并就行,释放堆顶节点就行
五.参考代码
public class LeftistHeap<T extends Comparable<T>> {
private LeftistNode<T> mRoot; // 根结点
private class LeftistNode<T extends Comparable<T>> {
T key; // 关键字(键值)
int npl; // 零路径长度(Null Path Length)
LeftistNode<T> left; // 左孩子
LeftistNode<T> right; // 右孩子
public LeftistNode(T key, LeftistNode<T> left, LeftistNode<T> right) {
this.key = key;
this.npl = 0;
this.left = left;
this.right = right;
}
public String toString() {
return "key:"+key;
}
}
public LeftistHeap() {
mRoot = null;
}
/*
* 前序遍历"左倾堆"
*/
private void preOrder(LeftistNode<T> heap) {
if(heap != null) {
System.out.print(heap.key+" ");
preOrder(heap.left);
preOrder(heap.right);
}
}
public void preOrder() {
preOrder(mRoot);
}
/*
* 中序遍历"左倾堆"
*/
private void inOrder(LeftistNode<T> heap) {
if(heap != null) {
inOrder(heap.left);
System.out.print(heap.key+" ");
inOrder(heap.right);
}
}
public void inOrder() {
inOrder(mRoot);
}
/*
* 后序遍历"左倾堆"
*/
private void postOrder(LeftistNode<T> heap) {
if(heap != null)
{
postOrder(heap.left);
postOrder(heap.right);
System.out.print(heap.key+" ");
}
}
public void postOrder() {
postOrder(mRoot);
}
/*
* 合并"左倾堆x"和"左倾堆y"
*/
private LeftistNode<T> merge(LeftistNode<T> x, LeftistNode<T> y) {
//返回的是合并后的新堆的堆顶节点
if(x == null) return y;
if(y == null) return x;
// 合并x和y时,将x作为合并后的树的根;
// 这里的操作是保证: x的key < y的key
//这一步很关键,结合下面和右节点merge,如果右节点的值大于y的值,那此时两个节点就交换了,此时x的右节点就是y了
//而y就变成了x的右节点了!!!所以一定一定要对照例子看懂这一步,单看下面是不行的
if(x.key.compareTo(y.key) > 0) {
LeftistNode<T> tmp = x;
x = y;
y = tmp;
}
// 将x的右孩子和y合并,"合并后的树的根"是x的右孩子。
x.right = merge(x.right, y);
// 如果"x的左孩子为空" 或者 "x的左孩子的npl<右孩子的npl"
// 则,交换x和y
if (x.left == null || x.left.npl < x.right.npl) {
LeftistNode<T> tmp = x.left;
x.left = x.right;
x.right = tmp;
}
if (x.right == null || x.left == null)
x.npl = 0;
else
x.npl = (x.left.npl > x.right.npl) ? (x.right.npl + 1) : (x.left.npl + 1);
return x;
}
public void merge(LeftistHeap<T> other) {
this.mRoot = merge(this.mRoot, other.mRoot);
}
/*
* 新建结点(key),并将其插入到左倾堆中
*/
public void insert(T key) {
LeftistNode<T> node = new LeftistNode<T>(key,null,null);
// 如果新建结点失败,则返回。
if (node != null)
this.mRoot = merge(this.mRoot, node);
}
/*
* 删除根结点,返回被删除的节点的键值
*/
public T remove() {
if (this.mRoot == null)
return null;
T key = this.mRoot.key;
LeftistNode<T> l = this.mRoot.left;
LeftistNode<T> r = this.mRoot.right;
this.mRoot = null; // 删除根节点
this.mRoot = merge(l, r); // 合并左右子树
return key;
}
/*
* 销毁左倾堆
*/
private void destroy(LeftistNode<T> heap) {
if (heap==null)
return ;
if (heap.left != null)
destroy(heap.left);
if (heap.right != null)
destroy(heap.right);
heap=null;
}
public void clear() {
destroy(mRoot);
mRoot = null;
}
/*
* 打印"左倾堆"
*
* key -- 节点的键值
* direction -- 0,表示该节点是根节点;
* -1,表示该节点是它的父结点的左孩子;
* 1,表示该节点是它的父结点的右孩子。
*/
private void print(LeftistNode<T> heap, T key, int direction) {
if(heap != null) {
if(direction==0) // heap是根节点
System.out.printf("%2d(%d) is root\n", heap.key, heap.npl);
else // heap是分支节点
System.out.printf("%2d(%d) is %2d's %6s child\n", heap.key, heap.npl, key, direction==1?"right" : "left");
print(heap.left, heap.key, -1);
print(heap.right,heap.key, 1);
}
}
public void print() {
if (mRoot != null)
print(mRoot, mRoot.key, 0);
}
}
public class test {
public static void main(String[] args) {
int a[]= {10,40,24,30,36,20,12,16};
int b[]= {17,13,11,15,19,21,23};
LeftistHeap<Integer> ha=new LeftistHeap<Integer>();
LeftistHeap<Integer> hb=new LeftistHeap<Integer>();
System.out.printf("== 左倾堆(ha)中依次添加: ");
for(int i=0; i<a.length; i++) {
System.out.printf("%d ", a[i]);
ha.insert(a[i]);
}
System.out.printf("\n== 左倾堆(ha)的详细信息: \n");
ha.print();
System.out.printf("\n== 左倾堆(hb)中依次添加: ");
for(int i=0; i<b.length; i++) {
System.out.printf("%d ", b[i]);
hb.insert(b[i]);
}
System.out.printf("\n== 左倾堆(hb)的详细信息: \n");
hb.print();
// 将"左倾堆hb"合并到"左倾堆ha"中。
ha.merge(hb);
System.out.printf("\n== 合并ha和hb后的详细信息: \n");
ha.print();
}
}
