简易计时闹钟设计verilog语言实现
任务描述:
用电路或verilog语言实现以下功能
简易计时闹钟:
有四位数码管，前两位计分钟，表示00~99分钟， 后面两位记秒，值为00~59秒。
有三个按键，第一个是分键，第 二个是秒键，第三个是启动/暂停键。
功能:
分秒两键同时按下清 零且停止计时，外于设置态，按一次分键分钟加1， 99增1变为0; 按一次秒键秒增1，59增1变为0。
此状态下按启动/暂停键开始计时，设置值为0000则为正计时，设置值为非零值则为倒计时。
正计时时，按启动/暂停键会暂停计时，再按启动/暂停键则会继 续计时。 （如果加满？清零？）
倒计时时，减到零时停止减数且发出警示蜂鸣声，直到 启动/暂停 键被按下时进入设置态且同时显示前设置值和停止发出蜂鸣声。
选择verilog语言实现。
可能用到的模块：
7位数码管；
蜂鸣器；
学习笔记：
Verilog中用：begin end 代替{ }；
一个always中不可同时存在阻塞赋值和非阻塞赋值；
活的信号上升沿或者下降沿的算法：
判断其前后时钟周期的电平变化；
reg [3:0]t2_a;
reg [3:0]t2_b;
reg [3:0]t1_a;
reg [3:0]t1_b;
reg [3:0]t0_a;
reg [3:0]t0_b;
reg press_m;
reg press_s;
reg press_set;
always@(posedge clk) begin
t2_a<=reg_m;
t2_b<=t2_a;
t1_a<=reg_s;
t1_b<=t1_a;
t0_a<=reg_set;
t0_b<=t0_a;
end
always@(posedge clk) begin
if(t2_a==0&&t2_b==1)
press_m<=1;
if(t1_a==0&&t1_b==1)
press_s<=1;
if(t0_a==0&&t0_b==1)
press_set<=1;
end
消抖算法：
统计按键输入保持的时间，达到一定阈值更改值
parameter SAMPLE_TIME = 7;//类似宏定义,0.007s
reg [2:0] m_low;
reg [2:0] m_high;
reg [2:0] s_low;
reg [2:0] s_high;
reg [2:0] set_low;
reg [2:0] set_high;
always @(posedge clk)begin
if(input_m==1'b0)
m_low <= m_low + 1;
else
m_low <= 0;
if(input_s==1'b0)
s_low <= s_low + 1;
else
s_low <= 0;
if(input_set==1'b0)
set_low <= set_low + 1;
else
set_low <= 0;
if(input_m==1'b1)
m_high <= m_high + 1;
else
m_high <= 0;
if(input_s==1'b1)
s_high <= s_high + 1;
else
s_high <= 0;
if(input_set==1'b1)
set_high <= set_high + 1;
else
set_high <= 0;
end
always @(posedge clk) begin
if(m_high == SAMPLE_TIME)
reg_m<= 1;
else if(m_low == SAMPLE_TIME)
reg_m<= 0;
if(s_high == SAMPLE_TIME)
reg_s<= 1;
else if(s_low == SAMPLE_TIME)
reg_s<= 0;
if(set_high == SAMPLE_TIME)
reg_set<= 1;
else if(m_low == SAMPLE_TIME)
reg_set<= 0;
end
源程序：
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2019/11/22 18:29:54
// Design Name:
// Module Name: Clock
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module Clock(
input_m,
input_s,
input_set,
clk,//1000Hz 用于按键消抖
L3,
L2,
L1,
L0,
buzzer,
/////////////test
press_m,
press_s,
press_set,
reg_m,
reg_s,
reg_set,
m_low,
m_high,
s_low,
s_high,
set_low,
set_high,
Em_a,
Em_b,
Es_a,
Es_b,
Eset_a,
Eset_b,
reg_m0,
reg_m1,
reg_s0,
reg_s1,
reg_W0,
reg_W1,
reg_A0,
reg_A1,
en,
count,
sym,
z
////////test
);
///////输入转化
input input_m;
input input_s;
input input_set;
input clk;
output L3;
output L2;
output L1;
output L0;
output buzzer;
//////test
output press_m;
output press_s;
output press_set;
output reg_m;
output reg_s;
output reg_set;
output m_low;
output m_high;
output s_low;
output s_high;
output set_low;
output set_high;
output Em_a;
output Em_b;
output Es_a;
output Es_b;
output Eset_a;
output Eset_b;
output reg_m0;
output reg_m1;
output reg_s0;
output reg_s1;
output reg_W0;
output reg_W1;
output reg_A0;
output reg_A1;
output en;
output count;
output sym;
output z;
///////test
wire input_m;
wire input_s;
wire input_set;
wire clk;
// assign input_m=M;
// assign input_s=S;
// assign input_set=SET;
// assign clk=CLK;
//////////////
reg reg_m;//按键状态寄存器，
reg reg_s;
reg reg_set;
initial begin
reg_m<=0;
reg_s<=0;
reg_set<=0;
end
///////////////////////// 消抖
parameter SAMPLE_TIME = 2'b11;//类似宏定义,0.003s
reg [10:0] m_low;
reg [10:0] m_high;
reg [10:0] s_low;
reg [10:0] s_high;
reg [10:0] set_low;
reg [10:0] set_high;
initial begin
m_low<=0;
m_high<=0;
s_low<=0;
s_high<=0;
set_low<=0;
set_high<=0;
end
always @(posedge clk)begin
if(input_m==1'b0)
m_low <= m_low + 1;
else
m_low <= 0;
if(input_s==1'b0)
s_low <= s_low + 1;
else
s_low <= 0;
if(input_set==1'b0)
set_low <= set_low + 1;
else
set_low <= 0;
if(input_m==1'b1)
m_high <= m_high + 1;
else
m_high <= 0;
if(input_s==1'b1)
s_high <= s_high + 1;
else
s_high <= 0;
if(input_set==1'b1)
set_high <= set_high + 1;
else
set_high <= 0;
end
always @(posedge clk) begin
if(m_high == SAMPLE_TIME)
reg_m<= 1;
else if(m_low == SAMPLE_TIME)
reg_m<= 0;
if(s_high == SAMPLE_TIME)
reg_s<= 1;
else if(s_low == SAMPLE_TIME)
reg_s<= 0;
if(set_high == SAMPLE_TIME)
reg_set<= 1;
else if(m_low == SAMPLE_TIME)
reg_set<= 0;
end
////输出reg_x
////////捕获输入上升沿
reg Em_a;
reg Em_b;
reg Es_a;
reg Es_b;
reg Eset_a;
reg Eset_b;
reg press_m;
reg press_s;
reg press_set;
initial begin
Em_a<=0;
Em_b<=0;
Es_a<=0;
Es_b<=0;
Eset_a<=0;
Eset_b<=0;
press_m<=0;
press_s<=0;
press_set<=0;
end
always@(clk) begin
Em_a<=reg_m;
Em_b<=Em_a;
Es_a<=reg_s;
Es_b<=Es_a;
Eset_a<=reg_set;
Eset_b<=Eset_a;
end
always@(clk) begin
if(Em_a==1&&Em_b==0)
press_m<=1;
else
press_m<=0;
if(Es_a==1&&Es_b==0)
press_s<=1;
else
press_s<=0;
if(Eset_a==1&&Eset_b==0)
press_set<=1;
else
press_set<=0;
end
////////////press_x为按下,reg_x为状态
//////////功能实现
reg [3:0]reg_m1;//分显示寄存器
reg [3:0]reg_m0;
reg [3:0]reg_s1;//秒显示寄存器
reg [3:0]reg_s0;
reg [3:0]reg_W1; //分记忆寄存器
reg [3:0]reg_W0;
reg [3:0]reg_A1; //秒记忆寄存器
reg [3:0]reg_A0;
reg [1:0]z;//状态寄存器,0为外置态，1为倒计时，2为正计时
reg buzzer;//蜂鸣器使能，高电平有效
reg en;//正计时使能，用于暂停/开始
reg [9:0]count;
reg sym;
initial begin
reg_m0<=0;
reg_m1<=0;
reg_s0<=0;
reg_s1<=0;
reg_W0<=0;
reg_W1<=0;
reg_A0<=0;
reg_A1<=0;
z<=0;
buzzer<=0;
en<=0;
count<=0;
sym<=0;
end
////////////////外置态
always@(posedge clk)begin
if(reg_m==1&®_s==1)begin
z<=0;
reg_m1<=0;
reg_m0<=0;
reg_s1<=0;
reg_s0<=0;
end
end
always@(clk)begin
if(z==0)begin
if(press_m==1&&press_s==0)begin
if(reg_m0!=9)
reg_m0<=reg_m0+1;
else if(reg_m0==9&®_m1!=9)begin
reg_m0<=0;
reg_m1<=reg_m1+1;
end
else if(reg_m0==9&®_m1==9)begin
reg_m0<=0;
reg_m1<=0;
end
end
if(press_m==0&&press_s==1)begin
if(reg_s0!=9)
reg_s0<=reg_s0+1;
else if(reg_s0==9&®_s1!=5)begin
reg_s0<=0;
reg_s1<=reg_s1+1;
end
else if(reg_s0==9&®_s1==5)begin
reg_s0<=0;
reg_s1<=0;
end
end
if(reg_m==0&®_s==0&&press_set==1&®_m0==0&®_m1==0&®_s0==0&®_s1==0)begin////正计时
z<=2;
en<=1;
end
if((reg_m==0&®_s==0&&press_set==1)&&(reg_m0!=0||reg_m1!=0||reg_s0!=0||reg_s1!=0))begin倒计时
z<=1;
reg_W0<=reg_m0;
reg_W1<=reg_m1;
reg_A0<=reg_s0;
reg_A1<=reg_s1;
end
end
end
///////////////////sym=1时，获得1s
always@(posedge clk)begin
if(count!=1000)begin
count<=count+1;
sym<=0;
end
else begin
sym<=1;
count<=0;
end
end
//////////////////倒计时
always@(sym)begin
if(z==1)begin
if(sym==1)begin
if(reg_s0!=0)
reg_s0<=reg_s0-1;
else if(reg_s1!=0&®_s0==0)begin
reg_s0<=9;
reg_s1<=reg_s1-1;
end
else if(reg_s1==0&®_s0==0&®_m0!=0)begin
reg_s1<=5;
reg_s0<=9;
reg_m0=reg_m0-1;
end
else if(reg_s1==0&®_s0==0&®_m0==0&®_m1!=0)begin
reg_m1<=reg_m1-1;
reg_m0<=9;
reg_s1<=5;
reg_s0<=9;
end
end
if(reg_s1==0&®_s0==0&®_m0==0&®_m1==0)begin
buzzer<=1;
// if(press_set==1)begin
// buzzer<=0;
// z<=0;
// reg_m0<=reg_W0;
// reg_m1<=reg_W1;
// reg_s0<=reg_A0;
// reg_s1<=reg_A1;
// end
end
else begin
buzzer<=0;
end
end
end
always@( clk)begin
if(z==1)begin
if(buzzer==1)begin
if(press_set==1)begin
buzzer<=0;
z<=0;
reg_m0<=reg_W0;
reg_m1<=reg_W1;
reg_s0<=reg_A0;
reg_s1<=reg_A1;
end
end
end
end
////////////////正计时
always@(clk)begin
if(z==2)begin
if(press_set==1)begin
if(en==1)
en<=0;
else
en<=1;
end
end
end
always@(sym)begin
if(z==2)begin
////////////暂停/开始
// if(press_set==1)begin
// if(en==1)
// en<=0;
// else
// en<=1;
// end
if(en==1)begin
if(sym==1)begin
if(reg_s0!=9)
reg_s0<=reg_s0+1;
else if(reg_s0==9&®_s1!=5)begin
reg_s0<=0;
reg_s1<=reg_s1+1;
end
else if(reg_s0==9&®_s1==5&®_m0!=9)begin
reg_s0<=0;
reg_s1<=0;
reg_m0<=reg_m0+1;
end
else if(reg_s0==9&®_s1==5&®_m0==9&®_m1!=9)begin
reg_s0<=0;
reg_s1<=0;
reg_m0<=0;
reg_m1<=reg_m1+1;
end
else if(reg_s0==9&®_s1==5&®_m0==9&®_m1==9)begin
reg_s0<=0;
reg_s1<=0;
reg_m0<=0;
reg_m1<=0;
end
end
end
end
end
////////////////数码管控制模块,4-7译码器,此处设置为共阴极
reg [6:0]L3;
reg [6:0]L2;
reg [6:0]L1;
reg [6:0]L0;
always@(reg_m1)
case(reg_m1)
0:L3<=7'h7e;
1:L3<=7'h30;
2:L3<=7'h6d;
3:L3<=7'h79;
4:L3<=7'h33;
5:L3<=7'h5b;
6:L3<=7'h5f;
7:L3<=7'h70;
8:L3<=7'h7f;
9:L3<=7'h7b;
default:L3<=7'h00;
endcase
always@(reg_m0)
case(reg_m0)
0:L2<=7'h7e;
1:L2<=7'h30;
2:L2<=7'h6d;
3:L2<=7'h79;
4:L2<=7'h33;
5:L2<=7'h5b;
6:L2<=7'h5f;
7:L2<=7'h70;
8:L2<=7'h7f;
9:L2<=7'h7b;
default:L2<=7'h00;
endcase
always@(reg_s1)
case(reg_s1)
0:L1<=7'h7e;
1:L1<=7'h30;
2:L1<=7'h6d;
3:L1<=7'h79;
4:L1<=7'h33;
5:L1<=7'h5b;
6:L1<=7'h5f;
7:L1<=7'h70;
8:L1<=7'h7f;
9:L1<=7'h7b;
default:L1<=7'h00;
endcase
always@(reg_s0)
case(reg_s0)
0:L0<=7'h7e;
1:L0<=7'h30;
2:L0<=7'h6d;
3:L0<=7'h79;
4:L0<=7'h33;
5:L0<=7'h5b;
6:L0<=7'h5f;
7:L0<=7'h70;
8:L0<=7'h7f;
9:L0<=7'h7b;
default:L0<=7'h00;
endcase
endmodule
下面进行testbench学习与编写：
statement is similar to always, it just starts once at the beginning, and does not repeat.
Will execute at the beginning once.
Testbench has no inputs, outputs
实际上 initial块与always 块可看做是顺序执行的。因为在的always块运行时，initial已经给相应的信号赋了值，否则always出来的初始值应该是不可预期的，可能会是红线X。或者always块里本身也有赋初值的语句，
经过一番艰苦的探索，，，
- 编的过程中不仿真，最后两行泪。
- 调试的时候和C一样，把所有中间变量都输出然后监控进行调试。
- 一些vivado使用技巧。

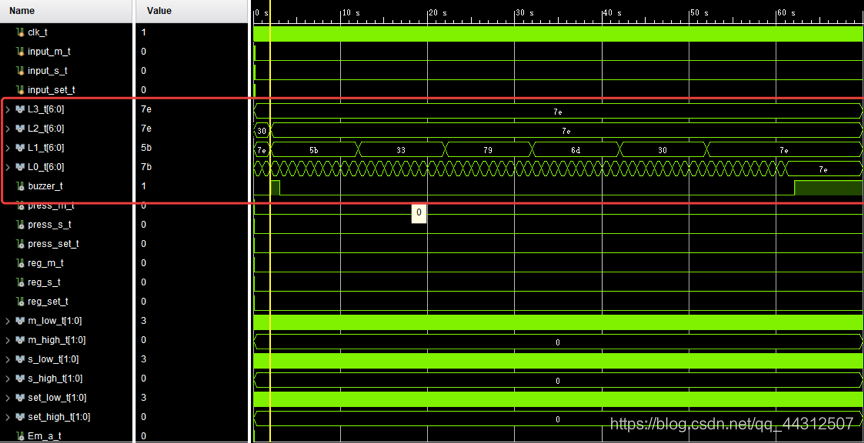

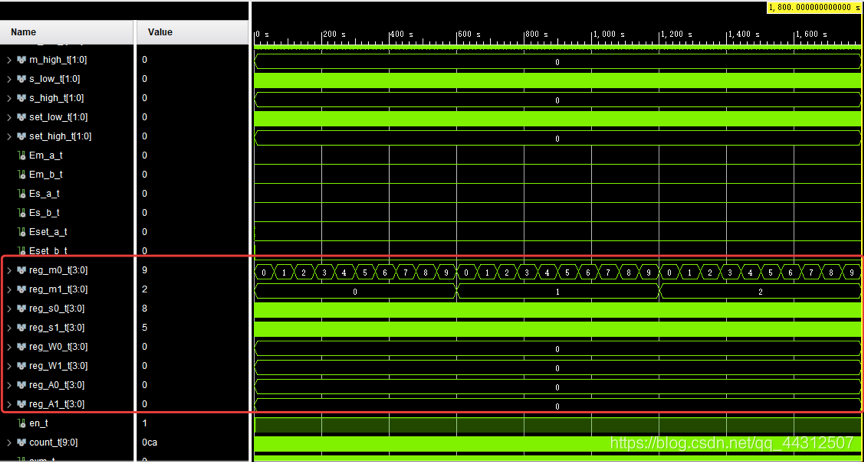

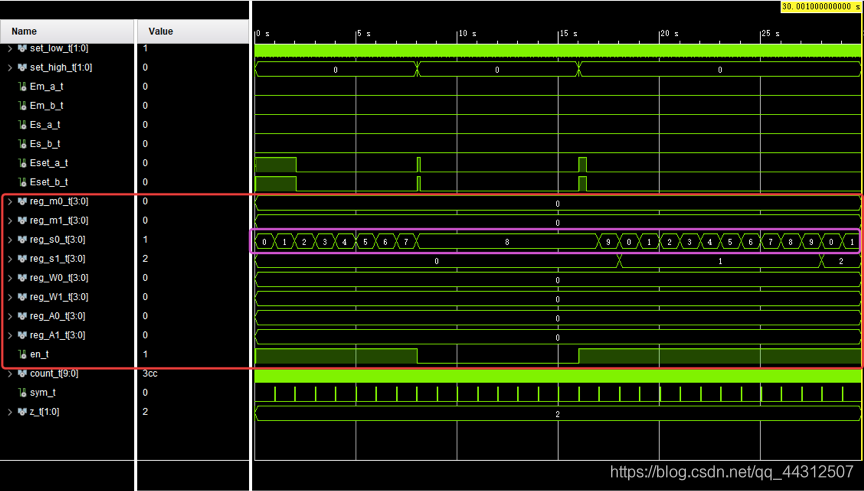

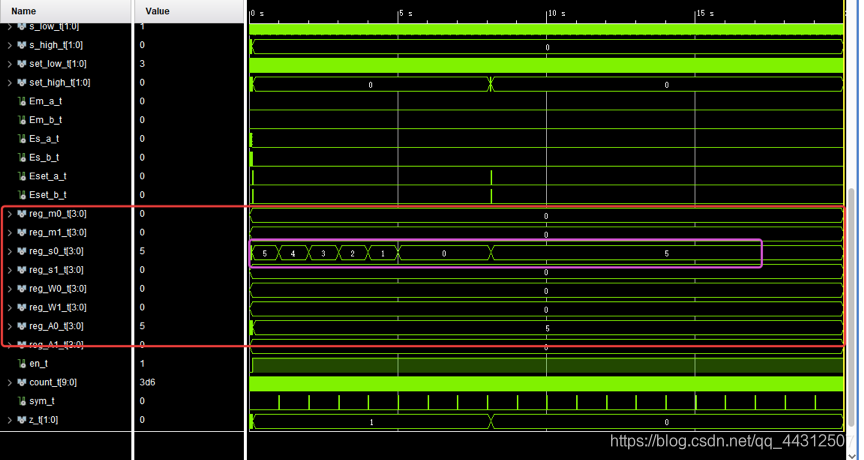

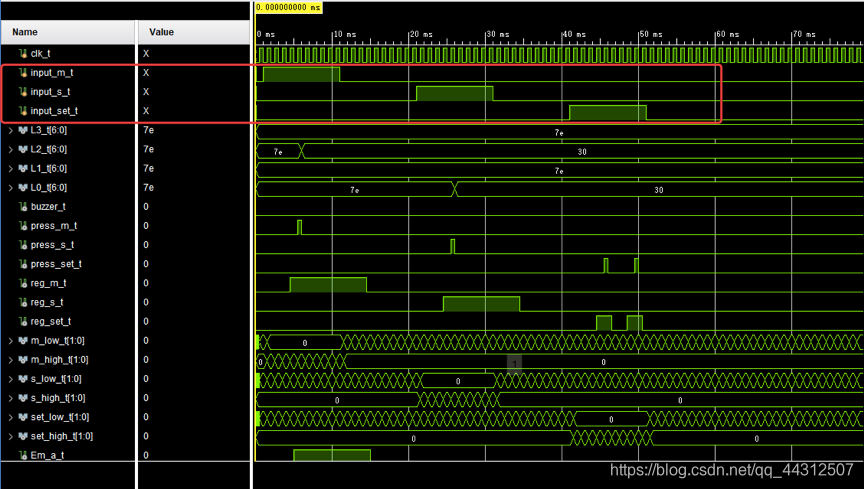

下面进行仿真：
有许多事调试时监控的中间变量，最后也懒得删除了，留着还可以接着调试，真正的输入输出会圈出来。

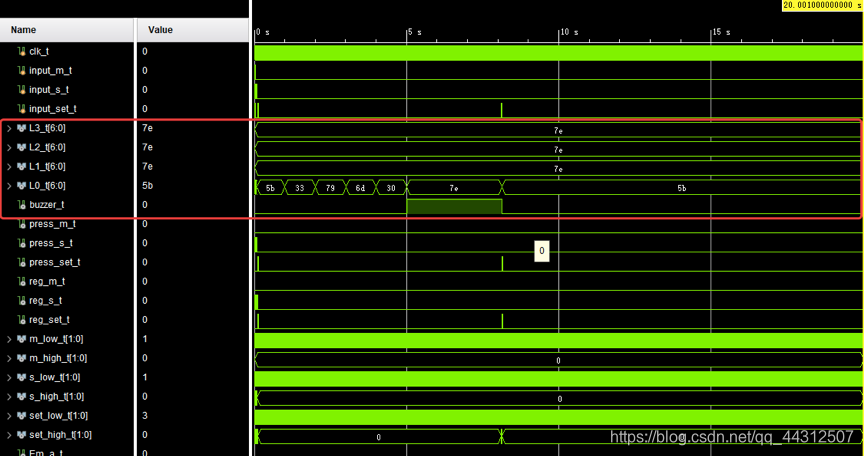

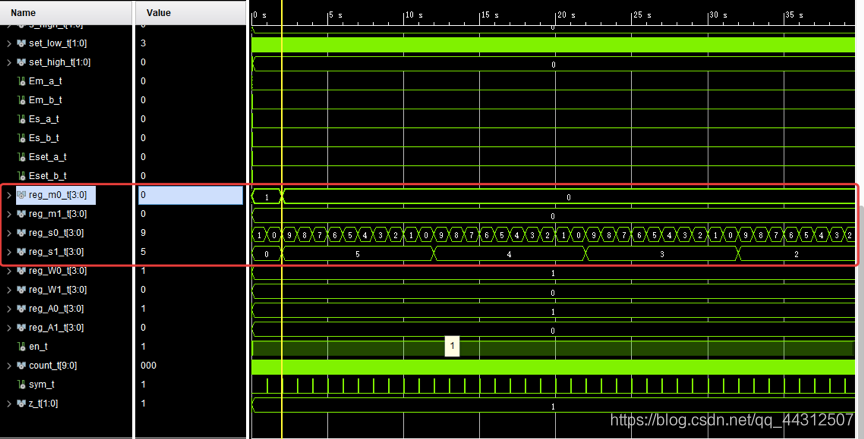

外置态和倒计时：
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2019/11/28 10:31:59
// Design Name:
// Module Name: testbench_3
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module testbench_clock_set();
reg clk_t;
reg input_m_t;
reg input_s_t;
reg input_set_t;
wire [6:0] L3_t;
wire [6:0] L2_t;
wire [6:0] L1_t;
wire [6:0] L0_t;
wire buzzer_t;
////test
wire press_m_t;
wire press_s_t;
wire press_set_t;
wire reg_m_t;
wire reg_s_t;
wire reg_set_t;
wire [1:0]m_low_t;
wire [1:0]m_high_t;
wire [1:0]s_low_t;
wire [1:0]s_high_t;
wire [1:0]set_low_t;
wire [1:0]set_high_t;
wire Em_a_t;
wire Em_b_t;
wire Es_a_t;
wire Es_b_t;
wire Eset_a_t;
wire Eset_b_t;
wire [3:0]reg_m0_t;
wire [3:0]reg_m1_t;
wire [3:0]reg_s0_t;
wire [3:0]reg_s1_t;
wire [3:0]reg_W0_t;
wire [3:0]reg_W1_t;
wire [3:0]reg_A0_t;
wire [3:0]reg_A1_t;
wire en_t;
wire [9:0]count_t;
wire sym_t;
wire [1:0]z_t;
////test
Clock DUT(
.clk(clk_t),
.input_m(input_m_t),
.input_s(input_s_t),
.input_set(input_set_t),
.L3(L3_t),
.L2(L2_t),
.L1(L1_t),
.L0(L0_t),
.buzzer(buzzer_t),
////test
.press_m(press_m_t),
.press_s(press_s_t),
.press_set(press_set_t),
.reg_s(reg_s_t),
.reg_m(reg_m_t),
.reg_set(reg_set_t),
.m_low(m_low_t),
.m_high(m_high_t),
.s_low(s_low_t),
.s_high(s_high_t),
.set_low(set_low_t),
.set_high(set_high_t),
.Em_a(Em_a_t),
.Em_b(Em_b_t),
.Es_a(Es_a_t),
.Es_b(Es_b_t),
.Eset_a(Eset_a_t),
.Eset_b(Eset_b_t),
.reg_m0(reg_m0_t),
.reg_m1(reg_m1_t),
.reg_s0(reg_s0_t),
.reg_s1(reg_s1_t),
.reg_W0(reg_W0_t),
.reg_W1(reg_W1_t),
.reg_A0(reg_A0_t),
.reg_A1(reg_A1_t),
.en(en_t),
.count(count_t),
.sym(sym_t),
.z(z_t)
////test
);
initial #1 clk_t<=0;
always #500000 clk_t=~clk_t;//1000Kz时钟
initial begin
#1input_m_t<=0; input_s_t<=0; input_set_t<=0;
#1000000 input_m_t<=1; //input_s_t<=1;
#10000000 input_m_t<=0;//input_s_t<=0;
#10000000 input_s_t<=1;
#10000000 input_s_t<=0;
#10000000 input_set_t<=1;
#10000000 input_set_t<=0;
// #10000000 input_m_t<=1;
// #10000000 input_m_t<=0;
// #10000000 input_m_t<=1;
// #10000000 input_m_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_m_t<=1;
end
endmodule
输入：在原始状态（外置态）按一下 分设置按钮，按一下 秒设置按钮，按一下 设置按钮
结果对应1分1秒倒计时
输出：L3，L2，L1，L0，buzzer，
因为L是数码管，这里为了更方便，列出数码管控制寄存器
可以看到设置和倒计时和蜂鸣器正常。
倒计时回到外置态
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2019/11/28 10:31:59
// Design Name:
// Module Name: testbench_3
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module testbench_clock_set();
reg clk_t;
reg input_m_t;
reg input_s_t;
reg input_set_t;
wire [6:0] L3_t;
wire [6:0] L2_t;
wire [6:0] L1_t;
wire [6:0] L0_t;
wire buzzer_t;
////test
wire press_m_t;
wire press_s_t;
wire press_set_t;
wire reg_m_t;
wire reg_s_t;
wire reg_set_t;
wire [1:0]m_low_t;
wire [1:0]m_high_t;
wire [1:0]s_low_t;
wire [1:0]s_high_t;
wire [1:0]set_low_t;
wire [1:0]set_high_t;
wire Em_a_t;
wire Em_b_t;
wire Es_a_t;
wire Es_b_t;
wire Eset_a_t;
wire Eset_b_t;
wire [3:0]reg_m0_t;
wire [3:0]reg_m1_t;
wire [3:0]reg_s0_t;
wire [3:0]reg_s1_t;
wire [3:0]reg_W0_t;
wire [3:0]reg_W1_t;
wire [3:0]reg_A0_t;
wire [3:0]reg_A1_t;
wire en_t;
wire [9:0]count_t;
wire sym_t;
wire [1:0]z_t;
////test
Clock DUT(
.clk(clk_t),
.input_m(input_m_t),
.input_s(input_s_t),
.input_set(input_set_t),
.L3(L3_t),
.L2(L2_t),
.L1(L1_t),
.L0(L0_t),
.buzzer(buzzer_t),
////test
.press_m(press_m_t),
.press_s(press_s_t),
.press_set(press_set_t),
.reg_s(reg_s_t),
.reg_m(reg_m_t),
.reg_set(reg_set_t),
.m_low(m_low_t),
.m_high(m_high_t),
.s_low(s_low_t),
.s_high(s_high_t),
.set_low(set_low_t),
.set_high(set_high_t),
.Em_a(Em_a_t),
.Em_b(Em_b_t),
.Es_a(Es_a_t),
.Es_b(Es_b_t),
.Eset_a(Eset_a_t),
.Eset_b(Eset_b_t),
.reg_m0(reg_m0_t),
.reg_m1(reg_m1_t),
.reg_s0(reg_s0_t),
.reg_s1(reg_s1_t),
.reg_W0(reg_W0_t),
.reg_W1(reg_W1_t),
.reg_A0(reg_A0_t),
.reg_A1(reg_A1_t),
.en(en_t),
.count(count_t),
.sym(sym_t),
.z(z_t)
////test
);
initial #1 clk_t<=0;
always #500000 clk_t=~clk_t;//1000Kz时钟
initial begin
#1input_m_t<=0; input_s_t<=0; input_set_t<=0;
// #1000000 input_m_t<=1; //input_s_t<=1;
// #10000000 input_m_t<=0;//input_s_t<=0;
#10000000 input_s_t<=1;
#10000000 input_s_t<=0;
#10000000 input_s_t<=1;
#10000000 input_s_t<=0;
#10000000 input_s_t<=1;
#10000000 input_s_t<=0;
#10000000 input_s_t<=1;
#10000000 input_s_t<=0;
#10000000 input_s_t<=1;
#10000000 input_s_t<=0;//5秒
#10000000 input_set_t<=1;
#10000000 input_set_t<=0;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000 input_set_t<=1;
#10000000 input_set_t<=0;
end
endmodule
同样的：
正计时
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2019/11/28 10:31:59
// Design Name:
// Module Name: testbench_3
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module testbench_clock_set();
reg clk_t;
reg input_m_t;
reg input_s_t;
reg input_set_t;
wire [6:0] L3_t;
wire [6:0] L2_t;
wire [6:0] L1_t;
wire [6:0] L0_t;
wire buzzer_t;
////test
wire press_m_t;
wire press_s_t;
wire press_set_t;
wire reg_m_t;
wire reg_s_t;
wire reg_set_t;
wire [1:0]m_low_t;
wire [1:0]m_high_t;
wire [1:0]s_low_t;
wire [1:0]s_high_t;
wire [1:0]set_low_t;
wire [1:0]set_high_t;
wire Em_a_t;
wire Em_b_t;
wire Es_a_t;
wire Es_b_t;
wire Eset_a_t;
wire Eset_b_t;
wire [3:0]reg_m0_t;
wire [3:0]reg_m1_t;
wire [3:0]reg_s0_t;
wire [3:0]reg_s1_t;
wire [3:0]reg_W0_t;
wire [3:0]reg_W1_t;
wire [3:0]reg_A0_t;
wire [3:0]reg_A1_t;
wire en_t;
wire [9:0]count_t;
wire sym_t;
wire [1:0]z_t;
////test
Clock DUT(
.clk(clk_t),
.input_m(input_m_t),
.input_s(input_s_t),
.input_set(input_set_t),
.L3(L3_t),
.L2(L2_t),
.L1(L1_t),
.L0(L0_t),
.buzzer(buzzer_t),
////test
.press_m(press_m_t),
.press_s(press_s_t),
.press_set(press_set_t),
.reg_s(reg_s_t),
.reg_m(reg_m_t),
.reg_set(reg_set_t),
.m_low(m_low_t),
.m_high(m_high_t),
.s_low(s_low_t),
.s_high(s_high_t),
.set_low(set_low_t),
.set_high(set_high_t),
.Em_a(Em_a_t),
.Em_b(Em_b_t),
.Es_a(Es_a_t),
.Es_b(Es_b_t),
.Eset_a(Eset_a_t),
.Eset_b(Eset_b_t),
.reg_m0(reg_m0_t),
.reg_m1(reg_m1_t),
.reg_s0(reg_s0_t),
.reg_s1(reg_s1_t),
.reg_W0(reg_W0_t),
.reg_W1(reg_W1_t),
.reg_A0(reg_A0_t),
.reg_A1(reg_A1_t),
.en(en_t),
.count(count_t),
.sym(sym_t),
.z(z_t)
////test
);
initial #1 clk_t<=0;
always #500000 clk_t=~clk_t;//1000Kz时钟
initial begin
#1input_m_t<=0; input_s_t<=0; input_set_t<=0;
// #1000000 input_m_t<=1; //input_s_t<=1;
// #10000000 input_m_t<=0;//input_s_t<=0;
#10000000 input_set_t<=1;
#10000000 input_set_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;
// #10000000 input_s_t<=1;
// #10000000 input_s_t<=0;//5秒
// #10000000 input_set_t<=1;
// #10000000 input_set_t<=0;
// #1000000000;
// #1000000000;
// #1000000000;
// #1000000000;
// #1000000000;
// #1000000000;
// #1000000000;
// #1000000000 input_set_t<=1;
// #10000000 input_set_t<=0;
end
endmodule
正计时暂停
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2019/11/28 10:31:59
// Design Name:
// Module Name: testbench_3
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module testbench_clock_set();
reg clk_t;
reg input_m_t;
reg input_s_t;
reg input_set_t;
wire [6:0] L3_t;
wire [6:0] L2_t;
wire [6:0] L1_t;
wire [6:0] L0_t;
wire buzzer_t;
////test
wire press_m_t;
wire press_s_t;
wire press_set_t;
wire reg_m_t;
wire reg_s_t;
wire reg_set_t;
wire [1:0]m_low_t;
wire [1:0]m_high_t;
wire [1:0]s_low_t;
wire [1:0]s_high_t;
wire [1:0]set_low_t;
wire [1:0]set_high_t;
wire Em_a_t;
wire Em_b_t;
wire Es_a_t;
wire Es_b_t;
wire Eset_a_t;
wire Eset_b_t;
wire [3:0]reg_m0_t;
wire [3:0]reg_m1_t;
wire [3:0]reg_s0_t;
wire [3:0]reg_s1_t;
wire [3:0]reg_W0_t;
wire [3:0]reg_W1_t;
wire [3:0]reg_A0_t;
wire [3:0]reg_A1_t;
wire en_t;
wire [9:0]count_t;
wire sym_t;
wire [1:0]z_t;
////test
Clock DUT(
.clk(clk_t),
.input_m(input_m_t),
.input_s(input_s_t),
.input_set(input_set_t),
.L3(L3_t),
.L2(L2_t),
.L1(L1_t),
.L0(L0_t),
.buzzer(buzzer_t),
////test
.press_m(press_m_t),
.press_s(press_s_t),
.press_set(press_set_t),
.reg_s(reg_s_t),
.reg_m(reg_m_t),
.reg_set(reg_set_t),
.m_low(m_low_t),
.m_high(m_high_t),
.s_low(s_low_t),
.s_high(s_high_t),
.set_low(set_low_t),
.set_high(set_high_t),
.Em_a(Em_a_t),
.Em_b(Em_b_t),
.Es_a(Es_a_t),
.Es_b(Es_b_t),
.Eset_a(Eset_a_t),
.Eset_b(Eset_b_t),
.reg_m0(reg_m0_t),
.reg_m1(reg_m1_t),
.reg_s0(reg_s0_t),
.reg_s1(reg_s1_t),
.reg_W0(reg_W0_t),
.reg_W1(reg_W1_t),
.reg_A0(reg_A0_t),
.reg_A1(reg_A1_t),
.en(en_t),
.count(count_t),
.sym(sym_t),
.z(z_t)
////test
);
initial #1 clk_t<=0;
always #500000 clk_t=~clk_t;//1000Kz时钟
initial begin
#1input_m_t<=0; input_s_t<=0; input_set_t<=0;
// #1000000 input_m_t<=1; //input_s_t<=1;
// #10000000 input_m_t<=0;//input_s_t<=0;
#10000000 input_set_t<=1;
#10000000 input_set_t<=0;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000 input_set_t<=1;
#10000000 input_set_t<=0;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000;
#1000000000 input_set_t<=1;
#10000000 input_set_t<=0;
end
endmodule
可以看到暂停，启动正常。
扫一扫
3万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
