自定义outputformat实例

自定义OutputFormat案例实操

1．需求

过滤输入的log日志，包含atguigu的网站输出到e:/atguigu.log，不包含atguigu的网站输出到e:/other.log。

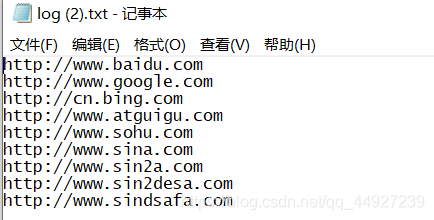

（1）输入数据

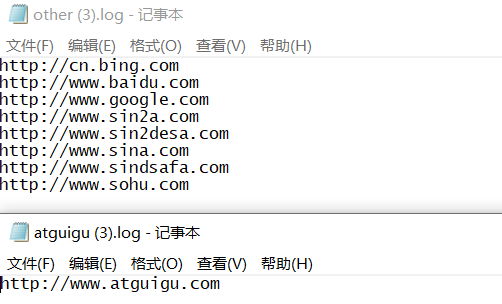

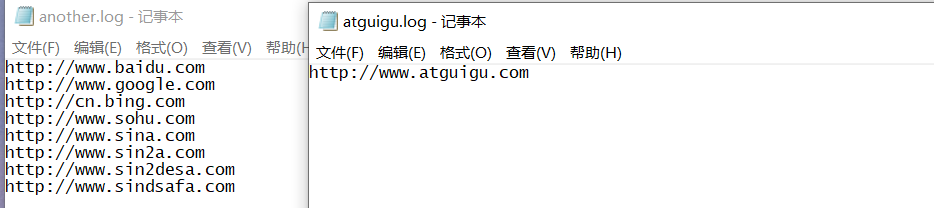

（2）期望输出数据

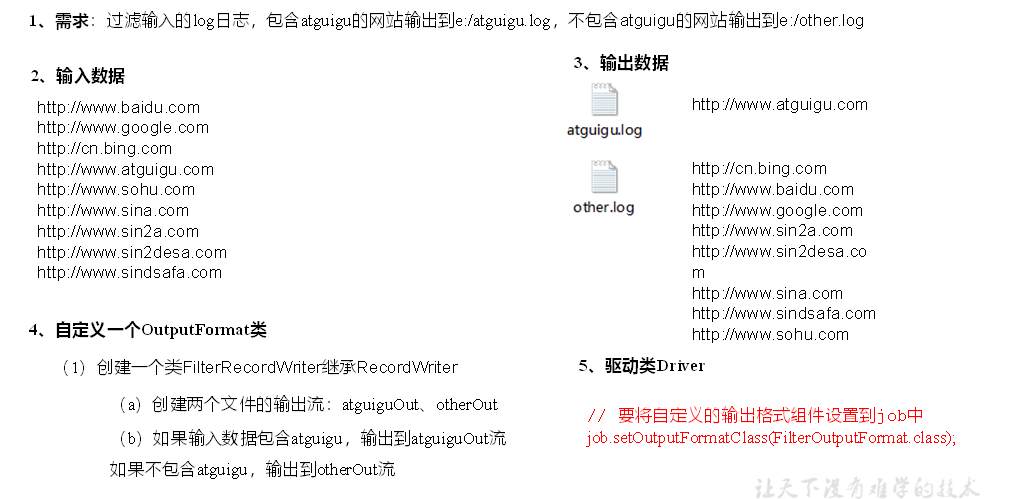

2．需求分析



3．案例实操

（1）编写FilterMapper类

package com.atguigu.mapreduce.outputformat; import java.io.IOException; import org.apache.hadoop.io.LongWritable; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Mapper;   public class FilterMapper extends Mapper<LongWritable, Text, Text, NullWritable>{   @Override protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {   // 写出 context.write(value, NullWritable.get()); } }

（2）编写FilterReducer类

package com.atguigu.mapreduce.outputformat; import java.io.IOException; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Reducer;   public class FilterReducer extends Reducer<Text, NullWritable, Text, NullWritable> {   Text k = new Text();   @Override protected void reduce(Text key, Iterable<NullWritable> values, Context context) throws IOException, InterruptedException {          // 1 获取一行 String line = key.toString();          // 2 拼接 line = line + "\r\n";          // 3 设置key        k.set(line);          // 4 输出 context.write(k, NullWritable.get()); } }

（3）自定义一个OutputFormat类

package com.atguigu.mapreduce.outputformat; import java.io.IOException; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.RecordWriter; import org.apache.hadoop.mapreduce.TaskAttemptContext; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;   public class FilterOutputFormat extends FileOutputFormat<Text, NullWritable>{   @Override public RecordWriter<Text, NullWritable> getRecordWriter(TaskAttemptContext job) throws IOException, InterruptedException {   // 创建一个RecordWriter return new FilterRecordWriter(job); } }

（4）编写RecordWriter类

package com.atguigu.mapreduce.outputformat; import java.io.IOException; import org.apache.hadoop.fs.FSDataOutputStream; import org.apache.hadoop.fs.FileSystem; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.RecordWriter; import org.apache.hadoop.mapreduce.TaskAttemptContext;   public class FilterRecordWriter extends RecordWriter<Text, NullWritable> {   FSDataOutputStream atguiguOut = null; FSDataOutputStream otherOut = null;   public FilterRecordWriter(TaskAttemptContext job) {   // 1 获取文件系统 FileSystem fs;   try { fs = FileSystem.get(job.getConfiguration());   // 2 创建输出文件路径 Path atguiguPath = new Path("e:/atguigu.log"); Path otherPath = new Path("e:/other.log");   // 3 创建输出流 atguiguOut = fs.create(atguiguPath); otherOut = fs.create(otherPath); } catch (IOException e) { e.printStackTrace(); } }   @Override public void write(Text key, NullWritable value) throws IOException, InterruptedException {   // 判断是否包含“atguigu”输出到不同文件 if (key.toString().contains("atguigu")) { atguiguOut.write(key.toString().getBytes()); } else { otherOut.write(key.toString().getBytes()); } }   @Override public void close(TaskAttemptContext context) throws IOException, InterruptedException {   // 关闭资源 IOUtils.closeStream(atguiguOut); IOUtils.closeStream(otherOut); } }

（5）编写FilterDriver类

package com.atguigu.mapreduce.outputformat; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;   public class FilterDriver {   public static void main(String[] args) throws Exception {   // 输入输出路径需要根据自己电脑上实际的输入输出路径设置 args = new String[] { "e:/input/inputoutputformat", "e:/output2" };   Configuration conf = new Configuration(); Job job = Job.getInstance(conf);   job.setJarByClass(FilterDriver.class); job.setMapperClass(FilterMapper.class); job.setReducerClass(FilterReducer.class);   job.setMapOutputKeyClass(Text.class); job.setMapOutputValueClass(NullWritable.class);   job.setOutputKeyClass(Text.class); job.setOutputValueClass(NullWritable.class);   // 要将自定义的输出格式组件设置到job中 job.setOutputFormatClass(FilterOutputFormat.class);   FileInputFormat.setInputPaths(job, new Path(args[0]));   // 虽然我们自定义了outputformat，但是因为我们的outputformat继承自fileoutputformat // 而fileoutputformat要输出一个_SUCCESS文件，所以，在这还得指定一个输出目录 FileOutputFormat.setOutputPath(job, new Path(args[1]));   boolean result = job.waitForCompletion(true); System.exit(result ? 0 : 1); } }       Reduce Join案例实操 1．需求   表4-4 订单数据表t_order id pid amount 1001 01 1 1002 02 2 1003 03 3 1004 01 4 1005 02 5 1006 03 6 表4-5 商品信息表t_product pid pname 01 小米 02 华为 03 格力 将商品信息表中数据根据商品pid合并到订单数据表中。 表4-6 最终数据形式 id pname amount 1001 小米 1 1004 小米 4 1002 华为 2 1005 华为 5 1003 格力 3 1006 格力 6 2．需求分析 通过将关联条件作为Map输出的key，将两表满足Join条件的数据并携带数据所来源的文件信息，发往同一个ReduceTask，在Reduce中进行数据的串联，如图4-20所示。   3．代码实现 1）创建商品和订合并后的Bean类 package com.atguigu.mapreduce.table; import java.io.DataInput; import java.io.DataOutput; import java.io.IOException; import org.apache.hadoop.io.Writable;   public class TableBean implements Writable {   private String order_id; // 订单id private String p_id;      // 产品id private int amount;       // 产品数量 private String pname;     // 产品名称 private String flag;      // 表的标记   public TableBean() { super(); }   public TableBean(String order_id, String p_id, int amount, String pname, String flag) {   super();   this.order_id = order_id; this.p_id = p_id; this.amount = amount; this.pname = pname; this.flag = flag; }   public String getFlag() { return flag; }   public void setFlag(String flag) { this.flag = flag; }   public String getOrder_id() { return order_id; }   public void setOrder_id(String order_id) { this.order_id = order_id; }   public String getP_id() { return p_id; }   public void setP_id(String p_id) { this.p_id = p_id; }   public int getAmount() { return amount; }   public void setAmount(int amount) { this.amount = amount; }   public String getPname() { return pname; }   public void setPname(String pname) { this.pname = pname; }   @Override public void write(DataOutput out) throws IOException { out.writeUTF(order_id); out.writeUTF(p_id); out.writeInt(amount); out.writeUTF(pname); out.writeUTF(flag); }   @Override public void readFields(DataInput in) throws IOException { this.order_id = in.readUTF(); this.p_id = in.readUTF(); this.amount = in.readInt(); this.pname = in.readUTF(); this.flag = in.readUTF(); }   @Override public String toString() { return order_id + "\t" + pname + "\t" + amount + "\t" ; } } 2）编写TableMapper类 package com.atguigu.mapreduce.table; import java.io.IOException; import org.apache.hadoop.io.LongWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Mapper; import org.apache.hadoop.mapreduce.lib.input.FileSplit;   public class TableMapper extends Mapper<LongWritable, Text, Text, TableBean>{   String name; TableBean bean = new TableBean(); Text k = new Text();   @Override protected void setup(Context context) throws IOException, InterruptedException {   // 1 获取输入文件切片 FileSplit split = (FileSplit) context.getInputSplit();   // 2 获取输入文件名称 name = split.getPath().getName(); }   @Override protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {   // 1 获取输入数据 String line = value.toString();   // 2 不同文件分别处理 if (name.startsWith("order")) {// 订单表处理   // 2.1 切割 String[] fields = line.split("\t");   // 2.2 封装bean对象 bean.setOrder_id(fields[0]); bean.setP_id(fields[1]); bean.setAmount(Integer.parseInt(fields[2])); bean.setPname(""); bean.setFlag("order");   k.set(fields[1]); }else {// 产品表处理   // 2.3 切割 String[] fields = line.split("\t");   // 2.4 封装bean对象 bean.setP_id(fields[0]); bean.setPname(fields[1]); bean.setFlag("pd"); bean.setAmount(0); bean.setOrder_id("");   k.set(fields[0]); }   // 3 写出 context.write(k, bean); } } 3）编写TableReducer类 package com.atguigu.mapreduce.table; import java.io.IOException; import java.util.ArrayList; import org.apache.commons.beanutils.BeanUtils; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Reducer;   public class TableReducer extends Reducer<Text, TableBean, TableBean, NullWritable> {   @Override protected void reduce(Text key, Iterable<TableBean> values, Context context) throws IOException, InterruptedException {   // 1准备存储订单的集合 ArrayList<TableBean> orderBeans = new ArrayList<>();   // 2 准备bean对象 TableBean pdBean = new TableBean();   for (TableBean bean : values) {   if ("order".equals(bean.getFlag())) {// 订单表   // 拷贝传递过来的每条订单数据到集合中 TableBean orderBean = new TableBean();   try { BeanUtils.copyProperties(orderBean, bean); } catch (Exception e) { e.printStackTrace(); }   orderBeans.add(orderBean); } else {// 产品表   try { // 拷贝传递过来的产品表到内存中 BeanUtils.copyProperties(pdBean, bean); } catch (Exception e) { e.printStackTrace(); } } }   // 3 表的拼接 for(TableBean bean:orderBeans){   bean.setPname (pdBean.getPname());   // 4 数据写出去 context.write(bean, NullWritable.get()); } } } 4）编写TableDriver类 package com.atguigu.mapreduce.table; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;   public class TableDriver {   public static void main(String[] args) throws Exception {   // 0 根据自己电脑路径重新配置 args = new String[]{"e:/input/inputtable","e:/output1"};   // 1 获取配置信息，或者job对象实例 Configuration configuration = new Configuration(); Job job = Job.getInstance(configuration);   // 2 指定本程序的jar包所在的本地路径 job.setJarByClass(TableDriver.class);   // 3 指定本业务job要使用的Mapper/Reducer业务类 job.setMapperClass(TableMapper.class); job.setReducerClass(TableReducer.class);   // 4 指定Mapper输出数据的kv类型 job.setMapOutputKeyClass(Text.class); job.setMapOutputValueClass(TableBean.class);   // 5 指定最终输出的数据的kv类型 job.setOutputKeyClass(TableBean.class); job.setOutputValueClass(NullWritable.class);   // 6 指定job的输入原始文件所在目录 FileInputFormat.setInputPaths(job, new Path(args[0])); FileOutputFormat.setOutputPath(job, new Path(args[1]));   // 7 将job中配置的相关参数，以及job所用的java类所在的jar包， 提交给yarn去运行 boolean result = job.waitForCompletion(true); System.exit(result ? 0 : 1); } } 4．测试 运行程序查看结果 1001 小米 1 1001 小米 1 1002 华为 2 1002 华为 2 1003 格力 3 1003 格力 3 5．总结
