一、硬件电路

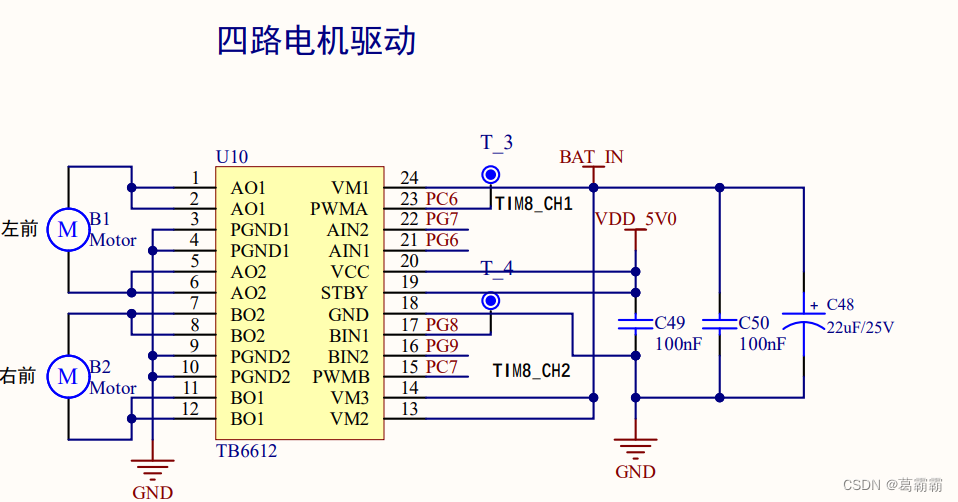

PC6为左前电机的PWM输入，为电机提供动力。
PG7、PG8控制左前电机的方向。
在这里插入图片描述

二、MOTOR初始化

给电机提供周期为1000000ns的PWM波形

static int MotorInit(struct Motor *ptdev){
	if(NULL == ptdev){
		LogDebug("MotorStart EINVAL\r\n");
		return -EINVAL;
	}

    Pwm_s MotorPwm;
	switch(ptdev->channel){
        case 1:
            MotorPwm = LFMotorPwm;
            break;
        case 2:
            MotorPwm = RFMotorPwm;
            break;
        case 3:
            MotorPwm = LBMotorPwm;
            break;
        case 4:
            MotorPwm = RBMotorPwm;
            break;
        default:
            return -EINVAL;
    }

	int ret = MotorPwm.Config(&MotorPwm,SET_PERIOD_VALUE,1000000);
	if(ret != ESUCCESS){
		LogDebug("MotorPwm.Config failed\r\n");
		return -EIO;
	}


	ret = MotorPwm.Start(&MotorPwm);

	if(ret != ESUCCESS){
		LogDebug("MotorPwm.Start failed\r\n");
		return -EIO;
	}

	ret = MotorStop(ptdev);
	if(ret != ESUCCESS){
		LogDebug("MotorStop failed\r\n");
		return -EIO;
	}

	ret = MotorSetDir(ptdev,Motor_CR);
	if(ret != ESUCCESS){
		LogDebug("MotorSetDir failed\r\n");
		return -EIO;
	}

	return ESUCCESS;
}

三、MOTOR的开始与停止

通过方向控制来开始和停止电机

static int MotorStart(struct Motor *ptdev){
	if(NULL == ptdev){
		LogDebug("MotorStart EINVAL\r\n");
		return -EINVAL;
	}

	Gpio_s MotorCR,MotorCCR;
    switch(ptdev->channel){
        case 1:
            MotorCR = LFMotorCR;
            MotorCCR = LFMotorCCR;
            break;
        case 2:
            MotorCR = RFMotorCR;
            MotorCCR = RFMotorCCR;
            break;
        case 3:
			MotorCR = LBMotorCR;
            MotorCCR = LBMotorCCR;
            break;
        case 4:
            MotorCR = RBMotorCR;
            MotorCCR = RBMotorCCR;
            break;
    }

	MotorCR.Write(&MotorCR,ptdev->dir);
	MotorCCR.Write(&MotorCCR,!ptdev->dir);
	ptdev->status = Motor_Start;
	return ESUCCESS;
}

static int MotorStop(struct Motor *ptdev){
	if(NULL == ptdev){
		LogDebug("MotorStart EINVAL\r\n");
		return -EINVAL;
	}

	Gpio_s MotorCR,MotorCCR;
    switch(ptdev->channel){
        case 1:
            MotorCR = LFMotorCR;
            MotorCCR = LFMotorCCR;
            break;
        case 2:
            MotorCR = RFMotorCR;
            MotorCCR = RFMotorCCR;
            break;
        case 3:
			MotorCR = LBMotorCR;
            MotorCCR = LBMotorCCR;
            break;
        case 4:
            MotorCR = RBMotorCR;
            MotorCCR = RBMotorCCR;
            break;
    }

	MotorCR.Write(&MotorCR,ptdev->dir);
	MotorCCR.Write(&MotorCCR,ptdev->dir);

	ptdev->status = Motor_Stop;
	return ESUCCESS;
}

四、MOTOR设置速度

static int MotorSetSpeed(struct Motor *ptdev,uint8_t speed){
	if(NULL == ptdev){
		LogDebug("MotorStart EINVAL\r\n");
		return -EINVAL;
	}
	if(0 == speed){
		return MotorStop(ptdev);
		}

	int pulse = speed * 1000000 / 100;

	Pwm_s MotorPwm;
    switch(ptdev->channel){
        case 1:
            MotorPwm = LFMotorPwm;
            break;
        case 2:
            MotorPwm = RFMotorPwm;
            break;
        case 3:
            MotorPwm = LBMotorPwm;
            break;
        case 4:
            MotorPwm = RBMotorPwm;
            break;
        default:
            return -EINVAL;
    }

	int ret = MotorPwm.Config(&MotorPwm,SET_COMPARE_VALUE,pulse);
	if(ret != ESUCCESS){
		LogDebug("MotorPwm.Config failed\r\n");
		return -EIO;
	}

	if(ptdev->status != Motor_Start){
		return MotorStart(ptdev);
		}
	return ESUCCESS;
}
