mw-sign参数分析
经过网友断点测试，我们发现mw-sign是经过两次加密得到的。
那由我带领大家进行断点测试吧。
1. 初次加密
测试网址

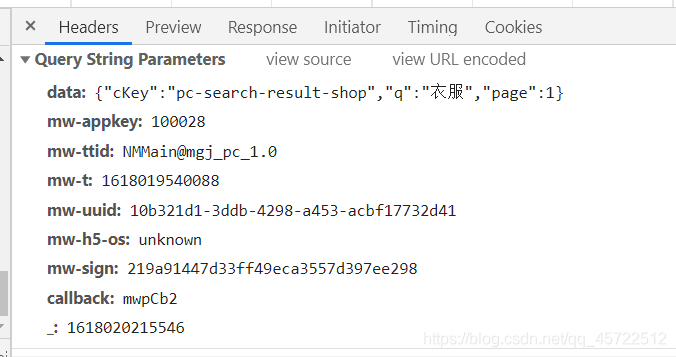

初次加密的变量如下
| 变量名 | 值 |
|---|---|
| data | {“cKey”:“pc-search-result-shop”,“q”:“衣服”,“page”:1} |
加密：
各种类型的mw-sign加密算法都是一致的
import execjs
ctx = execjs.compile("""
function V(t, e) {
return t(e = {
exports: {}
}, e.exports),
e.exports
}
// =========================================================
var U = V(function(t) {
var i, n;
i = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/",
n = {
rotl: function(t, e) {
return t << e | t >>> 32 - e
},
rotr: function(t, e) {
return t << 32 - e | t >>> e
},
endian: function(t) {
if (t.constructor == Number)
return 16711935 & n.rotl(t, 8) | 4278255360 & n.rotl(t, 24);
for (var e = 0; e < t.length; e++)
t[e] = n.endian(t[e]);
return t
},
randomBytes: function(t) {
for (var e = []; 0 < t; t--)
e.push(Math.floor(256 * Math.random()));
return e
},
bytesToWords: function(t) {
for (var e = [], n = 0, o = 0; n < t.length; n++,
o += 8)
e[o >>> 5] |= t[n] << 24 - o % 32;
return e
},
wordsToBytes: function(t) {
for (var e = [], n = 0; n < 32 * t.length; n += 8)
e.push(t[n >>> 5] >>> 24 - n % 32 & 255);
return e
},
bytesToHex: function(t) {
for (var e = [], n = 0; n < t.length; n++)
e.push((t[n] >>> 4).toString(16)),
e.push((15 & t[n]).toString(16));
return e.join("")
},
hexToBytes: function(t) {
for (var e = [], n = 0; n < t.length; n += 2)
e.push(parseInt(t.substr(n, 2), 16));
return e
},
bytesToBase64: function(t) {
for (var e = [], n = 0; n < t.length; n += 3)
for (var o = t[n] << 16 | t[n + 1] << 8 | t[n + 2], r = 0; r < 4; r++)
8 * n + 6 * r <= 8 * t.length ? e.push(i.charAt(o >>> 6 * (3 - r) & 63)) : e.push("=");
return e.join("")
},
base64ToBytes: function(t) {
t = t.replace(/[^A-Z0-9+\/]/gi, "");
for (var e = [], n = 0, o = 0; n < t.length; o = ++n % 4)
0 != o && e.push((i.indexOf(t.charAt(n - 1)) & Math.pow(2, -2 * o + 8) - 1) << 2 * o | i.indexOf(t.charAt(n)) >>> 6 - 2 * o);
return e
}
},
t.exports = n
})
, q = {
utf8: {
stringToBytes: function(t) {
return q.bin.stringToBytes(unescape(encodeURIComponent(t)))
},
bytesToString: function(t) {
return decodeURIComponent(escape(q.bin.bytesToString(t)))
}
},
bin: {
stringToBytes: function(t) {
for (var e = [], n = 0; n < t.length; n++)
e.push(255 & t.charCodeAt(n));
return e
},
bytesToString: function(t) {
for (var e = [], n = 0; n < t.length; n++)
e.push(String.fromCharCode(t[n]));
return e.join("")
}
}
}
, J = q
, F = function(t) {
return null != t && (W(t) || "function" == typeof (e = t).readFloatLE && "function" == typeof e.slice && W(e.slice(0, 0)) || !!t._isBuffer);
var e
};
// ============================================================================
var z = V(function(t) {
var v, g, _, w, b;
v = U,
g = J.utf8,
_ = F,
w = J.bin,
(b = function(t, e) {
t.constructor == String ? t = e && "binary" === e.encoding ? w.stringToBytes(t) : g.stringToBytes(t) : _(t) ? t = Array.prototype.slice.call(t, 0) : Array.isArray(t) || (t = t.toString());
for (var n = v.bytesToWords(t), o = 8 * t.length, r = 1732584193, i = -271733879, s = -1732584194, a = 271733878, u = 0; u < n.length; u++)
n[u] = 16711935 & (n[u] << 8 | n[u] >>> 24) | 4278255360 & (n[u] << 24 | n[u] >>> 8);
n[o >>> 5] |= 128 << o % 32,
n[14 + (o + 64 >>> 9 << 4)] = o;
var c = b._ff
, p = b._gg
, l = b._hh
, h = b._ii;
for (u = 0; u < n.length; u += 16) {
var f = r
, d = i
, y = s
, m = a;
i = h(i = h(i = h(i = h(i = l(i = l(i = l(i = l(i = p(i = p(i = p(i = p(i = c(i = c(i = c(i = c(i, s = c(s, a = c(a, r = c(r, i, s, a, n[u + 0], 7, -680876936), i, s, n[u + 1], 12, -389564586), r, i, n[u + 2], 17, 606105819), a, r, n[u + 3], 22, -1044525330), s = c(s, a = c(a, r = c(r, i, s, a, n[u + 4], 7, -176418897), i, s, n[u + 5], 12, 1200080426), r, i, n[u + 6], 17, -1473231341), a, r, n[u + 7], 22, -45705983), s = c(s, a = c(a, r = c(r, i, s, a, n[u + 8], 7, 1770035416), i, s, n[u + 9], 12, -1958414417), r, i, n[u + 10], 17, -42063), a, r, n[u + 11], 22, -1990404162), s = c(s, a = c(a, r = c(r, i, s, a, n[u + 12], 7, 1804603682), i, s, n[u + 13], 12, -40341101), r, i, n[u + 14], 17, -1502002290), a, r, n[u + 15], 22, 1236535329), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 1], 5, -165796510), i, s, n[u + 6], 9, -1069501632), r, i, n[u + 11], 14, 643717713), a, r, n[u + 0], 20, -373897302), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 5], 5, -701558691), i, s, n[u + 10], 9, 38016083), r, i, n[u + 15], 14, -660478335), a, r, n[u + 4], 20, -405537848), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 9], 5, 568446438), i, s, n[u + 14], 9, -1019803690), r, i, n[u + 3], 14, -187363961), a, r, n[u + 8], 20, 1163531501), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 13], 5, -1444681467), i, s, n[u + 2], 9, -51403784), r, i, n[u + 7], 14, 1735328473), a, r, n[u + 12], 20, -1926607734), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 5], 4, -378558), i, s, n[u + 8], 11, -2022574463), r, i, n[u + 11], 16, 1839030562), a, r, n[u + 14], 23, -35309556), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 1], 4, -1530992060), i, s, n[u + 4], 11, 1272893353), r, i, n[u + 7], 16, -155497632), a, r, n[u + 10], 23, -1094730640), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 13], 4, 681279174), i, s, n[u + 0], 11, -358537222), r, i, n[u + 3], 16, -722521979), a, r, n[u + 6], 23, 76029189), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 9], 4, -640364487), i, s, n[u + 12], 11, -421815835), r, i, n[u + 15], 16, 530742520), a, r, n[u + 2], 23, -995338651), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 0], 6, -198630844), i, s, n[u + 7], 10, 1126891415), r, i, n[u + 14], 15, -1416354905), a, r, n[u + 5], 21, -57434055), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 12], 6, 1700485571), i, s, n[u + 3], 10, -1894986606), r, i, n[u + 10], 15, -1051523), a, r, n[u + 1], 21, -2054922799), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 8], 6, 1873313359), i, s, n[u + 15], 10, -30611744), r, i, n[u + 6], 15, -1560198380), a, r, n[u + 13], 21, 1309151649), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 4], 6, -145523070), i, s, n[u + 11], 10, -1120210379), r, i, n[u + 2], 15, 718787259), a, r, n[u + 9], 21, -343485551),
r = r + f >>> 0,
i = i + d >>> 0,
s = s + y >>> 0,
a = a + m >>> 0
}
return v.endian([r, i, s, a])
}
)._ff = function(t, e, n, o, r, i, s) {
var a = t + (e & n | ~e & o) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._gg = function(t, e, n, o, r, i, s) {
var a = t + (e & o | n & ~o) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._hh = function(t, e, n, o, r, i, s) {
var a = t + (e ^ n ^ o) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._ii = function(t, e, n, o, r, i, s) {
var a = t + (n ^ (e | ~o)) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._blocksize = 16,
b._digestsize = 16,
t.exports = function(t, e) {
if (null == t)
throw new Error("Illegal argument " + t);
var n = v.wordsToBytes(b(t, e));
return e && e.asBytes ? n : e && e.asString ? w.bytesToString(n) : v.bytesToHex(n)
}
})
""")
data = "{"cKey":"pc-search-result-shop","q":"衣服","page":1} "
x1 = ctx.call("z",data)
'559e945437907def827a038f299c4637'
2. 二次加密
在这的话我们需要进行断点调试。

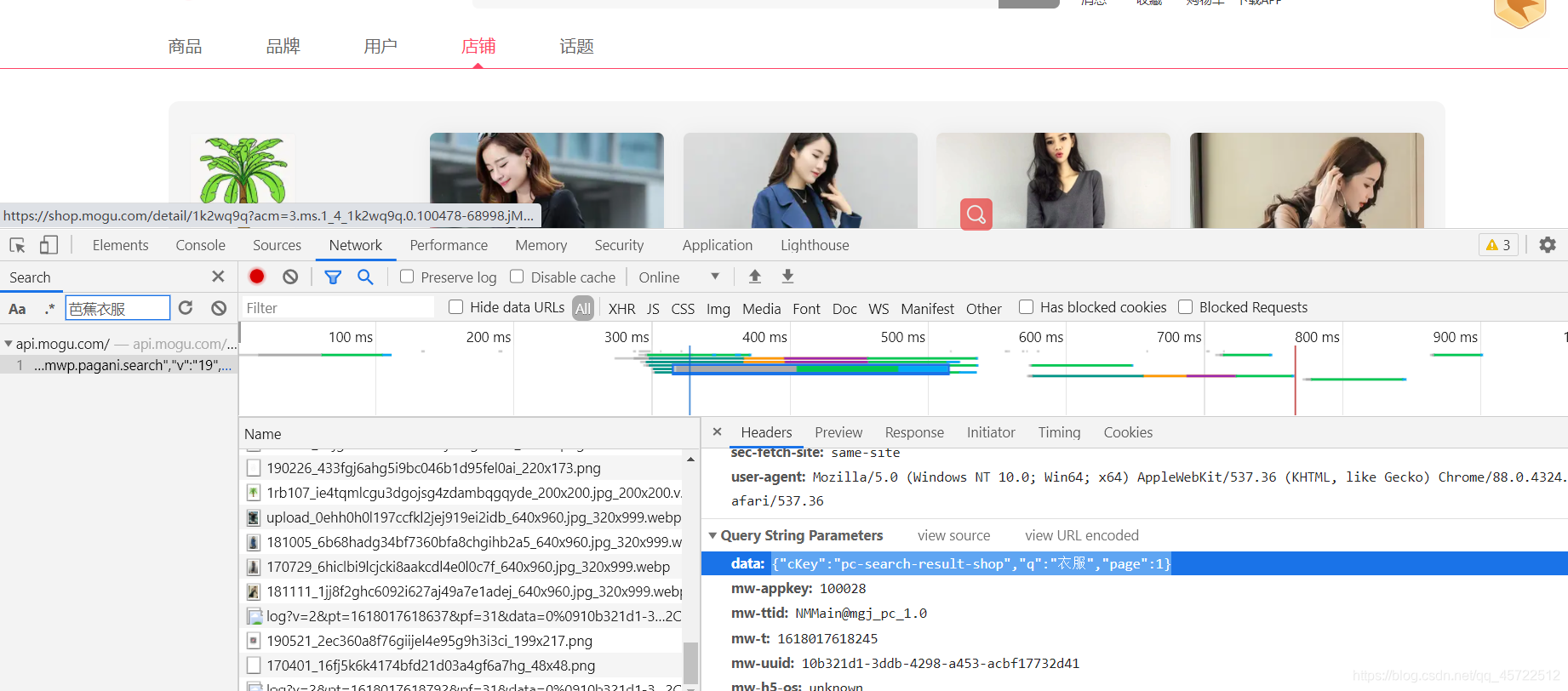

（1）确保大家的页面和我的一样。

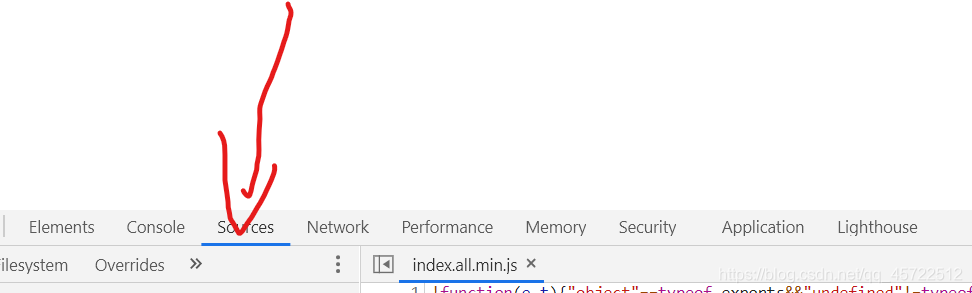

（2） 点击sources。

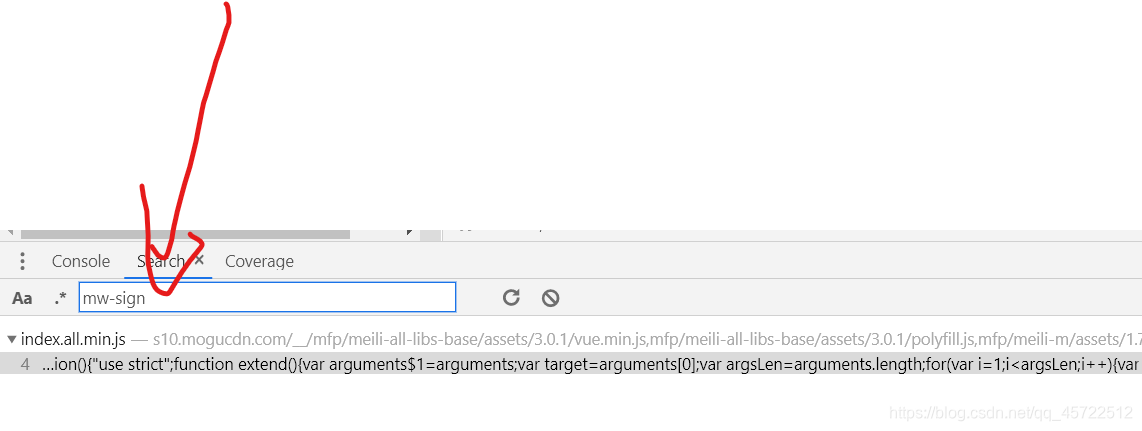

（3） ctrl+shift+f，打开全局搜索，输入mw-sign。
(4) 点击搜索结果，大家左下方{}（会将js漂亮的展示出来）。

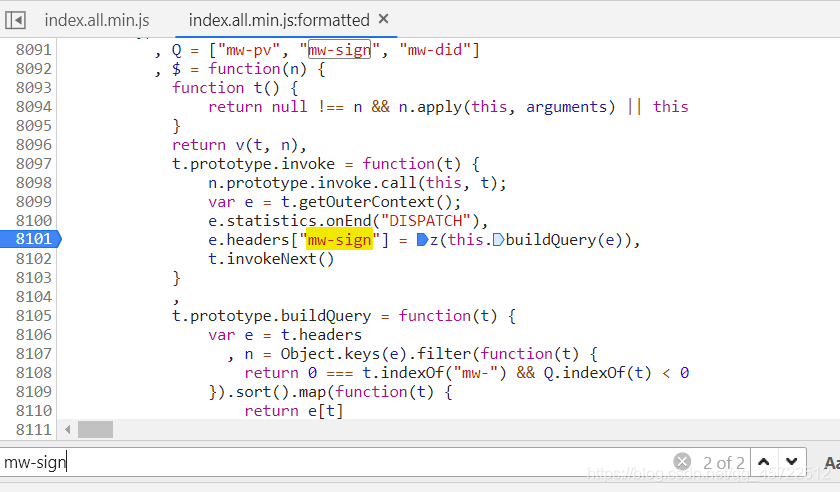

（5）然后我们在格式化后的js中搜索mw-sign。（ctrl+f)

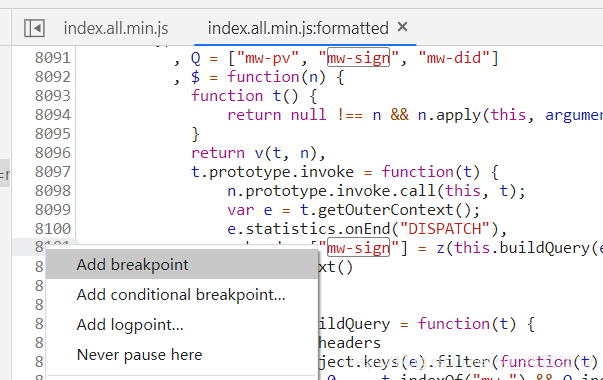

(6) 在这添加断点。(右击）

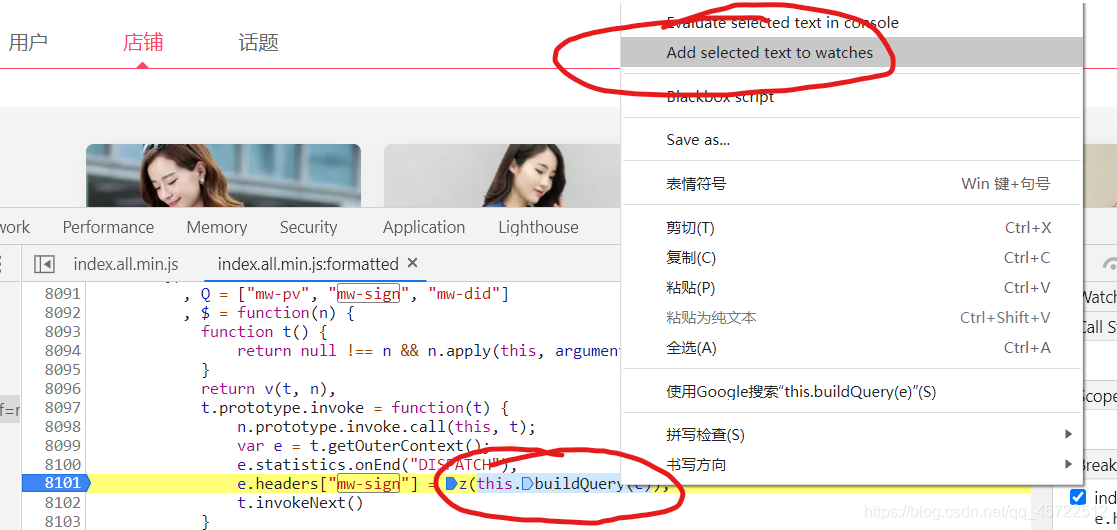

（7） 将this.buildQuery(e)添加到观察区

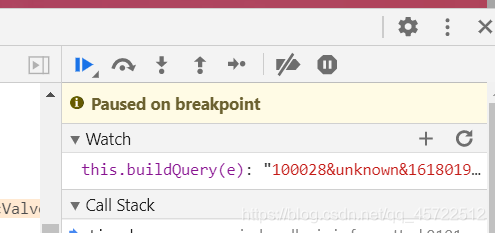

（8) 刷新页面，右侧的watch区会看到如下图所示画面。那个值就是我们二次加密的变量，但是当你点击蓝色按钮时，会再次出现一个新的值。还记得我们第一次加密得到的值为：
559e945437907def827a038f299c4637

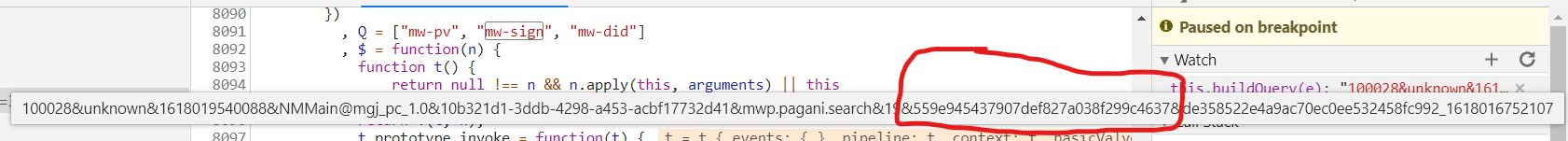

我们需要找到包含第一次加密得到的结果的变量值。
这就是我们二次加密需要的值。
| 变量名 | 值 |
|---|---|
| x2 | “100028&unknown&1618019540088&NMMain@mgj_pc_1.0&10b321d1-3ddb-4298-a453-acbf17732d41&mwp.pagani.search&19&559e945437907def827a038f299c4637&de358522e4a9ac70ec0ee532458fc992_1618016752107” |
根据我的观察发现我们下次搜索只需要更换上面的这两个值。
时间、第一次加密结果、cookie中的_mwp_h5_token。cookie一般几天变一次，其他值不变，关于这些值的含义大家自己去探索。
（9）二次加密。
x2 = "100028&unknown&1618019540088&NMMain@mgj_pc_1.0&10b321d1-3ddb-4298-a453-acbf17732d41&mwp.pagani.search&19&559e945437907def827a038f299c4637&de358522e4a9ac70ec0ee532458fc992_1618016752107"
ctx.call("z",x2)
'219a91447d33ff49eca3557d397ee298'
有了mw-sign的值我们就可以模拟出数据接口。
3.破解封装
| name | value |
|---|---|
| data | {“cKey”:“pc-search-result-shop”,“q”:“衣服”,“page”:1} |
| x2 | “100028&unknown&{时间}&NMMain@mgj_pc_1.0&10b321d1-3ddb-4298-a453-acbf17732d41&mwp.pagani.search&19&{data的加密结果}&{}” |
def MW(data, x2):
ctx = execjs.compile("""
function V(t, e) {
return t(e = {
exports: {}
}, e.exports),
e.exports
}
// =========================================================
var U = V(function(t) {
var i, n;
i = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/",
n = {
rotl: function(t, e) {
return t << e | t >>> 32 - e
},
rotr: function(t, e) {
return t << 32 - e | t >>> e
},
endian: function(t) {
if (t.constructor == Number)
return 16711935 & n.rotl(t, 8) | 4278255360 & n.rotl(t, 24);
for (var e = 0; e < t.length; e++)
t[e] = n.endian(t[e]);
return t
},
randomBytes: function(t) {
for (var e = []; 0 < t; t--)
e.push(Math.floor(256 * Math.random()));
return e
},
bytesToWords: function(t) {
for (var e = [], n = 0, o = 0; n < t.length; n++,
o += 8)
e[o >>> 5] |= t[n] << 24 - o % 32;
return e
},
wordsToBytes: function(t) {
for (var e = [], n = 0; n < 32 * t.length; n += 8)
e.push(t[n >>> 5] >>> 24 - n % 32 & 255);
return e
},
bytesToHex: function(t) {
for (var e = [], n = 0; n < t.length; n++)
e.push((t[n] >>> 4).toString(16)),
e.push((15 & t[n]).toString(16));
return e.join("")
},
hexToBytes: function(t) {
for (var e = [], n = 0; n < t.length; n += 2)
e.push(parseInt(t.substr(n, 2), 16));
return e
},
bytesToBase64: function(t) {
for (var e = [], n = 0; n < t.length; n += 3)
for (var o = t[n] << 16 | t[n + 1] << 8 | t[n + 2], r = 0; r < 4; r++)
8 * n + 6 * r <= 8 * t.length ? e.push(i.charAt(o >>> 6 * (3 - r) & 63)) : e.push("=");
return e.join("")
},
base64ToBytes: function(t) {
t = t.replace(/[^A-Z0-9+\/]/gi, "");
for (var e = [], n = 0, o = 0; n < t.length; o = ++n % 4)
0 != o && e.push((i.indexOf(t.charAt(n - 1)) & Math.pow(2, -2 * o + 8) - 1) << 2 * o | i.indexOf(t.charAt(n)) >>> 6 - 2 * o);
return e
}
},
t.exports = n
})
, q = {
utf8: {
stringToBytes: function(t) {
return q.bin.stringToBytes(unescape(encodeURIComponent(t)))
},
bytesToString: function(t) {
return decodeURIComponent(escape(q.bin.bytesToString(t)))
}
},
bin: {
stringToBytes: function(t) {
for (var e = [], n = 0; n < t.length; n++)
e.push(255 & t.charCodeAt(n));
return e
},
bytesToString: function(t) {
for (var e = [], n = 0; n < t.length; n++)
e.push(String.fromCharCode(t[n]));
return e.join("")
}
}
}
, J = q
, F = function(t) {
return null != t && (W(t) || "function" == typeof (e = t).readFloatLE && "function" == typeof e.slice && W(e.slice(0, 0)) || !!t._isBuffer);
var e
};
// ============================================================================
var z = V(function(t) {
var v, g, _, w, b;
v = U,
g = J.utf8,
_ = F,
w = J.bin,
(b = function(t, e) {
t.constructor == String ? t = e && "binary" === e.encoding ? w.stringToBytes(t) : g.stringToBytes(t) : _(t) ? t = Array.prototype.slice.call(t, 0) : Array.isArray(t) || (t = t.toString());
for (var n = v.bytesToWords(t), o = 8 * t.length, r = 1732584193, i = -271733879, s = -1732584194, a = 271733878, u = 0; u < n.length; u++)
n[u] = 16711935 & (n[u] << 8 | n[u] >>> 24) | 4278255360 & (n[u] << 24 | n[u] >>> 8);
n[o >>> 5] |= 128 << o % 32,
n[14 + (o + 64 >>> 9 << 4)] = o;
var c = b._ff
, p = b._gg
, l = b._hh
, h = b._ii;
for (u = 0; u < n.length; u += 16) {
var f = r
, d = i
, y = s
, m = a;
i = h(i = h(i = h(i = h(i = l(i = l(i = l(i = l(i = p(i = p(i = p(i = p(i = c(i = c(i = c(i = c(i, s = c(s, a = c(a, r = c(r, i, s, a, n[u + 0], 7, -680876936), i, s, n[u + 1], 12, -389564586), r, i, n[u + 2], 17, 606105819), a, r, n[u + 3], 22, -1044525330), s = c(s, a = c(a, r = c(r, i, s, a, n[u + 4], 7, -176418897), i, s, n[u + 5], 12, 1200080426), r, i, n[u + 6], 17, -1473231341), a, r, n[u + 7], 22, -45705983), s = c(s, a = c(a, r = c(r, i, s, a, n[u + 8], 7, 1770035416), i, s, n[u + 9], 12, -1958414417), r, i, n[u + 10], 17, -42063), a, r, n[u + 11], 22, -1990404162), s = c(s, a = c(a, r = c(r, i, s, a, n[u + 12], 7, 1804603682), i, s, n[u + 13], 12, -40341101), r, i, n[u + 14], 17, -1502002290), a, r, n[u + 15], 22, 1236535329), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 1], 5, -165796510), i, s, n[u + 6], 9, -1069501632), r, i, n[u + 11], 14, 643717713), a, r, n[u + 0], 20, -373897302), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 5], 5, -701558691), i, s, n[u + 10], 9, 38016083), r, i, n[u + 15], 14, -660478335), a, r, n[u + 4], 20, -405537848), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 9], 5, 568446438), i, s, n[u + 14], 9, -1019803690), r, i, n[u + 3], 14, -187363961), a, r, n[u + 8], 20, 1163531501), s = p(s, a = p(a, r = p(r, i, s, a, n[u + 13], 5, -1444681467), i, s, n[u + 2], 9, -51403784), r, i, n[u + 7], 14, 1735328473), a, r, n[u + 12], 20, -1926607734), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 5], 4, -378558), i, s, n[u + 8], 11, -2022574463), r, i, n[u + 11], 16, 1839030562), a, r, n[u + 14], 23, -35309556), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 1], 4, -1530992060), i, s, n[u + 4], 11, 1272893353), r, i, n[u + 7], 16, -155497632), a, r, n[u + 10], 23, -1094730640), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 13], 4, 681279174), i, s, n[u + 0], 11, -358537222), r, i, n[u + 3], 16, -722521979), a, r, n[u + 6], 23, 76029189), s = l(s, a = l(a, r = l(r, i, s, a, n[u + 9], 4, -640364487), i, s, n[u + 12], 11, -421815835), r, i, n[u + 15], 16, 530742520), a, r, n[u + 2], 23, -995338651), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 0], 6, -198630844), i, s, n[u + 7], 10, 1126891415), r, i, n[u + 14], 15, -1416354905), a, r, n[u + 5], 21, -57434055), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 12], 6, 1700485571), i, s, n[u + 3], 10, -1894986606), r, i, n[u + 10], 15, -1051523), a, r, n[u + 1], 21, -2054922799), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 8], 6, 1873313359), i, s, n[u + 15], 10, -30611744), r, i, n[u + 6], 15, -1560198380), a, r, n[u + 13], 21, 1309151649), s = h(s, a = h(a, r = h(r, i, s, a, n[u + 4], 6, -145523070), i, s, n[u + 11], 10, -1120210379), r, i, n[u + 2], 15, 718787259), a, r, n[u + 9], 21, -343485551),
r = r + f >>> 0,
i = i + d >>> 0,
s = s + y >>> 0,
a = a + m >>> 0
}
return v.endian([r, i, s, a])
}
)._ff = function(t, e, n, o, r, i, s) {
var a = t + (e & n | ~e & o) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._gg = function(t, e, n, o, r, i, s) {
var a = t + (e & o | n & ~o) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._hh = function(t, e, n, o, r, i, s) {
var a = t + (e ^ n ^ o) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._ii = function(t, e, n, o, r, i, s) {
var a = t + (n ^ (e | ~o)) + (r >>> 0) + s;
return (a << i | a >>> 32 - i) + e
}
,
b._blocksize = 16,
b._digestsize = 16,
t.exports = function(t, e) {
if (null == t)
throw new Error("Illegal argument " + t);
var n = v.wordsToBytes(b(t, e));
return e && e.asBytes ? n : e && e.asString ? w.bytesToString(n) : v.bytesToHex(n)
}
})
""")
x1 = ctx.call("z", data)
_mwp_h5_token = 'de358522e4a9ac70ec0ee532458fc992_1618016752107'
T = int(time.time() * 1000)
# T = 1617872882871
x2 = x2.format(T, x1, _mwp_h5_token)
# print(x2)
mw_sign = ctx.call("z", x2)
return mw_sign, T
此函数返回mw-sign、T（请求时间，用于构造请求url，保证时间的一致性）。
