网络拓扑图搭建三——ACL命令配置，FTP SSH服务配置，浮动路由

实验要求：

前提：网络内部主机可以相互访问

1. 员工主机不能访问网页
2. 其他部门不能访问财务部
3. 人力和其他部门可以互访
4. AR1是ssh、ftp的客户端，AR6是ssh、ftp服务器
5. 研发部和商务部不能互访
6. AR5和AR6之间为了保证数据的不间断性，是由右边的链路作为主链路

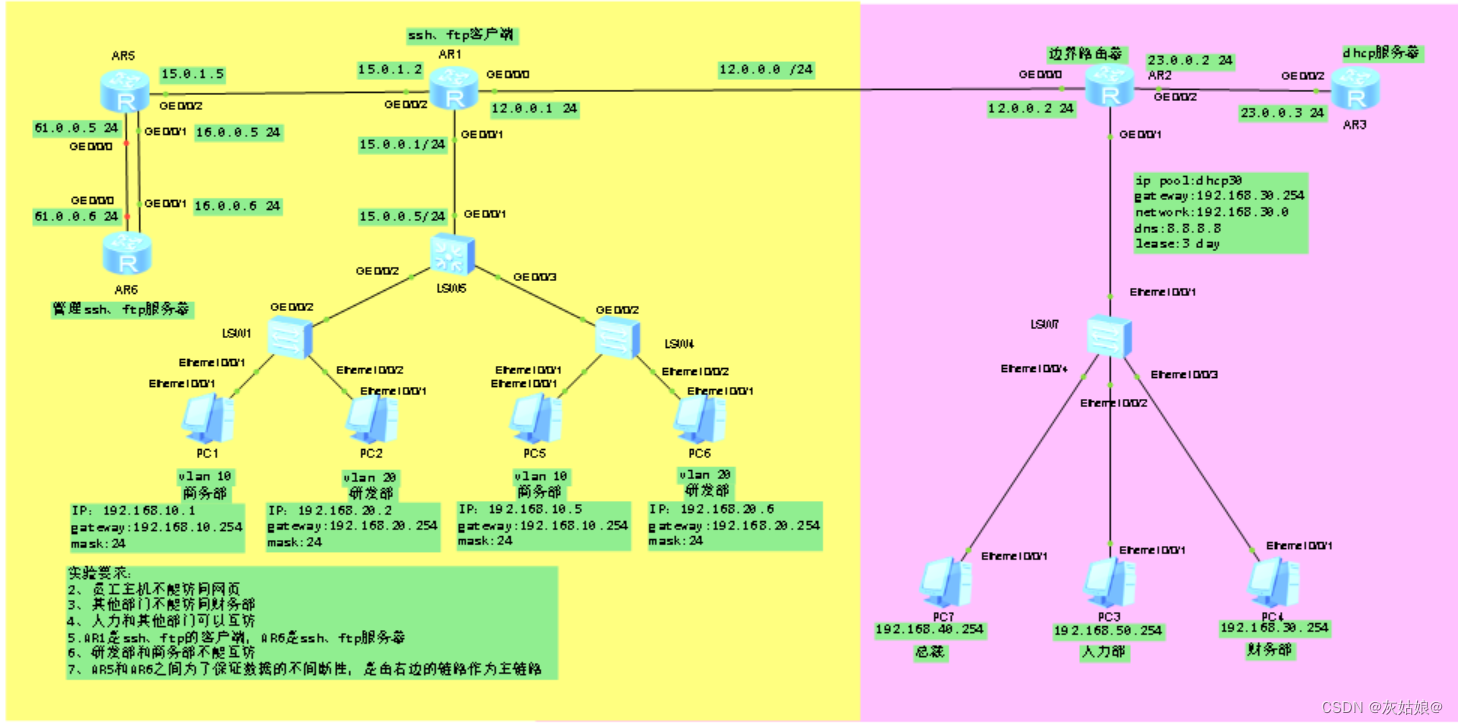

一.实验拓扑图搭建

二.实验基本配置

员工主机不能访问网页

LSW5配置

[Huawei]acl 3000
[Huawei-acl-adv-3000]rule deny tcp destination-port eq 80 source any
[Huawei-acl-adv-3000]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]t
[Huawei-GigabitEthernet0/0/1]traffic-filter out
[Huawei-GigabitEthernet0/0/1]traffic-filter outbound acl 3000

 其他部门不能访问财务部

[Huawei]acl 3001
[Huawei-acl-adv-3001]rule deny ip source 192.168.10.0 0.0.0.255
[Huawei-acl-adv-3001]rule deny ip source 192.168.20.0 0.0.0.255
[Huawei-acl-adv-3001]rule deny ip source 192.168.50.0 0.0.0.255
[Huawei]int e0/0/3
[Huawei-Ethernet0/0/3]t
[Huawei-Ethernet0/0/3]traffic-filter ou
[Huawei-Ethernet0/0/3]traffic-filter outbound acl 3001

 人力和其他部门可以互访：不需要配置命令

 AR1是ssh、ftp的客户端，AR6是ssh、ftp服务器

AR6配置FTP服务

核心FTP命令

system-view 进入系统模式

ftp server enable 开启 ftp 服务

user-interface console 0

authentication-mode aaa 选择 aaa 认证模式

aaa 进入 aaa 认证模式

local-user ftp 名 password cipher 密码 创建 ftp 名 设置密码

local-user ftp 名 privilege level 0 为 ftp 名 设置权限级别 0

local-user ftp 名 service-type ftp 为 ftp 名设置服务类型 ftp

local-user ftp 名 ftp-directory flash: 为 ftp 名 指定目录 flash

quit

[Huawei]ftp server enable
Info: Succeeded in starting the FTP server
[Huawei]u
[Huawei]us
[Huawei]user-i
[Huawei]user-interface  v
[Huawei]user-interface  vty 0 4
[Huawei-ui-vty0-4]au
[Huawei-ui-vty0-4]authentication-mode aaa
[Huawei-ui-vty0-4]q
[Huawei]aaa
[Huawei-aaa]l
[Huawei-aaa]local-user ma p
[Huawei-aaa]local-user ma password c
[Huawei-aaa]local-user ma password cipher 123
Info: Add a new user.
[Huawei-aaa]l
[Huawei-aaa]local-user
[Huawei-aaa]local-user ma
[Huawei-aaa]local-user ma pr
[Huawei-aaa]local-user ma privilege l
[Huawei-aaa]local-user ma privilege level 3
[Huawei-aaa]l
[Huawei-aaa]local-user ma se
[Huawei-aaa]local-user ma service-type ftp
[Huawei-aaa]l
[Huawei-aaa]local-user ma
[Huawei-aaa]local-user ma se
[Huawei-aaa]local-user ma ftp
[Huawei-aaa]local-user ma ftp-directory
[Huawei-aaa]local-user ma ftp-directory f
[Huawei-aaa]local-user ma ftp-directory flash:
[Huawei-aaa]q

 AR1验证登录

 AR6配置SSH服务

核心代码

配置情况如下：

[R6]stelnet server enable
Info: Succeeded in starting the STELNET server.
[R6]rsa
[R6]rsa l
[R6]rsa local-key-pair c
[R6]rsa local-key-pair create
The key name will be: Host
% RSA keys defined for Host already exist.
Confirm to replace them? (y/n)[n]:y
The range of public key size is (512 ~ 2048).
NOTES: If the key modulus is greater than 512,
       It will take a few minutes.
Input the bits in the modulus[default = 512]:1024
Generating keys...
................................................................................
..................................++++++
.++++++
.++++++++
............++++++++

[R6]u
[R6]us
[R6]user-in
[R6]user-interface vty 0 4
[R6-ui-vty0-4]au
[R6-ui-vty0-4]authentication-mode aaa
[R6-ui-vty0-4]p
[R6-ui-vty0-4]pr
[R6-ui-vty0-4]protocol s
[R6-ui-vty0-4]protocol in
[R6-ui-vty0-4]protocol inbound s
[R6-ui-vty0-4]protocol inbound ssh
[R6-ui-vty0-4]q
[R6]aaa
[R6-aaa]l
[R6-aaa]local-user ma1 p
[R6-aaa]local-user ma1 password c
[R6-aaa]local-user ma1 password cipher 123
Info: Add a new user.
[R6-aaa]l
[R6-aaa]local-user
[R6-aaa]local-user ma1 p
[R6-aaa]local-user ma1 pri
[R6-aaa]local-user ma1 privilege l
[R6-aaa]local-user ma1 privilege level 3
[R6-aaa]l
[R6-aaa]local-user ma1 p
[R6-aaa]local-user ma1 pri
[R6-aaa]local-user ma1 s
[R6-aaa]local-user ma1 service-type ssh
[R6-aaa]q
[R6]ssh u
[R6]ssh user ma1 au
[R6]ssh user ma1 authentication-type a

 AR1验证登录

核心代码

[Huawei]ssh client first-time enable
[Huawei]stelnet 16.0.0.6
Please input the username:ma1
Trying 16.0.0.6 ...
Press CTRL+K to abort
Connected to 16.0.0.6 ...
The server is not authenticated. Continue to access it? (y/n)[n]:y
Save the server's public key? (y/n)[n]:y
The server's public key will be saved with the name 16.0.0.6. Please wait...

Enter password:
<R6>
<R6>

 研发部和商务部不能互访

LSW1配置和LSW4配置方法类似

进入LSW1配置如下

[Huawei]acl 3001
[Huawei-acl-adv-3001]rule de
[Huawei-acl-adv-3001]rule deny ip so
[Huawei-acl-adv-3001]rule deny ip source 192.168.20.0 0.0.0.255
[Huawei-acl-adv-3001]q
[Huawei]int e0/0/1
[Huawei-Ethernet0/0/1]t
[Huawei-Ethernet0/0/1]traffic-filter ou
[Huawei-Ethernet0/0/1]traffic-filter outbound a
[Huawei-Ethernet0/0/1]traffic-filter outbound acl 3001

 AR5和AR6之间为了保证数据的不间断性，是由右边的链路作为主链路

AR6配置静态路由

ip route-static 12.0.0.0 61.0.0.5  主路由器，默认值 60

ip routr-static 12.0.0.0 24 16.0.0.5preference 65 备份路由

[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]shut
[Huawei-GigabitEthernet0/0/0]shutdown 关闭路由主接口，数据包将会走备份接口


结果显示;

[Huawei]tracert 12.0.0.2

 traceroute to  12.0.0.2(12.0.0.2), max hops: 30 ,packet length: 40,press CTRL_C
 to break

 1 16.0.0.5 50 ms  10 ms  10 ms

 2 15.0.1.2 20 ms  30 ms  20 ms

 3 12.0.0.2 50 ms  20 ms  40 ms

三.实验结果

各PC之间按照实验要求通信

四.实验总结

• 显示主机或者网段之间访问情况，使用ACL命令做限制（前提：网段之间正常通信）
• FTP SSH服务搭建：使用基本配置命令
• 浮动路由：配置两条静态路由，其中一条线路作为备份线路；

      进入主链路接口，关闭shudow接口；

      使用tracert   ip 查看经过线路路由
