项目场景:Echarts 折线图
提示:工作开发 记录:

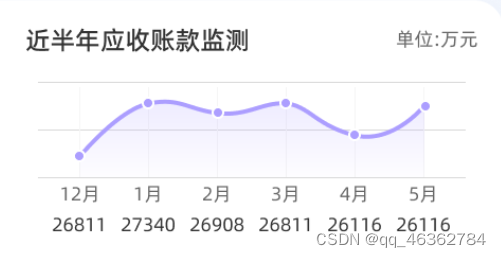

效果图:
![Alt](https://img-home.csdnimg.cn/images/20220524100510.png
功能实现
1.图表距离边框位置
2.x轴标签底部添加 对应数值
3.x轴不显示坐标轴刻度线、坐标轴线
4.y轴刻度、边线隐藏
5.y轴刻度展示条数 保证居中展示
6.x轴折线宽度
7.折线下侧添加渐变阴影
8.将折线点 改为中心实点 外圈白点
9.设置折线点垂直x轴的实线保证线从上到下
问题描述
提示:这里描述项目中遇到的问题:
8.将折线点 改为中心实点 外圈白点:
symbol: "circle", // 使用圆形符号
symbolSize: 10, // 调整符号大小
itemStyle: {
color: "#AC9EFF", // 中心点颜色
borderColor: "#FFFFFF", // 外圈颜色
borderWidth: 3, // 外圈宽度
},
emphasis: {
itemStyle: {
borderColor: "#FFFFFF", // 强调状态下的外圈颜色
borderWidth: 3, // 强调状态下的外圈宽度
},
},
7.折线下侧添加渐变阴影:
areaStyle: {
// 添加渐变阴影
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
{
// 设置渐变色
offset: 0,
color: "rgba(172,158,255,0.2)", // 开始颜色
},
{
offset: 1,
color: "rgba(172,158,255,0)", // 结束颜色
},
]),
},
2.x轴标签底部添加 对应数值:
axisLabel: {
color: "#666666",
fontSize: 16,
formatter: function (value, index) {
return (
value +
"\n\n" +
"{a|" +
option_halfYearCollection.series[0].data[index] +
"}"
);
},
rich: {
a: {
color: "#333333",
fontSize: 18,
lineHeight: 4, // 设置行高为4,即间隔为4px
},
},
},
完整代码:
提示:拆分的有点细直接贴全图
let option_halfYearCollection = {
color: ["#AC9EFF"],
grid: {
x: 2,
y: 2,
x2: 2,
y2: 50,
},
xAxis: {
type: "category",
data: ["12月", "1月", "2月", "3月", "4月", "5月"],
axisLabel: {
color: "#666666",
fontSize: 16,
formatter: function (value, index) {
return (
value +
"\n\n" +
"{a|" +
option_halfYearCollection.series[0].data[index] +
"}"
);
},
rich: {
a: {
color: "#333333",
fontSize: 18,
lineHeight: 4, // 设置行高为4,即间隔为4px
},
},
},
axisTick: {
show: false, // 不显示坐标轴刻度线
},
axisLine: {
show: false, // 不显示坐标轴线
},
},
yAxis: {
type: "value",
max: function (value) {
return value.max + 100; // 将最大值稍微增加一点,以确保竖线延伸到顶部
},
splitNumber: 3,
},
series: [
{
data: [820, 932, 901, 934, 1290, 1330],
type: "line",
smooth: true,
lineStyle: {
width: 4, // 设置折线宽度为3,您可以根据需要调整宽度
},
areaStyle: {
// 添加渐变阴影
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
{
// 设置渐变色
offset: 0,
color: "rgba(172,158,255,0.2)", // 开始颜色
},
{
offset: 1,
color: "rgba(172,158,255,0)", // 结束颜色
},
]),
},
markLine: {
symbol: "none", // 去除箭头
label: { show: false }, // 去除标线上的label
data: generateVerticalLines([820, 932, 901, 934, 1290, 1330]),
lineStyle: {
color: "#F5F5F5", // 设置竖线的颜色
type: "solid", // 设置竖线的类型,可以是 'solid', 'dashed', 'dotted' 等
width: 1, // 设置竖线的宽度
},
},
z: 10, // 确保折线和点在竖线的前面
symbol: "circle", // 使用圆形符号
symbolSize: 10, // 调整符号大小
itemStyle: {
color: "#AC9EFF", // 中心点颜色
borderColor: "#FFFFFF", // 外圈颜色
borderWidth: 3, // 外圈宽度
},
emphasis: {
itemStyle: {
borderColor: "#FFFFFF", // 强调状态下的外圈颜色
borderWidth: 3, // 强调状态下的外圈宽度
},
},
},
],
};
function generateVerticalLines(data) {
const markLines = [];
for (let i = 0; i < data.length; i++) {
markLines.push([
{ coord: [i, 0] },
{ coord: [i, Math.max(...data) + 100] }, // 使用数据的最大值+100,确保线条延伸到顶部
]);
}
return markLines;
}
halfYearCollection.setOption(option_halfYearCollection);
提示:按需引入
// 引入 echarts 核心模块,核心模块提供了 echarts 使用必须要的接口。
import * as echarts from "echarts/core";
// 引入各种图表,图表后缀都为 Chart
import { BarChart, PieChart, LineChart, RadarChart, ScatterChart, PictorialBarChart } from "echarts/charts"; //这里我引用两个类型的图表
// 引入提示框,标题,直角坐标系等组件,组件后缀都为 Component
import {
TitleComponent,
TooltipComponent,
GridComponent,
LegendComponent,
MarkLineComponent
} from "echarts/components";
// 引入 Canvas 渲染器,注意引入 CanvasRenderer 或者 SVGRenderer 是必须的一步
import { CanvasRenderer } from "echarts/renderers";
// 注册必须的组件
echarts.use([
TitleComponent,
TooltipComponent,
GridComponent,
LegendComponent,
BarChart,
PieChart,
LineChart,
RadarChart,
ScatterChart,
PictorialBarChart,
CanvasRenderer,
MarkLineComponent,
]);
export default echarts;
