变化检测结果标注

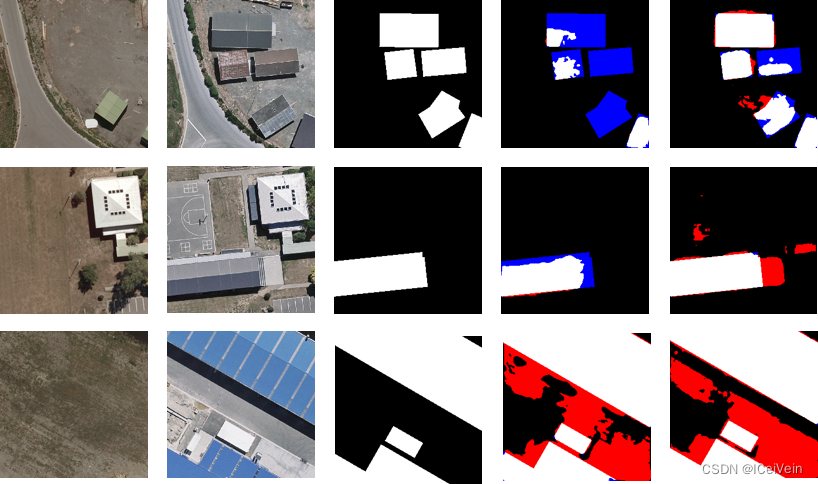

标注结果如下:其中红色表示错检,蓝色表示漏检
实现代码如下:
Predict = '图片路径'
Rootdict = '根路径'
###############################################################################
# 基础函数
###############################################################################
def load_img_name_list(dataset_path):
img_name_list = np.loadtxt(dataset_path, dtype=np.str_)
if img_name_list.ndim == 2:
return img_name_list[:, 0]
return img_name_list
def get_img_path(root_dir, img_name):
return os.path.join(root_dir, 'label', img_name)
def get_changeimg_path(root_dir, img_name):
return os.path.join(root_dir, Predict, img_name)
def color_label(img1, img2):
w, h, _ = img1.shape
# 需要重新赋值,因为图片只读
img = np.array(img2)
fp = np.array([255, 255, 255])
fn = np.array([1, 1, 1])
for i in range(0, w):
for j in range(0, h):
p1 = img1[i][j]
p2 = img2[i][j]
# false positive,根据自己需求修改对应颜色
if ((p2 - p1) == fp).all():
img[i][j] = [255, 0, 0]
# false negative
if ((p2 - p1) == fn).all():
img[i][j] = [0, 0, 255]
return img
def save_image(image_numpy, image_path):
image_pil = Image.fromarray(np.array(image_numpy, dtype=np.uint8))
image_pil.save(image_path)
###############################################################################
# 颜色标注变化区域
###############################################################################
def change_pics():
root_dir = Rootdict
list_path = os.path.join(root_dir, 'list', 'demo.txt')
save_path = os.path.join(root_dir, 'color_label', Predict)
os.makedirs(save_path, exist_ok=True)
img_name_list = load_img_name_list(list_path)
size = len(img_name_list)
for index in range(0, size):
name = img_name_list[index]
print('process:' + name)
A_path = get_img_path(root_dir, img_name_list[index % size])
B_path = get_changeimg_path(root_dir, img_name_list[index % size])
a = Image.open(A_path)
b = Image.open(B_path)
# 灰度值转rgb
img = np.asarray(a.convert('RGB'))
img_B = np.asarray(b.convert('RGB'))
# 颜色转化
color_img = color_label(img, img_B)
filename = os.path.join(save_path, name.replace('.jpg', '.png'))
# 图片保存
save_image(color_img, filename)
if __name__ == '__main__':
change_pics()
