蒙特卡罗MCNP学习汇总(四)--计数基础-探测器

MCNP输入文件

Title Card

Any information the user desires and describing the particular problem

• Cell Cards

A cell is a 3D region containing a single material

• Surface Cards

A surface is a 2D plane, sphere, cylinder, cone, etc., that bounds one or more cells

• Data Cards

Everything else — materials, sources, tallies, variance reduction parameters, number of histories, etc.

探测器

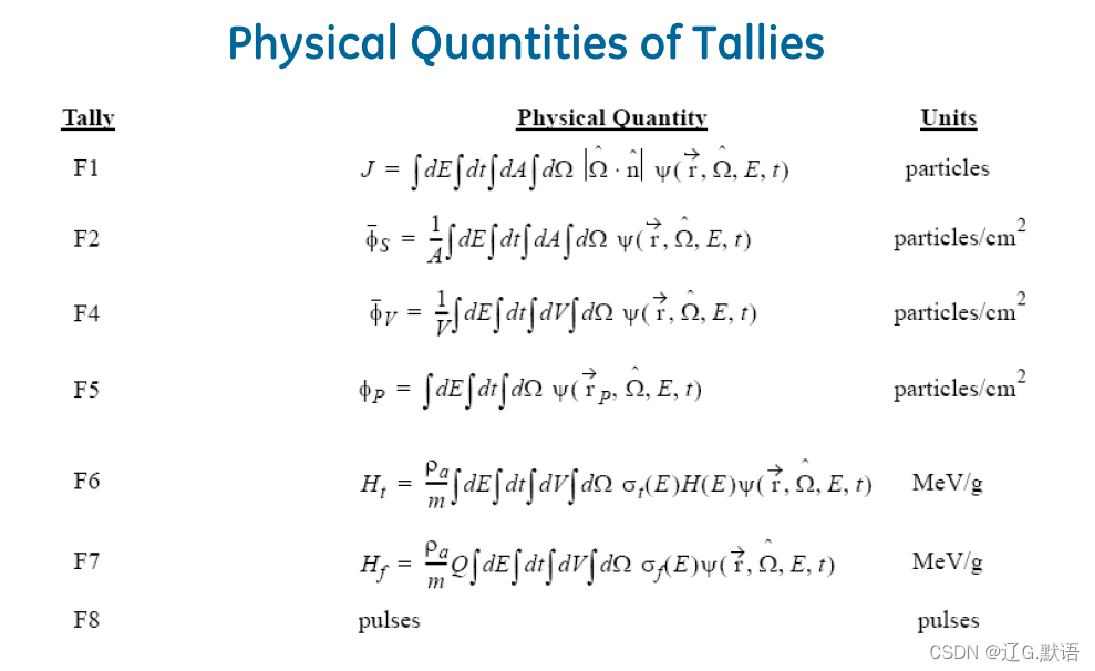

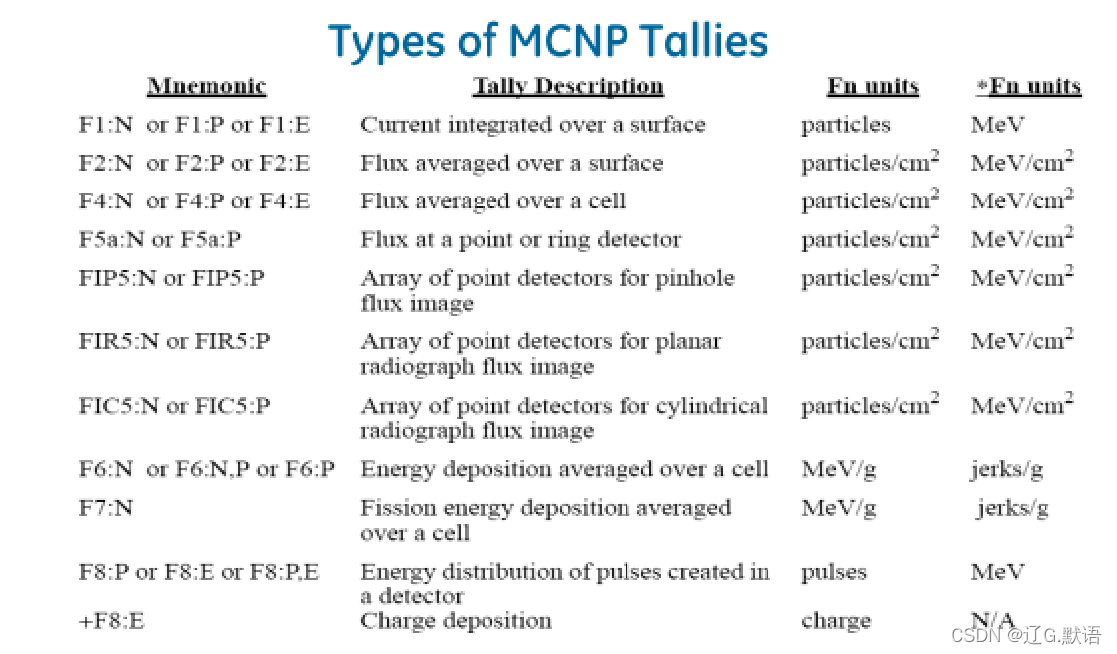

Basic tallies

F1: Surface Current

F2: Surface Fluence

F4: Cell Fluence

 F5: Detector Fluence

F6: Energy Deposition

F7: Fission Energy Deposition

F8: Pulse Height

例如

Examples

F1:E 1 2 T

– Electron current tallies through surfaces 1 & 2, and the total (T) over both surfaces

通过表面1和2计算电子流，以及两个表面上的总电流(T)

F2:P 1 (1 2) (2 3 4) T

– Photon surface-integrated fluence tallies for surface 1, the average over surfaces 1 & 2, the average over surfaces 2 through 4, and the average (T) over all surfaces 1 through 4

光子表面积分通量记录了表面1、表面1和2的平均值、表面2至4的平均值以及所有表面1至4的平均值(T)

F4:N 1 (2 3 4)

– Cell-averaged neutron fluence tallies for cell 1 and for cells 2 through 4

–单元1和单元2至4的单元平均中子注量记录

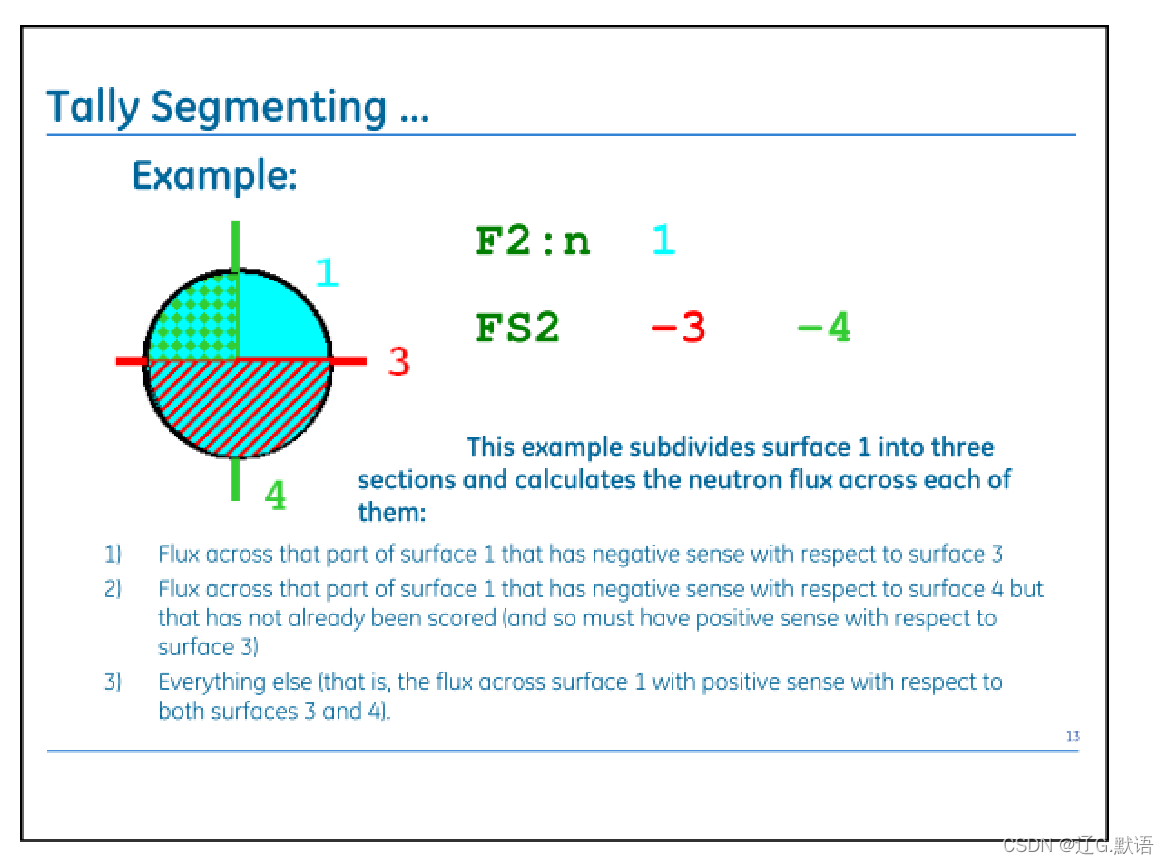

Divide tally spatially（空间上） by subdividing geometry
• Form:     FSn S1 S2 ...  Sk  T
– n:   tally number
– Si : signed surface number
– T:    optional flag for total
– k surfaces on FS card create k+1 volume or surface segments
• Example
FS2  -2  3  -8  T
bin 1: F2 tally inside surface 2
bin 2: F2 tally outside surface 3, but not in previous bin
bin 3: F2 tally inside surface 8, but not in previous bins
bin 4: everything else
bin 5: total (optional)

在空间上划分计数(空间上)通过细分几何图形

形式:FSn S1 S2...Sk T –n:计数

–Si:带符号的表面编号

–T:总计的可选标志

–FS卡上的k个曲面创建k+1个体积或曲面段

示例 FS2 -2 3 -8 T

bin1:表面2内的F2计数

bin2: F2计数在表面3之外，但不在前一个箱中

bin3: F2计数在表面8内，但不在先前的箱中

bin4:其他所有东西

bin 5:总计(可选)

 F1:E 1 2 T

$流过表面的电流指定流过表面1和2的电子电流，以及两个表面上的总电流(T)。请注意，当前的计数没有除以表面积。

card

F2:P 1 (1 2) (2 3 4) T

$表面平均通量指定表面1的光子表面积分通量计数，表面1和2的平均值，表面2到4的平均值，以及所有表面1到4的平均值(T)。

类似地

card F4:N 1(2 3 4)

$ cell的平均中子注量指定了cell 1和cell 2-4的cell平均中子注量计数。不需要综合平均。

英文

The card

F1:E 1 2 T

$ current through a surface

specififies electron current tallies through surfaces 1 and 2, and the total (T) over both surfaces. Note that the current tally is not divided by surface area.

The card

F2:P 1 (1 2) (2 3 4) T

$ fluence averaged over surfaces specififies photon surface-integrated flfluence tallies for surface 1, the average over surfaces 1 and 2, the average over surfaces 2 through 4, and the average (T) over all surfaces 1 through 4.

Similarly

the card

F4:N 1 (2 3 4)

$ fluences averaged over cells specififies cell-averaged neutron flfluence tallies for cell 1 and for cells 2 through 4. No composite average is called for.
