对话聊天设计

一、数据库设计

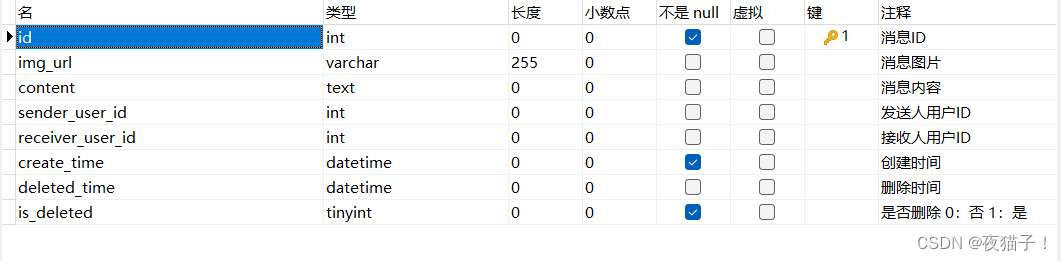

1、表1：user_message

主要用于消息内容的保存，发送方与接收方的信息保存

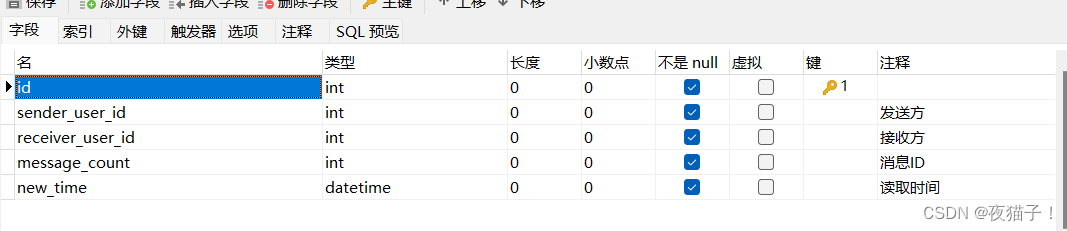

 2、表2：user_message_log

主要用于记录用户的聊天记录以及未读消息个数保存，用于后去聊天用户列表展示与移除，未读消息计数等

二、功能介绍

 用户发送消息 ：/userapp/message/insertUserMessage
展示用户列表 ：/userapp/message/selectUserList （返回用户信息和未读消息的条数）
移除用户列表：/userapp/message/removeUser
用户聊天详细信息：/userapp/message/selectUserMessage
用户撤回消息（三分钟之内可以撤回）：/userapp/message/removeUserMessage
（*)、使用定时任务做到用户十分钟未读信息，发送短信提醒

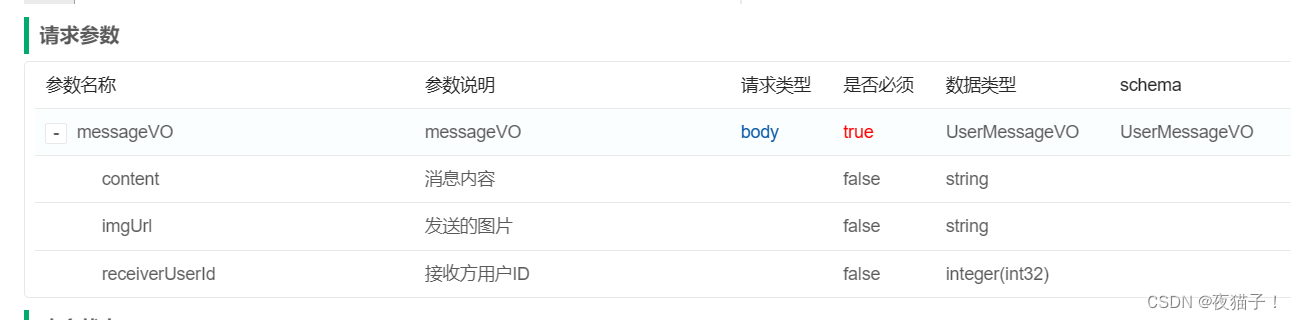

 1、用户发送消息 ：/userapp/message/insertUserMessage

主要业务代码如下

@Override
    public ResultBody insertUserMessage(UserMessageVO messageVO,Integer senderUserId) {
        UserMessageDO userMessageDO = new UserMessageDO(messageVO);
        if(senderUserId == null){
            return ResultBody.success("消息发送失败,请先登录");
        }
        userMessageDO.setSenderUserId(senderUserId);
        if(messageDao.insertUserMessage(userMessageDO) != 0){
            UserAccountDO userAccount = userServiceDao.getUserAccountById(userMessageDO.getReceiverUserId());
            UserDO userDO = userAccount.buildUserDO();
            if(scheduledTaskUtil.check(userDO.getUserAccountId()) == 1){
                scheduledTaskUtil.create(userDO);
            }
            if(messageDao.isUserMessageLog(userMessageDO.getReceiverUserId(), userMessageDO.getSenderUserId()) == null){
                UserMessageLogDO userMessageLogDO = new UserMessageLogDO();
                userMessageLogDO.setSenderUserId(userMessageDO.getSenderUserId());
                userMessageLogDO.setReceiverUserId(userMessageDO.getReceiverUserId());
                messageDao.insertUserMessageLog(userMessageLogDO);
            }
            Integer logId = messageDao.isUserMessageLog(userMessageDO.getSenderUserId(),userMessageDO.getReceiverUserId());
            if(logId == null){
                UserMessageLogDO userMessageLogDO = new UserMessageLogDO();
                userMessageLogDO.setSenderUserId(userMessageDO.getReceiverUserId());
                userMessageLogDO.setReceiverUserId(userMessageDO.getSenderUserId());
                userMessageLogDO.setMessageCount(1);
                messageDao.insertUserMessageLog(userMessageLogDO);
            }else {
                messageDao.updateUserMessageLog(logId);
            }
            return ResultBody.success("消息发送成功");
        }
        return ResultBody.error("消息发送失败");
    }

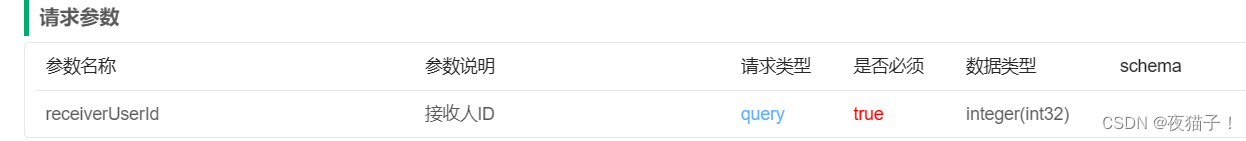

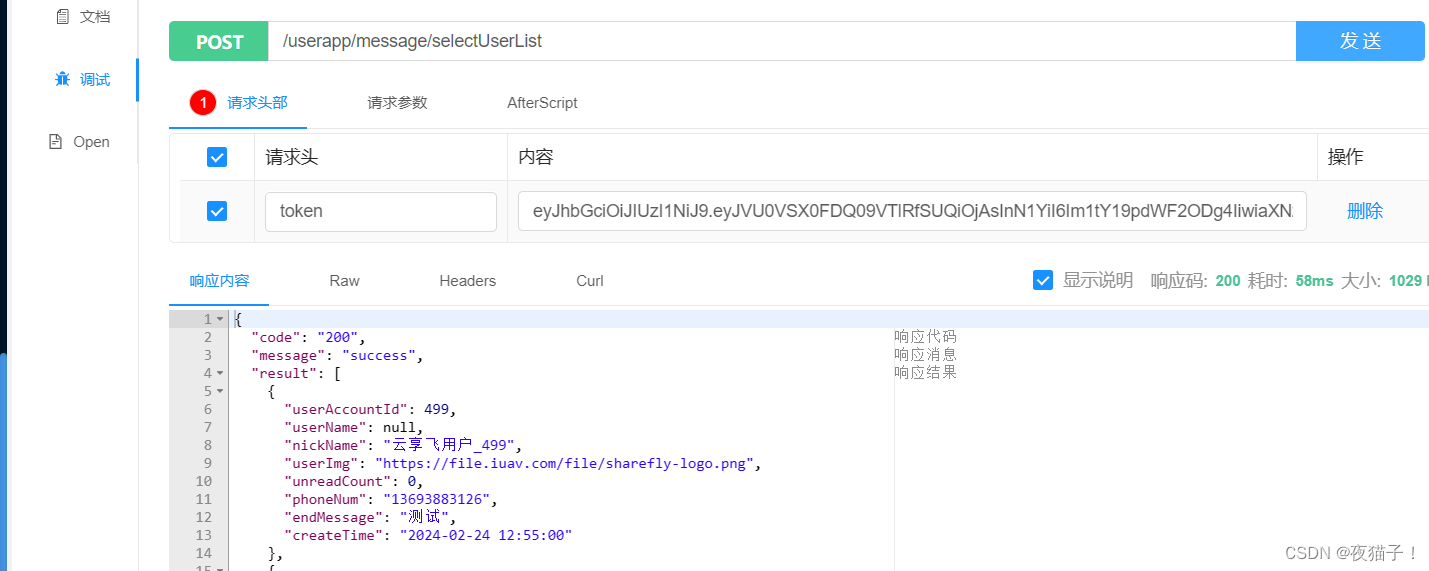

 2、展示用户列表 ：/userapp/message/selectUserList （返回用户信息和未读消息的条数）

主要业务代码如下

    @Override
    public ResultBody selectUserList(Integer senderUserId) {
        List<UserDO> userAccountDOList = new ArrayList<>();
        List<UserMessageLogDO> list = messageDao.selectUserList(senderUserId);
        for (UserMessageLogDO userMessageLogDO : list) {
            UserAccountDO userAccount = userServiceDao.getUserAccountById(userMessageLogDO.getReceiverUserId());
            UserDO userDO = userAccount.buildUserDO();
            userDO.setUnreadCount(userMessageLogDO.getMessageCount());
            UserMessageDO userMessageDO = messageDao.selectEndUserMessage(userMessageLogDO.getReceiverUserId(), senderUserId);
            if(userMessageDO.getContent() != null){
                userDO.setEndMessage(userMessageDO.getContent());
            }else {
                userDO.setEndMessage(userMessageDO.getImgUrl());
            }
            userDO.setCreateTime(userMessageDO.getCreateTime());
            userAccountDOList.add(userDO);
        }
        // 使用 Collections.sort() 方法和自定义的比较器进行排序
        Collections.sort(userAccountDOList, Comparator.comparing(UserDO::getCreateTime).reversed());
        return ResultBody.success(userAccountDOList);
    }

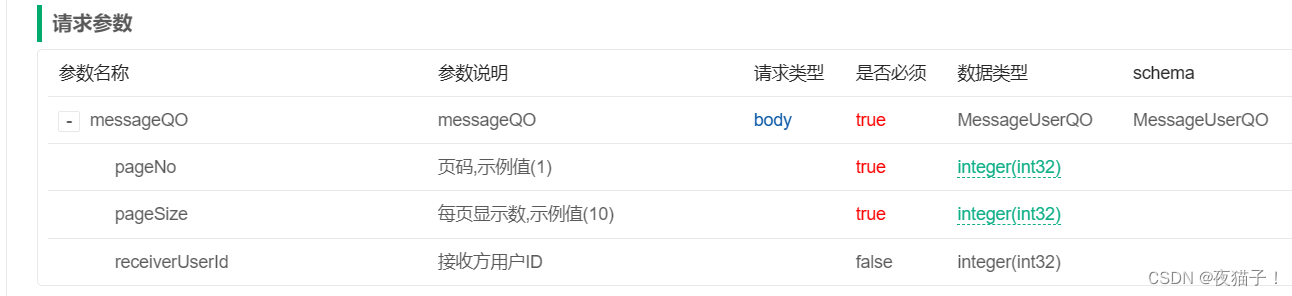

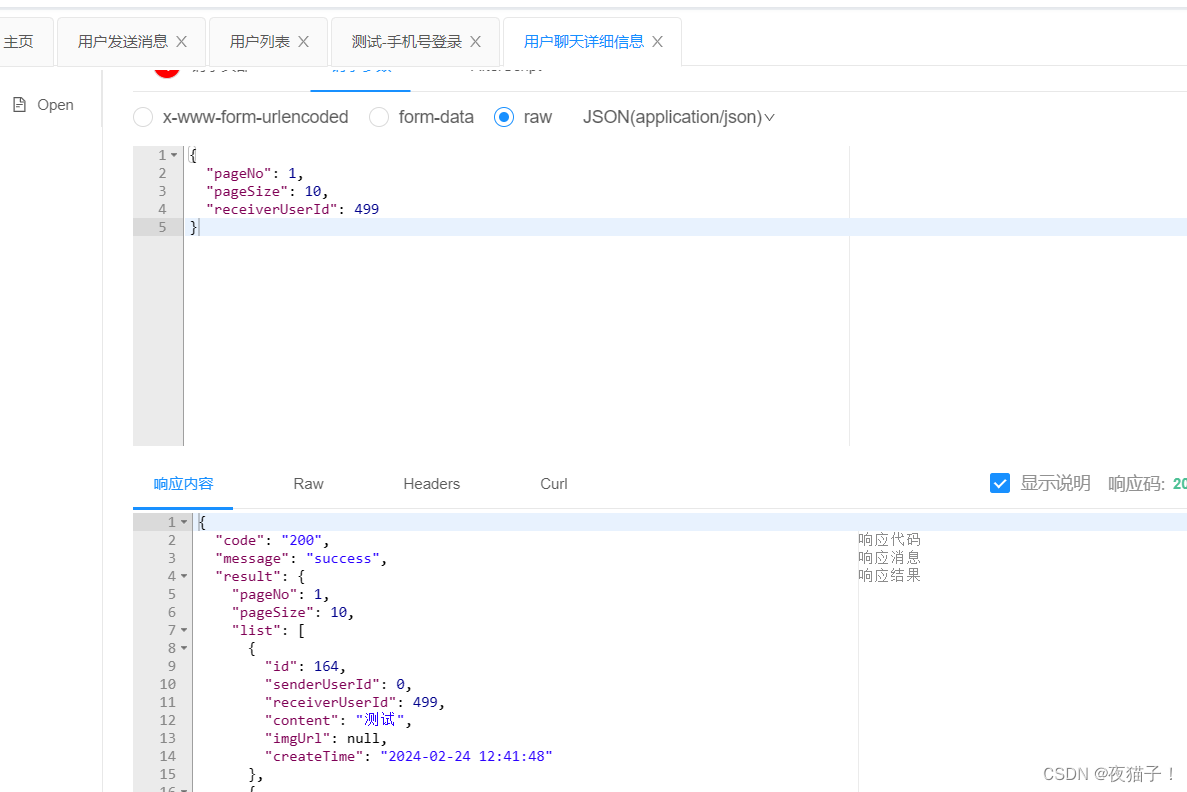

 3、用户聊天详细信息：/userapp/message/selectUserMessage

 主要业务代码如下

    @Override
    public PageResult selectUserMessage(MessageUserQO messageQO,Integer senderUserId) {
        scheduledTaskUtil.destroy(senderUserId);
        int count = messageDao.countUserMessage(messageQO.getReceiverUserId(),senderUserId);
        if (count == 0) {
            return PageResult.buildPage(messageQO.getPageNo(), messageQO.getPageSize(), count);
        }
        Integer pageNo = messageQO.getPageNo();
        messageQO.buildCurrentPage();
        List<UserMessageDO> messageList = messageDao.selectUserMessage(messageQO,senderUserId);
//        Integer logId = messageDao.isUserMessageLog(senderUserId,messageQO.getReceiverUserId());
//        if(logId != null){
//            messageDao.updateUserMessageCount(logId);
//        }
        Integer logId2 = messageDao.isUserMessageLog(messageQO.getReceiverUserId(),senderUserId);
        if(logId2 != null){
            messageDao.updateUserMessageCount(logId2);
        }
        return PageResult.buildPage(pageNo, messageQO.getPageSize(), count, messageList);
    }



<select id="selectUserMessage" resultType="com.mmc.iuav.user.entity.UserMessageDO">
        SELECT id, img_url, content, sender_user_id, receiver_user_id, create_time
        FROM (
                 SELECT id, img_url, content, sender_user_id, receiver_user_id, create_time
                 FROM user_message
                 WHERE is_deleted = 0 AND sender_user_id IN (#{senderUserId} ,#{messageQO.receiverUserId}) AND receiver_user_id IN (#{senderUserId} ,#{messageQO.receiverUserId})
                 ORDER BY create_time desc
                     LIMIT #{messageQO.pageNo},#{messageQO.pageSize}
             ) AS subquery
        ORDER BY create_time ASC;
    </select>

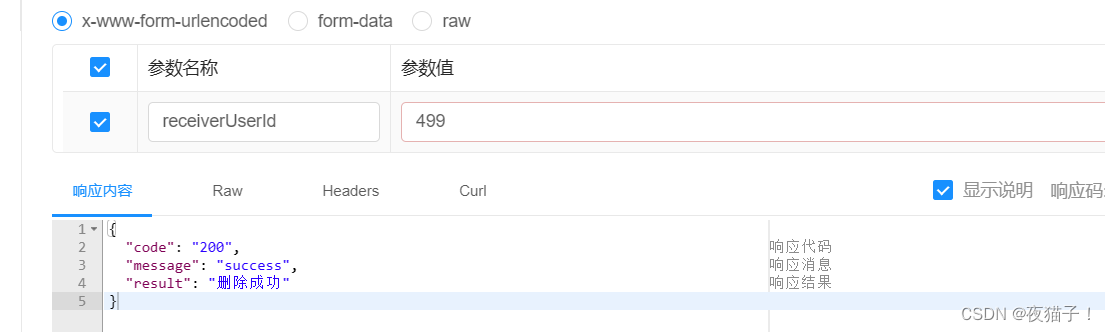

4、移除用户列表：/userapp/message/removeUser

 主要业务代码如下

    @Override
    public ResultBody removeMessageByUser(Integer userId, Integer messageId) {
        if(messageDao.removeReceiverMessage(userId, messageId) != 0){
            return ResultBody.success("删除成功");
        }
        return ResultBody.error("删除失败");
    }




    <update id="removeReceiverMessage">
        update receiver_message
        set is_deleted = 1, deleted_time = NOW()
        where   user_id = #{userId} and message_id = #{messageId}
    </update>

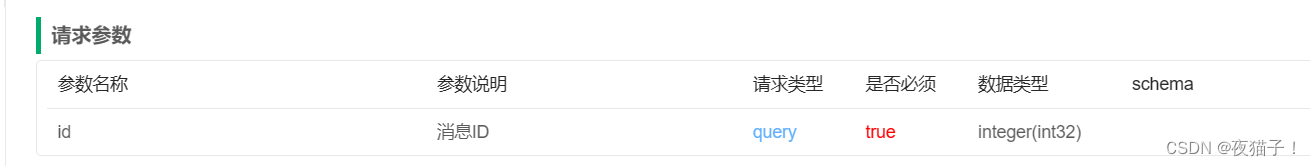

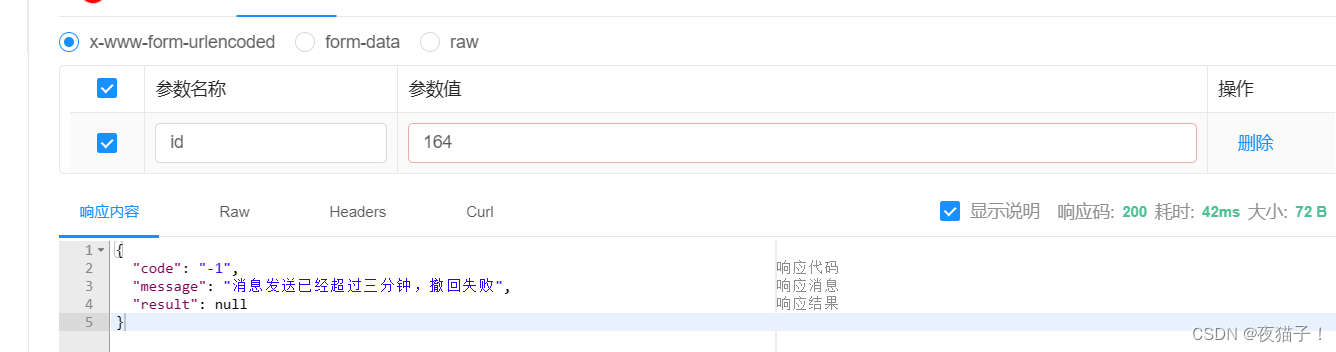

5、用户撤回消息（三分钟之内可以撤回）：/userapp/message/removeUserMessage

  主要业务代码如下

    @Override
    public ResultBody removeUserMessage(Integer id) {
        UserMessageDO userMessageDO = messageDao.selectUserMessageById(id);
        Date createTime = userMessageDO.getCreateTime();
        String time = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(createTime);
        if(isOverThreeMinutes(time)){
            return ResultBody.error("消息发送已经超过三分钟，撤回失败");
        }
        if(messageDao.removeUserMessage(id) != 0){
            Integer logId = messageDao.isUserMessageLog(userMessageDO.getSenderUserId(),userMessageDO.getReceiverUserId());
            if(logId != null){
                messageDao.removeUserMessageCount(logId);
            }
            return ResultBody.success("消息撤回成功已撤回");
        }
        return ResultBody.error("消息撤回失败");
    }

public static boolean isOverThreeMinutes(String createTime) {
        // 定义日期时间格式化对象
        DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");
        // 将字符串格式的时间转换为 LocalDateTime 对象
        LocalDateTime createDateTime = LocalDateTime.parse(createTime, formatter);
        // 计算当前时间与创建时间的时间差（单位：秒）
        long secondsDiff = ChronoUnit.SECONDS.between(createDateTime, LocalDateTime.now());
        // 如果时间差大于 180 秒（即三分钟），返回 true
        return secondsDiff > 180;
    }
