1、说在前面的
最近在学esp32，做个了小项目，可以ntp同步时间显示当天时间日期；还有快520了，给npy做个小东西送她，于是就有了这个，不说多了直接上图

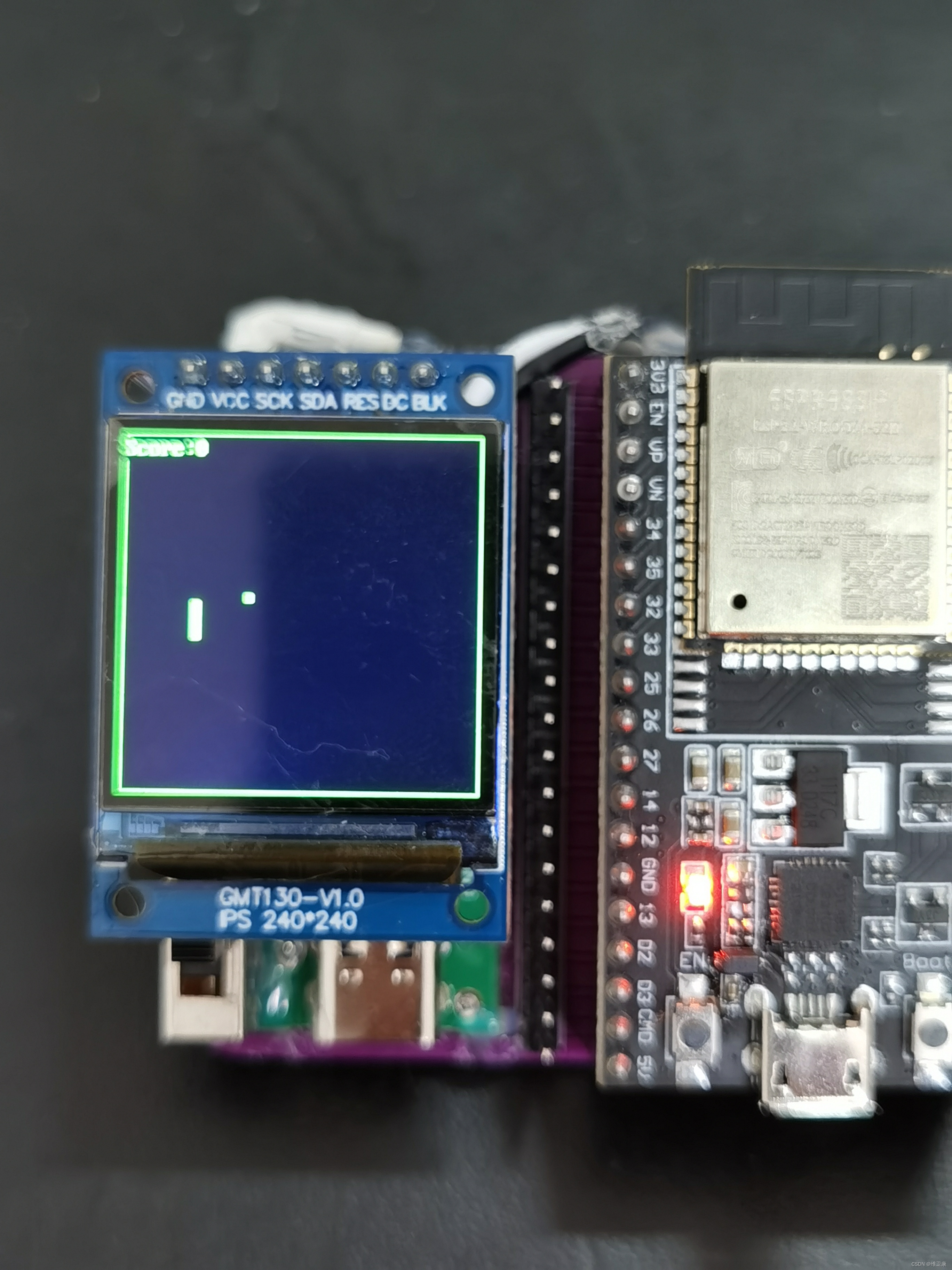

主屏幕时间0.5s刷新一次，日期和星期60s刷新一次，右上角绿点表示联网成功，如果黄色显示联网失败，当按右上角key3>5次后触发彩蛋，结束时钟显示转为贪吃蛇游戏，按键从右下至右依此为key0，key1，key2，key3，对应贪吃蛇功能下，右，上，左
key0-->down
key1-->right
key2-->up
key3-->left
大概这个逻辑，不想玩了可以按开发板左下的reset键重新开启时钟，它就会恢复为原来的时钟
效果讲完了下面开始讲干货（很干哦记得多喝水‘<’）
完整的代码在最后贴着，讲原理的在前面
2、需要准备的的元件

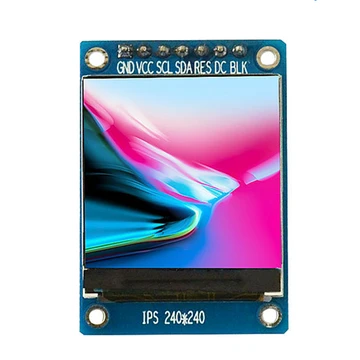

1、st7789全彩tft240*240屏幕 x1

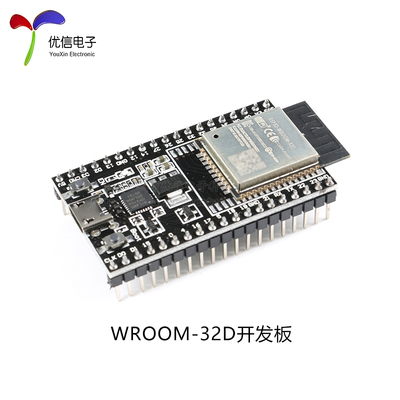

2、esp32 devkit1开发板，主控是esp32-wroom-32d x1

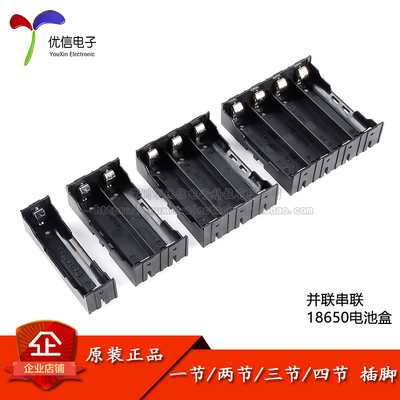

3、18650电池和电池盒 x1

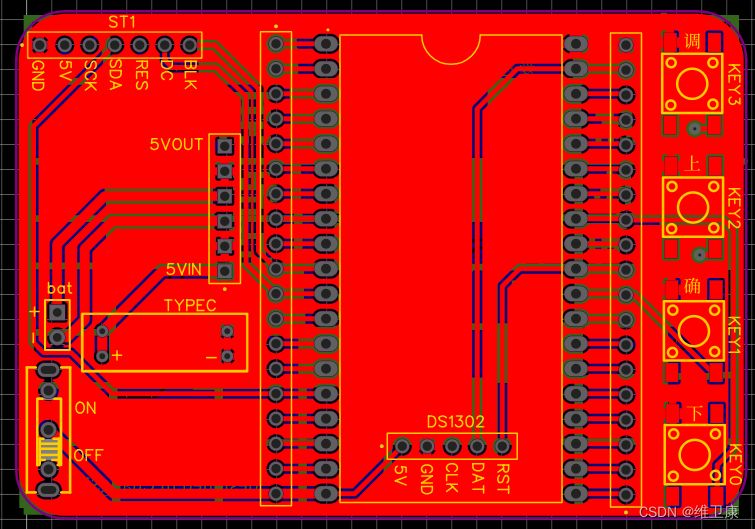

4、pcb板，我是用嘉立创免费打的 x1

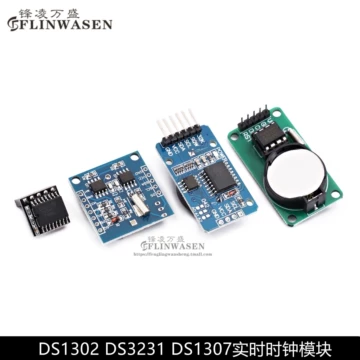

5、ds1302时钟模块（很多毛病别用，我是直接联网同步的时间）x1
6、typec母座 x1

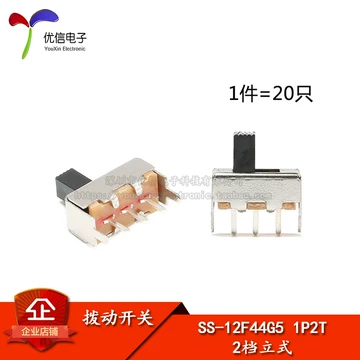

7、滑动开关 x1

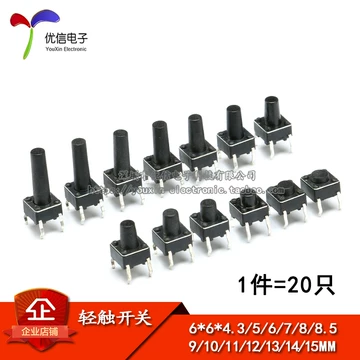

8、轻触开关 x4

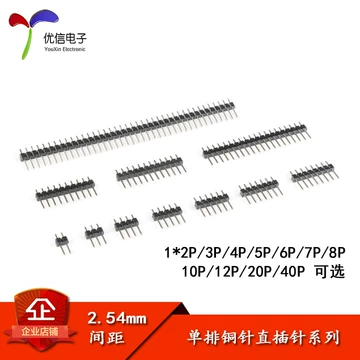

9、2.54母座和公坐 x2

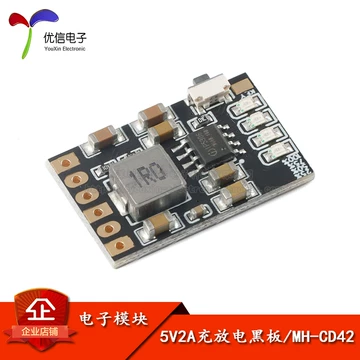

10、cd42 锂电池充放电模块 x1
以上元件tb都可以搜名字或者搜图片搜到
3、研究原理

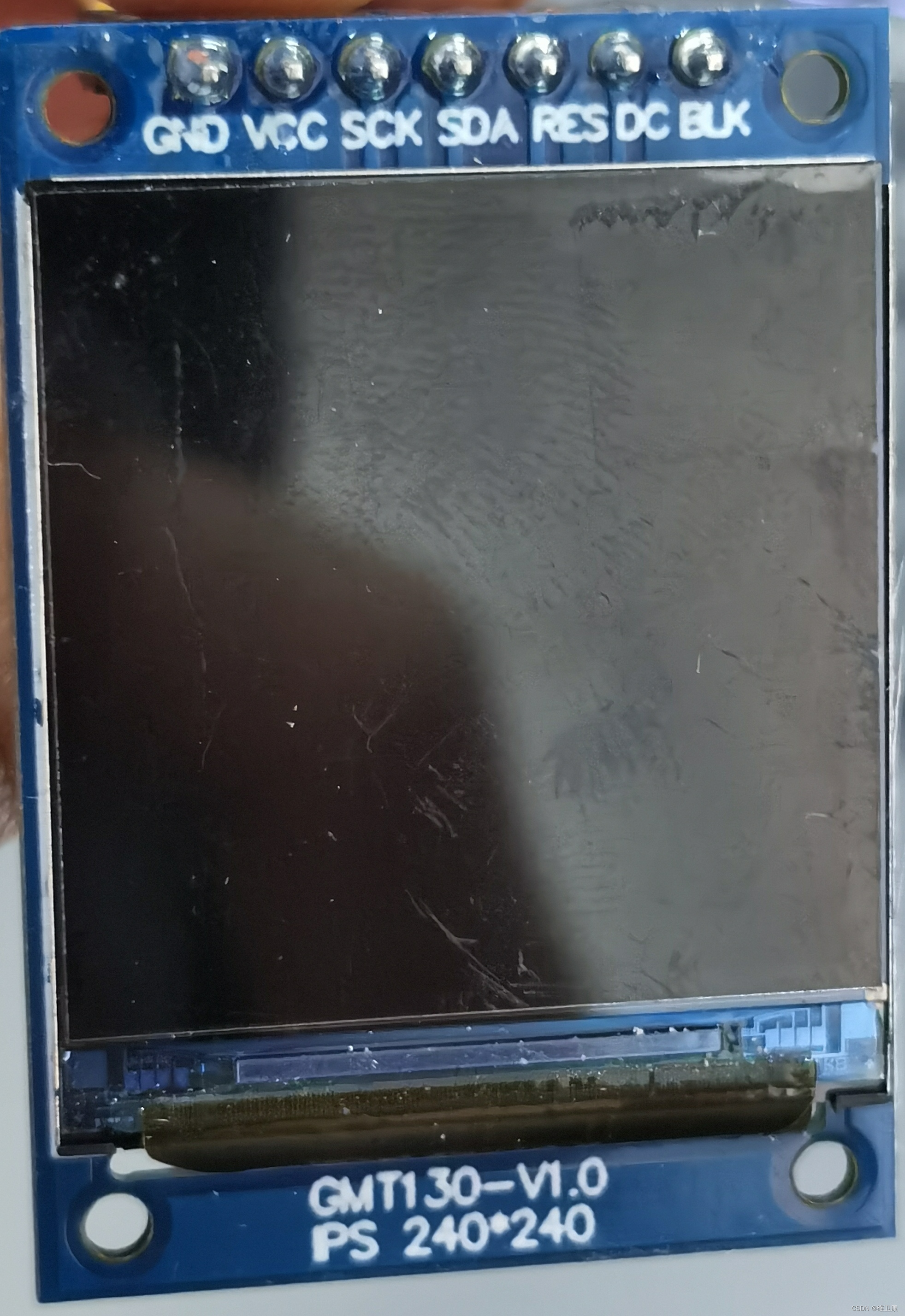

1、st7789 240*240屏幕
RES -> RESET复位引脚//
DC -> 数据，指令选择引脚，1为数据 、0为指令//
CS -> Chip Select低电平有效//
SCK,SCL, CLK -> SPI串行时钟信号//
BL -> 背光引脚，高电平点亮屏幕，低电平关闭屏幕//
SDA -> SPI串行数据输入输出信号//
GND -> 电源地//
VCC -> 支持3.3v和5v输入/
我的连接顺序：
屏幕(spi从机)-->esp32（spi主机）
vcc,gnd-->vcc,gnd
sck-->14(spi_sck)
sda-->13(spi_mosi)
res-->12
dc-->27
blk-->26
2、按键连接与消抖
key0-->19
key1-->17
key2-->16
key3-->4
消抖我这里参考了micropython官网的一个方法，很巧妙而且很有效，按一下就是一下不会右很多下，链接和代码贴下面，通过判断按键的按下的时间然后再传标志位，调用标志位后记得把标志位清零
这里使用的多线程来保证按键的稳定运行
1. 消除引脚输入的抖动— MicroPython 1.17 documentation
#########四个按键##############
key0=Pin(19,Pin.IN,Pin.PULL_UP)
key1=Pin(17,Pin.IN,Pin.PULL_UP)
key2=Pin(16,Pin.IN,Pin.PULL_UP)
key3=Pin(4,Pin.IN,Pin.PULL_UP)
def wait_pin_change(pin):
# wait for pin to change value
# it needs to be stable for a continuous 20ms
cur_value = pin.value()
active = 0
while active < 20:
if pin.value() != cur_value:
active += 1
else:
active = 0
time.sleep_ms(1)
key0_flag=0
key1_flag=0
key2_flag=0
key3_flag=0
k0=k1=k2=k3=0
def key_scan():
global key0_flag,key1_flag,key2_flag,key3_flag
global k0,k1,k2,k3
if key0.value()==0:
wait_pin_change(key0)
k0+=1
if k0>=1:
key0_flag=1
k0=0
elif key1.value()==0:
wait_pin_change(key1)
k1+=1
if k1>=1:
key1_flag=1
k1=0
elif key2.value()==0:
wait_pin_change(key2)
k2+=1
if k2>=1:
key2_flag=1
k2=0
elif key3.value()==0:
wait_pin_change(key3)
k3+=1
if k3>=1:
key3_flag=1
k3=0
############end###############
#############按键任务#################
def key_task(*args, **kwargs):
global key0_flag,key1_flag,key2_flag,key3_flag
global k0,k1,k2,k3
while True:
key_scan()
if key0_flag==1:
print("0")
key0_flag=0
elif key1_flag==1:
print("1")
key1_flag=0
elif key2_flag==1:
print("2")
key2_flag=0
elif key3_flag==1:
print("3")
key3_flag=0
###########end##############
thread_1 = _thread.start_new_thread(key_task, (1,))3、贪吃蛇游戏彩蛋
这里参考了下面链接改的
(22条消息) 手把手教你使用ESP32+MicroPython制作贪吃蛇游戏_用ssd1306写一个游戏_空巢青年_rui的博客-CSDN博客
其中按6下key3触发彩蛋是通过按键计数原理，每按一下按键就计数，当计数大于5时从显示时钟的任务退出来进行贪吃蛇任务，按reset重置开发板继续时钟任务
if disp_exit_flag>5:
return
4、总结
需要往开发板里下两个文件st7789.py和display.py
display.py
from machine import SPI,Pin,Timer,RTC
import st7789,time,network,_thread,ntptime,random
import vga1_16x16,vga1_16x32,vga1_8x16,vga1_8x8,vga1_bold_16x16,vga1_bold_16x32
#############联网#################
ssid="你的WiFi"
passwd="你的password"
def connect(ssid,passwd):
wlan=network.WLAN(network.STA_IF)
if not wlan.isconnected():
wlan.active(True)
wlan.connect(ssid,passwd)
while not wlan.isconnected():
pass
print(wlan.ifconfig())#('192.168.31.233', '255.255.255.0', '192.168.31.1', '192.168.31.1')IP 地址、子网掩码、网关和 DNS 服务器
NetMessage=wlan.ifconfig()#ip_add表示ip地址
global IpAdd
global NetMask
IpAdd=NetMessage[0]
NetMask=NetMessage[1]
#############end####################
##############定时器#################
tim0=Timer(0)
tim1=Timer(1)
tim2=Timer(2)
tim3=Timer(3)
##############end###################
############联网同步时间#############
rtc=RTC()
def sync_ntp():
ntptime.NTP_DELTA = 3155644800 # 可选 UTC+8偏移时间（秒），不设置就是UTC0
ntptime.host = 'ntp1.aliyun.com' # 可选，ntp服务器，默认是"pool.ntp.org"
try:
ntptime.settime() # 修改设备时间,到这就已经设置好了
print(rtc.datetime())#rtc.datetime第四个数据星期 0表示周日 1~6表示周一到周六
print('同步成功')
except:
print('同步失败')
###############end############################
#########四个按键##############
key0=Pin(19,Pin.IN,Pin.PULL_UP)
key1=Pin(17,Pin.IN,Pin.PULL_UP)
key2=Pin(16,Pin.IN,Pin.PULL_UP)
key3=Pin(4,Pin.IN,Pin.PULL_UP)
def wait_pin_change(pin):
# wait for pin to change value
# it needs to be stable for a continuous 20ms
cur_value = pin.value()
active = 0
while active < 20:
if pin.value() != cur_value:
active += 1
else:
active = 0
time.sleep_ms(1)
key0_flag=0
key1_flag=0
key2_flag=0
key3_flag=0
k0=k1=k2=k3=0
def key_scan():
global key0_flag,key1_flag,key2_flag,key3_flag
global k0,k1,k2,k3
if key0.value()==0:
wait_pin_change(key0)
k0+=1
if k0>=1:
key0_flag=1
k0=0
elif key1.value()==0:
wait_pin_change(key1)
k1+=1
if k1>=1:
key1_flag=1
k1=0
elif key2.value()==0:
wait_pin_change(key2)
k2+=1
if k2>=1:
key2_flag=1
k2=0
elif key3.value()==0:
wait_pin_change(key3)
k3+=1
if k3>=1:
key3_flag=1
k3=0
############end#############
###########随机数生成随机颜色#########
def random_color0():
i=random.randint(0,255)
j=random.randint(0,255)
k=random.randint(0,255)
return i,j,k
def random_color1():
i=random.randint(0,255)
j=random.randint(0,255)
k=random.randint(0,255)
return i,j,k
def random_color2():
i=random.randint(0,255)
j=random.randint(0,255)
k=random.randint(0,255)
return i,j,k
def random_color3():
i=random.randint(0,255)
j=random.randint(0,255)
k=random.randint(0,255)
return i,j,k
###########end############
##############屏幕st7789###############
class Display():
def __init__(self):
self.tft = st7789.ST7789(SPI(2, baudrate=10000000, polarity=1, sck=Pin(14), mosi=Pin(13)), 240, 240, reset=Pin(12, Pin.OUT), dc=Pin(27, Pin.OUT),backlight=Pin(26,Pin.OUT))
self.tft.rotation(0)
self.WHITE = st7789.color565(255, 255, 255)#RGB
self.BLACK = st7789.color565(0, 0, 0)
self.RED = st7789.color565(255, 0, 0)
self.GREEN = st7789.color565(0, 255, 0)
self.BLUE = st7789.color565(0, 0, 255)
self.YELLOW = st7789.color565(255, 255, 0)
self.PURPLE=st7789.color565(255,0,255)
self.PINK=st7789.color565(241,158,194)
self.ORANGE=st7789.color565(255,165,0)
self.DEEP_GREEN=st7789.color565(9,209,9)
self.GRAY=st7789.color565(150,150,150)
self.last_hour = 0
self.last_minute = 0
self.last_second = 0
self.last_year = 0
self.last_month = 0
self.last_day = 0
self.init_show()
def init_show(self):
'''
初始化显示画面
'''
self.RANDOM0=st7789.color565(random_color0())
self.tft.text(vga1_bold_16x32, ':', 20+24*2, 100, self.WHITE, self.BLACK)
self.tft.text(vga1_bold_16x32, ':', 20+24*5, 100, self.WHITE, self.BLACK)
self.tft.text(vga1_bold_16x32, '00', 20, 100, self.WHITE, self.BLACK)
self.tft.text(vga1_bold_16x32, '00', 20+24*3, 100, self.WHITE, self.BLACK)
self.tft.text(vga1_bold_16x32, '00', 20+24*6, 100, self.WHITE, self.BLACK)
self.tft.text(vga1_8x16, 'Please set a hotspot like it:', 0, 160, self.WHITE, self.BLACK)
self.tft.text(vga1_8x16, 'Wifiname:%s'%ssid, 0, 180, self.WHITE, self.BLACK)
self.tft.text(vga1_8x16, 'password:%s'%passwd, 0, 200, self.WHITE, self.BLACK)
time.sleep(2)
self.text('ZHQ I LOVE YOU')
time.sleep(2)
self.text(' ')
self.tft.text(vga1_8x16, '<h>NOW TIME</h>', 0, 0, self.DEEP_GREEN, self.GRAY)
self.tft.text(vga1_8x16, 'CWK', 120, 220, self.BLUE, self.BLACK)
self.tft.text(vga1_8x16, 'LOVE', 160, 220, self.ORANGE, self.BLACK)
self.tft.text(vga1_8x16, 'ZHQ', 210, 220, self.GREEN, self.BLACK)
self.tft.text(vga1_8x16, ' ', 0, 160, self.WHITE, self.BLACK)
self.tft.text(vga1_8x16, ' ', 0, 180, self.WHITE, self.BLACK)
self.tft.text(vga1_8x16, ' ', 0, 200, self.WHITE, self.BLACK)
wlan=network.WLAN(network.STA_IF)
if wlan.isconnected() is True:
self.tft.fill_rect(235,0,5,5,st7789.GREEN)
elif wlan.isconnected() is False:
self.tft.fill_rect(235,0,5,5,st7789.RED)
def text(self,text):
self.tft.text(vga1_bold_16x32, text, 0, 50, self.RANDOM0, self.BLACK)
def show_time(self,t):
self.RANDOM1=st7789.color565(random_color1())
self.RANDOM2=st7789.color565(random_color2())
self.RANDOM3=st7789.color565(random_color3())
hour = t[4]
minute = t[5]
second = t[6]
ti = "{:0>2d}:{:0>2d}:{:0>2d}".format(hour,minute,second)
if hour != self.last_hour:
self.tft.text(vga1_bold_16x32, '{:0>2d}'.format(hour), 20, 100, self.RANDOM1, self.BLACK)
self.last_hour = hour
if minute != self.last_minute:
self.tft.text(vga1_bold_16x32, '{:0>2d}'.format(minute), 20+24*3, 100, self.RANDOM2, self.BLACK)
self.last_minute = minute
if second != self.last_second:
self.tft.text(vga1_bold_16x32, '{:0>2d}'.format(second), 20+24*6, 100, self.RANDOM3, self.BLACK)
self.last_second = second
def show_date(self,t):
weekdays=('Monday','Tuesday','Wednesday','Thursday','Friday','Saturday','Sunday')
year = t[0]
month = t[1]
day = t[2]
weekday=t[3]
da = "{:0>2d} {:0>2d} {:0>2d}".format(year,month,day)
if year != self.last_year:
self.tft.text(vga1_16x32,'{:0>2d}'.format(year), 20, 160, self.RANDOM2, self.BLACK)
self.last_year = year
if month != self.last_month:
self.tft.text(vga1_16x32,'{:0>2d}'.format(month), 20+24*3, 160, self.RANDOM3, self.BLACK)
self.last_month = month
if day != self.last_day:
self.tft.text(vga1_16x32,'{:0>2d}'.format(day), 20+24*6, 160, self.RANDOM1, self.BLACK)
self.last_day = day
if weekday==0:
self.tft.text(vga1_16x32,weekdays[0],0,50,self.BLUE,self.BLACK)
if weekday==1:
self.tft.text(vga1_16x32,weekdays[1],0,50,self.GREEN,self.BLACK)
if weekday==2:
self.tft.text(vga1_16x32,weekdays[2],0,50,self.YELLOW,self.BLACK)
if weekday==3:
self.tft.text(vga1_16x32,weekdays[3],0,50,self.PINK,self.BLACK)
if weekday==4:
self.tft.text(vga1_16x32,weekdays[4],0,50,self.PURPLE,self.BLACK)
if weekday==5:
self.tft.text(vga1_16x32,weekdays[5],0,50,self.RED,self.BLACK)
if weekday==6:
self.tft.text(vga1_16x32,weekdays[6],0,50,self.ORANGE,self.BLACK)
def start(self):
i=0
while True:
if disp_exit_flag>5:
return
t = (rtc.datetime())
self.show_time(t)
time.sleep(0.5)
i+=1
if i==60:
self.show_date(t)#一分钟刷新一次
i=0
def __del__(self):
pass
##################贪吃蛇class################
class State(object):
START = 0
RUNNING = 1
GAMEOVER = 2
@classmethod
def setter(cls, state):
if state == cls.START:
return cls.START
elif state == cls.RUNNING:
return cls.RUNNING
elif state == cls.GAMEOVER:
return cls.GAMEOVER
class Direction(object):
# 注意顺序
UP = 0
LEFT = 1
DOWN = 2
RIGHT = 3
@classmethod
def setter(cls, dirc):
if dirc == cls.UP:
return cls.UP
elif dirc == cls.DOWN:
return cls.DOWN
elif dirc == cls.LEFT:
return cls.LEFT
elif dirc == cls.RIGHT:
return cls.RIGHT
SCREEN_WIDTH = 240
SCREEN_HEIGHT = 240
# snake config
SNAKE_PIECE_SIZE = 5 # 蛇的每一格占用3*3个像素
MAX_SNAKE_LENGTH = 200 # 蛇的最长长度
MAP_SIZE_X = 47 # 活动范围
MAP_SIZE_Y = 47
START_SNAKE_SIZE = 5 # 初始长度
SNAKE_MOVE_DELAY = 20 # 移动延时
screen = st7789.ST7789(SPI(2, baudrate=10000000, polarity=1, sck=Pin(14), mosi=Pin(13)), 240, 240, reset=Pin(12, Pin.OUT), dc=Pin(27, Pin.OUT),backlight=Pin(26,Pin.OUT))
screen.rotation(0)
################ Snake 功能实现 ###################
class Snake(object):
def __init__(self):
self.snake = [] # 初始位置[（x1,y1）,(x2,y2),...]一个元组列表
self.fruit = [] # 水果，[x,y]
self.snake_length = START_SNAKE_SIZE
self.direction = Direction.RIGHT # 当前前进方向
self.new_direction = Direction.RIGHT # 用户按键后的前进方向
self.game_state = None
self.display = screen
self.setup_game()
def setup_game(self):
"""初始化游戏"""
self.game_state = State.START
direction = Direction.RIGHT
new_direction = Direction.RIGHT
self.reset_snake()
self.generate_fruit()
self.display.fill(st7789.BLACK)
self.draw_map()
self.show_score()
self.show_press_to_start()
#self.display.show()
def reset_snake(self):
"""重设蛇的位置"""
self.snake = [] # 重置
self.snake_length = START_SNAKE_SIZE
for i in range(self.snake_length):
self.snake.append((MAP_SIZE_X // 2 - i, MAP_SIZE_Y // 2))
def check_fruit(self):
"""检测蛇是否吃到水果，能否继续吃水果"""
if self.snake[0][0] == self.fruit[0] and self.snake[0][1] == self.fruit[1]:
if self.snake_length + 1 < MAX_SNAKE_LENGTH:
self.snake_length += 1
# 吃到水果后，将蛇增加一格
self.snake.insert(0, (self.fruit[0], self.fruit[1]))
self.generate_fruit()
def generate_fruit(self):
"""随机生成水果位置，注意不能生成在蛇身上"""
while True:
self.fruit = [random.randint(1, MAP_SIZE_X - 1), random.randint(1, MAP_SIZE_Y - 1)]
fruit = tuple(self.fruit)
if fruit in self.snake:
# 生成在蛇身上
continue
else:
print('fruit: ', self.fruit)
break
@staticmethod
def button_press():
"""是否有按键按下"""
for pin in left_flag, right_flag, up_flag, down_flag:
if pin == 1: #当一个的flag为1
return True
return False
def read_direction(self):
"""读取新的按键方向，不能与当前方向相反"""
for direction, pin in enumerate((up_flag, left_flag, down_flag, right_flag)):
if pin == 1 and not (direction == (self.direction + 2) % 4):
self.new_direction = Direction.setter(direction)
return
def collection_check(self, x, y):
"""检查蛇社否撞到墙或者（x,y）位置"""
for i in self.snake:
if x == i[0] and y == i[1]:
return True
if x < 0 or y < 0 or x >= MAP_SIZE_X or y >= MAP_SIZE_Y:
return True
return False
def move_snake(self):
"""按照方向键移动蛇，返回能否继续移动的布尔值"""
x, y = self.snake[0]
new_x, new_y = x, y
if self.direction == Direction.UP:
new_y -= 1
elif self.direction == Direction.DOWN:
new_y += 1
elif self.direction == Direction.LEFT:
new_x -= 1
elif self.direction == Direction.RIGHT:
new_x += 1
if self.collection_check(new_x, new_y): # 不能继续移动
return False
self.snake.pop() # 去除最后一个位置
self.snake.insert(0, (new_x, new_y)) # 在开头添加新位置
return True # 能继续移动
def draw_map(self):
"""绘制地图区域: 蛇、水果、边界"""
offset_map_x = SCREEN_WIDTH - SNAKE_PIECE_SIZE * MAP_SIZE_X - 2
offset_map_y = 2
# 绘制水果
self.display.rect(self.fruit[0] * SNAKE_PIECE_SIZE + offset_map_x,
self.fruit[1] * SNAKE_PIECE_SIZE + offset_map_y,
SNAKE_PIECE_SIZE, SNAKE_PIECE_SIZE, st7789.GREEN)
# 绘制地图边界, 边界占一个像素，但是绘制时在内侧留一个像素，当蛇头部到达内部一个像素时，即判定为碰撞
self.display.rect(offset_map_x - 2,
0,
SNAKE_PIECE_SIZE * MAP_SIZE_X + 4,
SNAKE_PIECE_SIZE * MAP_SIZE_Y + 4, st7789.GREEN)
# 绘制蛇
for x, y in self.snake:
self.display.fill_rect(x * SNAKE_PIECE_SIZE + offset_map_x,
y * SNAKE_PIECE_SIZE + offset_map_y,
SNAKE_PIECE_SIZE,
SNAKE_PIECE_SIZE, st7789.GREEN)
def show_score(self):
"""显示得分"""
score = self.snake_length - START_SNAKE_SIZE
#self.display.text('Score:%d' % score, 0, 2, 1)
self.display.text(vga1_8x16,'Score:%d' % score, 0, 2, st7789.GREEN, st7789.BLACK)
def show_press_to_start(self):
"""提示按任意键开始游戏"""
#self.display.text('Press', 0, 16, 1)
#self.display.text('button', 0, 26, 1)
#self.display.text('start!', 0, 36, 1)
self.display.text(vga1_8x16,'Press any button to start!', 0, 20, st7789.GREEN, st7789.BLACK)
def show_game_over(self):
"""显示游戏结束"""
#self.display.text('Game', 0, 30, 1)
#self.display.text('Over!', 0, 40, 1)
self.display.text(vga1_8x16,'GAME OVER', 0, 20, st7789.GREEN, st7789.BLACK)
#################end#########################
#############按键任务#################
disp_exit_flag=0
up_flag=down_flag=left_flag=right_flag=0
def key_task(*args, **kwargs):
# print('keytaskis:%d'%_thread.get_ident())keytaskis:1073582188
global key0_flag,key1_flag,key2_flag,key3_flag
global up_flag,down_flag,left_flag,right_flag
global k0,k1,k2,k3
global disp_exit_flag
while True:
key_scan()
if key0_flag==1:
print("0")
down_flag=1
key0_flag=0
elif key1_flag==1:
print("1")
right_flag=1
key1_flag=0
elif key2_flag==1:
print("2")
up_flag=1
key2_flag=0
elif key3_flag==1:
print("3")
left_flag=1
disp_exit_flag+=1
key3_flag=0
#####################end#####################
connect(ssid,passwd)
time.sleep(1)
sync_ntp()
thread_1 = _thread.start_new_thread(key_task, (1,))
#thread_2 = _thread.start_new_thread(disp_task, (2,))
D = Display()
D.start()
disp_exit_flag=0#连续5下key3后跳出start()
snake = Snake()
move_time = 0
while True:
if snake.game_state == State.START:
if Snake.button_press():
up_flag=down_flag=left_flag=right_flag=0
snake.game_state = State.RUNNING
elif snake.game_state == State.RUNNING:
move_time += 1
snake.read_direction()
up_flag=down_flag=left_flag=right_flag=0
if move_time >= SNAKE_MOVE_DELAY:
snake.direction = snake.new_direction
snake.display.fill(0)
if not snake.move_snake():
snake.game_state = State.GAMEOVER
snake.show_game_over()
time.sleep(1)
snake.draw_map()
snake.show_score()
#snake.display.show()
snake.check_fruit()
move_time = 0
elif snake.game_state == State.GAMEOVER:
if Snake.button_press():
time.sleep_ms(500)
snake.setup_game()
print('******** new game ********')
snake.game_state = State.START
time.sleep_ms(20)
st7789.py
"""
Copyright (c) 2020, 2021 Russ Hughes
This file incorporates work covered by the following copyright and
permission notice and is licensed under the same terms:
The MIT License (MIT)
Copyright (c) 2019 Ivan Belokobylskiy
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
The driver is based on devbis' st7789py_mpy module from
https://github.com/devbis/st7789py_mpy.
This driver adds support for:
- 320x240, 240x240 and 135x240 pixel displays
- Display rotation
- Hardware based scrolling
- Drawing text using 8 and 16 bit wide bitmap fonts with heights that are
multiples of 8. Included are 12 bitmap fonts derived from classic pc
BIOS text mode fonts.
- Drawing text using converted TrueType fonts.
- Drawing converted bitmaps
"""
import time
from micropython import const
import ustruct as struct
# commands
ST7789_NOP = const(0x00)
ST7789_SWRESET = const(0x01)
ST7789_RDDID = const(0x04)
ST7789_RDDST = const(0x09)
ST7789_SLPIN = const(0x10)
ST7789_SLPOUT = const(0x11)
ST7789_PTLON = const(0x12)
ST7789_NORON = const(0x13)
ST7789_INVOFF = const(0x20)
ST7789_INVON = const(0x21)
ST7789_DISPOFF = const(0x28)
ST7789_DISPON = const(0x29)
ST7789_CASET = const(0x2A)
ST7789_RASET = const(0x2B)
ST7789_RAMWR = const(0x2C)
ST7789_RAMRD = const(0x2E)
ST7789_PTLAR = const(0x30)
ST7789_VSCRDEF = const(0x33)
ST7789_COLMOD = const(0x3A)
ST7789_MADCTL = const(0x36)
ST7789_VSCSAD = const(0x37)
ST7789_MADCTL_MY = const(0x80)
ST7789_MADCTL_MX = const(0x40)
ST7789_MADCTL_MV = const(0x20)
ST7789_MADCTL_ML = const(0x10)
ST7789_MADCTL_BGR = const(0x08)
ST7789_MADCTL_MH = const(0x04)
ST7789_MADCTL_RGB = const(0x00)
ST7789_RDID1 = const(0xDA)
ST7789_RDID2 = const(0xDB)
ST7789_RDID3 = const(0xDC)
ST7789_RDID4 = const(0xDD)
COLOR_MODE_65K = const(0x50)
COLOR_MODE_262K = const(0x60)
COLOR_MODE_12BIT = const(0x03)
COLOR_MODE_16BIT = const(0x05)
COLOR_MODE_18BIT = const(0x06)
COLOR_MODE_16M = const(0x07)
# Color definitions
BLACK = const(0x0000)
BLUE = const(0x001F)
RED = const(0xF800)
GREEN = const(0x07E0)
CYAN = const(0x07FF)
MAGENTA = const(0xF81F)
YELLOW = const(0xFFE0)
WHITE = const(0xFFFF)
_ENCODE_PIXEL = ">H"
_ENCODE_POS = ">HH"
_DECODE_PIXEL = ">BBB"
_BUFFER_SIZE = const(256)
_BIT7 = const(0x80)
_BIT6 = const(0x40)
_BIT5 = const(0x20)
_BIT4 = const(0x10)
_BIT3 = const(0x08)
_BIT2 = const(0x04)
_BIT1 = const(0x02)
_BIT0 = const(0x01)
# Rotation tables (width, height, xstart, ystart)[rotation % 4]
WIDTH_320 = [(240, 320, 0, 0),
(320, 240, 0, 0),
(240, 320, 0, 0),
(320, 240, 0, 0)]
WIDTH_240 = [(240, 240, 0, 0),
(240, 240, 0, 0),
(240, 240, 0, 80),
(240, 240, 80, 0)]
WIDTH_135 = [(135, 240, 52, 40),
(240, 135, 40, 53),
(135, 240, 53, 40),
(240, 135, 40, 52)]
# MADCTL ROTATIONS[rotation % 4]
ROTATIONS = [0x00, 0x60, 0xc0, 0xa0]
def color565(red, green=0, blue=0):
"""
Convert red, green and blue values (0-255) into a 16-bit 565 encoding.
"""
try:
red, green, blue = red # see if the first var is a tuple/list
except TypeError:
pass
return (red & 0xf8) << 8 | (green & 0xfc) << 3 | blue >> 3
def _encode_pos(x, y):
"""Encode a postion into bytes."""
return struct.pack(_ENCODE_POS, x, y)
def _encode_pixel(color):
"""Encode a pixel color into bytes."""
return struct.pack(_ENCODE_PIXEL, color)
class ST7789():
"""
ST7789 driver class
Args:
spi (spi): spi object **Required**
width (int): display width **Required**
height (int): display height **Required**
reset (pin): reset pin
dc (pin): dc pin **Required**
cs (pin): cs pin
backlight(pin): backlight pin
rotation (int): display rotation
- 0-Portrait
- 1-Landscape
- 2-Inverted Portrait
- 3-Inverted Landscape
"""
def __init__(self, spi, width, height, reset=None, dc=None,
cs=None, backlight=None, rotation=0):
"""
Initialize display.
"""
if height != 240 or width not in [320, 240, 135]:
raise ValueError(
"Unsupported display. 320x240, 240x240 and 135x240 are supported."
)
if dc is None:
raise ValueError("dc pin is required.")
self._display_width = self.width = width
self._display_height = self.height = height
self.xstart = 0
self.ystart = 0
self.spi = spi
self.reset = reset
self.dc = dc
self.cs = cs
self.backlight = backlight
self._rotation = rotation % 4
self.hard_reset()
self.soft_reset()
self.sleep_mode(False)
self._set_color_mode(COLOR_MODE_65K | COLOR_MODE_16BIT)
time.sleep_ms(50)
self.rotation(self._rotation)
self.inversion_mode(True)
time.sleep_ms(10)
self._write(ST7789_NORON)
time.sleep_ms(10)
if backlight is not None:
backlight.value(1)
self.fill(0)
self._write(ST7789_DISPON)
time.sleep_ms(500)
def _write(self, command=None, data=None):
"""SPI write to the device: commands and data."""
if self.cs:
self.cs.off()
if command is not None:
self.dc.off()
self.spi.write(bytes([command]))
if data is not None:
self.dc.on()
self.spi.write(data)
if self.cs:
self.cs.on()
def hard_reset(self):
"""
Hard reset display.
"""
if self.cs:
self.cs.off()
if self.reset:
self.reset.on()
time.sleep_ms(50)
if self.reset:
self.reset.off()
time.sleep_ms(50)
if self.reset:
self.reset.on()
time.sleep_ms(150)
if self.cs:
self.cs.on()
def soft_reset(self):
"""
Soft reset display.
"""
self._write(ST7789_SWRESET)
time.sleep_ms(150)
def sleep_mode(self, value):
"""
Enable or disable display sleep mode.
Args:
value (bool): if True enable sleep mode. if False disable sleep
mode
"""
if value:
self._write(ST7789_SLPIN)
else:
self._write(ST7789_SLPOUT)
def inversion_mode(self, value):
"""
Enable or disable display inversion mode.
Args:
value (bool): if True enable inversion mode. if False disable
inversion mode
"""
if value:
self._write(ST7789_INVON)
else:
self._write(ST7789_INVOFF)
def _set_color_mode(self, mode):
"""
Set display color mode.
Args:
mode (int): color mode
COLOR_MODE_65K, COLOR_MODE_262K, COLOR_MODE_12BIT,
COLOR_MODE_16BIT, COLOR_MODE_18BIT, COLOR_MODE_16M
"""
self._write(ST7789_COLMOD, bytes([mode & 0x77]))
def rotation(self, rotation):
"""
Set display rotation.
Args:
rotation (int):
- 0-Portrait
- 1-Landscape
- 2-Inverted Portrait
- 3-Inverted Landscape
"""
rotation %= 4
self._rotation = rotation
madctl = ROTATIONS[rotation]
if self._display_width == 320:
table = WIDTH_320
elif self._display_width == 240:
table = WIDTH_240
elif self._display_width == 135:
table = WIDTH_135
else:
raise ValueError(
"Unsupported display. 320x240, 240x240 and 135x240 are supported."
)
self.width, self.height, self.xstart, self.ystart = table[rotation]
self._write(ST7789_MADCTL, bytes([madctl]))
def _set_columns(self, start, end):
"""
Send CASET (column address set) command to display.
Args:
start (int): column start address
end (int): column end address
"""
if start <= end <= self.width:
self._write(ST7789_CASET, _encode_pos(
start+self.xstart, end + self.xstart))
def _set_rows(self, start, end):
"""
Send RASET (row address set) command to display.
Args:
start (int): row start address
end (int): row end address
"""
if start <= end <= self.height:
self._write(ST7789_RASET, _encode_pos(
start+self.ystart, end+self.ystart))
def _set_window(self, x0, y0, x1, y1):
"""
Set window to column and row address.
Args:
x0 (int): column start address
y0 (int): row start address
x1 (int): column end address
y1 (int): row end address
"""
self._set_columns(x0, x1)
self._set_rows(y0, y1)
self._write(ST7789_RAMWR)
def vline(self, x, y, length, color):
"""
Draw vertical line at the given location and color.
Args:
x (int): x coordinate
Y (int): y coordinate
length (int): length of line
color (int): 565 encoded color
"""
self.fill_rect(x, y, 1, length, color)
def hline(self, x, y, length, color):
"""
Draw horizontal line at the given location and color.
Args:
x (int): x coordinate
Y (int): y coordinate
length (int): length of line
color (int): 565 encoded color
"""
self.fill_rect(x, y, length, 1, color)
def pixel(self, x, y, color):
"""
Draw a pixel at the given location and color.
Args:
x (int): x coordinate
Y (int): y coordinate
color (int): 565 encoded color
"""
self._set_window(x, y, x, y)
self._write(None, _encode_pixel(color))
def blit_buffer(self, buffer, x, y, width, height):
"""
Copy buffer to display at the given location.
Args:
buffer (bytes): Data to copy to display
x (int): Top left corner x coordinate
Y (int): Top left corner y coordinate
width (int): Width
height (int): Height
"""
self._set_window(x, y, x + width - 1, y + height - 1)
self._write(None, buffer)
def rect(self, x, y, w, h, color):
"""
Draw a rectangle at the given location, size and color.
Args:
x (int): Top left corner x coordinate
y (int): Top left corner y coordinate
width (int): Width in pixels
height (int): Height in pixels
color (int): 565 encoded color
"""
self.hline(x, y, w, color)
self.vline(x, y, h, color)
self.vline(x + w - 1, y, h, color)
self.hline(x, y + h - 1, w, color)
def fill_rect(self, x, y, width, height, color):
"""
Draw a rectangle at the given location, size and filled with color.
Args:
x (int): Top left corner x coordinate
y (int): Top left corner y coordinate
width (int): Width in pixels
height (int): Height in pixels
color (int): 565 encoded color
"""
self._set_window(x, y, x + width - 1, y + height - 1)
chunks, rest = divmod(width * height, _BUFFER_SIZE)
pixel = _encode_pixel(color)
self.dc.on()
if chunks:
data = pixel * _BUFFER_SIZE
for _ in range(chunks):
self._write(None, data)
if rest:
self._write(None, pixel * rest)
def fill(self, color):
"""
Fill the entire FrameBuffer with the specified color.
Args:
color (int): 565 encoded color
"""
self.fill_rect(0, 0, self.width, self.height, color)
def line(self, x0, y0, x1, y1, color):
"""
Draw a single pixel wide line starting at x0, y0 and ending at x1, y1.
Args:
x0 (int): Start point x coordinate
y0 (int): Start point y coordinate
x1 (int): End point x coordinate
y1 (int): End point y coordinate
color (int): 565 encoded color
"""
steep = abs(y1 - y0) > abs(x1 - x0)
if steep:
x0, y0 = y0, x0
x1, y1 = y1, x1
if x0 > x1:
x0, x1 = x1, x0
y0, y1 = y1, y0
dx = x1 - x0
dy = abs(y1 - y0)
err = dx // 2
ystep = 1 if y0 < y1 else -1
while x0 <= x1:
if steep:
self.pixel(y0, x0, color)
else:
self.pixel(x0, y0, color)
err -= dy
if err < 0:
y0 += ystep
err += dx
x0 += 1
def vscrdef(self, tfa, vsa, bfa):
"""
Set Vertical Scrolling Definition.
To scroll a 135x240 display these values should be 40, 240, 40.
There are 40 lines above the display that are not shown followed by
240 lines that are shown followed by 40 more lines that are not shown.
You could write to these areas off display and scroll them into view by
changing the TFA, VSA and BFA values.
Args:
tfa (int): Top Fixed Area
vsa (int): Vertical Scrolling Area
bfa (int): Bottom Fixed Area
"""
struct.pack(">HHH", tfa, vsa, bfa)
self._write(ST7789_VSCRDEF, struct.pack(">HHH", tfa, vsa, bfa))
def vscsad(self, vssa):
"""
Set Vertical Scroll Start Address of RAM.
Defines which line in the Frame Memory will be written as the first
line after the last line of the Top Fixed Area on the display
Example:
for line in range(40, 280, 1):
tft.vscsad(line)
utime.sleep(0.01)
Args:
vssa (int): Vertical Scrolling Start Address
"""
self._write(ST7789_VSCSAD, struct.pack(">H", vssa))
def _text8(self, font, text, x0, y0, color=WHITE, background=BLACK):
"""
Internal method to write characters with width of 8 and
heights of 8 or 16.
Args:
font (module): font module to use
text (str): text to write
x0 (int): column to start drawing at
y0 (int): row to start drawing at
color (int): 565 encoded color to use for characters
background (int): 565 encoded color to use for background
"""
for char in text:
ch = ord(char)
if (font.FIRST <= ch < font.LAST
and x0+font.WIDTH <= self.width
and y0+font.HEIGHT <= self.height):
if font.HEIGHT == 8:
passes = 1
size = 8
each = 0
else:
passes = 2
size = 16
each = 8
for line in range(passes):
idx = (ch-font.FIRST)*size+(each*line)
buffer = struct.pack(
'>64H',
color if font.FONT[idx] & _BIT7 else background,
color if font.FONT[idx] & _BIT6 else background,
color if font.FONT[idx] & _BIT5 else background,
color if font.FONT[idx] & _BIT4 else background,
color if font.FONT[idx] & _BIT3 else background,
color if font.FONT[idx] & _BIT2 else background,
color if font.FONT[idx] & _BIT1 else background,
color if font.FONT[idx] & _BIT0 else background,
color if font.FONT[idx+1] & _BIT7 else background,
color if font.FONT[idx+1] & _BIT6 else background,
color if font.FONT[idx+1] & _BIT5 else background,
color if font.FONT[idx+1] & _BIT4 else background,
color if font.FONT[idx+1] & _BIT3 else background,
color if font.FONT[idx+1] & _BIT2 else background,
color if font.FONT[idx+1] & _BIT1 else background,
color if font.FONT[idx+1] & _BIT0 else background,
color if font.FONT[idx+2] & _BIT7 else background,
color if font.FONT[idx+2] & _BIT6 else background,
color if font.FONT[idx+2] & _BIT5 else background,
color if font.FONT[idx+2] & _BIT4 else background,
color if font.FONT[idx+2] & _BIT3 else background,
color if font.FONT[idx+2] & _BIT2 else background,
color if font.FONT[idx+2] & _BIT1 else background,
color if font.FONT[idx+2] & _BIT0 else background,
color if font.FONT[idx+3] & _BIT7 else background,
color if font.FONT[idx+3] & _BIT6 else background,
color if font.FONT[idx+3] & _BIT5 else background,
color if font.FONT[idx+3] & _BIT4 else background,
color if font.FONT[idx+3] & _BIT3 else background,
color if font.FONT[idx+3] & _BIT2 else background,
color if font.FONT[idx+3] & _BIT1 else background,
color if font.FONT[idx+3] & _BIT0 else background,
color if font.FONT[idx+4] & _BIT7 else background,
color if font.FONT[idx+4] & _BIT6 else background,
color if font.FONT[idx+4] & _BIT5 else background,
color if font.FONT[idx+4] & _BIT4 else background,
color if font.FONT[idx+4] & _BIT3 else background,
color if font.FONT[idx+4] & _BIT2 else background,
color if font.FONT[idx+4] & _BIT1 else background,
color if font.FONT[idx+4] & _BIT0 else background,
color if font.FONT[idx+5] & _BIT7 else background,
color if font.FONT[idx+5] & _BIT6 else background,
color if font.FONT[idx+5] & _BIT5 else background,
color if font.FONT[idx+5] & _BIT4 else background,
color if font.FONT[idx+5] & _BIT3 else background,
color if font.FONT[idx+5] & _BIT2 else background,
color if font.FONT[idx+5] & _BIT1 else background,
color if font.FONT[idx+5] & _BIT0 else background,
color if font.FONT[idx+6] & _BIT7 else background,
color if font.FONT[idx+6] & _BIT6 else background,
color if font.FONT[idx+6] & _BIT5 else background,
color if font.FONT[idx+6] & _BIT4 else background,
color if font.FONT[idx+6] & _BIT3 else background,
color if font.FONT[idx+6] & _BIT2 else background,
color if font.FONT[idx+6] & _BIT1 else background,
color if font.FONT[idx+6] & _BIT0 else background,
color if font.FONT[idx+7] & _BIT7 else background,
color if font.FONT[idx+7] & _BIT6 else background,
color if font.FONT[idx+7] & _BIT5 else background,
color if font.FONT[idx+7] & _BIT4 else background,
color if font.FONT[idx+7] & _BIT3 else background,
color if font.FONT[idx+7] & _BIT2 else background,
color if font.FONT[idx+7] & _BIT1 else background,
color if font.FONT[idx+7] & _BIT0 else background
)
self.blit_buffer(buffer, x0, y0+8*line, 8, 8)
x0 += 8
def _text16(self, font, text, x0, y0, color=WHITE, background=BLACK):
"""
Internal method to draw characters with width of 16 and heights of 16
or 32.
Args:
font (module): font module to use
text (str): text to write
x0 (int): column to start drawing at
y0 (int): row to start drawing at
color (int): 565 encoded color to use for characters
background (int): 565 encoded color to use for background
"""
for char in text:
ch = ord(char)
if (font.FIRST <= ch < font.LAST
and x0+font.WIDTH <= self.width
and y0+font.HEIGHT <= self.height):
each = 16
if font.HEIGHT == 16:
passes = 2
size = 32
else:
passes = 4
size = 64
for line in range(passes):
idx = (ch-font.FIRST)*size+(each*line)
buffer = struct.pack(
'>128H',
color if font.FONT[idx] & _BIT7 else background,
color if font.FONT[idx] & _BIT6 else background,
color if font.FONT[idx] & _BIT5 else background,
color if font.FONT[idx] & _BIT4 else background,
color if font.FONT[idx] & _BIT3 else background,
color if font.FONT[idx] & _BIT2 else background,
color if font.FONT[idx] & _BIT1 else background,
color if font.FONT[idx] & _BIT0 else background,
color if font.FONT[idx+1] & _BIT7 else background,
color if font.FONT[idx+1] & _BIT6 else background,
color if font.FONT[idx+1] & _BIT5 else background,
color if font.FONT[idx+1] & _BIT4 else background,
color if font.FONT[idx+1] & _BIT3 else background,
color if font.FONT[idx+1] & _BIT2 else background,
color if font.FONT[idx+1] & _BIT1 else background,
color if font.FONT[idx+1] & _BIT0 else background,
color if font.FONT[idx+2] & _BIT7 else background,
color if font.FONT[idx+2] & _BIT6 else background,
color if font.FONT[idx+2] & _BIT5 else background,
color if font.FONT[idx+2] & _BIT4 else background,
color if font.FONT[idx+2] & _BIT3 else background,
color if font.FONT[idx+2] & _BIT2 else background,
color if font.FONT[idx+2] & _BIT1 else background,
color if font.FONT[idx+2] & _BIT0 else background,
color if font.FONT[idx+3] & _BIT7 else background,
color if font.FONT[idx+3] & _BIT6 else background,
color if font.FONT[idx+3] & _BIT5 else background,
color if font.FONT[idx+3] & _BIT4 else background,
color if font.FONT[idx+3] & _BIT3 else background,
color if font.FONT[idx+3] & _BIT2 else background,
color if font.FONT[idx+3] & _BIT1 else background,
color if font.FONT[idx+3] & _BIT0 else background,
color if font.FONT[idx+4] & _BIT7 else background,
color if font.FONT[idx+4] & _BIT6 else background,
color if font.FONT[idx+4] & _BIT5 else background,
color if font.FONT[idx+4] & _BIT4 else background,
color if font.FONT[idx+4] & _BIT3 else background,
color if font.FONT[idx+4] & _BIT2 else background,
color if font.FONT[idx+4] & _BIT1 else background,
color if font.FONT[idx+4] & _BIT0 else background,
color if font.FONT[idx+5] & _BIT7 else background,
color if font.FONT[idx+5] & _BIT6 else background,
color if font.FONT[idx+5] & _BIT5 else background,
color if font.FONT[idx+5] & _BIT4 else background,
color if font.FONT[idx+5] & _BIT3 else background,
color if font.FONT[idx+5] & _BIT2 else background,
color if font.FONT[idx+5] & _BIT1 else background,
color if font.FONT[idx+5] & _BIT0 else background,
color if font.FONT[idx+6] & _BIT7 else background,
color if font.FONT[idx+6] & _BIT6 else background,
color if font.FONT[idx+6] & _BIT5 else background,
color if font.FONT[idx+6] & _BIT4 else background,
color if font.FONT[idx+6] & _BIT3 else background,
color if font.FONT[idx+6] & _BIT2 else background,
color if font.FONT[idx+6] & _BIT1 else background,
color if font.FONT[idx+6] & _BIT0 else background,
color if font.FONT[idx+7] & _BIT7 else background,
color if font.FONT[idx+7] & _BIT6 else background,
color if font.FONT[idx+7] & _BIT5 else background,
color if font.FONT[idx+7] & _BIT4 else background,
color if font.FONT[idx+7] & _BIT3 else background,
color if font.FONT[idx+7] & _BIT2 else background,
color if font.FONT[idx+7] & _BIT1 else background,
color if font.FONT[idx+7] & _BIT0 else background,
color if font.FONT[idx+8] & _BIT7 else background,
color if font.FONT[idx+8] & _BIT6 else background,
color if font.FONT[idx+8] & _BIT5 else background,
color if font.FONT[idx+8] & _BIT4 else background,
color if font.FONT[idx+8] & _BIT3 else background,
color if font.FONT[idx+8] & _BIT2 else background,
color if font.FONT[idx+8] & _BIT1 else background,
color if font.FONT[idx+8] & _BIT0 else background,
color if font.FONT[idx+9] & _BIT7 else background,
color if font.FONT[idx+9] & _BIT6 else background,
color if font.FONT[idx+9] & _BIT5 else background,
color if font.FONT[idx+9] & _BIT4 else background,
color if font.FONT[idx+9] & _BIT3 else background,
color if font.FONT[idx+9] & _BIT2 else background,
color if font.FONT[idx+9] & _BIT1 else background,
color if font.FONT[idx+9] & _BIT0 else background,
color if font.FONT[idx+10] & _BIT7 else background,
color if font.FONT[idx+10] & _BIT6 else background,
color if font.FONT[idx+10] & _BIT5 else background,
color if font.FONT[idx+10] & _BIT4 else background,
color if font.FONT[idx+10] & _BIT3 else background,
color if font.FONT[idx+10] & _BIT2 else background,
color if font.FONT[idx+10] & _BIT1 else background,
color if font.FONT[idx+10] & _BIT0 else background,
color if font.FONT[idx+11] & _BIT7 else background,
color if font.FONT[idx+11] & _BIT6 else background,
color if font.FONT[idx+11] & _BIT5 else background,
color if font.FONT[idx+11] & _BIT4 else background,
color if font.FONT[idx+11] & _BIT3 else background,
color if font.FONT[idx+11] & _BIT2 else background,
color if font.FONT[idx+11] & _BIT1 else background,
color if font.FONT[idx+11] & _BIT0 else background,
color if font.FONT[idx+12] & _BIT7 else background,
color if font.FONT[idx+12] & _BIT6 else background,
color if font.FONT[idx+12] & _BIT5 else background,
color if font.FONT[idx+12] & _BIT4 else background,
color if font.FONT[idx+12] & _BIT3 else background,
color if font.FONT[idx+12] & _BIT2 else background,
color if font.FONT[idx+12] & _BIT1 else background,
color if font.FONT[idx+12] & _BIT0 else background,
color if font.FONT[idx+13] & _BIT7 else background,
color if font.FONT[idx+13] & _BIT6 else background,
color if font.FONT[idx+13] & _BIT5 else background,
color if font.FONT[idx+13] & _BIT4 else background,
color if font.FONT[idx+13] & _BIT3 else background,
color if font.FONT[idx+13] & _BIT2 else background,
color if font.FONT[idx+13] & _BIT1 else background,
color if font.FONT[idx+13] & _BIT0 else background,
color if font.FONT[idx+14] & _BIT7 else background,
color if font.FONT[idx+14] & _BIT6 else background,
color if font.FONT[idx+14] & _BIT5 else background,
color if font.FONT[idx+14] & _BIT4 else background,
color if font.FONT[idx+14] & _BIT3 else background,
color if font.FONT[idx+14] & _BIT2 else background,
color if font.FONT[idx+14] & _BIT1 else background,
color if font.FONT[idx+14] & _BIT0 else background,
color if font.FONT[idx+15] & _BIT7 else background,
color if font.FONT[idx+15] & _BIT6 else background,
color if font.FONT[idx+15] & _BIT5 else background,
color if font.FONT[idx+15] & _BIT4 else background,
color if font.FONT[idx+15] & _BIT3 else background,
color if font.FONT[idx+15] & _BIT2 else background,
color if font.FONT[idx+15] & _BIT1 else background,
color if font.FONT[idx+15] & _BIT0 else background
)
self.blit_buffer(buffer, x0, y0+8*line, 16, 8)
x0 += font.WIDTH
def text(self, font, text, x0, y0, color=WHITE, background=BLACK):
"""
Draw text on display in specified font and colors. 8 and 16 bit wide
fonts are supported.
Args:
font (module): font module to use.
text (str): text to write
x0 (int): column to start drawing at
y0 (int): row to start drawing at
color (int): 565 encoded color to use for characters
background (int): 565 encoded color to use for background
"""
if font.WIDTH == 8:
self._text8(font, text, x0, y0, color, background)
else:
self._text16(font, text, x0, y0, color, background)
def bitmap(self, bitmap, x, y, index=0):
"""
Draw a bitmap on display at the specified column and row
Args:
bitmap (bitmap_module): The module containing the bitmap to draw
x (int): column to start drawing at
y (int): row to start drawing at
index (int): Optional index of bitmap to draw from multiple bitmap
module
"""
bitmap_size = bitmap.HEIGHT * bitmap.WIDTH
buffer_len = bitmap_size * 2
buffer = bytearray(buffer_len)
bs_bit = bitmap.BPP * bitmap_size * index if index > 0 else 0
for i in range(0, buffer_len, 2):
color_index = 0
for _ in range(bitmap.BPP):
color_index <<= 1
color_index |= (bitmap.BITMAP[bs_bit // 8]
& 1 << (7 - (bs_bit % 8))) > 0
bs_bit += 1
color = bitmap.PALETTE[color_index]
buffer[i] = color & 0xff00 >> 8
buffer[i + 1] = color_index & 0xff
to_col = x + bitmap.WIDTH - 1
to_row = y + bitmap.HEIGHT - 1
if self.width > to_col and self.height > to_row:
self._set_window(x, y, to_col, to_row)
self._write(None, buffer)
# @micropython.native
def write(self, font, string, x, y, fg=WHITE, bg=BLACK):
"""
Write a string using a converted true-type font on the display starting
at the specified column and row
Args:
font (font): The module containing the converted true-type font
s (string): The string to write
x (int): column to start writing
y (int): row to start writing
fg (int): foreground color, optional, defaults to WHITE
bg (int): background color, optional, defaults to BLACK
"""
buffer_len = font.HEIGHT * font.MAX_WIDTH * 2
buffer = bytearray(buffer_len)
fg_hi = (fg & 0xff00) >> 8
fg_lo = fg & 0xff
bg_hi = (bg & 0xff00) >> 8
bg_lo = bg & 0xff
for character in string:
try:
char_index = font.MAP.index(character)
offset = char_index * font.OFFSET_WIDTH
bs_bit = font.OFFSETS[offset]
if font.OFFSET_WIDTH > 1:
bs_bit = (bs_bit << 8) + font.OFFSETS[offset + 1]
if font.OFFSET_WIDTH > 2:
bs_bit = (bs_bit << 8) + font.OFFSETS[offset + 2]
char_width = font.WIDTHS[char_index]
buffer_needed = char_width * font.HEIGHT * 2
for i in range(0, buffer_needed, 2):
if font.BITMAPS[bs_bit // 8] & 1 << (7 - (bs_bit % 8)) > 0:
buffer[i] = fg_hi
buffer[i + 1] = fg_lo
else:
buffer[i] = bg_hi
buffer[i + 1] = bg_lo
bs_bit += 1
to_col = x + char_width - 1
to_row = y + font.HEIGHT - 1
if self.width > to_col and self.height > to_row:
self._set_window(x, y, to_col, to_row)
self._write(None, buffer[:buffer_needed])
x += char_width
except ValueError:
pass
def write_width(self, font, string):
"""
Returns the width in pixels of the string if it was written with the
specified font
Args:
font (font): The module containing the converted true-type font
string (string): The string to measure
"""
width = 0
for character in string:
try:
char_index = font.MAP.index(character)
width += font.WIDTHS[char_index]
except ValueError:
pass
return width
2万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
