Arduino——PAJ7620手势识别模块

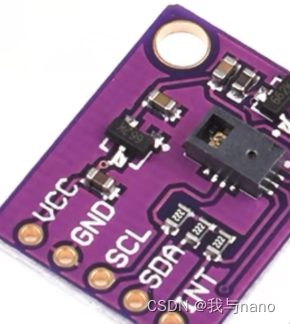

手势识别模块

---

前言

在用arduino驱动这些模块得时候，方法很简单，先去管理库中找这个库，如果有这个库，然后下载这个库，运行历程就行。

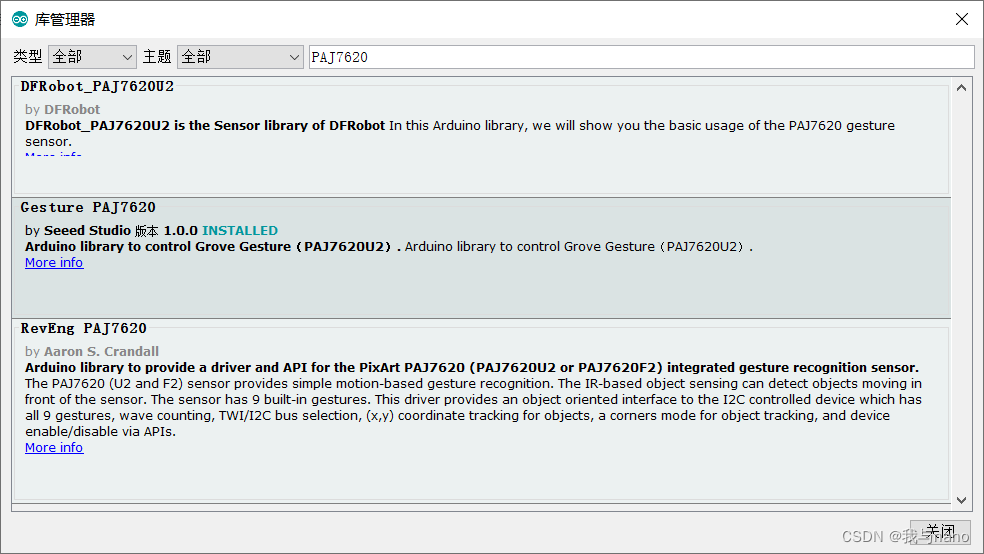

一、安装PAJ7620库

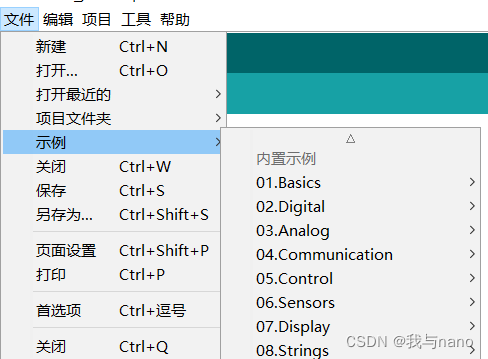

下载第二个库，然后找到

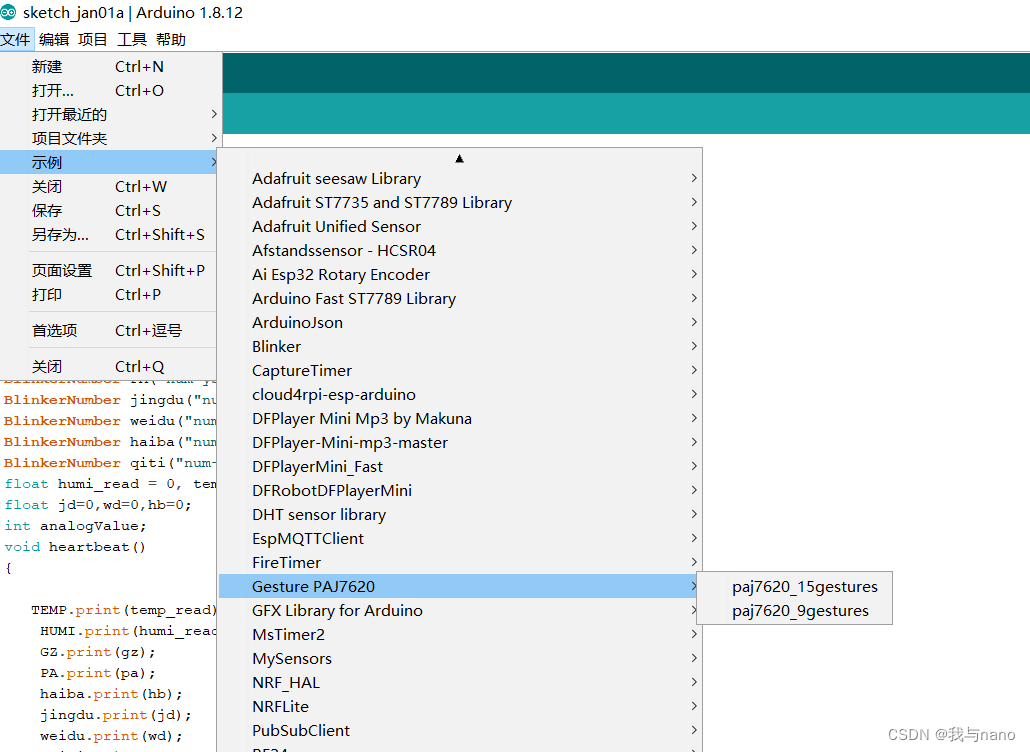

下面有你需要的历程

然后对应接线就可以了，SCL,SDA在uno上有专门的引脚，或者接到A4 A5上都可以。

二、代码

#include <Wire.h>
#include "paj7620.h"

/*
Notice: When you want to recognize the Forward/Backward gestures, your gestures' reaction time must less than GES_ENTRY_TIME(0.8s).
        You also can adjust the reaction time according to the actual circumstance.
*/
#define GES_REACTION_TIME		500				// You can adjust the reaction time according to the actual circumstance.
#define GES_ENTRY_TIME			800				// When you want to recognize the Forward/Backward gestures, your gestures' reaction time must less than GES_ENTRY_TIME(0.8s).
#define GES_QUIT_TIME			1000

void setup()
{
	uint8_t error = 0;

	Serial.begin(9600);

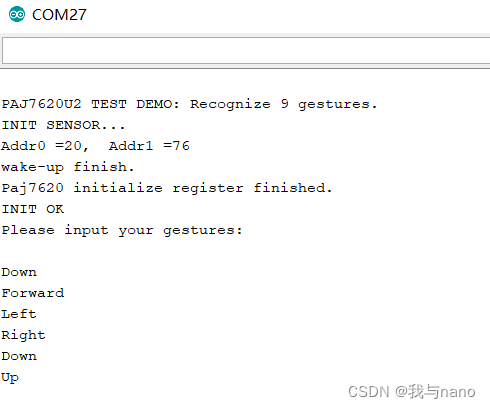

	Serial.println("\nPAJ7620U2 TEST DEMO: Recognize 9 gestures.");

	error = paj7620Init();			// initialize Paj7620 registers
	if (error)
	{
		Serial.print("INIT ERROR,CODE:");
		Serial.println(error);
	}
	else
	{
		Serial.println("INIT OK");
	}
	Serial.println("Please input your gestures:\n");
}

void loop()
{
	uint8_t data = 0, data1 = 0, error;

	error = paj7620ReadReg(0x43, 1, &data);				// Read Bank_0_Reg_0x43/0x44 for gesture result.
	if (!error)
	{
		switch (data) 									// When different gestures be detected, the variable 'data' will be set to different values by paj7620ReadReg(0x43, 1, &data).
		{
			case GES_RIGHT_FLAG:
				delay(GES_ENTRY_TIME);
				paj7620ReadReg(0x43, 1, &data);
				if(data == GES_FORWARD_FLAG)
				{
					Serial.println("Forward");
					delay(GES_QUIT_TIME);
				}
				else if(data == GES_BACKWARD_FLAG)
				{
					Serial.println("Backward");
					delay(GES_QUIT_TIME);
				}
				else
				{
					Serial.println("Right");
				}
				break;
			case GES_LEFT_FLAG:
				delay(GES_ENTRY_TIME);
				paj7620ReadReg(0x43, 1, &data);
				if(data == GES_FORWARD_FLAG)
				{
					Serial.println("Forward");
					delay(GES_QUIT_TIME);
				}
				else if(data == GES_BACKWARD_FLAG)
				{
					Serial.println("Backward");
					delay(GES_QUIT_TIME);
				}
				else
				{
					Serial.println("Left");
				}
				break;
			case GES_UP_FLAG:
				delay(GES_ENTRY_TIME);
				paj7620ReadReg(0x43, 1, &data);
				if(data == GES_FORWARD_FLAG)
				{
					Serial.println("Forward");
					delay(GES_QUIT_TIME);
				}
				else if(data == GES_BACKWARD_FLAG)
				{
					Serial.println("Backward");
					delay(GES_QUIT_TIME);
				}
				else
				{
					Serial.println("Up");
				}
				break;
			case GES_DOWN_FLAG:
				delay(GES_ENTRY_TIME);
				paj7620ReadReg(0x43, 1, &data);
				if(data == GES_FORWARD_FLAG)
				{
					Serial.println("Forward");
					delay(GES_QUIT_TIME);
				}
				else if(data == GES_BACKWARD_FLAG)
				{
					Serial.println("Backward");
					delay(GES_QUIT_TIME);
				}
				else
				{
					Serial.println("Down");
				}
				break;
			case GES_FORWARD_FLAG:
				Serial.println("Forward");
				delay(GES_QUIT_TIME);
				break;
			case GES_BACKWARD_FLAG:
				Serial.println("Backward");
				delay(GES_QUIT_TIME);
				break;
			case GES_CLOCKWISE_FLAG:
				Serial.println("Clockwise");
				break;
			case GES_COUNT_CLOCKWISE_FLAG:
				Serial.println("anti-clockwise");
				break;
			default:
				paj7620ReadReg(0x44, 1, &data1);
				if (data1 == GES_WAVE_FLAG)
				{
					Serial.println("wave");
				}
				break;
		}
	}
	delay(100);
}
