qt导出为excel表格，csv表格，word表格，pdf表格格式

目录

头文件

一、导入excel（访问表格一次，数据量多效率高，usedRange->dynamicCall("Value")）

二、导出excel（挨个访问单元格并为其复制，效率低）

三、导出csv格式文件（速度快）

四、导出word，节约加载驱动的时间，数据量少相对较快

五、导出pdf，节约加载驱动的时间，数据量少相对较快

---

其中excel操作使用#include <ActiveQt/QAxObject>对象，需要加载驱动

word和pdf使用#include <QTextStream>对象，少量数据导出只需几秒

头文件

#include <QtWidgets/QMainWindow>
#include <QMenu>

#include <QMessageBox>

// 打开文件

#include <QFile>
#include <QFileDialog>

// 加载office驱动，导入导出excel

#include <ActiveQt/QAxObject>

// 文本流导出word、pdf

#include <QTextDocument>
#include <QTextCursor>
#include <QTextStream>
#include <QTextTable>

// 转为pdf类型
#include <QPdfWriter>
#include <QPrinter>

在菜单栏写入控件，点击触发选择文件路径并设置命名

QtWidgetFunction::QtWidgetFunction(QWidget *parent)
    : QMainWindow(parent)
{
    ui.setupUi(this);

	QAction *excelMenu = menuBar()->addAction("导出excel");
	QAction *wordMenu = menuBar()->addAction("导出word");
    QAction *csvMenu = menuBar()->addAction("导出csv");
	QAction *pdfMenu = menuBar()->addAction("导出pdf");

	excelMenu->setObjectName("excel");
    csvMenu->setObjectName("csv");
	wordMenu->setObjectName("word");
	pdfMenu->setObjectName("pdf");

	connect(excelMenu, &QAction::triggered, this, &QtWidgetFunction::onMenuHaddle);
    connect(csvMenu, &QAction::triggered, this, &QtWidgetFunction::onMenuHaddle);
	connect(wordMenu, &QAction::triggered, this, &QtWidgetFunction::onMenuHaddle);
	connect(pdfMenu, &QAction::triggered, this, &QtWidgetFunction::onMenuHaddle);

}

// 槽函数
void QtWidgetFunction::onMenuHaddle()
{
    // 根据action触发的信号，找到当前的QAction的指针对象
	QAction *action = (QAction*)(sender());
	QString type = action ->objectName();
	if (type == "word") {
		QString fileName = QFileDialog::getSaveFileName(this, tr("Save As"), "", tr("word(*.doc *.docx)"));
		if (!fileName.isEmpty()) exportToWord(fileName);
	} else if (type == "pdf") {
        QString path = QFileDialog::getSaveFileName(nullptr, QString("Open file"),
		QString("."), QString("PDF Files(*.pdf)"));
		if (!path .isEmpty()) exportToPdf(path );
	} else if (type == "excel") {
		QString fileName = QFileDialog::getSaveFileName(this, tr("Save As"), "", tr("excel(*.xlsx *.xls)"));
		if (!fileName.isEmpty()) exportToExcel(fileName);
	} else if (type == "csv") {
		QString fileName = QFileDialog::getSaveFileName(this, tr("Save As"), "", tr("Excel(*.csv)"));
		if (!fileName.isEmpty()) exportToCsv(fileName);
    }
}

一、导入excel（访问表格一次，数据量多效率高，usedRange->dynamicCall("Value")）

void QtWidgetFunction::importToExcel(const QString &filePath)
{
	QAxObject excel("Excel.Application");			                    //加载Excel驱动
	excel.setProperty("Visible", false);			                    //不显示Excel界面，如果为true会看到启动的Excel界面
	QAxObject *workBooks = excel.querySubObject("WorkBooks");
	workBooks->dynamicCall("Open (const QString&)", filePath);			 // 打开指定文件

	QAxObject *workBook = excel.querySubObject("ActiveWorkBook");
	QAxObject *workSheet = workBook->querySubObject("Sheets(int)", 1);   //设置为 获取第一页 数据
	QAxObject *usedRange = workSheet->querySubObject("UsedRange");
	QAxObject *rows = usedRange->querySubObject("Rows");
	int rowCount = rows->property("Count").toInt();                      //获取行数

	QVariantList allEnvDataList = usedRange->dynamicCall("Value").toList();

	QString lastId;

	for (int i = 2; i < rowCount; i++) {
		QList<QVariant> allEnvDataList_i = allEnvDataList[i].toList();
		//insertTableDesign(allEnvDataList_i);   // 行数据
		// allEnvDataList_i 为 QList<QVariant> 类型
		// QVariant转为QString  allEnvDataList_i[3].toString();
		// QString转为QVariant	QString(allEnvDataList_i[i]);
	}
	workBook->dynamicCall("Close(Boolean)", false);                      //关闭文件
	excel.dynamicCall("Quit(void)");				                     //退出
}

二、导出excel（挨个访问单元格并为其复制，效率低）

void QtWidgetFunction::exportToExcel(const QString &filePath)
{
	QStringList headers;
	headers << "表头1" << "表头2" << "表头3" << "表头4" << "表头5" ;
	int col = headers.size();
	int row = 6;
	QList<QList<QString>> dataAll;
	for (int i = 0; i < row; i++) {
		QList<QString> inLst;
		for (int j = 0; j < col; j++) {
			inLst.append(QString::number(i) + QString::number(j));
		}
		dataAll.append(inLst);
	}

	QAxObject excel("Excel.Application");						  //加载Excel驱动
	excel.dynamicCall("SetVisible (bool Visible)", "false");	  //不显示窗体
	excel.setProperty("DisplayAlerts", true);					  //不显示任何警告信息。如果为true那么在关闭是会出现类似“文件已修改，是否保存”的提示

	QAxObject *workBooks = excel.querySubObject("WorkBooks");	  //获取工作簿集合
	workBooks->dynamicCall("Add");								  //新建一个工作簿
	QAxObject *workBook = excel.querySubObject("ActiveWorkBook"); //获取当前工作簿
																  //QAxObject *workBook = excel.querySubObject("Open(QString&)", filePath); //获取当前工作簿
	QAxObject *workSheet = workBook->querySubObject("Sheets(int)", 1); //设置为 获取第一页 数据

	// 大标题行
	QAxObject *cell;
	cell = workSheet->querySubObject("Cells(int,int)", 1, 1);
	cell->dynamicCall("SetValue(const QString&)", "excel导出示例");
	cell->querySubObject("Font")->setProperty("Size", 11);
	// 合并标题行
	QString cellTitle;
	cellTitle.append("A1:");
	cellTitle.append(QChar(col - 1 + 'A'));
	cellTitle.append(QString::number(1));
	QAxObject *range = workSheet->querySubObject("Range(const QString&)", cellTitle);
	range->setProperty("WrapText", true);
	range->setProperty("MergeCells", true);
	range->setProperty("HorizontalAlignment", -4108);
	range->setProperty("VertivcalAlignment", -4108);

	// 行高
	workSheet->querySubObject("Range(const QString&)", "1:1")->setProperty("RowHeight", 30);

	//列标题
	QString lastCars = QChar('A');
	for (int i = 0; i < col; i++)
	{
		// excel表格 A:A第一列到第一列,B:B第二列到第二列
		// A B C D...X Y Z AA AB AC...AX AY AZ BA BB BC...
		QString columnName;
		QString cars;
		if (i < 26) {
			// 列数少于26个字母A B C D...X Y Z
			cars = QChar(i + 'A');
		} else {
			// 列数大于26个字母 AA AB AC...AX AY AZ BA BB BC...
			cars = QChar(i / 26 - 1 + 'A');
			cars.append(QChar(i % 26 + 'A'));
		}
		columnName = cars + ":" + cars;
		lastCars = cars;
		// 有大标题，列标题从第二行开始("Cells(int, int)", 2, i+1)
		// 无大标题，列标题从第一行开始("Cells(int, int)", 1, i+1)
		QAxObject *col = workSheet->querySubObject("Columns(const QString&)", columnName);
		QAxObject *cell = workSheet->querySubObject("Cells(int, int)", 2, i+1);
		cell->dynamicCall("SetValue(const QString&)", headers[i]);
		cell->querySubObject("Font")->setProperty("Bold", true);
		cell->querySubObject("Interior")->setProperty("Color", QColor(191, 191, 191));
		cell->setProperty("WrapText", true);						//内容过多，自动换行
		cell->setProperty("HorizontalAlignment", -4108);
		cell->setProperty("VertivcalAlignment", -4108);
	}

	//处理数据
	int curRow = 3;
	foreach(QList<QString> inLst, dataAll) {
		for (int j = 0; j < col; j++) {
			// ("Cells(int, int)", row, col)单元格的行和列从开始
			QAxObject *cell = workSheet->querySubObject("Cells(int, int)", curRow, j+1);
			cell->dynamicCall("SetValue(const QString&)", inLst[j]);
			QAxObject* border = cell->querySubObject("Borders");
			border->setProperty("Color", QColor(0, 0, 0));		 //设置单元格边框色（黑色）
		}
		curRow++;
	}

	//保存至filepath，注意一定要用QDir::toNativeSeparators将路径中的"/"转换为"\"，不然一定保存不了。
	workBook->dynamicCall("SaveAs(const QString&)", QDir::toNativeSeparators(filePath));
	workBook->dynamicCall("Close()");	//关闭工作簿
	excel.dynamicCall("Quit()");		//关闭excel
	QMessageBox::information(this, "提示", "保存成功");
}

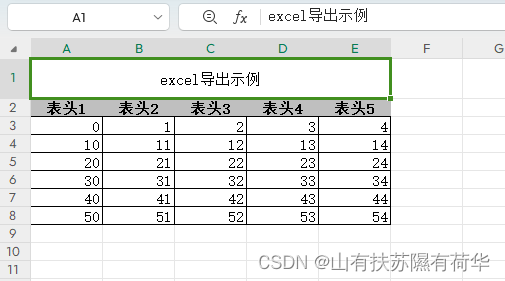

效果：

三、导出csv格式文件（速度快）

// 导出csv
void QtWidgetFunction::exportToCsv(const QString &filePath)
{
	QStringList headers;
	headers << "表头1" << "表头2" << "表头3" << "表头4" << "表头5";
	int col = headers.size();
	int row = 6;
	QList<QList<QString>> dataAll;
	for (int i = 0; i < row; i++) {
		QList<QString> inLst;
		for (int j = 0; j < col; j++) {
			inLst.append(QString::number(i) + QString::number(j));
		}
		dataAll.append(inLst);
	}


	// 写入文件
	QFile csvfile(filePath);
	if (csvfile.open(QIODevice::WriteOnly | QIODevice::Text)) {
		QTextStream stream(&csvfile);
		// 写入表头
		int n = 0;
		for (QString header : headers) {
			if (n > 0)
				stream << ',';
			stream << '"' << header << '"';
			n++;
		}
		stream << endl;

		// 写入文件数据
		int rows = dataAll[0].size();
		int columns = dataAll.size();
		for (int i = 0; i<rows; i++) {
			for (int j = 0; j<columns; j++) {
				QString value = dataAll[j][i];
				if (j > 0)
					stream << ",";
				stream << value;
			}
			stream << endl;
		}

		csvfile.close();
		QMessageBox::information(this, "提示", "保存成功");
	}
}

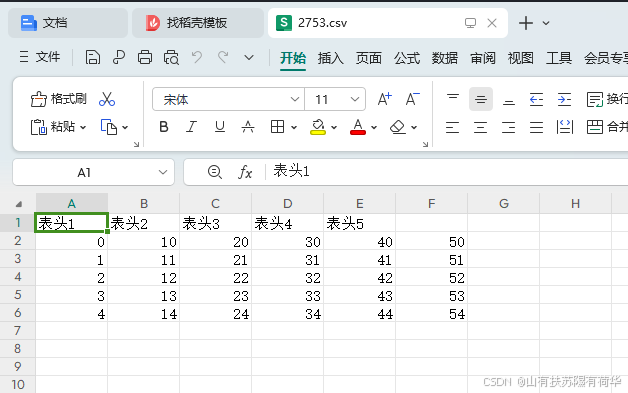

 效果：

四、导出word，节约加载驱动的时间，数据量少相对较快

void QtWidgetFunction::exportToWord(const QString &filePath)
{
	QStringList headers;
	headers << "表头1" << "表头2" << "表头3" << "表头4" << "表头5";
	int col = headers.size();
	int row = 6;
	QList<QList<QString>> dataAll;
	for (int i = 0; i < row; i++) {
		QList<QString> inLst;
		for (int j = 0; j < col; j++) {
			inLst.append(QString::number(i) + QString::number(j));
		}
		dataAll.append(inLst);
	}

	// 创建一个QTextDocument对象
	QTextDocument doc;

	QTextCharFormat formatTitle;
	formatTitle.setFontPointSize(16); // 设置字体大小
	formatTitle.setFontWeight(QFont::Bold); // 设置字体加粗

	// 创建一个QTextCursor对象
	QTextCursor cursor(&doc);
	// 标题和参数信息
	//cursor.insertHtml(QString("<a style='text-align：center; font-weight:bold; font-size:30px;'>%1</a>").arg(title));
	cursor.setCharFormat(formatTitle);
	cursor.insertText("导出word示例");
	cursor.insertBlock(); // 换行

	//cursor.setCharFormat(format);
	//cursor.insertText("提示信息，表格之前的文字描述"));

	// 插入一个表格，行头占一行
	QTextTable *table = cursor.insertTable(row + 1, col);

	//获取表格的格式
	QTextTableFormat tableFormat = table->format();
	//表格格式设置宽度
	tableFormat.setWidth(QTextLength(QTextLength::FixedLength, 500));

	//设置表格的columnWidthConstraints约束
	QVector<QTextLength> colLength = tableFormat.columnWidthConstraints();
	for (int i = 0; i < col; ++i) {
		colLength.append(QTextLength(QTextLength::FixedLength, tableFormat.width().rawValue() / col));
	}
	tableFormat.setColumnWidthConstraints(colLength);
	tableFormat.setBorder(5);
	tableFormat.setBorderBrush(Qt::black);

	QTextTableCellFormat titleFormat;
	titleFormat.setBackground(QColor("moccasin"));
	titleFormat.setFontWeight(QFont::Bold);
	// 设置表头 第一行下标为1
	for (int i = 0; i < col; ++i) {
		QTextTableCell cell = table->cellAt(0, i);
		cell.firstCursorPosition().insertText(headers[i]);
		cell.setFormat(titleFormat);
	}

	//定义单元格格式
	QTextTableCellFormat cellFormat;
	cellFormat.setBottomPadding(2);

	// 遍历表格的每个单元格，将数据插入到表格中
	for (int i = 0; i < row; ++i) {
		for (int j = 0; j < col; ++j) {
			// 将文本插入到表格中,第二行开始下标为2
			QTextTableCell cell = table->cellAt(i + 1, j);
			cell.firstCursorPosition().insertText(dataAll[i][j]);
			cell.setFormat(cellFormat);
		}
	}

	// 保存为Word文件
	QFile file(filePath);
	if (file.open(QIODevice::WriteOnly | QIODevice::Text)) {
		QTextStream stream(&file);
		stream.setCodec("UTF-8");
		stream << doc.toHtml("plaintext");
		file.close();
		QMessageBox::information(this, "提示", "保存成功");
	}
}

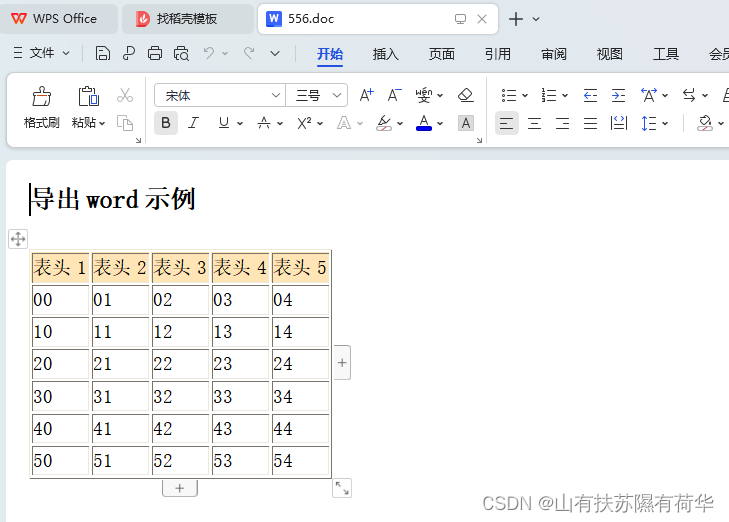

效果：

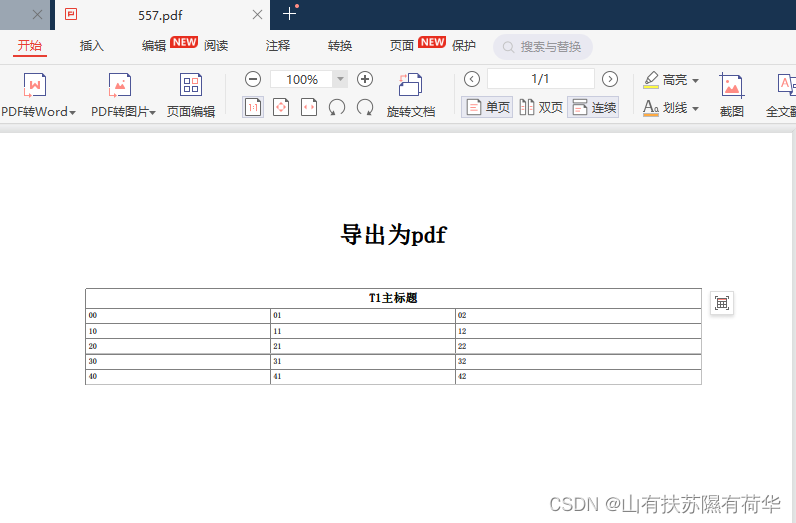

五、导出pdf，节约加载驱动的时间，数据量少相对较快

// 导出为pdf
void QtWidgetFunction::exportToPdf(const QString &path)
{
    // 五行三列的数据values
	int row = 5, col = 3;
	QList<QList<QString>> values;
	for (int i = 0; i < row; i++) {
		QList<QString> inLst;
		for (int j = 0; j < col; j++) {
			inLst.append(QString::number(i) + QString::number(j));
		}
		values.append(inLst);
	}


	if (QFileInfo(path).suffix().isEmpty())
		path.append(".pdf");

    // 只读和追加的方式打开文件
	QFile pdfFile(path);
	if (!pdfFile.open(QIODevice::WriteOnly | QIODevice::Append))
		return;

	QPdfWriter *m_pdfWriter = new QPdfWriter(&pdfFile);
	m_pdfWriter->setPageSize(QPagedPaintDevice::A4);
	m_pdfWriter->setResolution(QPrinter::ScreenResolution);


	//添加标题
	//添加标题
	QString html;
	html.append("<h1 style='text-align:center;'>导出为pdf</h1><br />");
	//QString html = addHtmlTable("T1主标题", "T1主标题", row, col, values);
	//m_html.append(html);
	// 表格主标题T1
	html.append("<table border='0.5' cellspacing='0' cellpadding='3' width:100%>");
	html.append(QString("<tr><td align='center' style='vertical-align:middle;font-weight:bold;' colspan='%1'>").arg(col));
	html.append("T1主标题");
	html.append("</td></tr>");

    // 表格主标题T2
	//html.append(QString("<tr><td align='left' style='vertical-align:middle;font-weight:bold;' colspan='%1'>").arg(col));
	//html.append("T2主标题");
	//html.append("</td></tr>");

	// 添加表格数值 字段/字段值
	// 遍历表格的每个单元格，将数据插入到表格中
	for (int i = 0; i < row; ++i) {
		html.append("<tr>");
		for (int j = 0; j < col; ++j) {
			// 表头用<th></th>,有加粗效果
			//html.append(QString("<th valign='center' style='vertical-align:middle;font-size:100px;'>"));

			int index = col + 1;
			// 设置单元格的文本
			html.append(QString("<td valign='center' style='vertical-align:middle;font-size:100px;'>"));
			html.append(values[i][j] + "</td>");
		}
		html.append("</tr>");
	}
	html.append("</table><br /><br />");

	//加入图片
	//QPainter painter;
	//painter.begin(m_pdfWriter);
	//QPixmap pixmap("./qtLogo.png");
	//painter.scale(10, 10);   //放大10倍
	//painter.drawPixmap(0, 0, pixmap);
	//painter.end();

	QTextDocument textDocument;
	textDocument.setHtml(m_html);
	textDocument.print(m_pdfWriter);
	textDocument.end();

	pdfFile.close();
}

效果：
