//Hook的lib库代码
using HarmonyLib;
using System.Collections.Generic;
using System.IO;
namespace ClassLibrary1
{
public class Main
{
// we use a default injection method name in order to execute our code in the remote process
public static int Inject(string str)
{
MyFile.WriteFileAppend("----------------start log----------------");
var harmony = new Harmony("com.example.patch");
harmony.PatchAll();
return 0;
}
}
//hook 发送数据的类和方法
[HarmonyPatch(typeof(Hook的类名))] //类
[HarmonyPatch("Hook的方法名")] //方法,防止写错尽量用nameof()
class Patch01
{
//Prefix返回一个bool,如果false,则不执行后续Prefix,不执行原始方法
[HarmonyPrefix]
static bool Prefix(hook类名 __instance,string sendData, ref string reciveData, int nrc78LoopTime = 0, bool nrc78InfinityWait = false, uint judgeLID = 16777215U)
{
reciveData = MyFile.GetReciveData(sendData);
MyFile.WriteFileAppend(sendData + "," + reciveData);
return false;
}
//Postfix永远执行
[HarmonyPostfix]
static void Postfix(ref int __result) //__result表示Hook方法的返回值
{
__result = 0;
}
}
class MyFile {
//写入文件和读取文件
public static string strOutLogPath= "log.txt";
public static string strCmdPath = "cmd.txt";
public static void WriteFileAppend(string info) {
FileStream fs = new FileStream(strOutLogPath, FileMode.Append, FileAccess.Write);
//获得字节数组
info += "\r\n";
byte[] data = System.Text.Encoding.Default.GetBytes(info);//info为要追加的数据//设定书写的开始位置为文件的末尾
fs.Position = fs.Length;
//开始写入
fs.Write(data, 0, data.Length);
//清空缓冲区、关闭流
fs.Flush();
fs.Close();
}
public static string GetReciveData(string strSendData) {
string strResult = "";
StreamReader sr = new StreamReader(strCmdPath);
string line;
// ReadLine()一行一行的循环读取
//当然可以直接ReadToEnd()读到最后
Dictionary<string, string> hashMap = new Dictionary<string, string>();
while ((line = sr.ReadLine()) != null)
{
string[] strs = line.Split(',');
if (strs.Length == 2)
{
if (!hashMap.ContainsKey(strs[0])) {
hashMap.Add(strs[0], strs[1]);
}
}
}
if (hashMap.ContainsKey(strSendData))
{
strResult = hashMap[strSendData];
}
sr.Close();
return strResult;
}
}
}
注入的代码
//注入代码界面
using FastWin32.Diagnostics;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WindowsFormsApp2
{
public partial class Form1 : Form
{
public static string strOutLogPath = "log.txt";
public static string strCmdPath = "cmd.txt";
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
}
private void Form1_Load(object sender, EventArgs e)
{
label1.Text = "启动程序";
button1.Text = "发送命令工具 选择 ClassLibrary3.dll";
Process[] processes = Process.GetProcesses();
foreach (Process process in processes)
{
if (process.ProcessName.Equals(""))
{
textBox1.Text = Convert.ToString(process.Id) ;
}
}
string pathFile = AppDomain.CurrentDomain.BaseDirectory + "ClassLibrary3.dll";
if (File.Exists(pathFile) && textBox1.Text!="")
{
uint id = Convert.ToUInt32(textBox1.Text);
Injector.InjectManaged(id, pathFile, "ClassLibrary1.Main", "Inject", "", out int returnValue);
MessageBox.Show($"存在文件 {pathFile} \r\n 执行成功 {returnValue} \r\n 日志文件路径:{strOutLogPath} \r\n : {strCmdPath} ");
Dispose();
}
}
private void button1_Click_1(object sender, EventArgs e)
{
if (textBox1.Text == "")
{
MessageBox.Show("在任务管理器查看 MUT3_SE.exe PID,手动填上");
}
else {
//Nuget安装FastWin32
string pathFile = AppDomain.CurrentDomain.BaseDirectory + "ClassLibrary3.dll";
if (File.Exists(pathFile))
{
uint id = Convert.ToUInt32(textBox1.Text); //在任务管理器看02_目标winform.exe的PID,手动填上
Injector.InjectManaged(id, pathFile, "ClassLibrary1.Main", "Inject", "", out int returnValue);
MessageBox.Show($"存在文件 {pathFile} \r\n 执行成功 {returnValue} \r\n :{strOutLogPath} \r\n : {strCmdPath} ");
}
else {
OpenFileDialog dialog = new OpenFileDialog();
dialog.InitialDirectory = AppDomain.CurrentDomain.BaseDirectory;
if (dialog.ShowDialog() == DialogResult.OK) //
{
uint id = Convert.ToUInt32(textBox1.Text); //
Injector.InjectManaged(id, dialog.FileName, "ClassLibrary1.Main", "Inject", "", out int returnValue);
MessageBox.Show($" {pathFile} \r\n {returnValue} \r\n :{strOutLogPath} \r\n : {strCmdPath} ");
}
}
Dispose();
}
}
private void textBox1_TextChanged(object sender, EventArgs e)
{
Process[] processes = Process.GetProcesses();
foreach (Process process in processes)
{
if (process.ProcessName.Equals("应用程序名称"))
{
textBox1.Text = Convert.ToString(process.Id);
}
}
}
}
}

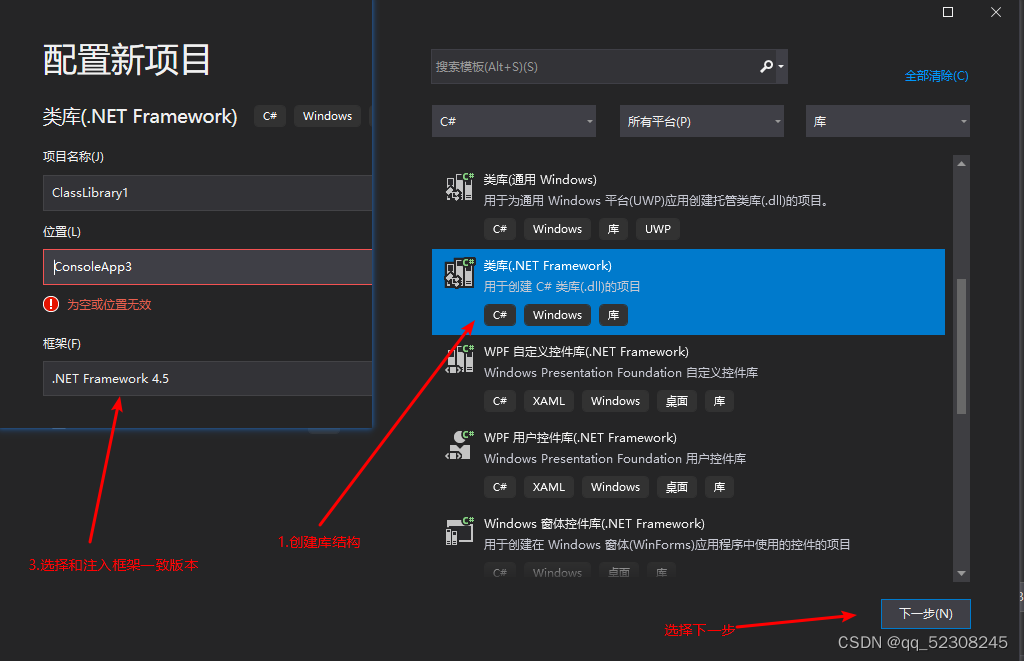

建立C#注入lib库工程方法
建立C#注入工程界面

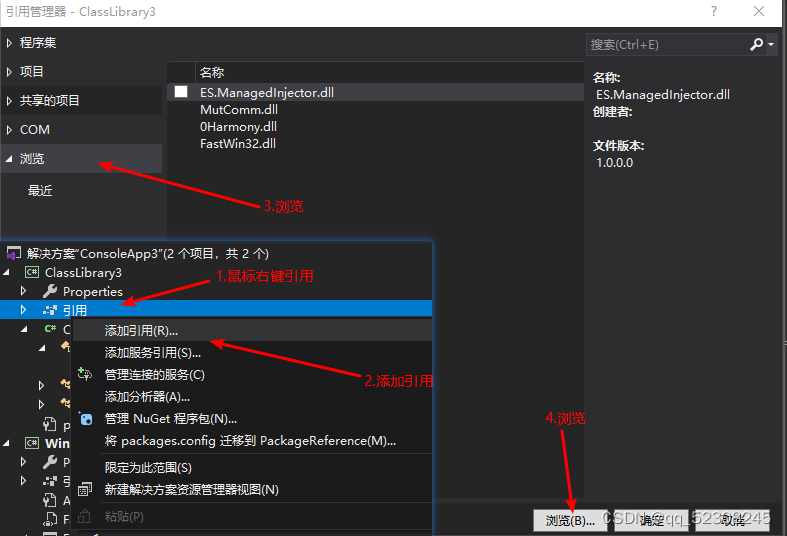

添加注入工程缺少的依赖lib库

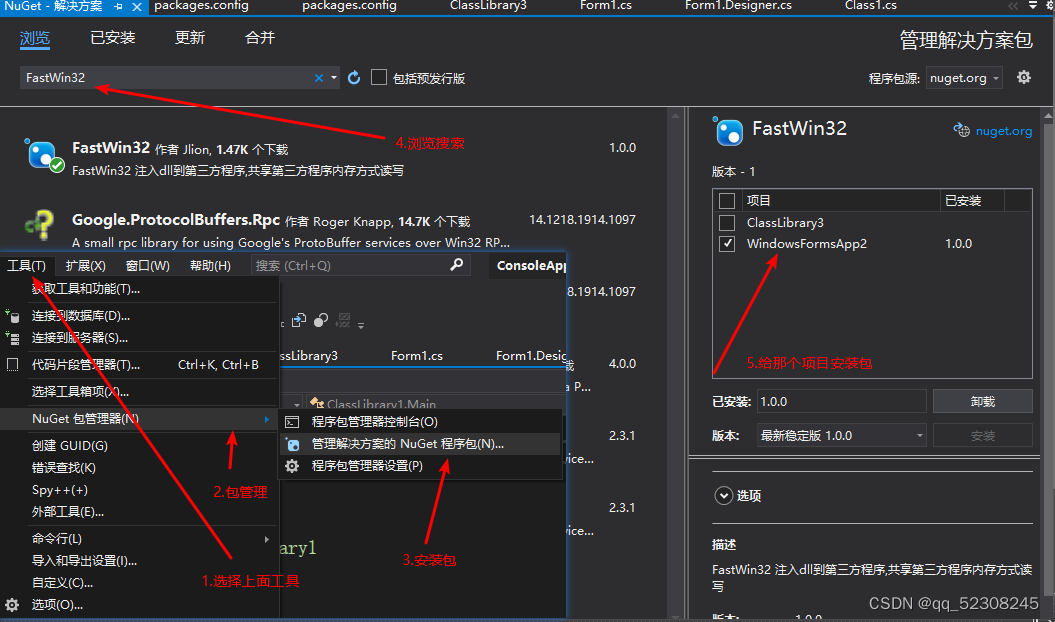

添加FastWin32 ,HarmonyLib
添加注入库依赖项
报错和解决办法
1.注入库没有用,确保注入的lib库和要注入的程序的框架保持一致,例如注入代码为.net 4框架版本,那么注入工程选用.net 4框架, 保持编译出来的字节码是一致的
2.缺少.net框架 ,进行安装
