哪些情况会出现降级
1.程序运行异常
2.超时
3.线程池/信号量打满也会导致服务降级
等等

服务超时案例

我们让方法延时5秒运行但是我们服务端只能接受3秒的等待
cloud-provider-hystrix-paymen8001 项目
启动类
@EnableEurekaClient
@EnableCircuitBreaker

pom配置

server:
  port: 8001

spring:
  application:
    name: cloud-provider-hystrix-payment #这个很重要  消费者要指定  集群同理

eureka:
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka #注册中心

service

package com.hexu.service;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;
import org.springframework.stereotype.Service;

import java.util.concurrent.TimeUnit;

/**
 * @Classname PaymentService
 * @Description TODO
 * @Author 86176
 * @Date 2021-12-31 11:14
 * @Version 1.0
 **/
@Service
public class PaymentService
{
    /**
     * 正常访问，一切OK
     * @param id
     * @return
     */
    public String paymentInfo_OK(Integer id)
    {
        return "线程池:"+Thread.currentThread().getName()+"paymentInfo_OK,id: "+id+"\t"+"O(∩_∩)O";
    }

    /**
     * 超时访问，演示降级
     * fallbackMethod 表示一个兜底的方法  程序运行过程中出现问题会执行这个方法
     * value 表示只能等待多少毫秒 超过及降级处理
     */
    @HystrixCommand(fallbackMethod = "paymentInfo_TimeOutHandler",commandProperties = {
            @HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds",value="3000")
    })
    public String paymentInfo_TimeOut(Integer id)
    {
        //延时5面说明程序出问题了
        try { TimeUnit.SECONDS.sleep(5); } catch (InterruptedException e) { e.printStackTrace(); }
        return "线程池:"+Thread.currentThread().getName()+"paymentInfo_TimeOut,id: "+id+"\t"+"O(∩_∩)O，耗费5秒";
    }

    /**
     * 兜底方法  方法名要与 fallbackMethod 里的对应
     * @param id
     * @return
     */
    public String paymentInfo_TimeOutHandler(Integer id){
        return "/(ㄒoㄒ)/调用支付接口超时或异常：\t"+ "\t当前线程池名字" + Thread.currentThread().getName();
    }
}

controller

package com.hexu.controller;

import com.hexu.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @Classname PaymentController
 * @Description TODO
 * @Author 86176
 * @Date 2021-12-31 11:14
 * @Version 1.0
 **/
@RestController
@Slf4j
public class PaymentController
{
    @Resource
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;

    /**
     * OK的方法
     * @param id
     * @return
     */
    @GetMapping("/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id)
    {
        String result = paymentService.paymentInfo_OK(id);
        log.info("****result: "+result);
        return result;
    }

    /**
     * 演示降级处理的方法
     * @param id
     * @return
     * @throws InterruptedException
     */
    @GetMapping("/payment/hystrix/timeout/{id}")
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id) throws InterruptedException
    {
        String result = paymentService.paymentInfo_TimeOut(id);
        log.info("****result: "+result);
        return result;
    }
}

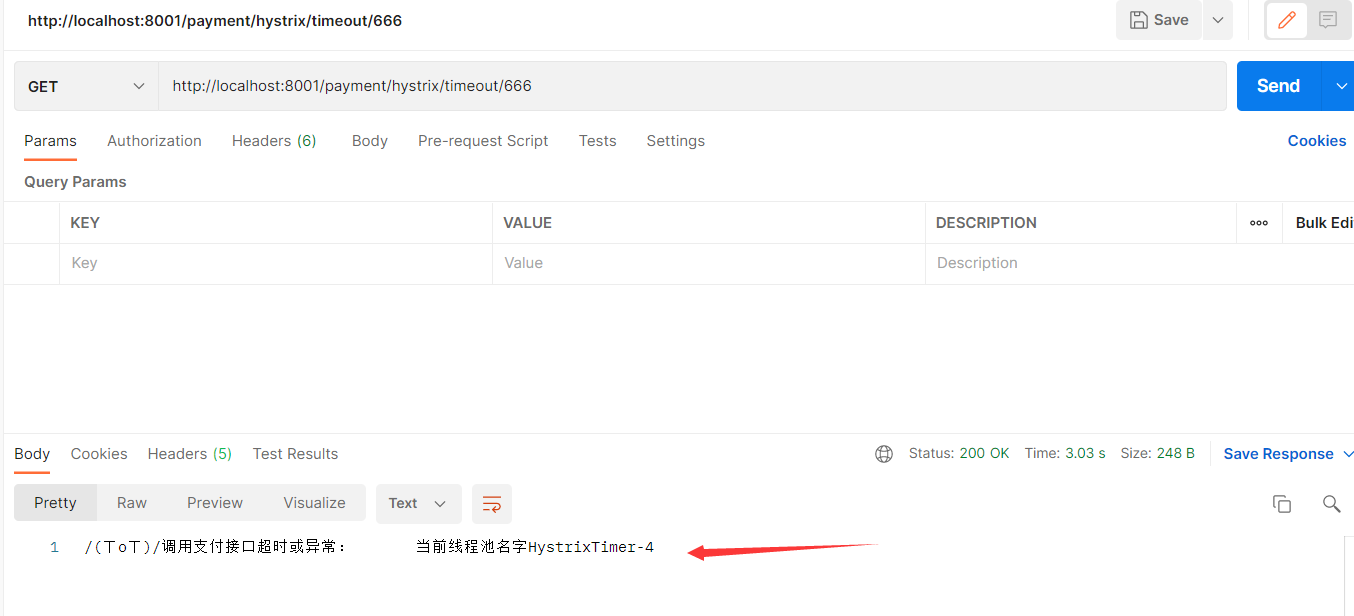

可以看见与兜底方法结果一致

在这里插入图片描述

消费者不嫌事大继续调用提供者

cloud-consumer-feign-hystrix-order80 项目
启动类
@EnableFeignClients
@EnableHystrix

pom

server:
  port: 80

eureka:
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka

feign:
  circuitbreaker:
    enabled: true

service

service接口

package com.hexu.service;

import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

/**
 * @Classname PaymentHystrixService
 * @Description TODO
 * @Author 86176
 * @Date 2021-12-31 15:35
 * @Version 1.0
 **/
@Component
@FeignClient(value = "CLOUD-PROVIDER-HYSTRIX-PAYMENT",fallback = PaymentFallbackService.class)
public interface PaymentHystrixService {
    @GetMapping("/payment/hystrix/ok/{id}")
    String paymentInfo_OK(@PathVariable("id") Integer id);

    /**
     * @GetMapping("/payment/hystrix/ok/{id}")这个就相当于调用了提供者服务
     * @param id
     * @return
     */
    @GetMapping("/payment/hystrix/timeout/{id}")
    String paymentInfo_TimeOut(@PathVariable("id") Integer id);
}

service实现类

package com.hexu.service;

import org.springframework.stereotype.Component;

/**
 * @Classname PaymentFallbackService
 * @Description TODO 统一为接口里面的方法进行异常处理
 * @Author 86176
 * @Date 2022-01-01 16:17
 * @Version 1.0
 **/
@Component
public class PaymentFallbackService implements PaymentHystrixService{
    @Override
    public String paymentInfo_OK(Integer id) {
        return "服务调用失败，提示来自：cloud-consumer-feign-order80";
    }

    @Override
    public String paymentInfo_TimeOut(Integer id) {
        return "服务调用失败，提示来自：cloud-consumer-feign-order80";
    }
}

controller

package com.hexu.controller;

import com.hexu.service.PaymentHystrixService;
import com.netflix.hystrix.contrib.javanica.annotation.DefaultProperties;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @Classname OrderHystirxController
 * @Description TODO
 * @Author 86176
 * @Date 2021-12-31 15:40
 * @Version 1.0
 **/

@RestController
@Slf4j
public class OrderHystirxController {
    @Resource
    private PaymentHystrixService paymentHystrixService;

    @GetMapping("/consumer/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id) {
        String result = paymentHystrixService.paymentInfo_OK(id);
        return result;
    }

    /**
     * @param id
     * @return
     */
    @GetMapping("/consumer/payment/hystrix/timeout/{id}")
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id) {
        String result = paymentHystrixService.paymentInfo_TimeOut(id);
        return result;
    }

}

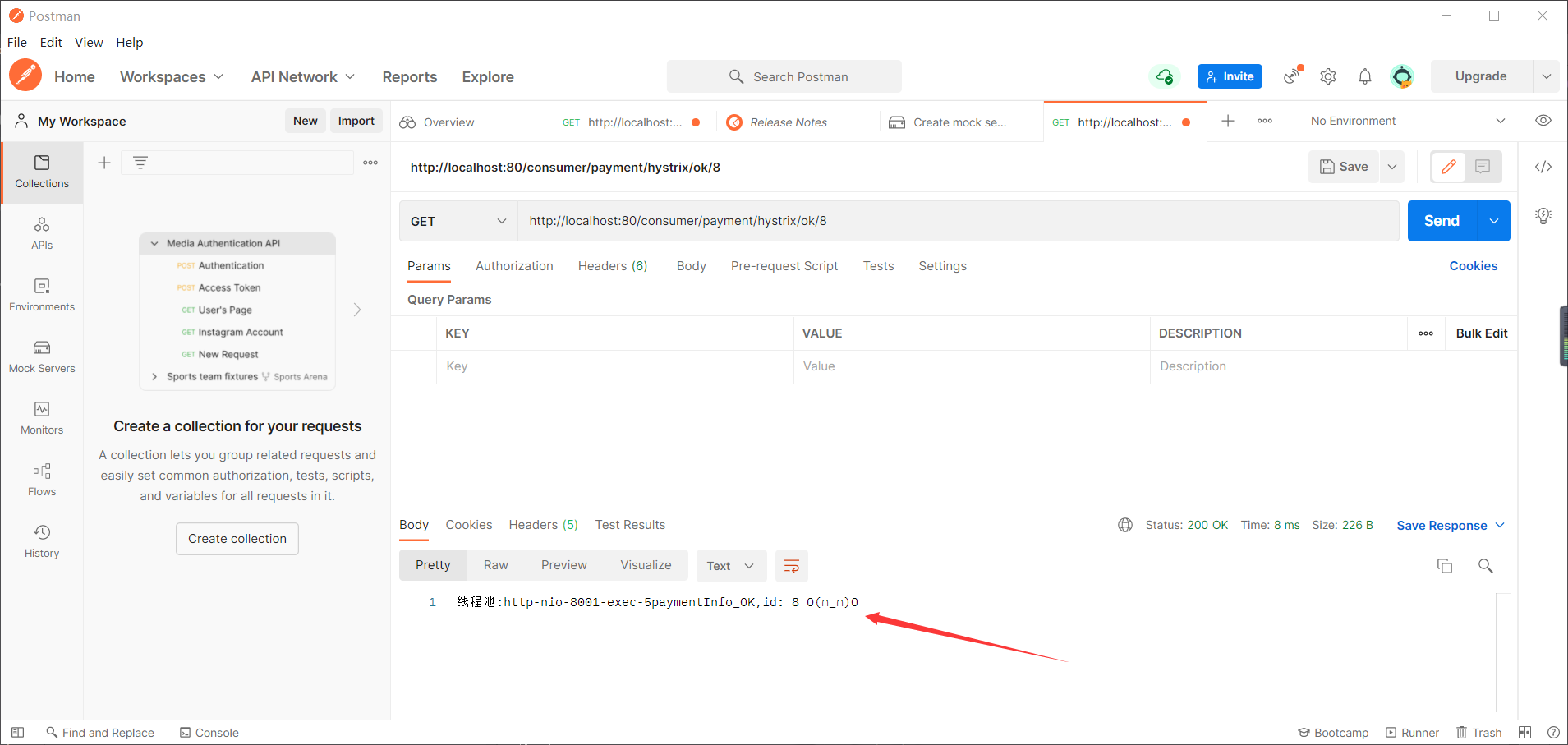

消费端调用提供方

在这里插入图片描述

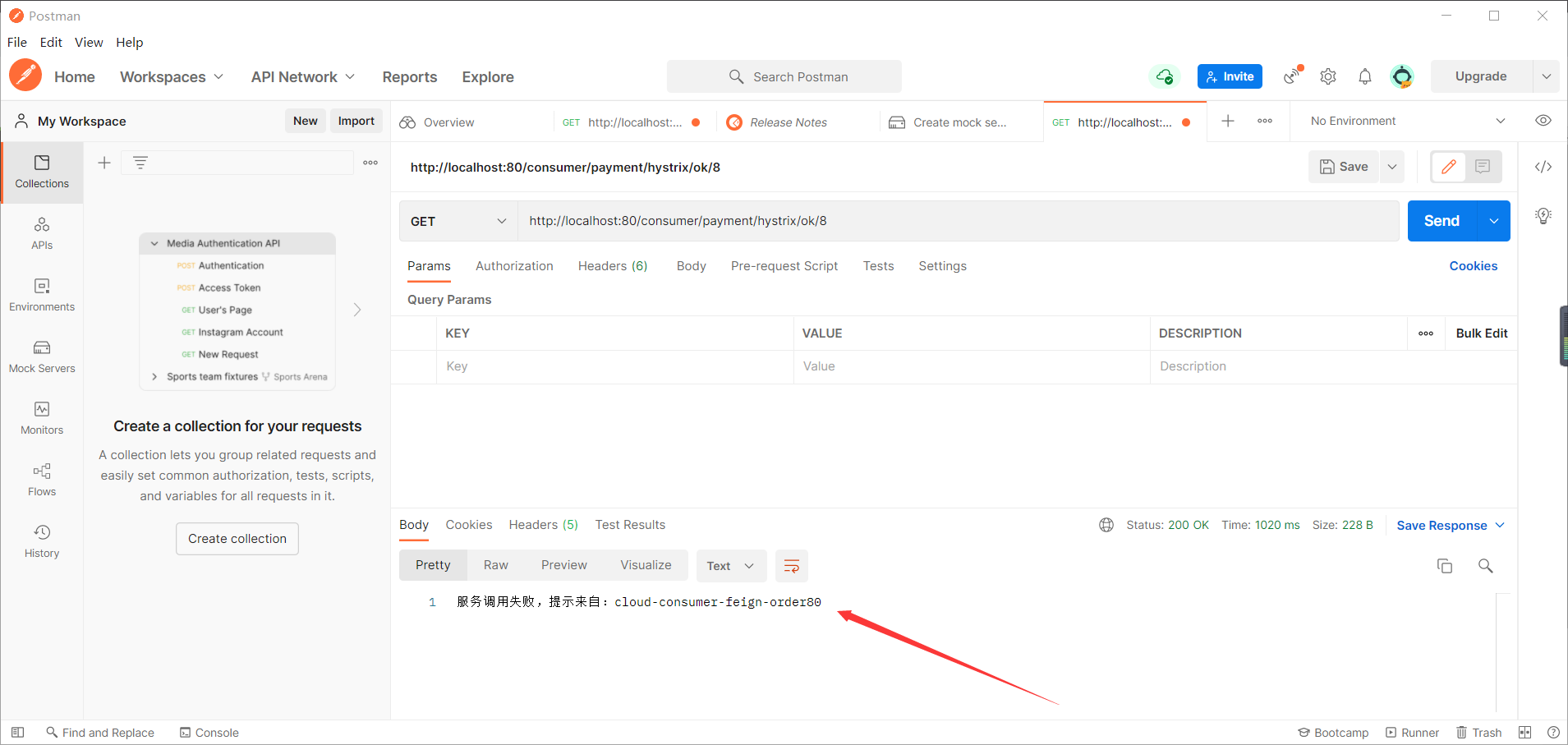

这时我们把提供方服务关了

服务熔断

一句话就是家里的保险丝当错误达到一定数量时拉闸
多次错误，然后慢慢正确，发现刚开始不满足条件，就算是正确的访问地址也不能进行
1.熔断打开 : 请求不再进行调用当前服务，内部设置时钟一般为MTTR（平均故障处理时间)，当打开时长达到所设时钟则进入半熔断状态
2.熔断关闭 : 熔断关闭不会对服务进行熔断
3.熔断半开 : 部分请求根据规则调用当前服务，如果请求成功且符合规则则认为当前服务恢复正常，关闭熔断

修改cloud-provider-hystrix-paymen8001 项目

service增加

 //=========服务熔断
    @HystrixCommand(fallbackMethod = "paymentCircuitBreaker_fallback", commandProperties = {
            @HystrixProperty(name = "circuitBreaker.enabled", value = "true"),
            //当达到多少数量时开启
            @HystrixProperty(name = "circuitBreaker.requestVolumeThreshold", value = "10"),
            //在多少时间类
            @HystrixProperty(name = "circuitBreaker.sleepWindowInMilliseconds", value = "10000"),
            //错误的百分率
            @HystrixProperty(name = "circuitBreaker.errorThresholdPercentage", value = "60"),
    })
    public String paymentCircuitBreaker(@PathVariable("id") Integer id) {
        if (id < 0) {
            throw new RuntimeException("******id 不能负数");
        }
        String serialNumber = IdUtil.simpleUUID();

        return Thread.currentThread().getName() + "\t" + "调用成功，流水号: " + serialNumber;
    }

    public String paymentCircuitBreaker_fallback(@PathVariable("id") Integer id) {
        return "id 不能负数，请稍后再试，/(ㄒoㄒ)/~~   id: " + id;
    }

controller调用

 /**
     * 服务熔断测试
     * @param id
     * @return
     */
    @GetMapping("/payment/circuit/{id}")
    public String paymentCircuitBreaker(@PathVariable("id") Integer id)
    {
        String result = paymentService.paymentCircuitBreaker(id);
        log.info("****result: "+result);
        return result;
    }

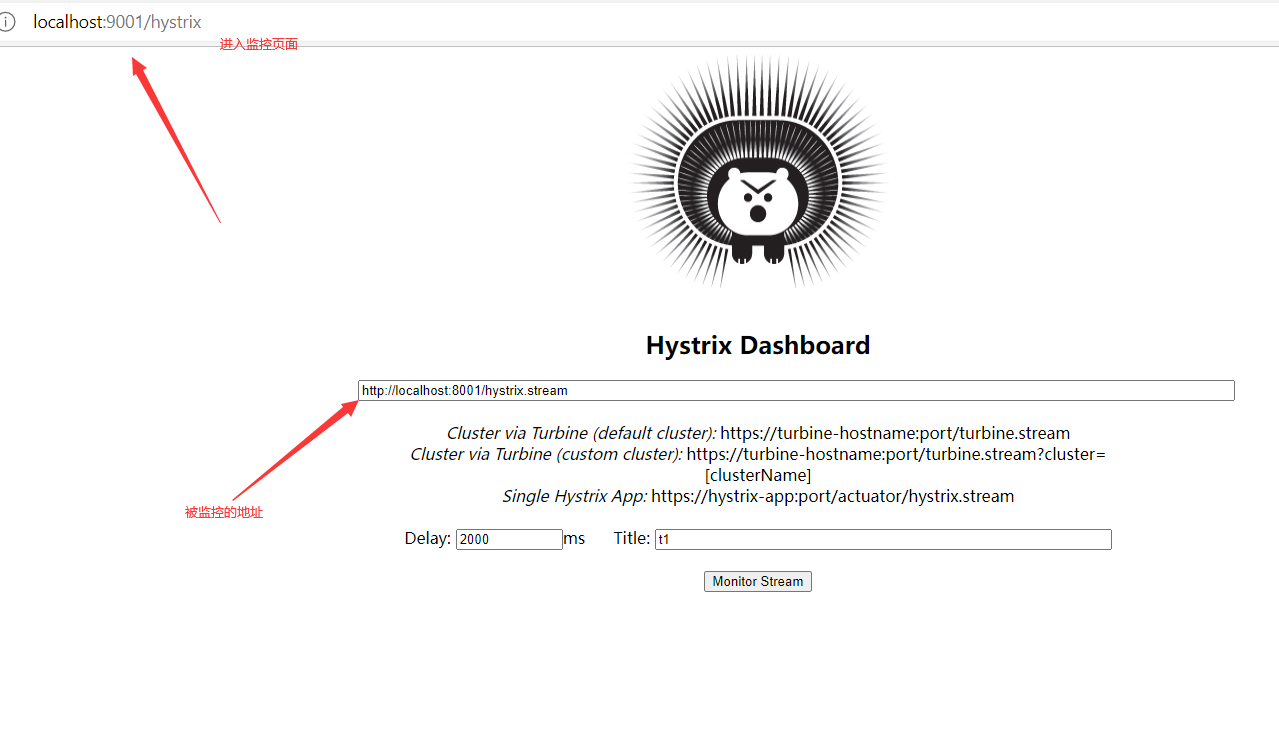

服务监控hystrixDashboard

HystrixDashboardMain9001项目+新注解@EnableHystrixDashboard

pom配置

   <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
        </dependency>

yml

server:
  port: 9001
hystrix:
  dashboard:
    proxy-stream-allow-list: "*"

继续修改cloud-provider-hystrix-paymen8001 项目

启动类增加

 /**
     *此配置是为了服务监控而配置，与服务容错本身无关，springcloud升级后的坑
     *ServletRegistrationBean因为springboot的默认路径不是"/hystrix.stream"，
     *只要在自己的项目里配置上下面的servlet就可以了
     */
    @Bean
    public ServletRegistrationBean getServlet() {
        HystrixMetricsStreamServlet streamServlet = new HystrixMetricsStreamServlet();
        ServletRegistrationBean registrationBean = new ServletRegistrationBean(streamServlet);
        registrationBean.setLoadOnStartup(1);
        registrationBean.addUrlMappings("/hystrix.stream");
        registrationBean.setName("HystrixMetricsStreamServlet");
        return registrationBean;
    }

在这里插入图片描述

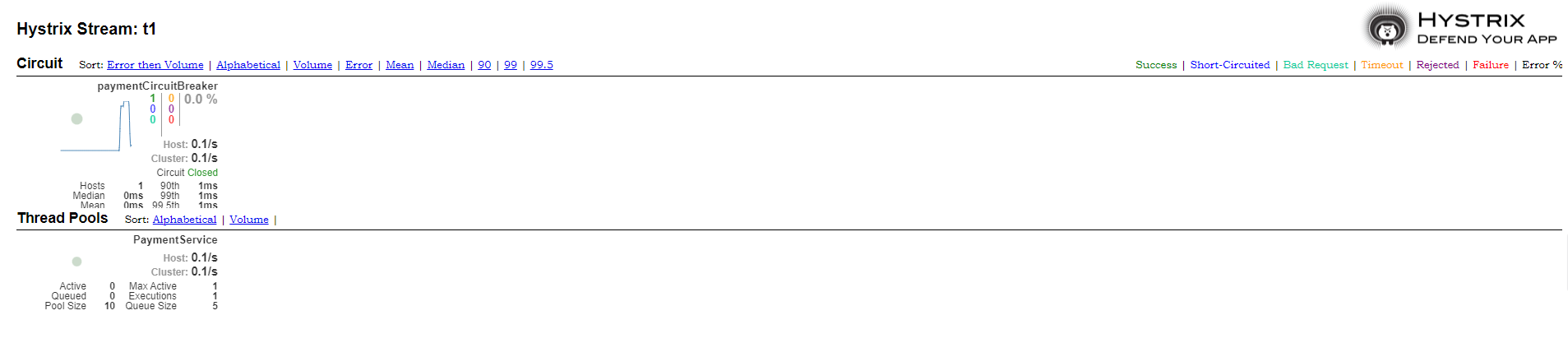

测试8001端口
