Java鼠标事件绘制简单图形-直线、矩形、椭圆

Java编程 专栏收录该内容
1 篇文章 0 订阅

 博主是一枚正在学习Java语言的小白,这篇博客也是博主的第一篇博客,想在这里分享给大家。这个绘图程序的关键是怎样使用Java的鼠标事件处理,我做的这个程序就是利用鼠标按下“public void mousePressed(MouseEvent e)”事件和鼠标释放“public void mouseReleased(MouseEvent e)”事件来完成绘制简单图形的。

除了绘制图案以外,我还做了两个菜单按钮,一个是“新建”,另一个是“保存”。“保存”菜单我做的不详细,不会用选择目录的方式保存,保存是利用 Java的一个类Robot提供了抓屏功能实现的,这里感谢一位大牛博主“小白的学习笔记”的一篇文章,链接Java在JPanel中自由绘图,并将绘图保存为jpg文件小白的学习笔记

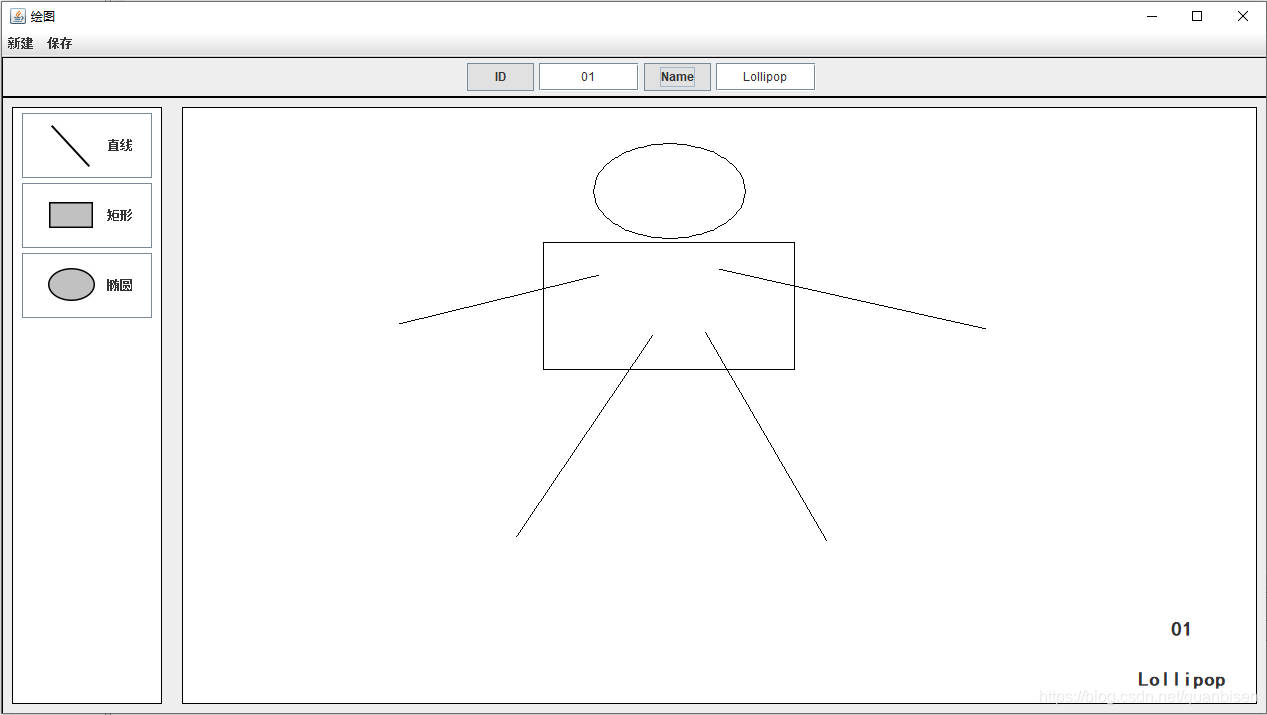

下面是我做的程序的效果图:

Java绘图效果图
Java绘图程序效果图



所有代码都有详细的注释,下面给出步骤和全部的代码。

1、设计程序的容器分布和具有的组件。(我的程序的是大致是这样的)

2、编写的程序具体组件和容器代码,并设置好布局。

(我这里是用一个DrawForm.java类,“画图功能区”按钮用到了三个图片,在文章最后给出)

import java.awt.Color;
import java.awt.Dimension;
import java.awt.FlowLayout;
import java.awt.Font;
import java.awt.Toolkit;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JMenu;
import javax.swing.JMenuBar;
import javax.swing.JPanel;
import javax.swing.JTextField;
import javax.swing.border.LineBorder;

public class DrawForm extends JFrame{

	private static final long serialVersionUID = 1L;
	static int DrawFormCount=1;  //此静态变量用做“新建”菜单创建的绘图窗口数
	private int width=1280;  //定义窗体的宽度
	private int height=720;  //定义窗体的高度
	private String Title;    //定义窗体名字Title,用作保存时使用
	JMenuBar JMenubar;  //定义菜单条
	JMenu JMenuNew;     //定义菜单“新建”
	JMenu JMenuSave;    //定义菜单“保存”
	JPanel JPanelTop;   //定义JPanelTop面板,放ID,Name相关JButton和JTextField
	JButton BtnID;  //定义BtnID按钮
	JTextField TfdID;  //定义TfdID文本框
	JButton BtnName;  //定义BtnName按钮
	JTextField TfdName;  //定义TfdName文本框
	JPanel JPanelWorkPlace;  //定义JPanelWorkPlace,用来放JPanelWorkOfLeft和JPanelWorkOfDraw
	JPanel JPanelWorkOfLeft;  //定义JPanelWorkOfLeft用来放 选择绘图的哪个图案的按钮
	JButton BtnDrawLine;  //定义画直线的BtnDrawLine按钮
	JButton BtnDrawRectangle;  //定义画矩形的BtnDrawRectangle按钮
	JButton BtnDrawOval;  //定义画椭圆的BtnDrawOval按钮
	JPanel JPanelWorkOfDraw;  //定义JPanelWorkOfDraw,用做画图面板
	JLabel JLabelShowID;  //定义JLabelShowI用做ID显示
	JLabel JLabelShowName;  //定义JLabelShowName用做姓名显示
	public DrawForm(String title){  //构造函数初始化
		Title=title;
		setTitle(title);     //设置标题
		InitComponent();          //初始化窗体组件
		AddComponent();           //添加组件到窗口
		AddListenerToComponent();  //给组件添加监听器
		setLayout(null);  //设置窗体的布局为空(null)布局
		setBounds((Toolkit.getDefaultToolkit().getScreenSize().width-width)/2, (Toolkit.getDefaultToolkit().getScreenSize().height-height)/2, width, height);   //设置窗体的大小和位置
		//Toolkit.getDefaultToolkit().getScreenSize().width/height 获取屏幕的的宽度和高度
		setDefaultCloseOperation(DISPOSE_ON_CLOSE);

	}
	private void InitComponent(){   //初始化窗体组件函数
		JMenubar=new JMenuBar();
		JMenuNew=new JMenu("新建");
		JMenuSave=new JMenu("保存");

		JPanelTop=new JPanel();
		JPanelTop.setLayout(new FlowLayout(FlowLayout.CENTER)); //设置JPanelTop的布局为FlowLayout.CENTER
		JPanelTop.setBorder(new LineBorder(new Color(0,0,0)));  //设置JPanelTop的边框
		JPanelTop.setBounds(0, 0, 1280, 40);  //设置JPanelTop的位置,上层容器布局需要设置为null布局

		BtnID=new JButton("ID");  //实例化BtnID按钮,文字显示“ID”
		BtnID.setBackground(new Color(225,225,225));  //设置BtnID按钮的背景颜色
		BtnID.setPreferredSize(new Dimension(67,28));  //设置BtnID按钮的大小,在FlowLayout布局的组件需要使用setPreferredSize(new Dimension())方法
		BtnName=new JButton("Name");  //实例化BtnName按钮,文字显示“Name”
		BtnName.setBackground(new Color(225,225,225)); //设置BtnName的背景颜色
		BtnName.setPreferredSize(new Dimension(67,28));  //设置BtnName按钮的大小,在FlowLayout布局的组件需要使用setPreferredSize(new Dimension())方法
		TfdID=new JTextField();  //实例化TfdID文本框
		TfdID.setPreferredSize(new Dimension(100, 28));
		TfdID.setHorizontalAlignment(JTextField.CENTER);
		TfdName=new JTextField();  //实例化TfdName文本框
		TfdName.setPreferredSize(new Dimension(100, 28));
		TfdName.setHorizontalAlignment(JTextField.CENTER);

		JPanelWorkPlace=new JPanel();
		JPanelWorkPlace.setLayout(null);  //设置JPanelWorkPlace的布局为空(null)布局
		JPanelWorkPlace.setBorder(new LineBorder(new Color(0,0,0)));  //设置JPanelWorkPlace的边框
		JPanelWorkPlace.setBounds(0, 40, 1280, 617);  //设置JPanelWorkPlace的位置和大小

		JPanelWorkOfLeft=new JPanel();
		JPanelWorkOfLeft.setBorder(new LineBorder(new Color(0,0,0)));  //设置JPanelWorkOfLeft的边框
		JPanelWorkOfLeft.setBounds(10, 10, 150, 597);  //设置JPanelWorkOfLeft的位置
		JPanelWorkOfLeft.setBackground(Color.white);  //设置JPanelWorkOfLeft的背景颜色为白色

		BtnDrawLine=new JButton("直线",new ImageIcon("Images/LineTool.jpg"));  //实例化一个带图片和文本的按钮
		BtnDrawLine.setPreferredSize(new Dimension(130,65));  //设置BtnDrawLine的大小
		BtnDrawLine.setHorizontalAlignment(JButton.LEFT );  //设置BtnDrawLine的文本对齐为水平对齐
		BtnDrawLine.setBackground(Color.white);  //设置BtnDrawLine的背景颜色为白色
		BtnDrawRectangle=new JButton("矩形",new ImageIcon("Images/RectTool.jpg"));
		BtnDrawRectangle.setPreferredSize(new Dimension(130,65));
		BtnDrawRectangle.setHorizontalAlignment(JButton.LEFT );
		BtnDrawRectangle.setBackground(Color.white);
		BtnDrawOval=new JButton("椭圆",new ImageIcon("Images/OvalTool.jpg"));
		BtnDrawOval.setPreferredSize(new Dimension(130,65));
		BtnDrawOval.setHorizontalAlignment(JButton.LEFT );
		BtnDrawOval.setBackground(Color.white);

		JPanelWorkOfDraw=new JPanel();
		JPanelWorkOfDraw.setLayout(null);  //设置JPanelWorkOfDraw为空(null)布局
		JPanelWorkOfDraw.setBorder(new LineBorder(new Color(0,0,0)));  //设置JPanelWorkOfDraw的边框
		JPanelWorkOfDraw.setBounds(180,10,1075,597);  //设置JPanelWorkOfDraw的位置
		JPanelWorkOfDraw.setBackground(Color.white);  //设置JPanelWorkOfDraw的背景颜色

		JLabelShowID=new JLabel();
		JLabelShowName=new JLabel();
		JLabelShowID.setBounds(925, 497, 150, 50);   //设置JLabelShowID的位置为右下角
		JLabelShowID.setFont(new Font("黑体",Font.BOLD,20));  //设置JLabelShowID的字体
		JLabelShowID.setHorizontalAlignment(JLabel.CENTER);  //设置文本水平居中对齐
		//JLabelShowID.setBorder(new LineBorder(new Color(0,0,0)));
		JLabelShowID.setBackground(new Color(255,255,255));  //设置JLabelShowID的背景颜色为白色
		JLabelShowName.setBounds(925, 547, 150, 50);  //设置JLabelShowName的位置为右下角
		JLabelShowName.setFont(new Font("黑体",Font.BOLD,20));  //设置JLabelShowName的字体
		JLabelShowName.setHorizontalAlignment(JLabel.CENTER);
		//JLabelShowName.setBorder(new LineBorder(new Color(0,0,0)));
		JLabelShowName.setBackground(new Color(255,255,255));  //设置JLabelShowName的背景颜色为白色
	}
	private void AddComponent(){  //添加组件方法
		JMenubar.add(JMenuNew);   //把菜单“新建”加到菜单条
		JMenubar.add(JMenuSave);  //把菜单“保存”加到菜单条
		setJMenuBar(JMenubar);    //设置窗体菜单条
		JPanelTop.add(BtnID);     //给JPanelTop添加关于ID、Name的组件
		JPanelTop.add(TfdID);     //
		JPanelTop.add(BtnName);   //
		JPanelTop.add(TfdName);   //
		JPanelWorkOfLeft.add(BtnDrawLine);   //给左侧工具栏添加三个分别画直线、矩形、椭圆的功能按钮
		JPanelWorkOfLeft.add(BtnDrawRectangle);
		JPanelWorkOfLeft.add(BtnDrawOval);
		JPanelWorkOfDraw.add(JLabelShowID);  //给画图区域右下角添加显示ID和Name的文本框
		JPanelWorkOfDraw.add(JLabelShowName);
		JPanelWorkPlace.add(JPanelWorkOfLeft);  //把左侧功能选择和画图区域组合起来加到JPanelWorkPlace容器中
		JPanelWorkPlace.add(JPanelWorkOfDraw);
		add(JPanelTop);      //window容器添加JPanelTop和JPanelWorkPlace两个容器构成整个窗体
		add(JPanelWorkPlace);
	}
	private void AddListenerToComponent(){  //定义给组件添加监听器的方法
		TopBtnListen IDListener=new TopBtnListen();  //创建顶部ID按钮的事件处理对象
		IDListener.setLabelTextField(JLabelShowID, TfdID);  //设置事件处理对象的数据
		BtnID.addActionListener(IDListener);  //为BtnID添加监听器
		TopBtnListen NameListener=new TopBtnListen();  //创建顶部Name按钮的事件处理对象
		NameListener.setLabelTextField(JLabelShowName, TfdName);  //设置事件处理对象的数据
		BtnName.addActionListener(NameListener);  //为BtnName添加监听器
		DrawListen DrawListener=new DrawListen(JPanelWorkOfDraw);  //引用JPanelWorkOfDraw对象创建监听对象,此DrawListener对象注册到功能按钮上面,实现对JPanelWorkOfDraw引用的绘图
		BtnDrawLine.addActionListener(DrawListener);  //将监听对象DrawListener添加到BtnDrawLine按钮
		BtnDrawRectangle.addActionListener(DrawListener);  //将监听对象DrawListener添加到BtnDrawRectangle按钮
		BtnDrawOval.addActionListener(DrawListener);   //将监听对象DrawListener添加到BtnDrawOval按钮
		JMenuNew.addMouseListener(new MouseAdapter(){  //给JMenuNew添加一个事件监听器
			public void mouseClicked(MouseEvent e) {   //鼠标单击时创建一个Title为“新建绘图+DrawFormCount”的窗口
				JFrame newJFrame=new DrawForm("新建绘图"+DrawFormCount);
				newJFrame.setVisible(true);  //设置窗体可见
				DrawFormCount++;  //静态变量自增
			}
		});
		MenuSaveListen MenuSaveListener=new MenuSaveListen(Title,this,JPanelWorkOfDraw);  //引用Title,this这个窗体Frame和JPanelWorkOfDraw对象创建监听对象,此监听对象实现了对JPanelWorkOfDraw的区域截屏保存
		JMenuSave.addMouseListener(MenuSaveListener);  //将监听对象MenuSaveListener添加到JMenuSave按钮
	}
}

3、编写组件的事件处理类(我这里有三个类,菜单“新建”的时间处理类使用了匿名类实现,具体看DrawForm.java类下的AddListenerToComponent()方法为JMenuNew添加监听器的代码。

第一个是顶部ID,Name按钮的事件处理类TopBtnListen.java

import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.JLabel;
import javax.swing.JTextField;
public class TopBtnListen implements ActionListener{  //定义顶部ID,Name按钮的事件处理类
	private JLabel ShowLabel;  //此变量用来显示窗口的JTextField文本
	private JTextField Tfd;    //此变量用来存储窗口的JTextFiled的文本
	public void setLabelTextField(JLabel label,JTextField textfield){  //定义初始化私有变量的方法
		ShowLabel=label;
		Tfd=textfield;
	}
	public void actionPerformed(ActionEvent arg0) { //鼠标事件执行JLabel显示JTextField的文本
		ShowLabel.setText(Tfd.getText());
	}

}

第二个是“画图功能区”按钮的事件处理类DrawListen.java

import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import javax.swing.JPanel;

public class DrawListen implements ActionListener{  //“画图功能区”按钮的事件处理类,选中按钮给”画图区“添加画图监听匿名事件处理类MouseAdapter
	private int startX;  //记录鼠标按下时的位置
	private int startY;
	private int endX;    //记录鼠标释放时的位置
	private int endY;
	private JPanel JPanelWorkOfDraw;  //用做传入变量,画图
	public DrawListen(JPanel JPanelWorkOfDraw){
		this.JPanelWorkOfDraw=JPanelWorkOfDraw;
	}
	String ButtonType=""; //记录按钮的类型
	public void actionPerformed(ActionEvent e) {
		ButtonType=e.getActionCommand();  //取出按钮的事件命令文本
		JPanelWorkOfDraw.addMouseListener(new MouseAdapter(){ //为JPanelWorkOfDraw添加鼠标监听事件
			public void mousePressed(MouseEvent e) {  //鼠标按下时执行的操作
				startX=e.getX();  //记录鼠标按下时的位置
				startY=e.getY();
			}
			public void mouseReleased(MouseEvent e) {
				endX=e.getX();  //记录鼠标释放时的位置
				endY=e.getY();
				if("直线".equals(ButtonType)) {   //如果按钮的事件命令文本是“直线”,绘制直线
					JPanelWorkOfDraw.getGraphics().drawLine(startX, startY, endX, endY);
		    }
				else if(ButtonType.equals("矩形")) {  //如果按钮的事件命令文本是“矩形”,绘制矩形
					JPanelWorkOfDraw.getGraphics().drawRect(startX, startY, endX-startX, endY-startY);
		    }
				else if(ButtonType.equals("椭圆")){   //如果按钮的事件命令文本是“椭圆”,绘制椭圆
					JPanelWorkOfDraw.getGraphics().drawOval(startX, startY, endX-startX, endY-startY);
				}
			}
		});
	}

}

第三个是菜单“保存”处理类MenuSaveListen.java

import java.awt.AWTException;
import java.awt.Rectangle;
import java.awt.Robot;
import java.awt.event.MouseEvent;
import java.awt.event.MouseListener;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import javax.imageio.ImageIO;
import javax.swing.JFrame;
import javax.swing.JPanel;

public class MenuSaveListen implements MouseListener{  //定义文件保存处理类
	private String Title;  //定义窗体名字变量
	private JFrame DrawForm;  //定义窗体变量
	private JPanel JPanelWorkOfDraw;  //定义JPanelWorkOfDraw变量,JPanelWorkOfDraw是绘图区域
	public MenuSaveListen(String Title, JFrame DrawForm,JPanel JPanelWorkOfDraw){  //构造函数初始化类的变量
		this.Title=Title;
		this.DrawForm=DrawForm;
		this.JPanelWorkOfDraw=JPanelWorkOfDraw;
	}
	@Override
	public void mouseClicked(MouseEvent e) {  //事件源单击时执行
		String path=System.getProperty("user.dir");   //获取当前的工作目录
		BufferedImage myImage = null;  //初始化截屏图片,它是BufferedImage类型的变量
		try {
			//对JPanelWorkOfDraw的区域进行截屏操作,具体的Rectangle截屏参数由DrawForm窗体设置JPanelWorkOfDraw的位置和大小有关
			myImage = new Robot().createScreenCapture(new Rectangle(DrawForm.getX()+189, DrawForm.getY()+107, JPanelWorkOfDraw.getWidth()-2, JPanelWorkOfDraw.getHeight()-2));
			ImageIO.write(myImage, "jpg", new File(path+"/"+Title+".jpg"));  //执行保存,扩展名为.jpg
			System.out.println("Save File \'"+Title+".jpg\'"+" to Workfold Succeed!");  //在Console输出提示信息
		}
		catch (AWTException e1) {
			e1.printStackTrace();
		}
		catch (IOException e1) {
			e1.printStackTrace();
		}
	}
	public void mouseEntered(MouseEvent e) {

	}
	public void mouseExited(MouseEvent e) {

	}
	public void mousePressed(MouseEvent e) {

	}
	public void mouseReleased(MouseEvent e) {

	}

}

4、编写带主函数的DrawMain.java

public class DrawMain {

	public static void main(String[] args) {
		DrawForm Draw=new DrawForm("绘图");
		Draw.setVisible(true);
	}

}

附:按钮的三张图片(LineTool.jpg、RectTool.jpg、OvalTool.jpg)
