1. 前言
在前面的博客中讨论了Executor, Driver之间如何汇报Executor生成的Shuffle的数据文件，以及Executor获取到Shuffle的数据文件的分布，那么Executor是如何获取到Shuffle的数据文件进行Action的算子的计算呢？
在ResultTask中，Executor通过MapOutPutTracker向Driver获取了ShuffID的Shuffle数据块的结构，整理成以BlockManangerId为Key的结构，这样可以更容易区分究竟是本地的Shuffle还是远端executor的Shuffle
2. Fetch数据
在MapOutputTracker中获取到的BlockID的地址，是以BlockManagerId的seq数组
Seq[(BlockManagerId, Seq[(BlockId, Long)])] BlockManagerId结构
class BlockManagerId private (
private var executorId_ : String,
private var host_ : String,
private var port_ : Int,
private var topologyInfo_ : Option[String])
extends Externalizable 是以ExecutorId，Executor Host IP, Executor Port 标示从哪个Executor获取Shuffle的数据文件，通过Seq[BlockManagerId, Seq(BlockID,Long)]的结构，当前executor很容易区分究竟哪些是本地的数据文件，哪些是远端的数据，本地的数据可以直接本地读取，而需要不通过网络来获取。
2.1 读取本Executor文件
如何认为是本地数据？
Spark认为区分是通过相同的ExecutorId来区别的，
如果ExecutorId和自己的ExecutorId相同，认为是本地Local，可以直接读取文件。
for ((address, blockInfos) <- blocksByAddress) {
totalBlocks += blockInfos.size
if (address.executorId == blockManager.blockManagerId.executorId) {
// Filter out zero-sized blocks
localBlocks ++= blockInfos.filter(_._2 != 0).map(_._1)
numBlocksToFetch += localBlocks.size
}
}这里有两种情况：
- 同一个Executor会生成多个Task，单个Executor里的Task运行可以直接获取本地文件，不需要通过网络
- 同一台机器多个Executor，在这种情况下，不同的Executor获取相同机器下的其他的Executor的文件，需要通过网络
2.2 读取非本Executor文件
2.2.1 构造FetchRequest请求
获取非本Executor的文件，在Spark里会生成一个FetchRequest，为了避免单个Executor的MapId过多发送多个FetchRequest请求，会合并同一个Executor的多个请求，合并的规则由最大的请求参数控制
spark.reducer.maxSizeInFlight
val targetRequestSize = math.max(maxBytesInFlight / 5, 1L)
对同一个Executor，如果请求多个Block请求的数据大小未超过targetRequestSize，将会被分配到同一个FetchRequest中，以避免多次FetchRequest的请求
val iterator = blockInfos.iterator
var curRequestSize = 0L
var curBlocks = new ArrayBuffer[(BlockId, Long)]
while (iterator.hasNext) {
val (blockId, size) = iterator.next()
// Skip empty blocks
if (size > 0) {
curBlocks += ((blockId, size))
remoteBlocks += blockId
numBlocksToFetch += 1
curRequestSize += size
} else if (size < 0) {
throw new BlockException(blockId, "Negative block size " + size)
}
if (curRequestSize >= targetRequestSize) {
// Add this FetchRequest
remoteRequests += new FetchRequest(address, curBlocks)
curBlocks = new ArrayBuffer[(BlockId, Long)]
logDebug(s"Creating fetch request of $curRequestSize at $address")
curRequestSize = 0
}
}
// Add in the final request
if (curBlocks.nonEmpty) {
remoteRequests += new FetchRequest(address, curBlocks)
}2.2.1 发送FetchRequest
FetchRequest并不是并行提交的，对同一个Task来说，在Executor的做combine的时候是一个一个的BlockID块合并的，而Task本身就是一个线程运行的，所以不需要设计FetchRequest成并行提交，当一个BlockID完成计算后，才需要判断是否需要进行下一个FetchRequest请求，因为FetchRequest是多个Block提交的，为了控制Executor获取多个BlockID的shuffle数据的带宽，在提交FetchRequest的时候控制了请求的频率
在满足下面以下条件下，才允许提交下个FetchRequest
- 当正在请求的所有BlockId的内容和下一个FetchRequest的请求内容之和小于maxBytesInFlight的时候，才能进行下一个FetchRequest 的请求
- 当正在请求的数量小于所设置的最大的允许请求数量的时候，才能进行下一个FetchRequest的请求，控制参数如下：
spark.reducer.maxReqsInFlight2.2.2 完整的FetchRequest流程

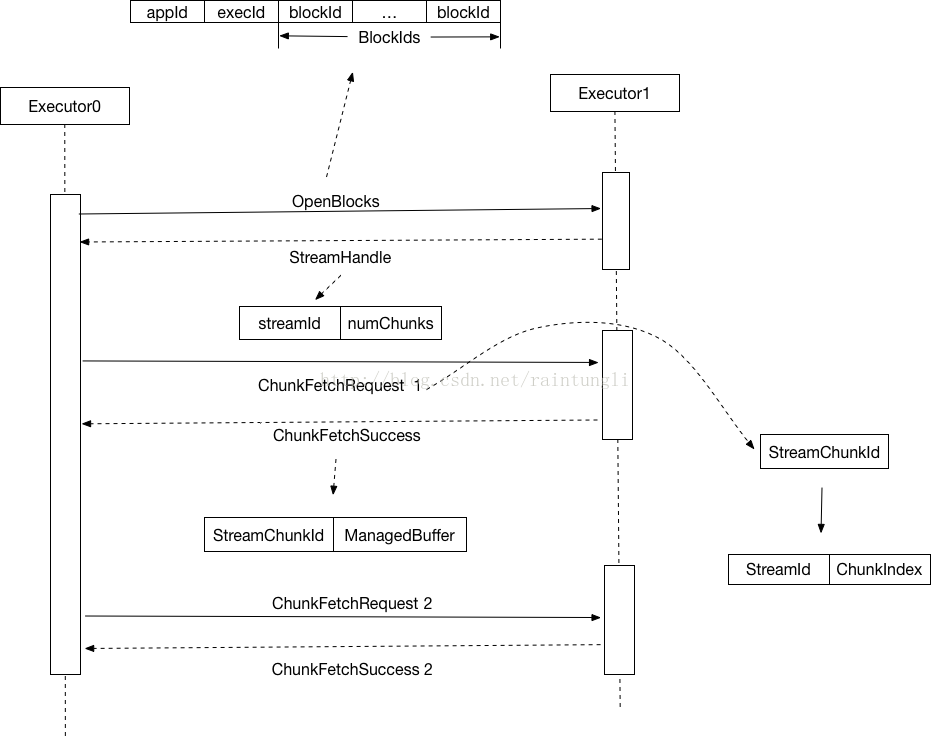

- Executor A 通过ExternalShuffleClient 进行fetchBlocks的操作，如果配置了
最大重试参数的话，将启动一个能重试RetryingBlockFetcher的获取器io.maxRetries- 初始化TransportClient，OneForOneBlockFetcher获取器
- 在OneForOneBlockFetcher里首先向另一个Executor B发送了OpenBlocks的询问请求，里面告知ExecutorID, APPID和BlockID的集合
- Executor B获取到BlockIDs，后通过BlockManager获取相关的BlockID的文件（通过mapid, reduceid获取相关的索引和数据文件），构建FileSegmentManagedBuffer

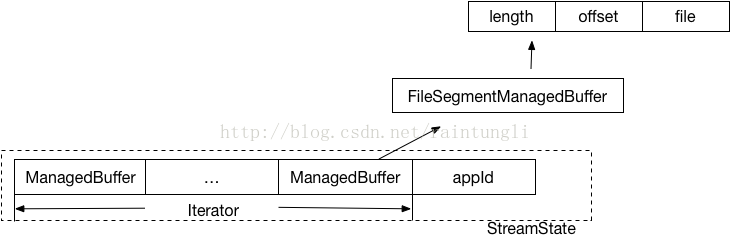

- 通过StreamManager(OneForOneStreamManager) registerStream 生成streamId，和StreamState(多个ManagedBuffer，AppID)的缓存
返回所生成的StreamId- Executor B 返回给 StreamHandle的消息，里面包含了StreamId和Chunk的数量，这里chunk的数量其实就是Block的数量
- Executor A 获取到 StreamHandle的消息，一个一个的发送ChunkFetchRequest里面包含了StreamId, Chunk index，去真实的获取Executor B的shuffle数据文件
- Executor B 通过传递的ChunkFetchRequest消息获取到StreamId, Chunk index, 通过缓存获取到对应的FileSgementManagedBuffer，返回chunkFetchSuccess消息，里面包含着streamID, 和FileSegmentManagedBuffer
- 在步骤3-6步骤里是堵塞在Task线程里，而步骤7一个一个发送ChunkFetchRequest后，并不堵塞等待返回结果，结果是通过回调函数来实现的，在调用前注册了一个回调函数
client.fetchChunk(streamHandle.streamId, i, chunkCallback); private class ChunkCallback implements ChunkReceivedCallback { @Override public void onSuccess(int chunkIndex, ManagedBuffer buffer) { // On receipt of a chunk, pass it upwards as a block. listener.onBlockFetchSuccess(blockIds[chunkIndex], buffer); } @Override public void onFailure(int chunkIndex, Throwable e) { // On receipt of a failure, fail every block from chunkIndex onwards. String[] remainingBlockIds = Arrays.copyOfRange(blockIds, chunkIndex, blockIds.length); failRemainingBlocks(remainingBlockIds, e); } }- 在这里的listener就是前面fetchBlocks里注入的BlockFetchingListener
new BlockFetchingListener { override def onBlockFetchSuccess(blockId: String, buf: ManagedBuffer): Unit = { // Only add the buffer to results queue if the iterator is not zombie, // i.e. cleanup() has not been called yet. ShuffleBlockFetcherIterator.this.synchronized { if (!isZombie) { // Increment the ref count because we need to pass this to a different thread. // This needs to be released after use. buf.retain() remainingBlocks -= blockId results.put(new SuccessFetchResult(BlockId(blockId), address, sizeMap(blockId), buf, remainingBlocks.isEmpty)) logDebug("remainingBlocks: " + remainingBlocks) } } logTrace("Got remote block " + blockId + " after " + Utils.getUsedTimeMs(startTime)) } override def onBlockFetchFailure(blockId: String, e: Throwable): Unit = { logError(s"Failed to get block(s) from ${req.address.host}:${req.address.port}", e) results.put(new FailureFetchResult(BlockId(blockId), address, e)) } }- 如果获取成功将封装SuccessFetchResult里面保存着blockId，地址，数据大小，以及ManagedBuffer，并保存到results的queue中
2.2.3 Fetch 迭代获取数据文件

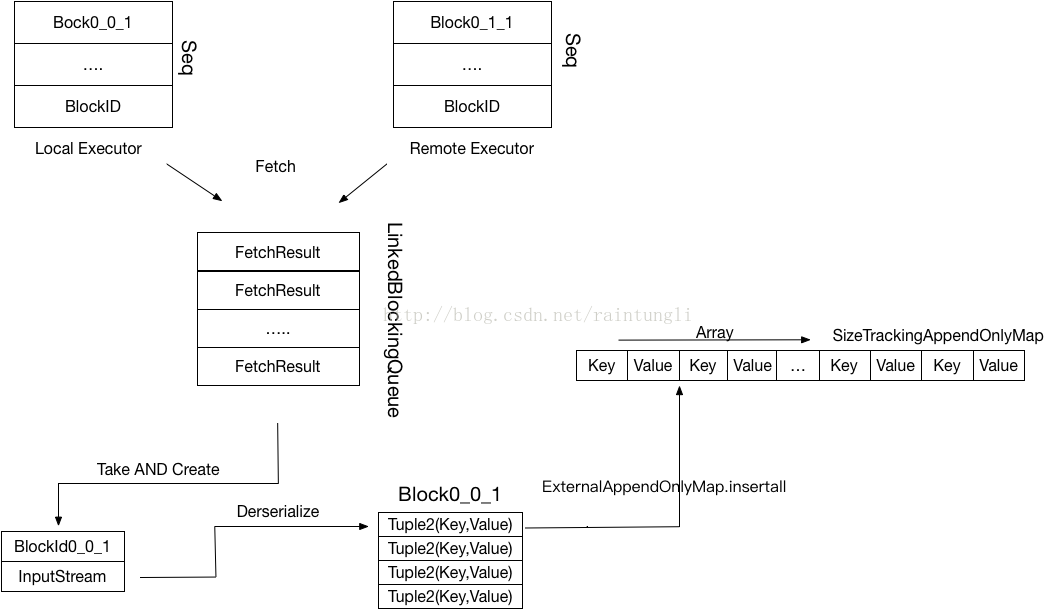

Executor在BlockStoreShuffeReader的read函数中构建ShuffleBlockFetcherIterator，ShuffleBlockFetcherIterator是个InputStream的迭代器，每个BlockID生成一个InputStream，在设计里并没有区分是本地的还是远端的，每一次迭代都是从堵塞的Queue里获取到BlockID的ManagerBuffer，通过调用ManagerBuffer.createInputStream获取每个InputStream，进行读取并且反序列话，进行KV的combine.
如何判断所有的BlockID已经读取完了？
override def hasNext: Boolean = numBlocksProcessed < numBlocksToFetch3. Fetch 交互协议
在前面的博客里描述了很多交互协议都使用了Java的原生态的反序列化，但在上文描述的Fetch协议中，是Spark单独定义的一套协议标准，自己实现encoder和decoder
ChunkFetchRequest, ChunkFetchSuccess, RpcRequest, RpcResponse.... 这些都是直接使用Java进行封装，在Network-Commmon的包里，所有的消息最后都实现了基本的接口。
3.1 Message Encoder
public interface Message extends Encodable{}而核心的是Encodable，有点类似Java的 Serializable接口，需要自己实现Encoder和Decoder的方法
public interface Encodable {
/** Number of bytes of the encoded form of this object. */
int encodedLength();
/**
* Serializes this object by writing into the given ByteBuf.
* This method must write exactly encodedLength() bytes.
*/
void encode(ByteBuf buf);
}
如何让Netty调用Encodable encode方法呢？
在Netty里暴露出的类MessageToMessageEncoder，里暴露encode的抽象方法，这是一个可以允许对传递的消息进行一次自定义的编码
在Spark里自己实现MessageToMessageEncoder的encoder的方法MessageToMessageEncoderprotected abstract void encode(ChannelHandlerContext paramChannelHandlerContext, I paramI, List<Object> paramList) /* */ throws Exception;
public final class MessageEncoder extends MessageToMessageEncoder<Message> {
private static final Logger logger = LoggerFactory.getLogger(MessageEncoder.class);
/***
* Encodes a Message by invoking its encode() method. For non-data messages, we will add one
* ByteBuf to 'out' containing the total frame length, the message type, and the message itself.
* In the case of a ChunkFetchSuccess, we will also add the ManagedBuffer corresponding to the
* data to 'out', in order to enable zero-copy transfer.
*/
@Override
public void encode(ChannelHandlerContext ctx, Message in, List<Object> out) throws Exception {
Object body = null;
long bodyLength = 0;
boolean isBodyInFrame = false;
// If the message has a body, take it out to enable zero-copy transfer for the payload.
if (in.body() != null) {
try {
bodyLength = in.body().size();
body = in.body().convertToNetty();
isBodyInFrame = in.isBodyInFrame();
} catch (Exception e) {
in.body().release();
if (in instanceof AbstractResponseMessage) {
AbstractResponseMessage resp = (AbstractResponseMessage) in;
// Re-encode this message as a failure response.
String error = e.getMessage() != null ? e.getMessage() : "null";
logger.error(String.format("Error processing %s for client %s",
in, ctx.channel().remoteAddress()), e);
encode(ctx, resp.createFailureResponse(error), out);
} else {
throw e;
}
return;
}
}
Message.Type msgType = in.type();
// All messages have the frame length, message type, and message itself. The frame length
// may optionally include the length of the body data, depending on what message is being
// sent.
int headerLength = 8 + msgType.encodedLength() + in.encodedLength();
long frameLength = headerLength + (isBodyInFrame ? bodyLength : 0);
ByteBuf header = ctx.alloc().heapBuffer(headerLength);
header.writeLong(frameLength);
msgType.encode(header);
in.encode(header);
assert header.writableBytes() == 0;
if (body != null) {
// We transfer ownership of the reference on in.body() to MessageWithHeader.
// This reference will be freed when MessageWithHeader.deallocate() is called.
out.add(new MessageWithHeader(in.body(), header, body, bodyLength));
} else {
out.add(header);
}
}
}
在encoder的方法里去对Message进行了编码
3.2 Message Decoder
和3.1类似，Spark 针对Netty 封装了MessageDecoder
public final class MessageDecoder extends MessageToMessageDecoder<ByteBuf> public void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) {
Message.Type msgType = Message.Type.decode(in);
Message decoded = decode(msgType, in);
assert decoded.type() == msgType;
logger.trace("Received message {}: {}", msgType, decoded);
out.add(decoded);
}3.3 传递文件
3.3.1 发送文件
还记的前面fetch文件的返回结果么？
respond(new ChunkFetchSuccess(req.streamChunkId, buf)); body = in.body().convertToNetty();
对ChunkFetchSuccess来说in.body是FileSegmentManagedBuffer，而它封装的方法里
public Object convertToNetty() throws IOException {
if (conf.lazyFileDescriptor()) {
return new DefaultFileRegion(file, offset, length);
} else {
FileChannel fileChannel = new FileInputStream(file).getChannel();
return new DefaultFileRegion(fileChannel, offset, length);
}
} public abstract long transferTo(WritableByteChannel paramWritableByteChannel, long paramLong)
throws IOException;if (body != null) {
// We transfer ownership of the reference on in.body() to MessageWithHeader.
// This reference will be freed when MessageWithHeader.deallocate() is called.
out.add(new MessageWithHeader(in.body(), header, body, bodyLength));
}我们来看看什么是MessageWithHeader
class MessageWithHeader extends AbstractReferenceCounted implements FileRegion public long transferTo(final WritableByteChannel target, final long position) throws IOException {
Preconditions.checkArgument(position == totalBytesTransferred, "Invalid position.");
// Bytes written for header in this call.
long writtenHeader = 0;
if (header.readableBytes() > 0) {
writtenHeader = copyByteBuf(header, target);
totalBytesTransferred += writtenHeader;
if (header.readableBytes() > 0) {
return writtenHeader;
}
}
// Bytes written for body in this call.
long writtenBody = 0;
if (body instanceof FileRegion) {
writtenBody = ((FileRegion) body).transferTo(target, totalBytesTransferred - headerLength);
} else if (body instanceof ByteBuf) {
writtenBody = copyByteBuf((ByteBuf) body, target);
}
totalBytesTransferred += writtenBody;
return writtenHeader + writtenBody;
}在这里巧妙的将Header和文件封装成了一个文件的region，在TransferTo的函数里先传递头，然后在调用
writtenBody = ((FileRegion) body).transferTo(target, totalBytesTransferred - headerLength);3.3.2 接收文件
在3.2章节里介绍了如何decode message的方法，对消息ChunkFetchSuccess进行decode生成ChunkFetchSuccess对象
public static ChunkFetchSuccess decode(ByteBuf buf) {
StreamChunkId streamChunkId = StreamChunkId.decode(buf);
buf.retain();
NettyManagedBuffer managedBuf = new NettyManagedBuffer(buf.duplicate());
return new ChunkFetchSuccess(streamChunkId, managedBuf);
}注意：这里的ManagedBuffer不在是FileSegmentManagedBuffer，而是NettyManagedBuffer，里面的ByteBuf才是文件的内容
4. 总结
- Fetch Shuffle data 数据区分本地数据，远端数据，本地数据和远端数据的区分依据是ExecutorID
- 单个Task线程Fetch Shuffle Data数据是以Block为最小单位，串行获取并进行运算
- 远端Fetch的多个Block 数据，是异步发送请求，通过回调函数来异步获取返回结果提交到堵塞的队列中，让Task线程获取、读取，运算
- Fetch的交互协议，并没有使用Java的默认反序列的协议，而是自己独立封装Encode、Decode，进行编码和解码
