PyQt5 结合 matplotlib 时，如何显示其 NavigationToolbar

〇、PyQt4 与 PyQt5 导入 NavigationToolbar 时的区别（去掉两个agg）

# PyQt4 版本（网传）
#from matplotlib.backends.backend_qt4agg import NavigationToolbar2QTAgg as NavigationToolbar
# PyQt5 版本
from matplotlib.backends.backend_qt5 import NavigationToolbar2QT as NavigationToolbar

一、隐藏 matplotlib 工具条

import sys
from PyQt5 import QtWidgets

from matplotlib.backends.backend_qt5agg import FigureCanvasQTAgg as FigureCanvas
from matplotlib.backends.backend_qt5 import NavigationToolbar2QT as NavigationToolbar
import matplotlib.pyplot as plt

import random

class Window(QtWidgets.QDialog):
    def __init__(self, parent=None):
        super().__init__(parent)

        self.figure = plt.figure()
        self.axes = self.figure.add_subplot(111)
        # We want the axes cleared every time plot() is called
        self.axes.hold(False)
        self.canvas = FigureCanvas(self.figure)


        self.toolbar = NavigationToolbar(self.canvas, self)
        self.toolbar.hide()

        # Just some button
        self.button1 = QtWidgets.QPushButton('Plot')
        self.button1.clicked.connect(self.plot)

        self.button2 = QtWidgets.QPushButton('Zoom')
        self.button2.clicked.connect(self.zoom)

        self.button3 = QtWidgets.QPushButton('Pan')
        self.button3.clicked.connect(self.pan)

        self.button4 = QtWidgets.QPushButton('Home')
        self.button4.clicked.connect(self.home)


        # set the layout
        layout = QtWidgets.QVBoxLayout()
        layout.addWidget(self.toolbar)
        layout.addWidget(self.canvas)

        btnlayout = QtWidgets.QHBoxLayout()
        btnlayout.addWidget(self.button1)
        btnlayout.addWidget(self.button2)
        btnlayout.addWidget(self.button3)
        btnlayout.addWidget(self.button4)
        qw = QtWidgets.QWidget(self)
        qw.setLayout(btnlayout)
        layout.addWidget(qw)

        self.setLayout(layout)

    def home(self):
        self.toolbar.home()
    def zoom(self):
        self.toolbar.zoom()
    def pan(self):
        self.toolbar.pan()

    def plot(self):
        ''' plot some random stuff '''
        data = [random.random() for i in range(25)]
        self.axes.plot(data, '*-')
        self.canvas.draw()

if __name__ == '__main__':
    app = QtWidgets.QApplication(sys.argv)

    main = Window()

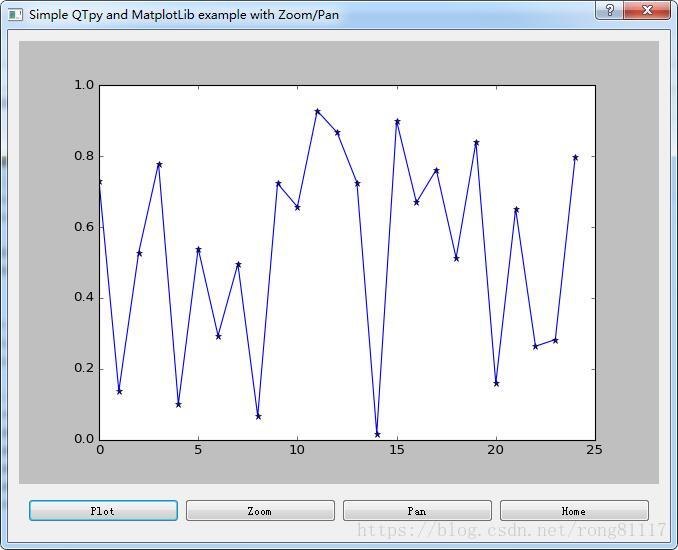

    main.setWindowTitle('Simple QTpy and MatplotLib example with Zoom/Pan')
    main.show()

    sys.exit(app.exec_())
