Spring Statemachine使用入门

1、编程式

下面以官网的示例稍加改造举例来体会一下Spring Statemachine使用。

添加下面maven坐标到pom中。

<dependencies>
    <dependency>
        <groupId>org.springframework.statemachine</groupId>
        <artifactId>spring-statemachine-core</artifactId>
        <version>2.1.3.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <!-- 对应spring-statemachine-core 2.1.3.RELEASE -->
        <version>5.1.5.RELEASE</version>
    </dependency>
</dependencies>

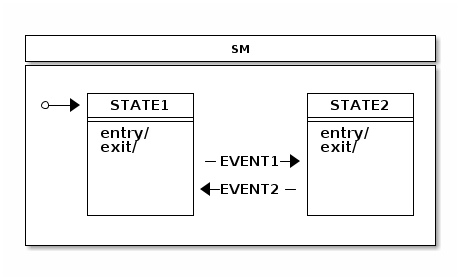

下面的示例说明如何配置和使用statemachine。假设我们有状态STATE1，STATE2和事件EVENT1，EVENT2。

enum States {
    STATE1, STATE2
}

enum Events {
    EVENT1, EVENT2
}

public static StateMachine<States, Events> buildMachine() throws Exception {
    StateMachineBuilder.Builder<States, Events> builder = StateMachineBuilder.builder();
    //设置状态机初始状态为STATE1、共有EnumSet.allOf(States.class)种状态
    builder.configureStates()
            .withStates()
            .initial(States.STATE1)
            .states(EnumSet.allOf(States.class));
    //设置状态转移 原始状态STATE1触发EVENT1事件状态转移为STATE2、原始状态STATE2触发EVENT2事件状态转移为STATE1
    builder.configureTransitions()
            .withExternal()
            .source(States.STATE1).target(States.STATE2)
            .event(Events.EVENT1)
            .and()
            .withExternal()
            .source(States.STATE2).target(States.STATE1)
            .event(Events.EVENT2);
    //配置状态机监听器，可监听多种事件、具体看接口StateMachineListener方法
    builder.configureConfiguration()
            .withConfiguration()
            .listener(new StateMachineListenerAdapter<States, Events>() {
                /**
                 * 状态变更后调用此方法
                 */
                @Override
                public void stateChanged(State<States, Events> from, State<States, Events> to) {
                    System.out.println("State change to " + to.getId());
                }
            });
    return builder.build();
}

public static void main(String[] args) throws Exception {
    //构建状态机对象
    StateMachine<States, Events> stateMachine = buildMachine();
    //初始状态为STATE1、触发stateChanged方法打印State change to STATE1
    stateMachine.start();
    //打印State change to STATE2
    stateMachine.sendEvent(Events.EVENT1);
    //打印State change to STATE1
    stateMachine.sendEvent(Events.EVENT2);
}

执行结果：

2、java类配置式

public class JavaConfigExample {

    static enum States {
        STATE1, STATE2
    }

    static enum Events {
        EVENT1, EVENT2
    }

    @Configuration
    @EnableStateMachine
    static class Config1 extends EnumStateMachineConfigurerAdapter<States, Events> {

        @Override
        public void configure(StateMachineStateConfigurer<States, Events> states)
                throws Exception {
            states
                    .withStates()
                    .initial(States.STATE1)
                    .states(EnumSet.allOf(States.class));
        }

        @Override
        public void configure(StateMachineTransitionConfigurer<States, Events> transitions)
                throws Exception {
            transitions
                    .withExternal()
                    .source(States.STATE1).target(States.STATE2)
                    .event(Events.EVENT1)
                    .and()
                    .withExternal()
                    .source(States.STATE2).target(States.STATE1)
                    .event(Events.EVENT2);
        }
    }

    @WithStateMachine
    static class MyBean {
        @OnTransition(target = "STATE1")
        void toState1() {
        }
        @OnTransition(target = "STATE2")
        void toState2() {
        }
    }

    static class MyApp {
        @Autowired
        StateMachine<States, Events> stateMachine;

        void doSignals() {
            stateMachine.start();
            stateMachine.sendEvent(Events.EVENT1);
            stateMachine.sendEvent(Events.EVENT2);
        }
    }
}
