四针oled的使用（学习笔记）

一、在cubemx配置I2C



 I2C的其他参数不用改直接生成文件即可。

二、将OLED.C、OLED.H、oledfont.h引入工程

3个关键文件如下：

链接：https://pan.baidu.com/s/1TyZWs72CaFkaIIk7bAY5ow
提取码：1234

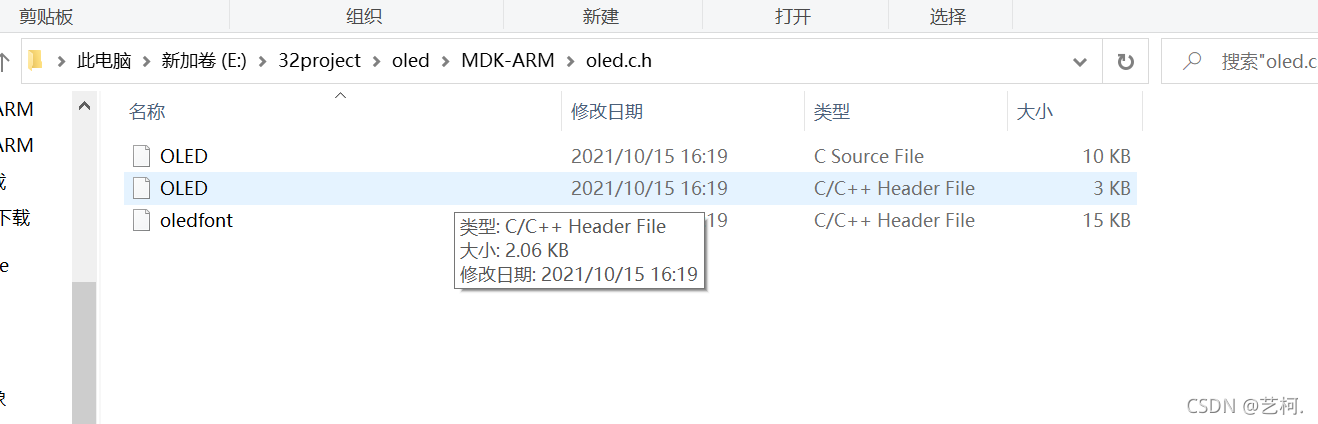

1.在cubemx中生成的文件中的MDK-ARM中新建一个文件夹oled.c.h。将3个关键文件放入

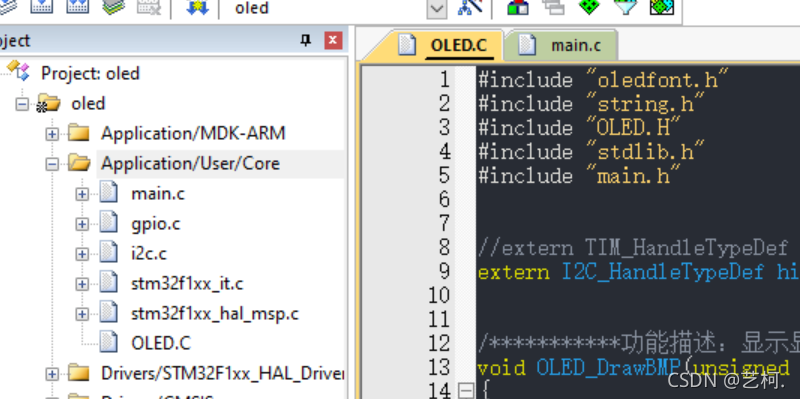

 2.在工程中将OLED.C加入

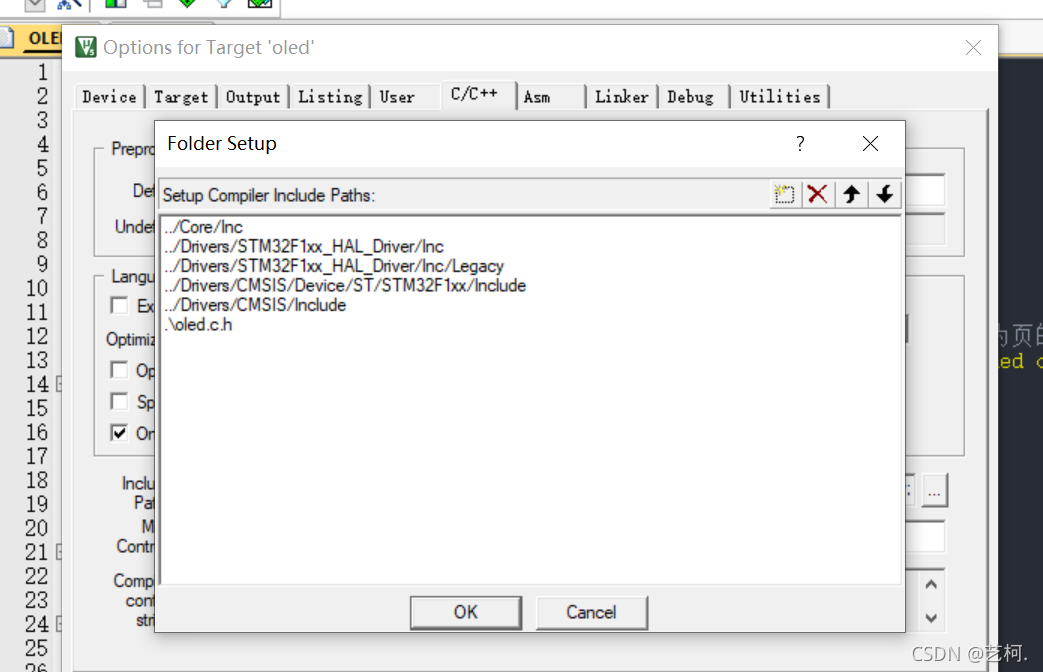

3.将头文件路径引入



 4.在main.c里引入OLED.H

 三、在main.c中调用函数

1.在while之前调用

OLED_Init();//oled初始化
OLED_Clear();//清除屏幕的值

 2.在while中调用

OLED_ShowNum(8,3,7,3,16);//x，y，数字，位数，长度

 部分代码如下（main.c）：

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; Copyright (c) 2021 STMicroelectronics.
  * All rights reserved.</center></h2>
  *
  * This software component is licensed by ST under BSD 3-Clause license,
  * the "License"; You may not use this file except in compliance with the
  * License. You may obtain a copy of the License at:
  *                        opensource.org/licenses/BSD-3-Clause
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "i2c.h"
#include "gpio.h"
#include "OLED.H"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_I2C1_Init();
  /* USER CODE BEGIN 2 */
OLED_Init();//oled初始化
OLED_Clear();//清除屏幕的值
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
		OLED_ShowNum(8,3,7,3,16);//x，y，数字，位数，长度
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

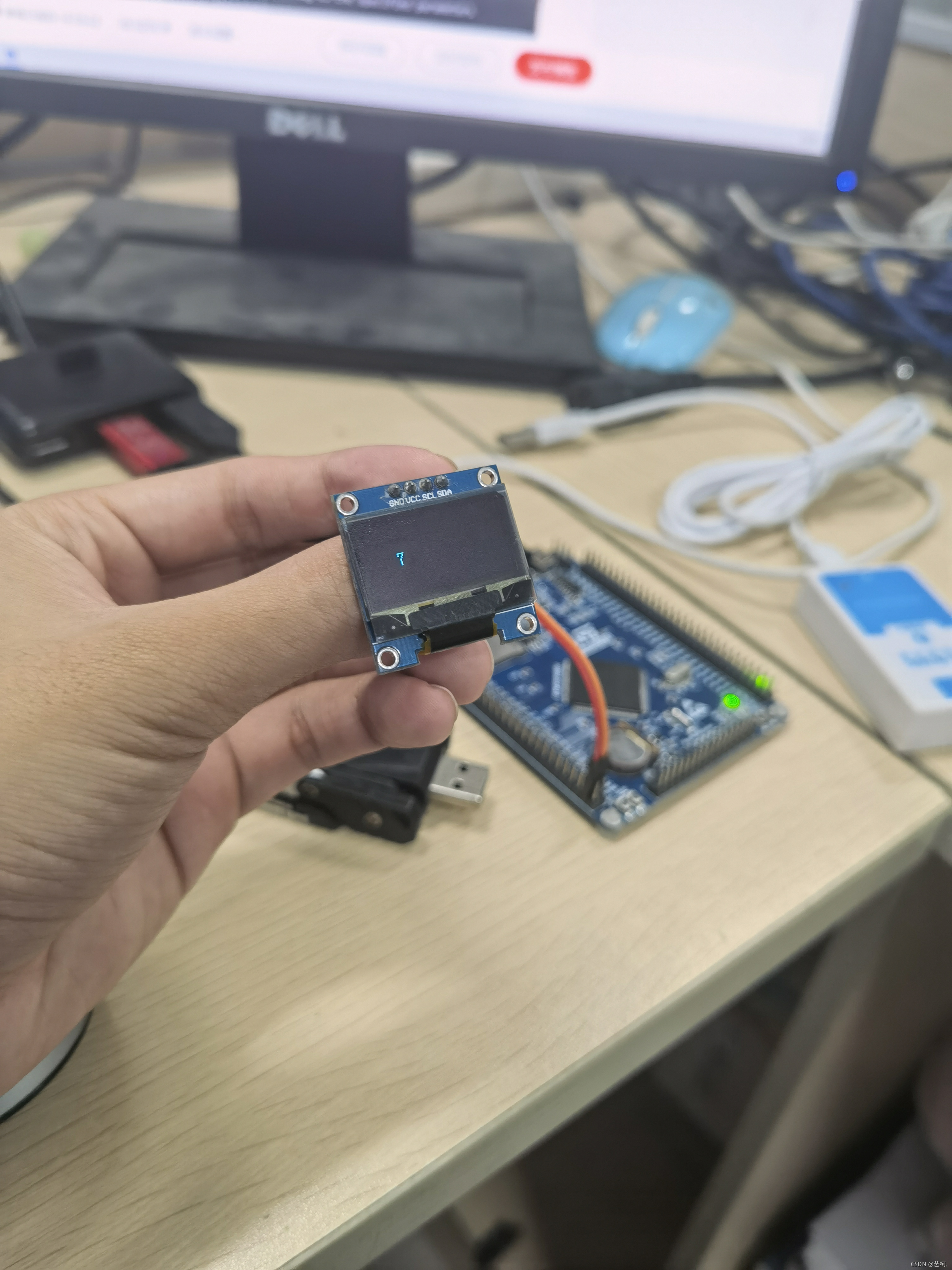

 四、效果展示

五、打印图片的方法

1、找自己喜欢的图片最好是黑白的

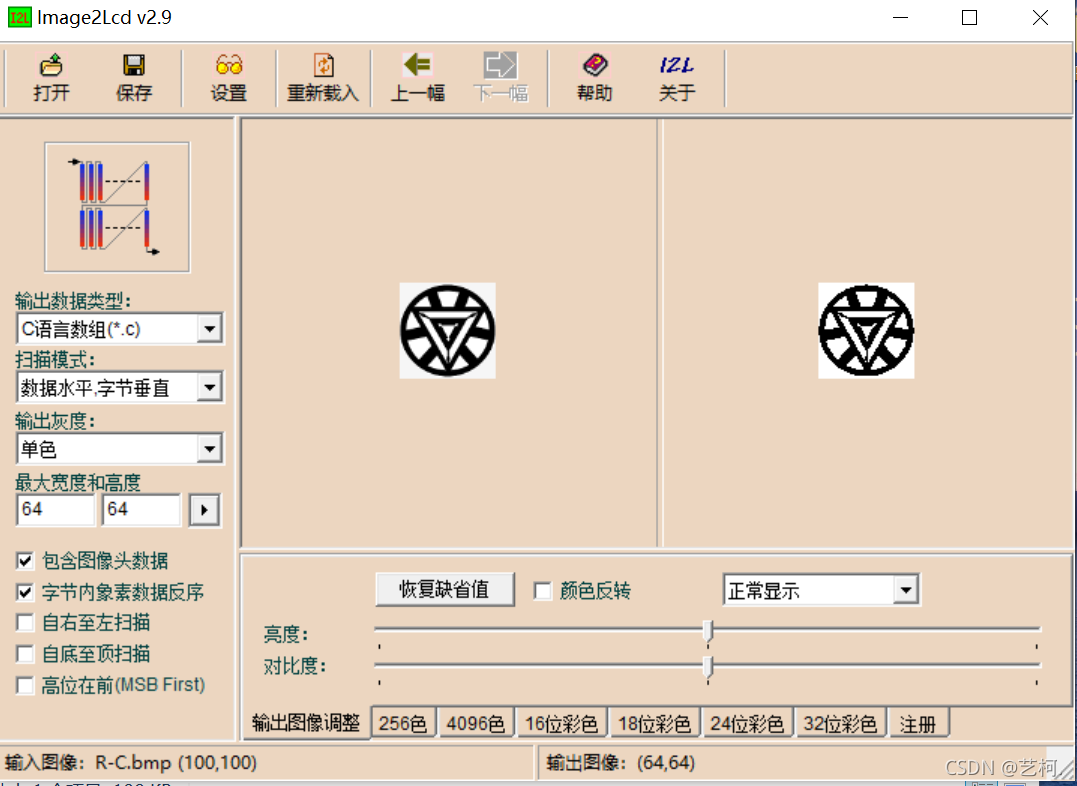

2. 用lmage2lcd将图片转化为数组代码



3. 在代码中建立数组

unsigned char BMP1[] =
{
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0XC0,
0XC0,0XE0,0XF0,0XF0,0XF0,0XF8,0XF8,0XF8,0XFC,0X3C,0X3C,0X3C,0X3C,0X3C,0X3C,0X3E,
0X3E,0X3C,0X3C,0X3C,0X3C,0X3C,0X3C,0XFC,0XF8,0XF8,0XF8,0XF0,0XF0,0XF0,0XE0,0XC0,
0XC0,0X80,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,0XF0,0XF8,0X7C,0X3E,0X1F,0X0F,0X07,0X07,
0X03,0X01,0X01,0X0F,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0XE0,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X80,0XE0,0XFC,0XFF,0XFF,0XFF,0XFF,0XFF,0X3F,0X07,0X01,0X03,
0X07,0X07,0X0F,0X1F,0X3E,0X7C,0XF8,0XF0,0XE0,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XE0,0XF8,0XFE,0XFF,0X1F,0X0F,0X0F,0X1F,0X7F,0XFF,0XFF,0XD7,0X37,0X77,
0X67,0X47,0XC7,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,
0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0XC7,0X67,
0X67,0X37,0XB7,0XFF,0XFF,0XFF,0X7F,0X1F,0X0F,0X1F,0XFF,0XFE,0XF8,0XE0,0X00,0X00,
0XE0,0XFF,0XFF,0XFF,0X9F,0X80,0X80,0X80,0X80,0X80,0XC0,0XC1,0XC7,0XDF,0XFF,0XFC,
0XF8,0XE0,0X80,0X00,0X03,0X0F,0X1F,0X7F,0XFF,0XFF,0XE7,0XEF,0XDF,0X1F,0X1F,0X1F,
0X1F,0X1F,0X1F,0X9F,0XCF,0XE7,0XF7,0XFF,0XFF,0X3F,0X1F,0X07,0X01,0X00,0XC0,0XF0,
0XF8,0XFE,0XFF,0XCF,0XC3,0XC0,0XC0,0XC0,0X80,0X80,0X80,0X9F,0XFF,0XFF,0XFF,0XC0,
0X07,0XFF,0XFF,0XFF,0XFF,0X7F,0X3F,0X3F,0X3F,0X3F,0X3F,0X1F,0X1F,0X1F,0X1F,0X0F,
0X0F,0X0F,0X1F,0X7E,0XFC,0XF0,0XC0,0X80,0X01,0X03,0X0F,0X3F,0XFF,0XFF,0XFC,0XD0,
0X80,0XF8,0XFE,0XFF,0X7F,0X1F,0X07,0X03,0X00,0X80,0XE0,0XF8,0XFC,0X3F,0X1F,0X0F,
0X0F,0X0F,0X1F,0X1F,0X1F,0X1F,0X1F,0X3F,0X3F,0X3F,0XBF,0XFF,0XFF,0XFF,0XFF,0X03,
0X00,0X00,0X07,0X1F,0X7F,0XFF,0XF8,0XF0,0XC0,0X80,0X00,0X00,0X00,0X00,0X00,0X00,
0X80,0XC0,0XE0,0XF0,0XF9,0XFF,0XFF,0XFF,0XFE,0XF8,0XE0,0XC0,0X00,0X03,0X07,0X1F,
0XFF,0X0F,0X07,0X01,0X00,0XC0,0XF0,0XF8,0XFE,0XFF,0XFF,0XFF,0XFC,0XF8,0XE0,0XC0,
0X80,0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0XF0,0XF8,0XFF,0X7F,0X1F,0X07,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X07,0X0F,0X1F,0X3E,0X7C,0XF8,0XF8,0XFC,0XFF,
0XFF,0XFF,0XFF,0X3F,0X1F,0X0F,0X07,0X03,0X01,0X01,0X07,0X1F,0X3F,0XFC,0XF8,0XEE,
0XFF,0XE0,0XF8,0XFE,0X3F,0X0F,0X07,0X01,0X01,0X03,0X07,0X0F,0X1F,0XBF,0XFF,0XFF,
0XFF,0XFF,0XFE,0XFC,0X7C,0X3E,0X1F,0X0F,0X07,0X03,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X01,0X03,
0X03,0X07,0X07,0X0F,0X0F,0X1F,0X1E,0X1E,0X3E,0X3C,0X3C,0X3C,0X3C,0X3C,0X3F,0X3F,
0X3F,0X3F,0X3F,0X3C,0X3C,0X3C,0X3C,0X3E,0X1E,0X1E,0X1F,0X0F,0X0F,0X07,0X07,0X03,
0X03,0X01,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
};

 4.调用函数

/***********功能描述：显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7*****************/
void OLED_DrawBMP(unsigned char x0, unsigned char y0,unsigned char x1, unsigned char y1,unsigned char BMP[])
{
 unsigned int j=0;
 unsigned char x,y;

  if(y1%8==0) y=y1/8;
  else y=y1/8+1;
	for(y=y0;y<y1;y++)
	{
		OLED_Set_Pos(x0,y);
    for(x=x0;x<x1;x++)
	    {
	    	OLED_WR_Byte(BMP[j++],OLED_DATA);
	    }
	}
}

5.部分代码如下：

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; Copyright (c) 2021 STMicroelectronics.
  * All rights reserved.</center></h2>
  *
  * This software component is licensed by ST under BSD 3-Clause license,
  * the "License"; You may not use this file except in compliance with the
  * License. You may obtain a copy of the License at:
  *                        opensource.org/licenses/BSD-3-Clause
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "i2c.h"
#include "gpio.h"
#include "OLED.H"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
unsigned char BMP1[] =
{
//0X32,0X01,0X00,0X40,0X00,0X40,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0XC0,
0XC0,0XE0,0XF0,0XF0,0XF0,0XF8,0XF8,0XF8,0XFC,0X3C,0X3C,0X3C,0X3C,0X3C,0X3C,0X3E,
0X3E,0X3C,0X3C,0X3C,0X3C,0X3C,0X3C,0XFC,0XF8,0XF8,0XF8,0XF0,0XF0,0XF0,0XE0,0XC0,
0XC0,0X80,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,0XF0,0XF8,0X7C,0X3E,0X1F,0X0F,0X07,0X07,
0X03,0X01,0X01,0X0F,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0XE0,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X80,0XE0,0XFC,0XFF,0XFF,0XFF,0XFF,0XFF,0X3F,0X07,0X01,0X03,
0X07,0X07,0X0F,0X1F,0X3E,0X7C,0XF8,0XF0,0XE0,0XC0,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XE0,0XF8,0XFE,0XFF,0X1F,0X0F,0X0F,0X1F,0X7F,0XFF,0XFF,0XD7,0X37,0X77,
0X67,0X47,0XC7,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,
0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0X87,0XC7,0X67,
0X67,0X37,0XB7,0XFF,0XFF,0XFF,0X7F,0X1F,0X0F,0X1F,0XFF,0XFE,0XF8,0XE0,0X00,0X00,
0XE0,0XFF,0XFF,0XFF,0X9F,0X80,0X80,0X80,0X80,0X80,0XC0,0XC1,0XC7,0XDF,0XFF,0XFC,
0XF8,0XE0,0X80,0X00,0X03,0X0F,0X1F,0X7F,0XFF,0XFF,0XE7,0XEF,0XDF,0X1F,0X1F,0X1F,
0X1F,0X1F,0X1F,0X9F,0XCF,0XE7,0XF7,0XFF,0XFF,0X3F,0X1F,0X07,0X01,0X00,0XC0,0XF0,
0XF8,0XFE,0XFF,0XCF,0XC3,0XC0,0XC0,0XC0,0X80,0X80,0X80,0X9F,0XFF,0XFF,0XFF,0XC0,
0X07,0XFF,0XFF,0XFF,0XFF,0X7F,0X3F,0X3F,0X3F,0X3F,0X3F,0X1F,0X1F,0X1F,0X1F,0X0F,
0X0F,0X0F,0X1F,0X7E,0XFC,0XF0,0XC0,0X80,0X01,0X03,0X0F,0X3F,0XFF,0XFF,0XFC,0XD0,
0X80,0XF8,0XFE,0XFF,0X7F,0X1F,0X07,0X03,0X00,0X80,0XE0,0XF8,0XFC,0X3F,0X1F,0X0F,
0X0F,0X0F,0X1F,0X1F,0X1F,0X1F,0X1F,0X3F,0X3F,0X3F,0XBF,0XFF,0XFF,0XFF,0XFF,0X03,
0X00,0X00,0X07,0X1F,0X7F,0XFF,0XF8,0XF0,0XC0,0X80,0X00,0X00,0X00,0X00,0X00,0X00,
0X80,0XC0,0XE0,0XF0,0XF9,0XFF,0XFF,0XFF,0XFE,0XF8,0XE0,0XC0,0X00,0X03,0X07,0X1F,
0XFF,0X0F,0X07,0X01,0X00,0XC0,0XF0,0XF8,0XFE,0XFF,0XFF,0XFF,0XFC,0XF8,0XE0,0XC0,
0X80,0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0XF0,0XF8,0XFF,0X7F,0X1F,0X07,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X03,0X07,0X0F,0X1F,0X3E,0X7C,0XF8,0XF8,0XFC,0XFF,
0XFF,0XFF,0XFF,0X3F,0X1F,0X0F,0X07,0X03,0X01,0X01,0X07,0X1F,0X3F,0XFC,0XF8,0XEE,
0XFF,0XE0,0XF8,0XFE,0X3F,0X0F,0X07,0X01,0X01,0X03,0X07,0X0F,0X1F,0XBF,0XFF,0XFF,
0XFF,0XFF,0XFE,0XFC,0X7C,0X3E,0X1F,0X0F,0X07,0X03,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X01,0X03,
0X03,0X07,0X07,0X0F,0X0F,0X1F,0X1E,0X1E,0X3E,0X3C,0X3C,0X3C,0X3C,0X3C,0X3F,0X3F,
0X3F,0X3F,0X3F,0X3C,0X3C,0X3C,0X3C,0X3E,0X1E,0X1E,0X1F,0X0F,0X0F,0X07,0X07,0X03,
0X03,0X01,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
};
/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_I2C1_Init();
  /* USER CODE BEGIN 2 */
OLED_Init();//oled初始化
OLED_Clear();//清除屏幕的值
OLED_DrawBMP(34,1,98,7,BMP1);
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {


    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */

  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

 6.效果如下：

7.注意事项：

注意图像起止点。可通过调节

OLED_DrawBMP(34,1,98,7,BMP1);

 中的参数来移动到自己想要的效果。

接线方法：VCC接3.3V、SCL接PB6、SDA接PB7.
