基于Docker Desktop for Windows安装Kubernetes

学习笔记 同时被 2 个专栏收录
6 篇文章 0 订阅
2 篇文章 0 订阅

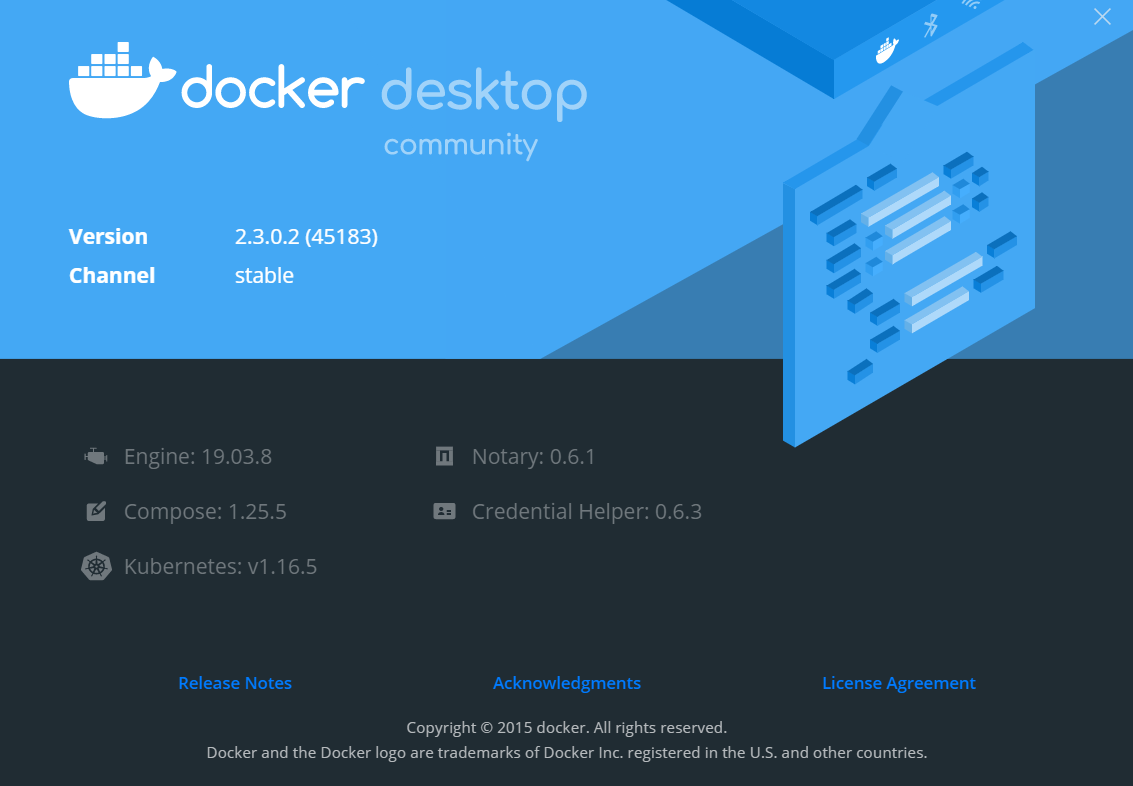

本文基于Docker Desktop for Window

1. 拉取Kubernetes镜像

在命令行中运行以下命令

git clone https://github.com/AliyunContainerService/k8s-for-docker-desktop.git

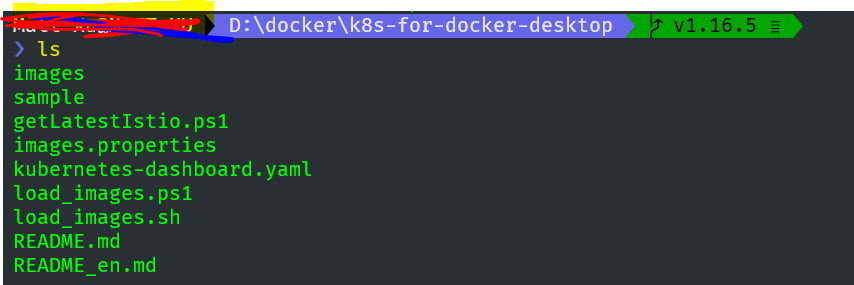

cd k8s-for-docker-desktop
git checkout v1.16.5

在当前目录中运行ps文件

.\load_images.ps1

等待镜像安装完毕

.\load_images.ps1
k8s.gcr.io/pause:3.1=registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
3.1: Pulling from google_containers/pause
Digest: sha256:759c3f0f6493093a9043cc813092290af69029699ade0e3dbe024e968fcb7cca
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/pause@sha256:759c3f0f6493093a9043cc813092290af69029699ade0e3dbe024e968fcb7cca
k8s.gcr.io/kube-controller-manager:v1.16.5=registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.16.5
v1.16.5: Pulling from google_containers/kube-controller-manager
39fafc05754f: Pull complete
4c0e8d65e19c: Pull complete
Digest: sha256:79ab7920ae0aea0e76ffef654ab1b01f9f69f5ef4369bab365b8e346bcfe2ba2
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.16.5
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager@sha256:79ab7920ae0aea0e76ffef654ab1b01f9f69f5ef4369bab365b8e346bcfe2ba2
k8s.gcr.io/kube-scheduler:v1.16.5=registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.16.5
v1.16.5: Pulling from google_containers/kube-scheduler
39fafc05754f: Already exists
1db652029d95: Pull complete
Digest: sha256:c7c3c620503e383c36bd6808c1251fbbf95ea99551fde9cc8ab2f22f2c8761ed
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.16.5
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler@sha256:c7c3c620503e383c36bd6808c1251fbbf95ea99551fde9cc8ab2f22f2c8761ed
k8s.gcr.io/kube-proxy:v1.16.5=registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.16.5
v1.16.5: Pulling from google_containers/kube-proxy
39fafc05754f: Already exists
db3f71d0eb90: Pull complete
afc046b6694a: Pull complete
Digest: sha256:92689ecd3716d024b5be394f3617859fd21edf87658a5b1e152a838868fa6c8a
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.16.5
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy@sha256:92689ecd3716d024b5be394f3617859fd21edf87658a5b1e152a838868fa6c8a
k8s.gcr.io/kube-apiserver:v1.16.5=registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.16.5
v1.16.5: Pulling from google_containers/kube-apiserver
39fafc05754f: Already exists
fdffd0d7a0bb: Pull complete
Digest: sha256:6317dc1adc837425ed01ff813ce01540e0b162977e6373b205f41d880bb3819a
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.16.5
registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.16.5
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver@sha256:6317dc1adc837425ed01ff813ce01540e0b162977e6373b205f41d880bb3819a
k8s.gcr.io/etcd:3.3.15-0=registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.3.15-0
3.3.15-0: Pulling from google_containers/etcd
39fafc05754f: Already exists
aee6f172d490: Pull complete
e6aae814a194: Pull complete
Digest: sha256:37a8acab63de5556d47bfbe76d649ae63f83ea7481584a2be0dbffb77825f692
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.3.15-0
registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.3.15-0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.3.15-0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/etcd@sha256:37a8acab63de5556d47bfbe76d649ae63f83ea7481584a2be0dbffb77825f692
k8s.gcr.io/coredns:1.6.2=registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.6.2
1.6.2: Pulling from google_containers/coredns
c6568d217a00: Pull complete
3970bc7cbb16: Pull complete
Digest: sha256:4dd4d0e5bcc9bd0e8189f6fa4d4965ffa81207d8d99d29391f28cbd1a70a0163
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.6.2
registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.6.2
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.6.2
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/coredns@sha256:4dd4d0e5bcc9bd0e8189f6fa4d4965ffa81207d8d99d29391f28cbd1a70a0163
quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.26.1=registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:0.26.1
0.26.1: Pulling from google_containers/nginx-ingress-controller
c8775c51b291: Pull complete
4fc647720de5: Pull complete
4bee7d3b55eb: Pull complete
85ee1a272ac8: Pull complete
6a37290ece43: Pull complete
cd42756652d1: Pull complete
ba0a46163f53: Pull complete
b15c3bdebd38: Pull complete
69a3d60cbd64: Pull complete
7b1f35e5645a: Pull complete
8c7b9cd15ac7: Pull complete
9021fc6169bc: Pull complete
Digest: sha256:5da1b2e84ecbdb27facbea84bc6ddc9d50145d824963230735b47828891cba7b
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:0.26.1
registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:0.26.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:0.26.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller@sha256:5da1b2e84ecbdb27facbea84bc6ddc9d50145d824963230735b47828891cba7b

使用docker images命令查看

k8s.gcr.io/kube-controller-manager                               v1.16.5                                          441835dd2301        4 months ago        151MB
k8s.gcr.io/kube-apiserver                                        v1.16.5                                          fc838b21afbb        4 months ago        159MB
k8s.gcr.io/kube-scheduler                                        v1.16.5                                          b4d073a9efda        4 months ago        83.5MB
k8s.gcr.io/kube-proxy                                            v1.16.5                                          0ee1b8a3ebe0        4 months ago        82.7MB
quay.io/kubernetes-ingress-controller/nginx-ingress-controller   0.26.1                                           29024c9c6e70        8 months ago        483MB
k8s.gcr.io/etcd                                                  3.3.15-0                                         b2756210eeab        9 months ago        247MB
k8s.gcr.io/coredns                                               1.6.2                                            bf261d157914        10 months ago       44.1MB
k8s.gcr.io/kubernetes-dashboard-amd64                            v1.10.1                                          f9aed6605b81        18 months ago       122MB
k8s.gcr.io/pause                                                 3.1                                              da86e6ba6ca1        2 years ago         742kB

2. 开启kubernetes

在桌面右下角找到docker图标,右键单击并选择settings,在左侧导航栏选择Kubernetes,勾选Enable Kubernetes进行安装

3. 设置k8s上下文

首先获取所有上下文

❯ kubectl config get-contexts
CURRENT   NAME                 CLUSTER          AUTHINFO         NAMESPACE
*         docker-desktop       docker-desktop   docker-desktop
          docker-for-desktop   docker-desktop   docker-desktop

设置上下文

❯ kubectl config use-context docker-for-desktop
Switched to context "docker-for-desktop".

4. 验证集群状态

❯ kubectl cluster-info
Kubernetes master is running at https://kubernetes.docker.internal:6443
KubeDNS is running at https://kubernetes.docker.internal:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.

❯ kubectl get nodes
NAME             STATUS   ROLES    AGE     VERSION
docker-desktop   Ready    master   3m34s   v1.16.6-beta.0

5. 安装k8s管理页面Dashboard

#方式1
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml

#方式2(推荐)
kubectl create -f kubernetes-dashboard.yaml

输出如下

❯ kubectl create -f kubernetes-dashboard.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created

使用命令重新安装

kubectl delete -f kubernetes-dashboard.yaml
kubectl create -f kubernetes-dashboard.yaml

查看Dashboard镜像是否正常运行

❯ kubectl get pods --all-namespaces
NAMESPACE              NAME                                         READY   STATUS    RESTARTS   AGE
docker                 compose-78f95d4f8c-pgzw7                     1/1     Running   0          16m
docker                 compose-api-6ffb89dc58-2g9mc                 1/1     Running   0          16m
kube-system            coredns-5644d7b6d9-7hbnd                     1/1     Running   0          18m
kube-system            coredns-5644d7b6d9-x6g9s                     1/1     Running   0          18m
kube-system            etcd-docker-desktop                          1/1     Running   0          17m
kube-system            kube-apiserver-docker-desktop                1/1     Running   0          17m
kube-system            kube-controller-manager-docker-desktop       1/1     Running   0          16m
kube-system            kube-proxy-5k99f                             1/1     Running   0          18m
kube-system            kube-scheduler-docker-desktop                1/1     Running   0          17m
kube-system            storage-provisioner                          1/1     Running   0          16m
kube-system            vpnkit-controller                            1/1     Running   0          16m
kubernetes-dashboard   dashboard-metrics-scraper-7b8b58dc8b-tprhd   1/1     Running   0          4m12s
kubernetes-dashboard   kubernetes-dashboard-866f987876-vzgwc        1/1     Running   0          4m12s

6. 访问Kubernetes Dashboard

使用kubectl proxy命令访问

❯ kubectl proxy
Starting to serve on 127.0.0.1:8001

打开浏览器输入以下地址访问

http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy

7. 配置访问权限

1、创建服务账号

首先创建一个叫admin-user的服务账号,并放在kubernetes-dashboard命名空间下。

# 创建文件
New-Item admin-user.yaml

文件内容如下

# admin-user.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

执行kubectl create命令

kubectl create -f admin-user.yaml

2、绑定角色

默认情况下,kubeadm创建集群时已经创建了admin角色,我们直接绑定即可:
使用命令

New-Item admin-user-role-binding.yaml

文件内容如下

# admin-user-role-binding.yaml
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

执行kubectl create命令

kubectl create -f admin-user-role-binding.yaml

3、获取Token

执行命令

$ kubectl -n kubernetes-dashboard   describe secret $(kubectl -n kubernetes-dashboard  get secret | grep admin-user | awk '{print $1}')

输出如下

$ kubectl -n kubernetes-dashboard   describe secret $(kubectl -n kubernetes-dashboard  get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-sdpp5
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: c76d7b9e-f2b1-4649-afe3-4bcee72c812e

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IjIxZmRHZC1GeVplX1ktWWVfdTZNR3NGZ29qRnEyV0ZveUV0c1RxLW02ZXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXNkcHA1Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJjNzZkN2I5ZS1mMmIxLTQ2NDktYWZlMy00YmNlZTcyYzgxMmUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.Cmoh9ZQLlI9aG7_ZP13Gts2Uh4qVL28dbLKR9Rw1Q7u18zDxS4uFAT4i2LoXTnTYgS1rxK-O5D1ks68Qg1fXbYlhFTjur0FJUF--P5h4YjZzVZ2VaNWxgFcOGt4KR1x29i9NiQshUmgY-ULBe0KtRfSgs8zcfK07fnb5l86udxbisEpmVXD7msIBptmvubldYttgbgjF4s0dzL9paajDU8t5DuUmB7oabDUKYRAAHehKU8oIOXknpvAaB-fpvk6c6RLhMoPIpnLzS2UKpLRCEMUysIniq34DPH68mdH8NxBWfVWkG8JSGLJ5GinQQfJGAsyQIf7E0BEB6RoEibW3Ww

把Token复制到登录界面的Token输入框中登录后如下:

大功告成!
