Qt使用QWidget创建自己想要的控件
Qt使用QWidget创建自己想要的控件
我们都知道,如果仅仅是使用Qt给我们提供的控件的话,很多功能是无法实现我们自己的需求的,而却界面上的美观程度也是不一样的,因此我们就需要自己来设置自己想要的控件的形状等。做一个控件,无外乎他的外观和交互,这要把这两部份写好了,我们的任务就算完成了。自己定义的控件又分为两种,一种是对原有的控件进行修改,来满足需求,这种的好处是,原来控件带有的交互还是有的,不需要我们额外的再写交互。另外一种就是直接继承于QWidget这个类,这就需要我们对控件的界面设计和事件的交互重新写。因此在这之前,必须对Qt给我们提供的界面的类有一定的了解。可以查看我之前写过的文章,简单介绍了一个类的作用。
比如QLineEdit这个常用的控件也是继承于QWidget,可以查看一下这个类是怎么写的,对于帮助我们自己构建自己的类是很有帮助的。可以通多这个链接。
在写自己想要自定义的控件的时候,我们是需要根据自己的需求对界面设计和交互事件写对应的代码。
写自定义控件的步骤
比如自己控件类为MyControl,达成的目标是可以显示图片,并显示信息,可以移动,图片来回切换显示,实现闪烁。
1。继承于QWidget。对类中的信息进行补充,完成我们的元对象系统。
如QLineEdit:
class Q_WIDGETS_EXPORT QLineEdit : public QWidget
{
Q_OBJECT
Q_PROPERTY(QString inputMask READ inputMask WRITE setInputMask)
Q_PROPERTY(QString text READ text WRITE setText NOTIFY textChanged USER true)
Q_PROPERTY(int maxLength READ maxLength WRITE setMaxLength)
Q_PROPERTY(bool frame READ hasFrame WRITE setFrame)
Q_PROPERTY(EchoMode echoMode READ echoMode WRITE setEchoMode)
Q_PROPERTY(QString displayText READ displayText)
Q_PROPERTY(int cursorPosition READ cursorPosition WRITE setCursorPosition)
Q_PROPERTY(Qt::Alignment alignment READ alignment WRITE setAlignment)
Q_PROPERTY(bool modified READ isModified WRITE setModified DESIGNABLE false)
Q_PROPERTY(bool hasSelectedText READ hasSelectedText)
Q_PROPERTY(QString selectedText READ selectedText)
Q_PROPERTY(bool dragEnabled READ dragEnabled WRITE setDragEnabled)
Q_PROPERTY(bool readOnly READ isReadOnly WRITE setReadOnly)
Q_PROPERTY(bool undoAvailable READ isUndoAvailable)
Q_PROPERTY(bool redoAvailable READ isRedoAvailable)
Q_PROPERTY(bool acceptableInput READ hasAcceptableInput)
Q_PROPERTY(QString placeholderText READ placeholderText WRITE setPlaceholderText)
Q_PROPERTY(Qt::CursorMoveStyle cursorMoveStyle READ cursorMoveStyle WRITE setCursorMoveStyle)
Q_PROPERTY(bool clearButtonEnabled READ isClearButtonEnabled WRITE setClearButtonEnabled)
......
}
2。由于我们要用到信息和槽,需要我们增加宏Q_OBJECT
3。根据自己想要的功能(达成的目标是可以显示图片,并显示信息,可以移动,图片来回切换显示,实现闪烁),定义属性信息。
4。提供函数功能,能够对我们的这个控件的信息进行修改。
5。一定要重写void paintEvent(QPaintEvent *)函数。这个是对我们控件的界面进行设置的,要使用Qt给我们提供的QPainter类,画出自己的控件。
6。就是实现自己的交互。交互这一块,我们根据功能,可以通过信号与槽来实现对应的功能。
整体上看,就是我们对这个类的封装的技巧了。
自定义–带有按键的Qlabel
需求:想在状态栏显示文字并带有按键。这个是控件的组合来达到自定义控件。
并且按键也能有自己对应的事情处理机制。简单的设置了一下。

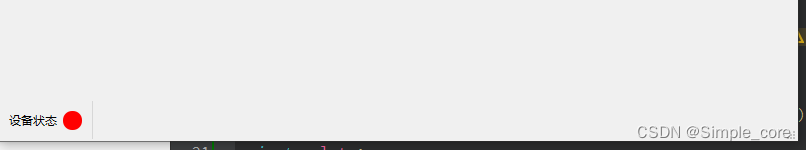

效果:
源代码:
#ifndef FORM_H
#define FORM_H
#include <QWidget>
namespace Ui {
class Form;
}
class Form : public QWidget
{
Q_OBJECT
enum ButtonColor{RED,GREEN};
public:
explicit Form(QWidget *parent = nullptr);
~Form();
void setText(const QString text);
void setButtonColor(ButtonColor color=RED);
void setTextAndButton(const QString text,ButtonColor color);
private slots:
void on_toolButton_triggered(QAction *arg1);
void on_toolButton_clicked();
private:
Ui::Form *ui;
QStringList m_listColor;
};
#endif // FORM_H
cpp文件:
#include "form.h"
#include "ui_form.h"
#include <QDebug>
Form::Form(QWidget *parent) :
QWidget(parent),
ui(new Ui::Form)
{
ui->setupUi(this);
QString green="QToolButton { border-radius:9px;background-color: rgb(85, 255, 0);}"
"QToolButton:pressed {border-width:3;border-color:orange;border-style:solid;;background-color: rgb(255, 255, 255);}";
QString red="QToolButton { border-radius:9px; background-color: rgb(255, 0, 0);}"
"QToolButton:pressed {border-width:3;border-color:orange;border-style:solid;;background-color: rgb(255, 255, 255);}";
m_listColor.push_back(red);
m_listColor.push_back(green);
//设置开始默认颜色
setButtonColor();
}
Form::~Form()
{
delete ui;
}
void Form::on_toolButton_triggered(QAction *arg1)
{
qDebug()<<u8"点击了按键";
}
void Form::on_toolButton_clicked()
{
qDebug()<<u8"点击了按键";
//ui->toolButton->setStyleSheet("QToolButton{border-radius:9px;background-color: rgb(255, 0, 0);}");
QString str="QToolButton {border-radius:9px; background-color: rgb(255, 0, 0);background-color: rgb(85, 255, 0);}"
"QToolButton::pressed {color:orange;border-width:3;border-color:orange;border-style:solid;;background-color: rgb(255, 255, 255);}}";
ui->toolButton->setStyleSheet(str);
}
void Form::setText(const QString text)
{
ui->label->setText(text);
}
void Form::setButtonColor(ButtonColor color)
{
ui->toolButton->setStyleSheet(m_listColor[color]);
qDebug()<<m_listColor[color];
}
void Form::setTextAndButton(const QString text,ButtonColor color)
{
setText(text);
setButtonColor(color);
}
