SAP ABAP通过代码解锁SM12中被锁定目标

---

需求

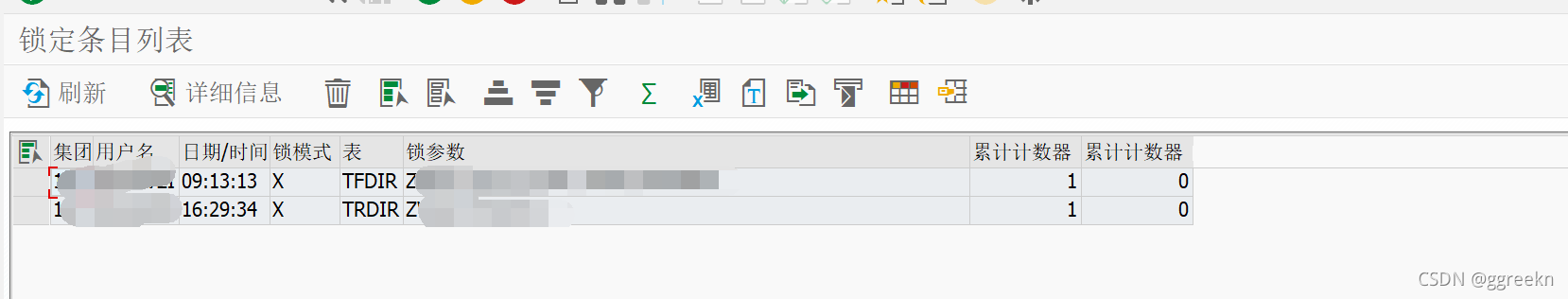

通过代码解锁SM12中被锁定目标

---

一、如果是普通锁

garg为对象的名字，可以是锁参数的部分内容

LT_ENQ参考结构seqg3
LT_RAW_ENQ参考结构seqg7

二、如果是BOBF:DB_KEY的标准锁

1. 加锁与解锁

代码如下（示例）：

BOBF标准锁一般采用以下方法加解锁 （锁的持有是从调用锁定函数后至程序退出前）

*  加锁
  DATA:iv_key type /BOBF/CONF_KEY.
  CALL FUNCTION 'ENQUEUE_/BOBF/E_LIB_2'
    EXPORTING
      mode_/bobf/s_lib_enqueue_node = 'E'
      mandt                         = sy-mandt
      bo_name                       = ztest=>sc_bo_name
      key                           = iv_key
*     X_BO_NAME                     = ' '
      x_key                         = 'X'
      x_key2                        = 'X'
      x_node_name                   = 'X'
      _scope                        = '3'
*     _WAIT                         = ' '
*     _COLLECT                      = ' '
    EXCEPTIONS
      foreign_lock                  = 1
      system_failure                = 2
      OTHERS                        = 3.
  IF sy-subrc EQ 0.
  ENDIF.

*解锁
          CALL FUNCTION 'DEQUEUE_/BOBF/E_LIB_2'
          EXPORTING
            mode_/bobf/s_lib_enqueue_node = 'E'
            mandt                         = sy-mandt
            bo_name                       = ztest=>sc_bo_name
            key                           = ls_key-db_key
*           X_BO_NAME                     = ' '
*           X_KEY                         = ' '
*           _SCOPE                        = '3'
*           _SYNCHRON                     = 'X'
*           _COLLECT                      = ' '
          .

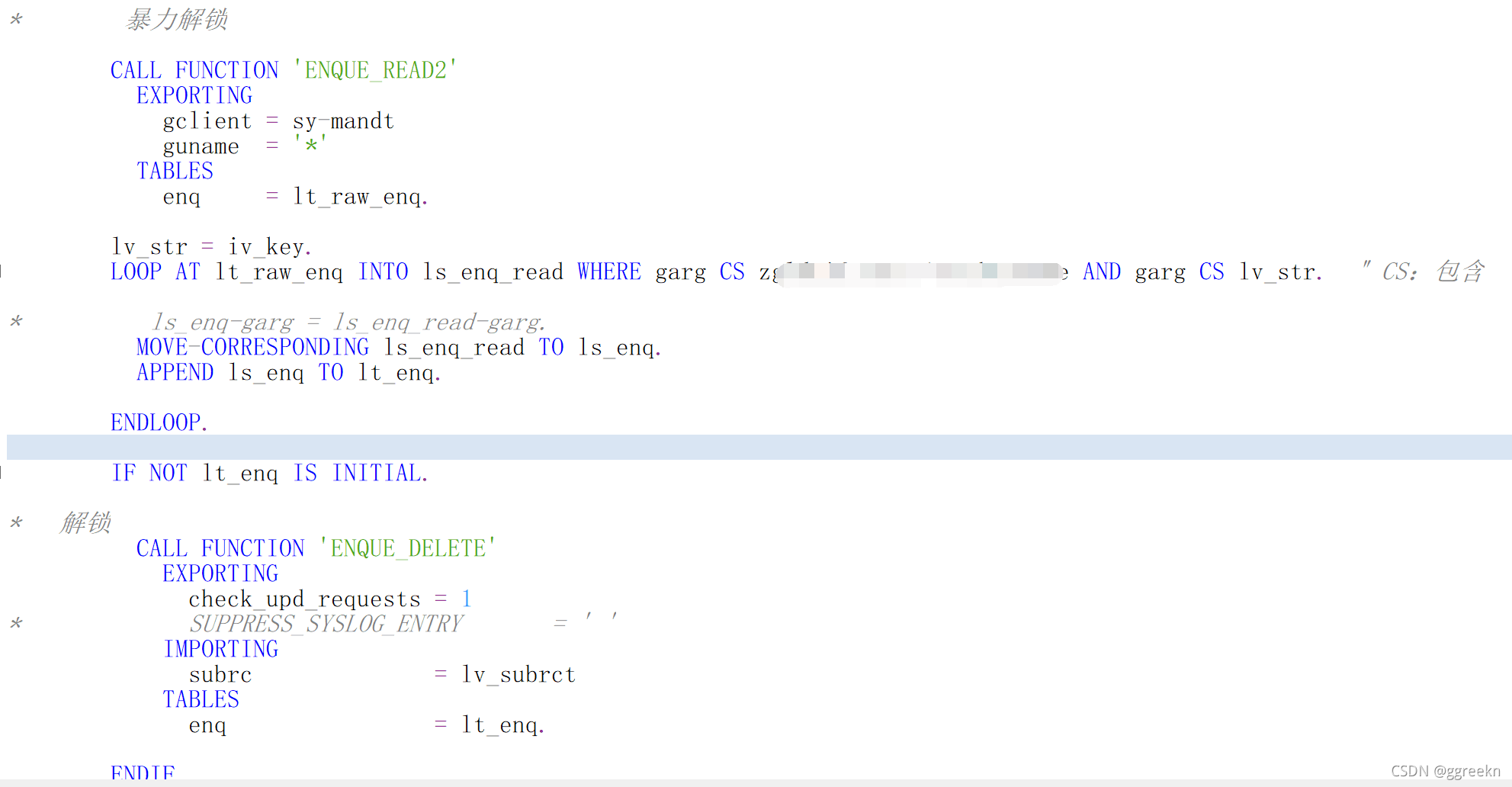

2. 读取与解锁

读需要的锁并解除锁定 (已知KEY值)

DATA:
  lt_enq      TYPE STANDARD TABLE OF seqg3,
  lv_subrct   TYPE 					 sy-subrc,
  lv_garg     TYPE                   seqg3-garg,
  ls_enq      TYPE                   seqg3.

  	lv_garg(3) = sy-mandt.
    lv_garg+3(30) = ztest=>sc_bo_name.
    lv_garg+33 = db_key.
    lv_garg+95 = '00000000000000000000000000000000'.

* 读取锁
        CALL FUNCTION 'ENQUEUE_READ'
          EXPORTING
            garg                  = lv_garg
          TABLES
            enq                   = lt_enq
          EXCEPTIONS
            communication_failure = 1
            system_failure        = 2
            OTHERS                = 3.
        IF sy-subrc = 0.

*        解锁
          CALL FUNCTION 'ENQUE_DELETE'
            EXPORTING
              check_upd_requests = 1
*             SUPPRESS_SYSLOG_ENTRY       = ' '
            IMPORTING
              subrc              = lv_subrct
            TABLES
              enq                = lt_enq.

        ENDIF.

希望对你有所帮助

---
