aws msk加密方式和问控制连接方式

msk加密方式

msk提供了两种加密方式

• 静态加密
• 传输中加密

创建集群时可以指定加密方式，参数如下

aws kafka create-cluster --cluster-name "ExampleClusterName" --broker-node-group-info file://brokernodegroupinfo.json --encryption-info file://encryptioninfo.json --kafka-version "{YOUR MSK VERSION}" --number-of-broker-nodes 3

// encryptioninfo.json
{
   "EncryptionAtRest": {
       "DataVolumeKMSKeyId": "arn:aws:kms:us-east-1:123456789012:key/abcdabcd-1234-abcd-1234-abcd123e8e8e"
    },
   "EncryptionInTransit": {
        "InCluster": true,
        "ClientBroker": "TLS"
    }
}

查看证书位置

$ pwd
/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.372.b07-1.amzn2.0.1.x86_64/jre/lib/security
$ ls -al ../../../../../../../etc/pki/java/cacerts
lrwxrwxrwx 1 root root 40 May  8 09:44 ../../../../../../../etc/pki/java/cacerts -> /etc/pki/ca-trust/extracted/java/cacerts
$ cp /etc/pki/ca-trust/extracted/java/cacerts /tmp/kafka.client.truststore.jks

测试tls加密，创建client.properties

security.protocol=SSL
ssl.truststore.location=/tmp/kafka.client.truststore.jks

列出端点

$ aws kafka get-bootstrap-brokers --cluster-arn arn:aws-cn:kafka:cn-north-1:037047667284:cluster/mytest/93d5cf51-9e82-4049-a4bc-cefb6bd61716-3
{
    "BootstrapBrokerString": "b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092,b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092,b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092",
    "BootstrapBrokerStringTls": "b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9094,b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9094,b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9094",
    "BootstrapBrokerStringSaslScram": "b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9096,b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9096,b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9096",
    "BootstrapBrokerStringSaslIam": "b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098,b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098,b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098"
}

测试tls连接

$ ./kafka-topics.sh --bootstrap-server b-2.test320t.ivec50.c3.kafka.cn-north-1.amazonaws.com.cn:9094,b-1.test320t.ivec50.c3.kafka.cn-north-1.amazonaws.com.cn:9094 --command-config client.properties --list
__amazon_msk_canary
__consumer_offsets
first

# 连接string端点报错
$ ./kafka-topics.sh --bootstrap-server b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092 --command-config client.properties --list

[2023-07-20 12:40:04,944] WARN [AdminClient clientId=adminclient-1] Connection to node -1 (b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn/172.31.28.80:9092) terminated during authentication. This may happen due to any of the following reasons: (1) Authentication failed due to invalid credentials with brokers older than 1.0.0, (2) Firewall blocking Kafka TLS traffic (eg it may only allow HTTPS traffic), (3) Transient network issue. (org.apache.kafka.clients.NetworkClient)

指定iam的客户端配置，之后连接tls端口会报错

• 可见这个tls broker连接仅仅是给Unauthenticated用的，并且如果开了iam认证会失败

./kafka-topics.sh --bootstrap-server b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9094 --command-config client.properties --list

[2023-07-20 12:26:31,401] ERROR [AdminClient clientId=adminclient-1] Connection to node -1 (b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn/172.31.14.174:9094) failed authentication due to: Unexpected handshake request with client mechanism AWS_MSK_IAM, enabled mechanisms are [] (org.apache.kafka.clients.NetworkClient)
[2023-07-20 12:26:31,403] WARN [AdminClient clientId=adminclient-1] Metadata update failed due to authentication error (org.apache.kafka.clients.admin.internals.AdminMetadataManager)

msk访问控制

https://docs.amazonaws.cn/msk/latest/developerguide/kafka_apis_iam.html

kafka客户端配置，https://kafka.apache.org/documentation/#security_configclients

msk可选的访问控制/加密组合如下，访问控制方式决定了能够选择的加密方式

Authentication	Client-broker encryption options	Broker-broker encryption
Unauthenticated	TLS, PLAINTEXT, TLS_PLAINTEXT	Can be on or off
mTLS	TLS, TLS_PLAINTEXT	Must be on
SASL/SCRAM	TLS	Must be on
SASL/IAM	TLS	Must be on

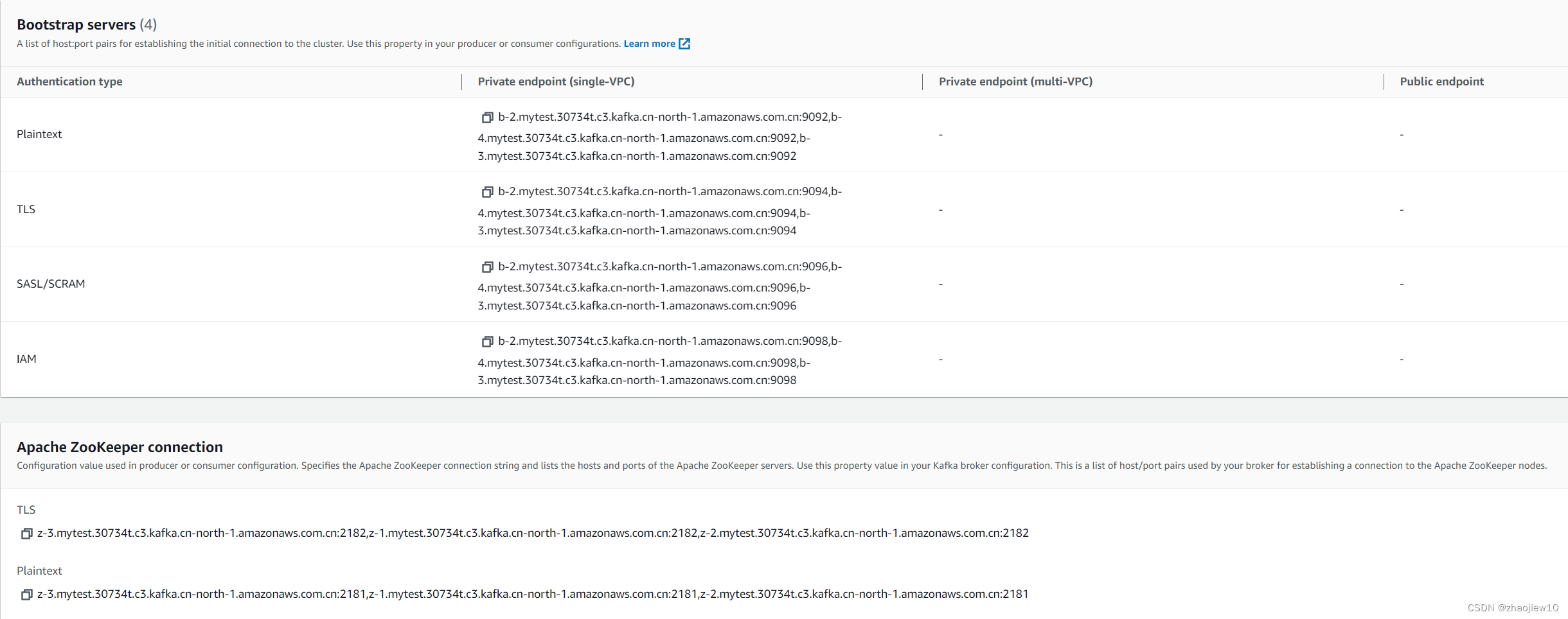

集群完毕后提供了多种连接终端节点

端口信息，https://docs.amazonaws.cn/en_us/msk/latest/developerguide/port-info.html

plaintext

采取Unauthenticated方式，客户端使用PLAINTEXT

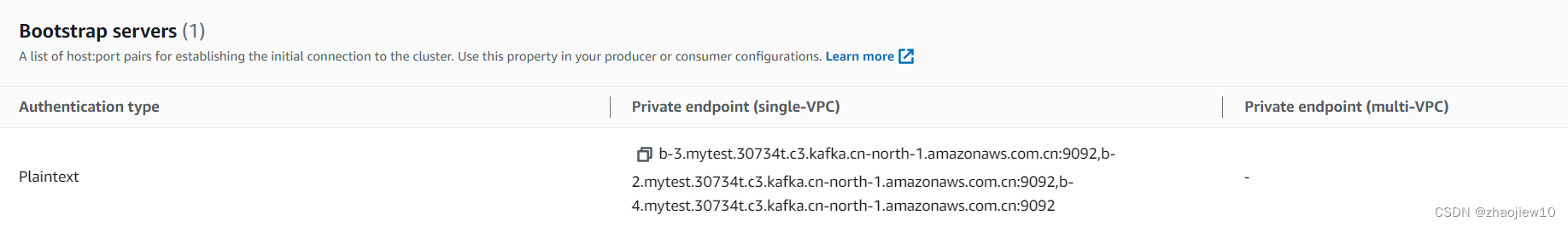

查找bootstrap-server端点

（可选）在bin/client.properties中加入客户端配置

security.protocol=PLAINTEXT

测试连接，不需要特意配置tls连接

./bin/kafka-topics.sh --bootstrap-server b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092,b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092,b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9092 --list

java客户端开启ssl连接

// 开启 tls 连接
properties.put("security.protocol", "SSL");
properties.put("sasl.mechanism", "SCRAM-SHA-512");

// 创建kafka对象
KafkaProducer<String, String> kafkaProducer = new KafkaProducer<>(properties);

IAM认证

msk对kafka的源码进行了修改，允许使用iam进行认证，访问事件会发送到cloudtrail中。注意事项

• 不适用于zk节点

• 开启iam认证后，allow.everyone.if.no.acl.found配置无效

• 使用iam认证后创建的kafka acl（存储在zk中），对iam认证无效

• client和broker之间必须启用tls加密

• 和连接kafka相关的权限以kafka-cluster作为前缀，https://docs.amazonaws.cn/en_us/msk/latest/developerguide/iam-access-control.html

• 需要使用9098和9198端口

shell连接

需要在客户端配置如下参数

# config/client.properties
# ssl.truststore.location=<PATH_TO_TRUST_STORE_FILE> # if don't specify a value for ssl.truststore.location, the Java process uses the default certificate.
security.protocol=SASL_SSL
sasl.mechanism=AWS_MSK_IAM
sasl.jaas.config=software.amazon.msk.auth.iam.IAMLoginModule required;
sasl.client.callback.handler.class=software.amazon.msk.auth.iam.IAMClientCallbackHandler
awsProfileName="admin";

下载客户端依赖jar到/libs目录下

https://github.com/aws/aws-msk-iam-auth/releases

aws s3 cp s3://zhaojiew/software/aws-msk-iam-auth-1.1.7-all.jar .

测试连接

./bin/kafka-topics.sh --bootstrap-server b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098 --list

可能出现以下报错

./bin/kafka-topics.sh --bootstrap-server b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098 --list                     Error while executing topic command : Call(callName=listTopics, deadlineMs=1689850718887, tries=1, nextAllowedTryMs=-9223372036854775709) timed out at 9223372036854775807 after 1 attempt(s)
[2023-07-20 10:57:39,293] ERROR org.apache.kafka.common.errors.TimeoutException: Call(callName=listTopics, deadlineMs=1689850718887, tries=1, nextAllowedTryMs=-9223372036854775709) timed out at 9223372036854775807 after 1 attempt(s)
Caused by: org.apache.kafka.common.errors.TimeoutException: The AdminClient thread has exited. Call: listTopics
 (kafka.admin.TopicCommand$)
[2023-07-20 10:57:39,316] ERROR Uncaught exception in thread 'kafka-admin-client-thread | adminclient-1': (org.apache.kafka.common.utils.KafkaThread)
java.lang.OutOfMemoryError: Java heap space
        at java.nio.HeapByteBuffer.<init>(HeapByteBuffer.java:57)
        at java.nio.ByteBuffer.allocate(ByteBuffer.java:335)
        at org.apache.kafka.common.memory.MemoryPool$1.tryAllocate(MemoryPool.java:30)
        at org.apache.kafka.common.network.NetworkReceive.readFrom(NetworkReceive.java:113)
        at org.apache.kafka.common.network.KafkaChannel.receive(KafkaChannel.java:452)
        at org.apache.kafka.common.network.KafkaChannel.read(KafkaChannel.java:402)
        at org.apache.kafka.common.network.Selector.attemptRead(Selector.java:674)
        at org.apache.kafka.common.network.Selector.pollSelectionKeys(Selector.java:576)
        at org.apache.kafka.common.network.Selector.poll(Selector.java:481)
        at org.apache.kafka.clients.NetworkClient.poll(NetworkClient.java:561)
        at org.apache.kafka.clients.admin.KafkaAdminClient$AdminClientRunnable.processRequests(KafkaAdminClient.java:1333)
        at org.apache.kafka.clients.admin.KafkaAdminClient$AdminClientRunnable.run(KafkaAdminClient.java:1264)
        at java.lang.Thread.run(Thread.java:750)

指定client配置后成功连接

• .aws/config中的profile需要写成[profile prod]

./kafka-topics.sh --bootstrap-server b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098  --command-config client.properties --list
[2023-07-20 11:21:06,517] WARN The configuration 'awsProfileName' was supplied but isn't a known config. (org.apache.kafka.clients.admin.AdminClientConfig)
__amazon_msk_canary
__consumer_offsets

创建topic

./kafka-topics.sh --bootstrap-server b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098  --command-config client.properties --topic first --create --partitions 2 --replication-factor 2

发送消息

./kafka-console-producer.sh --bootstrap-server b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098  --producer.config client.properties --topic first

消费信息

./kafka-console-consumer.sh --bootstrap-server b-1.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098 --consumer.config client.properties --from-beginning --topic first

java代码连接

加入依赖

<dependency>
 <groupId>software.amazon.msk</groupId>
 <artifactId>aws-msk-iam-auth</artifactId>
 <version>1.0.0</version>
</dependency>

// 完整配置
properties.put("security.protocol", "SASL_SSL");
properties.put("sasl.mechanism", "AWS_MSK_IAM");
properties.put("sasl.jaas.config", "software.amazon.msk.auth.iam.IAMLoginModule required;");
properties.put("sasl.client.callback.handler.class",IAMClientCallbackHandler.class.getName());
properties.put("awsProfileName","admin");

相关报错

// 没有导上面包的报错如下
Caused by: org.apache.kafka.common.KafkaException: javax.security.auth.login.LoginException: No LoginModule found for software.amazon.msk.auth.iam.IAMLoginModule
        at org.apache.kafka.common.network.SaslChannelBuilder.configure(SaslChannelBuilder.java:184)
        at org.apache.kafka.common.network.ChannelBuilders.create(ChannelBuilders.java:192)
        at org.apache.kafka.common.network.ChannelBuilders.clientChannelBuilder(ChannelBuilders.java:81)
        at org.apache.kafka.clients.ClientUtils.createChannelBuilder(ClientUtils.java:105)
        at org.apache.kafka.clients.producer.KafkaProducer.newSender(KafkaProducer.java:448)
        at org.apache.kafka.clients.producer.KafkaProducer.<init>(KafkaProducer.java:429)
        ... 4 more

// 如果没有找到凭证
[kafka-producer-network-thread | producer-1] WARN org.apache.kafka.clients.NetworkClient - [Producer clientId=producer-1] Bootstrap broker b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9098 (id: -1 rack: null) disconnected
[kafka-producer-network-thread | producer-1] INFO org.apache.kafka.common.network.Selector - [Producer clientId=producer-1] Failed authentication with b-4.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn/172.31.28.80 (An error: (java.security.PrivilegedActionException: javax.security.sasl.SaslException: Failed to find AWS IAM Credentials [Caused by com.amazonaws.SdkClientException: Unable to load AWS credentials from any provider in the chain: [com.amazonaws.auth.DefaultAWSCredentialsProviderChain@7e8d5309: Unable to load AWS credentials from any provider in the chain: [EnvironmentVariableCredentialsProvider: Unable to load AWS credentials from environment variables (AWS_ACCESS_KEY_ID (or AWS_ACCESS_KEY) and AWS_SECRET_KEY (or AWS_SECRET_ACCESS_KEY)), SystemPropertiesCredentialsProvider: Unable to load AWS credentials from Java system properties (aws.accessKeyId and aws.secretKey), WebIdentityTokenCredentialsProvider: To use assume role profiles the aws-java-sdk-sts module must be on the class path.,

mTLS

目前中国区不可用，需要依赖于Private CA

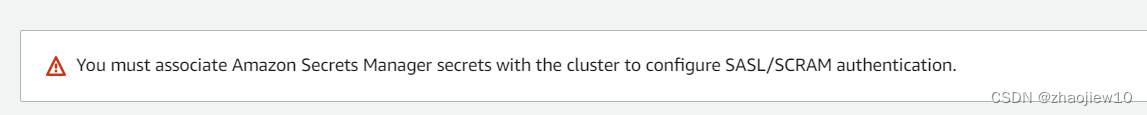

SASL/SCRAM

https://docs.amazonaws.cn/en_us/msk/latest/developerguide/msk-password.html

使用secret manager保存username和password

创建secret

• 名称必须以AmazonMSK_开头

• 不能使用默认kms加密secret



• 密钥内容必须为以下格式

  {
    "username": "alice",
    "password": "alice-secret"
  }




shell连接

创建配置文件users_jaas.conf，导出为环境变量

# KafkaClient首字母大写
cat > /tmp/users_jaas.conf << EOF
KafkaClient {
   org.apache.kafka.common.security.scram.ScramLoginModule required
   username="alice"
   password="alice-secret";
};
EOF

export KAFKA_OPTS=-Djava.security.auth.login.config=/tmp/users_jaas.conf

bin目录下创建客户端配置文件

cat > client_sasl.properties << EOF
security.protocol=SASL_SSL
sasl.mechanism=SCRAM-SHA-512
ssl.truststore.location=/tmp/kafka.client.truststore.jks
EOF

链接集群

./kafka-topics.sh --bootstrap-server b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn:9096  --command-config client_sasl.properties --list

相关报错

# 密码错误
[2023-07-21 09:40:44,467] ERROR [AdminClient clientId=adminclient-1] Connection to node -1 (b-2.mytest.30734t.c3.kafka.cn-north-1.amazonaws.com.cn/172.31.23.61:9096) failed authentication due to: Authentication failed during authentication due to invalid credentials with SASL mechanism SCRAM-SHA-512

java代码连接

java代码连接配置

System.setProperty("java.security.auth.login.config", "/tmp/users_jaas.conf");
properties.put("security.protocol", "SASL_SSL");
properties.put("sasl.mechanism", "SCRAM-SHA-512"); //仅支持SCRAM-SHA-512
