（源码版本：android-29）
为了更好地理解Choreographer，建议先读看下这篇文章：Android的16ms和垂直同步以及三重缓存
说道View的绘制流程，平时用的最多的就是View的onMeasure、onLayout、onDraw三组相关的方法，都2021年了，行业这么卷，相信大家都用的滚瓜烂熟了。让我们深入一点。
debug的时候，在这些方法中打断点可以看到在调用栈中，是ViewRootImpl触发了这些方法。
ViewRootImpl中，持有了View的成员mView，ViewRootImpl对View的直接调用是通过以下方法：
measure方法在performMeasure中：
private void performMeasure(int childWidthMeasureSpec, int childHeightMeasureSpec) {
if (mView == null) {
return;
}
Trace.traceBegin(Trace.TRACE_TAG_VIEW, "measure");
try {
mView.measure(childWidthMeasureSpec, childHeightMeasureSpec);
} finally {
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
}而performMeasure方法被measureHierarchy、performTraversal两个方法调用。
layout方法在performLayout方法中被调用：
private void performLayout(WindowManager.LayoutParams lp, int desiredWindowWidth,
int desiredWindowHeight) {
mLayoutRequested = false;
mScrollMayChange = true;
mInLayout = true;
final View host = mView;
if (host == null) {
return;
}
if (DEBUG_ORIENTATION || DEBUG_LAYOUT) {
Log.v(mTag, "Laying out " + host + " to (" +
host.getMeasuredWidth() + ", " + host.getMeasuredHeight() + ")");
}
Trace.traceBegin(Trace.TRACE_TAG_VIEW, "layout");
try {
host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());
mInLayout = false;
int numViewsRequestingLayout = mLayoutRequesters.size();
if (numViewsRequestingLayout > 0) {
// requestLayout() was called during layout.
// If no layout-request flags are set on the requesting views, there is no problem.
// If some requests are still pending, then we need to clear those flags and do
// a full request/measure/layout pass to handle this situation.
ArrayList<View> validLayoutRequesters = getValidLayoutRequesters(mLayoutRequesters,
false);
if (validLayoutRequesters != null) {
// 省略一些代码
host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());
// 省略一些代码
}
}
} finally {
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
mInLayout = false;
}可以看到View的layout方法在两个地方被调用，而performLayout方法被performTraversal方法调用。
draw方法在drawSoftware方法中：
if (DEBUG_DRAW) {
Context cxt = mView.getContext();
Log.i(mTag, "Drawing: package:" + cxt.getPackageName() +
", metrics=" + cxt.getResources().getDisplayMetrics() +
", compatibilityInfo=" + cxt.getResources().getCompatibilityInfo());
}
canvas.translate(-xoff, -yoff);
if (mTranslator != null) {
mTranslator.translateCanvas(canvas);
}
canvas.setScreenDensity(scalingRequired ? mNoncompatDensity : 0);
mView.draw(canvas);
drawAccessibilityFocusedDrawableIfNeeded(canvas);查找drawSoftware方法的引用，发现调用顺序为：performDraw->draw->drawSoftware。
小结：
三个方法都被performTraversal方法调用，可以看出，performTraversal是View绘制的入口方法。
measure除了被入口方法调用外，还被measureHierarchy方法调用，查看measureHierarchy方法的源码，发现有三处逻辑调用，所以，视图的测量是会进行多次的。
继续，performTraversal被doTraversal调用：
void doTraversal() {
if (mTraversalScheduled) {
mTraversalScheduled = false;
mHandler.getLooper().getQueue().removeSyncBarrier(mTraversalBarrier);
if (mProfile) {
Debug.startMethodTracing("ViewAncestor");
}
performTraversals();
if (mProfile) {
Debug.stopMethodTracing();
mProfile = false;
}
}
}再然后，doTraversal封装成了一个Runnable：
final class TraversalRunnable implements Runnable {
@Override
public void run() {
doTraversal();
}
}VIewRootImpl有一个TraversalRunnable成员：
final TraversalRunnable mTraversalRunnable = new TraversalRunnable();接下来是绘制和取消绘制的方法：
@UnsupportedAppUsage
void scheduleTraversals() {
if (!mTraversalScheduled) {
mTraversalScheduled = true;
mTraversalBarrier = mHandler.getLooper().getQueue().postSyncBarrier();
mChoreographer.postCallback(
Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null);
if (!mUnbufferedInputDispatch) {
scheduleConsumeBatchedInput();
}
notifyRendererOfFramePending();
pokeDrawLockIfNeeded();
}
}
void unscheduleTraversals() {
if (mTraversalScheduled) {
mTraversalScheduled = false;
mHandler.getLooper().getQueue().removeSyncBarrier(mTraversalBarrier);
mChoreographer.removeCallbacks(
Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null);
}

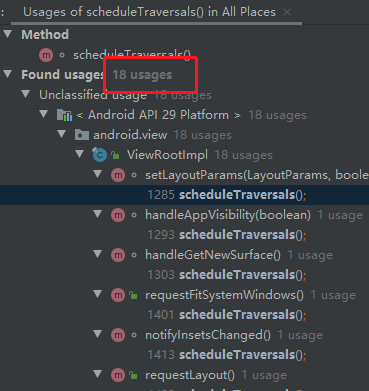

}我们搜下开始绘制流程方法的引用，有18个，看来很多参数的改变都会是ViewRootImpl开始进行绘制：

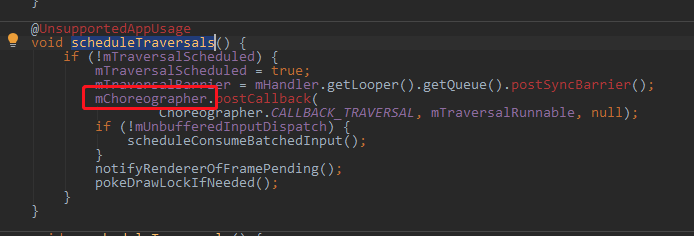

我们先歇一会，不往scheduleTraversals的调用者方向撸了，换一个方向，我们注意到如下图：
诶？我们的mTraversalRunnable是我们主要的要执行的任务，上图红框里的是什么东西，为什么要交给它，它是干什么的？
引入今天的主角Choreographer，也是挺有名的，大伙应该经常能听到他的名字，如果说精通View的绘制流程，但如果你不认识他，那真是说不过去。
首先，Choreographer是作为一个成员变量被ViewRootImpl持有：
Choreographer mChoreographer;我们再往前撸Choreographer的调用：
@TestApi
public void postCallback(int callbackType, Runnable action, Object token) {
postCallbackDelayed(callbackType, action, token, 0);
}然后：
@TestApi
public void postCallbackDelayed(int callbackType,
Runnable action, Object token, long delayMillis) {
if (action == null) {
throw new IllegalArgumentException("action must not be null");
}
if (callbackType < 0 || callbackType > CALLBACK_LAST) {
throw new IllegalArgumentException("callbackType is invalid");
}
postCallbackDelayedInternal(callbackType, action, token, delayMillis);
}再然后：
private void postCallbackDelayedInternal(int callbackType,
Object action, Object token, long delayMillis) {
if (DEBUG_FRAMES) {
Log.d(TAG, "PostCallback: type=" + callbackType
+ ", action=" + action + ", token=" + token
+ ", delayMillis=" + delayMillis);
}
synchronized (mLock) {
final long now = SystemClock.uptimeMillis();
final long dueTime = now + delayMillis;
mCallbackQueues[callbackType].addCallbackLocked(dueTime, action, token);
if (dueTime <= now) {
scheduleFrameLocked(now);
} else {
Message msg = mHandler.obtainMessage(MSG_DO_SCHEDULE_CALLBACK, action);
msg.arg1 = callbackType;
msg.setAsynchronous(true);
mHandler.sendMessageAtTime(msg, dueTime);
}
}
}上图先把这个action（就是我们之前的绘制Runnable）放到了队列mCallbackQueues里，然后出现了两个分支。
分支a1：如果预期执行的实现早于现在，则执行scheduleFrameLocked方法
分支a2：否则发送一个消息给mHandler。
我们先不管分支a1，先看下mHandler是什么呢：
private final class FrameHandler extends Handler {
public FrameHandler(Looper looper) {
super(looper);
}
@Override
public void handleMessage(Message msg) {
switch (msg.what) {
case MSG_DO_FRAME:
doFrame(System.nanoTime(), 0);
break;
case MSG_DO_SCHEDULE_VSYNC:
doScheduleVsync();
break;
case MSG_DO_SCHEDULE_CALLBACK:
doScheduleCallback(msg.arg1);
break;
}
}
}mHandler是FrameHandler对象，FrameHandler是Choreographer的内部类，处理了3个消息。
又有分支了，有点懵，没关系，看名字：
- MSG_DO_SCHEDULE_VSYNC应该是和垂直同步有关，直接调用了doScheduleVsync方法，我们先不管，记作分支b1。
- MSG_DO_FRAME，一看就是我们要的真正去处理逻辑的方法，也先不管，记作分支b2。
- MSG_DO_SCHEDULE_CALLBACK，上面传的就是这个，记作分支b3，先看这个：
void doScheduleCallback(int callbackType) {
synchronized (mLock) {
if (!mFrameScheduled) {
final long now = SystemClock.uptimeMillis();
if (mCallbackQueues[callbackType].hasDueCallbacksLocked(now)) {
scheduleFrameLocked(now);
}
}
}
}上图也是调用了scheduleFrameLocked方法（前面的分支a1也是调用这个方法）。
scheduleFrameLocked是干嘛的呢：
private void scheduleFrameLocked(long now) {
if (!mFrameScheduled) {
mFrameScheduled = true;
if (USE_VSYNC) {
if (DEBUG_FRAMES) {
Log.d(TAG, "Scheduling next frame on vsync.");
}
// If running on the Looper thread, then schedule the vsync immediately,
// otherwise post a message to schedule the vsync from the UI thread
// as soon as possible.
if (isRunningOnLooperThreadLocked()) {
scheduleVsyncLocked();
} else {
Message msg = mHandler.obtainMessage(MSG_DO_SCHEDULE_VSYNC);
msg.setAsynchronous(true);
mHandler.sendMessageAtFrontOfQueue(msg);
}
} else {
final long nextFrameTime = Math.max(
mLastFrameTimeNanos / TimeUtils.NANOS_PER_MS + sFrameDelay, now);
if (DEBUG_FRAMES) {
Log.d(TAG, "Scheduling next frame in " + (nextFrameTime - now) + " ms.");
}
Message msg = mHandler.obtainMessage(MSG_DO_FRAME);
msg.setAsynchronous(true);
mHandler.sendMessageAtTime(msg, nextFrameTime);
}
}
}看上图的分支：
如果没有启动垂直同步，直接发送MSG_DO_FRAME消息到FrameHandler，然后会调用doFrame方法。
对于开启了垂直同步的情况，如果是在主线程，直接调用scheduleVsyncLocked方法，会向一个FrameDisplayEventReceiver对象发送垂直同步消息；
对于开启了垂直同步的情况，如果不在主线程，向FrameHandler发送MSG_DO_SCHEDULE_VSYNC消息，在Handler中会调用doScheduleVsync方法，这就到了前文的b1分支，直接调用doScheduleVsync方法，看doScheduleVsync方法，还是调用的scheduleVsyncLocked方法，只不过加了个锁判断了个状态：
void doScheduleVsync() {
synchronized (mLock) {
if (mFrameScheduled) {
scheduleVsyncLocked();
}
}
}scheduleVsyncLocked方法通过FrameDisplayEventReceiver最终还是调用了doFrame方法：
private final class FrameDisplayEventReceiver extends DisplayEventReceiver
implements Runnable {
private boolean mHavePendingVsync;
private long mTimestampNanos;
private int mFrame;
public FrameDisplayEventReceiver(Looper looper, int vsyncSource) {
super(looper, vsyncSource);
}
// TODO(b/116025192): physicalDisplayId is ignored because SF only emits VSYNC events for
// the internal display and DisplayEventReceiver#scheduleVsync only allows requesting VSYNC
// for the internal display implicitly.
@Override
public void onVsync(long timestampNanos, long physicalDisplayId, int frame) {
// Post the vsync event to the Handler.
// The idea is to prevent incoming vsync events from completely starving
// the message queue. If there are no messages in the queue with timestamps
// earlier than the frame time, then the vsync event will be processed immediately.
// Otherwise, messages that predate the vsync event will be handled first.
long now = System.nanoTime();
if (timestampNanos > now) {
Log.w(TAG, "Frame time is " + ((timestampNanos - now) * 0.000001f)
+ " ms in the future! Check that graphics HAL is generating vsync "
+ "timestamps using the correct timebase.");
timestampNanos = now;
}
if (mHavePendingVsync) {
Log.w(TAG, "Already have a pending vsync event. There should only be "
+ "one at a time.");
} else {
mHavePendingVsync = true;
}
mTimestampNanos = timestampNanos;
mFrame = frame;
Message msg = Message.obtain(mHandler, this);
msg.setAsynchronous(true);
mHandler.sendMessageAtTime(msg, timestampNanos / TimeUtils.NANOS_PER_MS);
}
@Override
public void run() {
mHavePendingVsync = false;
doFrame(mTimestampNanos, mFrame);
}

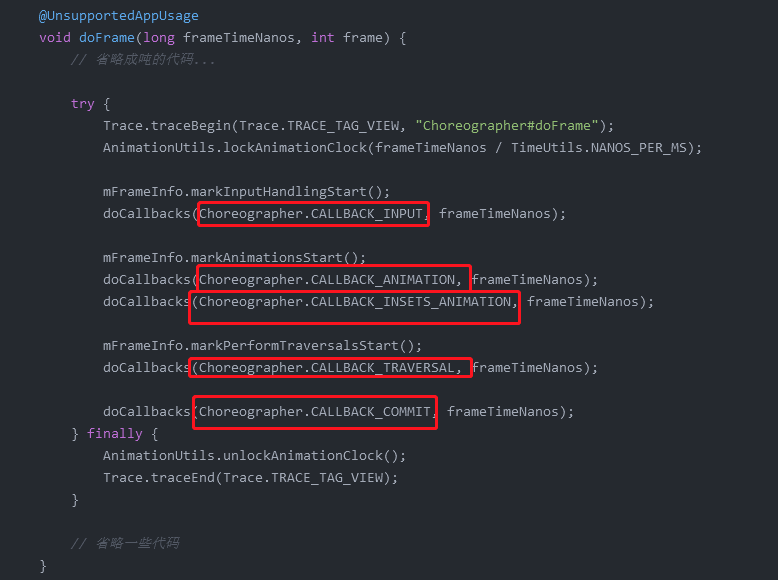

}最后我们看下doFrame方法：
@UnsupportedAppUsage
void doFrame(long frameTimeNanos, int frame) {
// 省略成吨的代码...
try {
Trace.traceBegin(Trace.TRACE_TAG_VIEW, "Choreographer#doFrame");
AnimationUtils.lockAnimationClock(frameTimeNanos / TimeUtils.NANOS_PER_MS);
mFrameInfo.markInputHandlingStart();
doCallbacks(Choreographer.CALLBACK_INPUT, frameTimeNanos);
mFrameInfo.markAnimationsStart();
doCallbacks(Choreographer.CALLBACK_ANIMATION, frameTimeNanos);
doCallbacks(Choreographer.CALLBACK_INSETS_ANIMATION, frameTimeNanos);
mFrameInfo.markPerformTraversalsStart();
doCallbacks(Choreographer.CALLBACK_TRAVERSAL, frameTimeNanos);
doCallbacks(Choreographer.CALLBACK_COMMIT, frameTimeNanos);
} finally {
AnimationUtils.unlockAnimationClock();
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
// 省略一些代码
}这就是最终boss了。
回顾之前ViewRootImpl，mTraversalRunnable是所有绘制的入口，这个Runnable刚刚被postCallbackDelayedInternal方法放在了队列数组里面。
我们再看看数组：
private final CallbackQueue[] mCallbackQueues; private final class CallbackQueue {
private CallbackRecord mHead;
// ...
}这个数组包含了一个CallbackRecord成员：
private static final class CallbackRecord {
public CallbackRecord next;
public long dueTime;
public Object action; // Runnable or FrameCallback
public Object token;
@UnsupportedAppUsage
public void run(long frameTimeNanos) {
if (token == FRAME_CALLBACK_TOKEN) {
((FrameCallback)action).doFrame(frameTimeNanos);
} else {
((Runnable)action).run();
}
}
}这个类有dueTime（预期的执行时间），有action（Runnable），还有一个next，是一个单项链表。
再看mCallbackQueues是用什么作为数组索引呢？
/**
* Must be kept in sync with CALLBACK_* ints below, used to index into this array.
* @hide
*/
private static final String[] CALLBACK_TRACE_TITLES = {
"input", "animation", "insets_animation", "traversal", "commit"
};
/**
* Callback type: Input callback. Runs first.
* @hide
*/
public static final int CALLBACK_INPUT = 0;
/**
* Callback type: Animation callback. Runs before {@link #CALLBACK_INSETS_ANIMATION}.
* @hide
*/
@TestApi
public static final int CALLBACK_ANIMATION = 1;
/**
* Callback type: Animation callback to handle inset updates. This is separate from
* {@link #CALLBACK_ANIMATION} as we need to "gather" all inset animation updates via
* {@link WindowInsetsAnimationController#changeInsets} for multiple ongoing animations but then
* update the whole view system with a single callback to {@link View#dispatchWindowInsetsAnimationProgress}
* that contains all the combined updated insets.
* <p>
* Both input and animation may change insets, so we need to run this after these callbacks, but
* before traversals.
* <p>
* Runs before traversals.
* @hide
*/
public static final int CALLBACK_INSETS_ANIMATION = 2;
/**
* Callback type: Traversal callback. Handles layout and draw. Runs
* after all other asynchronous messages have been handled.
* @hide
*/
public static final int CALLBACK_TRAVERSAL = 3;
/**
* Callback type: Commit callback. Handles post-draw operations for the frame.
* Runs after traversal completes. The {@link #getFrameTime() frame time} reported
* during this callback may be updated to reflect delays that occurred while
* traversals were in progress in case heavy layout operations caused some frames
* to be skipped. The frame time reported during this callback provides a better
* estimate of the start time of the frame in which animations (and other updates
* to the view hierarchy state) actually took effect.
* @hide
*/
public static final int CALLBACK_COMMIT = 4;
private static final int CALLBACK_LAST = CALLBACK_COMMIT;上图可以看出有4种类型：输入、动画、插画动画（insets_animation这么翻译应该是对的吧？），提交（commit？应该是要在绘制结束后进行一些日志输出、告警什么的）。
回到最终boss--doFrame方法：
可以看到，这些不同类型的队列组成数组mCallbackQueues，最后执行也是按照一定顺序去执行的，input最先执行，动画其次，然后是traversal（就是我们scheduleTraversals方法入队时的类型），最后是commit。
doCallbacks的源码如下，其实就是把指定类型的队列从mCallbackQueues中弹出，然后按照一定条件依次执行这些Runnable：
void doCallbacks(int callbackType, long frameTimeNanos) {
CallbackRecord callbacks;
synchronized (mLock) {
// We use "now" to determine when callbacks become due because it's possible
// for earlier processing phases in a frame to post callbacks that should run
// in a following phase, such as an input event that causes an animation to start.
final long now = System.nanoTime();
callbacks = mCallbackQueues[callbackType].extractDueCallbacksLocked(
now / TimeUtils.NANOS_PER_MS);
if (callbacks == null) {
return;
}
mCallbacksRunning = true;
// Update the frame time if necessary when committing the frame.
// We only update the frame time if we are more than 2 frames late reaching
// the commit phase. This ensures that the frame time which is observed by the
// callbacks will always increase from one frame to the next and never repeat.
// We never want the next frame's starting frame time to end up being less than
// or equal to the previous frame's commit frame time. Keep in mind that the
// next frame has most likely already been scheduled by now so we play it
// safe by ensuring the commit time is always at least one frame behind.
if (callbackType == Choreographer.CALLBACK_COMMIT) {
final long jitterNanos = now - frameTimeNanos;
Trace.traceCounter(Trace.TRACE_TAG_VIEW, "jitterNanos", (int) jitterNanos);
if (jitterNanos >= 2 * mFrameIntervalNanos) {
final long lastFrameOffset = jitterNanos % mFrameIntervalNanos
+ mFrameIntervalNanos;
if (DEBUG_JANK) {
Log.d(TAG, "Commit callback delayed by " + (jitterNanos * 0.000001f)
+ " ms which is more than twice the frame interval of "
+ (mFrameIntervalNanos * 0.000001f) + " ms! "
+ "Setting frame time to " + (lastFrameOffset * 0.000001f)
+ " ms in the past.");
mDebugPrintNextFrameTimeDelta = true;
}
frameTimeNanos = now - lastFrameOffset;
mLastFrameTimeNanos = frameTimeNanos;
}
}
}
try {
Trace.traceBegin(Trace.TRACE_TAG_VIEW, CALLBACK_TRACE_TITLES[callbackType]);
for (CallbackRecord c = callbacks; c != null; c = c.next) {
if (DEBUG_FRAMES) {
Log.d(TAG, "RunCallback: type=" + callbackType
+ ", action=" + c.action + ", token=" + c.token
+ ", latencyMillis=" + (SystemClock.uptimeMillis() - c.dueTime));
}
c.run(frameTimeNanos);
}
} finally {
synchronized (mLock) {
mCallbacksRunning = false;
do {
final CallbackRecord next = callbacks.next;
recycleCallbackLocked(callbacks);
callbacks = next;
} while (callbacks != null);
}
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
}在最后，我们的收获，先从总体上概括：
- View的绘制流程由ViewRootImpl发起很多，ViewRootImpl持有了一个Choreographer，ViewRootImpl很多public方法都会触发performTraveral方法，performTraveral是绘制的入口方法。
- Choreographer英文是编排者的意思，这里负责收集ViewRootImpl传过来的行为，而具体的执行时间则由Choreographer来控制。
- Choreographer持有一个数组，数组的每个元素是一个行为单向链表队列。链表节点包含目标执行时间，Choreographer可以由此判断行为需要在哪一帧去执行并按链表顺序执行。
- Choreographer要处理垂直同步信号，也可以处理animation、inset-animation。
222
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
