sap abap初体验11之再看BDC批导

11 批导

11.1 简单批导SHDB

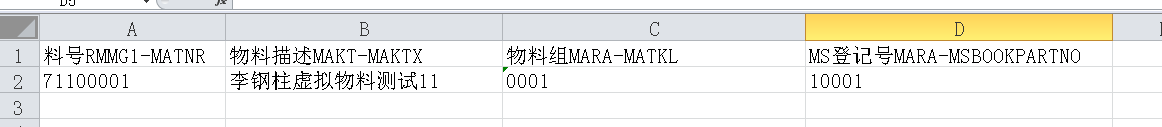

目的要修改以下4列

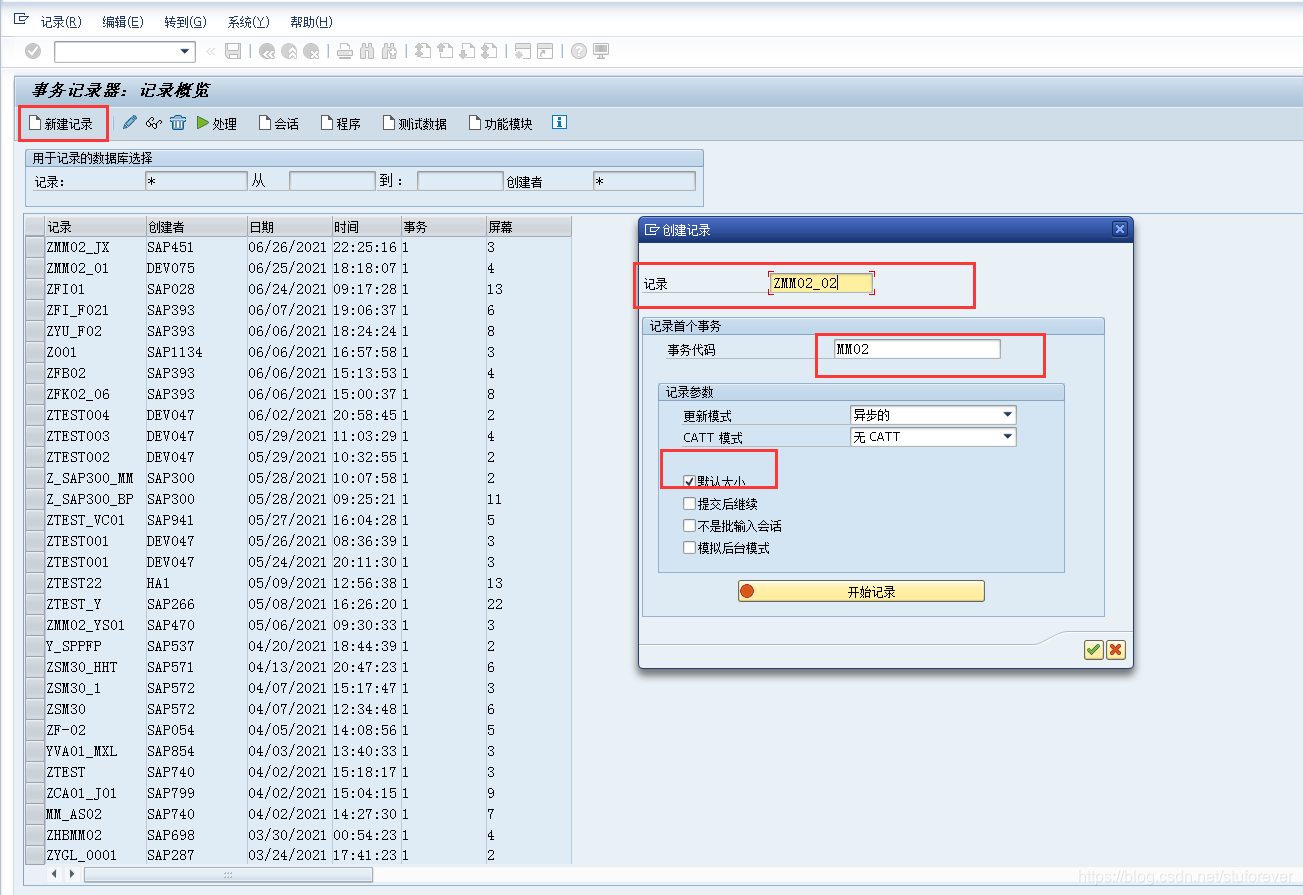

11.1.1 录屏

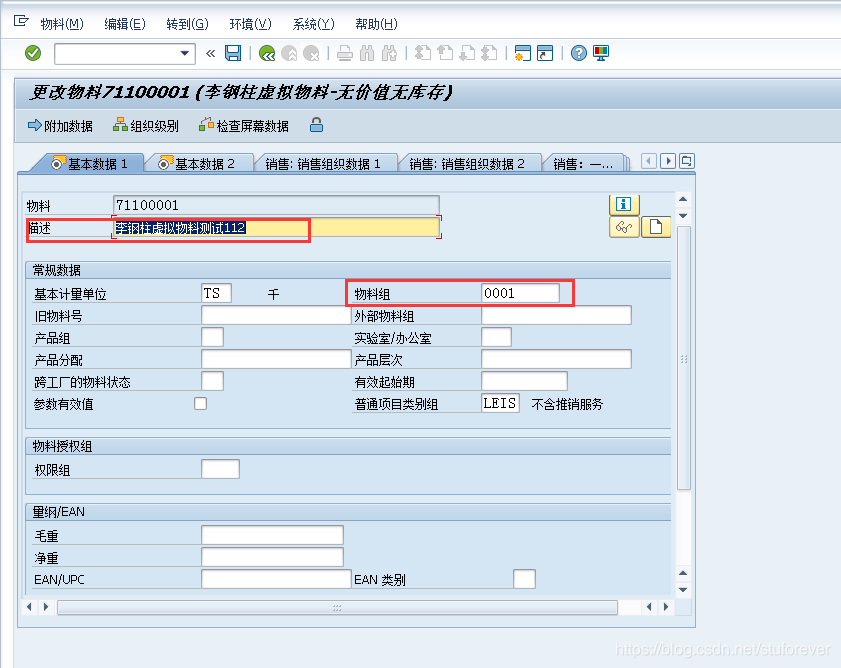

维护物料描述、物料组

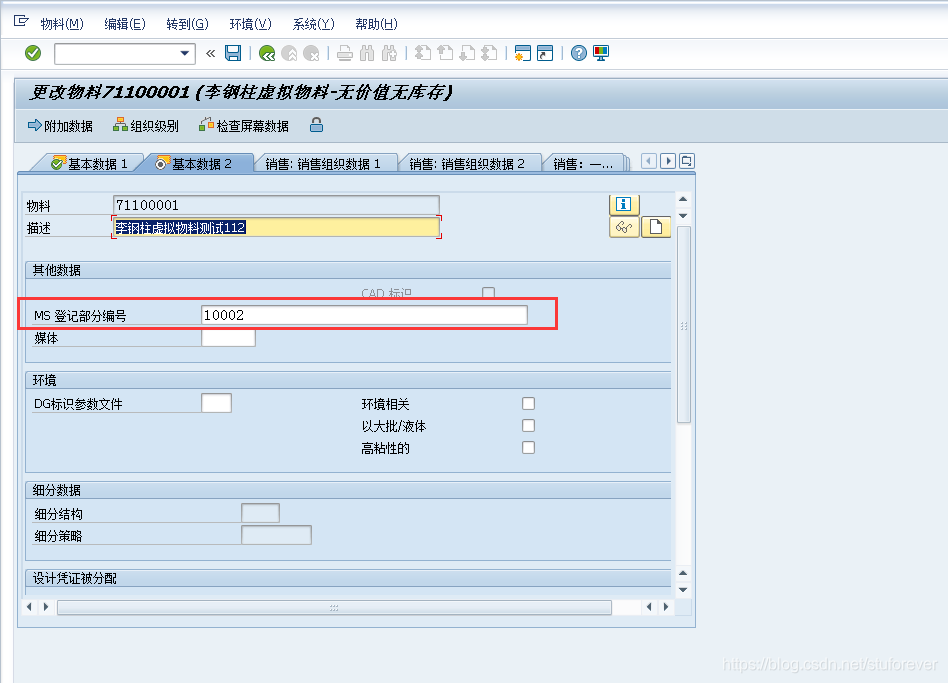

MS登记编号

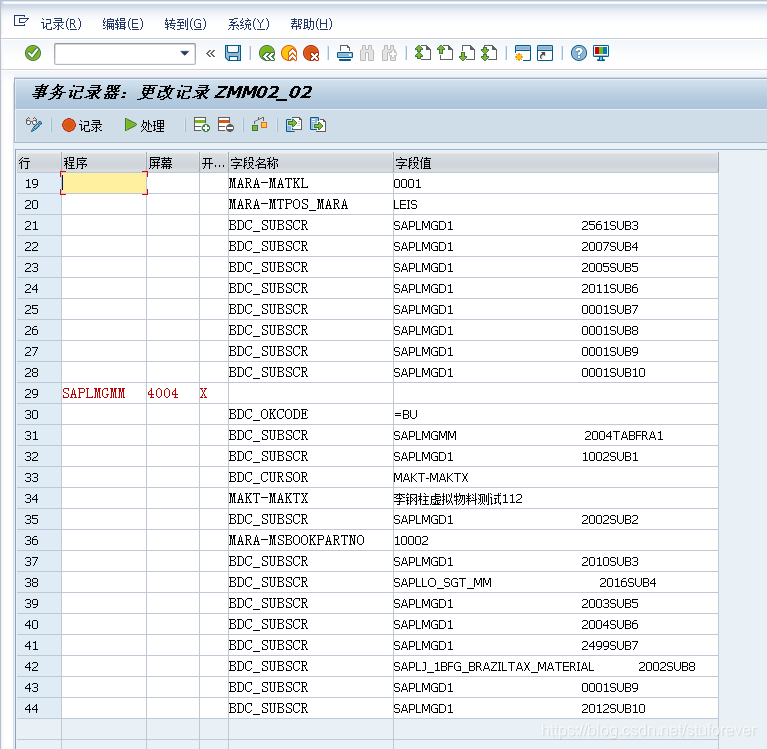

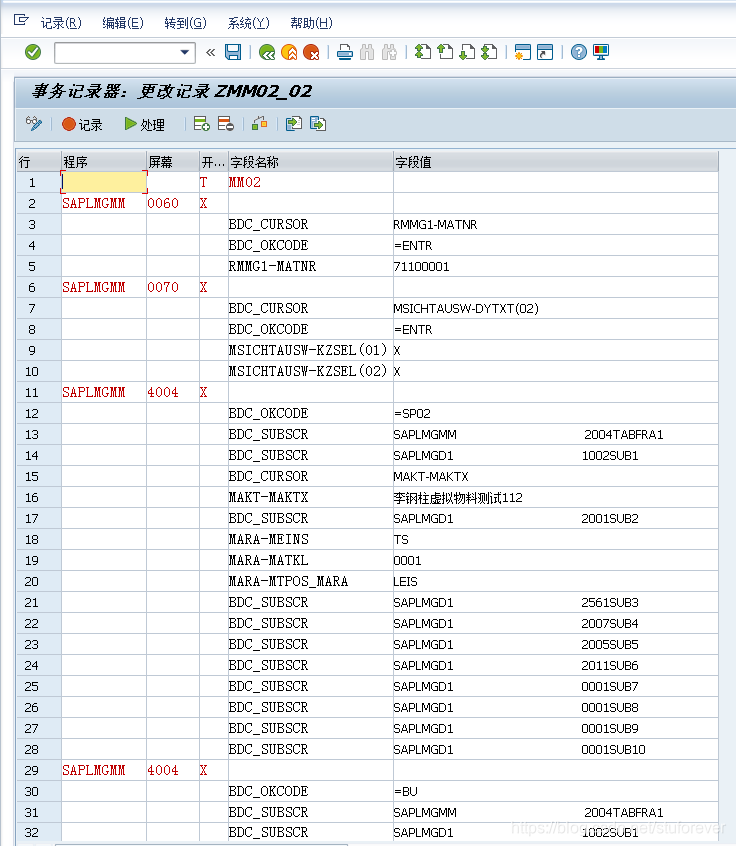

保存生成操作记录，共4部分

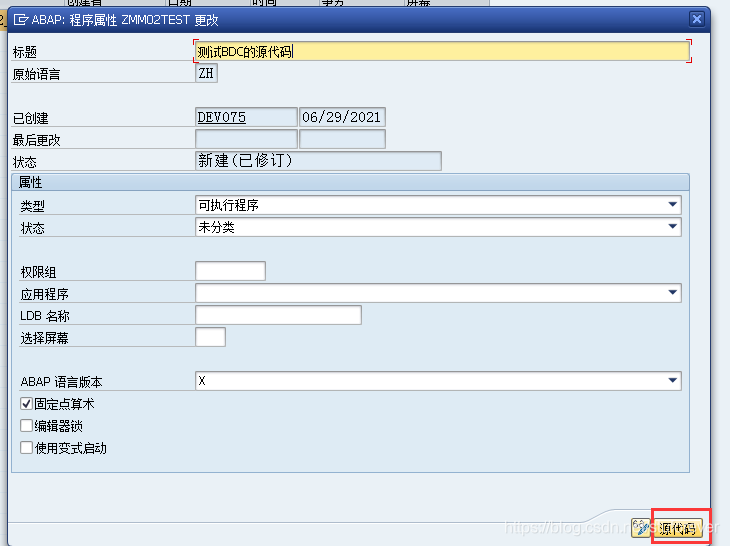

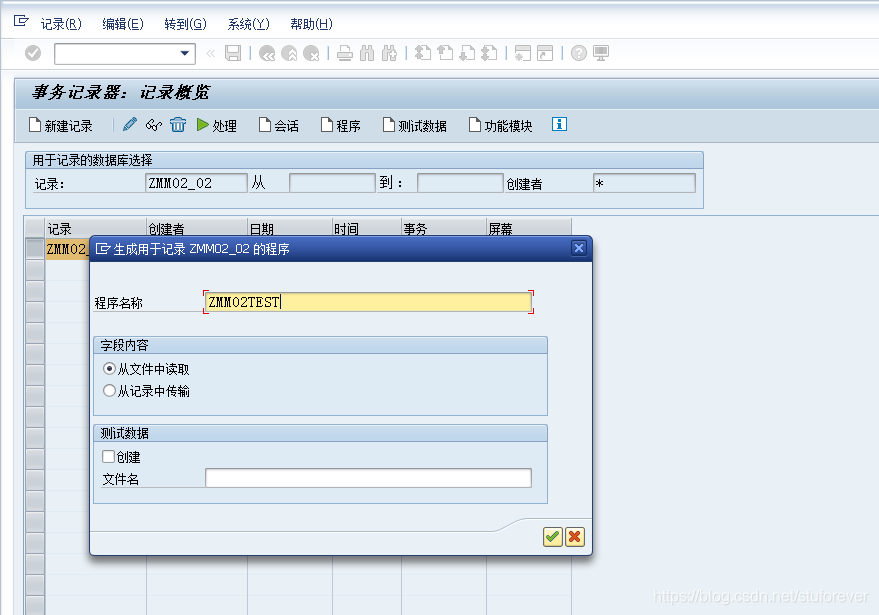

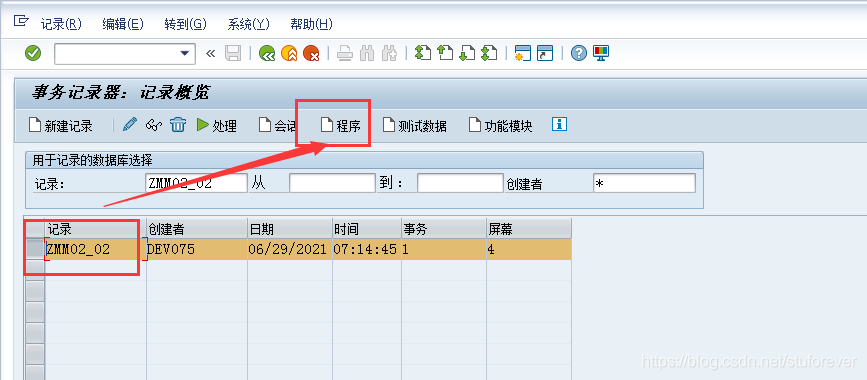

11.1.2 保存生成源代码

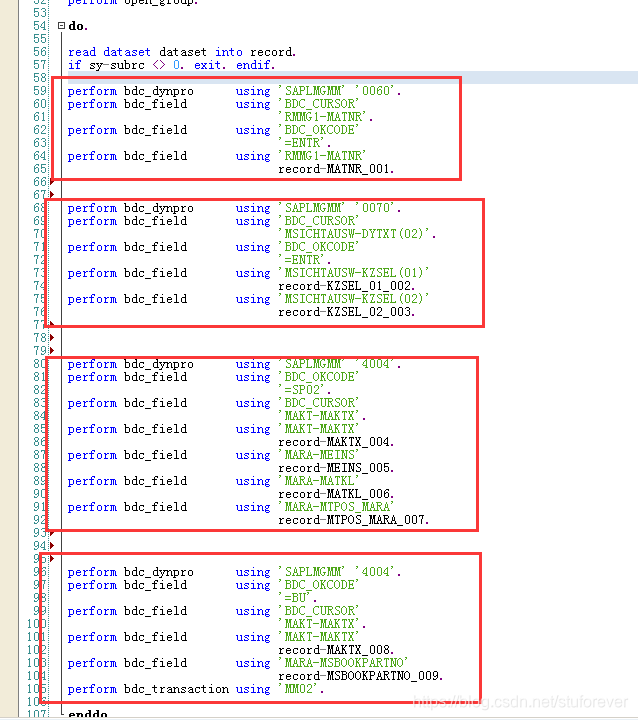

源代码一共分2个部分

结构定义部分

循环调用部分

11.1.3 根据事物记录器写代码

第一行记录事务代码的行可以省略
BDC_SUBSCR 的行可以省略不填
未修改的值（MARA-MEINS = PC MARA-GEWEI = KG）也可省略不填，就奔着要修改的4列去

report ZLGZTEST08_BDC
       no standard page heading line-size 255.




*1 第一步，定义对象

TYPE-POOLS: TRUXS.
TYPES: BEGIN OF TY_DATAS,
         MATNR TYPE CHAR50,  "料号
         MAKTX TYPE CHAR50,  "物料描述
         MATKL TYPE CHAR50,  "物料组
         MSBOOKPARTNO TYPE CHAR50,  "MS登记号
       END OF TY_DATAS.

"定义EXCEL的数据存储对象
DATA: GT_DATA TYPE TABLE OF TY_DATAS,
      WA_DATA TYPE TY_DATAS.

"BDC的数据对象
DATA: GT_BDCDATA TYPE TABLE OF BDCDATA WITH HEADER LINE.


*2 第二步，定义文件选择参数，并选择文件
PARAMETERS : P_FILE TYPE RLGRAP-FILENAME.

AT SELECTION-SCREEN ON VALUE-REQUEST FOR P_FILE.
  PERFORM FRM_GET_FILENAME.

*3 第三步，获取文件数据
START-OF-SELECTION.
  PERFORM FRM_GET_DATA.

END-OF-SELECTION.


*4 第四步，调用BDC录入数据
*  "   调用方法一 By Transaction
  PERFORM FRM_EXEC_TRANSACTION.
  "   调用方法二  By Session（把多个Transaction放到一个Session一起执行）
  "PERFORM FRM_EXEC_SESSION.

**------------------------------------------FROM------------------------------------------**
"第二步中，调用文件的标准程序

FORM FRM_GET_FILENAME .

"调用文件的标准程序
  DATA: LV_RC TYPE I.
  DATA: LT_FILE_TABLE TYPE FILETABLE.

  CALL METHOD CL_GUI_FRONTEND_SERVICES=>FILE_OPEN_DIALOG
    EXPORTING
      WINDOW_TITLE = '打开文件'
    CHANGING
      FILE_TABLE   = LT_FILE_TABLE
      RC           = LV_RC.
  IF SY-SUBRC = 0.
    READ TABLE LT_FILE_TABLE INTO DATA(WA_FILE_TABLE) INDEX 1.
    P_FILE = WA_FILE_TABLE-FILENAME.
  ENDIF.

ENDFORM.

"第三步中，获取文件数据的标准程序
FORM FRM_GET_DATA .
  DATA: LT_RAW TYPE TRUXS_T_TEXT_DATA.

  CALL FUNCTION 'TEXT_CONVERT_XLS_TO_SAP'
    EXPORTING
*     I_FIELD_SEPERATOR    =
      I_LINE_HEADER        = 'X'
      I_TAB_RAW_DATA       = LT_RAW
      I_FILENAME           = P_FILE
    TABLES
      I_TAB_CONVERTED_DATA = GT_DATA
    EXCEPTIONS
      CONVERSION_FAILED    = 1
      OTHERS               = 2.
  IF SY-SUBRC <> 0.
* Implement suitable error handling here
  ENDIF.
ENDFORM.



FORM FRM_CONVERT_DATA USING P_WA_DATA.
* BDC_SUBSCR的项没有意义，可不填
  CLEAR: GT_BDCDATA,GT_BDCDATA[].

  PERFORM FRM_SCREEN_LINE USING 'SAPLMGMM' '0060'.
  PERFORM FRM_FIELD_LINE USING 'BDC_CURSOR' 'RMMG1-MATNR'.
  PERFORM FRM_FIELD_LINE USING 'BDC_OKCODE' '=ENTR'.
  PERFORM FRM_FIELD_LINE USING 'RMMG1-MATNR' WA_DATA-MATNR.



  PERFORM FRM_SCREEN_LINE USING 'SAPLMGMM' '0070'.
  PERFORM FRM_FIELD_LINE USING 'BDC_CURSOR' 'MSICHTAUSW-DYTXT(01)'.
  PERFORM FRM_FIELD_LINE USING 'BDC_OKCODE' '=ENTR'.
  PERFORM FRM_FIELD_LINE USING 'MSICHTAUSW-KZSEL(01)' 'X'.
  PERFORM FRM_FIELD_LINE USING 'MSICHTAUSW-KZSEL(02)' 'X'.



  PERFORM FRM_SCREEN_LINE USING 'SAPLMGMM' '4004'.
  PERFORM FRM_FIELD_LINE USING 'BDC_OKCODE' 'SP02'.
  PERFORM FRM_FIELD_LINE USING 'MAKT-MAKTX' WA_DATA-MAKTX.
  PERFORM FRM_FIELD_LINE USING 'BDC_CURSOR' 'MARA-MATKL'.
  PERFORM FRM_FIELD_LINE USING 'MARA-MATKL' WA_DATA-MATKL.


  PERFORM FRM_SCREEN_LINE USING 'SAPLMGMM' '4004'.
  PERFORM FRM_FIELD_LINE USING 'BDC_OKCODE' '=BU'.
  PERFORM FRM_FIELD_LINE USING 'BDC_CURSOR' 'MARA-MSBOOKPARTNO'.
  PERFORM FRM_FIELD_LINE USING 'MARA-MSBOOKPARTNO' WA_DATA-MSBOOKPARTNO.

ENDFORM.



FORM FRM_SCREEN_LINE  USING    VALUE(P_VALUE1)
                               VALUE(P_VALUE2).
  CLEAR: GT_BDCDATA.
  GT_BDCDATA-PROGRAM = P_VALUE1.
  GT_BDCDATA-DYNPRO = P_VALUE2.
  GT_BDCDATA-DYNBEGIN = 'X'.
  APPEND GT_BDCDATA.

ENDFORM.

FORM FRM_FIELD_LINE  USING    VALUE(P_VALUE11)
                              VALUE(P_VALUE12).
  CLEAR: GT_BDCDATA.
  GT_BDCDATA-FNAM = P_VALUE11.
  GT_BDCDATA-FVAL = P_VALUE12.
  APPEND GT_BDCDATA.

ENDFORM.



"4 第四步，调用的FORM每读入一行，就执行一次
FORM FRM_EXEC_TRANSACTION.

"定义消息的展示方式
