Spark MLlib SVM算法

1.1 SVM支持向量机算法

支持向量机理论知识参照以下文档：

支持向量机SVM（一）

http://www.cnblogs.com/jerrylead/archive/2011/03/13/1982639.html

支持向量机SVM（二）

http://www.cnblogs.com/jerrylead/archive/2011/03/13/1982684.html

支持向量机（三）核函数

http://www.cnblogs.com/jerrylead/archive/2011/03/18/1988406.html

支持向量机（四）

http://www.cnblogs.com/jerrylead/archive/2011/03/18/1988415.html

支持向量机（五）SMO算法

http://www.cnblogs.com/jerrylead/archive/2011/03/18/1988419.html

SVM的目标函数及梯度下降更新公式如下：

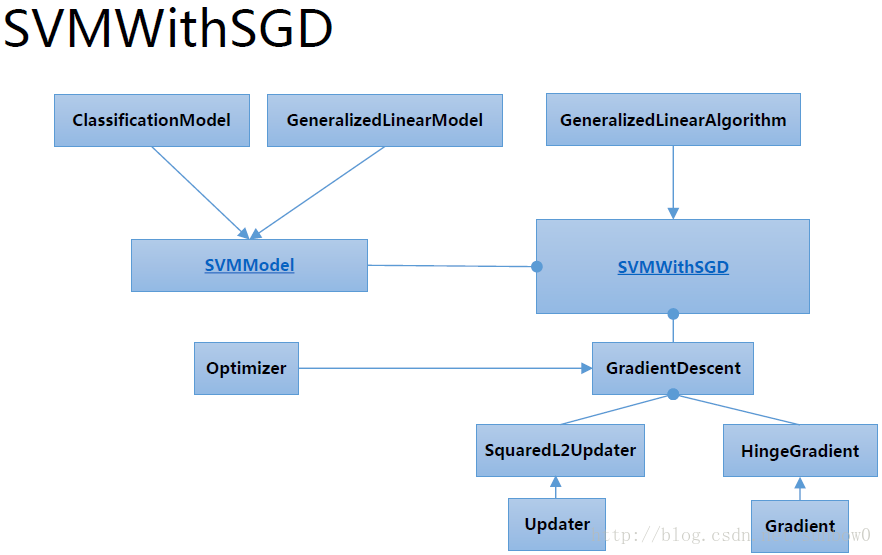

MLlib 中 SVM的代码结构如下：

1.2 Spark Mllib SVM源码分析

1.2.1 SVMWithSGD

SVM算法的train方法，由SVMWithSGD类的object定义了train函数，在train函数中新建了SVMWithSGD对象。

package org.apache.spark.mllib.classification

// 1 类：SVMWithSGD

class SVMWithSGD private (

    privatevar stepSize: Double,

    privatevar numIterations: Int,

    privatevar regParam: Double,

    privatevar miniBatchFraction: Double)

  extends GeneralizedLinearAlgorithm[SVMModel] with Serializable {



  privateval gradient = new HingeGradient()

  privateval updater = new SquaredL2Updater()

  overrideval optimizer = new GradientDescent(gradient, updater)

    .setStepSize(stepSize)

    .setNumIterations(numIterations)

    .setRegParam(regParam)

    .setMiniBatchFraction(miniBatchFraction)

  overrideprotectedval validators = List(DataValidators.binaryLabelValidator)



  /**

   * Construct a SVM object with default parameters: {stepSize: 1.0, numIterations: 100,

   * regParm: 0.01, miniBatchFraction: 1.0}.

   */

  defthis() = this(1.0, 100, 0.01, 1.0)



  overrideprotecteddef createModel(weights: Vector, intercept: Double) = {

    new SVMModel(weights, intercept)

  }

}

SVMWithSGD类中参数说明：

stepSize: 迭代步长，默认为1.0

numIterations: 迭代次数，默认为100

regParam: 正则化参数，默认值为0.0

miniBatchFraction: 每次迭代参与计算的样本比例，默认为1.0

gradient：HingeGradient ()，梯度下降；

updater：SquaredL2Updater ()，正则化，L2范数；

optimizer：GradientDescent (gradient, updater)，梯度下降最优化计算。

// 2 train方法

object SVMWithSGD {

  /**

   * Train a SVM model given an RDD of (label, features) pairs. We run a fixed number

   * of iterations of gradient descent using the specified step size. Each iteration uses

   * `miniBatchFraction` fraction of the data to calculate the gradient. The weights used in

   * gradient descent are initialized using the initial weights provided.

   *

   * NOTE: Labels used in SVM should be {0, 1}.

   *

   * @param input RDD of (label, array of features) pairs.

   * @param numIterations Number of iterations of gradient descent to run.

   * @param stepSize Step size to be used for each iteration of gradient descent.

   * @param regParam Regularization parameter.

   * @param miniBatchFraction Fraction of data to be used per iteration.

   * @param initialWeights Initial set of weights to be used. Array should be equal in size to

   *        the number of features in the data.

   */
