接入科大讯飞语音听写，增加语音动画，类似京东语音搜索功能

本文链接：https://blog.csdn.net/super_niuxinhuai/article/details/78761760

前言：小白第一次接入科大讯飞语音听写，接入还是比较简单的，先看效果图无UI界面

Demo地址拿去

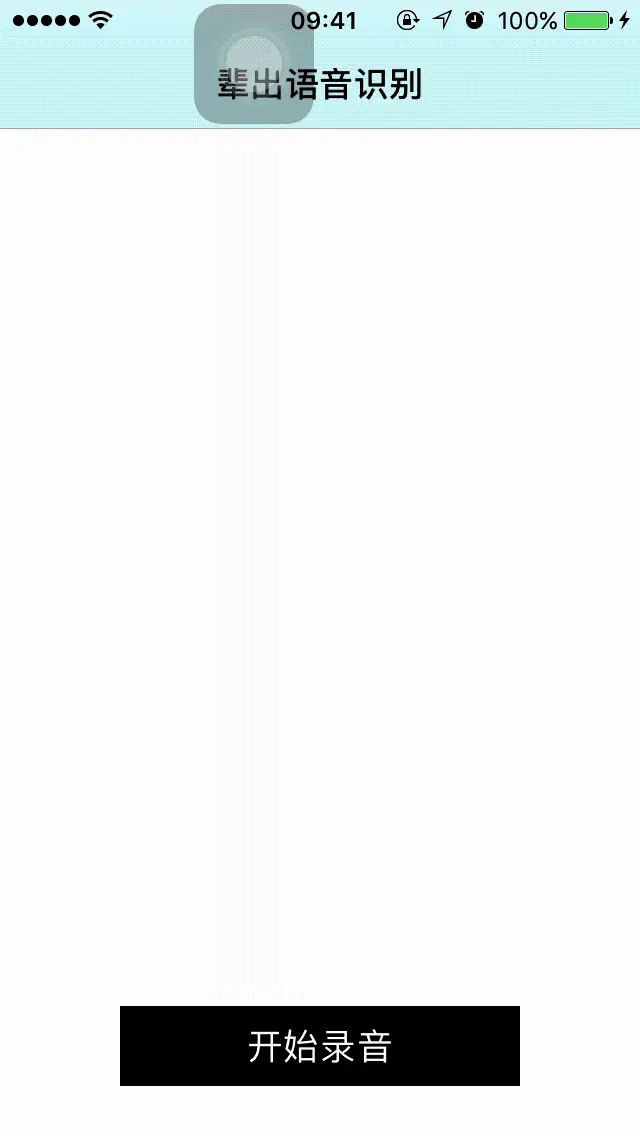

2017-10-25 16_22_20.gif

效果图有两部分，一是接入科大讯飞语音听写功能，可以实现将语音转换成文字。二是看到的语音音量动画效果，为了更加形象。

接入科大讯飞第一步需要自己去科大讯飞开发者中心申请应用，只有应用申请成功才能获取到AppID才可以正常接入语音听写，接入部分大家可以去科大讯飞开发者中心去看开发文档，这里主要讲一下运用到工程中

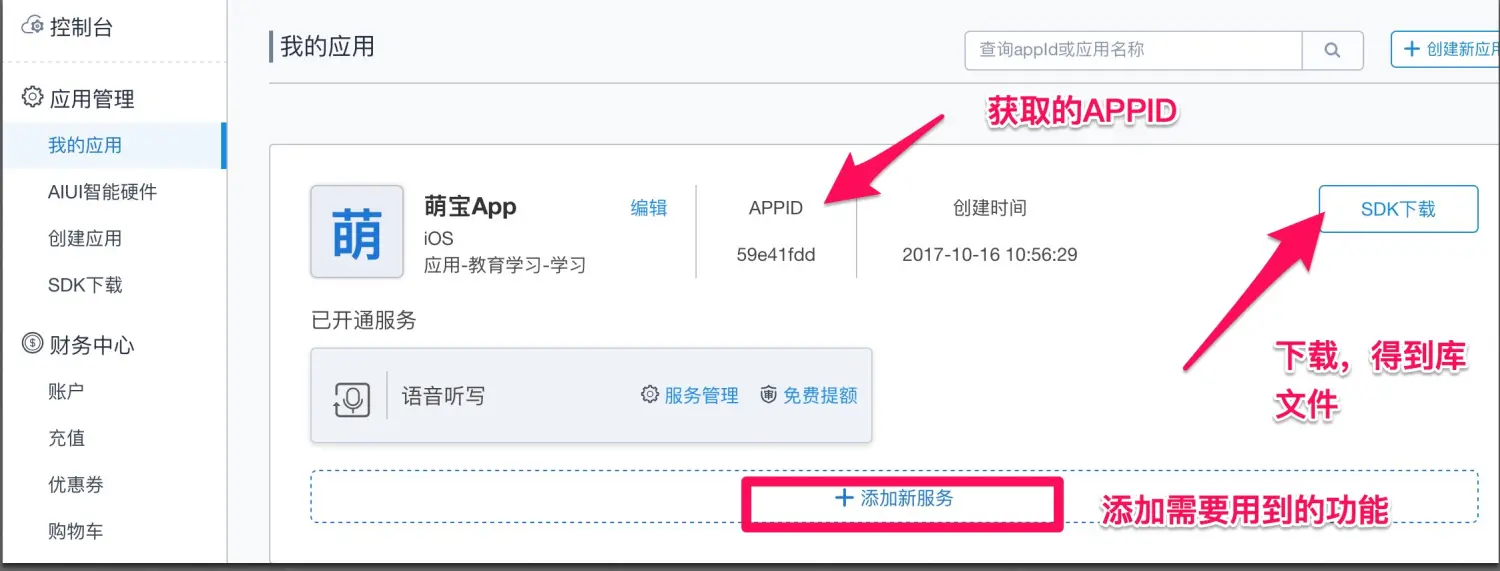

1.获取APPID，添加服务，下载对应的SDK，拿到SDK里边的iflyMSC.framework，放入自己创建好的工程中

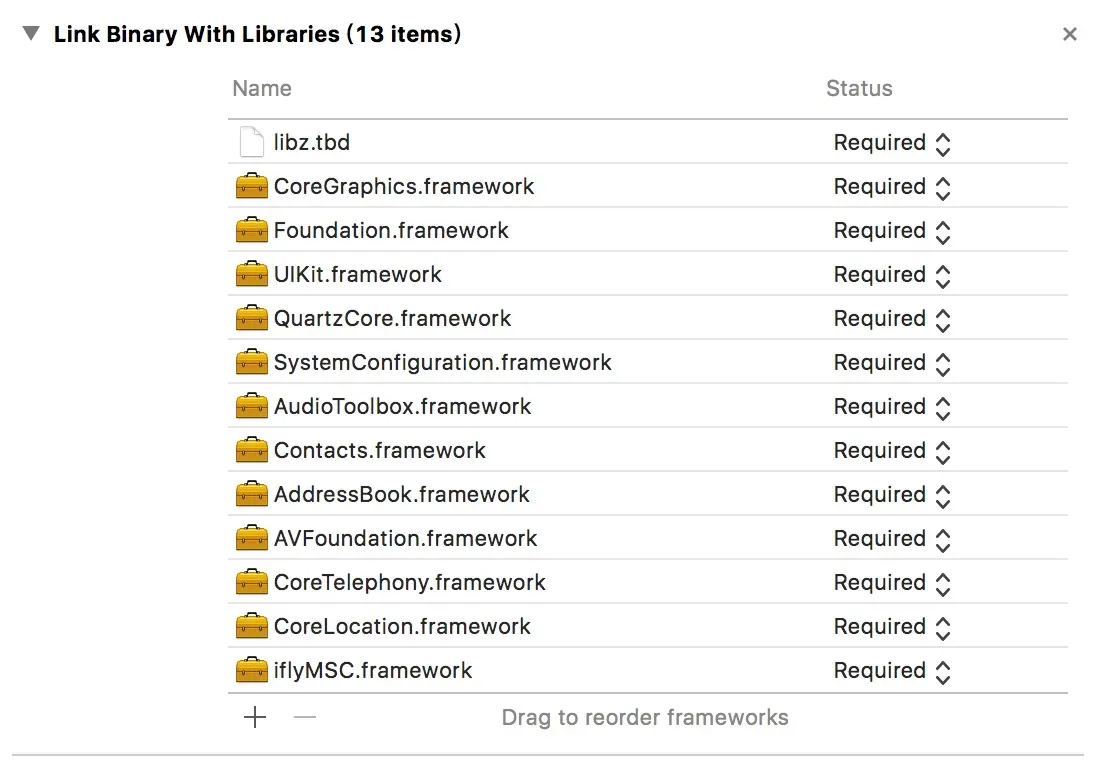

2.添加对应的framework依赖

正常到这里，接入讯飞语音基本完成，下边是代码部分

AppDelegate里边按着开发者文档走

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    // Override point for customization after application launch.
    self.window = [[UIWindow alloc]initWithFrame:[UIScreen mainScreen].bounds];
    self.window.backgroundColor = [UIColor whiteColor];
    ViewController * vc = [[ViewController alloc]init];
    UINavigationController * nav = [[UINavigationController alloc]initWithRootViewController:vc];
    self.window.rootViewController = nav;
    [self.window makeKeyAndVisible];
    [self createOtherFrameWork];


    return YES;
}
// 初始化讯飞
- (void)createOtherFrameWork{
    //设置sdk的log等级，log保存在下面设置的工作路径中
    [IFlySetting setLogFile:LVL_ALL];

    //打开输出在console的log开关
    [IFlySetting showLogcat:YES];

    //设置sdk的工作路径
    NSArray *paths = NSSearchPathForDirectoriesInDomains(NSCachesDirectory, NSUserDomainMask, YES);
    NSString *cachePath = [paths objectAtIndex:0];
    [IFlySetting setLogFilePath:cachePath];

    NSString *initString = [[NSString alloc] initWithFormat:@"appid=%@", APPID];
    [IFlySpeechUtility createUtility:initString];
}

- (BOOL)application:(UIApplication *)application openURL:(NSURL *)url sourceApplication:(NSString *)sourceApplication annotation:(id)annotation{
    [[IFlySpeechUtility getUtility] handleOpenURL:url];
    return YES;
}

ViewController.m里边写入正常的无UI添加方法

@property (nonatomic, strong) IFlySpeechRecognizer *iFlySpeechRecognizer;

创建语音识别对象

- (void)MSCSpeech{
    //创建语音识别对象
    _iFlySpeechRecognizer = [IFlySpeechRecognizer sharedInstance];
    //设置识别参数
    //设置为听写模式
    [_iFlySpeechRecognizer setParameter: @"iat" forKey: [IFlySpeechConstant IFLY_DOMAIN]];
    //asr_audio_path 是录音文件名，设置value为nil或者为空取消保存，默认保存目录在Library/cache下。
    [_iFlySpeechRecognizer setParameter:@"iat.pcm" forKey:[IFlySpeechConstant ASR_AUDIO_PATH]];
    //去掉逗号
    [_iFlySpeechRecognizer setParameter:@"0" forKey:[IFlySpeechConstant ASR_PTT]];

    [_iFlySpeechRecognizer setDelegate: self];
    [self.view addSubview:self.speechButton];
    [self.view addSubview:self.speechLabel];
    //[self.view addSubview:self.audioStreamButton];
    //启动识别服务
   // [_iFlySpeechRecognizer startListening];
    if (_speechView == nil) {
        _speechView = [MSCVoiceRecordToastContentView new];
        _speechView.center = CGPointMake(self.view.frame.size.width/2, self.speechButton.frame.origin.y-100);
        _speechView.bounds = CGRectMake(0, 0, 120, 120);
        _speechView.backgroundColor = [[UIColor blackColor]colorWithAlphaComponent:0.5];
        _speechView.layer.cornerRadius = 6;
        _speechView.hidden = YES;
        [self.view addSubview:_speechView];
    }


}

当然声明代理，同时科大讯飞语音delegate的几个回调方法也要写出来

//IFlySpeechRecognizerDelegate协议实现
//识别结果返回代理
- (void) onResults:(NSArray *) results isLast:(BOOL)isLast{
    NSMutableString *resultString = [[NSMutableString alloc] init];
    NSDictionary *dic = results[0];
    for (NSString *key in dic) {
        [resultString appendFormat:@"%@",key];
    }
    NSString * resultFromJson =  [MSCHelper stringFromJson:resultString];

    self.speechLabel.text = [NSString stringWithFormat:@"%@%@", self.speechLabel.text,resultFromJson];
   // NSLog(@"当前获取的数据 :  %@",resultFromJson);
    if ([_iFlySpeechRecognizer isListening]) {
        NSLog(@"正在识别");
    }


}
//识别会话结束返回代理
- (void)onError: (IFlySpeechError *) error{
    NSLog(@"错误原因 : %@",error.errorDesc);
    if (self.speechButton.selected) {
        [_iFlySpeechRecognizer startListening];
    }else{
        [_iFlySpeechRecognizer cancel];
    }
}
//停止录音回调
- (void) onEndOfSpeech{
    NSLog(@"结束录音");
}
//开始录音回调
- (void) onBeginOfSpeech{
    NSLog(@"开始录音");
}
//音量回调函数
- (void) onVolumeChanged: (int)volume{
    [self.speechView updateWithPower:volume];
}
//会话取消回调
- (void) onCancel{
    NSLog(@"取消了当前会话");
}
