webpack引入SuperMap iClient3D 8C for Plugin

什么是webpack?

webpack是时下很火的一款代码打包工具,理念是“一切皆模块”,能把各种资源作为模块来使用。虽然webpack本身只能打包JS,但其有很多“loader”可以打包各种文件,使得其很强大。最近学习webpack,发现很适合管理三维SPA页面的管理,在此分享一下用webpack引入SuperMap iClent3D 8C for Plugin的方法。本文重点讲webpack配置文件webpack.config.js如何引入iClent3D库。

项目目录结构

项目目录结构

build:发布目录,
src: 源文件目录,
static: 静态引用目录,SuperMap iClent3D 8C for Plugin的库放该文件夹,通过打包SuperMap.Include.js动态加载,详见webpack.config.js配置文件的入口设置(entry )。

配置

package.json:描述包的文件,记录了项目的基本信息以及依赖的模块文件。
webpack.config.js: 每个项目下都必须有一个该配置文件,由它告知webpack需要做的工作。下面直接给出我用的配置文件,并附上注释帮助大家理解,参考该配置文件,不仅能引入iClent3d库,可全局引入jQuery和bootstrap。此配置文件适合webpack2.0,webpack1.0不适用。

webpack.config.js

```js require("./postcss.config.js"); var path = require("path"); var webpack = require("webpack"); /* * clean publishing directory * (清空发布目录) * */ var CleanWebpackPlugin = require('clean-webpack-plugin');

/*

  • create html
  • (创建html文件)
  • */
    var HtmlWebpackPlugin = require(‘html-webpack-plugin’);

/*

  • extract css
  • (提取css文件)
  • */
    var ExtractTextPlugin = require(“extract-text-webpack-plugin”);

/*

  • merge config
  • (合并config文件)
  • */
    var Merge = require(‘webpack-merge’);

/*

  • auto open browser
  • (自动打开浏览器)
  • */
    var OpenBrowserPlugin = require(‘open-browser-webpack-plugin’);

/*

  • Detect how npm is run and branch based on that
  • (当前 npm 运行)
  • */
    var currentTarget = process.env.npm_lifecycle_event;

var debug, // is debug
devServer, // is hmr mode
minimize; // is minimize

if (currentTarget == “build”) { // online mode (线上模式)

debug = false, devServer = false, minimize = true;

} else if (currentTarget == “dev”) { // dev mode (开发模式)

debug = true, devServer = false, minimize = false;

} else if (currentTarget == “dev-hmr”) { // dev HMR mode (热更新模式)

debug = true, devServer = true, minimize = false;

}

/*

var PATHS = {
/*
* publish path
* (发布目录)
* */
publicPath: devServer ? ‘/webpack-iclent3d-demo/build/’ : ‘./’,

/*
 * public resource path
 * (公共资源目录)
 * */
libsPath: path.resolve(process.cwd(), './libs'),

/*
 * resource path
 * (src 目录)
 * */
srcPath: path.resolve(process.cwd(), 'src'),

/*
 * node_modules path
 */
node_modulesPath: path.resolve('./node_modules'),

}

var resolve = {
/*
* An array of extensions that should be used to resolve modules
* (引用时可以忽略后缀)
* */
extensions: [".js", “.css”, “.scss”, “.ejs”, “.png”, “.jpg”],

/*
 * The directory (absolute path) that contains your modules
 * */

modules: [path.resolve(__dirname, "src"), PATHS.node_modulesPath],

/*
 * Replace modules with other modules or paths.
 * (别名,引用时直接可以通过别名引用)
 * */
alias: {
    /*
     * js
     * */
    bootstrap: path.join(PATHS.libsPath, "/bootstrap/js/bootstrap.js"),
    /*jquery: path.join(PATHS.libsPath, "/jquery/jquery.js"),*/

    /*
     * css
     * */
    bootstrapcss: path.join(PATHS.libsPath, "/bootstrap/css/bootstrap.css"),
    indexcss: path.join(PATHS.srcPath, "css/index.css"),
}

}

/*

  • The entry point for the bundle.

  • (入口)

  • */
    var entry = {

    /*

    • 主要入口文件index.js
    • */
      index: “./src/js/index.js”,

    /*

    • 第三方库,

    • */
      commons: [
      /*path.join(PATHS.libsPath, “/jquery/jquery.js”), */
      path.join(PATHS.libsPath, “/bootstrap/js/bootstrap.js”),

      // 这儿引入iClent3D库。
      path.join(PATHS.libsPath, “/supermap/SuperMap.Include.js”),
      ],
      };

/*

  • output options tell Webpack how to write the compiled files to disk

  • (webpack 编译后输出标识)

  • /
    var output = {
    /

    • determines the location on disk the files are written to
    • (输出目录)
    • */
      path: path.join(__dirname, ‘build’),

    /*

    • The publicPath specifies the public URL address of the output files when referenced in a browser
    • (发布后,资源的引用目录)
    • */
      publicPath: PATHS.publicPath,

    /*

    • Specifies the name of each output file on disk
    • (文件名称)
    • */
      filename: devServer ? ‘js/[name].js’ : ‘js/[name]-[chunkhash:8].js’,

    /*

    • The filename of non-entry chunks as relative path inside the output.path directory.
    • (按需加载模块时输出的文件名称)
    • */
      chunkFilename: devServer ? ‘js/[name].js’ : ‘js/[name]-[chunkhash:8].js’
      }

var rules = [{
/*
* 使用babel编译ES6/ES7/ES8为ES5代码
* 使用正则表达式匹配后缀名为.js的文件
*/
test: /.js$/,

    /*
     * 排除node_modules目录下的文件, npm安装的包不需要编译
     */
    exclude: /node_modules/,

    /*
     * use指定该文件的loader, 值可以是字符串或者数组.
     * 这里先使用eslint-loader处理, 返回的结果交给babel-loader处理. loader的处理顺序是从最后一个到第一个.
     * eslint-loader用来检查代码, 如果有错误, 编译的时候会报错.
     * babel-loader用来编译js文件.
     */
    enforce: "pre",
    //loader: ["babel-loader", "eslint-loader"]
    loader: ["babel-loader"]
},

/*
 * Exports HTML as string, require references to static resources.
 * (html loader)
 * */
{
    /*
     * 匹配.html文件
     */
    test: /\.html$/,
    /*
     * 使用html-loader, 将html内容存为js字符串, 比如当遇到
     * import htmlString from './template.html';
     * template.html的文件内容会被转成一个js字符串, 合并到js文件里.
     */
    use: "html-loader"
},

/*
 * img loader
 * */
{
    /*
     * 匹配各种格式的图片文件
     * 上面html-loader会把html中<img>标签的图片解析出来, 文件名匹配到这里的test的正则表达式,
     * css-loader引用的图片和字体同样会匹配到这里的test条件.
     * */
    test: /\.(png|gif|jpe?g)$/,
    /*
     * 使用url-loader, 它接受一个limit参数, 单位为字节(byte)
     * 当文件体积小于limit时, url-loader把文件转为Data URI的格式内联到引用的地方
     * 当文件大于limit时, url-loader会调用file-loader, 把文件储存到输出目录, 并把引用的文件路径改写成输出后的路径
     * 比如 views/foo/index.html中的<img src="smallpic.png">会被编译成
     * <img src="https://img-blog.csdnimg.cn/2022010618312718849.png">
     * 而<img src="largepic.png">会被编译成
     * <img src="/f78661bef717cf2cc2c2e5158f196384.png">
     * */
    use: [{
        loader: "url-loader",
        options: {
            limit: 10000,
            name: '/images/[name]-[hash:8].[ext]'
        }
    }]
},

/*
 * font loader
 * */
{
    test: /\.(eot|woff|woff2|ttf|svg)$/,
    use: [{
        loader: "url-loader",
        options: {
            limit: 5000,
            name: '/fonts/[name]-[hash:8].[ext]'
        }
    }]
},

/*
 * Extract css files
 * (提取css到单独文件loader)
 */
{
    test: /\.css$/,
    loader: ExtractTextPlugin.extract({
        fallback: "style-loader",
        use: ["css-loader", "postcss-loader", "sass-loader"],
        publicPath: "./"
    })
},

];

var plugins = [

/*
 * gloabal flag
 * (全局标识)
 * */
new webpack.DefinePlugin({
    /*
     * dev flag
     * (开发标识)
     * */
    __DEV__: debug,

    /*
     * proxy flag
     * (代理的标识)
     * */
    __DEVAPI__: devServer ? "/devApi/" : "''",
}),

/*
 * clean publishing directory
 * (发布前清空发布目录)
 * */
new CleanWebpackPlugin(['build'], {
    root: '', // An absolute path for the root  of webpack.config.js
    verbose: true, // Write logs to console.
    //dry: false // Do not delete anything, good for testing.
    dry: devServer ? true : false
}),

/*
 * commons js
 * (公共js)
 * */
new webpack.optimize.CommonsChunkPlugin(
    /* devServer ?
    {name: "common", filename: "js/common.js"}:
    {names: ["common", "webpackAssets"]}*/
    {
        names: ["index", "commons", "webpackAssets"]
    }
),

/*
 *  Module (value) is loaded when the identifier (key) is used as free variable in a module
 *  (如:使用jquery 可以直接使用符号 "$")
 * */
new webpack.ProvidePlugin({
    $: "jquery",
    jQuery: "jquery",
    "window.jQuery": "jquery",
    "window.$": "jquery",
}),

/*
 * extract css
 * (提取css文件到单独的文件中)
 */
new ExtractTextPlugin({
    filename: devServer ? "css/[name].css" : "css/[name]-[chunkhash:8].css",
    disable: false,
    allChunks: true
}),

/*
 *create html file
 * (创建html文件)
 * */
new HtmlWebpackPlugin({
    filename: 'index.html',
    template: __dirname + '/src/index.html',
    /*
     * inject: true | 'head' | 'body' | false Inject all assets into the given template or templateContent -
     * When passing true or 'body' all javascript resources will be placed at the bottom of the body element.
     * 'head' will place the scripts in the head element.
     * */
    inject: 'true',

    // 需要依赖的模块
    chunks: ["index", "commons", "webpackAssets"],

    // 根据依赖自动排序
    chunksSortMode: 'dependency'
})

];

if (minimize) {

plugins.push(
    /*
     * Uglify
     * (压缩)
     * */
    new webpack.optimize.UglifyJsPlugin({ // js、css都会压缩
        mangle: {
            except: ['$super', '$', /*'exports', 'require', 'module'*/ ]
        },
        compress: {
            warnings: false
        },
        output: {
            comments: false,
        }
    })
)

}

var config = {
/*
* 配置页面入口js文件
/
entry: entry,
/

* Like resolve but for loaders.
* (查找loader 的位置)
* */
/resolveLoader: {root: path.join(__dirname, “node_modules”)},/
output: output,
module: {
rules: rules
},
resolve: resolve,
plugins: plugins,

}

/*

  • Hrm setting

  • (开启热更新,并自动打开浏览器)

  • */
    if (devServer) {

    config = Merge(
    config, {
    plugins: [
    // Enable multi-pass compilation for enhanced performance
    // in larger projects. Good default.
    new webpack.HotModuleReplacementPlugin({
    multiStep: true
    }),
    new OpenBrowserPlugin({
    url: ‘http://localhost:8080’ + PATHS.publicPath + ‘index.html’
    })
    ],
    devServer: {
    // Enable history API fallback so HTML5 History API based
    // routing works. This is a good default that will come
    // in handy in more complicated setups.
    historyApiFallback: true,

             // Unlike the cli flag, this doesn't set
             // HotModuleReplacementPlugin!
             hot: true,
             inline: true,

             // Display only errors to reduce the amount of output.
             stats: 'errors-only',

             // Parse host and port from env to allow customization.
             //
             // If you use Vagrant or Cloud9, set
             // host: options.host || '0.0.0.0';
             //
             // 0.0.0.0 is available to all network devices
             // unlike default `localhost`.
             host: "localhost", // Defaults to `localhost`   process.env.HOST
             port: 8080, // Defaults to 8080   process.env.PORT
             /*
              *  代理访问
              *  1、可以绕过同源策略 和 webpack '热更新'结合使用
              */
             proxy: {
                 '/devApi/*': {
                     target: proxyTarget,
                     secure: true,
                     stats: {
                         colors: true
                     },
                     /*
                      * rewrite 的方式扩展性更强,不限制服务的名称
                      * */
                     rewrite: function (req) {
                         console.log(req.url);
                         req.url = req.url.replace(/^\/devApi/, '');
                     }
                 }
             }
         }
     }


    );
    }

module.exports = config;

<h2>SuperMap.Include.js</h2>
```js
function _IncludeScript(inc){
  var script='<'+'script type="text/javascript" src="..././static/lib_Realspace/'+inc+'"'+'><'+'/script>';
	document.writeln(script);
}

function _Include2DScript(inc){
	var script='<'+'script type="text/javascript" src="../../static/lib_Ajax/'+inc+'"'+'><'+'/script>';
	document.writeln(script);
}

if(!Function.__typeName)
{
  _Include2DScript('MicrosoftAjax.js');
	_Include2DScript('SuperMap-7.0.1-11323.js');
  _IncludeScript('SuperMap.Web.Realspace.js');
}

结果

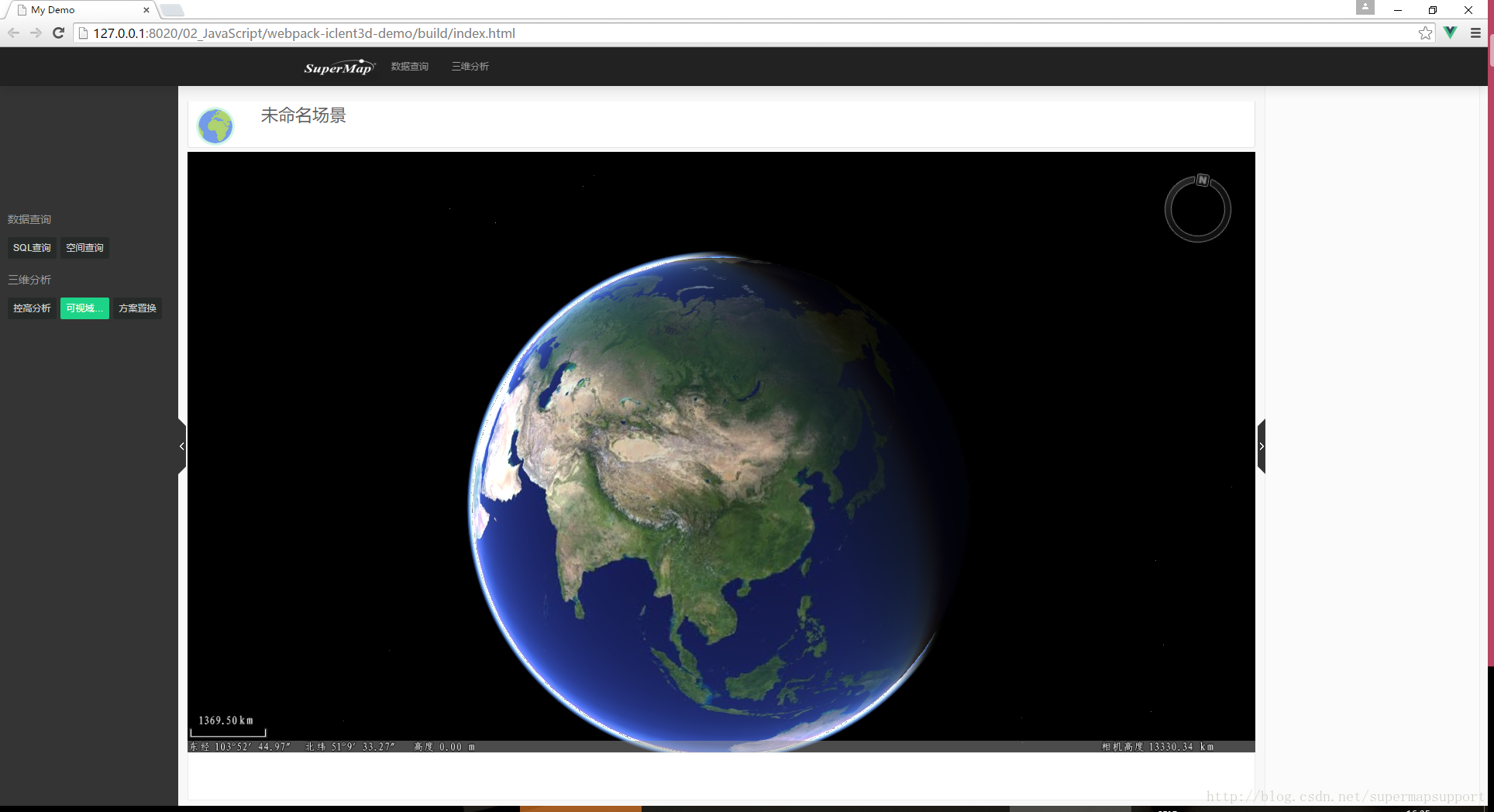

运行图片

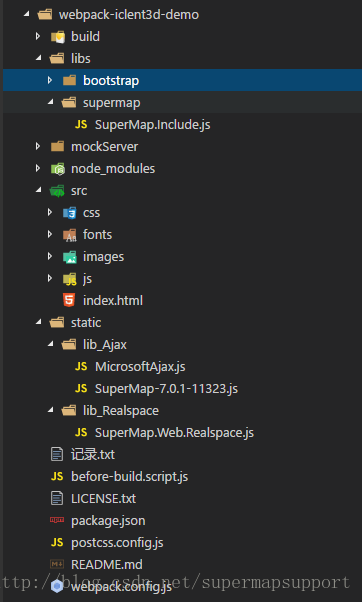

源代码结构

如图页面能看见三维球,带有bootstrap风格,说明iClent3D库引入成功,jQuery和bootstrap引入成功。分享到此,有疑问欢迎留言提出,共同学习。

参考资料

1、前端模块化开发的价值
2、webpack学习之路
3、webpack1.0迁移到2.0
