动态线程池组件+Prometheus+Grafana

tianshuowdnmd

已于 2025-01-09 17:04:46 修改

阅读量1.5k

点赞数 49

分类专栏：项目文章标签： prometheus grafana java

于 2025-01-09 16:53:35 首次发布

本文链接：https://blog.csdn.net/tianshuowdnmd/article/details/145037435

版权

项目专栏收录该内容

1 篇文章

订阅专栏

本文设计部分参考知识星球小傅哥和实现一个简易动态线程池作者喔喔咿哈哈

本文监控部分参考小傅哥作业中半程客梦i

本文设计简易的动态线程池组件，可以直接嵌入到项目之中，采用Redis作为注册中心，Prometheus采集数据，Grafana进行动态数据显示。
本文代码在https://gitcode.com/tianshuowdnmd/dynamic-thread-pool

一前言

1.1 什么是线程池

线程池（Thread Pool）是一种基于池化思想管理线程的工具，经常出现在多线程服务器中，如MySQL。

线程过多会带来额外的开销，其中包括创建销毁线程的开销、调度线程的开销等等，同时也降低了计算机的整体性能。线程池维护多个线程，等待监督管理者分配可并发执行的任务。这种做法，一方面避免了处理任务时创建销毁线程开销的代价，另一方面避免了线程数量膨胀导致的过分调度问题，保证了对内核的充分利用。

而本文描述线程池是JDK中提供的ThreadPoolExecutor类。

当然，使用线程池可以带来一系列好处：

降低资源消耗：通过池化技术重复利用已创建的线程，降低线程创建和销毁造成的损耗。
提高响应速度：任务到达时，无需等待线程创建即可立即执行。
提高线程的可管理性：线程是稀缺资源，如果无限制创建，不仅会消耗系统资源，还会因为线程的不合理分布导致资源调度失衡，降低系统的稳定性。使用线程池可以进行统一的分配、调优和监控。
提供更多更强大的功能：线程池具备可拓展性，允许开发人员向其中增加更多的功能。比如延时定时线程池ScheduledThreadPoolExecutor，就允许任务延期执行或定期执行。

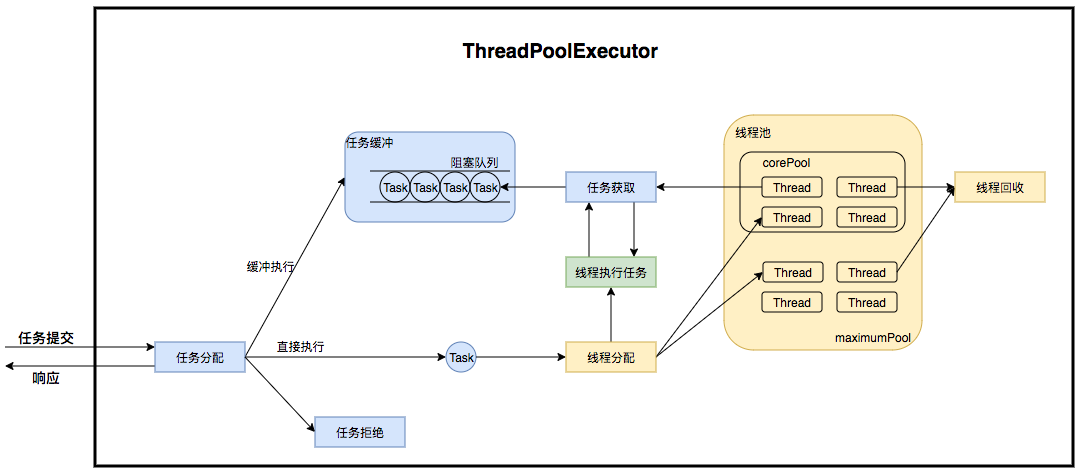

图2 ThreadPoolExecutor运行流程

ThreadPoolExecutor运行流程

1.2 任务调度机制

首先检测线程池运行状态，如果不是RUNNING，则直接拒绝，线程池要保证在RUNNING的状态下执行任务。
如果运行线程数 < corePoolSize，则创建并启动一个线程来执行新提交的任务。
如果运行线程数>= corePoolSize，且线程池内的阻塞队列未满，则将任务添加到该阻塞队列中。
如果运行线程数 >= corePoolSize && 运行线程数< maximumPoolSize，且线程池内的阻塞队列已满，则创建并启动一个线程来执行新提交的任务。
如果运行线程数>= maximumPoolSize，并且线程池内的阻塞队列已满, 则根据拒绝策略来处理该任务, 默认的处理方式是直接抛异常。

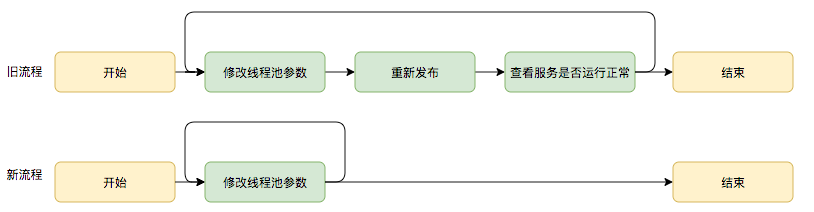

1.3 为什么需要动态线程池

线程池在业务系统应该都有使用到，帮助业务流程提升效率以及管理线程，多数场景应用于大量的异步任务处理。虽然线程池提供了我们许多便利，但也并非尽善尽美，比如下面这些问题就无法很好解决。

动态线程池根据需求调整线程数，避免资源浪费或不足。
动态线程池支持运行时调整参数，适应配置变化。
线程池任务堆积，触发拒绝策略，影响既有业务正常运行。

1.4 线程池一般用来执行什么任务

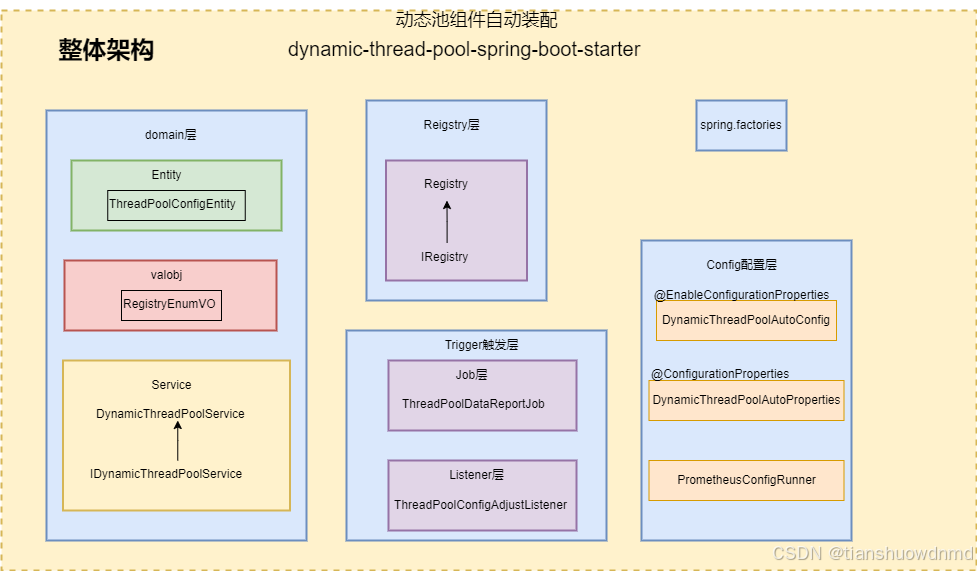

二后端整体设计

在这里插入图片描述

一些需要明确的点

自动装配配置层

包括

Redis配置
线程池信息的读取
Prometheus的配置

package cn.bugstack.middleware.dynamic.thread.pool.sdk.config;

import cn.bugstack.middleware.dynamic.thread.pool.sdk.trigger.listener.ThreadPoolConfigAdjustListener;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.domain.DynamicThreadPoolService;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.domain.IDynamicThreadPoolService;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.domain.model.entity.ThreadPoolConfigEntity;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.domain.model.valobj.RegistryEnumVO;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.registry.IRegistry;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.registry.redis.RedisRegistry;
import cn.bugstack.middleware.dynamic.thread.pool.sdk.trigger.job.ThreadPoolDataReportJob;
import org.apache.commons.lang.StringUtils;
import org.redisson.Redisson;
import org.redisson.api.RTopic;
import org.redisson.api.RedissonClient;
import org.redisson.codec.JsonJacksonCodec;
import org.redisson.config.Config;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.actuate.autoconfigure.endpoint.web.WebEndpointProperties;
import org.springframework.boot.actuate.autoconfigure.metrics.export.prometheus.PrometheusProperties;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.annotation.EnableScheduling;

import java.util.Arrays;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;
import java.util.concurrent.ThreadPoolExecutor;

/**
 * @author ts
 * @description 动态配置入口
 * @create 2025-1-6 15:37
 */
@Configuration
@ComponentScan(basePackages = "cn.bugstack.middleware.dynamic.thread.pool.sdk.trigger.controller")
@EnableConfigurationProperties(DynamicThreadPoolAutoProperties.class)
@EnableScheduling
public class DynamicThreadPoolAutoConfig {

    private final Logger logger = LoggerFactory.getLogger(DynamicThreadPoolAutoConfig.class);

    private String applicationName;

    @Bean("dynamicThreadRedissonClient")
    public RedissonClient redissonClient(DynamicThreadPoolAutoProperties properties) {
        Config config = new Config();
        // 根据需要可以设定编解码器；https://github.com/redisson/redisson/wiki/4.-%E6%95%B0%E6%8D%AE%E5%BA%8F%E5%88%97%E5%8C%96
        config.setCodec(JsonJacksonCodec.INSTANCE);

        config.useSingleServer()
                .setAddress("redis://" + properties.getHost() + ":" + properties.getPort())
                .setPassword(properties.getPassword())
                .setConnectionPoolSize(properties.getPoolSize())
                .setConnectionMinimumIdleSize(properties.getMinIdleSize())
                .setIdleConnectionTimeout(properties.getIdleTimeout())
                .setConnectTimeout(properties.getConnectTimeout())
                .setRetryAttempts(properties.getRetryAttempts())
                .setRetryInterval(properties.getRetryInterval())
                .setPingConnectionInterval(properties.getPingInterval())
                .setKeepAlive(properties.isKeepAlive())
        ;

        RedissonClient redissonClient = Redisson.create(config);

        logger.info("动态线程池，注册器（redis）链接初始化完成。{} {} {}", properties.getHost(), properties.getPoolSize(), !redissonClient.isShutdown());

        return redissonClient;
    }

    @Bean
    public IRegistry redisRegistry(RedissonClient dynamicThreadRedissonClient) {
        return new RedisRegistry(dynamicThreadRedissonClient);
    }

    @Bean("dynamicThreadPollService")
    public DynamicThreadPoolService dynamicThreadPollService(ApplicationContext applicationContext, Map<String, ThreadPoolExecutor> threadPoolExecutorMap, RedissonClient redissonClient) {
        applicationName = applicationContext.getEnvironment().getProperty("spring.application.name");

        if (StringUtils.isBlank(applicationName)) {
            applicationName = "缺省的";
            logger.warn("动态线程池，启动提示。SpringBoot 应用未配置 spring.application.name 无法获取到应用名称！");
        }

        // 获取缓存数据，设置本地线程池配置
        Set<String> threadPoolKeys = threadPoolExecutorMap.keySet();
        for (String threadPoolKey : threadPoolKeys) {
            ThreadPoolConfigEntity threadPoolConfigEntity = redissonClient.<ThreadPoolConfigEntity>getBucket(RegistryEnumVO.THREAD_POOL_CONFIG_PARAMETER_LIST_KEY.getKey() + "_" + applicationName + "_" + threadPoolKey).get();
            if (null == threadPoolConfigEntity) continue;
            ThreadPoolExecutor threadPoolExecutor = threadPoolExecutorMap.get(threadPoolKey);
            threadPoolExecutor.setCorePoolSize(threadPoolConfigEntity.getCorePoolSize());
            threadPoolExecutor.setMaximumPoolSize(threadPoolConfigEntity.getMaximumPoolSize());
        }

        return new DynamicThreadPoolService(applicationName, threadPoolExecutorMap);
    }

    @Bean
    public ThreadPoolDataReportJob threadPoolDataReportJob(IDynamicThreadPoolService dynamicThreadPoolService, IRegistry registry) {
        return new ThreadPoolDataReportJob(dynamicThreadPoolService, registry);
    }

    @Bean
    public ThreadPoolConfigAdjustListener threadPoolConfigAdjustListener(IDynamicThreadPoolService dynamicThreadPoolService, IRegistry registry) {
        return new ThreadPoolConfigAdjustListener(dynamicThreadPoolService, registry);
    }

    @Bean(name = "dynamicThreadPoolRedisTopic")
    public RTopic threadPoolConfigAdjustListener(RedissonClient redissonClient, ThreadPoolConfigAdjustListener threadPoolConfigAdjustListener) {
        RTopic topic = redissonClient.getTopic(RegistryEnumVO.DYNAMIC_THREAD_POOL_REDIS_TOPIC.getKey() + "_" + applicationName);
        topic.addListener(ThreadPoolConfigEntity.class, threadPoolConfigAdjustListener);
        return topic;
    }
// Prometheus配置
    @Bean
    public PrometheusConfigRunner prometheusConfigRunner(
            ApplicationContext applicationContext,
            WebEndpointProperties webEndpointProperties,
            PrometheusProperties prometheusProperties

    ) {
        webEndpointProperties.getExposure().setInclude(
                new HashSet<>(Arrays.asList(
                        "health",
                        "prometheus"
                ))
        );
        prometheusProperties.setEnabled(true);

        logger.info("动态线程池，Prometheus 配置初始化完成。");
        return new PrometheusConfigRunner(
                applicationContext
        );
    }


}

Prometheus配置类的具体实现

package cn.bugstack.middleware.dynamic.thread.pool.sdk.config;

import io.micrometer.core.instrument.ImmutableTag;
import io.micrometer.core.instrument.Metrics;
import io.micrometer.core.instrument.Tag;
import lombok.AllArgsConstructor;
import lombok.NoArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.context.ApplicationContext;

import javax.annotation.Resource;
import java.util.Arrays;
import java.util.List;
import java.util.concurrent.ThreadPoolExecutor;

@Slf4j
@NoArgsConstructor
@AllArgsConstructor
public class PrometheusConfigRunner implements ApplicationRunner {

    @Resource
    private ApplicationContext applicationContext;

    @Override
    public void run(ApplicationArguments args) throws Exception {
        String[] beanNamesForType = applicationContext.getBeanNamesForType(ThreadPoolExecutor.class);
        for (String beanName : beanNamesForType) {
            ThreadPoolExecutor executor = (ThreadPoolExecutor) applicationContext.getBean(beanName);
            registerThreadPool(
                    applicationContext.getEnvironment().getProperty("spring.application.name"),
                    beanName,
                    executor
            );
            log.info("动态线程池，启动提示。SpringBoot 应用已启动动态线程池：{}", beanName);
        }
    }

    private void registerThreadPool(
            String applicationName,
            String poolName,
            ThreadPoolExecutor executor
    ) {
        List<Tag> tags = Arrays.asList(
                new ImmutableTag("applicationName", applicationName),
                new ImmutableTag("poolName", poolName)
        );
        Metrics.gauge("thread_pool_core_size", tags, executor, ThreadPoolExecutor::getCorePoolSize);
        Metrics.gauge("thread_pool_max_size", tags, executor, ThreadPoolExecutor::getMaximumPoolSize);
        Metrics.gauge("thread_pool_active_thread_count", tags, executor, ThreadPoolExecutor::getActiveCount);
        Metrics.gauge("thread_pool_size", tags, executor, ThreadPoolExecutor::getPoolSize);
        Metrics.gauge("thread_pool_queue_size", tags, executor,
                (threadPoolExecutor) -> threadPoolExecutor.getQueue().size()
        );
        Metrics.gauge("thread_pool_queue_remaining_capacity", tags, executor,
                (threadPoolExecutor) -> threadPoolExecutor.getQueue().remainingCapacity()
        );

        log.info("Prometheus已经注册监控指标");
    }
}

Redis注册中心

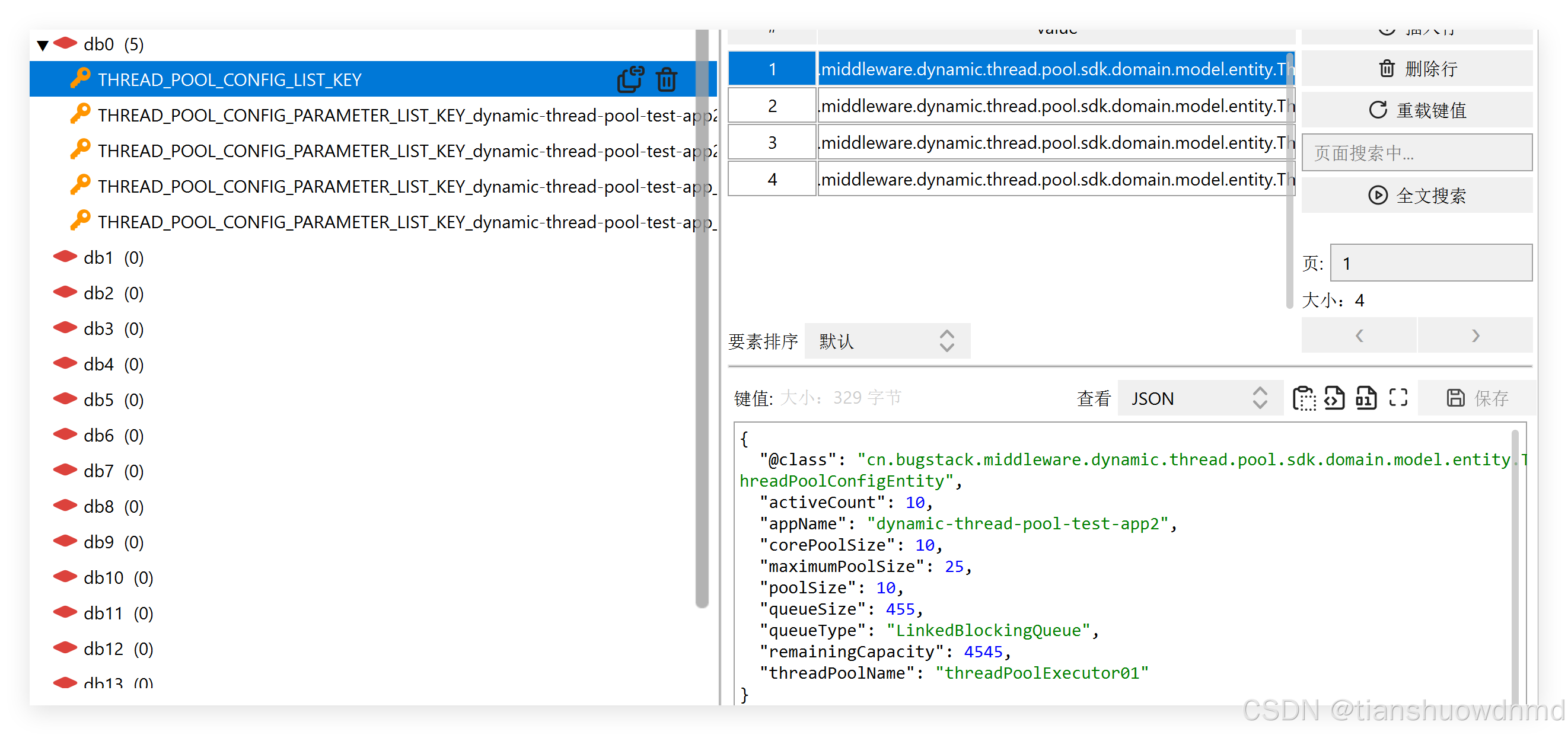

Redis的作用

使用Redis作为注册中心，上报线程池配置数据。
当有线程池数据修改时，通过发布订阅更新Redis中的数据。
前端获取的数据，直接从Redis中读取，返回给前端。

Redis中的方法

1 reportThreadPool

desc：进行总线程池信息数据上报

    @Override
    public void reportThreadPool(List<ThreadPoolConfigEntity> threadPoolEntities) {
        RList<ThreadPoolConfigEntity> list = redissonClient.getList(RegistryEnumVO.THREAD_POOL_CONFIG_LIST_KEY.getKey());
        RLock lock = redissonClient.getLock(RegistryEnumVO.REPORT_THREAD_POOL_CONFIG_LIST_REDIS_LOCK_KEY.getKey());

        String applicationName = threadPoolEntities.get(0).getAppName();
        try {
            boolean canHasLock = lock.tryLock(3000, 3000, TimeUnit.MILLISECONDS);

            if (canHasLock) {
                // 获取本应用线程池的开始索引
                int index = -1;
                for (int i = 0; i < list.size(); i++) {
                    ThreadPoolConfigEntity originalPoolConfig = list.get(i);
                    if (Objects.equals(originalPoolConfig.getAppName(), applicationName)) {
                        index = i;
                        break;
                    }
                }

                if (index == -1) {
                    // 如果不存在，直接添加到列表末尾
                    list.addAll(threadPoolEntities);
                } else {
                    // 更新线程池配置
                    for (ThreadPoolConfigEntity newPoolConfig : threadPoolEntities) {
                        ThreadPoolConfigEntity originalPoolConfig = list.get(index);
                        if (!originalPoolConfig.equals(newPoolConfig)) {
                            list.fastRemove(index);
                            list.add(index, newPoolConfig);
                        }
                        index++;
                    }
                }
            }
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        } finally {
            if (lock.isHeldByCurrentThread()) {
                lock.unlock();
            }
        }
    }

2 reportThreadPoolConfigParameter

desc: 具体线程池信息的上传

@Override
public void reportThreadPoolConfigParameter(ThreadPoolConfigEntity threadPoolConfigEntity) {
    String cacheKey = RegistryEnumVO.THREAD_POOL_CONFIG_PARAMETER_LIST_KEY.getKey() + "_" + threadPoolConfigEntity.getAppName() + "_" + threadPoolConfigEntity.getThreadPoolName();
    RBucket<ThreadPoolConfigEntity> bucket = redissonClient.getBucket(cacheKey);
    bucket.set(threadPoolConfigEntity, Duration.ofDays(30));
}

定时任务

每过X秒进行当前应用的线程池信息上报

public class ThreadPoolDataReportJob {

    private final Logger logger = LoggerFactory.getLogger(ThreadPoolDataReportJob.class);

    private final IDynamicThreadPoolService dynamicThreadPoolService;

    private final IRegistry registry;

    public ThreadPoolDataReportJob(IDynamicThreadPoolService dynamicThreadPoolService, IRegistry registry) {
        this.dynamicThreadPoolService = dynamicThreadPoolService;
        this.registry = registry;
    }

    @Scheduled(cron = "0/3 * * * * ?")
    public void execReportThreadPoolList() {
        List<ThreadPoolConfigEntity> threadPoolConfigEntities = dynamicThreadPoolService.queryThreadPoolList();
        registry.reportThreadPool(threadPoolConfigEntities);
        logger.info("动态线程池，上报线程池信息：{}", JSON.toJSONString(threadPoolConfigEntities));

        for (ThreadPoolConfigEntity threadPoolConfigEntity : threadPoolConfigEntities) {
            registry.reportThreadPoolConfigParameter(threadPoolConfigEntity);
            logger.info("动态线程池，上报线程池配置：{}", JSON.toJSONString(threadPoolConfigEntity));
        }

    }

}

监听任务

该监听器绑定了topic

针对消息订阅发布功能，大部分使用的是kafka、RabbitMQ、ActiveMQ, RocketMQ等这几种，redis的订阅发布功能跟这三者相比，相对轻量，针对数据准确和安全性要求没有那么高可以直接使用

@Bean(name = "dynamicThreadPoolRedisTopic")
public RTopic threadPoolConfigAdjustListener(RedissonClient redissonClient, ThreadPoolConfigAdjustListener threadPoolConfigAdjustListener) {
    RTopic topic = redissonClient.getTopic(RegistryEnumVO.DYNAMIC_THREAD_POOL_REDIS_TOPIC.getKey() + "_" + applicationName);
    topic.addListener(ThreadPoolConfigEntity.class, threadPoolConfigAdjustListener);
    return topic;
}

具体方法如下

desc：当有话题发布（线程池修改配置）的时候，进行更新修改后的数据进行上报

public class ThreadPoolConfigAdjustListener implements MessageListener<ThreadPoolConfigEntity> {

    private Logger logger = LoggerFactory.getLogger(ThreadPoolConfigAdjustListener.class);

    private final IDynamicThreadPoolService dynamicThreadPoolService;

    private final IRegistry registry;

    public ThreadPoolConfigAdjustListener(IDynamicThreadPoolService dynamicThreadPoolService, IRegistry registry) {
        this.dynamicThreadPoolService = dynamicThreadPoolService;
        this.registry = registry;
    }

    @Override
    public void onMessage(CharSequence charSequence, ThreadPoolConfigEntity threadPoolConfigEntity) {
        logger.info("动态线程池，调整线程池配置。线程池名称:{} 核心线程数:{} 最大线程数:{}", threadPoolConfigEntity.getThreadPoolName(), threadPoolConfigEntity.getPoolSize(), threadPoolConfigEntity.getMaximumPoolSize());
        dynamicThreadPoolService.updateThreadPoolConfig(threadPoolConfigEntity);

        // 更新后上报最新数据
        List<ThreadPoolConfigEntity> threadPoolConfigEntities = dynamicThreadPoolService.queryThreadPoolList();
        registry.reportThreadPool(threadPoolConfigEntities);

        ThreadPoolConfigEntity threadPoolConfigEntityCurrent = dynamicThreadPoolService.queryThreadPoolConfigByName(threadPoolConfigEntity.getThreadPoolName());
        registry.reportThreadPoolConfigParameter(threadPoolConfigEntityCurrent);
        logger.info("动态线程池，上报线程池配置：{}", JSON.toJSONString(threadPoolConfigEntity));
    }

}

控制层

该类之中有三个方法，

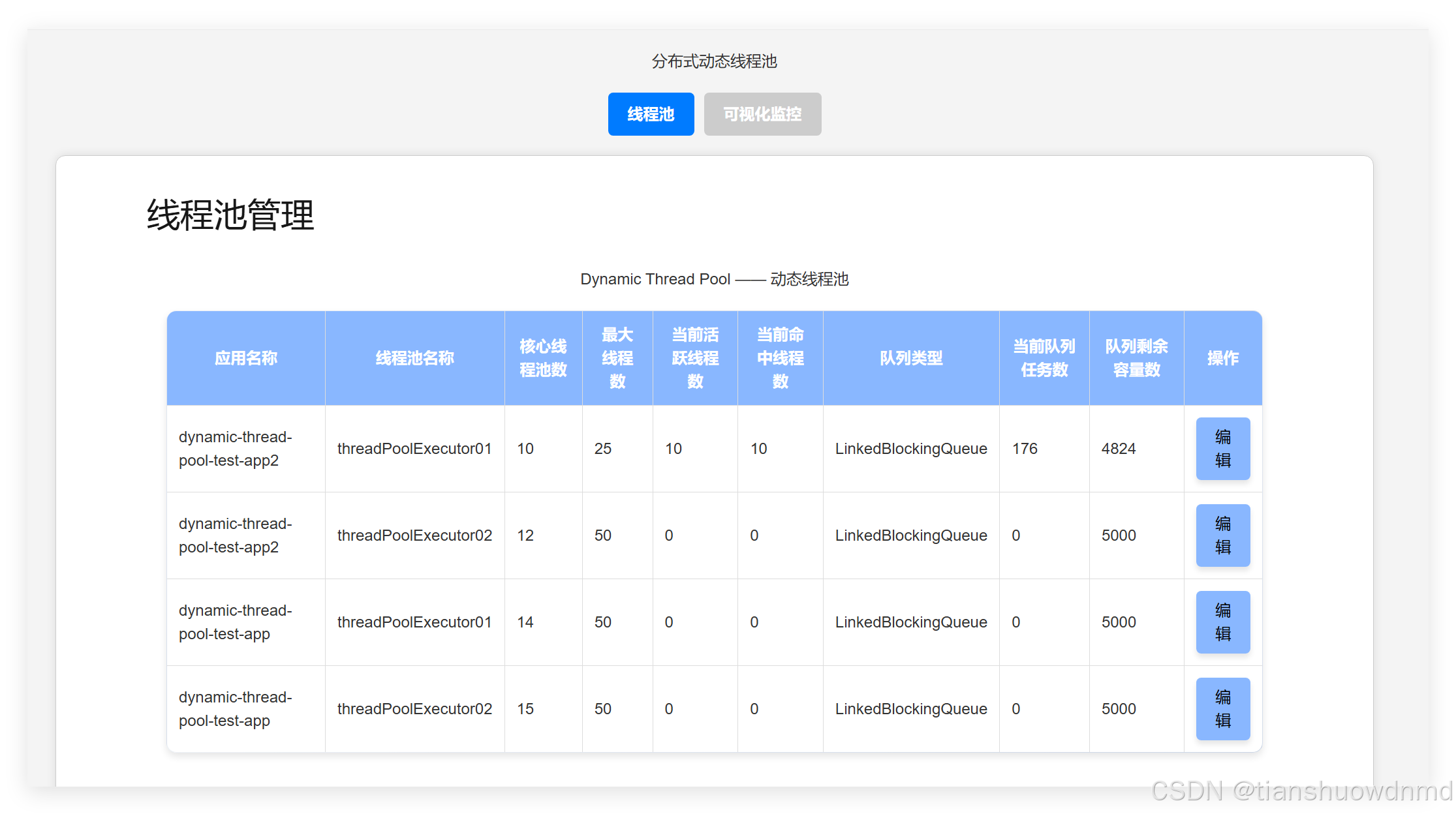

用于显示Redis注册中心的总配置信息和
单独的线程池配置信息

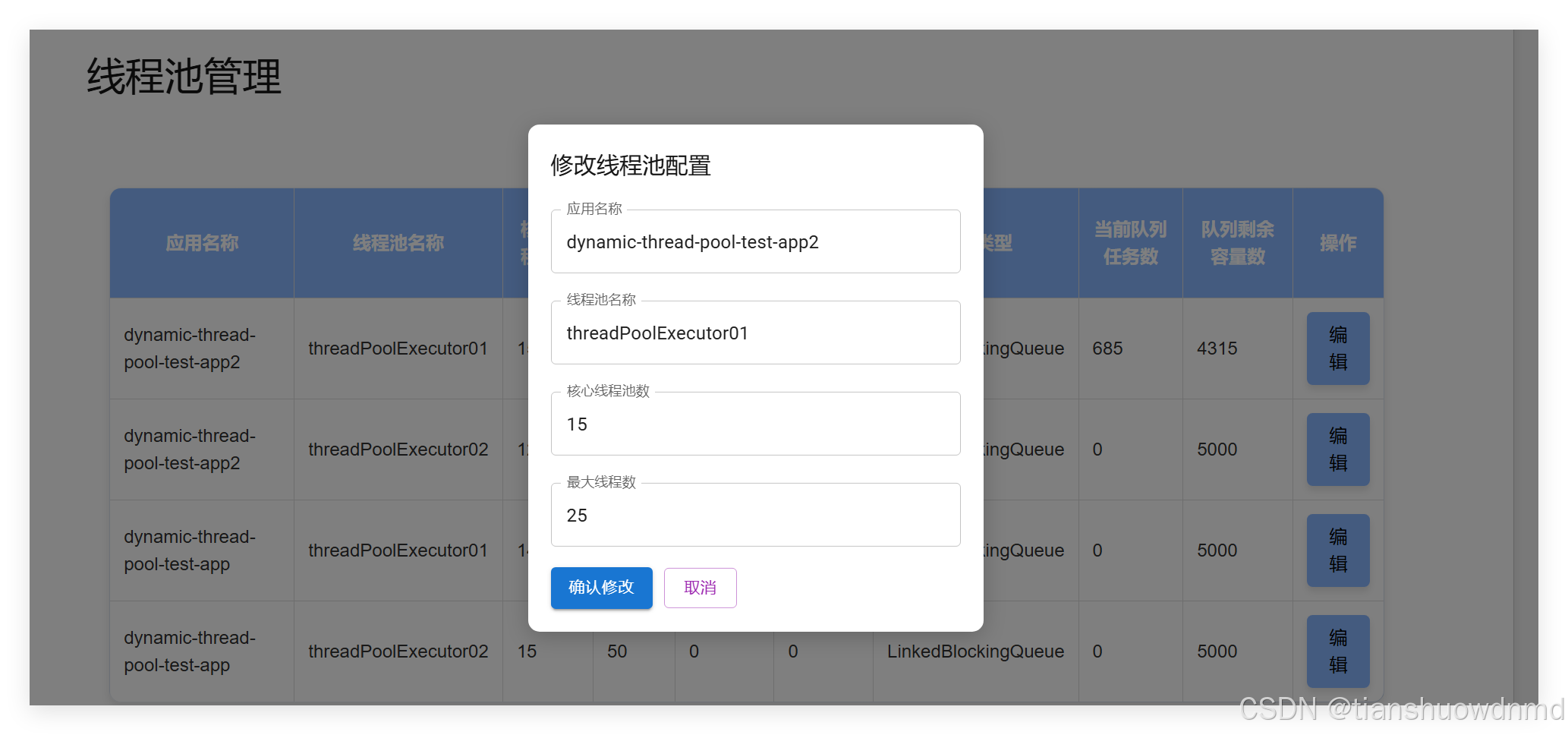

修改线程池配置信息

/**
 * @author: ts
 * @description
 * @create: 2025/1/6 9:02
 */
@Slf4j
@RestController
@CrossOrigin("*")
@RequestMapping("dynamic/thread/pool/admin")
public class DynamicThreadPoolController {
    @Resource
    RedissonClient redissonClient;

    @RequestMapping(value = "query_thread_pool_list",method = RequestMethod.GET)
    public Response<List<ThreadPoolConfigEntity>> queryThreadPoolList(){

        try {
            RList<ThreadPoolConfigEntity> cacheList = redissonClient.getList("THREAD_POOL_CONFIG_LIST_KEY");
            return Response.<List<ThreadPoolConfigEntity>>builder()
                    .code(Response.Code.SUCCESS.getCode())
                    .info(Response.Code.SUCCESS.getInfo())
                    .data(cacheList.readAll())
                    .build();
        } catch (Exception e) {
            return Response.<List<ThreadPoolConfigEntity>>builder()
                    .code(Response.Code.UN_ERROR.getCode())
                    .info(Response.Code.UN_ERROR.getInfo())
                    .build();
        }
    }

    @RequestMapping(value = "query_thread_pool_config", method = RequestMethod.GET)
    public Response<ThreadPoolConfigEntity> queryThreadPoolConfig(@RequestParam String appName, @RequestParam String threadPoolName) {
        try {
            String cacheKey = "THREAD_POOL_CONFIG_PARAMETER_LIST_KEY" + "_" + appName + "_" + threadPoolName;
            ThreadPoolConfigEntity threadPoolConfigEntity = redissonClient.<ThreadPoolConfigEntity>getBucket(cacheKey).get();
            return Response.<ThreadPoolConfigEntity>builder()
                    .code(Response.Code.SUCCESS.getCode())
                    .info(Response.Code.SUCCESS.getInfo())
                    .data(threadPoolConfigEntity)
                    .build();
        } catch (Exception e) {
            log.error("查询线程池配置异常", e);
            return Response.<ThreadPoolConfigEntity>builder()
                    .code(Response.Code.UN_ERROR.getCode())
                    .info(Response.Code.UN_ERROR.getInfo())
                    .build();
        }
    }


    @RequestMapping(value = "update_thread_pool_config", method = RequestMethod.POST)
    public Response<Boolean> updateThreadPoolConfig(@RequestBody ThreadPoolConfigEntity request) {
        try {
            log.info("修改线程池配置开始 {} {} {}", request.getAppName(), request.getThreadPoolName(), JSON.toJSONString(request));
            RTopic topic = redissonClient.getTopic("DYNAMIC_THREAD_POOL_REDIS_TOPIC" + "_" + request.getAppName());
            topic.publish(request);
            log.info("修改线程池配置完成 {} {}", request.getAppName(), request.getThreadPoolName());
            return Response.<Boolean>builder()
                    .code(Response.Code.SUCCESS.getCode())
                    .info(Response.Code.SUCCESS.getInfo())
                    .data(true)
                    .build();
        } catch (Exception e) {
            log.error("修改线程池配置异常 {}", JSON.toJSONString(request), e);
            return Response.<Boolean>builder()
                    .code(Response.Code.UN_ERROR.getCode())
                    .info(Response.Code.UN_ERROR.getInfo())
                    .data(false)
                    .build();
        }
    }
}

线程池服务层

实现三个方法对应控制层

/**
 * @author: ts
 * @description
 * @create: 2025/1/6 9:02
 */
public class DynamicThreadPoolService implements IDynamicThreadPoolService {

    private final Logger logger = LoggerFactory.getLogger(DynamicThreadPoolService.class);

    private final String applicationName;
    private final Map<String, ThreadPoolExecutor> threadPoolExecutorMap;

    public DynamicThreadPoolService(String applicationName, Map<String, ThreadPoolExecutor> threadPoolExecutorMap) {
        this.applicationName = applicationName;
        this.threadPoolExecutorMap = threadPoolExecutorMap;
    }

    @Override
    public List<ThreadPoolConfigEntity> queryThreadPoolList() {
        Set<String> threadPoolBeanNames = threadPoolExecutorMap.keySet();
        List<ThreadPoolConfigEntity> threadPoolVOS = new ArrayList<>(threadPoolBeanNames.size());
        for (String beanName : threadPoolBeanNames) {
            ThreadPoolExecutor threadPoolExecutor = threadPoolExecutorMap.get(beanName);
            ThreadPoolConfigEntity threadPoolConfigVO = new ThreadPoolConfigEntity(applicationName, beanName);
            threadPoolConfigVO.setCorePoolSize(threadPoolExecutor.getCorePoolSize());
            threadPoolConfigVO.setMaximumPoolSize(threadPoolExecutor.getMaximumPoolSize());
            threadPoolConfigVO.setActiveCount(threadPoolExecutor.getActiveCount());
            threadPoolConfigVO.setPoolSize(threadPoolExecutor.getPoolSize());
            threadPoolConfigVO.setQueueType(threadPoolExecutor.getQueue().getClass().getSimpleName());
            threadPoolConfigVO.setQueueSize(threadPoolExecutor.getQueue().size());
            threadPoolConfigVO.setRemainingCapacity(threadPoolExecutor.getQueue().remainingCapacity());
            threadPoolVOS.add(threadPoolConfigVO);
        }
        return threadPoolVOS;
    }

    @Override
    public ThreadPoolConfigEntity queryThreadPoolConfigByName(String threadPoolName) {
        ThreadPoolExecutor threadPoolExecutor = threadPoolExecutorMap.get(threadPoolName);
        if (null == threadPoolExecutor) return new ThreadPoolConfigEntity(applicationName, threadPoolName);

        // 线程池配置数据
        ThreadPoolConfigEntity threadPoolConfigVO = new ThreadPoolConfigEntity(applicationName, threadPoolName);
        threadPoolConfigVO.setCorePoolSize(threadPoolExecutor.getCorePoolSize());
        threadPoolConfigVO.setMaximumPoolSize(threadPoolExecutor.getMaximumPoolSize());
        threadPoolConfigVO.setActiveCount(threadPoolExecutor.getActiveCount());
        threadPoolConfigVO.setPoolSize(threadPoolExecutor.getPoolSize());
        threadPoolConfigVO.setQueueType(threadPoolExecutor.getQueue().getClass().getSimpleName());
        threadPoolConfigVO.setQueueSize(threadPoolExecutor.getQueue().size());
        threadPoolConfigVO.setRemainingCapacity(threadPoolExecutor.getQueue().remainingCapacity());

        if (logger.isDebugEnabled()) {
            logger.info("动态线程池，配置查询 应用名:{} 线程名:{} 池化配置:{}", applicationName, threadPoolName, JSON.toJSONString(threadPoolConfigVO));
        }

        return threadPoolConfigVO;
    }

    @Override
    public void updateThreadPoolConfig(ThreadPoolConfigEntity threadPoolConfigEntity) {
        if (null == threadPoolConfigEntity || !applicationName.equals(threadPoolConfigEntity.getAppName())) return;
        ThreadPoolExecutor threadPoolExecutor = threadPoolExecutorMap.get(threadPoolConfigEntity.getThreadPoolName());
        if (null == threadPoolExecutor) return;

        // 设置参数 「调整核心线程数和最大线程数」
        threadPoolExecutor.setCorePoolSize(threadPoolConfigEntity.getCorePoolSize());
        threadPoolExecutor.setMaximumPoolSize(threadPoolConfigEntity.getMaximumPoolSize());
    }

}

POM

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-configuration-processor</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-autoconfigure</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>commons-lang</groupId>
        <artifactId>commons-lang</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>fastjson</artifactId>
    </dependency>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.redisson</groupId>
        <artifactId>redisson-spring-boot-starter</artifactId>
        <version>3.26.0</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.24</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-registry-prometheus</artifactId>
        <version>1.9.0</version>
    </dependency>
</dependencies>

三总体流程

其中，由于在业务模块定义了线程池的 Bean，这个 Bean 是 ThreadPoolExecutor 类型的。当 Spring 启动时，它会创建这个Bean，并将其添加到内部的Bean容器中。

其中有个 Map<String, ThreadPoolExecutor> threadPoolExecutorMap集合。这个 Map 是由 Spring 自动注入的，它包含了所有类型为 ThreadPoolExecutor 的 Bean。键是 Bean 的名称，值是对应的 Bean 实例。因此，这个 Map 中会包含业务模块中定义的线程池。

当应用启动的时候，动态线程池组件会自动将这些Bean进行管理，将其进行Redis注册，通过管理端进行发布订阅定时管理。
