Root of AVL Tree (25分)【C语言】

习题讲解视频

题目：

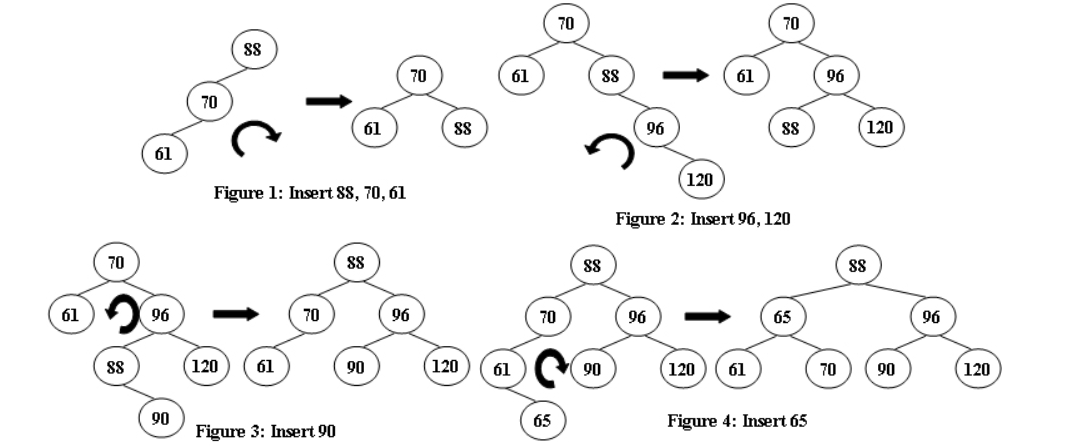

An AVL tree is a self-balancing binary search tree. In an AVL tree, the heights of the two child subtrees of any node differ by at most one; if at any time they differ by more than one, rebalancing is done to restore this property. Figures 1-4 illustrate the rotation rules.

Now given a sequence of insertions, you are supposed to tell the root of the resulting AVL tree.

输入格式

Each input file contains one test case. For each case, the first line contains a positive integer N (≤20) which is the total number of keys to be inserted. Then N distinct integer keys are given in the next line. All the numbers in a line are separated by a space.

输出格式

For each test case, print the root of the resulting AVL tree in one line.

输入样例

5
88 70 61 96 120

输出样例

70

算法

二叉搜索树插入操作的基础之上，实时检查当时结点的高度因子，当高度因子大于1时，进行AVL树的调整

代码实现

int main()
{
	int N;
	scanf("%d",&N);
	int i;
	int V;
	AVLTree T=NULL;
	for(i=0;i<N;i++){
		scanf("%d",&V);
		T=Insertion(T,V);
	}
	printf("%d",T->Data);
	return 0;
}


AVL调整操作：

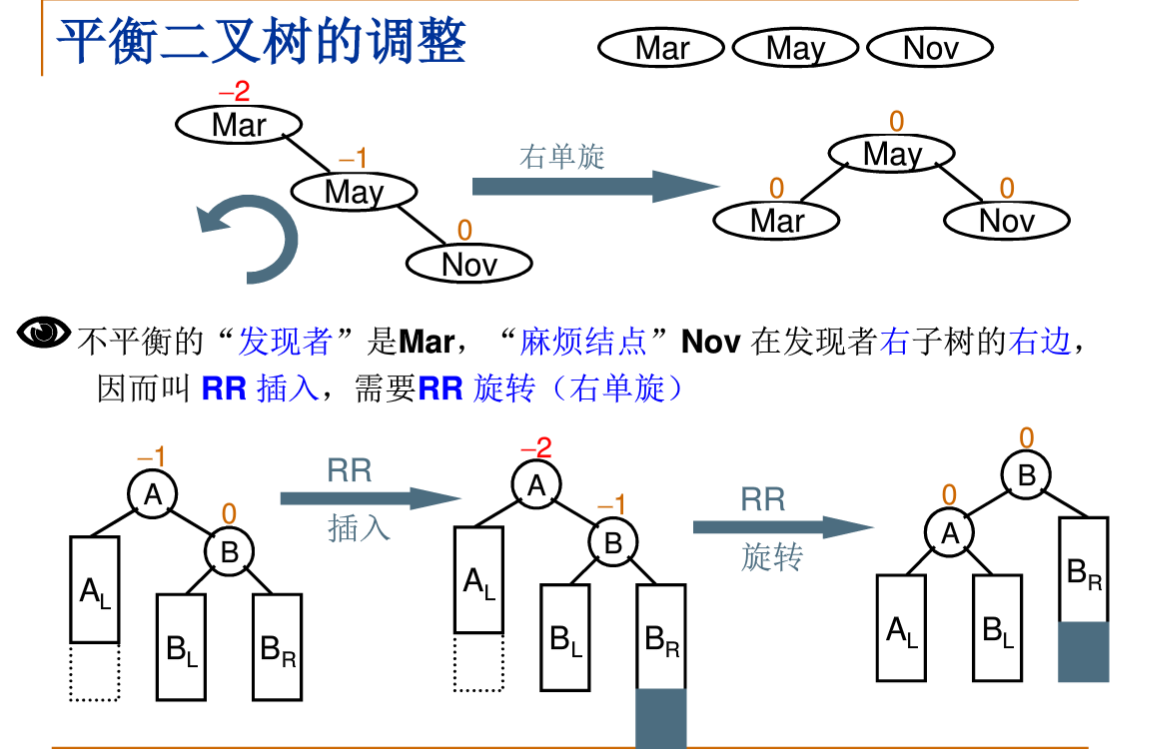

右单旋

AVLTree SingleRightRotation ( AVLTree A )
{
	 AVLTree B=A->Right;
	 A->Right=B->Left;
	 B->Left=A;
	 A->Height=TreeHeight(A);
	 B->Height=TreeHeight(B);
 	 return B;
}

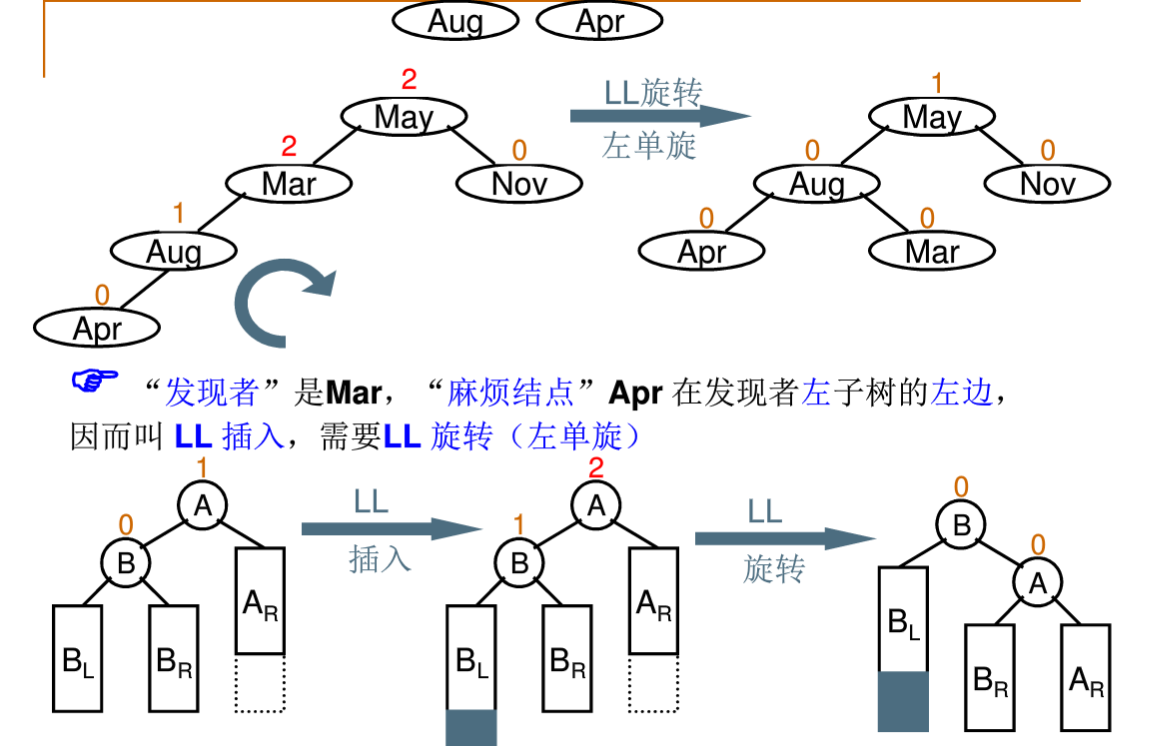

左单旋

 AVLTree SingleLeftRotation ( AVLTree A )
{
	 AVLTree B=A->Left;
	 A->Left=B->Right;
	 B->Right=A;
	 A->Height=TreeHeight(A);
	 B->Height=TreeHeight(B);
	 return B;
}

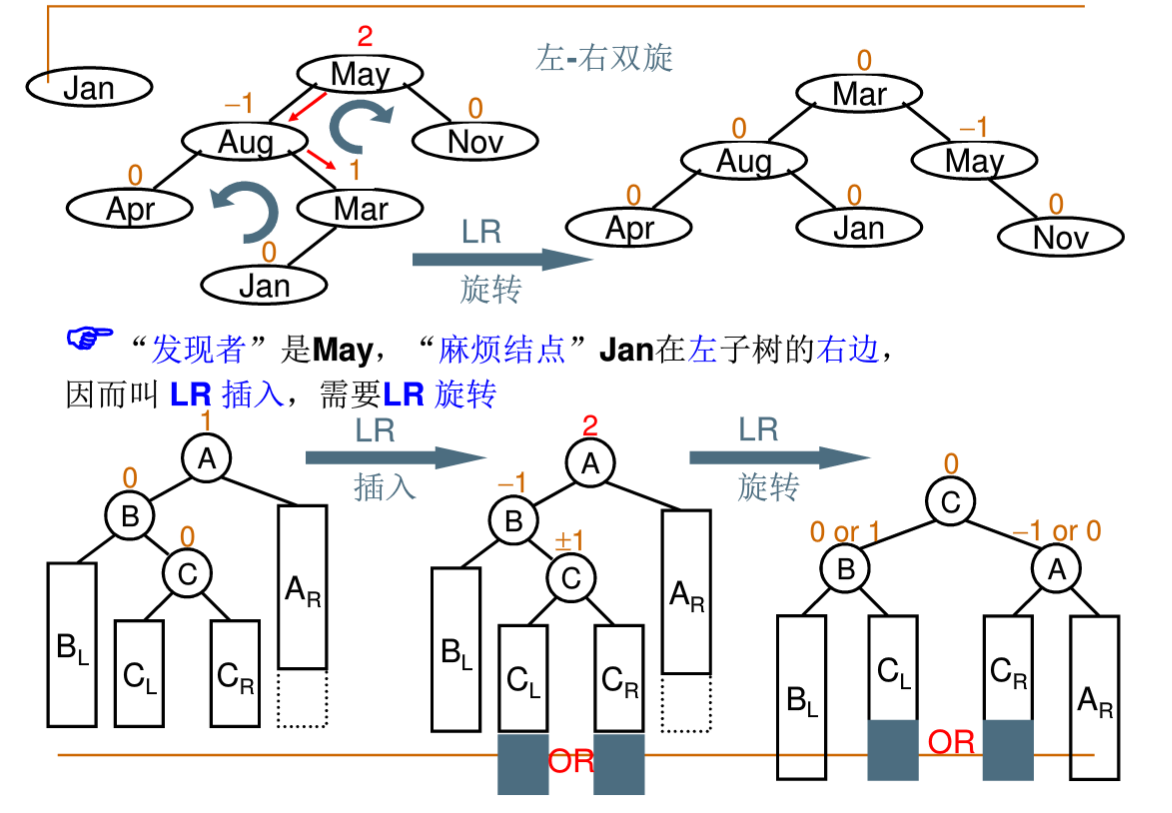

左右双旋

AVLTree DoubleLeftRightRotation ( AVLTree A )
{
	 AVLTree B=A->Left;
	 A->Left=SingleRightRotation(B);
	 A=SingleLeftRotation(A);
	 A->Height=TreeHeight(A);
	 B->Height=TreeHeight(B);
	 return A;
}

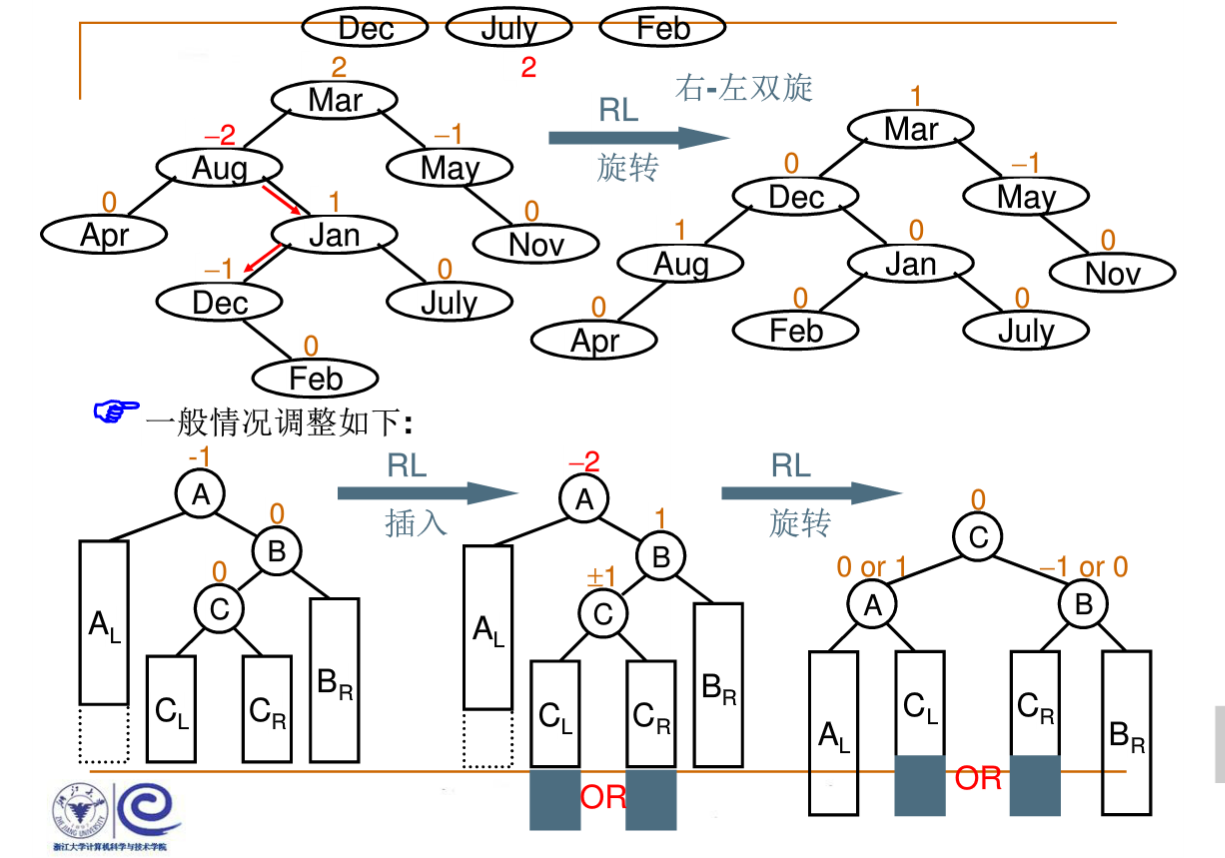

左右双旋

AVLTree DoubleRightLeftRotation ( AVLTree A )
{
	 AVLTree B=A->Right;
	 A->Right=SingleLeftRotation(B);
	 A=SingleRightRotation(A);
	 A->Height=TreeHeight(A);
	 B->Height=TreeHeight(B);
	 return A;
}

存储方式

typedef struct AVLNode* AVLTree;
struct AVLNode{
	 int Data;
	 AVLTree Left;
	 AVLTree Right;
	 int Height;
};
AVLTree CreateNode(int V)
{
	 AVLTree T=(AVLTree)malloc(sizeof(struct AVLNode));
	 T->Data=V;
	 T->Left=NULL;
	 T->Right=NULL;
	 T->Height=0;
	 return T;
}

计算树高

int TreeHeight(AVLTree T)
{
	 if(T==NULL)return -1;
	 if(T->Left==NULL&&T->Right==NULL)return 0;
	 return MAX(TreeHeight(T->Left),TreeHeight(T->Right))+1;
}

计算结点的高度因子

int HeightFactor(AVLTree T)
{
	 int factor=-1;
	 if(T->Left==NULL&&T->Right==NULL){
	  	factor=0;
	 }else if(T->Left==NULL&&T->Right!=NULL){
	  	factor=-(T->Right->Height+1);
	 }else if(T->Left!=NULL&&T->Right==NULL){
	  	factor=T->Left->Height+1;
	 }else if(T->Left!=NULL&&T->Right!=NULL){
	  	factor=T->Left->Height-T->Right->Height;
	 }
	 return factor;
}

插入函数

AVLTree Insertion(AVLTree T,int V)
{
	if(!T){
		T=CreateNode(V);
	}else{
		if(V<T->Data){
		//向左插入
			T->Left=Insertion(T->Left,V);
			if(HeightFactor(T)==2){
				AVLTree A=T->Left;
				if(V<A->Data){
					T=SingleLeftRotation(T);
				}else{
					T=DoubleLeftRightRotation(T);
				}
			}
		}else{
		//向右插入
			T->Right=Insertion(T->Right,V);
			if(HeightFactor(T)<=-2){
				AVLTree A=T->Right;
				if(V<A->Data){
					T=DoubleRightLeftRotation(T);
				}else{
					T=SingleRightRotation(T);
				}
			}
		}
		//没有AVL调整操作时，调整当前结点高度
		//提示：结点需要进行AVL调整时，已经在函数内部更新结点高度
		T->Height=TreeHeight(T);
	}
	return T;
