pre requisite

All script should enble ip_forward.

echo 1 > /proc/sys/net/ipv4/ip_forward

2 hosts and 4 routers topology

 This code is refered from[2]. From this example, I know the difference between “ip route add” and “route add”. [1]
2h4s.py

#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.cli import CLI
import time
#   0   1   2   3   4
#h1--r1--r2--r3--r4--h2
# 10.0.X.0
def rp_disable(host):
    ifaces = host.cmd('ls /proc/sys/net/ipv4/conf')
    ifacelist = ifaces.split()    # default is to split on whitespace
    for iface in ifacelist:
       if iface != 'lo': host.cmd('sysctl net.ipv4.conf.' + iface + '.rp_filter=0')

net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.0.1')
r1 = net.addHost('r1',ip='10.0.0.2')
r2 = net.addHost('r2',ip='10.0.1.2')
r3 = net.addHost('r3',ip='10.0.2.2')
r4 = net.addHost('r4',ip='10.0.3.2')
h2 = net.addHost('h2',ip='10.0.4.2')
c0 = net.addController( 'c0' )

net.addLink(h1,r1,intfName1='h1-eth0',intfName2='r1-eth0')
net.addLink(r1,r2,intfName1='r1-eth1',intfName2='r2-eth0')
net.addLink(r2,r3,intfName1='r2-eth1',intfName2='r3-eth0')
net.addLink(r3,r4,intfName1='r3-eth1',intfName2='r4-eth0')
net.addLink(r4,h2,intfName1='r4-eth1',intfName2='h2-eth0')
net.build()

h1.setIP('10.0.0.1', intf='h1-eth0')
h1.cmd("ifconfig h1-eth0 10.0.0.1 netmask 255.255.255.0")
h1.cmd("route add default gw 10.0.0.2 dev h1-eth0")

r1.cmd("ifconfig r1-eth0 10.0.0.2/24")
r1.cmd("ifconfig r1-eth1 10.0.1.1/24")
r1.cmd("ip route add to 10.0.4.0/24 via 10.0.1.2")
r2.cmd("ip route add to 10.0.0.0/24 via 10.0.0.1")
r1.cmd('sysctl net.ipv4.ip_forward=1')
rp_disable(r1)

r2.cmd("ifconfig r2-eth0 10.0.1.2/24")
r2.cmd("ifconfig r2-eth1 10.0.2.1/24")
r2.cmd("ip route add to 10.0.4.0/24 via 10.0.2.2")
r2.cmd("ip route add to 10.0.0.0/24 via 10.0.1.1")
r2.cmd('sysctl net.ipv4.ip_forward=1')
rp_disable(r2)

r3.cmd("ifconfig r3-eth0 10.0.2.2/24")
r3.cmd("ifconfig r3-eth1 10.0.3.1/24")
r3.cmd("ip route add to 10.0.4.0/24 via 10.0.3.2")
r3.cmd("ip route add to 10.0.0.0/24 via 10.0.2.1")
r3.cmd('sysctl net.ipv4.ip_forward=1')
rp_disable(r3)

r4.cmd("ifconfig r4-eth0 10.0.3.2/24")
r4.cmd("ifconfig r4-eth1 10.0.4.1/24")
r4.cmd("ip route add to 10.0.4.0/24 via 10.0.4.2")
r4.cmd("ip route add to 10.0.0.0/24 via 10.0.3.1")
r4.cmd('sysctl net.ipv4.ip_forward=1')
rp_disable(r4)

h2.setIP('10.0.4.2', intf='h2-eth0')
h2.cmd("ifconfig h2-eth0 10.0.4.2 netmask 255.255.255.0")
h2.cmd("route add default gw 10.0.4.1")

net.start()
time.sleep(1)
CLI(net)
net.stop()

[1]ip route 和 route命令的区别
[2]routeline topology
[3]An intruction to computer networks

star topology

#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.cli import CLI
import time
#        h1
#         |1      10.0.x.0
#        r1
#       /2   \3
#      h2   h3
#
net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.1.1')
h2 = net.addHost('h2',ip='10.0.2.2')
h3 = net.addHost('h3',ip='10.0.3.2')
r1 = net.addHost('r1',ip='10.0.1.2')
net.addLink(h1,r1,intfName1='h1-eth0',intfName2='r1-eth0')
net.addLink(h2,r1,intfName1='h2-eth0',intfName2='r1-eth1')
net.addLink(h3,r1,intfName1='h3-eth0',intfName2='r1-eth2')
net.build()

h1.cmd("ifconfig h1-eth0 10.0.1.1/24")
h1.cmd("route add default gw 10.0.1.2")

h2.cmd("ifconfig h2-eth0 10.0.2.2/24")
h2.cmd("route add default gw 10.0.2.1")

h3.cmd("ifconfig h3-eth0 10.0.3.2/24")
h3.cmd("route add default gw 10.0.3.1")

r1.cmd("ifconfig r1-eth0 10.0.1.2/24")
r1.cmd("ifconfig r1-eth1 10.0.2.1/24")
r1.cmd("ifconfig r1-eth2 10.0.3.1/24")

r1.cmd("ip route add to 10.0.1.0/24 via 10.0.1.1")
r1.cmd("ip route add to 10.0.2.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.3.0/24 via 10.0.3.2")
r1.cmd('sysctl net.ipv4.ip_forward=1')
net.start()
time.sleep(1)
CLI(net)
net.stop()

mininet multi-interface ring topology

 This trivial cost me nearly one afternoon and a night.
 Thanks this blog[1].

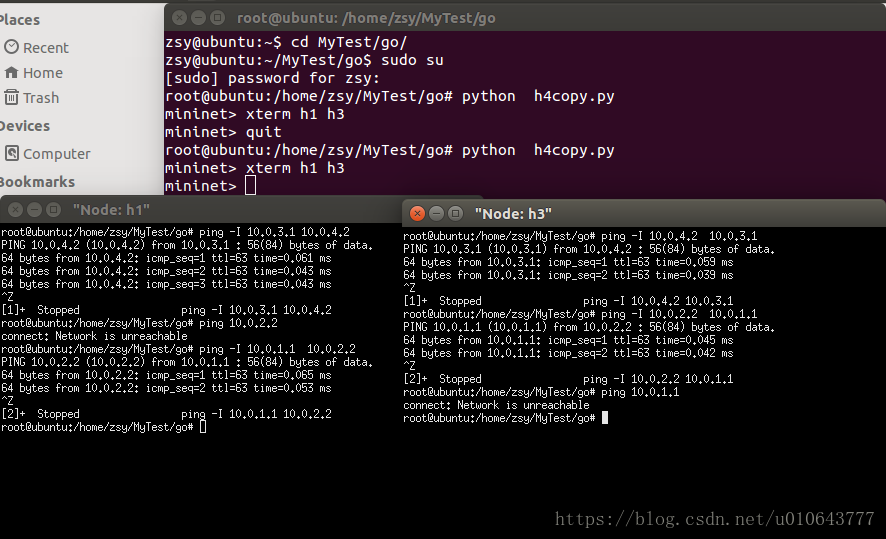

 The tips to use:

1 sudo su
2 python 4h.py
3 xterm h1 h3
4 ping X.X.X.X

4h.py

#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.cli import CLI
import time
##https://serverfault.com/questions/417885/configure-gateway-for-two-nics-through-static-routeing
#    ____h2____
#   /          \
# h1           h3
#   \___h4_____/
#
net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.1.1')
h2 = net.addHost('h2',ip='10.0.1.2')
h3 = net.addHost('h3',ip='10.0.2.2')
h4 = net.addHost('h4',ip='10.0.3.2')
c0 = net.addController( 'c0' )
net.addLink(h1,h2,intfName1='h1-eth0',intfName2='h2-eth0')
net.addLink(h2,h3,intfName1='h2-eth1',intfName2='h3-eth0')
net.addLink(h1,h4,intfName1='h1-eth1',intfName2='h4-eth0')
net.addLink(h4,h3,intfName1='h4-eth1',intfName2='h3-eth1')
net.build()
h1.setIP('10.0.1.1', intf='h1-eth0')
h1.cmd("ifconfig h1-eth0 10.0.1.1 netmask 255.255.255.0")

h1.setIP('10.0.3.1', intf='h1-eth1')
h1.cmd("ifconfig h1-eth1 10.0.3.1 netmask 255.255.255.0")

h1.cmd("ip route flush all proto static scope global")
h1.cmd("ip route add 10.0.1.1/24 dev h1-eth0 table 5000")
h1.cmd("ip route add default via 10.0.1.2 dev h1-eth0 table 5000")

h1.cmd("ip route add 10.0.3.1/24 dev h1-eth1 table 5001")
h1.cmd("ip route add default via 10.0.3.2 dev h1-eth1 table 5001")
h1.cmd("ip rule add from 10.0.1.1 table 5000")
h1.cmd("ip rule add from 10.0.3.1 table 5001")
h1.cmd("route add default gw 10.0.1.2  dev h1-eth0")

h2.setIP('10.0.1.2', intf='h2-eth0')
h2.setIP('10.0.2.1', intf='h2-eth1')
h2.cmd("ifconfig h2-eth0 10.0.1.2/24")
h2.cmd("ifconfig h2-eth1 10.0.2.1/24")
h2.cmd("ip route add 10.0.2.0/24 via 10.0.2.2")
h2.cmd("ip route add 10.0.1.0/24 via 10.0.1.1")
h2.cmd("echo 1 > /proc/sys/net/ipv4/ip_forward")


h4.setIP('10.0.3.2', intf='h4-eth0')
h4.setIP('10.0.4.1', intf='h4-eth1')
h4.cmd("ifconfig h4-eth0 10.0.3.2/24")
h4.cmd("ifconfig h4-eth1 10.0.4.1/24")
h4.cmd("ip route add 10.0.4.0  dev h4-eth1") #via 10.0.4.2
h4.cmd("ip route add 10.0.3.0 via 10.0.3.1")

h4.cmd("echo 1 > /proc/sys/net/ipv4/ip_forward")


h3.setIP('10.0.2.2', intf='h3-eth0')
h3.cmd("ifconfig h3-eth0 10.0.2.2 netmask 255.255.255.0")
h3.setIP('10.0.4.2', intf='h3-eth1')
h3.cmd("ifconfig h3-eth1 10.0.4.2 netmask 255.255.255.0")

h3.cmd("ip route flush all proto static scope global")
h3.cmd("ip route add 10.0.2.2/24 dev h3-eth0 table 5000")
h3.cmd("ip route add default via 10.0.2.1 dev h3-eth0 table 5000")

h3.cmd("ip route add 10.0.4.2/24 dev h3-eth1 table 5001")
h3.cmd("ip route add default via 10.0.4.1 dev h3-eth1 table 5001")
h3.cmd("ip rule add from 10.0.2.2 table 5000")
h3.cmd("ip rule add from 10.0.4.2 table 5001")

net.start()
time.sleep(1)
CLI(net)
net.stop()

这里写图片描述
[1]Configure gateway for two NICs through static routeing

3 hosts and 4 routers

#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.cli import CLI
import time
#   0   1   2   3   4
#h1--r1--r2--r3--r4--h2
#             \5
#              h3
# 10.0.X.0
def rp_disable(host):
    ifaces = host.cmd('ls /proc/sys/net/ipv4/conf')
    ifacelist = ifaces.split()    # default is to split on whitespace
    for iface in ifacelist:
       if iface != 'lo': host.cmd('sysctl net.ipv4.conf.' + iface + '.rp_filter=0')

net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.0.1')
r1 = net.addHost('r1',ip='10.0.0.2')
r2 = net.addHost('r2',ip='10.0.1.2')
r3 = net.addHost('r3',ip='10.0.2.2')
r4 = net.addHost('r4',ip='10.0.3.2')
h2 = net.addHost('h2',ip='10.0.4.2')
h3 = net.addHost('h3',ip='10.0.5.2')
c0 = net.addController( 'c0' )

net.addLink(h1,r1,intfName1='h1-eth0',intfName2='r1-eth0')
net.addLink(r1,r2,intfName1='r1-eth1',intfName2='r2-eth0')
net.addLink(r2,r3,intfName1='r2-eth1',intfName2='r3-eth0')
net.addLink(r3,r4,intfName1='r3-eth1',intfName2='r4-eth0')
net.addLink(r4,h2,intfName1='r4-eth1',intfName2='h2-eth0')
net.addLink(r3,h3,intfName1='r3-eth2',intfName2='h3-eth0')
net.build()

h1.setIP('10.0.0.1', intf='h1-eth0')
h1.cmd("ifconfig h1-eth0 10.0.0.1 netmask 255.255.255.0")
h1.cmd("route add default gw 10.0.0.2")

h3.cmd("ifconfig h3-eth0 10.0.5.2/24")
h3.cmd("route add default gw 10.0.5.1")

r1.cmd("ifconfig r1-eth0 10.0.0.2/24")
r1.cmd("ifconfig r1-eth1 10.0.1.1/24")
r1.cmd("ip route add to 10.0.4.0/24 via 10.0.1.2")
r1.cmd("ip route add to 10.0.0.0/24 via 10.0.0.1")
r1.cmd("ip route add to 10.0.5.0/24 via 10.0.1.2")
r1.cmd('sysctl net.ipv4.ip_forward=1')
#rp_disable(r1)

r2.cmd("ifconfig r2-eth0 10.0.1.2/24")
r2.cmd("ifconfig r2-eth1 10.0.2.1/24")
r2.cmd("ip route add to 10.0.4.0/24 via 10.0.2.2")
r2.cmd("ip route add to 10.0.0.0/24 via 10.0.1.1")
r2.cmd("ip route add to 10.0.5.0/24 via 10.0.2.2")
r2.cmd('sysctl net.ipv4.ip_forward=1')
#rp_disable(r2)

r3.cmd("ifconfig r3-eth0 10.0.2.2/24")
r3.cmd("ifconfig r3-eth1 10.0.3.1/24")
r3.cmd("ifconfig r3-eth2 10.0.5.1/24")
r3.cmd("ip route add to 10.0.4.0/24 via 10.0.3.2")
r3.cmd("ip route add to 10.0.0.0/24 via 10.0.2.1")
r3.cmd("ip route add to 10.0.5.0/24 via 10.0.5.2")
r3.cmd('sysctl net.ipv4.ip_forward=1')
#rp_disable(r3)

r4.cmd("ifconfig r4-eth0 10.0.3.2/24")
r4.cmd("ifconfig r4-eth1 10.0.4.1/24")
r4.cmd("ip route add to 10.0.4.0/24 via 10.0.4.2")
r4.cmd("ip route add to 10.0.0.0/24 via 10.0.3.1")
r4.cmd("ip route add to 10.0.5.0/24 via 10.0.3.1")
r4.cmd('sysctl net.ipv4.ip_forward=1')
#rp_disable(r4)

h2.cmd("ifconfig h2-eth0 10.0.4.2/24")
h2.cmd("route add default gw 10.0.4.1")

net.start()
time.sleep(1)
CLI(net)
net.stop()

##mininet multi interface topology

#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.cli import CLI
from mininet.link import TCLink
import time
#    ___r1____
#   /          \0  1
# h1            r3---h2
#  \           /2
#   ---r2-----
max_queue_size = 20
net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.1.1')
r1 = net.addHost('r1',ip='10.0.1.2')
r2 = net.addHost('r2',ip='10.0.3.2')
r3 = net.addHost('r3',ip='10.0.5.1')
h2 = net.addHost('h2',ip='10.0.5.2')
c0 = net.addController('c0')
net.addLink(h1,r1,intfName1='h1-eth0',intfName2='r1-eth0',cls=TCLink , bw=2, delay='20ms', max_queue_size=max_queue_size)
net.addLink(r1,r3,intfName1='r1-eth1',intfName2='r3-eth0',cls=TCLink , bw=2, delay='20ms', max_queue_size=max_queue_size)
net.addLink(r3,h2,intfName1='r3-eth1',intfName2='h2-eth0',cls=TCLink , bw=10, delay='10ms', max_queue_size=max_queue_size)
net.addLink(h1,r2,intfName1='h1-eth1',intfName2='r2-eth0',cls=TCLink , bw=2, delay='20ms', max_queue_size=max_queue_size)
net.addLink(r2,r3,intfName1='r2-eth1',intfName2='r3-eth2',cls=TCLink , bw=2, delay='20ms', max_queue_size=max_queue_size)

net.build()

h1.cmd("ifconfig h1-eth0 10.0.1.1/24")
h1.cmd("ifconfig h1-eth1 10.0.3.1/24")
h1.cmd("ip route flush all proto static scope global")
h1.cmd("ip route add 10.0.1.1/24 dev h1-eth0 table 5000")
h1.cmd("ip route add default via 10.0.1.2 dev h1-eth0 table 5000")

h1.cmd("ip route add 10.0.3.1/24 dev h1-eth1 table 5001")
h1.cmd("ip route add default via 10.0.3.2 dev h1-eth1 table 5001")
h1.cmd("ip rule add from 10.0.1.1 table 5000")
h1.cmd("ip rule add from 10.0.3.1 table 5001")
h1.cmd("ip route add default gw 10.0.1.2  dev h1-eth0")
#that be a must or else a tcp client would not know how to route packet out
#h1.cmd("route add default gw 10.0.1.2  dev h1-eth0") would not work for the second part when a tcp client bind a address


r1.cmd("ifconfig r1-eth0 10.0.1.2/24")
r1.cmd("ifconfig r1-eth1 10.0.2.1/24")
r1.cmd("ip route add to 10.0.1.0/24 via 10.0.1.1")
r1.cmd("ip route add to 10.0.2.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.5.0/24 via 10.0.2.2")
r1.cmd('sysctl net.ipv4.ip_forward=1')

r3.cmd("ifconfig r3-eth0 10.0.2.2/24")
r3.cmd("ifconfig r3-eth1 10.0.5.1/24")
r3.cmd("ifconfig r3-eth2 10.0.4.2/24")
r3.cmd("ip route add to 10.0.1.0/24 via 10.0.2.1")
r3.cmd("ip route add to 10.0.2.0/24 via 10.0.2.1")
r3.cmd("ip route add to 10.0.5.0/24 via 10.0.5.2")
r3.cmd("ip route add to 10.0.4.0/24 via 10.0.4.1")
r3.cmd("ip route add to 10.0.3.0/24 via 10.0.4.1")
r3.cmd('sysctl net.ipv4.ip_forward=1')

r2.cmd("ifconfig r2-eth0 10.0.3.2/24")
r2.cmd("ifconfig r2-eth1 10.0.4.1/24")
r2.cmd("ip route add to 10.0.3.0/24 via 10.0.3.1")
r2.cmd("ip route add to 10.0.4.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.5.0/24 via 10.0.4.2")
r3.cmd('sysctl net.ipv4.ip_forward=1')

h2.cmd("ifconfig h2-eth0 10.0.5.2/24")
h2.cmd("route add default gw 10.0.5.1")

net.start()
time.sleep(1)
CLI(net)
net.stop()

 h1.cmd(“route add default gw 10.0.1.2 dev h1-eth0”)，this can make ping 10.0.5.2 works ok. If this line is commented out, ping 10.0.5.2 will not work but “ping -I 10.0.1.1 10.0.5.2” works normally.
##ring topology
r4 routes packet from 10.0.1.1 to r5 and packets with source ip 10.0.3.1 to r6. This topology was created for multipath protocol test.
ringTopology.py

#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.link import TCLink
from mininet.cli import CLI
import time
import subprocess
import os,signal
import sys
#                  5.0   6.0     7.0
#    ___r1____           ____r5____
#   /          \0 1   0 /1         \  10.0
# h1            r3-----r4            r7---h2
#  \           /2       \____r6____/
#   ---r2-----           8.0    9.0
max_queue_size = 200
net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.1.1')
r1 = net.addHost('r1',ip='10.0.1.2')
r2 = net.addHost('r2',ip='10.0.3.2')
r3 = net.addHost('r3',ip='10.0.5.1')

r4 = net.addHost('r4',ip='10.0.5.2')
r5 = net.addHost('r5',ip='10.0.6.2')
r6 = net.addHost('r6',ip='10.0.8.2')
r7 = net.addHost('r7',ip='10.0.10.1')
h2 = net.addHost('h2',ip='10.0.10.2')
c0 = net.addController('c0')
net.addLink(h1,r1,intfName1='h1-eth0',intfName2='r1-eth0',cls=TCLink , bw=500, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r1,r3,intfName1='r1-eth1',intfName2='r3-eth0',cls=TCLink , bw=500, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(h1,r2,intfName1='h1-eth1',intfName2='r2-eth0',cls=TCLink , bw=500, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r2,r3,intfName1='r2-eth1',intfName2='r3-eth2',cls=TCLink , bw=500, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r3,r4,intfName1='r3-eth1',intfName2='r4-eth0',cls=TCLink , bw=100, delay='10ms', max_queue_size=max_queue_size)
net.addLink(r4,r5,intfName1='r4-eth1',intfName2='r5-eth0',cls=TCLink , bw=100, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r5,r7,intfName1='r5-eth1',intfName2='r7-eth0',cls=TCLink , bw=100, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r7,h2,intfName1='r7-eth1',intfName2='h2-eth0',cls=TCLink , bw=100, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r4,r6,intfName1='r4-eth2',intfName2='r6-eth0',cls=TCLink , bw=100, delay='10ms', max_queue_size=10*max_queue_size)
net.addLink(r6,r7,intfName1='r6-eth1',intfName2='r7-eth2',cls=TCLink , bw=100, delay='10ms', max_queue_size=10*max_queue_size)
net.build()

h1.cmd("ifconfig h1-eth0 10.0.1.1/24")
h1.cmd("ifconfig h1-eth1 10.0.3.1/24")
h1.cmd("ip route flush all proto static scope global")
h1.cmd("ip route add 10.0.1.1/24 dev h1-eth0 table 5000")
h1.cmd("ip route add default via 10.0.1.2 dev h1-eth0 table 5000")

h1.cmd("ip route add 10.0.3.1/24 dev h1-eth1 table 5001")
h1.cmd("ip route add default via 10.0.3.2 dev h1-eth1 table 5001")
h1.cmd("ip rule add from 10.0.1.1 table 5000")
h1.cmd("ip rule add from 10.0.3.1 table 5001")
h1.cmd("ip route add default gw 10.0.1.2  dev h1-eth0")
#that be a must or else a tcp client would not know how to route packet out
h1.cmd("route add default gw 10.0.1.2  dev h1-eth0") #would not work for the second part when a tcp client bind a address


r1.cmd("ifconfig r1-eth0 10.0.1.2/24")
r1.cmd("ifconfig r1-eth1 10.0.2.1/24")
r1.cmd("ip route add to 10.0.1.0/24 via 10.0.1.1")
r1.cmd("ip route add to 10.0.2.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.5.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.6.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.7.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.8.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.9.0/24 via 10.0.2.2")
r1.cmd("ip route add to 10.0.10.0/24 via 10.0.2.2")
r1.cmd('sysctl net.ipv4.ip_forward=1')

r3.cmd("ifconfig r3-eth0 10.0.2.2/24")
r3.cmd("ifconfig r3-eth1 10.0.5.1/24")
r3.cmd("ifconfig r3-eth2 10.0.4.2/24")
r3.cmd("ip route add to 10.0.1.0/24 via 10.0.2.1")
r3.cmd("ip route add to 10.0.2.0/24 via 10.0.2.1")
r3.cmd("ip route add to 10.0.5.0/24 via 10.0.5.2")
r3.cmd("ip route add to 10.0.4.0/24 via 10.0.4.1")
r3.cmd("ip route add to 10.0.3.0/24 via 10.0.4.1")
r3.cmd("ip route add to 10.0.6.0/24 via 10.0.5.2")
r3.cmd("ip route add to 10.0.7.0/24 via 10.0.5.2")
r3.cmd("ip route add to 10.0.8.0/24 via 10.0.5.2")
r3.cmd("ip route add to 10.0.9.0/24 via 10.0.5.2")
r3.cmd("ip route add to 10.0.10.0/24 via 10.0.5.2")
r3.cmd('sysctl net.ipv4.ip_forward=1')

r2.cmd("ifconfig r2-eth0 10.0.3.2/24")
r2.cmd("ifconfig r2-eth1 10.0.4.1/24")
r2.cmd("ip route add to 10.0.3.0/24 via 10.0.3.1")
r2.cmd("ip route add to 10.0.4.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.5.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.6.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.7.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.8.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.9.0/24 via 10.0.4.2")
r2.cmd("ip route add to 10.0.10.0/24 via 10.0.4.2")
r2.cmd('sysctl net.ipv4.ip_forward=1')

r4.cmd("ifconfig r4-eth0 10.0.5.2/24")
r4.cmd("ifconfig r4-eth1 10.0.6.1/24")
r4.cmd("ifconfig r4-eth2 10.0.8.1/24")
r4.cmd("ip route add to 10.0.1.0/24 via 10.0.5.1")
r4.cmd("ip route add to 10.0.2.0/24 via 10.0.5.1")
r4.cmd("ip route add to 10.0.3.0/24 via 10.0.5.1")
r4.cmd("ip route add to 10.0.4.0/24 via 10.0.5.1")
r4.cmd("ip route add to 10.0.5.0/24 via 10.0.5.1")
r4.cmd("ip route add to 10.0.6.0/24 via 10.0.6.2")
r4.cmd("ip route add to 10.0.7.0/24 via 10.0.6.2")
r4.cmd("ip route add to 10.0.8.0/24 via 10.0.8.2")
r4.cmd("ip route add to 10.0.9.0/24 via 10.0.8.2")

r4.cmd("ip route add 10.0.6.1/24 dev r4-eth1 table 5000")
r4.cmd("ip route add default via 10.0.6.2 dev r4-eth1 table 5000")
r4.cmd("ip route add 10.0.8.1/24 dev r4-eth2 table 5001")
r4.cmd("ip route add default via 10.0.8.2 dev r4-eth2 table 5001")
r4.cmd("ip rule add from 10.0.1.1 table 5000")
r4.cmd("ip rule add from 10.0.3.1 table 5001")
r4.cmd('sysctl net.ipv4.ip_forward=1')

r5.cmd("ifconfig r5-eth0 10.0.6.2/24")
r5.cmd("ifconfig r5-eth1 10.0.7.1/24")
r5.cmd("ip route add to 10.0.1.0/24 via 10.0.6.1")
r5.cmd("ip route add to 10.0.2.0/24 via 10.0.6.1")
r5.cmd("ip route add to 10.0.3.0/24 via 10.0.6.1")
r5.cmd("ip route add to 10.0.4.0/24 via 10.0.6.1")
r5.cmd("ip route add to 10.0.5.0/24 via 10.0.6.1")
r5.cmd("ip route add to 10.0.6.0/24 via 10.0.6.1")
r5.cmd("ip route add to 10.0.7.0/24 via 10.0.7.2")
r5.cmd("ip route add to 10.0.10.0/24 via 10.0.7.2")
r5.cmd('sysctl net.ipv4.ip_forward=1')

r6.cmd("ifconfig r6-eth0 10.0.8.2/24")
r6.cmd("ifconfig r6-eth1 10.0.9.1/24")
r6.cmd("ip route add to 10.0.1.0/24 via 10.0.8.1")
r6.cmd("ip route add to 10.0.2.0/24 via 10.0.8.1")
r6.cmd("ip route add to 10.0.3.0/24 via 10.0.8.1")
r6.cmd("ip route add to 10.0.4.0/24 via 10.0.8.1")
r6.cmd("ip route add to 10.0.5.0/24 via 10.0.8.1")
r6.cmd("ip route add to 10.0.8.0/24 via 10.0.8.1")
r6.cmd("ip route add to 10.0.9.0/24 via 10.0.9.2")
r6.cmd("ip route add to 10.0.10.0/24 via 10.0.9.2")
r6.cmd('sysctl net.ipv4.ip_forward=1')

r7.cmd("ifconfig r7-eth0 10.0.7.2/24")
r7.cmd("ifconfig r7-eth1 10.0.10.1/24")
r7.cmd("ifconfig r7-eth2 10.0.9.2/24")
r7.cmd('sysctl net.ipv4.ip_forward=1')
r7.cmd("ip route add to 10.0.1.0/24 via 10.0.7.1")
r7.cmd("ip route add to 10.0.2.0/24 via 10.0.7.1")
r7.cmd("ip route add to 10.0.5.0/24 via 10.0.7.1")
r7.cmd("ip route add to 10.0.6.0/24 via 10.0.7.1")
r7.cmd("ip route add to 10.0.7.0/24 via 10.0.7.1")

r7.cmd("ip route add to 10.0.3.0/24 via 10.0.9.1")
r7.cmd("ip route add to 10.0.4.0/24 via 10.0.9.1")
r7.cmd("ip route add to 10.0.8.0/24 via 10.0.9.1")
r7.cmd("ip route add to 10.0.9.0/24 via 10.0.9.1")
r7.cmd("ip route add to 10.0.10.0/24 via 10.0.10.2")
r7.cmd('sysctl net.ipv4.ip_forward=1')

h2.cmd("ifconfig h2-eth0 10.0.10.2/24")
h2.cmd("route add default gw 10.0.10.1")

net.start()

time.sleep(1)
CLI(net)
net.stop()

dumbbell

# CMU 18731 HW2
# Code referenced from:git@bitbucket.org:huangty/cs144_bufferbloat.git
# Edited by: Deepti Sunder Prakash
# https://github.com/dhruvityagi/netsec/blob/master/dumbbell.py
#!/usr/bin/python

from mininet.topo import Topo
from mininet.node import CPULimitedHost
from mininet.link import TCLink
from mininet.net import Mininet
from mininet.log import lg, info
from mininet.util import dumpNodeConnections
from mininet.cli import CLI

from subprocess import Popen, PIPE
from time import sleep, time
from multiprocessing import Process
from argparse import ArgumentParser
import time
import sys
import os


class DumbbellTopo(Topo):
    "Dumbbell topology for Shrew experiment"
    def build(self, n=6, bw_net=100, delay='20ms', bw_host=10):
        #TODO:Add your code to create the topology.
        #Add 2 switches
        s1 = self.addSwitch('s1')
        s2 = self.addSwitch('s2')
        self.addLink(s1, s2,bw=bw_net, delay=delay)

        #Left Side
        a1 = self.addHost('a1')
        hl1 = self.addHost('hl1')
        hl2 = self.addHost('hl2')
        # 10 Mbps, 20ms delay
        self.addLink(hl1, s1, bw=bw_host, delay=delay)
        self.addLink(hl2, s1, bw=bw_host, delay=delay)
        self.addLink(a1, s1, bw=bw_host, delay=delay)

        #Right Side
        a2 = self.addHost('a2')
        hr1 = self.addHost('hr1')
        hr2 = self.addHost('hr2')
        # 10 Mbps, 20ms delay
        self.addLink(hr1, s2, bw=bw_host, delay=delay)
        self.addLink(hr2, s2, bw=bw_host, delay=delay)
        self.addLink(a2, s2, bw=bw_host, delay=delay)
def myiperf(net, **kwargs):
    """
    Command to start a transfer between src and dst.
    :param kwargs: named arguments
        src: name of the source node.
        dst: name of the destination node.
        protocol: tcp or udp (default tcp).
        duration: duration of the transfert in seconds (default 10s).
        bw: for udp, bandwidth to send at in bits/sec (default 1 Mbit/sec)
    """
    kwargs.setdefault('protocol', 'TCP')
    kwargs.setdefault('duration', 5)
    kwargs.setdefault('bw', 100000)
    info('***iperf event at t={time}: {args}\n'.format(time=time.time(), args=kwargs))

    if not os.path.exists("output"):
        os.makedirs("output")
    server_output = "output/iperf-{protocol}-server-{src}-{dst}.txt".format(**kwargs)
    client_output = "output/iperf-{protocol}-client-{src}-{dst}.txt".format(**kwargs)

    client, server = net.get(kwargs['src'], kwargs['dst'])
    iperf_server_cmd = ''
    iperf_client_cmd = ''
    if kwargs['protocol'].upper() == 'UDP':
         iperf_server_cmd = 'iperf -u -s -i 1'
         iperf_client_cmd = 'iperf -u -t {duration} -c {server_ip} -b {bw}'.format(server_ip=server.IP(), **kwargs)


    elif kwargs['protocol'].upper() == 'TCP':
         iperf_server_cmd = 'iperf -s -i 1'
         iperf_client_cmd = 'iperf -t {duration} -c {server_ip}'.format(server_ip=server.IP(), **kwargs)
    else :
        raise Exception( 'Unexpected protocol:{protocol}'.format(**kwargs))

    server.sendCmd('{cmd} &>{output} &'.format(cmd=iperf_server_cmd, output=server_output))
    info('iperf server command: {cmd} -s -i 1 &>{output} &\n'.format(cmd=iperf_server_cmd,
                                                                            output=server_output))
    # This is a patch to allow sendingCmd while iperf is running in background.CONS: we can not know when
    # iperf finishes and get their output
    server.waiting = False

    if kwargs['protocol'].lower() == 'tcp':
        while 'Connected' not in client.cmd(
                        'sh -c "echo A | telnet -e A %s 5001"' % server.IP()):
            info('Waiting for iperf to start up...\n')
            sleep(.5)

    info('iperf client command: {cmd} &>{output} &\n'.format(
    cmd = iperf_client_cmd, output=client_output))
    client.sendCmd('{cmd} &>{output} &'.format(
    cmd = iperf_client_cmd, output=client_output))
    # This is a patch to allow sendingCmd while iperf is running in background.CONS: we can not know when
    # iperf finishes and get their output
    client.waiting = False
def bbnet():
    "Create network and run shrew  experiment"
    print "starting mininet ...."
    topo = DumbbellTopo()
    net = Mininet(topo=topo, host=CPULimitedHost, link=TCLink,
              autoPinCpus=True)
    net.start()
    #dumpNodeConnections(net.hosts)

    #TODO:Add your code to test reachability of hosts.
    #print "Testing network connectivity"
    #net.pingAll()

    #TODO:Add your code to start long lived TCP flows between
    #hosts on the left and right.
    #print "Starting long lived tcp connection between hl1 and hr1, hl2 and hr2"
    #hl1, hl2, hr1, hr2, a1 = net.get('hl1','hl2','hr1','hr2', 'a1')
    #hl1_IP = hl1.IP()
    #hr1_IP = hl2.IP()
    #a1_IP = a1.IP()
    #print a1_IP,hl1_IP, hr1_IP
## the way to use kwargs
## https://blog.csdn.net/u010852680/article/details/77848570
    kwargs={'src':'hl1','dst':'hr1'}
    myiperf(net,**kwargs)
    time.sleep(10)
    #CLI(net)

    net.stop()

if __name__ == '__main__':
    bbnet()

topology zoo

https://github.com/cotyb/LISA
https://github.com/fnss/fnss/tree/master/fnss/topologies

在Mininet中使用topology zoo：Graphml转Mininet拓扑
裕东方的博客
04-27 2596
项目地址（内含使用方法） GitHub - yyd19981117/Graphml-To-Mininet （如果本文帮到了忙，能否star一个？） 简介 topology-zoo：The Internet Topology Zoo 收录了世界各地的261个真实网络拓扑结构，用于网络相关研究和实验，尤其适合各种网络仿真，因为计算机网络类论文的仿真实验，如果自己搭建拓扑，太容易被审稿人怼拓扑设置简单、不符合实际等一系列问题。 因此，由于topology zoo的数据集均来源于真实世界，提供了上述
mininet学习记录introduction
iroy33的博客
10-11 690
一上来的python文件就遇到了缺少OVS控制器的问题，明天早上我应该会 在本例中, 我们会创建一个不连接到任何控制器的 OVS 交换机（昨晚解决了所以这个要延后了） 还有一个重要的就是examples的文件夹，最好跟着走一遍 What are Mininet's limitations? mininet只能在Linux下运行 --nat可以从mininet链接到本地的网 最好将ho...
Mininet建立topology zoo中的拓扑
weixin_30542079的博客
11-13 634
　　以前用Mininet建立拓扑都是在别人的代码上进行需求上的修改，这次从头开始将topology zoo（http://www.topology-zoo.org/）中的拓扑用Mininet建立，不失一般性，每个交换机只给分配了一个host,所有链路的端口都由Mininet自动分配，代码链接如下：https://github.com/cotyb/LISA/tree/master/topology%...
Openlab实验平台实验--Mininet 常用命令
hao_shujing的博客
03-15 4390
任务目的 1、掌握使用Mininet命令行创建拓扑的方法。 2、掌握使用Python脚本定义拓扑的方法。 3、掌握使用交互式界面自定义拓扑的实现方法。 任务环境 注：系统默认的账户为root/root@openlab，openlab/user@openlab。 任务内容 1、 通过Mininet命令行创建拓扑来熟悉Mininet的基本功能。 2、 通过Python脚本定义拓扑来熟悉Mininet...
mininet学习记录一
iroy33的博客
10-10 804
sudo apt-get install mininet 1、mininet CLI sudo mn --topo=single,2 2、定制拓扑 sudo mn --custom ./topo-2sw-2host.py --topo mytopo --test pingall 创建一个MyTopo类继承Topo，注意要建一个字典 可以看到ping通了 3、Iperf 带宽...
Mininet创建网络拓扑
weixin_46490821的博客
10-14 1万+
一、Mininet创建网络拓扑常用参数 1). -c 释放之前创建拓扑时占用的未释放的资源 2). -h 产看帮助 3). --topo 在mininet启动时通过命令行定义拓扑 4). --custom 用于创建自定义拓扑 5). --switch 定义要使用的交换机，默认使用OVSK交换机 6). --controller 定义要使用的控制器，如果没有指定则使用mininet中默认的控制器 7). --mac 自动设置设备的MAC地址，从而使MAC地址更易读。 二、命令行创建网络拓扑 1、单一网络拓扑
sdn mininet+ryu可视化配置教程及资源
03-29
在SDN（Software Defined Networking，软件定义网络）领域，Mininet和Ryu是两个非常重要的工具。本教程将深入探讨如何结合使用它们进行可视化配置，并提供相关资源。 Mininet是一款开源的虚拟网络环境，它允许在...
mininet-master.zip
04-15
- **Topology**: 可以定义任意复杂的网络拓扑，包括线性、星形、环形、树形等，甚至自定义的复杂拓扑。 - **API**: Mininet提供了一个Python API，用于创建、配置和操作网络。 2. **安装与使用**：安装Mininet...
mininet-n-ryu-routing-algorithm-comparator：一堆描述拓扑创建，拓扑，测试数据，实时图形渲染，表创建和图表创建的脚本和文件
02-05
Mininet + Ryu路由算法比较器 一堆脚本和文件，描述了拓扑创建，拓扑，测试数据，实时图形渲染，表创建和图表创建。 如何复制这些结果 安装Mininet，Ryu和Python3 在未经Python2编译的Mininet上未经测试 未经Ryu...
利用mininet进行链路拥塞造成数据丢包的实验
北风
12-24 4415
实验原理 网络链路拥塞是指在分组交换网络中传送分组的数目太多时，由于存储转发节点的资源有限而造成网络传输性能下降的情况。当网络发生拥塞时，一般会出现数据丢失，时延增加，吞吐量下降，严重时甚至会导致“拥塞崩溃”。通常情况下，当网络中负载过度增加致使网络性能下降时，就会发生网络拥塞。 因此，根据这些特征，构建了一个网络拓扑（SDN网络拓扑，普通拓扑也行，但是我这是构建的SDN架构，为了方便我后续的学习），设计了一种逐渐增加链路中发送的数据包，从而观察各个主机的丢包率和链路带宽的情况。 实验设备：2台Ubu
Mininet--topo类型-py创建自定义拓扑网络
热门推荐
wuliangtianzu的博客
09-13 3万+
Mininet网络划分 Minnet可以创建多种拓扑网络，主要分为两类，一类是自动型，是指Mininet自带的拓扑类型， 通过--topo参数来指定，分别是linear、minimal、reversed、single、torus以及tree共六种；另一类是自定义型，是指通过py文件自定义拓扑类型，通过--custom和--topo两个参数搭配指定。下面分别说下两类的功能以及使用。   Min...
mininet（二）简单的路由实验
程序员学编程 的专栏
05-06 6568
在网上找了 好几个代码都是不能直接复现成功，这里把自己实现成功的代码给大家演示一下。 实验的拓扑结构如下： 试验中利用 一台主机代替router，开启ip_forward选项，来链接两个子网。 #!/usr/bin/python import time from mininet.net import Mininet from mininet.node import Controller,...
Mininet学习笔记
梦飞翔
03-09 7651
目录 前言... 2 一、安装... 2 1、直接下载Mininet镜像... 2 2、源码安装... 2 3、包安装... 3 4、升级... 3 二、使用... 4 1、启动mininet（需要root权限）... 4 2、cli命令... 8 3、自定义功能... 13 4、其他... 14 三、源码分析... 14 1、让Souce Ins
Python脚本创建mininet网络拓扑与iperf测量
smiling_sweety的博客
05-12 8705
目录 1.新建Python文件example.py，并保存在mininet/custom目录下 1.1 addController 1.2 addSwitch 1.3 addHost 1.4 addLink 1.5 ping 1.6 iperf 2.修改文件example.py为可执行文件和可读写文件 3.运行脚本 1.新建Python文件example.py，并保存在mininet/custom目录下 """ this file is a custom topology using
netlink机制使用实例
xiaoshui0606的专栏
06-18 1398
（一）客户端： 1．/*创建NETLINK_ID客户端套接字 netlink _id = open_socket_for_netlink(); int open_socket_for_netlink()   {     int sock = -1;       int bindsock = -1; struct sockaddr_nl nlskaddr;       soc
漫谈bufferbloat以及TCP公平性
TCP/IP
02-12 4631
昨天大年三十下了一整天雨，去了一趟上海迪士尼，非常惊喜，人非常少，全程不用排队，几乎玩遍了所有的项目，估摸着以后是不会再去了。 如果没有人排队，那些占地面积巨大的迂回曲折的综合排队设施就很尴尬地完全成了摆设，但你依然不得不 “迂回曲折” 地经过它们，即便是一路小跑，也要花不少的时间绕过那九曲回廊，如果你是第一次去，还以为穿过这种迷宫式的九曲回廊是项目的一部分呢。 … 都没人排队了，要这些排队设施还有什么用？ 本文接着前天那篇接着写： https://blog.csdn.net/dog250/article/
Mininet 链路可选配置
weixin_30542079的博客
07-29 627
https://github.com/mininet/mininet/wiki/Introduction-to-Mininet self.addLink( node1, node2, bw=10, delay='5ms', max_queue_size=1000, loss=10, use_htb=True): adds a bidirectional link with bandwidth, ...
Mininet高级操作功能
cqupt_zl的博客
06-28 4910
dpctl show tcp:127.0.0.1:6634，可以查看交换机的端口等基本情况，tcp端口6634是默认的交换机监听端口 sudo mn --controller=remote --ip=[controller IP] --port=[controller listening port]执行后可以连接到控制器 外部读取配置命令：mininet>source my
mininet multihomed topology
u010643777的专栏
12-11 359
 multihomed topology created in mininet to test the performance for mptcp or multipath quic.  7h.py #!/usr/bin/python # author zsy # 2020.12.11 # from mininet.topo import Topo from mininet.net import Mininet from mininet.cli import CLI from mininet.link
mininet yru
最新发布
04-01
### Mininet 使用教程 Mininet 是一种用于创建虚拟网络环境的工具，支持开发者在单机环境中模拟复杂的网络拓扑结构。以下是关于如何使用 Mininet 的一些基本指导。 #### 安装 Mininet 如果尚未克隆 Mininet 代码库，则可以通过以下命令获取最新版本的源码[^1]: ```bash git clone https://github.com/mininet/mininet ``` 对于已经拥有 Linux 系统并希望快速安装 Mininet 的用户来说，在不同的 Ubuntu 版本下可以选择对应的安装方式[^2][^3]: - **Ubuntu 14.10**: ```bash sudo apt-get update && sudo apt-get install mininet ``` - **Ubuntu 14.04**: ```bash sudo apt-get update && sudo apt-get install mininet ``` - **Ubuntu 12.04 (Precise)**: ```bash sudo apt-get update && sudo apt-get install mininet/precise-backports ``` 这些命令会自动下载并安装所需的依赖项以及 Mininet 软件包本身。 #### 启动 Mininet 并测试简单拓扑 一旦成功安装了 Mininet，就可以通过 `mn` 命令启动默认的最小化网络拓扑[^4]： ```bash sudo mn ``` 这将在终端中打开一个交互式的 Mininet CLI 工具，默认情况下它会创建两个主机节点 (`h1`, `h2`) 和一个交换机连接它们。此时可以在该界面执行各种命令来验证连通性和性能指标，比如 ping 测试: ```bash mininet> h1 ping h2 PING 10.0.0.2 (10.0.0.2) 56(84) bytes of data. 64 bytes from 10.0.0.2: icmp_seq=1 ttl=64 time=0.798 ms ... ``` 另外值得注意的是自 version 2.2.0 开始引入了一个图形化编辑器叫做 MiniEdit ，允许更方便地构建复杂场景而无需手动编写脚本文件。要调用此功能只需键入如下指令即可进入 GUI 模式设计自己的定制化方案： ```bash sudo mn --topo single,3 --mac --switch ovsk --controller remote --custom /path/to/custom/topology/file.py ``` 或者直接运行独立的应用程序入口点： ```bash sudo wireshark & sudo miniedit ``` 以上就是有关 Mininet 初步使用的介绍内容概览。 ###
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
