lsi megaraid configuration utility 硬raid配置

1，进入raid卡配置

Advanced
LSI MegaRAID Configuration Utility # LSI MegaRAID配置程序

Configuration Management		配置管理
Controller Management
Virtual Drive Management
Drive Management
Hardware Compoents

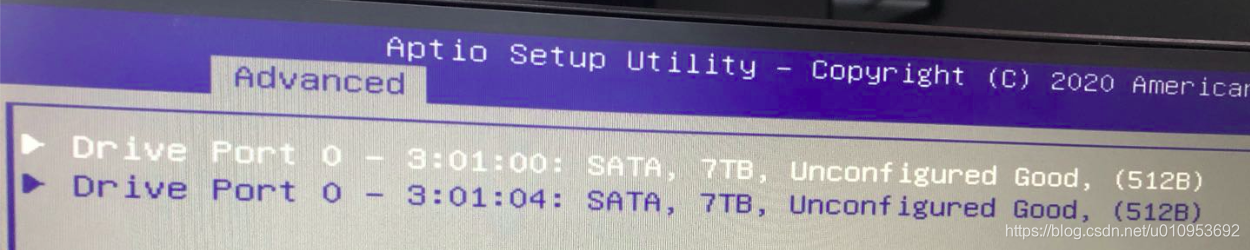

2，查看硬盘

Drive Management"

Unconfigured Good  没有配置使用的硬盘

3，创建逻辑驱动器

Configuration Management

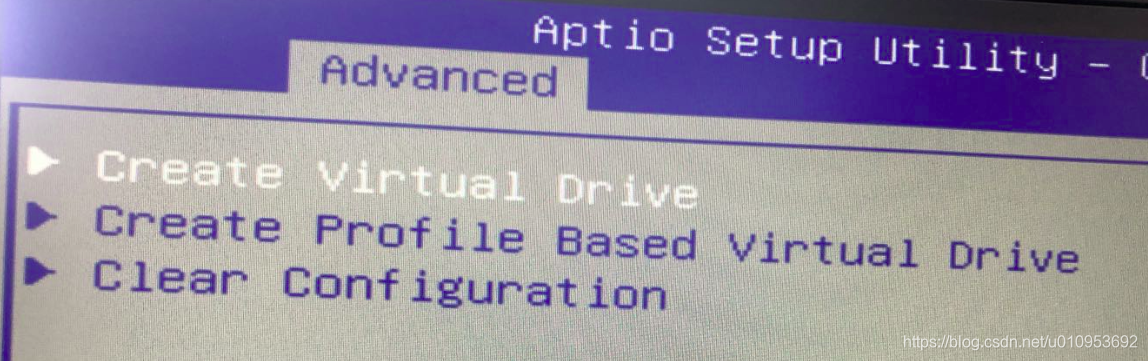

Create Virtual Drive

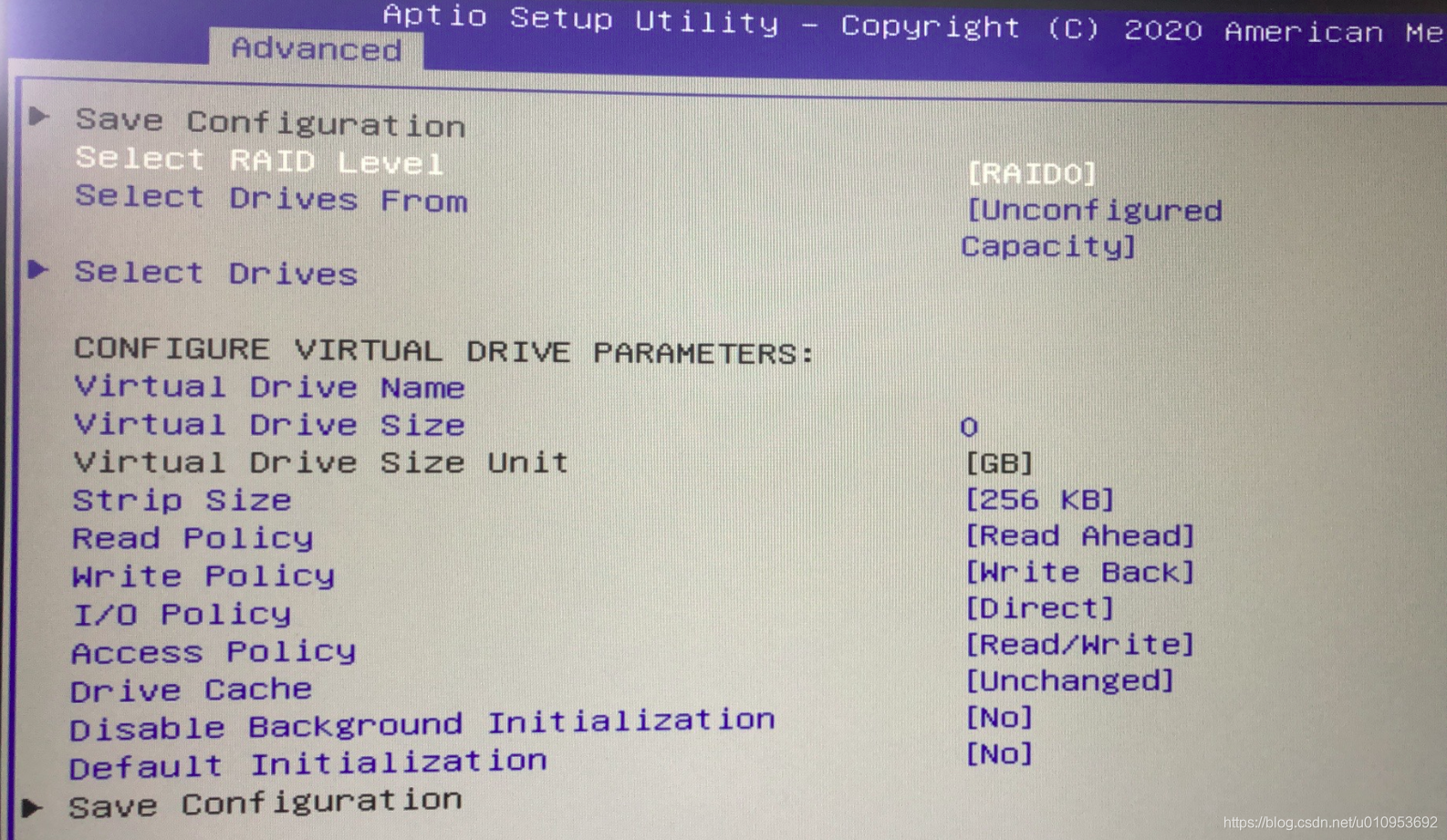

Select RAID Level	设置RAID 级别

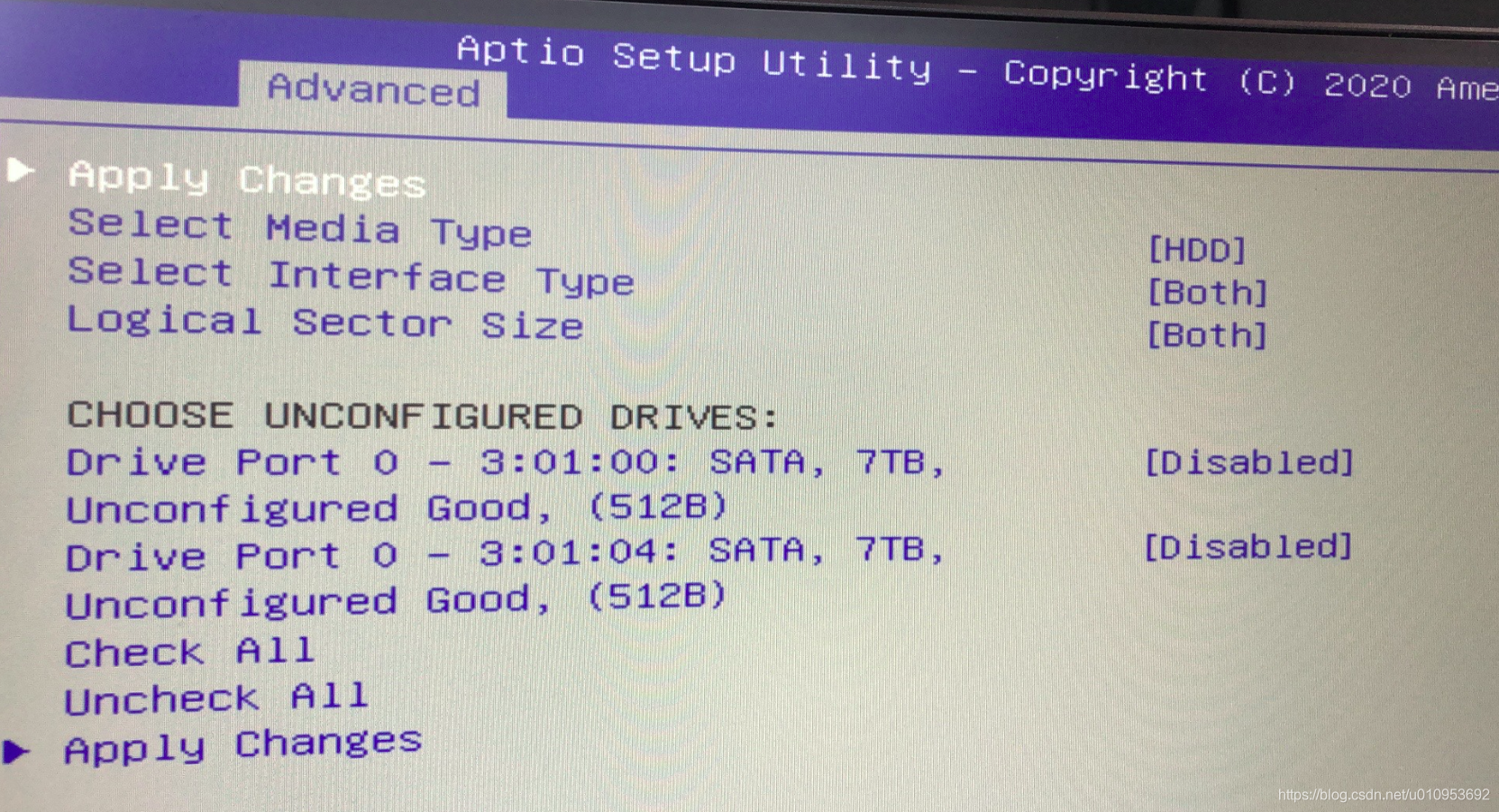

Select Drives

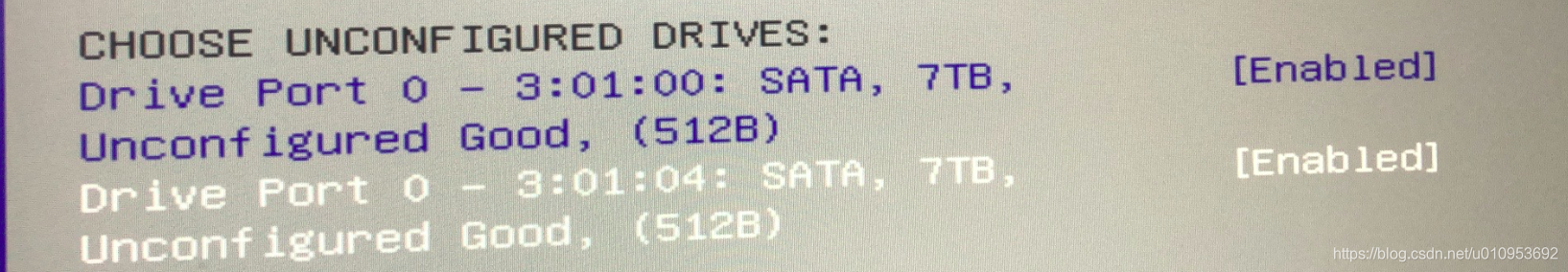

Disabled 选择为 Enabled

Apply Changes 选择OK

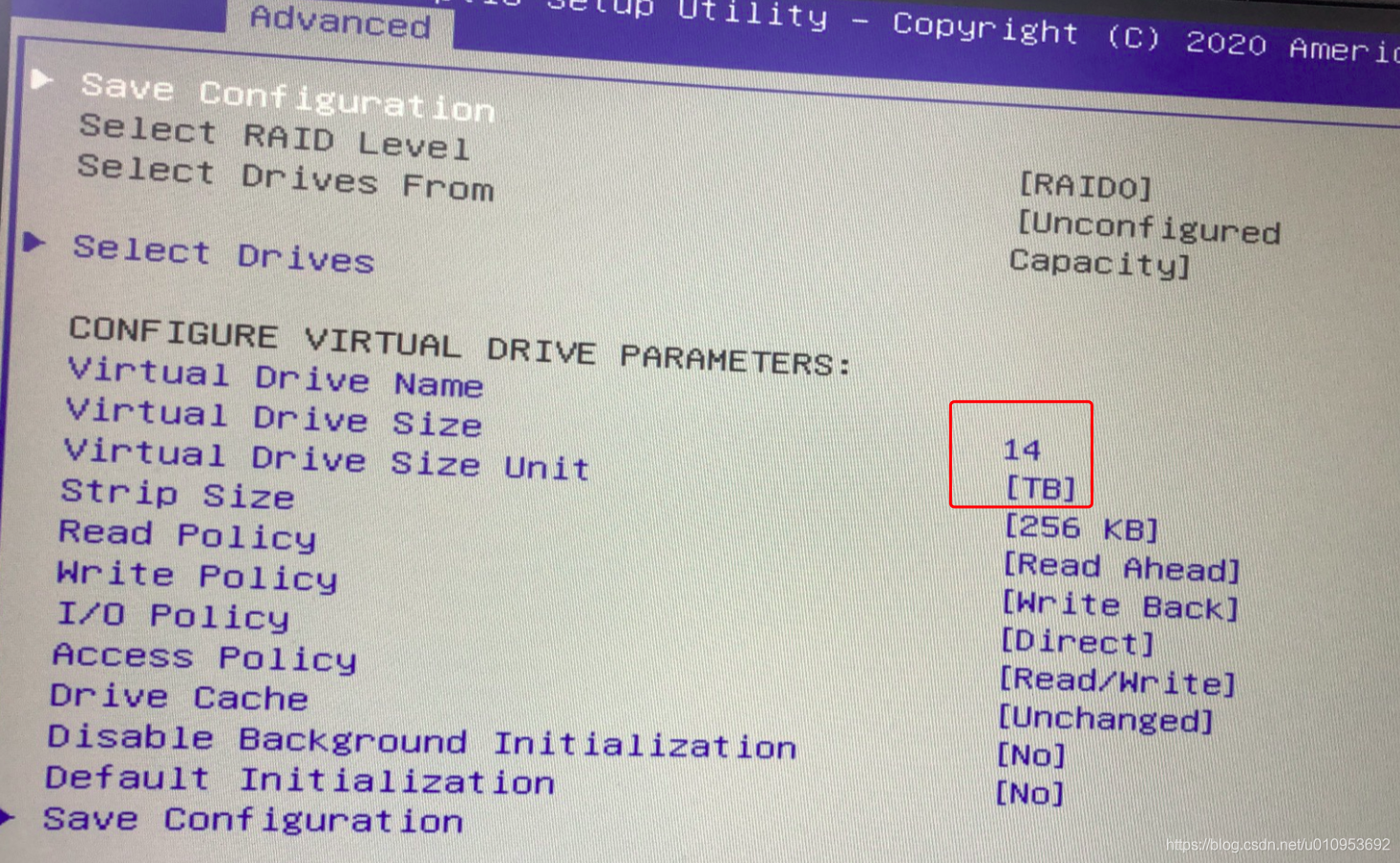

Save configuration	保存配置

Confirm 修改为 Enabled

View Drive Group Properties

• 查看

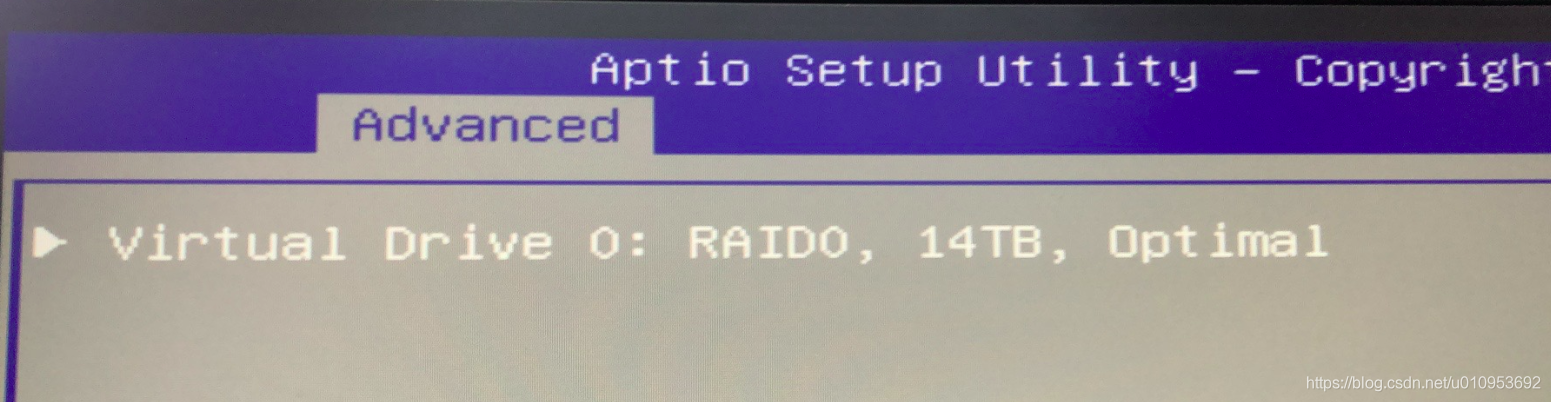

Virtual Drive Management

4，格式化磁盘

# lsblk
sda           8:0    0    14T  0 disk

# mkfs.ext4 /dev/sda
# mount /dev/sda /storage/
# lsblk
sda           8:0    0    14T  0 disk /storage
# df -Th
/dev/sda       ext4       14T   25M   14T   1% /storage

参考：

1. Using the LSI MegaRAID Configuration Utility Menu to Create a Bootable Logical Drive (x86)
