源码版本：1.9.14.3
一、使用Patch合成新的dex
我们收到后台返回的补丁包后合成调用的是如下代码：
TinkerInstaller.onReceiveUpgradePatch(getApplicationContext(),
Environment.getExternalStorageDirectory().getAbsolutePath() + "/patch_signed_7zip.apk");
Environment.getExternalStorageDirectory().getAbsolutePath() + “/patch_signed_7zip.apk”；是补丁包的路径，补丁包名字是patch_signed_7zip.apk。
onReceiveUpgradePatch()的源码如下：
public static void onReceiveUpgradePatch(Context context, String patchLocation) {
Tinker.with(context).getPatchListener().onPatchReceived(patchLocation);
}
点进onPatchReceived()源码如下：
public interface PatchListener {
int onPatchReceived(String path);
}
是一个接口方法，我们要找到其实现类的方法。
默认的实现类是DefaultPatchListener，DefaultPatchListener中onPatchReceived()源码如下：
public int onPatchReceived(String path) {
final File patchFile = new File(path);
final String patchMD5 = SharePatchFileUtil.getMD5(patchFile);
final int returnCode = patchCheck(path, patchMD5);
if (returnCode == ShareConstants.ERROR_PATCH_OK) {
runForgService();
TinkerPatchService.runPatchService(context, path);
} else {
Tinker.with(context).getLoadReporter().onLoadPatchListenerReceiveFail(new File(path), returnCode);
}
return returnCode;
}
patchCheck(path, patchMD5);对tinker的相关配置（isEnable）以及patch的合法性进行检测，如果合法，则调用TinkerPatchService.runPatchService(context, path);
runPatchService()的源码如下：
public static void runPatchService(final Context context, final String path) {
TinkerLog.i(TAG, "run patch service...");
Intent intent = new Intent(context, TinkerPatchService.class);
intent.putExtra(PATCH_PATH_EXTRA, path);
intent.putExtra(RESULT_CLASS_EXTRA, resultServiceClass.getName());
try {
context.startService(intent);
Log.e("tag", "runPatchService>>startService");
} catch (Throwable thr) {
TinkerLog.e(TAG, "run patch service fail, exception:" + thr);
}
}
TinkerPatchService是一个IntentService，runPatchService()其实就是启动这个服务。因为是IntentService，接下来就会执行onHandleIntent()回调方法。onHandleIntent()源码如下：
protected void onHandleIntent(@Nullable Intent intent) {
increasingPriority();
doApplyPatch(this, intent);
}
注意：TinkerPatchService在manifest.xml中注册的代码如下：
<service
android:name=".service.TinkerPatchService"
android:exported="false"
android:permission="android.permission.BIND_JOB_SERVICE"
android:process=":patch" />
android:process=":patch"是为TinkerPatchService开一个新的进程。这时如果要看后面的日志，需要在AS中切换下进程，否则看不到日志。 被这个问题看不到日志纠结了一天，所以不光要看Java代码，manifest.xml中的内容也很重要的。
我们继续上面的源码，increasingPriority()的源码如下：
private void increasingPriority() {
if (Build.VERSION.SDK_INT >= 26) {
TinkerLog.i(TAG, "for system version >= Android O, we just ignore increasingPriority "
+ "job to avoid crash or toasts.");
return;
}
if ("ZUK".equals(Build.MANUFACTURER)) {
TinkerLog.i(TAG, "for ZUK device, we just ignore increasingPriority "
+ "job to avoid crash.");
return;
}
TinkerLog.i(TAG, "try to increase patch process priority");
try {
Notification notification = new Notification();
if (Build.VERSION.SDK_INT < 18) {
startForeground(notificationId, notification);
} else {
startForeground(notificationId, notification);
// start InnerService
startService(new Intent(this, InnerService.class));
}
} catch (Throwable e) {
TinkerLog.i(TAG, "try to increase patch process priority error:" + e);
}
}
这里主要是利用系统的一个漏洞来启动一个前台Service。可以参考此文：关于 Android 进程保活，你所需要知道的一切。
doApplyPatch()的源码如下：
private static void doApplyPatch(Context context, Intent intent) {
TinkerLog.e("tag", "doApplyPatch>>");
// Since we may retry with IntentService, we should prevent
// racing here again.
if (!sIsPatchApplying.compareAndSet(false, true)) {
TinkerLog.w(TAG, "TinkerPatchService doApplyPatch is running by another runner.");
return;
}
Tinker tinker = Tinker.with(context);
tinker.getPatchReporter().onPatchServiceStart(intent);
if (intent == null) {
TinkerLog.e(TAG, "TinkerPatchService received a null intent, ignoring.");
return;
}
String path = getPatchPathExtra(intent);
if (path == null) {
TinkerLog.e(TAG, "TinkerPatchService can't get the path extra, ignoring.");
return;
}
File patchFile = new File(path);
long begin = SystemClock.elapsedRealtime();
boolean result;
long cost;
Throwable e = null;
PatchResult patchResult = new PatchResult();
try {
if (upgradePatchProcessor == null) {
throw new TinkerRuntimeException("upgradePatchProcessor is null.");
}
result = upgradePatchProcessor.tryPatch(context, path, patchResult);
} catch (Throwable throwable) {
e = throwable;
result = false;
tinker.getPatchReporter().onPatchException(patchFile, e);
}
cost = SystemClock.elapsedRealtime() - begin;
tinker.getPatchReporter()
.onPatchResult(patchFile, result, cost);
patchResult.isSuccess = result;
patchResult.rawPatchFilePath = path;
patchResult.costTime = cost;
patchResult.e = e;
AbstractResultService.runResultService(context, patchResult, getPatchResultExtra(intent));
sIsPatchApplying.set(false);
}
这里主要调用upgradePatchProcessor.tryPatch(context, path, patchResult);这又是一个接口方法，我们找到实现类是UpgradePatch，UpgradePatch中的tryPatch()源码如下：
public boolean tryPatch(Context context, String tempPatchPath, PatchResult patchResult) {
Tinker manager = Tinker.with(context);
final File patchFile = new File(tempPatchPath);
......（进行一些校验）
// it is a new patch, we first delete if there is any files
// don't delete dir for faster retry
// SharePatchFileUtil.deleteDir(patchVersionDirectory);
final String patchName = SharePatchFileUtil.getPatchVersionDirectory(patchMd5);
final String patchVersionDirectory = patchDirectory + "/" + patchName;
TinkerLog.i(TAG, "UpgradePatch tryPatch:patchVersionDirectory:%s", patchVersionDirectory);
//copy file
File destPatchFile = new File(patchVersionDirectory + "/" + SharePatchFileUtil.getPatchVersionFile(patchMd5));
try {
// check md5 first
if (!patchMd5.equals(SharePatchFileUtil.getMD5(destPatchFile))) {
// 1、复制补丁文件到程序的私有区域
SharePatchFileUtil.copyFileUsingStream(patchFile, destPatchFile);
TinkerLog.w(TAG, "UpgradePatch copy patch file, src file: %s size: %d, dest file: %s size:%d", patchFile.getAbsolutePath(), patchFile.length(),
destPatchFile.getAbsolutePath(), destPatchFile.length());
}
} catch (IOException e) {
TinkerLog.e(TAG, "UpgradePatch tryPatch:copy patch file fail from %s to %s", patchFile.getPath(), destPatchFile.getPath());
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, destPatchFile, patchFile.getName(), ShareConstants.TYPE_PATCH_FILE);
return false;
}
//we use destPatchFile instead of patchFile, because patchFile may be deleted during the patch process
// 2、合成dex
if (!DexDiffPatchInternal.tryRecoverDexFiles(manager, signatureCheck, context, patchVersionDirectory, destPatchFile)) {
TinkerLog.e(TAG, "UpgradePatch tryPatch:new patch recover, try patch dex failed");
return false;
}
if (!ArkHotDiffPatchInternal.tryRecoverArkHotLibrary(manager, signatureCheck,
context, patchVersionDirectory, destPatchFile)) {
return false;
}
if (!BsDiffPatchInternal.tryRecoverLibraryFiles(manager, signatureCheck, context, patchVersionDirectory, destPatchFile)) {
TinkerLog.e(TAG, "UpgradePatch tryPatch:new patch recover, try patch library failed");
return false;
}
if (!ResDiffPatchInternal.tryRecoverResourceFiles(manager, signatureCheck, context, patchVersionDirectory, destPatchFile)) {
TinkerLog.e(TAG, "UpgradePatch tryPatch:new patch recover, try patch resource failed");
return false;
}
// check dex opt file at last, some phone such as VIVO/OPPO like to change dex2oat to interpreted
if (!DexDiffPatchInternal.waitAndCheckDexOptFile(patchFile, manager)) {
TinkerLog.e(TAG, "UpgradePatch tryPatch:new patch recover, check dex opt file failed");
return false;
}
if (!SharePatchInfo.rewritePatchInfoFileWithLock(patchInfoFile, newInfo, patchInfoLockFile)) {
TinkerLog.e(TAG, "UpgradePatch tryPatch:new patch recover, rewrite patch info failed");
manager.getPatchReporter().onPatchInfoCorrupted(patchFile, newInfo.oldVersion, newInfo.newVersion);
return false;
}
// Reset patch apply retry count to let us be able to reapply without triggering
// patch apply disable when we apply it successfully previously.
UpgradePatchRetry.getInstance(context).onPatchResetMaxCheck(patchMd5);
TinkerLog.w(TAG, "UpgradePatch tryPatch: done, it is ok");
return true;
}
1、复制补丁文件到程序的私有区域使用SharePatchFileUtil.copyFileUsingStream(patchFile, destPatchFile);将补丁文件拷贝到app的私有区域(/data/data目录下)
从/storage/emulated/0/patch_signed_7zip.apk 拷贝到 /data/data/tinker.sample.android/tinker/patch-8b692fe2/patch-8b692fe2.apk。8b692fe2是补丁文件的MD5。
2、合成dex
然后调用DexDiffPatchInternal.tryRecoverDexFiles()，源码如下：
protected static boolean tryRecoverDexFiles(Tinker manager, ShareSecurityCheck checker, Context context,
String patchVersionDirectory, File patchFile) {
......
long begin = SystemClock.elapsedRealtime();
boolean result = patchDexExtractViaDexDiff(context, patchVersionDirectory, dexMeta, patchFile);
long cost = SystemClock.elapsedRealtime() - begin;
TinkerLog.i(TAG, "recover dex result:%b, cost:%d", result, cost);
return result;
}
实际调用patchDexExtractViaDexDiff()方法，源码如下：
private static boolean patchDexExtractViaDexDiff(Context context, String patchVersionDirectory, String meta, final File patchFile) {
String dir = patchVersionDirectory + "/" + DEX_PATH + "/";
if (!extractDexDiffInternals(context, dir, meta, patchFile, TYPE_DEX)) {
TinkerLog.w(TAG, "patch recover, extractDiffInternals fail");
return false;
}
File dexFiles = new File(dir);
File[] files = dexFiles.listFiles();
List<File> legalFiles = new ArrayList<>();
if (files != null) {
for (File file : files) {
final String fileName = file.getName();
// may have directory in android o
if (file.isFile()
&& (fileName.endsWith(ShareConstants.DEX_SUFFIX)
|| fileName.endsWith(ShareConstants.JAR_SUFFIX)
|| fileName.endsWith(ShareConstants.PATCH_SUFFIX))
) {
legalFiles.add(file);
}
}
}
TinkerLog.i(TAG, "legal files to do dexopt: " + legalFiles);
final String optimizeDexDirectory = patchVersionDirectory + "/" + DEX_OPTIMIZE_PATH + "/";
return dexOptimizeDexFiles(context, legalFiles, optimizeDexDirectory, patchFile);
}
调用extractDexDiffInternals(context, dir, meta, patchFile, TYPE_DEX)，源码如下：
private static boolean extractDexDiffInternals(Context context, String dir, String meta, File patchFile, int type) {
//parse
patchList.clear();
ShareDexDiffPatchInfo.parseDexDiffPatchInfo(meta, patchList);
if (patchList.isEmpty()) {
TinkerLog.w(TAG, "extract patch list is empty! type:%s:", ShareTinkerInternals.getTypeString(type));
return true;
}
File directory = new File(dir);
if (!directory.exists()) {
directory.mkdirs();
}
//I think it is better to extract the raw files from apk
Tinker manager = Tinker.with(context);
ZipFile apk = null;
ZipFile patch = null;
try {
ApplicationInfo applicationInfo = context.getApplicationInfo();
if (applicationInfo == null) {
// Looks like running on a test Context, so just return without patching.
TinkerLog.w(TAG, "applicationInfo == null!!!!");
return false;
}
// 获取到基准包apk的路径（即/data/app/tinker.sample.android-2/base.apk）
String apkPath = applicationInfo.sourceDir;
// 基准包文件
apk = new ZipFile(apkPath);
// 补丁包文件
patch = new ZipFile(patchFile);
if (checkClassNDexFiles(dir)) {
TinkerLog.w(TAG, "class n dex file %s is already exist, and md5 match, just continue", ShareConstants.CLASS_N_APK_NAME);
return true;
}
// 遍历 ShareDexDiffPatchInfo，即dex_meta.txt中内容
for (ShareDexDiffPatchInfo info : patchList) {
long start = System.currentTimeMillis();
// 补丁dex文件路径
final String infoPath = info.path;
String patchRealPath;
if (infoPath.equals("")) {
patchRealPath = info.rawName;
} else {
patchRealPath = info.path + "/" + info.rawName;
}
String dexDiffMd5 = info.dexDiffMd5;
String oldDexCrc = info.oldDexCrC;
// 如果是 dvm 虚拟机环境，但是补丁dex是art环境的，就跳过
if (!isVmArt && info.destMd5InDvm.equals("0")) {
TinkerLog.w(TAG, "patch dex %s is only for art, just continue", patchRealPath);
continue;
}
String extractedFileMd5 = isVmArt ? info.destMd5InArt : info.destMd5InDvm;
// 检查 md5 值
if (!SharePatchFileUtil.checkIfMd5Valid(extractedFileMd5)) {
TinkerLog.w(TAG, "meta file md5 invalid, type:%s, name: %s, md5: %s", ShareTinkerInternals.getTypeString(type), info.rawName, extractedFileMd5);
manager.getPatchReporter().onPatchPackageCheckFail(patchFile, BasePatchInternal.getMetaCorruptedCode(type));
return false;
}
File extractedFile = new File(dir + info.realName);
//check file whether already exist 如果合成的dex文件已经存在了
if (extractedFile.exists()) {
// 就校验合成的 dex 文件md5值，如果通过就跳过
if (SharePatchFileUtil.verifyDexFileMd5(extractedFile, extractedFileMd5)) {
//it is ok, just continue
TinkerLog.w(TAG, "dex file %s is already exist, and md5 match, just continue", extractedFile.getPath());
continue;
} else {
TinkerLog.w(TAG, "have a mismatch corrupted dex " + extractedFile.getPath());
// 否则删除文件
extractedFile.delete();
}
} else {
extractedFile.getParentFile().mkdirs();
}
// 从这里开始，就是遍历 patchList 中的记录，进行一个个 dex 文件合成了。
// 一开头会去校验合成的文件是否存在，存在的话就跳过，进行下一个。
ZipEntry patchFileEntry = patch.getEntry(patchRealPath);
ZipEntry rawApkFileEntry = apk.getEntry(patchRealPath);
// 如果 oldDexCrc 为0，就说明基准包中对应的 oldDex 文件不存在，直接按照 patch 信息重新打包 dex 即可。
if (oldDexCrc.equals("0")) {
if (patchFileEntry == null) {
TinkerLog.w(TAG, "patch entry is null. path:" + patchRealPath);
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
//it is a new file, but maybe we need to repack the dex file
if (!extractDexFile(patch, patchFileEntry, extractedFile, info)) {
TinkerLog.w(TAG, "Failed to extract raw patch file " + extractedFile.getPath());
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
}
// // 如果 dexDiffMd5 为 0， 就说明补丁包中没有这个dex，但是基准包中存在
else if (dexDiffMd5.equals("0")) {
// skip process old dex for real dalvik vm
// 如果是 dvm 环境的无须做处理，如果是 art 环境就执行后面，把 oldDex 复制过去
if (!isVmArt) {
continue;
}
// 检查基准包中的 dex 是否为空
if (rawApkFileEntry == null) {
TinkerLog.w(TAG, "apk entry is null. path:" + patchRealPath);
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
//check source crc instead of md5 for faster
// 检查基准包中的 dex 的 crc 值和 dex_meta.txt 中是否一致
String rawEntryCrc = String.valueOf(rawApkFileEntry.getCrc());
if (!rawEntryCrc.equals(oldDexCrc)) {
TinkerLog.e(TAG, "apk entry %s crc is not equal, expect crc: %s, got crc: %s", patchRealPath, oldDexCrc, rawEntryCrc);
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
// Small patched dex generating strategy was disabled, we copy full original dex directly now.
//patchDexFile(apk, patch, rawApkFileEntry, null, info, smallPatchInfoFile, extractedFile);
// 直接复制
extractDexFile(apk, rawApkFileEntry, extractedFile, info);
// 复制完后校验一下md5值是否一致
if (!SharePatchFileUtil.verifyDexFileMd5(extractedFile, extractedFileMd5)) {
TinkerLog.w(TAG, "Failed to recover dex file when verify patched dex: " + extractedFile.getPath());
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
SharePatchFileUtil.safeDeleteFile(extractedFile);
return false;
}
} else {
// 检查补丁包中 dex 是否存在
if (patchFileEntry == null) {
TinkerLog.w(TAG, "patch entry is null. path:" + patchRealPath);
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
// 检查补丁包中的 dex md5值是否合法
if (!SharePatchFileUtil.checkIfMd5Valid(dexDiffMd5)) {
TinkerLog.w(TAG, "meta file md5 invalid, type:%s, name: %s, md5: %s", ShareTinkerInternals.getTypeString(type), info.rawName, dexDiffMd5);
manager.getPatchReporter().onPatchPackageCheckFail(patchFile, BasePatchInternal.getMetaCorruptedCode(type));
return false;
}
// 检查基准包中的 dex 是否存在
if (rawApkFileEntry == null) {
TinkerLog.w(TAG, "apk entry is null. path:" + patchRealPath);
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
//check source crc instead of md5 for faster
// 检查基准包中的 dex 的 crc 值是否一致
String rawEntryCrc = String.valueOf(rawApkFileEntry.getCrc());
if (!rawEntryCrc.equals(oldDexCrc)) {
TinkerLog.e(TAG, "apk entry %s crc is not equal, expect crc: %s, got crc: %s", patchRealPath, oldDexCrc, rawEntryCrc);
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
return false;
}
// 执行合成操作
patchDexFile(apk, patch, rawApkFileEntry, patchFileEntry, info, extractedFile);
// 检查合成出来的dex的 md5 值是否一致
if (!SharePatchFileUtil.verifyDexFileMd5(extractedFile, extractedFileMd5)) {
TinkerLog.w(TAG, "Failed to recover dex file when verify patched dex: " + extractedFile.getPath());
manager.getPatchReporter().onPatchTypeExtractFail(patchFile, extractedFile, info.rawName, type);
SharePatchFileUtil.safeDeleteFile(extractedFile);
return false;
}
TinkerLog.w(TAG, "success recover dex file: %s, size: %d, use time: %d",
extractedFile.getPath(), extractedFile.length(), (System.currentTimeMillis() - start));
}
}
if (!mergeClassNDexFiles(context, patchFile, dir)) {
return false;
}
} catch (Throwable e) {
throw new TinkerRuntimeException("patch " + ShareTinkerInternals.getTypeString(type) + " extract failed (" + e.getMessage() + ").", e);
} finally {
SharePatchFileUtil.closeZip(apk);
SharePatchFileUtil.closeZip(patch);
}
return true;
}
ShareDexDiffPatchInfo.parseDexDiffPatchInfo(meta, patchList);是解析 dex_meta.txt 中的信息，用“,”分割，保存到 patchList 中。那这个dex_meta.txt 从哪里来的？先把补丁文件解压，得到如下：

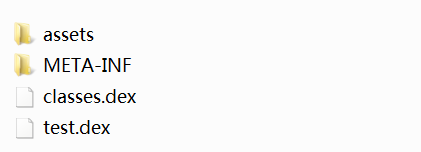

进入assets目录，如下：
dex_meta.txt文件位于补丁文件的assets目录下。dex_meta.txt文件内容如下：
classes.dex,,954e96eeeb5273c2a2ca6d1d2508e265,954e96eeeb5273c2a2ca6d1d2508e265,6395c4636e7cc8f88691dd32a0b60ce5,3282091180,2217937676,jar
test.dex,,56900442eb5b7e1de45449d0685e6e00,56900442eb5b7e1de45449d0685e6e00,0,0,0,jar
dex_meta.txt 记录着：
- name ：补丁 dex 名字
- path ：补丁 dex 路径
- destMd5InDvm ：合成新 dex 在 dvm 中的 md5 值
- destMd5InArt ：合成新 dex 在 art 中的 md5 值
- dexDiffMd5 ：补丁包 dex 文件的 md5 值
- oldDexCrc ：基准包中对应 dex 的 crc 值
- newDexCrc ：合成新 dex 的 crc 值
- dexMode ：dex 类型，为 jar 类型
然后执行一系列检查，具体看代码注释。
上面代码最后一个else情况是：基准包和补丁包中都存在对应 dex 的情况了。代码一开始就是一堆的各种校验，都通过后，调用 patchDexFile 执行合成操作。合成完后再对合成的 dex 进行md5校验。
patchDexFile()的源码如下：
private static void patchDexFile(
ZipFile baseApk, ZipFile patchPkg, ZipEntry oldDexEntry, ZipEntry patchFileEntry,
ShareDexDiffPatchInfo patchInfo, File patchedDexFile) throws IOException {
InputStream oldDexStream = null;
InputStream patchFileStream = null;
try {
// 基准包 dex 文件输入流
oldDexStream = new BufferedInputStream(baseApk.getInputStream(oldDexEntry));
// 补丁包 dex 文件输入流
patchFileStream = (patchFileEntry != null ? new BufferedInputStream(patchPkg.getInputStream(patchFileEntry)) : null);
final boolean isRawDexFile = SharePatchFileUtil.isRawDexFile(patchInfo.rawName);
if (!isRawDexFile || patchInfo.isJarMode) {
ZipOutputStream zos = null;
try {
// 合成 dex 文件的输出流
zos = new ZipOutputStream(new BufferedOutputStream(new FileOutputStream(patchedDexFile)));
zos.putNextEntry(new ZipEntry(ShareConstants.DEX_IN_JAR));
// Old dex is not a raw dex file.
if (!isRawDexFile) {
ZipInputStream zis = null;
try {
zis = new ZipInputStream(oldDexStream);
ZipEntry entry;
while ((entry = zis.getNextEntry()) != null) {
if (ShareConstants.DEX_IN_JAR.equals(entry.getName())) break;
}
if (entry == null) {
throw new TinkerRuntimeException("can't recognize zip dex format file:" + patchedDexFile.getAbsolutePath());
}
new DexPatchApplier(zis, patchFileStream).executeAndSaveTo(zos);
} finally {
IOHelper.closeQuietly(zis);
}
} else {
new DexPatchApplier(oldDexStream, patchFileStream).executeAndSaveTo(zos);
}
zos.closeEntry();
} finally {
IOHelper.closeQuietly(zos);
}
} else {
new DexPatchApplier(oldDexStream, patchFileStream).executeAndSaveTo(patchedDexFile);
}
} finally {
IOHelper.closeQuietly(oldDexStream);
IOHelper.closeQuietly(patchFileStream);
}
}
在 patchDexFile() 中，拿到基准包 dex 文件的 InputStream 和补丁包 dex 文件的 InputStream ，然后利用 DexPatchApplier（ new DexPatchApplier(oldDexStream, patchFileStream).executeAndSaveTo(zos);） 把这两个流合成一个 dex 文件。
executeAndSaveTo()源码如下：
public void executeAndSaveTo(OutputStream out) throws IOException {
// Before executing, we should check if this patch can be applied to
// old dex we passed in.
byte[] oldDexSign = this.oldDex.computeSignature(false);
if (oldDexSign == null) {
throw new IOException("failed to compute old dex's signature.");
}
if (this.patchFile == null) {
throw new IllegalArgumentException("patch file is null.");
}
byte[] oldDexSignInPatchFile = this.patchFile.getOldDexSignature();
if (CompareUtils.uArrCompare(oldDexSign, oldDexSignInPatchFile) != 0) {
throw new IOException(
String.format(
"old dex signature mismatch! expected: %s, actual: %s",
Arrays.toString(oldDexSign),
Arrays.toString(oldDexSignInPatchFile)
)
);
}
// Firstly, set sections' offset after patched, sort according to their offset so that
// the dex lib of aosp can calculate section size.
TableOfContents patchedToc = this.patchedDex.getTableOfContents();
patchedToc.header.off = 0;
patchedToc.header.size = 1;
patchedToc.mapList.size = 1;
patchedToc.stringIds.off
= this.patchFile.getPatchedStringIdSectionOffset();
patchedToc.typeIds.off
= this.patchFile.getPatchedTypeIdSectionOffset();
patchedToc.typeLists.off
= this.patchFile.getPatchedTypeListSectionOffset();
patchedToc.protoIds.off
= this.patchFile.getPatchedProtoIdSectionOffset();
patchedToc.fieldIds.off
= this.patchFile.getPatchedFieldIdSectionOffset();
patchedToc.methodIds.off
= this.patchFile.getPatchedMethodIdSectionOffset();
patchedToc.classDefs.off
= this.patchFile.getPatchedClassDefSectionOffset();
patchedToc.mapList.off
= this.patchFile.getPatchedMapListSectionOffset();
patchedToc.stringDatas.off
= this.patchFile.getPatchedStringDataSectionOffset();
patchedToc.annotations.off
= this.patchFile.getPatchedAnnotationSectionOffset();
patchedToc.annotationSets.off
= this.patchFile.getPatchedAnnotationSetSectionOffset();
patchedToc.annotationSetRefLists.off
= this.patchFile.getPatchedAnnotationSetRefListSectionOffset();
patchedToc.annotationsDirectories.off
= this.patchFile.getPatchedAnnotationsDirectorySectionOffset();
patchedToc.encodedArrays.off
= this.patchFile.getPatchedEncodedArraySectionOffset();
patchedToc.debugInfos.off
= this.patchFile.getPatchedDebugInfoSectionOffset();
patchedToc.codes.off
= this.patchFile.getPatchedCodeSectionOffset();
patchedToc.classDatas.off
= this.patchFile.getPatchedClassDataSectionOffset();
patchedToc.fileSize
= this.patchFile.getPatchedDexSize();
Arrays.sort(patchedToc.sections);
patchedToc.computeSizesFromOffsets();
// Secondly, run patch algorithms according to sections' dependencies.
this.stringDataSectionPatchAlg = new StringDataSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.typeIdSectionPatchAlg = new TypeIdSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.protoIdSectionPatchAlg = new ProtoIdSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.fieldIdSectionPatchAlg = new FieldIdSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.methodIdSectionPatchAlg = new MethodIdSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.classDefSectionPatchAlg = new ClassDefSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.typeListSectionPatchAlg = new TypeListSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.annotationSetRefListSectionPatchAlg = new AnnotationSetRefListSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.annotationSetSectionPatchAlg = new AnnotationSetSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.classDataSectionPatchAlg = new ClassDataSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.codeSectionPatchAlg = new CodeSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.debugInfoSectionPatchAlg = new DebugInfoItemSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.annotationSectionPatchAlg = new AnnotationSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.encodedArraySectionPatchAlg = new StaticValueSectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.annotationsDirectorySectionPatchAlg = new AnnotationsDirectorySectionPatchAlgorithm(
patchFile, oldDex, patchedDex, oldToPatchedIndexMap
);
this.stringDataSectionPatchAlg.execute();
this.typeIdSectionPatchAlg.execute();
this.typeListSectionPatchAlg.execute();
this.protoIdSectionPatchAlg.execute();
this.fieldIdSectionPatchAlg.execute();
this.methodIdSectionPatchAlg.execute();
this.annotationSectionPatchAlg.execute();
this.annotationSetSectionPatchAlg.execute();
this.annotationSetRefListSectionPatchAlg.execute();
this.annotationsDirectorySectionPatchAlg.execute();
this.debugInfoSectionPatchAlg.execute();
this.codeSectionPatchAlg.execute();
this.classDataSectionPatchAlg.execute();
this.encodedArraySectionPatchAlg.execute();
this.classDefSectionPatchAlg.execute();
// Thirdly, write header, mapList. Calculate and write patched dex's sign and checksum.
Dex.Section headerOut = this.patchedDex.openSection(patchedToc.header.off);
patchedToc.writeHeader(headerOut);
Dex.Section mapListOut = this.patchedDex.openSection(patchedToc.mapList.off);
patchedToc.writeMap(mapListOut);
this.patchedDex.writeHashes();
// Finally, write patched dex to file.
this.patchedDex.writeTo(out);
}
而 DexPatchApplier 里面合流操作的代码是需要根据 Tinker 的 DexDiff 算法来的。大致就是把两个 Dex 文件的每个分区做 merge 操作。Tinker Dexdiff算法见下面文章《Tinker Dexdiff算法解析》
合并后dex的目录是/data/data/tinker.sample.android/tinker/patch-909c0ac6/dex/tinker_classN.apk。
二、加载合成的dex
加载的代码实际上在生成的Application中调用的，其父类为TinkerApplication，在其attachBaseContext中辗转会调用到loadTinker()方法，在该方法内部，反射调用了TinkerLoader的tryLoad方法。
生成的Application源码如下：
public class SampleApplication extends TinkerApplication {
public SampleApplication() {
super(15, "tinker.sample.android.app.SampleApplicationLike", "com.tencent.tinker.loader.TinkerLoader", false);
}
}
第3个参数"com.tencent.tinker.loader.TinkerLoader"就是下面反射中的loaderClassName。
TinkerApplication的onBaseContextAttached()方法源码如下：
private void onBaseContextAttached(Context base) {
......
loadTinker();
......
}
loadTinker()源码如下：
private void loadTinker() {
try {
//reflect tinker loader, because loaderClass may be define by user!
Class<?> tinkerLoadClass = Class.forName(loaderClassName, false, TinkerApplication.class.getClassLoader());
Method loadMethod = tinkerLoadClass.getMethod(TINKER_LOADER_METHOD, TinkerApplication.class);
Constructor<?> constructor = tinkerLoadClass.getConstructor();
tinkerResultIntent = (Intent) loadMethod.invoke(constructor.newInstance(), this);
} catch (Throwable e) {
//has exception, put exception error code
tinkerResultIntent = new Intent();
ShareIntentUtil.setIntentReturnCode(tinkerResultIntent, ShareConstants.ERROR_LOAD_PATCH_UNKNOWN_EXCEPTION);
tinkerResultIntent.putExtra(INTENT_PATCH_EXCEPTION, e);
}
}
这里就是通过反射调用TinkerLoader的tryLoad方法。tryLoad()源码如下：
public Intent tryLoad(TinkerApplication app) {
Log.d(TAG, "tryLoad test test");
Intent resultIntent = new Intent();
long begin = SystemClock.elapsedRealtime();
tryLoadPatchFilesInternal(app, resultIntent);
long cost = SystemClock.elapsedRealtime() - begin;
ShareIntentUtil.setIntentPatchCostTime(resultIntent, cost);
return resultIntent;
}
最终调用tryLoadPatchFilesInternal()，源码如下：
private void tryLoadPatchFilesInternal(TinkerApplication app, int tinkerFlag, boolean tinkerLoadVerifyFlag, Intent resultIntent) {
// 省略校验代码
if (isEnabledForDex) {
//tinker/patch.info/patch-641e634c/dex
boolean dexCheck = TinkerDexLoader.checkComplete(patchVersionDirectory, securityCheck, resultIntent);
if (!dexCheck) {
//file not found, do not load patch
Log.w(TAG, "tryLoadPatchFiles:dex check fail");
return;
}
}
//now we can load patch jar
if (isEnabledForDex) {
boolean loadTinkerJars = TinkerDexLoader.loadTinkerJars(app, tinkerLoadVerifyFlag, patchVersionDirectory, resultIntent, isSystemOTA);
if (!loadTinkerJars) {
Log.w(TAG, "tryLoadPatchFiles:onPatchLoadDexesFail");
return;
}
}
}
TinkerDexLoader.checkComplete主要是用于检查下发的meta文件中记录的dex信息（meta文件，可以查看生成patch的产物，在assets/dex-meta.txt），检查meta文件中记录的dex文件信息对应的dex文件是否存在，并把值存在TinkerDexLoader的静态变量dexList中。
然后调用TinkerDexLoader.loadTinkerJars()，源码如下：
@TargetApi(Build.VERSION_CODES.ICE_CREAM_SANDWICH)
public static boolean loadTinkerJars(Application application, boolean tinkerLoadVerifyFlag,
String directory, Intent intentResult, boolean isSystemOTA) {
PathClassLoader classLoader = (PathClassLoader) TinkerDexLoader.class.getClassLoader();
String dexPath = directory + "/" + DEX_PATH + "/";
File optimizeDir = new File(directory + "/" + DEX_OPTIMIZE_PATH);
ArrayList<File> legalFiles = new ArrayList<>();
final boolean isArtPlatForm = ShareTinkerInternals.isVmArt();
for (ShareDexDiffPatchInfo info : dexList) {
//for dalvik, ignore art support dex
if (isJustArtSupportDex(info)) {
continue;
}
String path = dexPath + info.realName;
File file = new File(path);
legalFiles.add(file);
}
// just for art
if (isSystemOTA) {
parallelOTAResult = true;
parallelOTAThrowable = null;
Log.w(TAG, "systemOTA, try parallel oat dexes!!!!!");
TinkerParallelDexOptimizer.optimizeAll(
legalFiles, optimizeDir,
new TinkerParallelDexOptimizer.ResultCallback() {
}
);
SystemClassLoaderAdder.installDexes(application, classLoader, optimizeDir, legalFiles);
return true;
}
找出仅支持art的dex，且当前patch是否仅适用于art时，并行去loadDex。然后调用installDexes()，源码如下：
@SuppressLint("NewApi")
public static void installDexes(Application application, BaseDexClassLoader loader, File dexOptDir, List<File> files, boolean isProtectedApp)
throws Throwable {
Log.i(TAG, "installDexes dexOptDir: " + dexOptDir.getAbsolutePath() + ", dex size:" + files.size());
if (!files.isEmpty()) {
files = createSortedAdditionalPathEntries(files);
ClassLoader classLoader = loader;
if (Build.VERSION.SDK_INT >= 24 && !isProtectedApp) {
classLoader = NewClassLoaderInjector.inject(application, loader);
}
//because in dalvik, if inner class is not the same classloader with it wrapper class.
//it won't fail at dex2opt
if (Build.VERSION.SDK_INT >= 23) {
V23.install(classLoader, files, dexOptDir);
} else if (Build.VERSION.SDK_INT >= 19) {
V19.install(classLoader, files, dexOptDir);
} else if (Build.VERSION.SDK_INT >= 14) {
V14.install(classLoader, files, dexOptDir);
} else {
V4.install(classLoader, files, dexOptDir);
}
//install done
sPatchDexCount = files.size();
Log.i(TAG, "after loaded classloader: " + classLoader + ", dex size:" + sPatchDexCount);
if (!checkDexInstall(classLoader)) {
//reset patch dex
SystemClassLoaderAdder.uninstallPatchDex(classLoader);
throw new TinkerRuntimeException(ShareConstants.CHECK_DEX_INSTALL_FAIL);
}
}
}
V19的install()源码如下：
private static void install(ClassLoader loader, List<File> additionalClassPathEntries,
File optimizedDirectory)
throws IllegalArgumentException, IllegalAccessException,
NoSuchFieldException, InvocationTargetException, NoSuchMethodException, IOException {
/* The patched class loader is expected to be a descendant of
* dalvik.system.BaseDexClassLoader. We modify its
* dalvik.system.DexPathList pathList field to append additional DEX
* file entries.
*/
Field pathListField = ShareReflectUtil.findField(loader, "pathList");
Object dexPathList = pathListField.get(loader);
ArrayList<IOException> suppressedExceptions = new ArrayList<IOException>();
ShareReflectUtil.expandFieldArray(dexPathList, "dexElements", makeDexElements(dexPathList,
new ArrayList<File>(additionalClassPathEntries), optimizedDirectory,
suppressedExceptions));
if (suppressedExceptions.size() > 0) {
for (IOException e : suppressedExceptions) {
Log.w(TAG, "Exception in makeDexElement", e);
throw e;
}
}
}
- 找到PathClassLoader（BaseDexClassLoader）对象中的pathList对象
- 根据pathList对象找到其中的makeDexElements方法，传入patch相关的对应的
- 实参，返回Element[]对象
- 拿到pathList对象中原本的dexElements方法
- 步骤2与步骤3中的Element[]数组进行合并，将patch相关的dex放在数组的前面
- 最后将合并后的数组，设置给pathList
这里其实和Qzone的提出的方案基本是一致的。Qzone的方案见《安卓App热补丁动态修复技术介绍 》
1476
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
