How to Understand Model Behavior During Training By Plotting History

You can learn a lot about neural networks and deep learning models by observing their performance over time during training. In this lesson you will discover how you can review and visualize the performance of deep learning models over time during training in Python with Keras. After completing this lesson you will know:

• How to inspect the history metrics collected during training
• How to plot accuracy metrics on training and validation datasets during training
• How to plot model loss metrics on training and validation datasets during training.

1.1 Access Model Training History in Keras

Keras provides the capability to register callbacks when training a deep learning model. One of the default callbacks that is registered when training all deep learning models is the History callback. It records training metrics for each epoch. This includes the loss and the accuracy (for classification problems) as well as the loss and accuracy for the validation dataset, if one is set.         The history object is returned from calls to the fit() function used to train the model. Metrics are stored in a dictionary in the history member of the object returned. For example, you can list the metrics collected in a history object using the following snippet of code after a model is trained:

# list all data in history

print(history.history.keys())

For example, for a model trained on a classification problem with a validation dataset, this might produce the following listing:

[ accuracy , loss , val_accuracy , val_loss ]

        We can use the data collected in the history object to create plots. The plots can provide an indication of useful things about the training of the model, such as:

• It’s speed of convergence over epochs (slope).
• Whether the model may have already converged (plateau of the line).
• Whether the model may be over-learning the training data (inflection for validation line). And more.

1.2 Visualize Model Training History in Keras

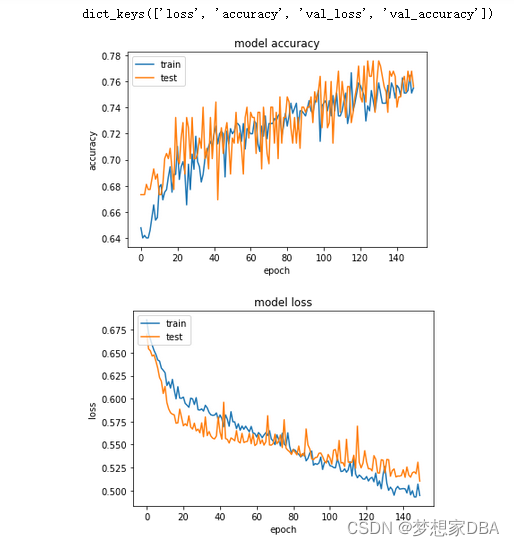

We can create plots from the collected history data. In the example below we create a small network to model the Pima Indians onset of diabetes binary classification problem (see Section 7.2). The example collects the history, returned from training the model and creates two charts:

• A plot of accuracy on the training and validation datasets over training epochs.
• A plot of loss on the training and validation datasets over training epochs.

# Visualize training history
from keras.models import Sequential
from keras.layers import Dense
import matplotlib.pyplot as plt
import numpy as np

# fix random seed for reproducibility
seed = 7
np.random.seed(seed)

# load pima indians dataset
dataset = np.loadtxt("pima-indians-diabetes.csv",delimiter=",")

# split into input(X) and output(Y) variables
X = dataset[:,0:8]
Y = dataset[:,8]

# create model
model = Sequential()
model.add(Dense(12,input_dim=8,kernel_initializer='uniform',activation='relu'))
model.add(Dense(8,kernel_initializer='uniform',activation='relu'))
model.add(Dense(1,kernel_initializer='uniform',activation='sigmoid'))

# Compile model
model.compile(loss='binary_crossentropy',optimizer='adam', metrics=['accuracy'])

# Fit the model
history = model.fit(X, Y, validation_split=0.33, epochs=150, batch_size=10, verbose=0)

# list all data in history
print(history.history.keys())

# summarize history for accuracy
plt.plot(history.history['accuracy'])
plt.plot(history.history['val_accuracy'])
plt.title('model accuracy')
plt.ylabel('accuracy')
plt.xlabel('epoch')
plt.legend(['train','test'],loc='upper left')
plt.show()

# sumarize history for loss
plt.plot(history.history['loss'])
plt.plot(history.history['val_loss'])
plt.title('model loss')
plt.ylabel('loss')
plt.xlabel('epoch')
plt.legend(['train','test'],loc='upper left')
plt.show()

1.3 Summary

In this lesson you discovered the importance of collecting and reviewing metrics during the training of your deep learning models. You learned:

• How to inspect a history object returned from training to discover the metrics that were collected.
• How to extract model accuracy information for training and validation datasets and plot the data.
• How to extract and plot the model loss information calculated from training and validation datasets.

1.3.1 Next

A simple yet very powerful technique for decreasing the amount of overfitting of your model to training data is called dropout. In the next lesson you will discover the dropout technique, how to apply it to visible and hidden layers in Keras and best practices for using it on your own problems.
