之前有需求想把krpano功能化,让后台全自动生成,但是在网上并没有看到相关的帖子,于是我就对krpano研究了一天,总算给实现了,随着VR的发展,这项技术肯定会有更多的人学习,我就把我研究出来的解决过程分享给大家吧!!!
准备工作:
1.下载krpano-1.19-pr8(我用的是这个版本),下载地址:https://krpano.com/download/,至于破解我就不讲了,网上有很多
2.java开发环境
3.tomcat
原理:下载krpano后解压文件夹里有一个批处理:MAKE VTOUR (MULTIRES) droplet.bat,直接把全景图片拖动执行这个批处理就会自动生成相应的全景html文件夹。
废话不多说,直接上码:
import java.io.BufferedReader;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;
import javax.xml.transform.OutputKeys;
import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerException;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.dom.DOMSource;
import javax.xml.transform.stream.StreamResult;
import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.Node;
import org.w3c.dom.NodeList;
import org.xml.sax.SAXException;
import com.ujum.app.bean.Room;
public class CmdBat {
public static void main(String[] args) {
Room r = new Room();
String dpath = "D:\\Tomcat 8.5\\webapps\\ujum-file\\vshow";
String file = "0049132f-25dd-4984-8505-f6bdf624c6c3";
String[] fn1 = { "1049132f-25dd-4984-8505-f6bdf624c6c3",
"2049132f-25dd-4984-8505-f6bdf624c6c3",
"3049132f-25dd-4984-8505-f6bdf624c6c3" };
String[] fn2 = { "客厅", "卧室", "大客厅" };
String title = "哈哈哈哈哈哈哈哈";
String music = "vshow/backgroundmusic/default.mp3";
try {
setKrpano(r, dpath, file, fn1, fn2, title, music);
} catch (InterruptedException e) {
e.printStackTrace();
System.out.println("上传失败");
}
}
public static void setKrpano(final Room r, final String dpath,
final String file, final String[] fn1, final String[] fn2,
final String title, final String music) throws InterruptedException {
final String temppath = "D:\\temp-room\\";
String path = temppath + file;
String ex = "krpanotools32.exe makepano -config=templates\\vtour-multires.config "
+ path + "\\*.jpg";
Runtime runtime = Runtime.getRuntime();
boolean b = true;
Process p = null;
try {
p = runtime.exec("cmd /c start d:\\krpano-1.19-pr8\\" + ex);
} catch (Exception e) {
b = false;
}
if (b) {
final InputStream is1 = p.getInputStream();
final InputStream is2 = p.getErrorStream();
new Thread() {
public void run() {
BufferedReader br1 = new BufferedReader(
new InputStreamReader(is1));
try {
String line1 = null;
while ((line1 = br1.readLine()) != null) {
if (line1 != null) {
System.out.println("=AA==========line1======"
+ line1);
}
}
} catch (IOException e) {
e.printStackTrace();
} finally {
try {
is1.close();
// 执行文件复制
File f = new File(dpath + "\\" + file);
f.mkdirs();// 创建目录
// 复制文件
boolean b1 = copyFile(temppath + file
+ "\\vtour\\tour.js", dpath + "\\" + file
+ "\\tour.js");
if (b1) {
boolean b2 = copyFile(temppath + file
+ "\\vtour\\tour.swf", dpath + "\\"
+ file + "\\tour.swf");
if (b2) {
boolean b3 = copyFile(temppath + file
+ "\\vtour\\tour.xml", dpath + "\\"
+ file + "\\tour.xml");
if (b3) {
// 复制文件夹
boolean b4 = copyFolder(temppath + file
+ "\\vtour\\panos", dpath
+ "\\" + file + "\\panos");
if (b4) {
// 删除临时生成文件
delFolder(temppath + file);
// 修改krpano文件内容
String xmlPath = dpath + "\\"
+ file + "\\tour.xml";
File xmlFile = new File(xmlPath);
DocumentBuilderFactory dbFactory = DocumentBuilderFactory
.newInstance();
DocumentBuilder dBuilder;
try {
dBuilder = dbFactory
.newDocumentBuilder();
Document doc = dBuilder
.parse(xmlFile);
doc.getDocumentElement()
.normalize();
for (int i = 0; i < fn1.length; i++) {
updateAttributeValue(doc,
fn1[i], fn2[i]);
}
// update Element value
updateElementValue(doc, title);
// delete element
deleteElement(doc);
// add new element
addElement(doc);
updateAttributeColorValue(doc,
"0x000000");
addMusicElement(doc, music);
// write the updated document to
// file or console
doc.getDocumentElement()
.normalize();
TransformerFactory transformerFactory = TransformerFactory
.newInstance();
Transformer transformer = transformerFactory
.newTransformer();
DOMSource source = new DOMSource(
doc);
StreamResult result = new StreamResult(
new File(xmlPath));
transformer.setOutputProperty(
OutputKeys.INDENT,
"yes");
transformer.transform(source,
result);
// 生成成功执行之后的操作,我这里是生成之后更改数据库状态
/*r.setMark("1");
AdminService as = ContextUtil
.getBean(
AdminService.class,
"adminService");
as.updateRoom(r);*/
/*
* System.out .println(
* "XML file updated successfully"
* );
*/
} catch (
SAXException
| ParserConfigurationException
| IOException
| TransformerException e1) {
e1.printStackTrace();
// 生成失败执行操作
/*r.setMark("2");
AdminService as = ContextUtil
.getBean(
AdminService.class,
"adminService");
as.updateRoom(r);*/
}
}
}
}
}
} catch (IOException e) {
e.printStackTrace();
}
}
}
}.start();
new Thread() {
public void run() {
BufferedReader br2 = new BufferedReader(
new InputStreamReader(is2));
try {
String line2 = null;
while ((line2 = br2.readLine()) != null) {
if (line2 != null) {
System.out.println("=AA==========line2======"
+ line2);
}
}
} catch (IOException e) {
e.printStackTrace();
} finally {
try {
is2.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}.start();
p.waitFor();
p.destroy();
} else {
System.out.println("上传失败");
}
}
/**
* 复制单个文件
*
* @param oldPath
* String 原文件路径 如:c:/fqf.txt
* @param newPath
* String 复制后路径 如:f:/fqf.txt
* @return boolean
*/
public static boolean copyFile(String oldPath, String newPath) {
try {
int bytesum = 0;
int byteread = 0;
File oldfile = new File(oldPath);
if (oldfile.exists()) { // 文件存在时
InputStream inStream = new FileInputStream(oldPath); // 读入原文件
FileOutputStream fs = new FileOutputStream(newPath);
byte[] buffer = new byte[1444];
int length;
while ((byteread = inStream.read(buffer)) != -1) {
bytesum += byteread; // 字节数 文件大小
// System.out.println(bytesum);
fs.write(buffer, 0, byteread);
}
inStream.close();
}
} catch (Exception e) {
// System.out.println("复制单个文件操作出错");
e.printStackTrace();
return false;
}
return true;
}
/**
* 复制整个文件夹内容
*
* @param oldPath
* String 原文件路径 如:c:/fqf
* @param newPath
* String 复制后路径 如:f:/fqf/ff
* @return boolean
*/
public static boolean copyFolder(String oldPath, String newPath) {
try {
(new File(newPath)).mkdirs(); // 如果文件夹不存在 则建立新文件夹
File a = new File(oldPath);
String[] file = a.list();
File temp = null;
for (int i = 0; i < file.length; i++) {
if (oldPath.endsWith(File.separator)) {
temp = new File(oldPath + file[i]);
} else {
temp = new File(oldPath + File.separator + file[i]);
}
if (temp.isFile()) {
FileInputStream input = new FileInputStream(temp);
FileOutputStream output = new FileOutputStream(newPath
+ "/" + (temp.getName()).toString());
byte[] b = new byte[1024 * 5];
int len;
while ((len = input.read(b)) != -1) {
output.write(b, 0, len);
}
output.flush();
output.close();
input.close();
}
if (temp.isDirectory()) {// 如果是子文件夹
copyFolder(oldPath + "/" + file[i], newPath + "/" + file[i]);
}
}
} catch (Exception e) {
// System.out.println("复制整个文件夹内容操作出错");
e.printStackTrace();
return false;
}
return true;
}
// 删除文件夹
public static void delFolder(String folderPath) {
try {
delAllFile(folderPath); // 删除完里面所有内容
String filePath = folderPath;
filePath = filePath.toString();
java.io.File myFilePath = new java.io.File(filePath);
myFilePath.delete(); // 删除空文件夹
} catch (Exception e) {
e.printStackTrace();
}
}
public static boolean delAllFile(String path) {
boolean flag = false;
File file = new File(path);
if (!file.exists()) {
return flag;
}
if (!file.isDirectory()) {
return flag;
}
String[] tempList = file.list();
File temp = null;
for (int i = 0; i < tempList.length; i++) {
if (path.endsWith(File.separator)) {
temp = new File(path + tempList[i]);
} else {
temp = new File(path + File.separator + tempList[i]);
}
if (temp.isFile()) {
temp.delete();
}
if (temp.isDirectory()) {
delAllFile(path + "/" + tempList[i]);// 先删除文件夹里面的文件
delFolder(path + "/" + tempList[i]);// 再删除空文件夹
flag = true;
}
}
return flag;
}
private static void addElement(Document doc) {
NodeList employees = doc.getElementsByTagName("krpano");
Element emp = null;
// loop for each employee
for (int i = 0; i < employees.getLength(); i++) {
emp = (Element) employees.item(i);
Element vtourskin = doc.createElement("include");
vtourskin.setAttribute("url", "../skin/vtourskin.xml");
emp.appendChild(vtourskin);
Element skinselect = doc.createElement("include");
skinselect.setAttribute("url", "../skinselect.xml");
emp.appendChild(skinselect);
}
}
private static void addMusicElement(Document doc, String music) {
NodeList employees = doc.getElementsByTagName("krpano");
Element emp = null;
// loop for each employee
for (int i = 0; i < employees.getLength(); i++) {
emp = (Element) employees.item(i);
Element musicEl = doc.createElement("action");
musicEl.setAttribute("name", "bgsnd_action");
musicEl.setAttribute("autorun", "onstart");
musicEl.appendChild(doc.createTextNode("playsound(bgsnd, '" + music
+ "', 0);"));
emp.appendChild(musicEl);
}
}
private static void deleteElement(Document doc) {
NodeList employees = doc.getElementsByTagName("krpano");
Element emp = null;
// loop for each employee
for (int i = 0; i < employees.getLength(); i++) {
emp = (Element) employees.item(i);
Node genderNode = emp.getElementsByTagName("include").item(0);
emp.removeChild(genderNode);
}
}
private static void updateElementValue(Document doc, String title) {
NodeList employees = doc.getElementsByTagName("krpano");
Element emp = null;
// loop for each employee
for (int i = 0; i < employees.getLength(); i++) {
emp = (Element) employees.item(i);
emp.setAttribute("title", title);
}
}
private static void updateAttributeValue(Document doc, String oldname,
String newname) {
NodeList employees = doc.getElementsByTagName("scene");
Element emp = null;
// loop for each employee
for (int i = 0; i < employees.getLength(); i++) {
emp = (Element) employees.item(i);
if (emp.getAttribute("title").equals(oldname)) {
emp.setAttribute("title", newname);
break;
}
}
}
private static void updateAttributeColorValue(Document doc, String newname) {
NodeList employees = doc.getElementsByTagName("skin_settings");
Element emp = null;
// loop for each employee
for (int i = 0; i < employees.getLength(); i++) {
emp = (Element) employees.item(i);
emp.setAttribute("design_bgcolor", newname);
emp.setAttribute("design_bgalpha", "0.8");
}
}
}
这些代码主要意思是用代码来拖动全景图片去执行那个批处理,然后等待生成之后修改生成之后的文件以及删除一切多余的文件,因为我做过N次实验及对比,我发现执行后生成的很多文件都是一致的,所以我就整理了一个通用的包(放在vshow文件夹),因为生成文件后必须还得自动发布,所有vshow这个文件夹我是直接放在项目里的:

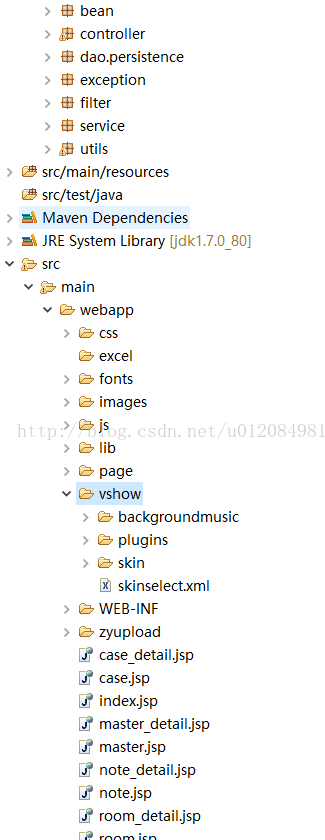

至于vshow里的文件内容你自己生成一次之后保留这些东西就可以了,继续回到正题,我这个是将全景图片上传了之后,先存放在D:\\temp-room\\里,然后执行cmd命令自动生成,生成了之后将需要的文件复制到vshow文件夹里,只要你仔仔细细看我代码就能明白所有的事情,生成这些文件处理完后,前台访问就直接用一个通用的jsp文件来访问,直接贴上我的源码吧,一定要仔细看代码,不然真的很难懂:
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8" isELIgnored="false"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE html>
<html>
<head>
<base href="<%=basePath%>">
<title>${title }</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0" />
<meta name="apple-mobile-web-app-capable" content="yes" />
<meta name="apple-mobile-web-app-status-bar-style" content="black" />
<meta http-equiv="Content-Type" content="text/html;charset=utf-8" />
<meta http-equiv="x-ua-compatible" content="IE=edge" />
<link rel="shortcut icon" href="images/favicon.png">
<style>
@-ms-viewport { width:device-width; }
@media only screen and (min-device-width:800px) { html { overflow:hidden; } }
html { height:100%; }
body { height:100%; overflow:hidden; margin:0; padding:0; font-family:Arial, Helvetica, sans-serif; font-size:16px; color:#FFFFFF; background-color:#000000; }
</style>
</head>
<body>
<div style="position: absolute;z-index: 1;margin-top: 10px;margin-left: 10px">
<a href="<%=basePath%>"><img src="images/logo.png" style="height: 50px"></a>
</div>
<script src="http://www.sxujum.com/ujum-file/vshow/${vid }/tour.js"></script>
<div id="pano" style="width:100%;height:100%;">
<noscript><table style="width:100%;height:100%;"><tr style="vertical-align:middle;"><td><div style="text-align:center;">ERROR:<br/><br/>Javascript not activated<br/><br/></div></td></tr></table></noscript>
<script>
var vid = "${vid}";
embedpano({swf:"http://www.sxujum.com/ujum-file/vshow/${vid }/tour.swf", xml:"http://www.sxujum.com/ujum-file/vshow/${vid }/tour.xml", target:"pano", html5:"prefer", mobilescale:1.0, passQueryParameters:true});
</script>
</div>
</body>
</html>
源码地址:http://download.csdn.net/download/u012084981/10107545
如果放服务器上有水印,破解工具:https://download.csdn.net/download/u012084981/10695498
