Bark频带

一个临界频带的“距离”通常称为一个Bark，频率（Hz）映射到Bark公式：
$$z(f)=13\times ta{n}^{-1}(0.00076\times f)+3.5\times ta{n}^{-1}[(\frac{f}{7500}{)}^2]\text{\hspace{1em}(Bark)}$$
对于每个临界频带的频宽也可以从下式中求得：
$$B{W}_c(f)=25+75\times [1+1.4\times (\frac{f}{1000}{)}^2{]}^{0.69}\text{\hspace{1em}(Hz)}$$
另外，Bark频带到频率的映射可以由下式估计出来：
$$f=b\times (\frac{e^{0.219\times b}}{352}+0.1)-0.032\times e^{-0.15\times (b-5{)}^2}\text{\hspace{1em}(kHz)}$$

import numpy as np
import matplotlib.pyplot as plt

# 滤波器组个数
nfilt = 22
# 48000KHz
sample_rate = 48000
NFFT = sample_rate
freq_48 = np.array(range(0, int(sample_rate/2), 1))
Bark_freq = 13*np.arctan(0.00076*freq_48)+3.5*np.arctan((freq_48/7500)**2)
low_freq_bark = 0
high_freq_bark = 13*np.arctan(0.00076*sample_rate/2)+3.5*np.arctan((sample_rate/2/7500)**2)
bark_points = np.linspace(low_freq_bark, high_freq_bark, nfilt + 2)
# print(len(bark_points))

hz_points = np.zeros([24])
for i in range(24):
    hz_points[i] = 1000 * bark_points[i] * (pow(np.e, 0.219 * bark_points[i]) / 352. + 0.1) - 0.032 * pow(np.e, -0.15 * pow(bark_points[i] - 5, 2))
print(hz_points)

bin = np.floor((NFFT + 1) * hz_points / sample_rate)

fbank = np.zeros((nfilt, int(np.floor(NFFT / 2 + 1))))
for m in range(1, nfilt + 1):
    f_m_minus = int(bin[m - 1])   # left
    f_m = int(bin[m])             # center
    f_m_plus = int(bin[m + 1])    # right

    for k in range(f_m_minus, f_m):
        fbank[m - 1, k] = (k - bin[m - 1]) / (bin[m] - bin[m - 1])  # 等高
        # fbank[m - 1, k] = fbank[m - 1, k] * 2 / (bin[m+1] - bin[m - 1])  # 等面积
    for k in range(f_m, f_m_plus):
        fbank[m - 1, k] = (bin[m + 1] - k) / (bin[m + 1] - bin[m])
        # fbank[m - 1, k] = fbank[m - 1, k] * 2 / (bin[m + 1] - bin[m-1])

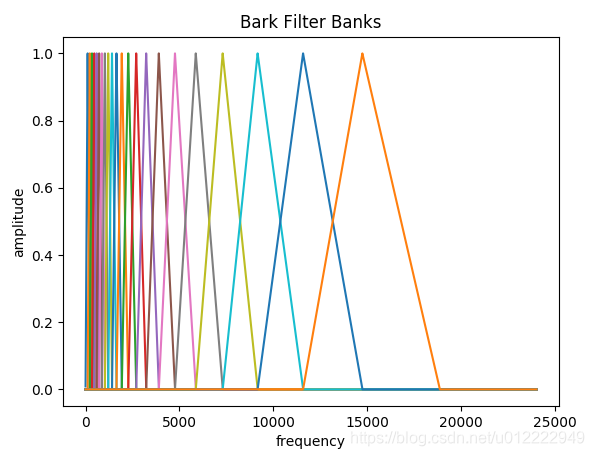

plt.figure(1)
for i in range(0, nfilt):
 plt.plot(range(0, 24001), fbank[i])

plt.figure(2)
plt.plot(freq_48, Bark_freq)
plt.ylabel("Bark-frequency")
plt.xlabel("frequency")

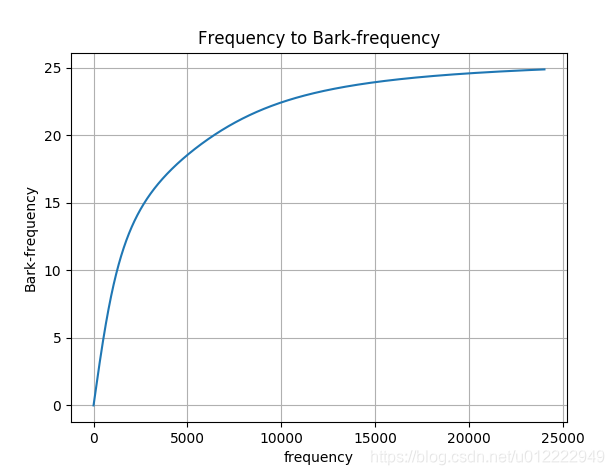

plt.title("Frequency to Bark-frequency")
plt.grid()

plt.figure(3)
plt.plot(bark_points, hz_points)
plt.ylabel("Frequency-Bark")
plt.xlabel("Bark")

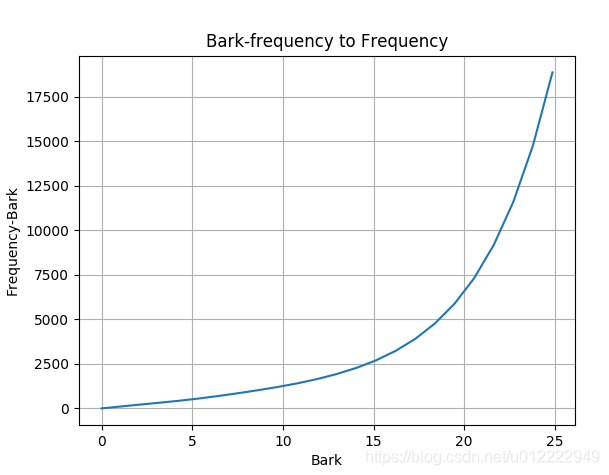

plt.title("Bark-frequency to Frequency")
plt.grid()
plt.show()
