spring-webservice
介绍
使用spring boot + spring ws 实现webservice服务发布
创建工程
创建spring boot工程,添加依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web-services</artifactId>
</dependency>
<dependency>
<groupId>wsdl4j</groupId>
<artifactId>wsdl4j</artifactId>
</dependency>
生成schema
Spring Web Services (Spring-WS)专注于创建文档驱动的 Web 服务。其核心思想是通过文档来创建生成web服务,这便要求根据服务的需求确定入参和返回值来生成对相应的xsd文件。如:一个普通登录服务,输入用户名 + 密码 + 验证码,返回成功状态码 + 菜单。
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:tns="http://yqc.com/ws/login"
targetNamespace="http://yqc.com/ws/login" elementFormDefault="qualified">
<!-- 注意要求请求和返回对象的前缀一致,各自加Request和Response后缀 loginRequest loginResponse-->
<!--如果对象不以Request和Response对象为后缀,则生成的wsdl文件中 wsdl:operation这些标签 -->
<!--如果请求名和返回名不一致,如 loginRequest 和 returnResponse 则从wsdl生成代码时,服务方法没有返回值 -->
<!--定义登录表单请求对象 -->
<xs:element name="loginRequest">
<xs:complexType>
<xs:sequence>
<xs:element name="name" type="xs:string"/>
<xs:element name="password" type="xs:string"/>
<xs:element name="msgcode" type="xs:string"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<!--定义返回数据元素 -->
<xs:element name="loginResponse">
<xs:complexType>
<xs:sequence>
<xs:element name="result" type="tns:resData"/>
<xs:element name="menuData" type="tns:menuList"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:complexType name="menuList">
<xs:sequence>
<xs:element minOccurs="0" maxOccurs="unbounded" name="menu" nillable="true" type="tns:menuItem"/>
</xs:sequence>
</xs:complexType>
<xs:complexType name="menuItem">
<xs:sequence>
<xs:element name="menuId" type="xs:string"/>
<xs:element name="menuName" type="xs:string"/>
<xs:element name="menuOrder" type="xs:string"/>
</xs:sequence>
</xs:complexType>
<xs:complexType name="resData">
<xs:sequence>
<xs:element name="code" type="xs:string"/>
<xs:element name="msg" type="xs:string"/>
</xs:sequence>
</xs:complexType>
</xs:schema>
自动生成代码
1、根据定义的xsd文件,利用JAXB2(将一个Java对象转变成为XML格式,反之亦然)生成对用实体模型,可以下载trang.jar文件,根据xsd生成对应实体。(此处不推荐)
# 将xml转成xsd
java -jar trang.jar book.xml book.xsd
# 将 xsd生成到包下
xjc -p com.bean text.xsd -d D:\wsdl
2、添加JAXB2插件,执行maven install 命令生成实体。
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>jaxb2-maven-plugin</artifactId>
<version>1.6</version>
<executions>
<execution>
<id>xjc</id>
<goals>
<goal>xjc</goal>
</goals>
</execution>
</executions>
<configuration>
<!-- xsd所在目录 -->
<schemaDirectory>
${project.basedir}/src/main/resources/xsd/
</schemaDirectory>
<!-- 生成目录 -->
<outputDirectory>
${project.basedir}/src/main/java/
</outputDirectory>
<clearOutputDir>
false
</clearOutputDir>
<encoding>utf-8</encoding>
</configuration>
</plugin>
创建端点
@Endpoint
public class LoginEndpoint {
// 此处应与xsd文件中定义的保持一致
private static final String NAMESPACE_URI = "http://yqc.com/ws/login";
@Autowired
private LoginService loginService;
// localPart的值对应xsd中参数的标签的name值
@PayloadRoot(namespace = NAMESPACE_URI, localPart = "loginRequest")
@ResponsePayload
public LoginResponse login(@RequestPayload LoginRequest form){
return loginService.login(form);
}
}
配置服务
// 开启webservice服务
@EnableWs
@Configuration
public class WebServiceConfig extends WsConfigurerAdapter {
@Bean
public ServletRegistrationBean messageDispatcherServlet(ApplicationContext applicationContext) {
MessageDispatcherServlet servlet = new MessageDispatcherServlet();
servlet.setApplicationContext(applicationContext);
servlet.setTransformWsdlLocations(true);
return new ServletRegistrationBean(servlet, "/ws/*");
}
/**
* bean 名称是对外发布的wsdl的名称
* @param loginSchema
* @return
*/
@Bean(name = "login")
public DefaultWsdl11Definition defaultWsdl11Definition(XsdSchema loginSchema) {
DefaultWsdl11Definition wsdl11Definition = new DefaultWsdl11Definition();
// wsdl11Definition.setServiceName("loginName");
wsdl11Definition.setPortTypeName("loginPort");
wsdl11Definition.setLocationUri("/ws");
// 默认后缀为Request 和 Response, 自定义需在此处声明
// wsdl11Definition.setRequestSuffix();
// wsdl11Definition.setTargetNamespace("http://yqc.com/ws/login");
wsdl11Definition.setSchema(loginSchema);
return wsdl11Definition;
}
@Bean
public XsdSchema loginSchema() {
return new SimpleXsdSchema(new ClassPathResource("xsd/login.xsd"));
}
}
添加springboot启动类
@SpringBootApplication
public class WsApplication {
public static void main(String[] args) {
SpringApplication.run(WsApplication.class, args);
}
}

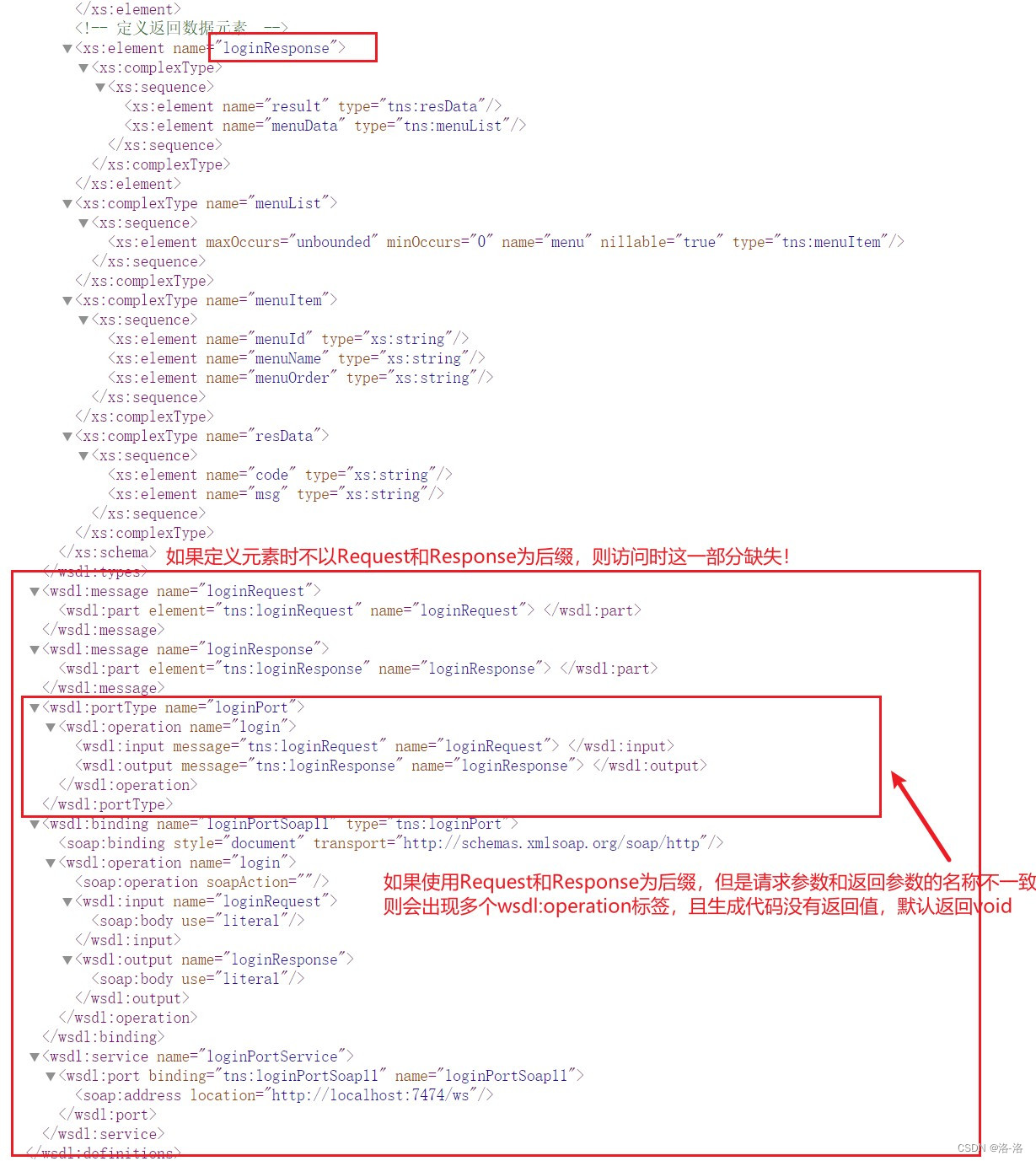

服务端至此结束,可访问http://localhost:7474/ws/login.wsdl查看。

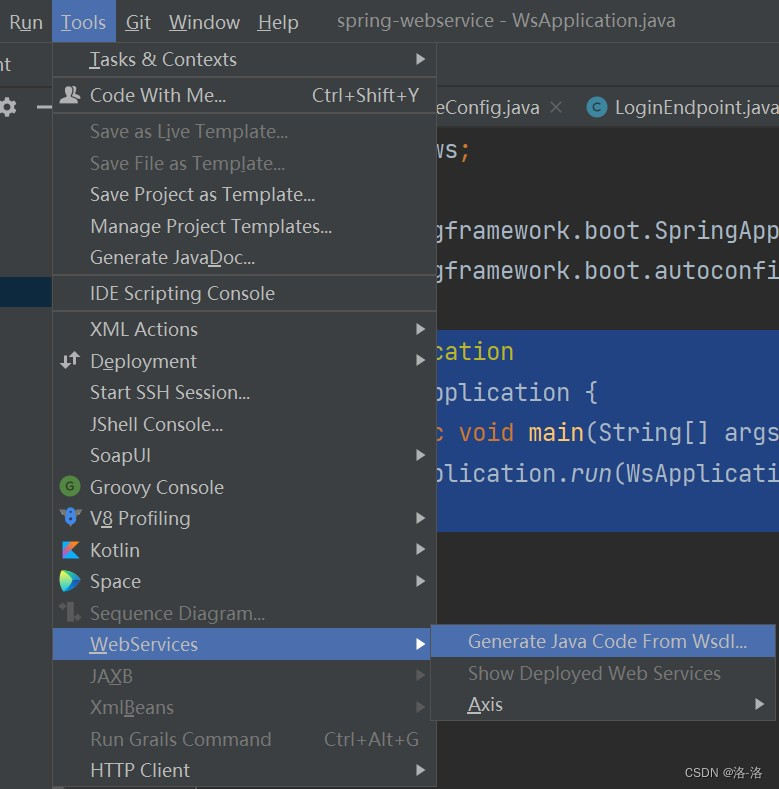

生成客户端代码

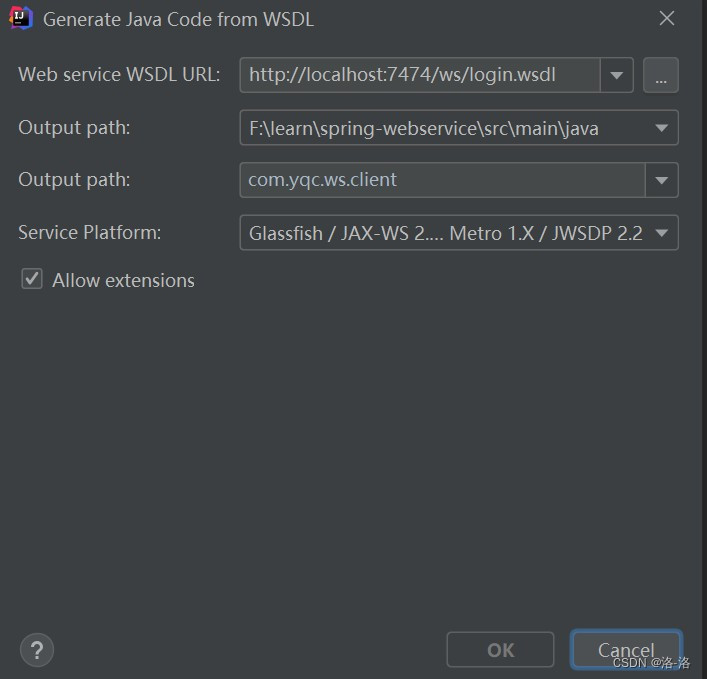

点击生成客户端代码
客户端测试代码
public class Test {
public static void main(String[] args) {
LoginPortService service = new LoginPortService();
LoginPort loginPort = service.getLoginPortSoap11();
LoginRequest request = new LoginRequest();
request.setName("张三");
request.setPassword("12312");
LoginResponse response = loginPort.login(request);
System.out.println(response);
}
}
注意事项
- 注意要求请求和返回对象的前缀一致,各自加Request和Response后缀 如 loginRequest loginResponse
- 如果对象不以Request和Response对象为后缀,则生成的wsdl文件中 没有wsdl:operation这些标签。如果使用自定义后缀则需在配置服务时设置。
- 如果请求名和返回名不一致,如 loginRequest 和 returnResponse 则从wsdl生成代码时,服务方法没有返回值
demo项目地址 https://gitee.com/chaoslover/spring-webservice.git
