docker compose +ElasticSearch集群 + kibana +SpringBoot/php 使用

一、搭建环境

1.1 开始搭建

docker-compose搭建ElasticSearch7.4.0集群+kibana
配置文件结构图（配置详见本文最下方）

1.1.1 生成证书

docker-compose 运行起来后，由于开启了xpack.security，需要先生成证书

docker run -dit --name=es elasticsearch:7.4.0 /bin/bash //临时运行一个实例
docker exec -it es /bin/bash //进入容器
./bin/elasticsearch-certutil ca
./bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12  //生成证书
cp es:证书目录 宿主机存放路径  //复制证书到宿主机

1.1.2 生成密码

• 进入elastic01容器

docker exec -it elastic01 /bin/bas
./bin/elasticsearch-setup-passwords -h
./bin/elasticsearch-setup-passwords auto //随机生成密码用auto， 自己设置用 interactive

• 生成密码示例如下

Changed password for user apm_system
PASSWORD apm_system = L52hnqb5NWFfz9p43pl6

Changed password for user kibana
PASSWORD kibana = 8cidPDyFc1K6kHyRyFMq

Changed password for user logstash_system
PASSWORD logstash_system = 7yb9Ss1z3vg4omidXqTa

Changed password for user beats_system
PASSWORD beats_system = 7EFxeC8U0uWDNHsT8eTD

Changed password for user remote_monitoring_user
PASSWORD remote_monitoring_user = bp4JQx5P98ZsksDphvuv

Changed password for user elastic
PASSWORD elastic = ZJDa3VAtxDNZrXuEBYTS

然后更改kibana.yml配置文件的密码，账号为：kibana

• 确定好宿主机证书文件路径和配置好密码后，需要重启docker-compose

docker-compose up -d

1.1.3 状态验证

• 进入集群验证是否可以正常使用,status为green即为正常

F:\work\docker-ElasticSearch-7.4.0>docker exec -it elastic02 /bin/bash
[root@f83bef560f84 elasticsearch]# curl -u elastic:ZJDa3VAtxDNZrXuEBYTS elastic01:9200/_cluster/health?pretty
{
  "cluster_name" : "es-docker-cluster",
  "status" : "green",
  "timed_out" : false,
  "number_of_nodes" : 3,
  "number_of_data_nodes" : 3,
  "active_primary_shards" : 20,
  "active_shards" : 40,
  "relocating_shards" : 0,
  "initializing_shards" : 0,
  "unassigned_shards" : 0,
  "delayed_unassigned_shards" : 0,
  "number_of_pending_tasks" : 0,
  "number_of_in_flight_fetch" : 0,
  "task_max_waiting_in_queue_millis" : 0,
  "active_shards_percent_as_number" : 100.0
}

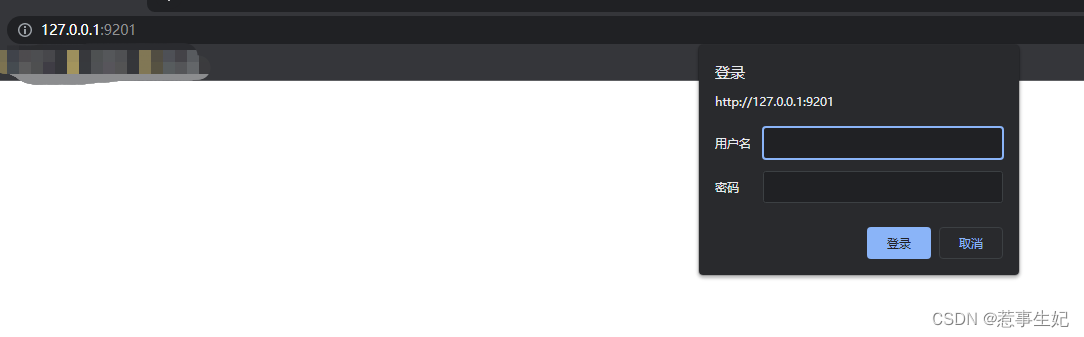

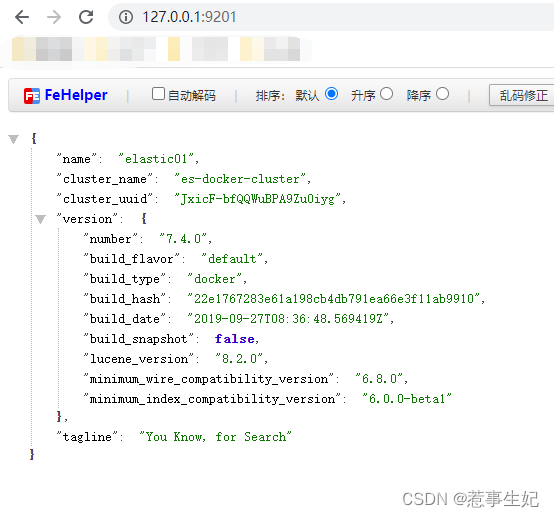

• 也可以网页访问，账号为elastic，密码为对应密码



1.1.4 kibana进行管理

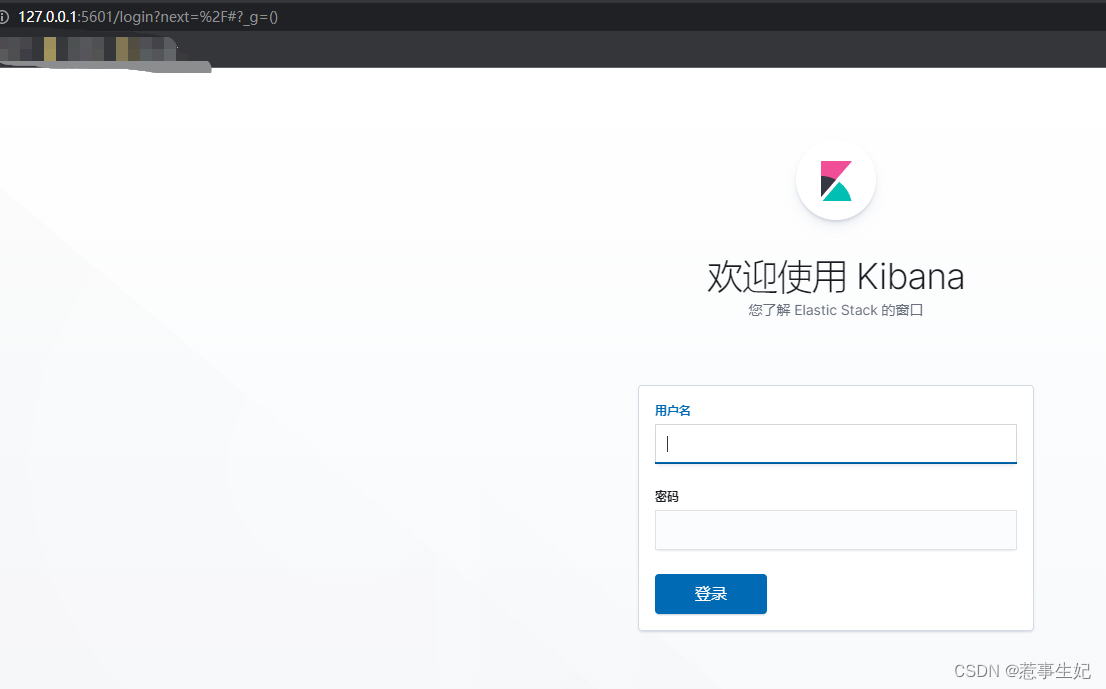

• 登录界面，账号密码同elastic

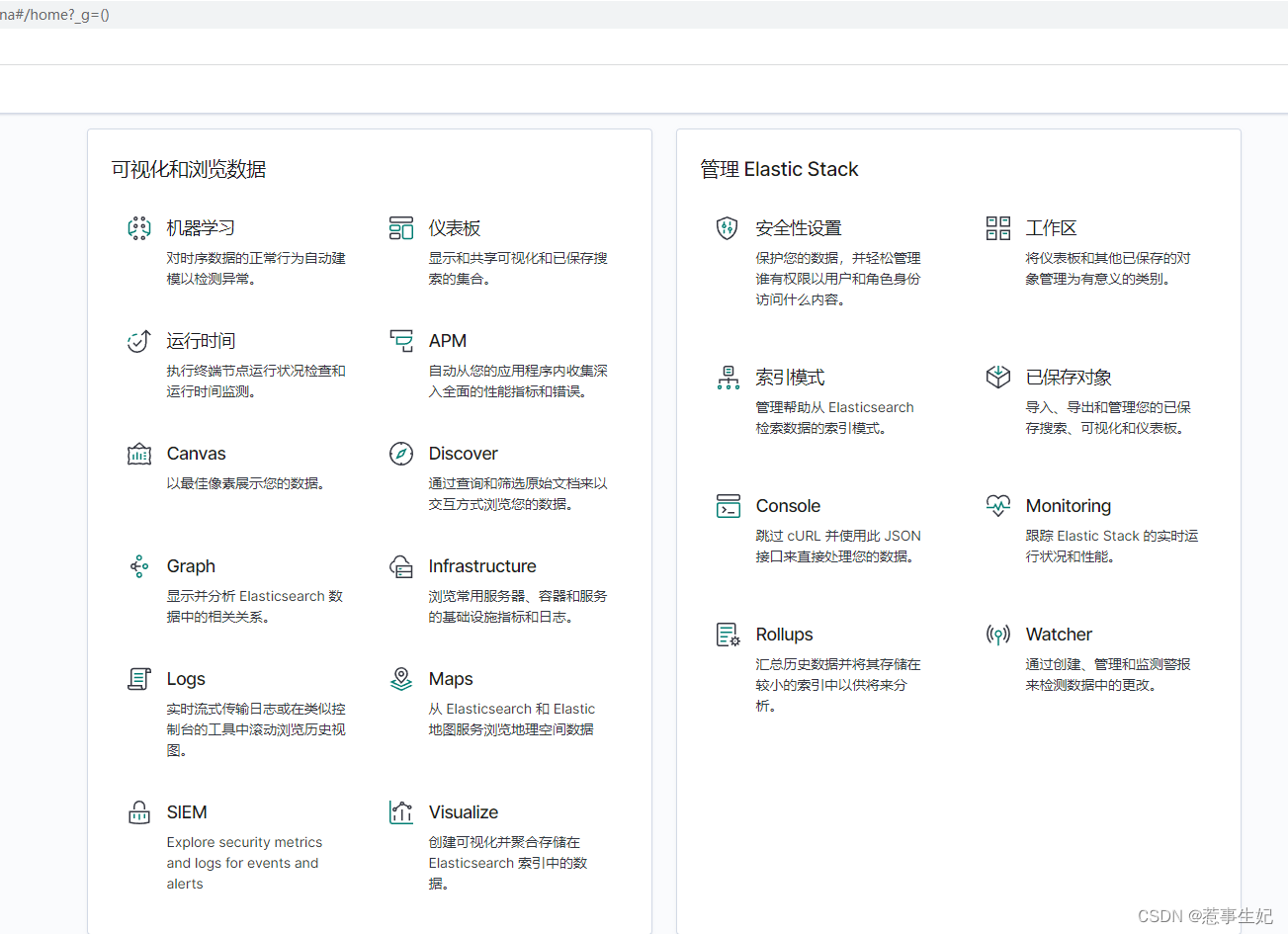

• 管理菜单

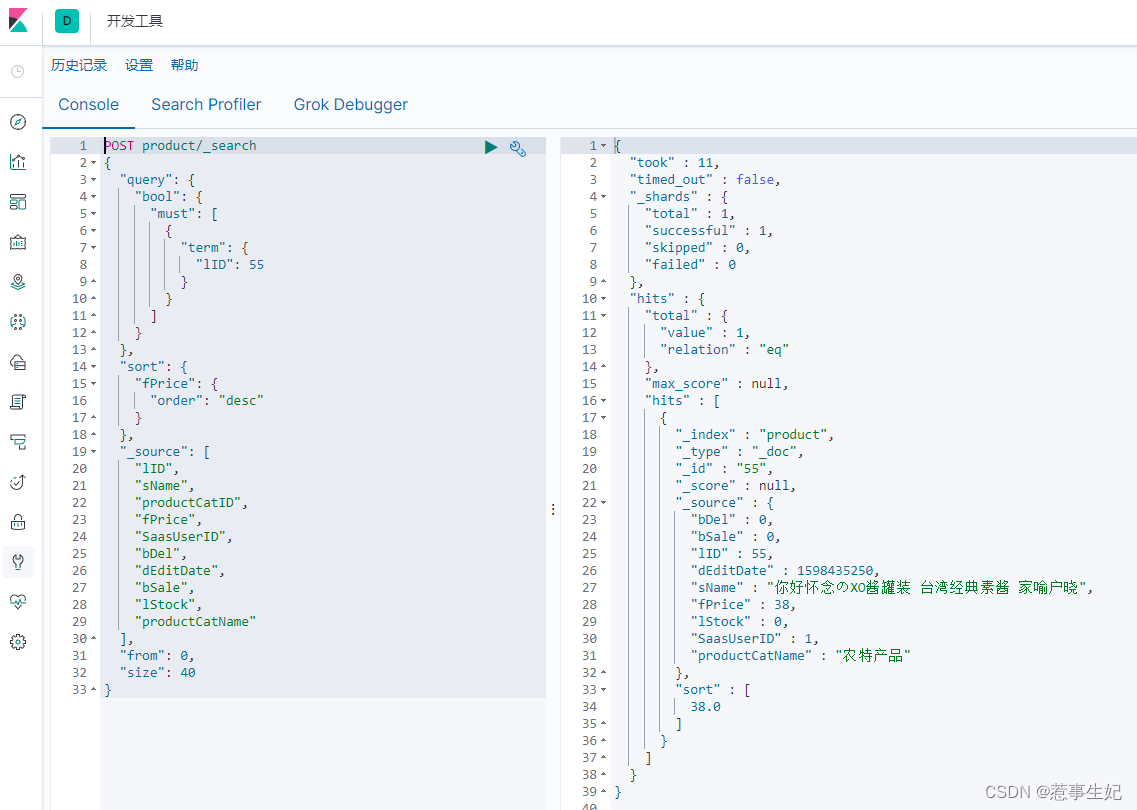

• console使用

• 查看文档


1.2 搭建过程中可能出现的问题：

1.2.1 宿主机虚拟内存不足

这个问题是在启动kibana的时候出现的，完全启动不起来，而且cpu直接100%，后面去看了docker 日志发现的问题
max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144]
官方提供了解决办法：

• linux下：

sysctl -w vm.max_map_count=262144

• Windows with Docker Desktop WSL 2 backend环境下

wsl -d docker-desktop sysctl -w vm.max_map_count=262144

二、开始使用

2.1 Java SpringBoot的使用

2.1.1 配置文件

• maven 配置

<!--elastic-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-elasticsearch</artifactId>
            <!-- 防止与引入的fastjson冲突 -->
            <exclusions>
                <exclusion>
                    <groupId>com.fasterxml.jackson.dataformat</groupId>
                    <artifactId>jackson-dataformat-smile</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.fasterxml.jackson.dataformat</groupId>
                    <artifactId>jackson-dataformat-cbor</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>net.sf.jopt-simple</groupId>
                    <artifactId>jopt-simple</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.46</version>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.5.8</version>
        </dependency>

application.yml配置文件

server:
  port: 16102
spring:
  application:
    name: elastic-service
logging:
  level:
    cn.laisanjin.elasticsearch: info
elasticsearch:
  uris: 192.168.0.185:9201
  username: elastic
  password: ZJDa3VAtxDNZrXuEBYTS

ElasticsearchConfig配置文件

@Component
@Configuration
@ConfigurationProperties(prefix = "spring.elasticsearch.rest")
public class ElasticsearchConfig extends AbstractElasticsearchConfiguration {
    @Value("${elasticsearch.uris}")
    private String uris;

    @Value("${elasticsearch.username}")
    private String username;

    @Value("${elasticsearch.password}")
    private String password;

    @Override
    @Bean(destroyMethod = "close")
    public RestHighLevelClient elasticsearchClient() {
        final ClientConfiguration clientConfiguration = ClientConfiguration.builder()
                .connectedTo(uris)
                .withBasicAuth(username, password)
                .build();
        return RestClients.create(clientConfiguration).rest();
    }
}

2.1.2 开始使用

• 新建索引

    @Autowired
    private RestHighLevelClient restHighLevelClient;

    public void createIndex(String index) throws Exception {
        boolean product = restHighLevelClient.indices().exists(new GetIndexRequest(index), RequestOptions.DEFAULT);
        if (product == false) {
            CreateIndexRequest request = new CreateIndexRequest(index);
            CreateIndexResponse response = restHighLevelClient.indices().create(request, RequestOptions.DEFAULT);
        } else {
            System.out.println("index:" + index + " exist");
        }
    }

• 删除索引

    @Autowired
    private RestHighLevelClient restHighLevelClient;

    void deleteIndex(String index) throws Exception {
        AcknowledgedResponse product = restHighLevelClient.indices().delete(new DeleteIndexRequest(index), RequestOptions.DEFAULT);
    }

• 插入文档

    public void insertDoc(String index, String jsonObject, String id) throws Exception {
        //创建请求体
        IndexRequest request = new IndexRequest(index);
        request.id(id);
        request.source(jsonObject, XContentType.JSON);
        //插入一条文档
        IndexResponse response = restHighLevelClient.index(request, RequestOptions.DEFAULT);
    }

• 批量插入

    public void batchInsertDoc(ArrayList<JSONObject> arrayList) throws Exception {
        BulkRequest bulkRequest = new BulkRequest();
        for (JSONObject jsonObject : arrayList) {
            String index = jsonObject.getString("index");
            String id = jsonObject.getString("docId");
            JSONObject data = JSONObject.parseObject(jsonObject.getString("data"));
            bulkRequest.add(new IndexRequest().index(index).id(id).source(data, XContentType.JSON));
        }

        BulkResponse bulkResponse = restHighLevelClient.bulk(bulkRequest, RequestOptions.DEFAULT);
    }

• 分页查询

    public JSONObject searchPage(String index, JSONObject jsonObject, int page, int pageSize) throws Exception {
        SearchRequest searchRequest = new SearchRequest();
        //设置索引
        searchRequest.indices(index);
        SearchSourceBuilder builder = new SearchSourceBuilder();
        if (ObjectUtil.isNotEmpty(jsonObject)) {
            //设置搜索字段
            if (jsonObject.containsKey("selectColumns") && StrUtil.isNotEmpty(jsonObject.getString("selectColumns"))) {
                builder.fetchSource(jsonObject.getString("selectColumns").split(","), null
                );
            }

            //组装搜索条件
            if (jsonObject.containsKey("searchParams") && StrUtil.isNotEmpty(jsonObject.getString("searchParams"))) {
                List<JSONObject> conditionList = JSONObject.parseArray(jsonObject.getString("searchParams"), JSONObject.class);
                BoolQueryBuilder boolQueryBuilder = QueryBuilders.boolQuery();
                for (JSONObject conditionJson : conditionList) {
                    if (
                            !conditionJson.containsKey("condition")
                                    || !conditionJson.containsKey("field")
                                    || !conditionJson.containsKey("value")
                    ) {
                        continue;
                    }
                    String condition = conditionJson.getString("condition");
                    String field = conditionJson.getString("field");
                    String value = conditionJson.getString("value");
                    if (condition.equals("eq")) {//等于
                        boolQueryBuilder.must(QueryBuilders.termQuery(field, value));
                    } else if (condition.equals("like")) {//模糊搜索
                        boolQueryBuilder.must(QueryBuilders.fuzzyQuery(field,value));
                    } else if (condition.equals("gt")) {//大于
                        boolQueryBuilder.must(QueryBuilders.rangeQuery(field).gt(value));
                    } else if (condition.equals("lt")) {//小于
                        boolQueryBuilder.must(QueryBuilders.rangeQuery(field).lt(value));
                    } else if (condition.equals("in")) {
                        String[] strings = value.split(",");
                        BoolQueryBuilder boolQueryBuilderIn = QueryBuilders.boolQuery();
                        for (String val : strings) {
                            boolQueryBuilderIn.should(QueryBuilders.termQuery(field, val));
                        }
                        boolQueryBuilder.must(boolQueryBuilderIn);
                    } else if (condition.equals("notIn")) {
                        String[] strings = value.split(",");
                        BoolQueryBuilder boolQueryBuilderIn = QueryBuilders.boolQuery();
                        for (String val : strings) {
                            boolQueryBuilderIn.should(QueryBuilders.termQuery(field, val));
                        }
                        boolQueryBuilder.mustNot(boolQueryBuilderIn);
                    }
                }
                builder.query(boolQueryBuilder);
            }

            //排序
            if (jsonObject.containsKey("sortOrder") && StrUtil.isNotEmpty(jsonObject.getString("sortOrder"))) {
                List<JSONObject> sortJsonList = JSONObject.parseArray(jsonObject.getString("sortOrder"), JSONObject.class);
                for (JSONObject sortJson : sortJsonList) {
                    SortOrder sortOrder = SortOrder.DESC;
                    if (sortJson.getString("sort").equals("asc")) {
                        sortOrder = SortOrder.ASC;
                    }
                    builder.sort(sortJson.getString("filed"), sortOrder);
                }
            }
        }
        System.out.println("builder:" + builder);
        //页码
        builder.from(page);

        //条数
        builder.size(pageSize);

        searchRequest.source(builder);

        //查询主体
        SearchResponse response = restHighLevelClient.search(searchRequest, RequestOptions.DEFAULT);
        SearchHits hits = response.getHits();

        //返回结果
        JSONObject responseJson = new JSONObject();
        responseJson.put("total", hits.getTotalHits().value);
        responseJson.put("took", response.getTook().getStringRep());
        responseJson.put("currentPage", page);
        boolean isMore = false;
        if (hits.getTotalHits().value > page * pageSize) {
            isMore = true;
        }
        responseJson.put("isMore", isMore);
        JSONArray dataList = new JSONArray();
        for (SearchHit hit : hits) {
            dataList.add(JSONObject.parseObject(hit.getSourceAsString()));
        }
        responseJson.put("currentTotal", dataList.size());
        responseJson.put("list", dataList);
        return responseJson;
    }

2.2 php curl请求

(备注：可以使用compose安装)
以下采用curl http请求
注意，因为开启了证书，请求Url格式为：http://elastic账号:elastic密码@elastic请求路径
例如：http://elastic:ZJDa3VAtxDNZrXuEBYTS@192.168.0.185:9201

以下案例直接用kibana console做演示

• 新建索引(put)
  新建一个product索引
  请求url：http://elastic:ZJDa3VAtxDNZrXuEBYTS@192.168.0.185:9201/product
  json参数如下

{
  "mappings": {
    "properties": {
      "ID": {
        "type": "keyword",
        "index": true
      },
      "sName": {
        "type": "text",
        "index": true
      },
      "bActive": {
        "type": "integer",
        "index": true,
        "null_value": 0
      }
    }
  }
}

• 删除索引(delete)
  请求url：http://elastic:ZJDa3VAtxDNZrXuEBYTS@192.168.0.185:9201/product
  请求参数：

Array
(
    [lID] => 55
    [sName] => 你好怀念のXO酱罐装 台湾经典素酱 家喻户晓
    [fPrice] => 38.00
    [ProductCatID] => 74
)

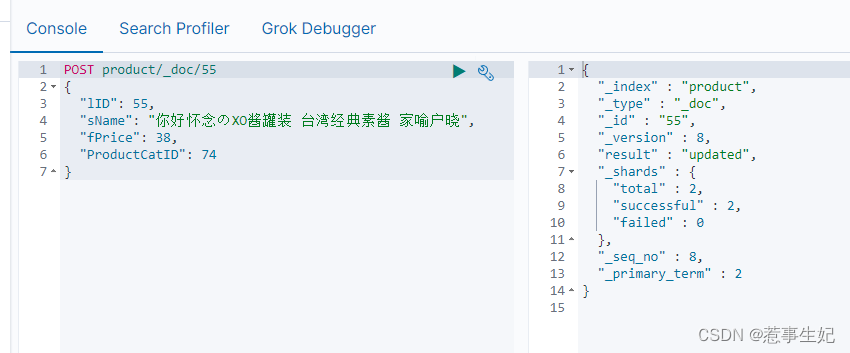

• 新建文档(post)
  指定ID：/product/_doc/55

  自动生成ID请求url：/product/_doc?pretty

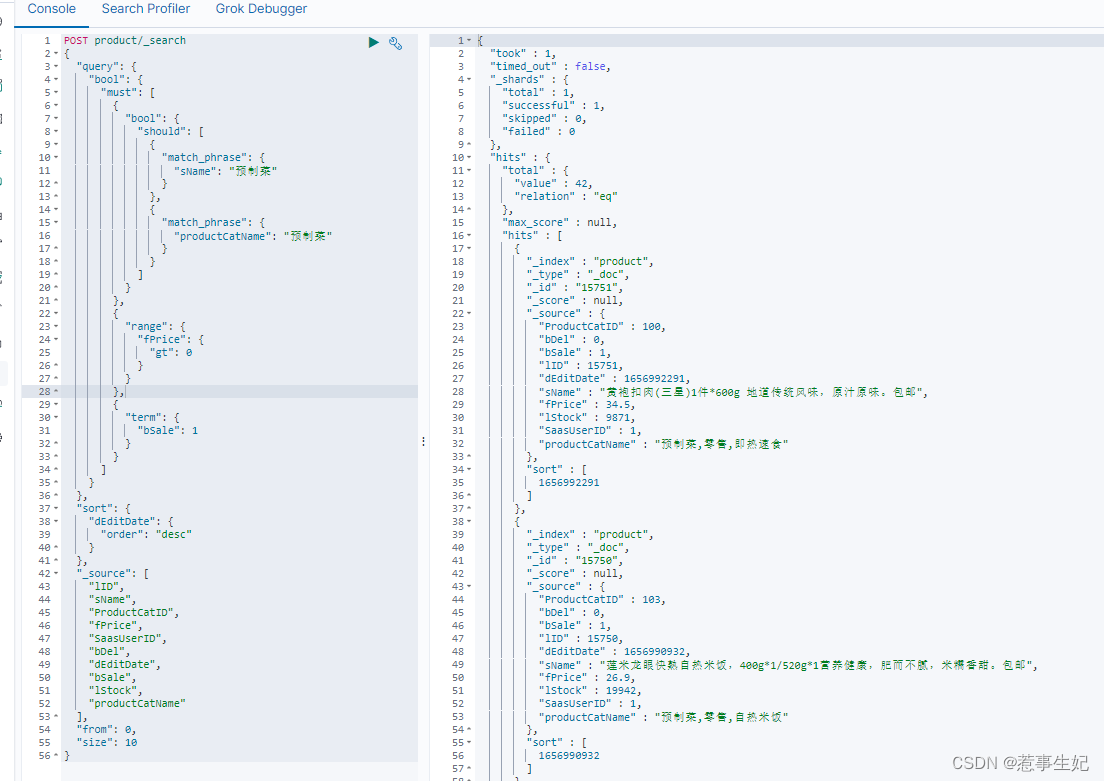

• 文档搜索(post)
  请求url：/product/_search
  参数：

{
  "query": {
    "bool": {
      "must": [
        {
          "bool": {
            "should": [
              {
                "match_phrase": {
                  "sName": "预制菜"
                }
              },
              {
                "match_phrase": {
                  "productCatName": "预制菜"
                }
              }
            ]
          }
        },
        {
          "range": {
            "fPrice": {
              "gt": 0
            }
          }
        },
        {
          "term": {
            "bSale": 1
          }
        }
      ]
    }
  },
  "sort": {
    "dEditDate": {
      "order": "desc"
    }
  },
  "_source": [
    "lID",
    "sName",
    "ProductCatID",
    "fPrice",
    "SaasUserID",
    "bDel",
    "dEditDate",
    "bSale",
    "lStock",
    "productCatName"
  ],
  "from": 0,
  "size": 10
}

参数说明

     * elasticsearch与mysql做比较
     * _source=需要搜索的字段
     *
     * must=and
     * mysql eq:(bSale=1 and bDel=0)
     *
     * should=or
     * mysql eq:(bSale=1 or bDel=0)
     *
     * match=like，match=分词模糊搜索 match_phrase=不分词模糊搜索
     * mysql eq:(sName like "%水果%")
     *
     * term=精确搜索
     * mysql eq:(SaasUserID=1)
     *
     * range=范围搜索
     * mysql eq:(fPrice>0)
     *
     * sort = 排序
     * mysql eq:(order by fPrice desc)
     *
     * from=页码 elastic默认是0开始
     * size=条数 elastic默认是10

    public static function sendPost($url, $post)
    {
        $ch = curl_init($url);
        curl_setopt($ch, CURLOPT_URL, $url);
        curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
        curl_setopt($ch, CURLOPT_POST, 1);
        curl_setopt($ch, CURLOPT_POSTFIELDS, $post);
        curl_setopt($ch, CONNECTION_TIMEOUT, 60);
        $data = curl_exec($ch);
        curl_close($ch);
        return $data;
    }

    public static function sendPut(string $url, $params = [], $headers = [])
    {
        $timeout = 5;
        $headers = $headers ?: array('Content-type: application/json');
        $ch = curl_init();
        curl_setopt($ch, CURLOPT_URL, $url); //发贴地址
        curl_setopt($ch, CURLOPT_HTTPHEADER, $headers);
        curl_setopt($ch, CURLOPT_RETURNTRANSFER, 1);
        curl_setopt($ch, CURLOPT_CONNECTTIMEOUT, $timeout);
        curl_setopt($ch, CURLOPT_CUSTOMREQUEST, "PUT");
        curl_setopt($ch, CURLOPT_POSTFIELDS, $params);
        $response = curl_exec($ch);//获得返回值
        curl_close($ch);// 关闭 cURL 释放资源
        if ($error = curl_error($ch)) {
            $result = array(
                'status' => false,
                'message' => $error,
            );
        } else {
            $result = array(
                'status' => true,
                'message' => 'ok',
                'resp' => json_decode($response, true),
            );
        }
        return $result;
    }

    public static function sendDelete(string $url, $params = [], $headers = [])
    {
        $timeout = 5;
        $headers = $headers ?: array('Content-type: text/json');
        $ch = curl_init();
        curl_setopt($ch, CURLOPT_URL, $url); //发贴地址
        curl_setopt($ch, CURLOPT_HTTPHEADER, $headers);
        curl_setopt($ch, CURLOPT_RETURNTRANSFER, 1);
        curl_setopt($ch, CURLOPT_CONNECTTIMEOUT, $timeout);
        curl_setopt($ch, CURLOPT_CUSTOMREQUEST, "DELETE");
        curl_setopt($ch, CURLOPT_POSTFIELDS, $params);
        $response = curl_exec($ch);//获得返回值
        curl_close($ch);// 关闭 cURL 释放资源
        if ($error = curl_error($ch)) {
            $result = array(
                'status' => false,
                'message' => $error,
            );
        } else {
            $result = array(
                'status' => true,
                'message' => 'ok',
                'resp' => json_decode($response, true),
            );
        }
        return $result;
    }

三、配置文件

docker-compose.yml配置

version: '2.2'
services:
  elastic01:
    image: elasticsearch:7.4.0
    container_name: elastic01
    environment:
      - node.name=elastic01
      - cluster.name=es-docker-cluster
      - discovery.seed_hosts=elastic02,elastic03
      - cluster.initial_master_nodes=elastic01,elastic02,elastic03
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - ./elastic01/data:/usr/share/elasticsearch/data
      - ./elastic01/logs:/usr/share/elasticsearch/logs
      - ./elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
      - ./cert/elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12
    ports:
      - 9201:9200
    networks:
      - elastic
  elastic02:
    image: elasticsearch:7.4.0
    container_name: elastic02
    environment:
      - node.name=elastic02
      - cluster.name=es-docker-cluster
      - discovery.seed_hosts=elastic01,elastic03
      - cluster.initial_master_nodes=elastic01,elastic02,elastic03
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - ./elastic02/data:/usr/share/elasticsearch/data
      - ./elastic02/logs:/usr/share/elasticsearch/logs
      - ./elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
      - ./cert/elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12
    ports:
      - 9202:9200
    networks:
      - elastic
  elastic03:
    image: elasticsearch:7.4.0
    container_name: elastic03
    environment:
      - node.name=elastic03
      - cluster.name=es-docker-cluster
      - discovery.seed_hosts=elastic01,elastic02
      - cluster.initial_master_nodes=elastic01,elastic02,elastic03
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - ./elastic03/data:/usr/share/elasticsearch/data
      - ./elastic03/logs:/usr/share/elasticsearch/logs
      - ./elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
      - ./cert/elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12
    ports:
      - 9203:9200
    networks:
      - elastic
  kib01:
    depends_on:
      - elastic01
    image: kibana:7.4.0
    container_name: kib01
    ports:
      - 5601:5601
    environment:
      ELASTICSEARCH_URL: http://elastic01:9200
      ELASTICSEARCH_HOSTS: http://elastic01:9200
      I18N_LOCALE: zh-CN
    volumes:
      - ./kibana.yml:/usr/share/kibana/config/kibana.yml
    networks:
      - elastic
networks:
  elastic:
    driver: bridge

kibana.yml配置文件

server.host: "0.0.0.0"
elasticsearch.username: "kibana"
elasticsearch.password: "8cidPDyFc1K6kHyRyFMq"

elasticsearch.yml 配置文件

network.host: 0.0.0.0
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
