1. timekeeping
timekeeping是时间子系统用于从clocksource获取时间,维护墙上时间、单调递增时间、启动时间的模块,timekeeping提供了各种时间的获取接口。其核心数据为tk_core,实现了对timekeeper的加锁访问。
/*
* The most important data for readout fits into a single 64 byte
* cache line.
*/
static struct {
seqcount_raw_spinlock_t seq;
struct timekeeper timekeeper;
} tk_core ____cacheline_aligned = {
.seq = SEQCNT_RAW_SPINLOCK_ZERO(tk_core.seq, &timekeeper_lock),
};
static struct timekeeper shadow_timekeeper;
timekeeping_init主要就是在对tk_core.timekeeper进行初始化。下面是timekeeping_init函数总体流程
- read_persistent_wall_and_boot_offset读取wall_time和boot_offest。默认为0。1
- 验证wall_time和boot_offset是否正确,不正确则设置为0
- 计算wall_to_mono
- 获取锁,开始修改tk
- ntp_init(Network Time Protocol)
- clocksource_default_clock获取默认clock并enable,clocksource默认为clocksource_jiffies,在probe timer后会切换clocksource
- tk_setup_internals、tk_set_xtime、tk_set_wall_to_mono和timekeeping_update设置tk
- 释放锁
2. 计算墙上时间、启动时间差值
wall_time墙上时间:自然时间,也就是真实世界的时间。timekeeper里用xtime表示。
boot_time:系统启动的时间
boot_offset = wall_time - boot_time
wall_time + wall_to_mono = boot_time
read_persistent_wall_and_boot_offset读取时钟,这个函数是一个 __weak
的函数,默认设置wall_time和boot_offset为0,如果支持rtc时钟,可以读取rtc时钟里的值。
校验wall_time的正确性,如果时间格式正确,而且不为0,则表示有断电不失效的时钟,则设置persistent_clock_exists为true,否则,wall_time必须为0。
校验完wall_time后,再检查boot_offset是否正确,boot_offset不能比wall_time还要晚。
wall_to_mono,将墙上时间转为单调递增时间。单调递增时间是即从某个时间点开始到现在过去的时间。用户不能修改这个时间,但是当系统进入休眠(suspend)时,时间也不会增加的。更改系统时间也不会对mono时间产生影响。
接下来就是比较重要的初始化timekeeper的部分了。
3. timekeeper初始化
tk_core.timekeeper受自旋锁timekeeper_lock和读写顺序锁tk_core.seq保护。
首先需要获取锁。
ntp_init,ntp(Network Time Protocol,网络时间协议)相关初始化,暂不分析。
3.1. 默认时钟源
clocksource_default_clock用于获取默认时钟源,这是一个 __weak
函数,默认使用clocksource_jiffies作为时钟源,精度很低,如果有更精确的时钟源,可以重新实现此函数。这里设置一个时钟源,是为了防止调用获取时间的接口时出现问题。后续有新的时钟源注册时,会替换掉低精度的时钟源。
/*
* The Jiffies based clocksource is the lowest common
* denominator clock source which should function on
* all systems. It has the same coarse resolution as
* the timer interrupt frequency HZ and it suffers
* inaccuracies caused by missed or lost timer
* interrupts and the inability for the timer
* interrupt hardware to accurately tick at the
* requested HZ value. It is also not recommended
* for "tick-less" systems.
*/
static struct clocksource clocksource_jiffies = {
.name = "jiffies",
.rating = 1, /* lowest valid rating*/
.uncertainty_margin = 32 * NSEC_PER_MSEC,
.read = jiffies_read,
.mask = CLOCKSOURCE_MASK(32),
.mult = TICK_NSEC << JIFFIES_SHIFT, /* details above */
.shift = JIFFIES_SHIFT,
.max_cycles = 10,
};
获取时钟源后,如果该时钟源有enable回调,则需要调用该函数来使能。
3.2. tk_setup_internals
tk_setup_internals来初始化tk_core.timekeeper的一些内部成员。
其中比较中要的是tkr_mono和tkr_raw,使用默认时钟对这两个成员初始化,用于给获取时间的接口提供时钟源,比如ktime_get接口。在后续有更高精度的时钟之后,会进行更新。
3.3. 设置时间
tk_set_xtime墙上时间
根据之前计算出的wall_time设置tk_core.timekeeper的xtime_sec和tkr_mono.xtime_nsec。
tk->raw_sec = 0,这是CLOCK_MONOTONIC_RAW
根据之前计算出的wall_to_mono,调用tk_set_wall_to_mono设置一些offs_real和offs_tai,这些offset在调用时间获取接口时会用到。
static void tk_set_wall_to_mono(struct timekeeper *tk, struct timespec64 wtm)
{
struct timespec64 tmp;
/*
* Verify consistency of: offset_real = -wall_to_monotonic
* before modifying anything
*/
set_normalized_timespec64(&tmp, -tk->wall_to_monotonic.tv_sec,
-tk->wall_to_monotonic.tv_nsec);
WARN_ON_ONCE(tk->offs_real != timespec64_to_ktime(tmp));
tk->wall_to_monotonic = wtm;
set_normalized_timespec64(&tmp, -wtm.tv_sec, -wtm.tv_nsec);
tk->offs_real = timespec64_to_ktime(tmp);
tk->offs_tai = ktime_add(tk->offs_real, ktime_set(tk->tai_offset, 0));
}

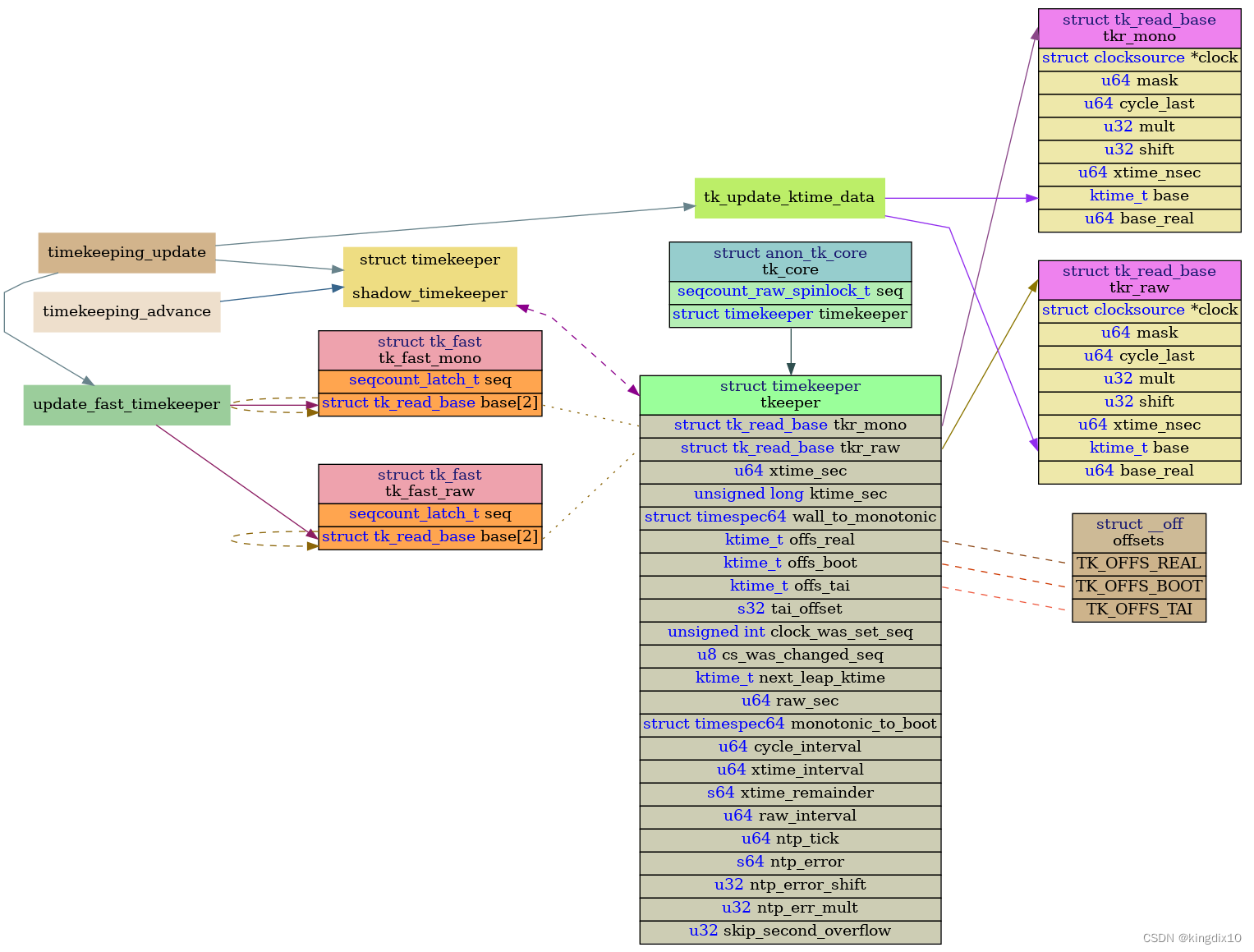

4. timekeeping_update
timekeeping_update是最终完成各种时间基准初始化的函数。
/* must hold timekeeper_lock */
static void timekeeping_update(struct timekeeper *tk, unsigned int action)
{
if (action & TK_CLEAR_NTP) {
tk->ntp_error = 0;
ntp_clear();
}
tk_update_leap_state(tk);
tk_update_ktime_data(tk);
update_vsyscall(tk);
update_pvclock_gtod(tk, action & TK_CLOCK_WAS_SET);
tk->tkr_mono.base_real = tk->tkr_mono.base + tk->offs_real;
update_fast_timekeeper(&tk->tkr_mono, &tk_fast_mono);
update_fast_timekeeper(&tk->tkr_raw, &tk_fast_raw);
if (action & TK_CLOCK_WAS_SET)
tk->clock_was_set_seq++;
/*
* The mirroring of the data to the shadow-timekeeper needs
* to happen last here to ensure we don't over-write the
* timekeeper structure on the next update with stale data
*/
if (action & TK_MIRROR)
memcpy(&shadow_timekeeper, &tk_core.timekeeper,
sizeof(tk_core.timekeeper));
}
tk_update_leap_state闰秒调整
4.1. tk_update_ktime_data:tkr_mono和tkr_raw设置
tk->tkr_mono.base
tk->tkr_raw.base
tk->ktime_sec
tk->tkr_mono.base_real = tk->tkr_mono.base + tk->offs_real
4.2. update_fast_timekeeper
除了tkr_mono和tkr_raw两个struct tk_read_base,linux内核还定义了两个struct tk_fast,tk_fast_mono和tk_fast_raw。这两个是用来实现NMI safe的。
/**
* struct tk_fast - NMI safe timekeeper
* @seq: Sequence counter for protecting updates. The lowest bit
* is the index for the tk_read_base array
* @base: tk_read_base array. Access is indexed by the lowest bit of
* @seq.
*
* See @update_fast_timekeeper() below.
*/
struct tk_fast {
seqcount_latch_t seq;
struct tk_read_base base[2];
};
/*
* Boot time initialization which allows local_clock() to be utilized
* during early boot when clocksources are not available. local_clock()
* returns nanoseconds already so no conversion is required, hence mult=1
* and shift=0. When the first proper clocksource is installed then
* the fast time keepers are updated with the correct values.
*/
define FAST_TK_INIT \
{ \
.clock = &dummy_clock, \
.mask = CLOCKSOURCE_MASK(64), \
.mult = 1, \
.shift = 0, \
}
static struct tk_fast tk_fast_mono ____cacheline_aligned = {
.seq = SEQCNT_LATCH_ZERO(tk_fast_mono.seq),
.base[0] = FAST_TK_INIT,
.base[1] = FAST_TK_INIT,
};
static struct tk_fast tk_fast_raw ____cacheline_aligned = {
.seq = SEQCNT_LATCH_ZERO(tk_fast_raw.seq),
.base[0] = FAST_TK_INIT,
.base[1] = FAST_TK_INIT,
};
可以对比一下,访问tkr_mono和tkr_raw时,用的是read_seqcount_begin和read_seqcount_retry,而访问tk_fast_mono和tk_fast_raw用的是raw_read_seqcount_latch和read_seqcount_latch_retry。
具体可以看内核ktime_get_mono_fast_ns和ktime_get_raw_fast_ns等函数的解释。
update_fast_timekeeper(&tk->tkr_mono, &tk_fast_mono);
update_fast_timekeeper(&tk->tkr_raw, &tk_fast_raw);
以tk_fast_mono为例,update_fast_timekeeper是把timekeeper的tkr_mono复制到
tk_fast_mono的base数组,保存两份是为了保证在修改一个时,可以用另一个来获取正确的数值。
4.3. shadow_timekeeper
如果action指定了TK_MIRROR,则将tk_core.timekeeper备份到shadow_timekeeper,shadow_timekeeper可以用于在resume后恢复timekeeper。这个动作需要在最后进行,以确保在下一次更新时不会用过时的数据重写timekeeper。
最后再释放一下锁,这样timekeeping就初始化好了。
在timer_probe时,会注册精度更高的clocksource,这样就可以获取各种时间。
