实验6
学号: 姓名: 专业:
6.1 实验目的
掌握二叉树的动态链表存储结构及表示。
掌握二叉树的三种遍历算法(递归和非递归两类)。
运用二叉树三种遍历的方法求解有关问题。
6.2 实验要求
按照C++面向对象方法编写二叉树类;二叉树的测试数据可用多种方式进行输入,如键盘输入、静态写入、文件读入等。//最难的是从文件把数据读进去!
设计二叉树的二叉链表存储结构,编写算法实现下列问题的求解。

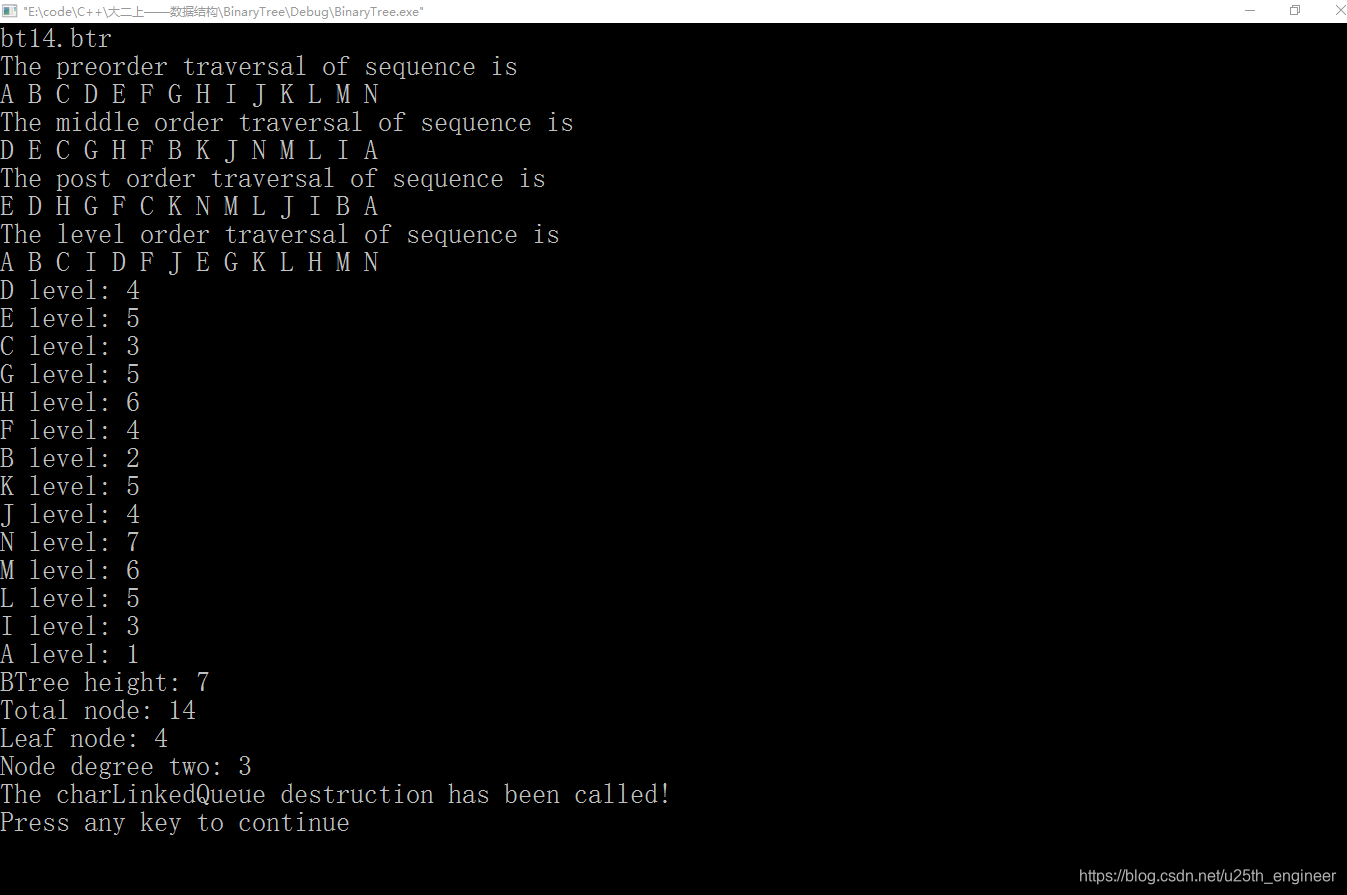

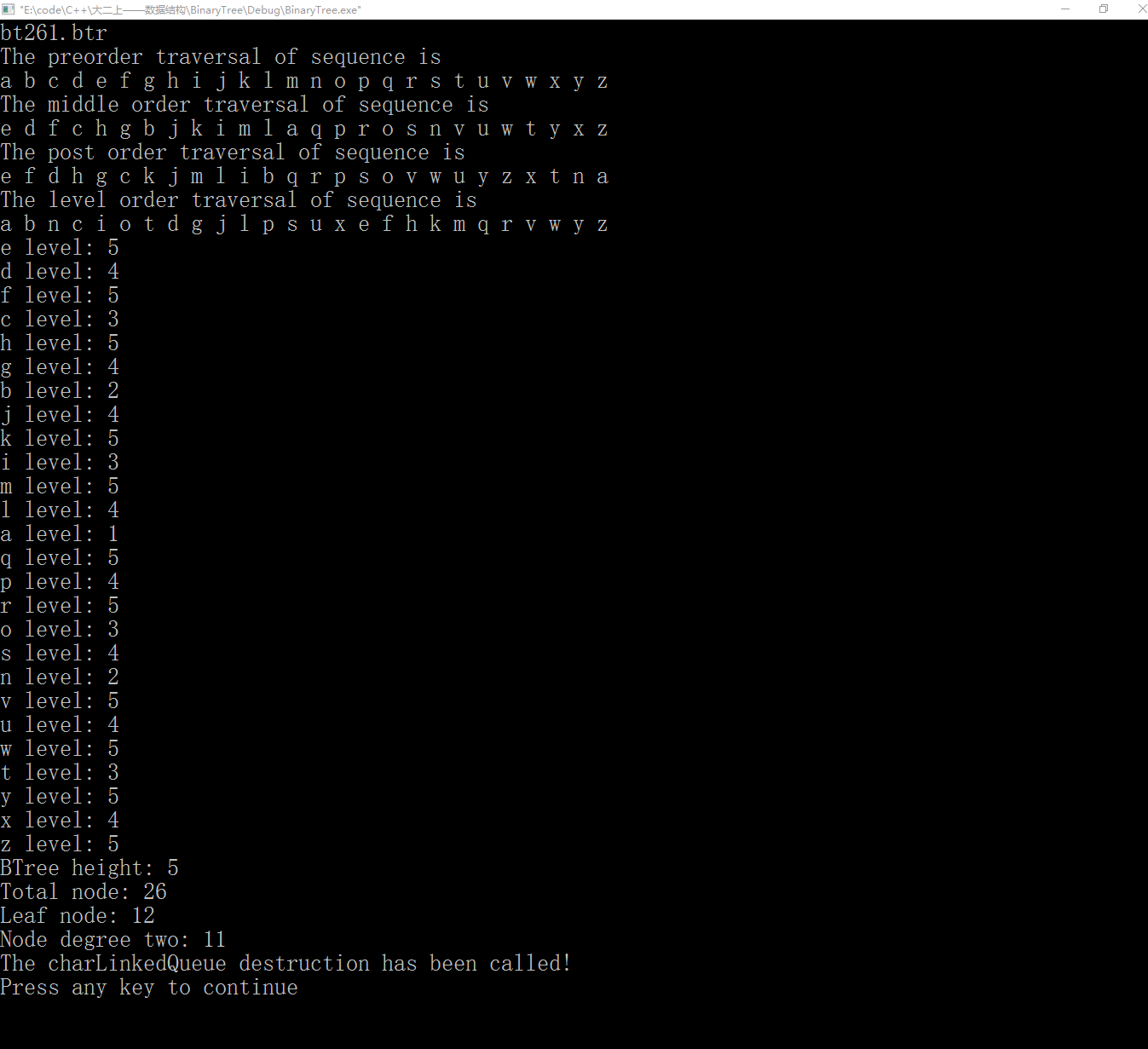

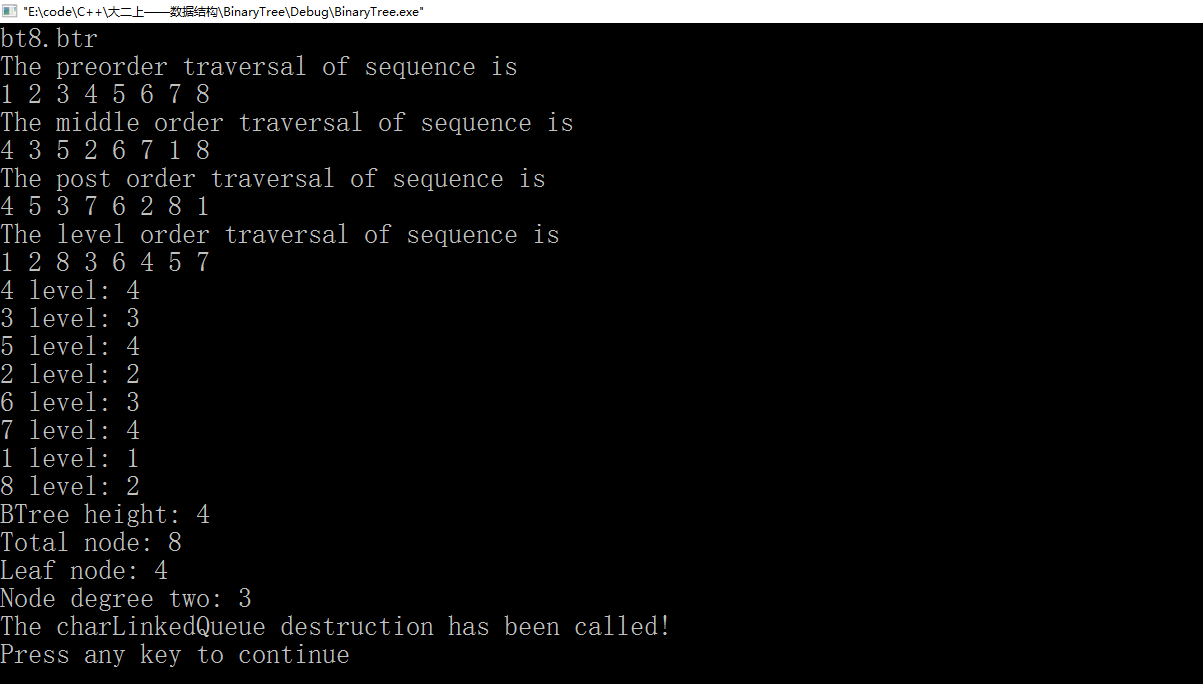

<1>打印出二叉树的三种遍历序列。
<2>设计算法按中序次序输出二叉树中各结点的值及其所对应的层次数。
<3>求二叉树的高度。
<4>求二叉树的结点数。
<5>求二叉树的叶子结点数。
<6>求二叉树的度为2的结点数。

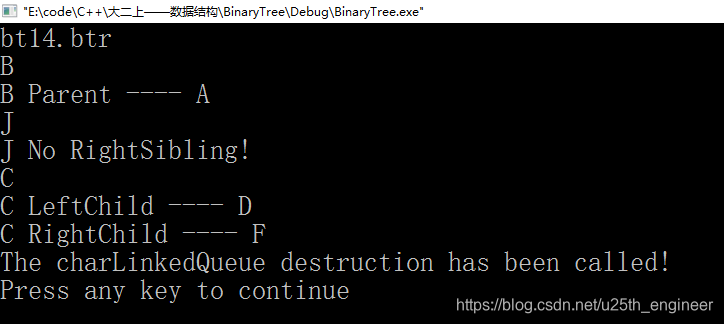

<7>键盘输入一个元素x,求其父节点、兄弟结点、子结点的值,不存在时给出相应提示信息。对兄弟结点和孩子结点,存在时要明确指出是左兄弟、左孩子、右兄弟或右孩子。

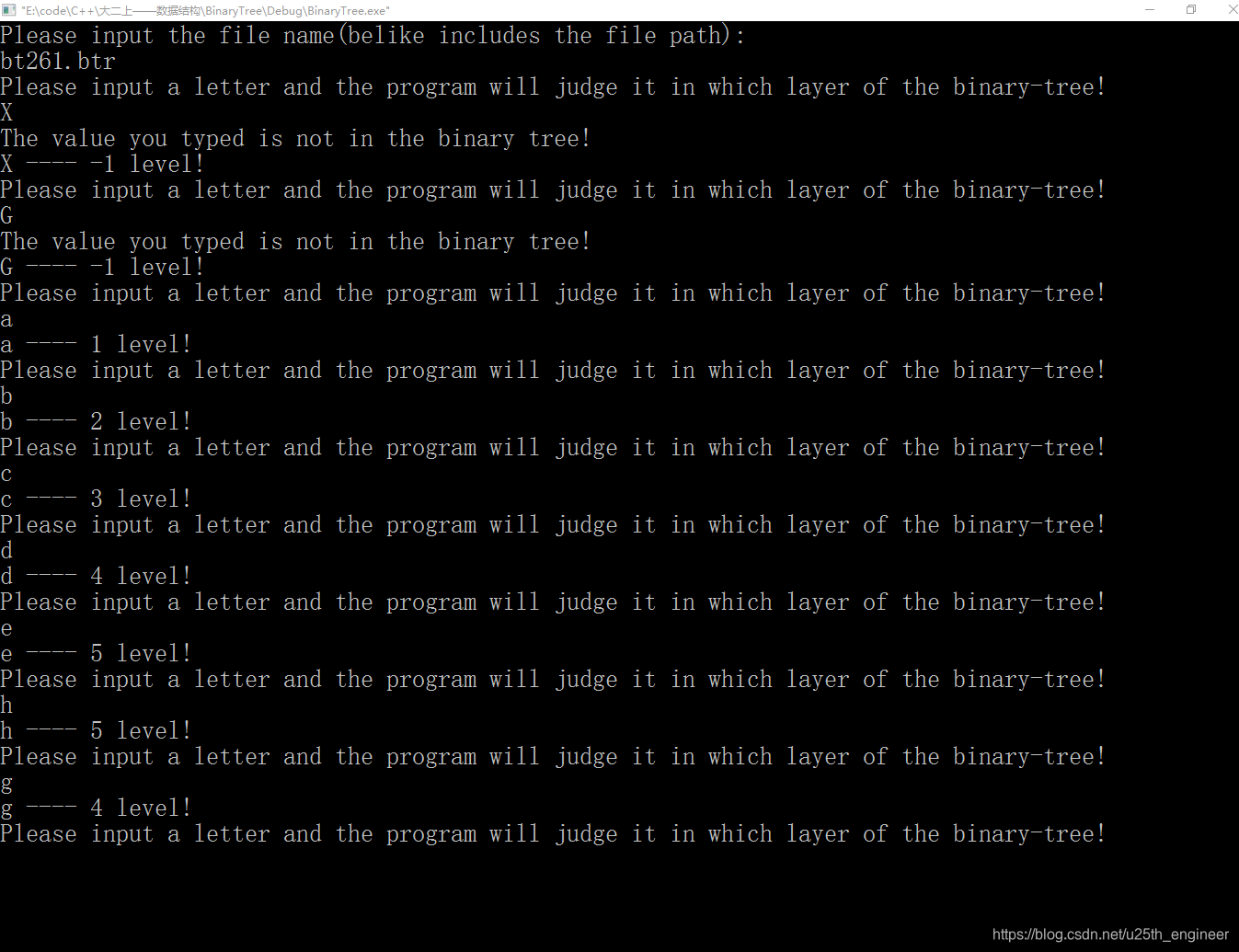

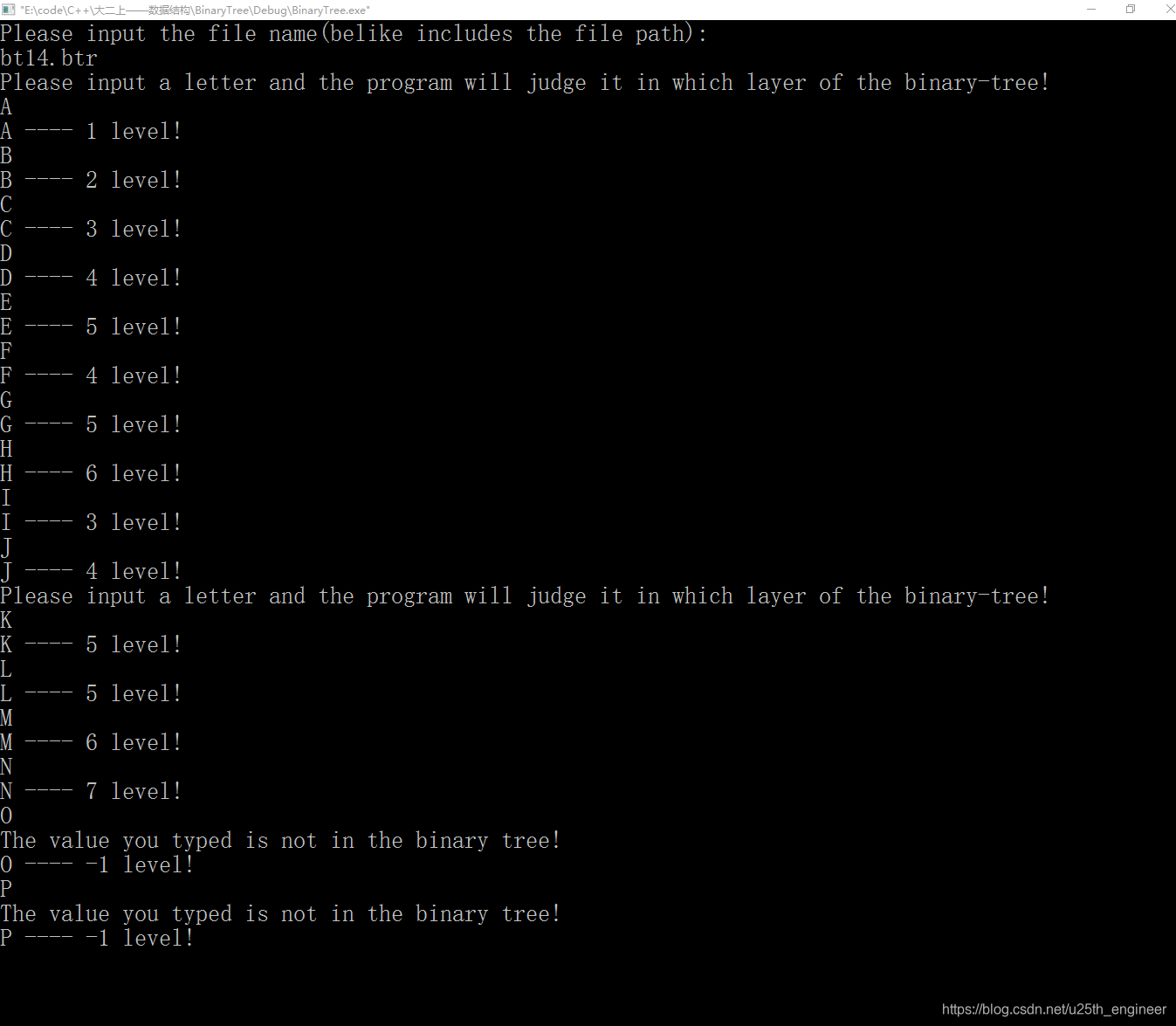

<8>键盘输入一个元素x,求其在树中的层次,不存在时给出相应提示信息。

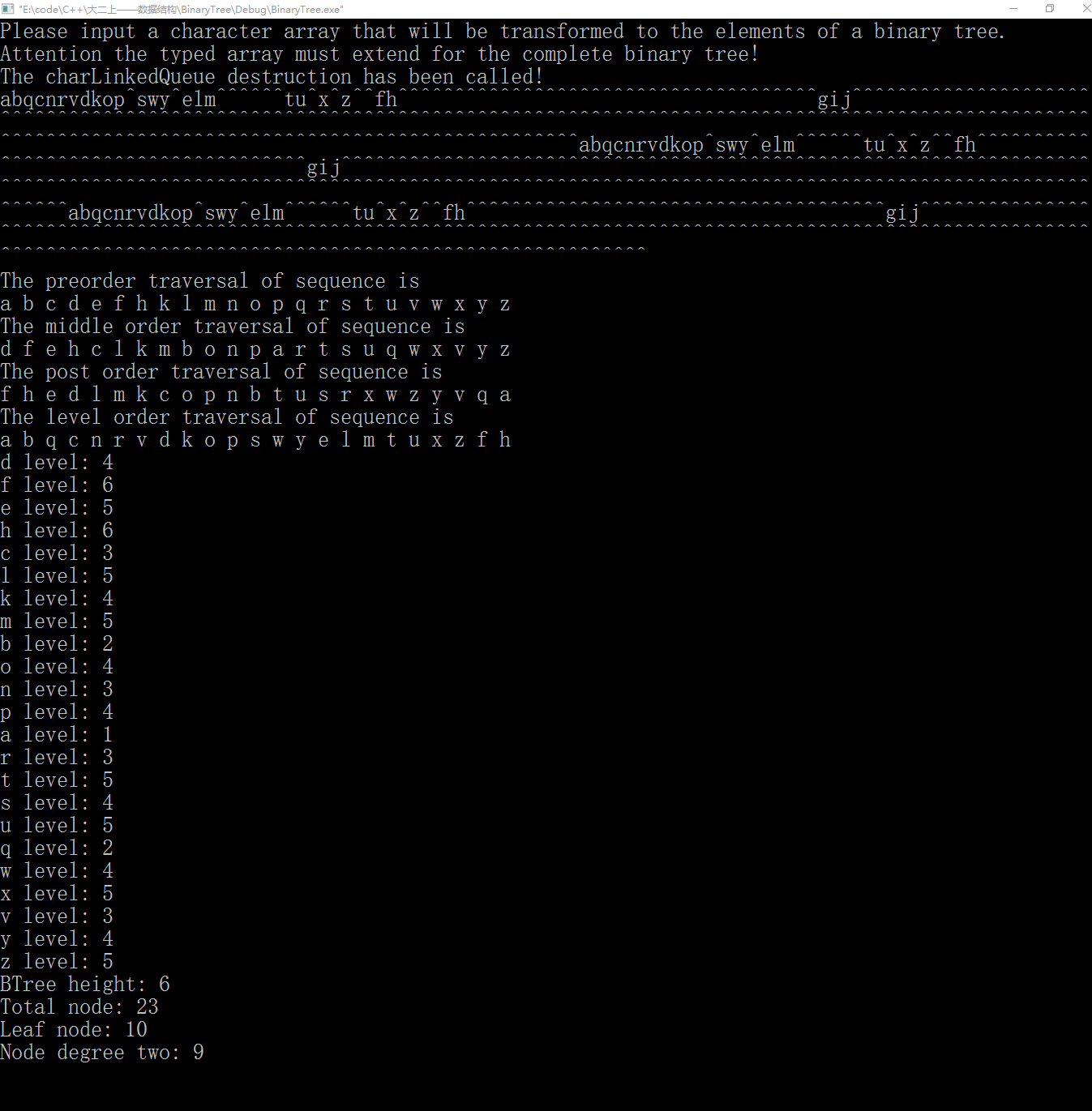

<9>将按顺序方式存储在数组中的二叉树转换为二叉链表形式。(数组中要扩展为完全二叉树)。
<10>交换二叉树中每个结点的左右孩子指针的值。(即:左子树变为右子树,右子树变为左子树)。
(下面为选做实验,有兴趣的同学完成)

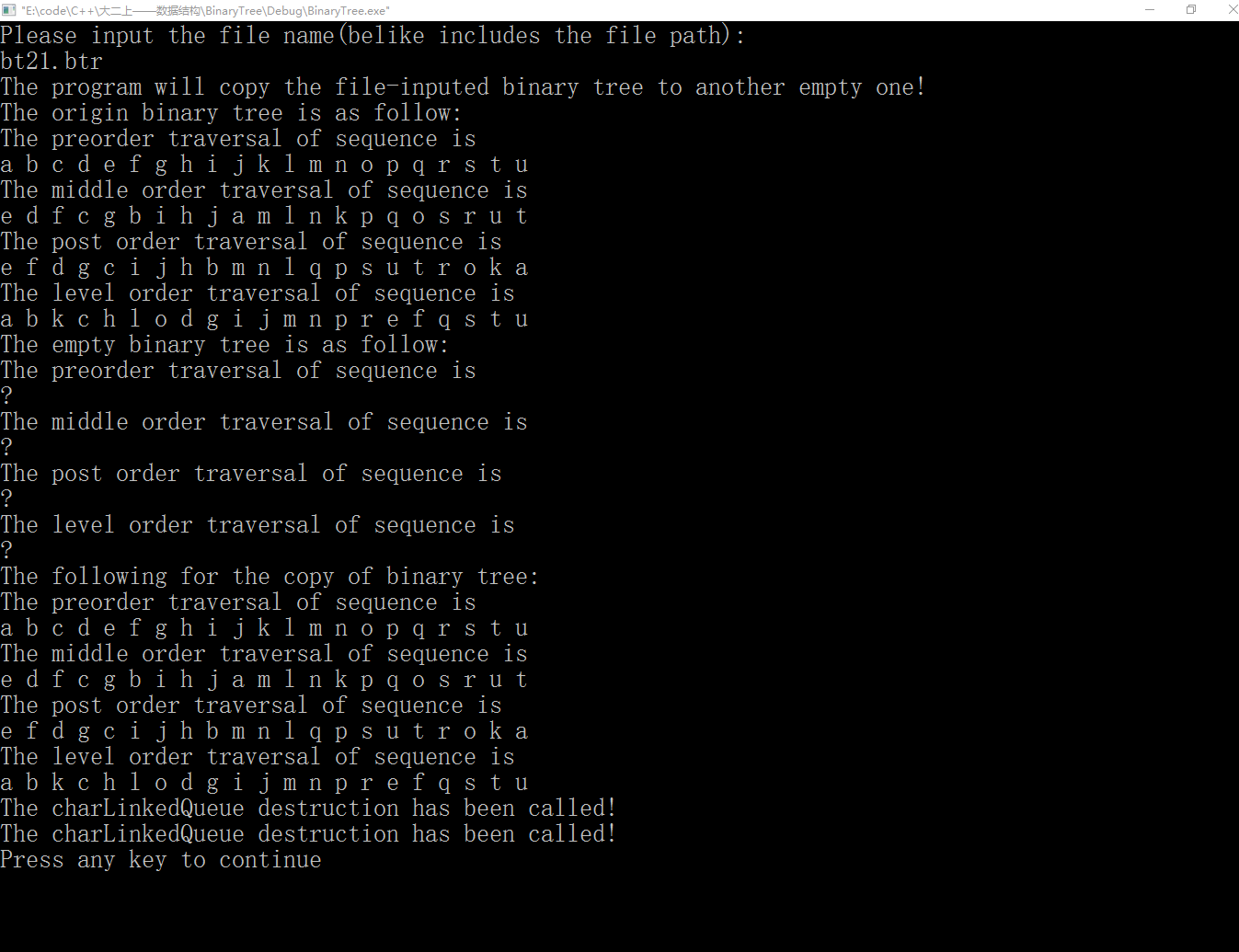

<11>复制一棵二叉树T到T1。

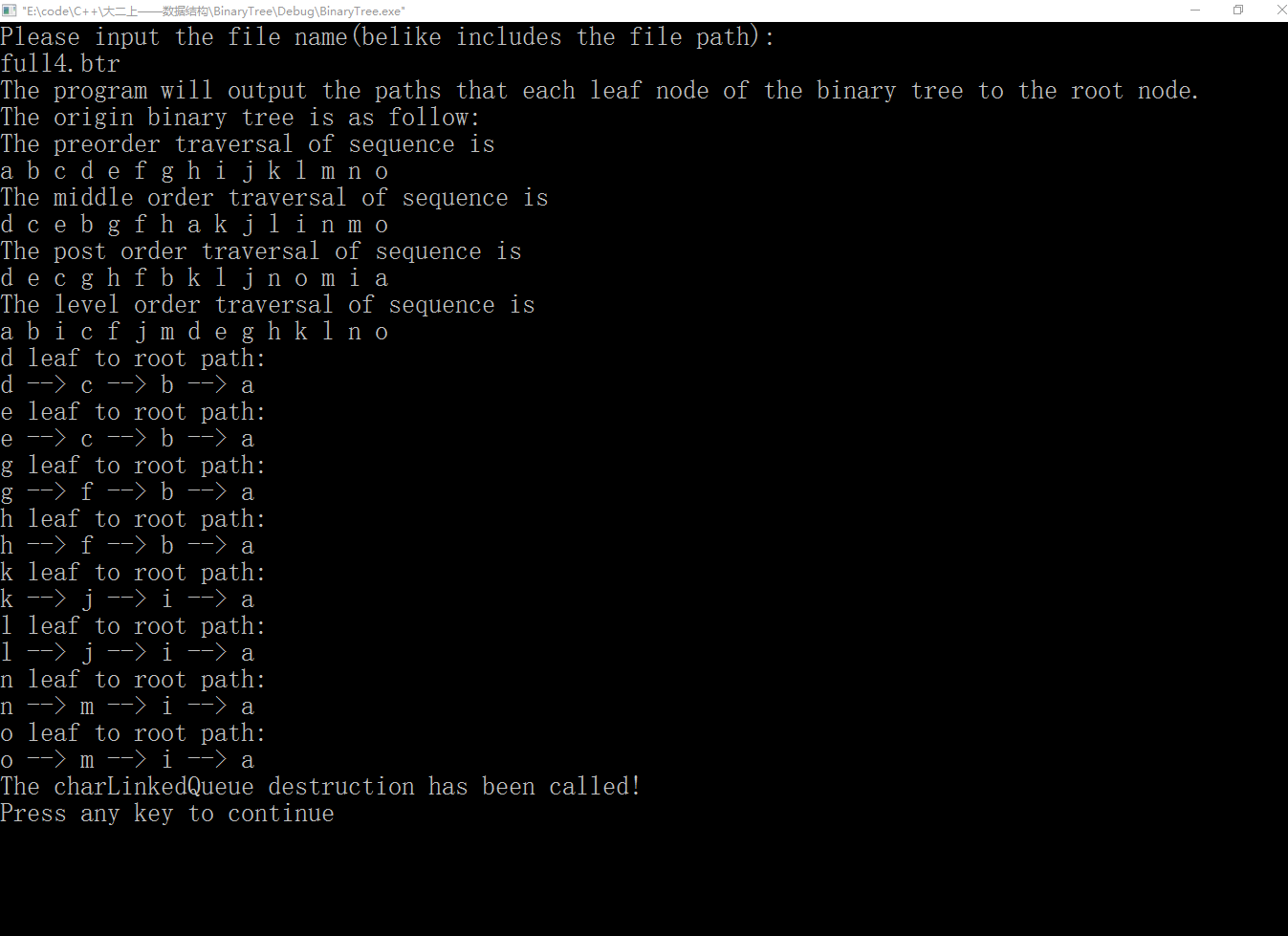

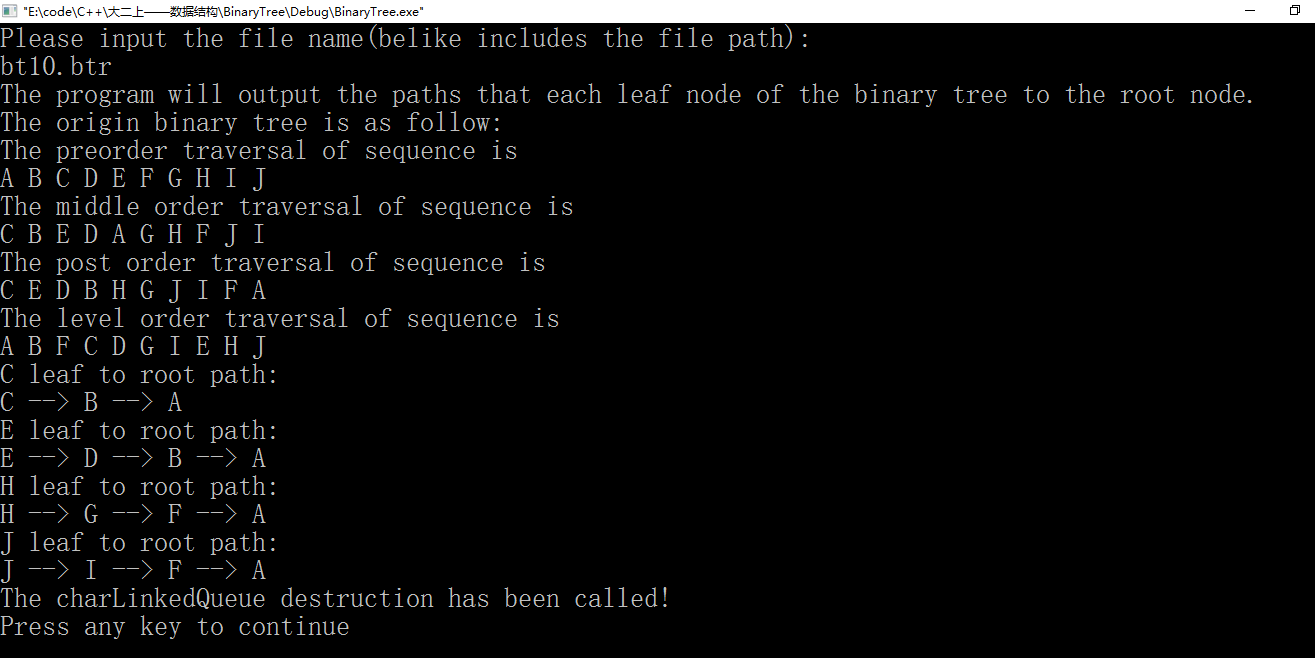

<12>输出二叉树从每个叶子结点到根结点的路径(经历的结点)。
<13>对二叉链表表示的二叉树,按从上到下,从左到右打印结点值,即按层次打印。(提示:需要使用队列)

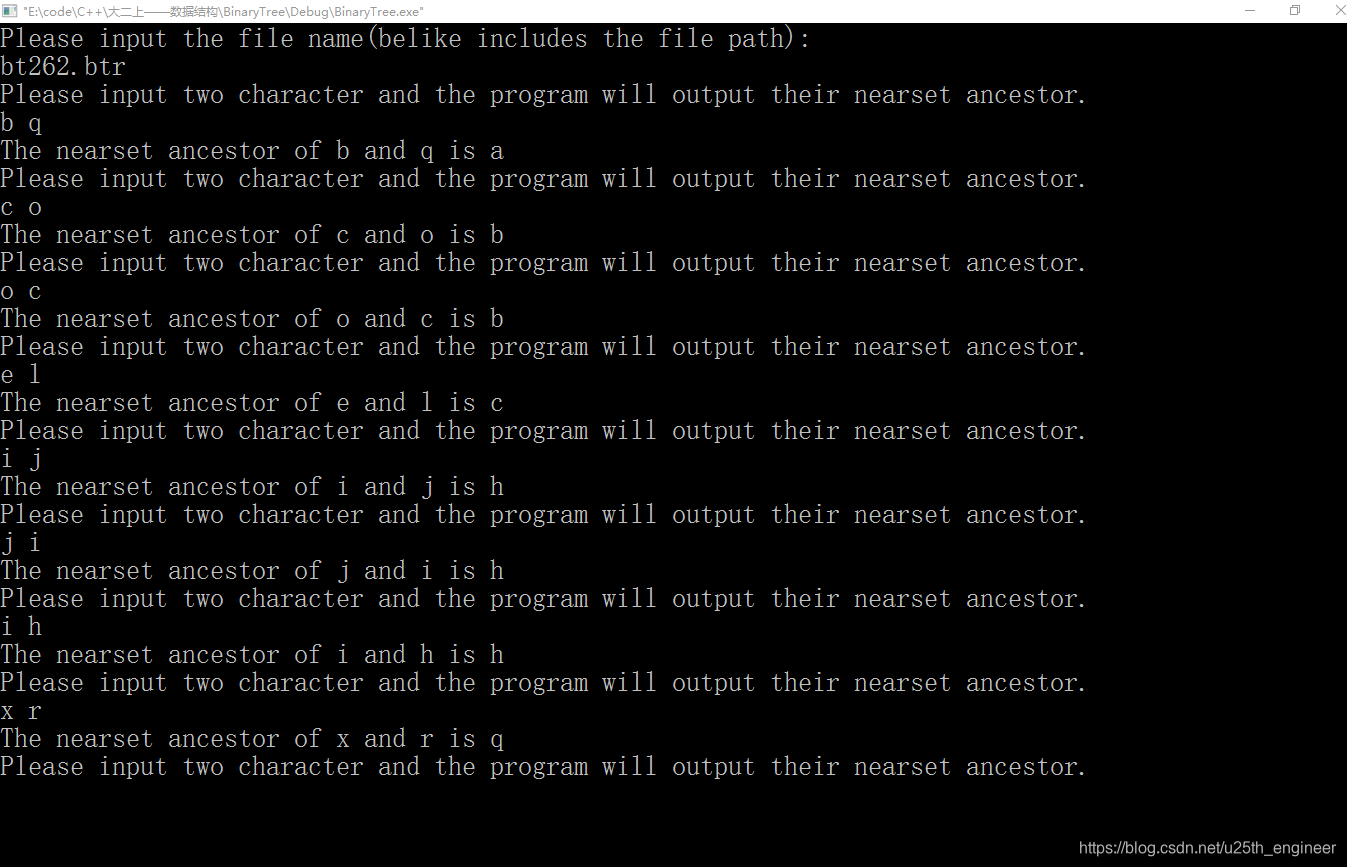

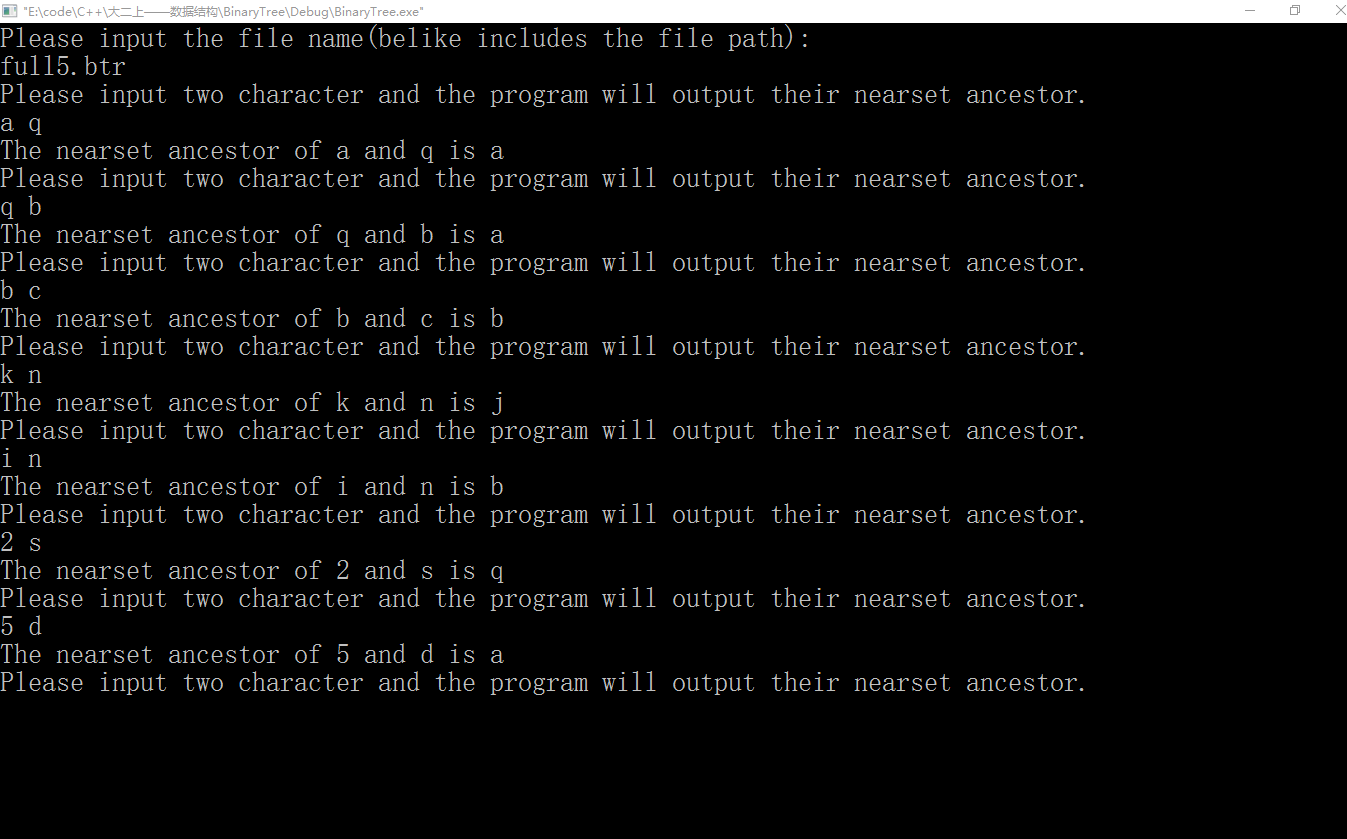

<14>对二叉链表表示的二叉树,求2个结点最近的共同祖先。
实验测试数据基本要求:

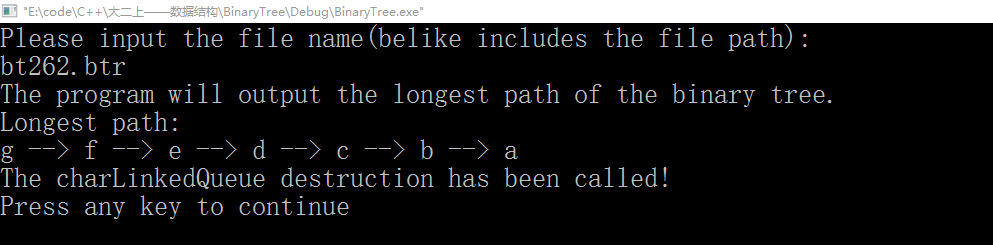

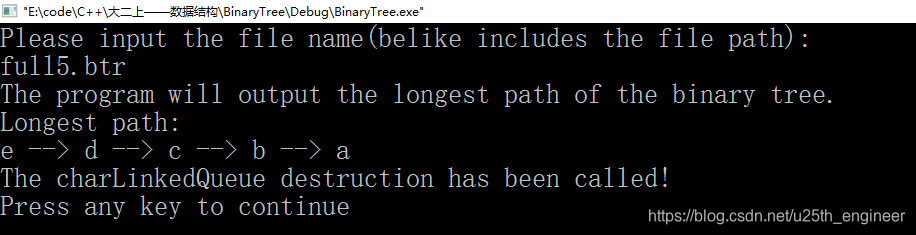

<15>求二叉树中一条最长的路径长度(边数),并输出路径上的个结点值。
实验测试数据基本要求:
6.3 实验数据要求

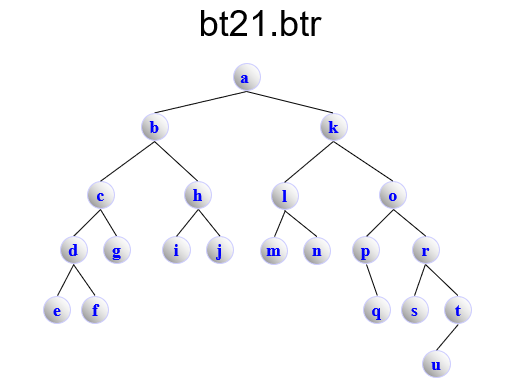

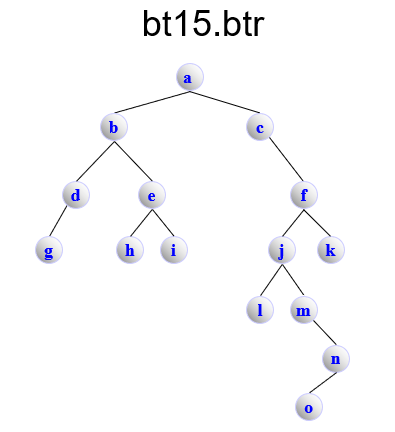

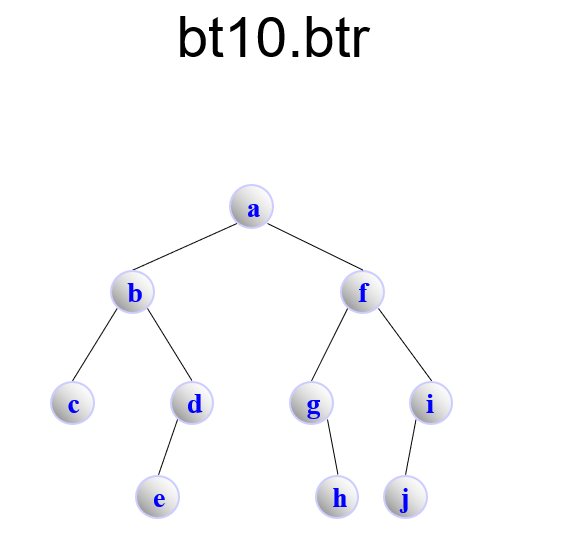

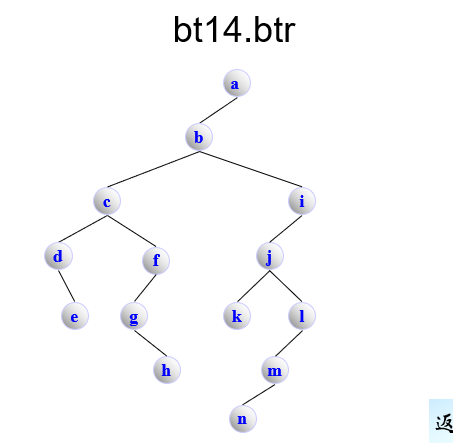

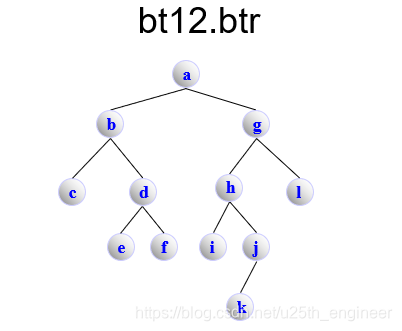

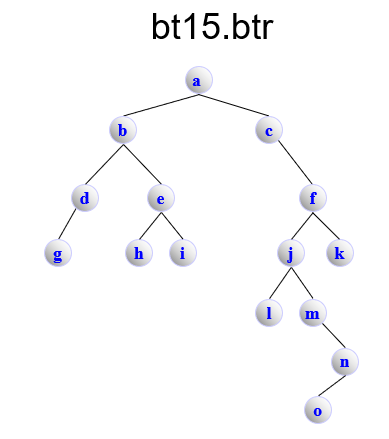

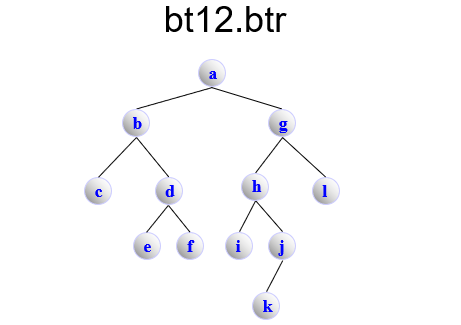

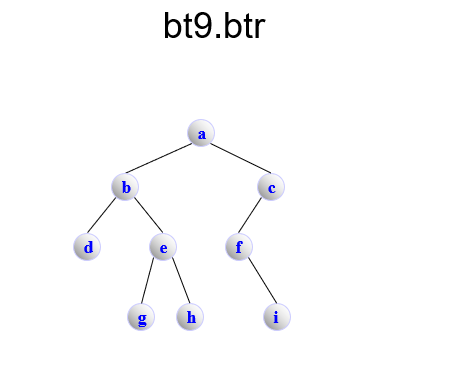

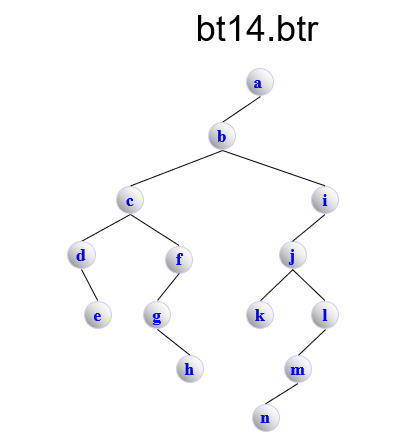

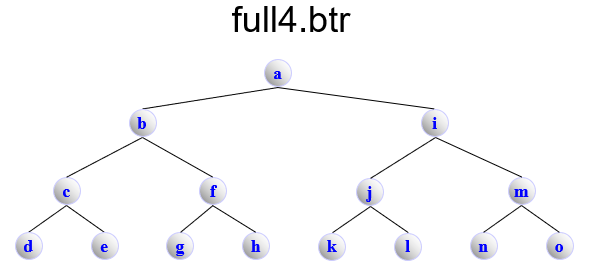

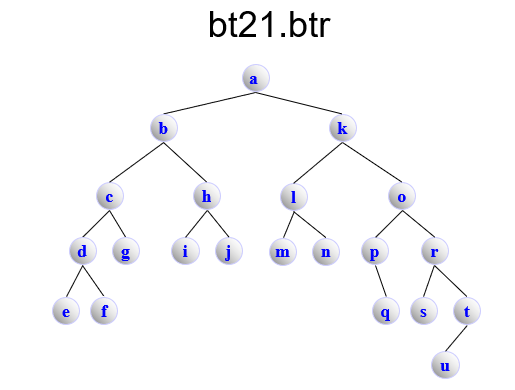

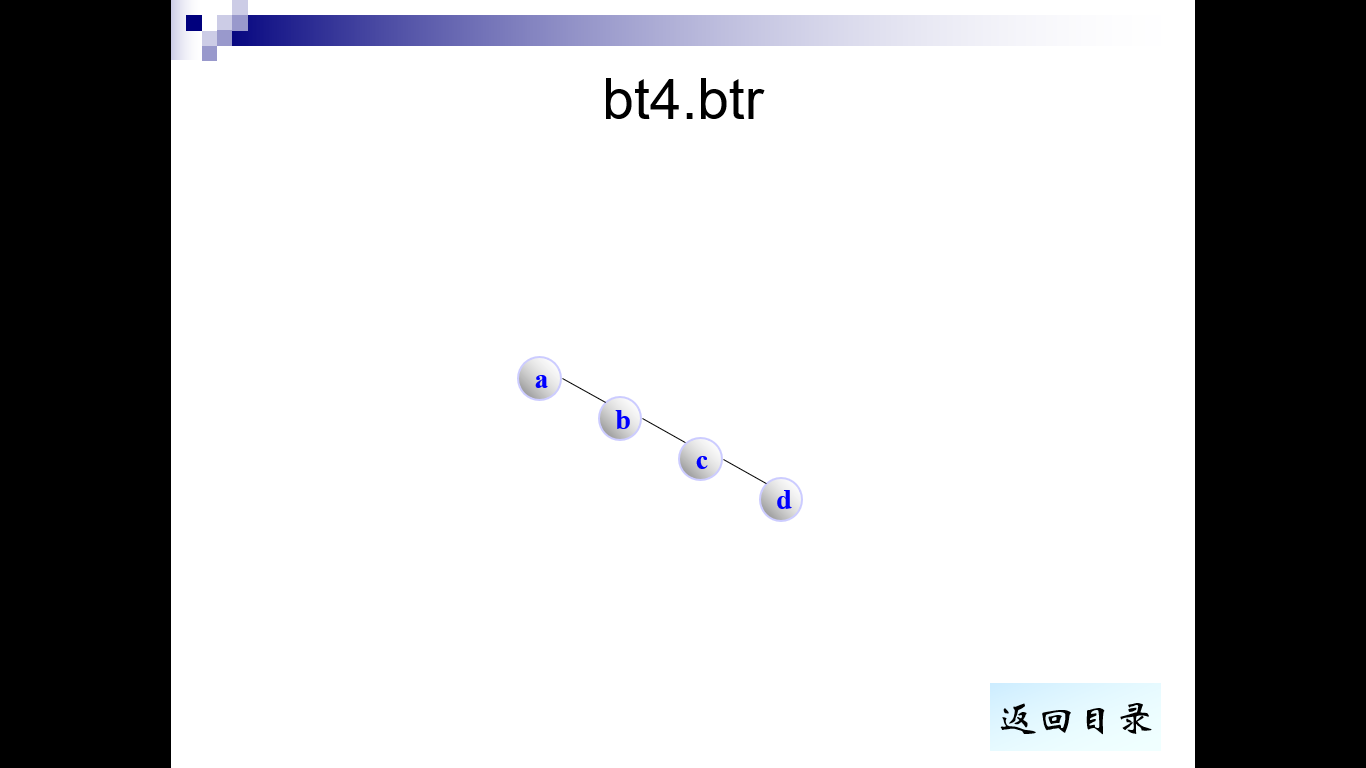

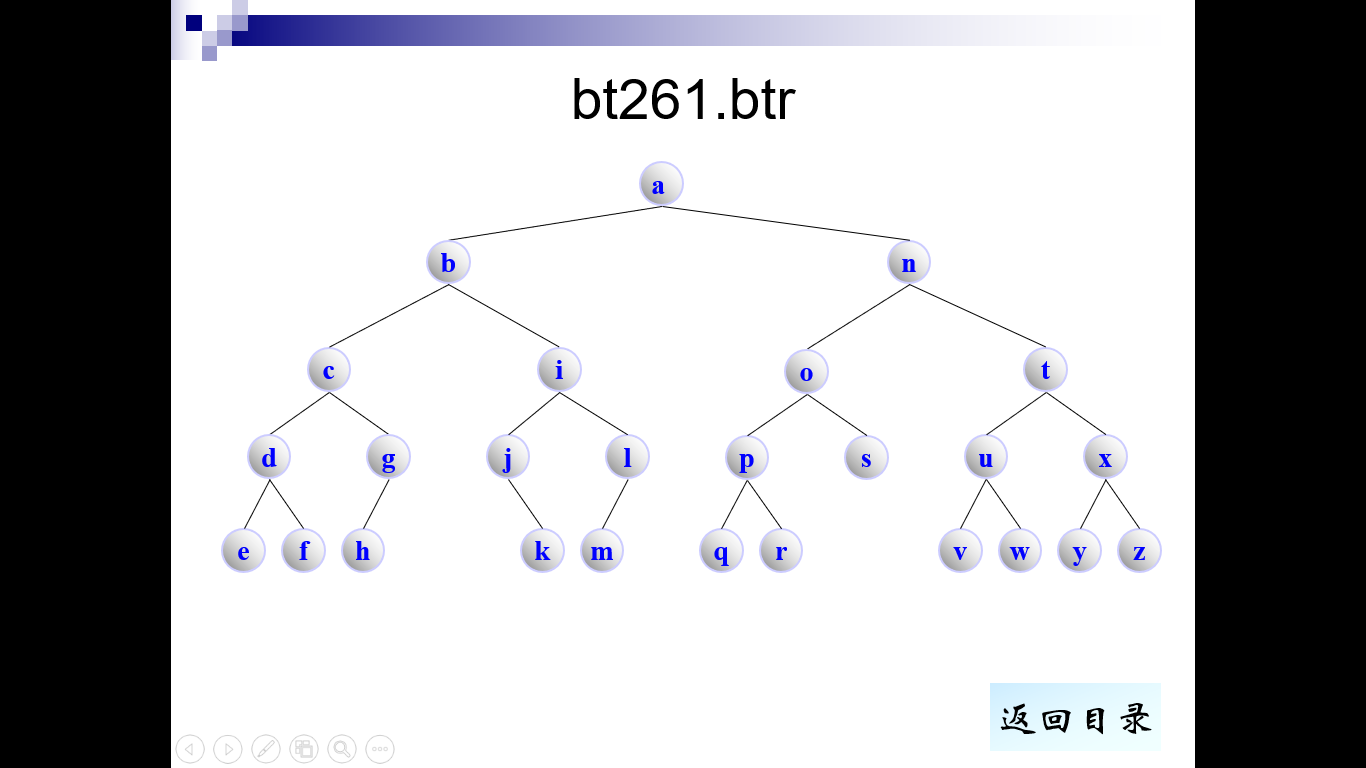

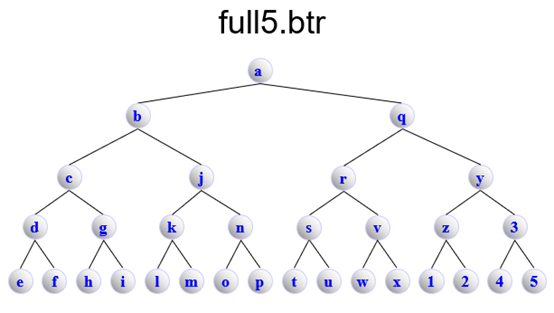

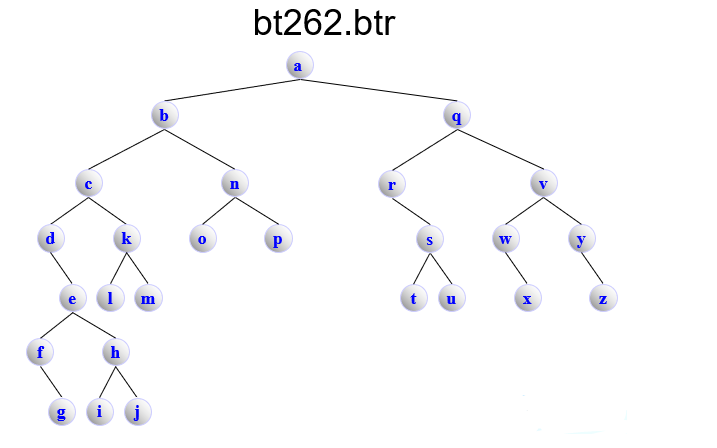

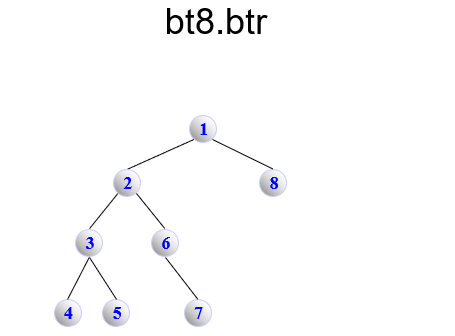

自我编写测试样例,要求每个功能函数的测试样例不少于两组

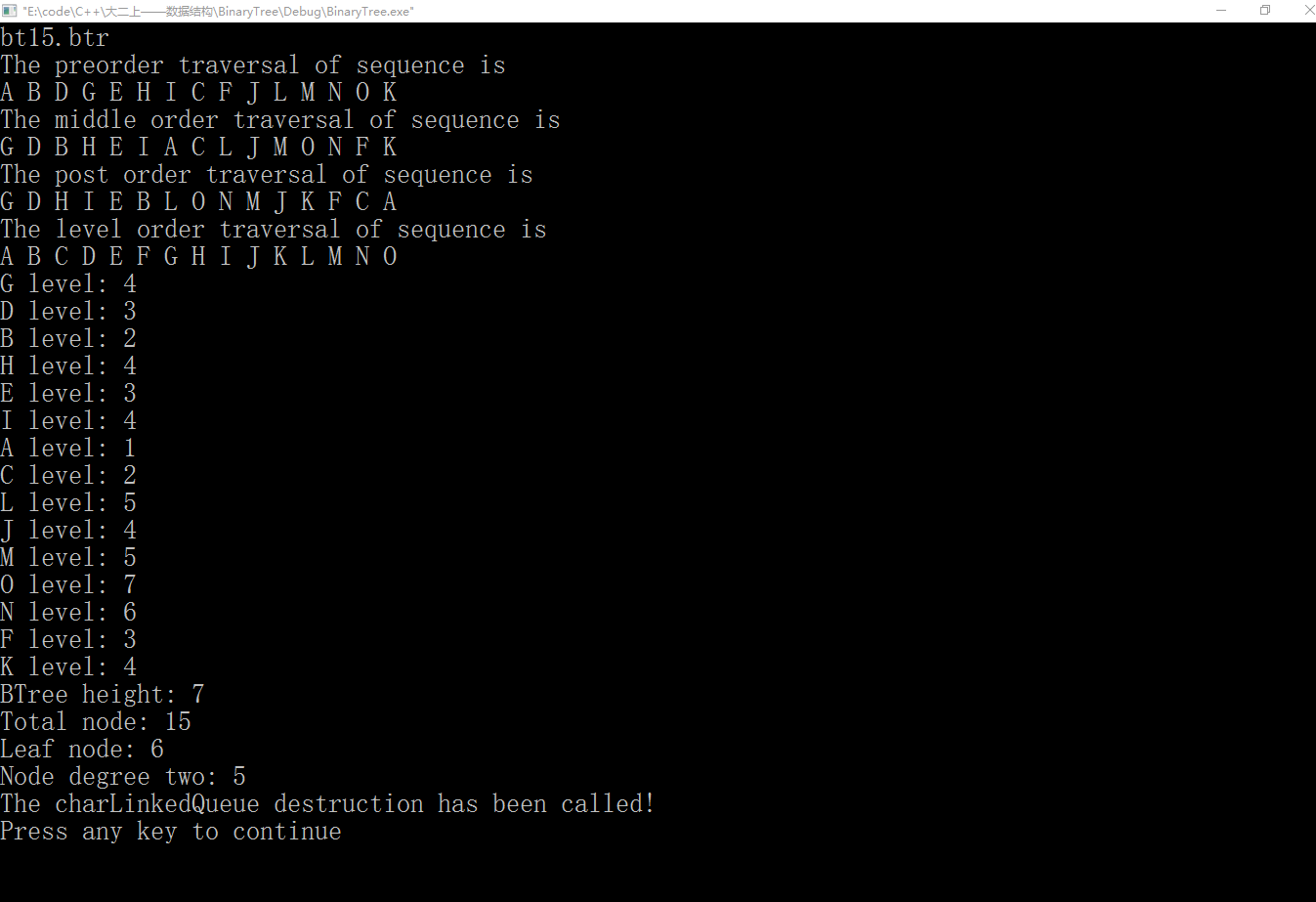

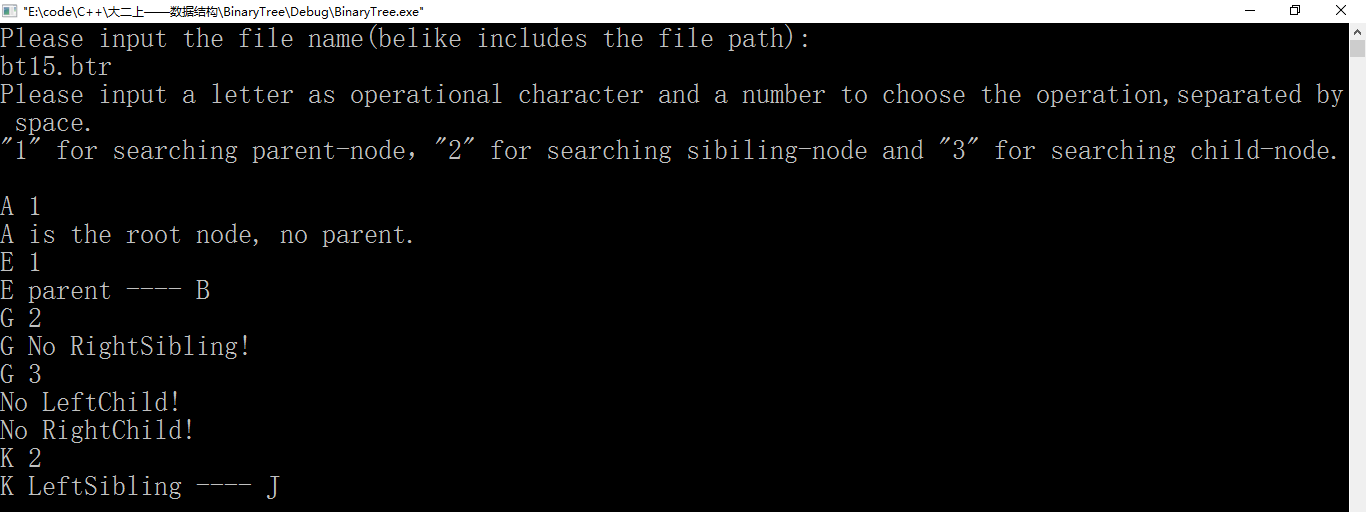

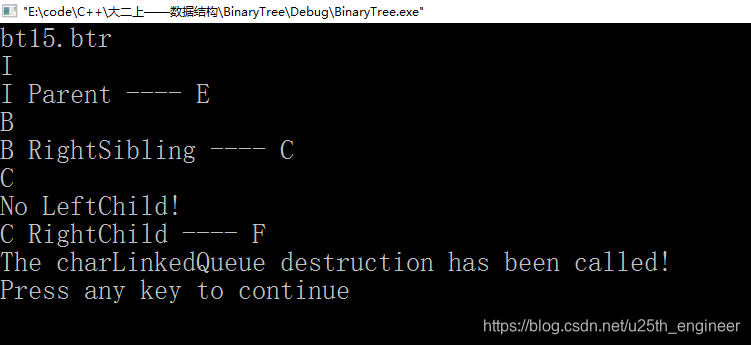

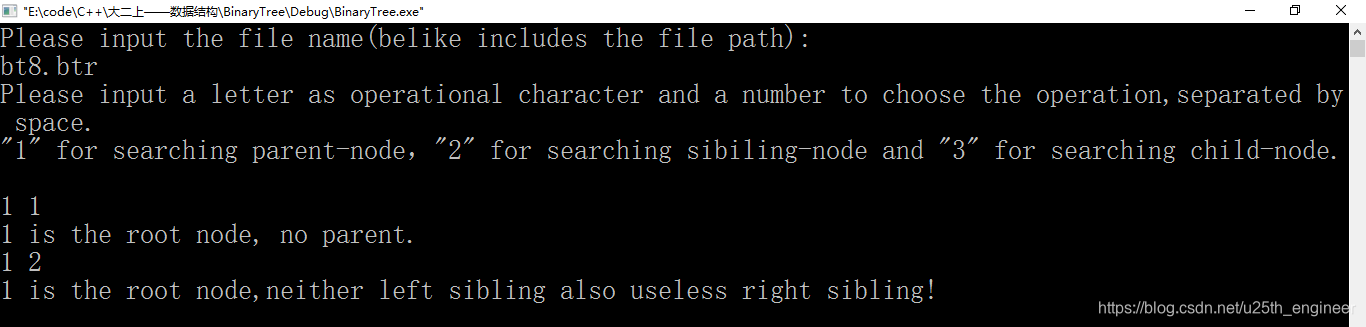

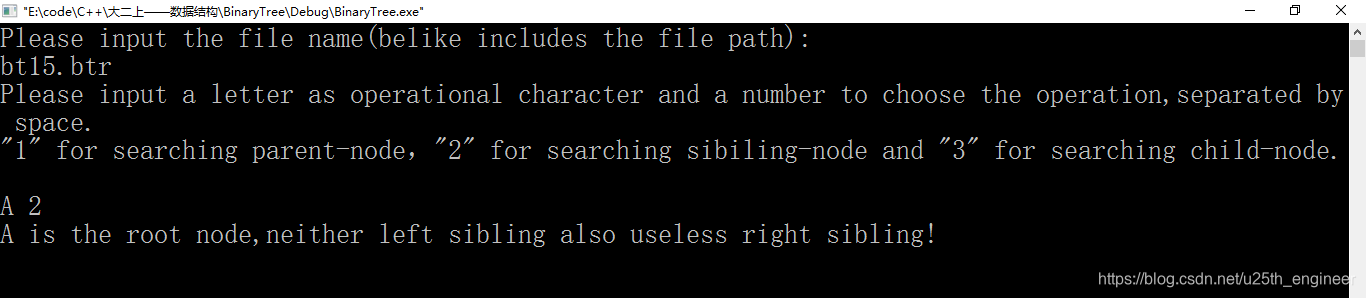

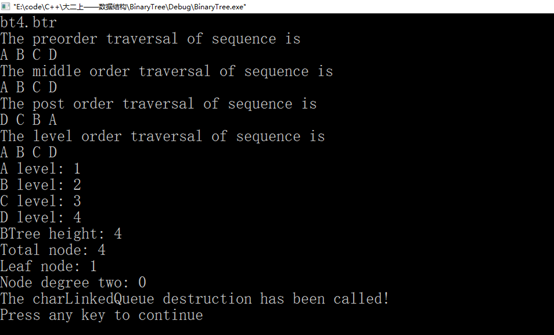

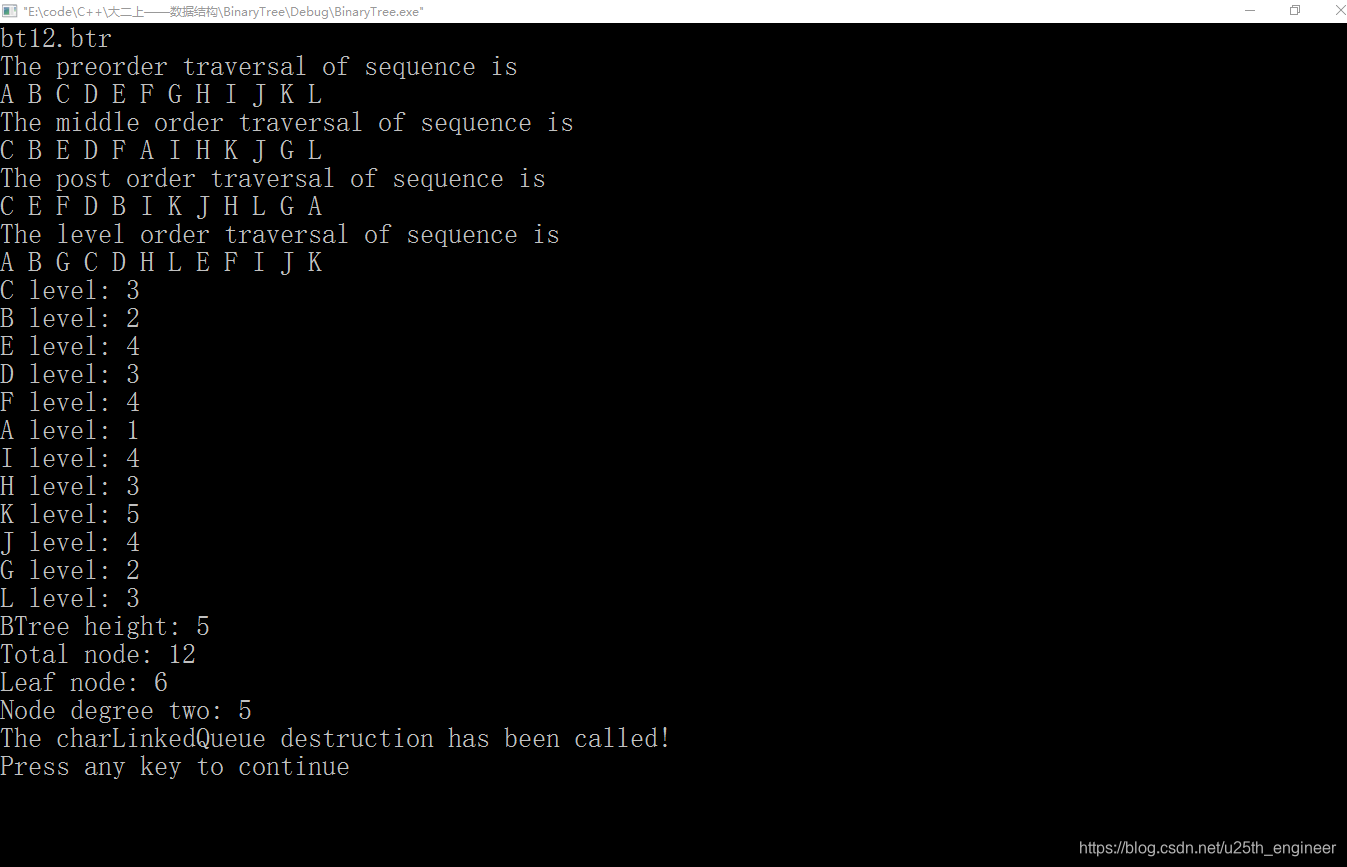

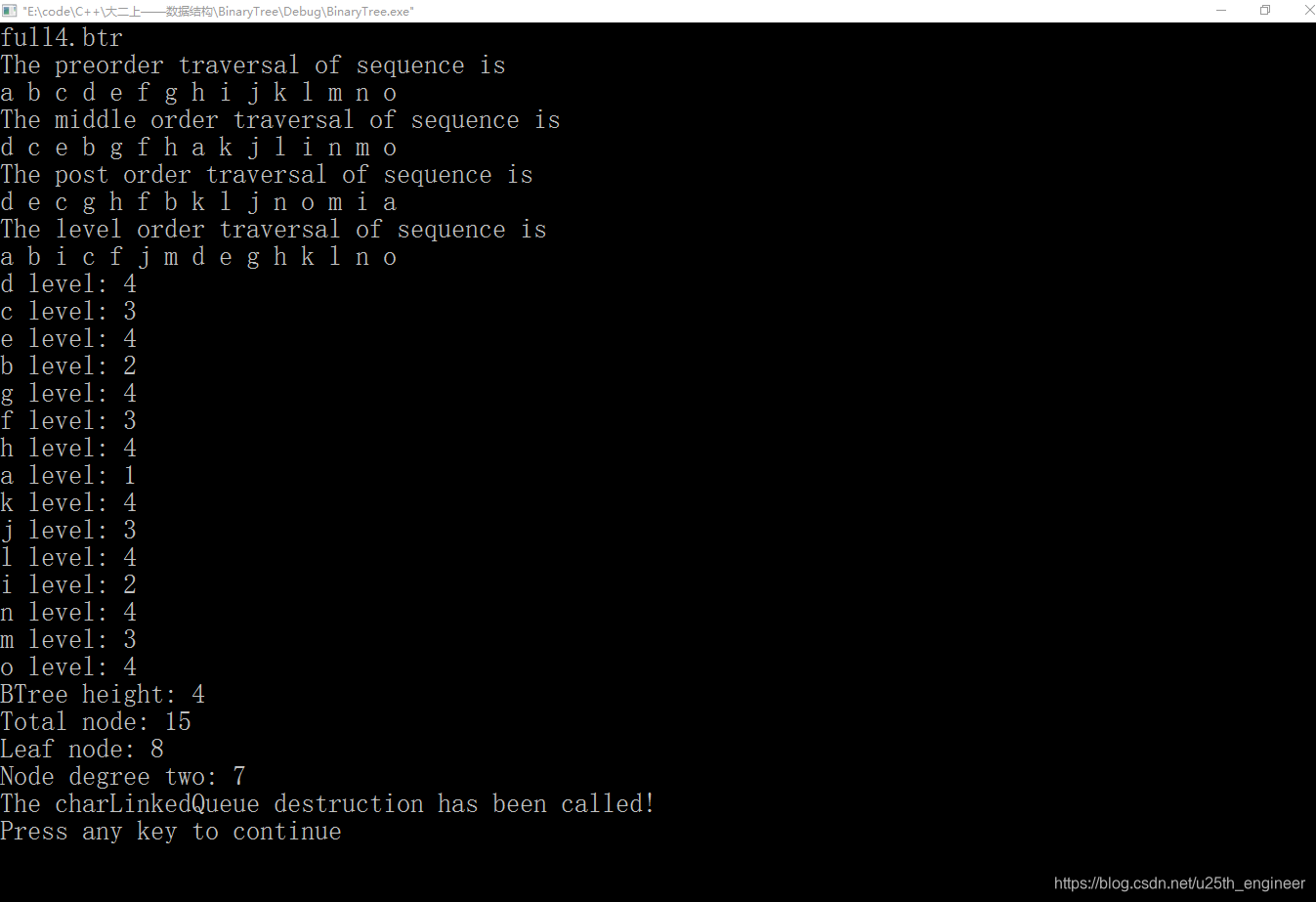

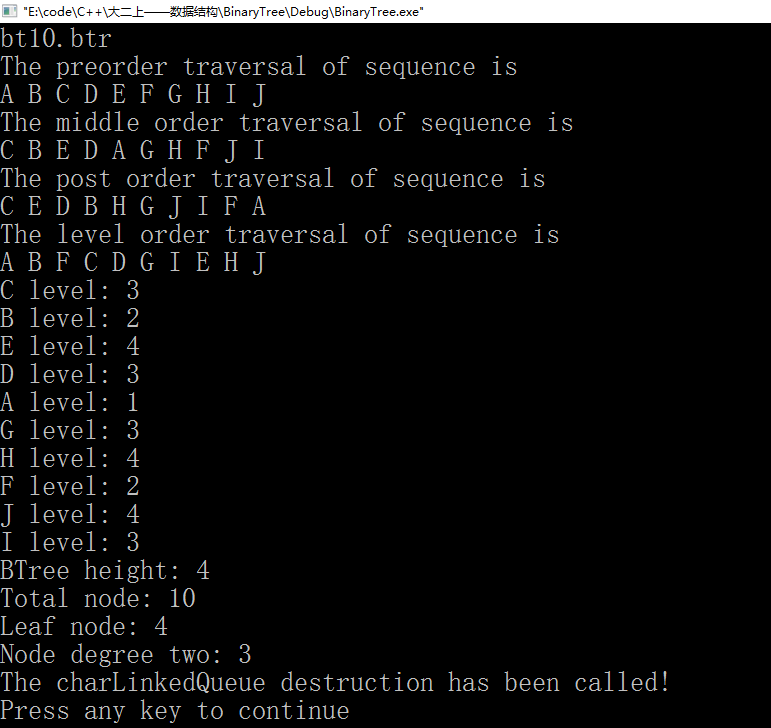

6.4 运行结果截图及说明
6.5 附源代码
// stdafx.h : include file for standard system include files,
// or project specific include files that are used frequently, but
// are changed infrequently
//
#if !defined(AFX_STDAFX_H__02F8C78B_9F6E_45FF_BFCE_7F99B5AC9359__INCLUDED_)
#define AFX_STDAFX_H__02F8C78B_9F6E_45FF_BFCE_7F99B5AC9359__INCLUDED_
#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000
#include <stdc++.h>
#include <windows.h>
using namespace std;
typedef char elementType;
typedef int elementType1;
typedef struct node
{
elementType data;//刚开始应该写成将data写成string或者直接将整个函数写成模板的,写完了最后测试时
//才发现现在的写法有诸多不便;但修改的话就又要重构一遍,懒得整了。
struct node *leftChild, *rightChild;
}bitNode, *binTree;
typedef struct charNode
{
//elementType data;
bitNode *data;//the type must be bitNode*
struct charNode *link;
}CLNode, *CPNode;
//typedef struct charNode
//{
//elementType data;
//struct charNode *leftChild, *rightChild;
//}charBitNode, *charBinTree;
// TODO: reference additional headers your program requires here
//{{AFX_INSERT_LOCATION}}
// Microsoft Visual C++ will insert additional declarations immediately before the previous line.
#endif // !defined(AFX_STDAFX_H__02F8C78B_9F6E_45FF_BFCE_7F99B5AC9359__INCLUDED_)
// charLinkedQueue.h: interface for the charLinkedQueue class.
//
//
#if !defined(AFX_CHARLINKEDQUEUE_H__13C2F642_81C0_4489_9CF2_3D58D8B48EA9__INCLUDED_)
#define AFX_CHARLINKEDQUEUE_H__13C2F642_81C0_4489_9CF2_3D58D8B48EA9__INCLUDED_
#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000
//刚开始尝试写英文注释的,后面知难而退了;不过原来的英文注释我保留了
class charLinkedQueue
{
public:
charLinkedQueue();
virtual ~charLinkedQueue();
bool emptyCharLinkedQueue();
//bool fullSeqCircleQueue();
bool enQueue( bitNode *value );//the type must be bitNode*
bool deQueue( /*bitNode *value*/ );
bool getFront( bitNode *&value );//the type must be bitNode*&
int length();
friend ostream &operator<<( ostream &os, charLinkedQueue &clq )
{
/*
if( ( scq._front - 1 ) % maxn == scq._rear )
return os;
int column = 0;
for( int i = scq._front; i % maxn != scq._rear; i = ( i + 1 ) % maxn )
{
os << setw(3) << setiosflags(ios::left) << scq.data[i] << " ";
column ++;
if( column % 10 == 0 )
os << endl;
}
os << endl;
*/
if( clq._front == NULL )
return os;
CLNode *tmp = clq._front;
int column = 0;
while( tmp != clq._rear->link )
{
os << setw(4) << setiosflags(ios::left) << tmp->data << " ";
column ++;
tmp = tmp->link;
if( column % 10 == 0 )
os << endl;
}
os << endl;
}
//为了能顺利使用原来的这个代码块来进行二叉树的层次便利,我主要的精力都放在_front、_rear类型、
//deQueue()、enQueue()、charNode的类型确定上,经过无数次尝试,总算结果对了----
//如果有Git,看了这个代码的每个版本你就会知道我付出了多少心血。。。。
private:
CLNode *_front;//the type must be CLNode*
CLNode *_rear;//the type must be CLNode*
};
#endif // !defined(AFX_CHARLINKEDQUEUE_H__13C2F642_81C0_4489_9CF2_3D58D8B48EA9__INCLUDED_)
// _Binary_Tree.h: interface for the _Binary_Tree class.
//
//
#if !defined(AFX__BINARY_TREE_H__9381B15F_E185_4489_9415_360A22C0A4E2__INCLUDED_)
#define AFX__BINARY_TREE_H__9381B15F_E185_4489_9415_360A22C0A4E2__INCLUDED_
#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000
#include "charLinkedQueue.h"
//刚开始尝试写英文注释的,后面知难而退了;不过原来的英文注释我保留了
class _Binary_Tree
{
public:
_Binary_Tree();//不带参数的构造函数
_Binary_Tree( elementType *Arr );//带参数的构造函数
void build( elementType *Arr );//从数组建立二叉树,相当于初始化;不带参数的构造函数无法适用于这里
void createNode( binTree BT, elementType *Arr, int number );//根据从数组读到的数据先序递归建树
virtual ~_Binary_Tree();//析构函数
bool createBinaryTree( binTree &BT, elementType stringLine[100][3], int length, int &row );//根据文本数据
//先序构造二叉树
bool readFileToArray( elementType stringLine[100][3], int &length );//将文本数据读入二维数组中
bool emptyBinaryTree();//二叉树判空,仅适用于带参数构造函数建立的二叉树
bool _exit( binTree BT, elementType value );//判断节点数据是否在二叉树中
binTree getNodePoint();//返回根节点地址
binTree getNodePoint( binTree BT, elementType value );//返回value在二叉树中的地址
binTree getParent( binTree BT, elementType value );//返回value的父母
void PreOrderTraverse(binTree BT);//前序遍历
void InOrderTraverse(binTree BT);//中序遍历
void PostOrderTraverse(binTree BT);//后序遍历
void levelOrderTraverse(binTree BT);//层次遍历
void destroy( binTree BT );//销毁二叉树
void level( binTree BT, int number );//求二叉树中各个节点的层次
int height( binTree BT );//求二叉树高度
int numberOfBTreeNode( binTree BT );//返回二叉树节点总数
int numberOfBTreeLeafNode( binTree BT, int &number );//返回二叉树叶节点个数
void numberOfNodeDegreeTwo( binTree BT, int &number );//求二叉树中度为2的节点个数
//void family( binTree BT, elementType1 number );
void getParent( binTree BT, elementType value, bool &flag );//求value的父节点
void getSibling( binTree BT, elementType value, bool &flag );//when call the function, the parameter flag
//must be assigned for false
//求value的兄弟节点,法1;有一个bug
void getSibling( binTree BT, elementType value );//求value的兄弟节点,法2
void getChild( binTree BT, elementType value, bool &flag );//求value孩子节点
int levelJudge( binTree BT, elementType value, int &number, int level );//返回value节点的层次
void exchangeLeftAndRightSibling( binTree BT );//交换左右子树
void copyBTree( binTree BT1, binTree BT );//复制二叉树
charLinkedQueue clq;//包含
void allLeafToRootPath( binTree BT, elementType *path, int &pathLength );//求所有叶节点到根节点路径
void binaryTreeLongestPath( binTree BT, elementType *path, int &pathLength,
elementType *longestPath, int &longestLength );//求叶节点到根节点的最长路径
binTree nearestAncestor( binTree BT, bitNode *BNode1, bitNode *BNode2 );//求两个节点的最近祖先
//本来打算用elementType数据
//作为参数的,后面发现行不通
//可能是我太菜了吧
private:
bitNode *BTree;
};
#endif // !defined(AFX__BINARY_TREE_H__9381B15F_E185_4489_9415_360A22C0A4E2__INCLUDED_)
// charLinkedQueue.cpp: implementation of the charLinkedQueue class.
//
//
#include "stdafx.h"
#include "charLinkedQueue.h"
//
// Construction/Destruction
//
charLinkedQueue::charLinkedQueue()
{
_front = _rear = NULL;
}
charLinkedQueue::~charLinkedQueue()
{
CLNode *tmp = NULL;
while( _front != _rear )
{
tmp = _front;
_front = _front->link;
delete tmp;
}
cout << "The charLinkedQueue destruction has been called!" << endl;
}
bool charLinkedQueue::emptyCharLinkedQueue()
{
return _front == NULL;
}
bool charLinkedQueue::enQueue( bitNode *value )
{
CLNode *newNode = new CLNode;
if( !newNode )
{
cerr << "Space allocating falied!Error in charLinkedQueue::enQueue()!" << endl;
return false;
}
newNode->data = value;
newNode->link = NULL;
if( emptyCharLinkedQueue() )
{
_front = _rear = newNode;
}
else
{
_rear->link = newNode;
_rear = newNode;
}
return true;
}
bool charLinkedQueue::deQueue( /*elementType &value*/ )
{
if( emptyCharLinkedQueue() )
{
cerr << "Node deleting falied!Error in charLinkedQueue::deQueue()!" << endl;
return false;
}
CLNode *tmp = _front;
//value = _front->data;
_front = _front->link;
delete tmp;
if( _front == NULL )
_rear = NULL;
return true;
}
bool charLinkedQueue::getFront( bitNode *&value )
{
if( emptyCharLinkedQueue() )
{
cerr << "Queue is empty!\nNode-data acquiring falied!Error in charLinkedQueue::deQueue()!" << endl;
return false;
}
value = _front->data;//原来我是注释掉的,导致输出一直是A;
return true;
}
int charLinkedQueue::length()
{
if( emptyCharLinkedQueue() )
{
cerr << "Queue is empty!" << endl;
return -1;
}
CLNode *tmp = _front;
int _size = 0;
while( tmp != NULL )
{
tmp = tmp->link;
_size ++;
}
return _size;
}
// _Binary_Tree.cpp: implementation of the _Binary_Tree class.
//
//
#include "stdafx.h"
#include "_Binary_Tree.h"
#include "charLinkedQueue.h"
//
// Construction/Destruction
//
_Binary_Tree::_Binary_Tree() //新建一个结点
{
//BTree = NULL;
BTree = new bitNode;
BTree->leftChild = BTree->rightChild = NULL;
}
_Binary_Tree::~_Binary_Tree()
{
destroy(BTree);//析构函数不能带参数,只能这么处理了
}
_Binary_Tree::_Binary_Tree( elementType *Arr )
{
BTree = NULL;
build(Arr);
}
void _Binary_Tree::build( elementType *Arr )
{
if(BTree)
destroy(BTree);
if( Arr[0] == '^' )
{
BTree = NULL;
return;
}
BTree = new bitNode;
BTree->leftChild = NULL;
BTree->rightChild = NULL;
BTree->data = Arr[0];
createNode( BTree, Arr, 0 );
}
void _Binary_Tree::createNode( binTree BT, elementType *Arr, int number )
{
bitNode *tmp = new bitNode;
if( Arr[ number * 2 + 1 ] != '^' )
{
BT->leftChild =new bitNode ;
tmp = BT->leftChild;
tmp->data = Arr[ number * 2 + 1 ];
tmp->leftChild = NULL;
tmp->rightChild = NULL;
createNode( tmp, Arr, number * 2 + 1 );
}
if( Arr[ number * 2 + 2 ] != '^' )
{
BT->rightChild =new bitNode ;
tmp = BT->rightChild;
tmp->data = Arr[ number * 2 + 2 ];
tmp->leftChild = NULL;
tmp->rightChild = NULL;
createNode( tmp, Arr, number * 2 + 2 );
}
}
bool _Binary_Tree::createBinaryTree( binTree &BT, elementType stringLine[100][3], int length, int &row )
{
if (row >= length || length == 0 ) //strlen存数据的二维数组,nRow结点所在的位数,nlen结点的个数
return false;
if ( row == 0 )
BT = BTree;
else
BT = new bitNode;//new下面是公用的,用if的目的是改变private里BTree里的值
BT->data = stringLine[row][0];
BT->leftChild = NULL;
BT->rightChild = NULL;
int nextRow = row;
if ( stringLine[nextRow][1] == '1' )
{
++ row;
createBinaryTree( BT->leftChild, stringLine, length, row );
}
if ( stringLine[nextRow][2] == '1' )
{
++row;
createBinaryTree( BT->rightChild, stringLine, length, row );
}
return true;
}
bool _Binary_Tree::readFileToArray( elementType stringLine[100][3], int &length )
{
FILE *fp;
char str[100];
cout << "Please input the file name(belike includes the file path):" << endl;
char name[50];// = "bt10.btr";
cin >> name;
fp = fopen( name, "r" );
if (!fp)
{
cout << "Error!" << endl;
return false;
}
if (fgets(str, 1000, fp) != NULL)
{
if (strcmp(str, "BinaryTree\n") != 0)
{
cout << "Error!" << endl;
fclose(fp);
return false;
}
}
length = 0;
while (fscanf(fp, "%c %c %c\n", &stringLine[length][0], &stringLine[length][1], &stringLine[length][2]) != EOF)
{
length ++;
}
fclose(fp);
return true;
}
bool _Binary_Tree::emptyBinaryTree()
{
//if(BTree)
//return BTree->leftChild == NULL && BTree->rightChild == NULL;
//else
return BTree == NULL;
}
bool _Binary_Tree::_exit( binTree BT, elementType value )
{
if(!BT)
return false;
//return NULL;
if( BT->data == value )
return true;
//return BT;
//bitNode *index = _exit( BT->leftChild, value );
bool flag = _exit( BT->leftChild, value );
//if(!index)
if(!flag)
//_exit( BT->leftChild, value );
_exit( BT->rightChild, value );
}
binTree _Binary_Tree::getNodePoint()
{
//if( emptyBinaryTree() )
//{
//throw "Empty binary tree!Error in binTree _Binary_Tree::getNodePoint()!\n";
//return NULL;
//}
return (*this).BTree;
}
binTree _Binary_Tree::getNodePoint( binTree BT, elementType value )
{
/*
if(!BT)
{
return NULL;
}
else
{
if( BT->data == value )
return BT;
else
{
bitNode *tmp;
if( tmp = getNodePoint( BT->leftChild, value ) )
return tmp;
if( tmp = getNodePoint( BT->rightChild, value ) )
return tmp;
return NULL;
}
}
*/
if(!BT)
{
return NULL;
}
else
{
if( BT->data == value )
{
return BT;
}
//getNodePoint( BT->leftChild, value );
//getNodePoint( BT->rightChild, value );
bitNode *tmp = getNodePoint( BT->leftChild, value );
if(!tmp)
{
getNodePoint( BT->rightChild, value );
}
//follow statement can't be added to the code
//return tmp;
}
}
void _Binary_Tree::PreOrderTraverse(binTree BT)
{
//if( emptyBinaryTree() )
// {
//throw "Empty binary tree!Error in void _Binary_Tree::PreOrderTraverse(binTree BT) !\n";
//return;
//}
if (BT)
{
cout << BT->data << " ";
PreOrderTraverse(BT->leftChild);
PreOrderTraverse(BT->rightChild);
}
}
void _Binary_Tree::InOrderTraverse(binTree BT)
{
if (BT)
{
InOrderTraverse(BT->leftChild);
cout << BT->data << " ";
InOrderTraverse(BT->rightChild);
}
//return 0;
}
void _Binary_Tree::PostOrderTraverse( binTree BT )
{
if (BT)
{
PostOrderTraverse(BT->leftChild);
PostOrderTraverse(BT->rightChild);
cout << BT->data << " ";
}
}
void _Binary_Tree::destroy( binTree BT )
{
if(BT)
{
destroy( BT->leftChild );
destroy( BT->rightChild );
delete BT;
BT = NULL;
}
}
void _Binary_Tree::level( binTree BT, int number )
{
if(BT)
{
level( BT->leftChild, number + 1 );
///number +=3;
//cout << number << endl;
cout << BT->data << " level: " << number << endl;
level( BT->rightChild, number + 1 );
//number -=2;
}
//number --;
}
int _Binary_Tree::height( binTree BT )
{
if(!BT)
{
return 0;
}
else
{
int i = height( BT->leftChild );
int j = height( BT->rightChild );
return i < j ? j + 1 : i + 1;
}
}
int _Binary_Tree::numberOfBTreeNode( binTree BT )
{
if(!BT)
return 0;
else
{
return numberOfBTreeNode( BT->leftChild ) + numberOfBTreeNode( BT->rightChild ) + 1;
}
}
int _Binary_Tree::numberOfBTreeLeafNode( binTree BT, int &number )
{
if(!BT)
{
return 0;
}
else
{
if( !BT->leftChild && !BT->rightChild )
//number += 1;
number ++;
//return 1;
else
{
numberOfBTreeLeafNode( BT->leftChild, number );
numberOfBTreeLeafNode( BT->rightChild, number );
}
return number;
}
}
void _Binary_Tree::numberOfNodeDegreeTwo( binTree BT, int &number )
{
if(!BT)
{
return;
}
else
{
if( BT->leftChild && BT->rightChild )
//number += 1;
number += 1;
//return 1;
//else
//{
numberOfNodeDegreeTwo( BT->leftChild, number );
numberOfNodeDegreeTwo( BT->rightChild, number );
//return numberOfNodeDegreeTwo( BT->leftChild, number ) + numberOfNodeDegreeTwo( BT->rightChild, number );
//}
//return number;
}
}
/*
void _Binary_Tree::family( binTree BT, elementType1 number )
{
if(!BT)
{
return;
}
if( BT->leftChild->data == number || BT->rightChild->data == number )
{
cout << "parent ---- " << BT->data << endl;
if( BT->leftChild->data == number && BT->rightChild )
{
cout << "rights sibling ---- " << BT->rightChild->data << endl;
}
if( BT->leftChild && BT->rightChild->data == number )
{
cout << "left sibling ---- " << BT->leftChild->data << endl;
}
}
if( BT->data == number && ( BT->leftChild || BT->rightChild ) )
{
cout << ( BT->leftChild ? "left child ---- " : true ) << endl;
cout << ( BT->rightChild ? "right child ---- " : true ) << endl;
}
family( BT->leftChild, number );
family( BT->rightChild, number );
//if( BT->data == number && BT-)
//if( BT->leftChild->data == number &&)
}
*/
//bool _Binary_Tree::getParent( binTree BT, elementType number, bool flag )
void _Binary_Tree::getParent( binTree BT, elementType value, bool &flag )
{
if(!BT)
{
//return false;
return;
}
if( ( BT->leftChild && BT->leftChild->data == value ) || ( BT->rightChild ) && ( BT->rightChild->data == value ) )
{
flag = true;
cout << value << " Parent ---- " << BT->data << endl;
return;
//return true;
}
/*
if( BT && BT->rightChild->data == number )
{
cout << "parent ---- " << BT->data << endl;
return true;
}
*/
getParent( BT->leftChild, value, flag );
getParent( BT->rightChild, value, flag );
}
binTree _Binary_Tree::getParent( binTree BT, elementType value )
{
if( !_exit( BT, value ) )
{
cerr << value << " is not in the binary tree!" << endl;
cerr << "Error in binTree _Binary_Tree::getParent( binTree BT, elementType value )!" << endl;
return NULL;
}
if(!BT)
{
return NULL;
}
if( BT->data == value )
{
return BT;
}
if( ( BT->leftChild && BT->leftChild->data == value ) || ( BT->rightChild && BT->rightChild->data == value ) )//|| BT->rightChild->data == value )
{
return BT;
}
bitNode *tmp = getParent( BT->leftChild, value );
if(!tmp)
{
getParent( BT->rightChild, value );
}
}
void _Binary_Tree::getSibling( binTree BT, elementType value, bool &flag )
{
if(!BT)
{
cout << value << " No LeftSibling!" << endl << value << " No RightSibling!" << endl;
return;
}
if( !flag && !BT->leftChild )//|| !BT->rightChild )//write as "if(!BT)" would result error
{
if( BT->rightChild )
{
getSibling( BT->rightChild, value, flag );
//return;
}
else
{
//cout << value << " No LeftSibling!" << endl;
return;
}
return;//why would deleting the statement cause error!
}
if( !flag && !BT->rightChild )
{
if( BT->leftChild )
{
getSibling( BT->leftChild, value, flag );
}
else
{
//cout << value << "No LeftSibling!" << endl;
//cout << value << " No RightSibling!" << endl;
return;
}
return;//why would deleting the statement cause error!
}
if( BT->rightChild->data == value )
{
if( BT->leftChild )
{
flag = true;
cout << value << " LeftSibling ---- " << BT->leftChild->data << endl;
return;
}
else if( !BT->leftChild )
{
cout << value << " No LeftSibling!" << endl;
return;
}
}
if( BT->leftChild->data == value )
{
if( BT->rightChild )
{
flag = true;
cout << value << " RightSibling ---- " << BT->rightChild->data << endl;
return;
}
else if( !BT->rightChild )
{
cout << value << " No RightSibling!" << endl;
return;
}
}
getSibling( BT->leftChild, value, flag );
if( !flag && BT->rightChild )
getSibling( BT->rightChild, value, flag );
}
void _Binary_Tree::getSibling( binTree BT, elementType value )
{
bitNode *parent = getParent( BT, value );
if( BT->data == value )
{
cout << value << " is the root node,neither left sibling also useless right sibling!" << endl;
return;
}
if( !_exit( BT, value ) )
{
cout << value << " is not in the binary-tree!" << endl;
cerr << "Error in void _Binary_Tree::getSibling( binTree BT, elementType value )!" << endl;
return;
}
if( parent->leftChild && parent->leftChild->data == value )
{
if( parent->rightChild )
{
cout << value << " RightSibling ---- " << parent->rightChild->data << endl;
return;
}
else
{
cout << value << " No RightSibling!" << endl;
return;
}
}
if( parent->rightChild && parent->rightChild->data == value )
{
if( parent->leftChild )
{
cout << value << " LeftSibling ---- " << parent->leftChild->data << endl;
return;
}
else
{
cout << value << " No LeftSibling!" << endl;
return;
}
}
}
void _Binary_Tree::getChild( binTree BT, elementType value, bool &flag )//It costed me several minutes to
{ //write and almost one hour to
/* //perfect the function
if( BT->leftChild )
{
getChild( BT->leftChild, value, flag );
}
if( BT->rightChild )
{
getChild( BT->rightChild, value, flag );
}
*/
/*
if( !BT->leftChild )//|| !BT->rightChild )
{
if(flag)
{
cout << "No LeftChild! " << endl;
flag = true;
return;
}
else
{
cout << "No LeftChild! " << endl;
flag = false;
}
//return;
}
if( !BT->rightChild )
{
if(flag)
{
cout << "No RightChild! " << endl;
flag = true;
return;
}
else
{
cout << "No RightChild! " << endl;
flag = false;
}
}
*/
//if(!BT)
// {
// return;
// }
if( !_exit( BT, value ) )
{
cerr << value << " is not in the binary tree!\nError in void _Binary_Tree::getChild( binTree BT, elementType value, bool &flag )" << endl;
return;
}
if( BT->data == value )//at first I neglected this detail that resulted wrong judgement at root-node
{
if( BT->leftChild )
{
flag = true;
cout << value << " LeftChild ---- " << BT->leftChild->data << endl;
}
else
{
cout << "No LeftChild!" << endl;
}
if( BT->rightChild )
{
flag = true;
cout << value << " RightChild ---- " << BT->rightChild->data << endl;
return;
}
else
{
cout << "No RightChild! " << endl;
return;
}
}
if( !BT->leftChild )
{
if( BT->rightChild )
{
getChild( BT->rightChild, value, flag );
}
return;
/*
if(flag)
{
return;
}
else
{
flag = false;
return;
}*/
}
if( !BT->rightChild )
{
if( BT->leftChild )
{
getChild( BT->leftChild, value, flag );
}
return;
//if(flag)
//{
// flag = false;
//}
/*
if(flag)
{
return;
}
else
{
flag = false;
return;
}*/
}
/*
if( BT->rightChild->data == value )
{
if( BT->rightChild->leftChild )
{
flag = true;
cout << value << " LeftChild ---- " << BT->rightChild->leftChild->data << endl;
//return;
}
else
{
cout << "No LeftChild!" << endl;
}
if( BT->rightChild->rightChild )
{
flag = true;
cout << value << " RightChild ---- " << BT->rightChild->rightChild->data << endl;
return;
}
else
{
cout << "No RightChild! " << endl;
return;
}
//else
//{
//flag = false;
// return;
//}
}
if( BT->leftChild->data == value )
{
if( BT->leftChild->leftChild )
{
flag = true;
cout << value << " LeftChild ---- " << BT->leftChild->leftChild->data << endl;
//return;
}
else
{
cout << "No LeftChild!" << endl;
}
if( BT->leftChild->rightChild )
{
flag = true;
cout << value << " RightChild ---- " << BT->leftChild->rightChild->data << endl;
return;
}
else
{
cout << "No RightChild! " << endl;
return;
}
//else
//{
//flag = false;
// return;
//}
}
*/
getChild( BT->leftChild, value, flag );
getChild( BT->rightChild, value, flag );
}
int _Binary_Tree::levelJudge( binTree BT, elementType value, int &number, int level )
{
bitNode *position = getNodePoint( getNodePoint(), value );
if(!position)
{
cout << "The value you typed is not in the binary tree!" << endl;
//return -1;
number = -1;
return number;
}
/*
int level;
if ( BT == NULL )
return 0;
else if ( BT->data == value )
return number;
else
{
number ++;
level = levelJudge( BT->leftChild, value, number );
if ( level != 0 )
return number;
else
{
//number ++;
return levelJudge( BT->rightChild, value, number );
}
}
*/
if(BT)
{
if( BT->data == value )
{
//number ++;
number = level;
}
//number ++;
levelJudge( BT->leftChild, value, number, level + 1 );
//number ++;
levelJudge( BT->rightChild, value, number, level + 1);
}
}
void _Binary_Tree::exchangeLeftAndRightSibling( binTree BT )
{
if( BT && BT->leftChild && BT->rightChild )
{
bitNode *tmp = BT->leftChild;
BT->leftChild = BT->rightChild;
BT->rightChild = tmp;
exchangeLeftAndRightSibling( BT->leftChild );
exchangeLeftAndRightSibling( BT->rightChild );
}
}
void _Binary_Tree::copyBTree( binTree BT1, binTree BT )
{
bitNode *tmp = NULL;//new bitNode;
BT1->data = BT->data;
if( BT->leftChild )
{
BT1->leftChild = new bitNode;
tmp = BT1->leftChild;
tmp->leftChild = NULL;
tmp->rightChild = NULL;
copyBTree( tmp, BT->leftChild );
}
if( BT->rightChild )
{
BT1->rightChild = new bitNode;
tmp = BT1->rightChild;
tmp->leftChild = NULL;
tmp->rightChild = NULL;
copyBTree( tmp, BT->rightChild );
}
}
void _Binary_Tree::levelOrderTraverse( binTree BT )
{
clq.enQueue(BT);
while( !clq.emptyCharLinkedQueue() )
{
//CLNode *tmp = NULL;
clq.getFront(BT);
cout << BT->data << " ";
clq.deQueue();
if( BT->leftChild != NULL )
{
clq.enQueue( BT->leftChild );
}
if( BT->rightChild != NULL )
{
clq.enQueue( BT->rightChild );
}
}
}
void _Binary_Tree::allLeafToRootPath( binTree BT, char *path, int &pathLength )
{
if(BT)
{
if( !BT->leftChild && !BT->rightChild )
{
path[pathLength] = BT->data;
cout << BT->data << " leaf to root path: " << endl;
for( int i = pathLength; i >= 0; i -- )
{
if( i != 0 )
cout << path[i] << " --> ";
else
cout << path[i] << "\n";
}
//cout << endl;
}
else
{
path[ pathLength ++ ] = BT->data;
allLeafToRootPath( BT->leftChild, path, pathLength );
allLeafToRootPath( BT->rightChild, path, pathLength );
pathLength --;
}
}
}
void _Binary_Tree::binaryTreeLongestPath( binTree BT, elementType *path, int &pathLength,
elementType *longestPath, int &longestLength )
{
if(BT)
{
if( !BT->leftChild && !BT->rightChild )
{
path[pathLength] = BT->data;
if( pathLength > longestLength)
{
//cout << BT->data << " leaf to root path: " << endl;
//longestPath = pathLength;
for( int i = pathLength; i >= 0; i -- )
{
/*
if( i != 0 )
cout << path[i] << " --> ";
else
cout << path[i] << "\n";
*/
longestPath[i] = path[i];
}
longestLength = pathLength;
}
//longestLength = pathLength;
//cout << endl;
}
else
{
path[ pathLength ++ ] = BT->data;
binaryTreeLongestPath( BT->leftChild, path, pathLength, longestPath, longestLength );
binaryTreeLongestPath( BT->rightChild, path, pathLength, longestPath, longestLength );
pathLength --;
}
}
}
binTree _Binary_Tree::nearestAncestor( binTree BT, bitNode *BNode1, bitNode *BNode2 )
{
// if( !_exit( BT, BNode1->data ) )
//{
// cout << BNode1->data << " is not in the binary tree!" << endl;
// return NULL;
//}
//if( !_exit( BT, BNode2->data ) )
//{
// cout << BNode2->data << " is not in the binary tree!" << endl;
// return NULL;
//}
if( !BT || !BNode1 || !BNode2 )
{
//cout << "NO ANCESTOR!" << endl;
return NULL;
}
if( BT == BNode1 || BT == BNode2 )
{
//cout << BT->data << endl;
return BT;
}
bitNode *left = nearestAncestor( BT->leftChild, BNode1, BNode2 );
bitNode *right = nearestAncestor( BT->rightChild, BNode1, BNode2 );
if( left && right )
{
//cout << BT->data << endl;
return BT;
}
else if(!left)
{
//cout << right->data << endl;
return right;
}
else
{
//cout << left->data << endl;
return left;
}
}
// BinaryTree.cpp : Defines the entry point for the console application.
//
#include "stdafx.h"
#include "_Binary_Tree.h"
#include "charLinkedQueue.h"
void test1()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "The preorder traversal of sequence is" << endl;
BT1.PreOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT1.InOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT1.PostOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
int n = 1;
BT1.level( BT1.getNodePoint() , n );
cout << "BTree height: "<< BT1.height( BT1.getNodePoint() ) << endl;
cout << "Total node: " << BT1.numberOfBTreeNode( BT1.getNodePoint() ) << endl;
int m = 0;
cout << "Leaf node: " << BT1.numberOfBTreeLeafNode( BT1.getNodePoint(), m ) << endl;
int a = 0;
BT1.numberOfNodeDegreeTwo( BT1.getNodePoint(), a );
cout << "Node degree two: " << a << endl;
}
void test2()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
char ch;
int key;
cout << "Please input a letter as operational character and a number to choose the operation,separated by space.\n\"1\" for searching parent-node,\"2\" for searching sibiling-node and \"3\" for searching child-node." << endl;
while( cin>> ch >> key )
{
if( key == 1 )
{
bool flag = false;
bitNode *index = NULL;
index = BT1.getParent( BT1.getNodePoint(), ch );
if( index && index != BT1.getNodePoint() )
cout << ch << " parent ---- " << index->data << endl;
else if( index && index->data == ch )
cout << ch << " is the root node, no parent." << endl;
else if(index)
cout << ch << " parent ---- " << index->data << endl;
}
else if( key == 2 )
{
BT1.getSibling( BT1.getNodePoint(), ch );
}
else if( key == 3 )
{
bool flag;
BT1.getChild( BT1.getNodePoint(), ch, flag );
}
//Sleep( 1000 * 60 );
//system( "cls" );
//cout << "Please input a letter as operational character and a number to choose the operation,separated by space.\n\"1\" for searching parent-node,\"2\" for searching sibiling-node and \"3\" for searching child-node." << endl;
}
}
void test3()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
elementType value;
int cnt = 0;
cout << "Please input a letter and the program will judge it in which layer of the binary-tree!" << endl;
while( cin >> value )
{
int number = 1;
BT1.levelJudge( BT1.getNodePoint(), value , number, 1 );
cout << value << " ---- " << number << " level!" << endl;
cnt ++;
//Sleep( 1000 * 60 );
if( cnt % 10 == 0 )
system( "cls" );
cout << "Please input a letter and the program will judge it in which layer of the binary-tree!" << endl;
}
}
void test4()
{
elementType str[10000];
cout << "Please input a character array that will be transformed to the elements of a binary tree.\nAttention the typed array must extend for the complete binary tree!" << endl;
while( cin >> str )
{
_Binary_Tree BT1(str);
cout << "The preorder traversal of sequence is" << endl;
BT1.PreOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT1.InOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT1.PostOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
int n = 1;
BT1.level( BT1.getNodePoint() , n );
cout << "BTree height: "<< BT1.height( BT1.getNodePoint() ) << endl;
cout << "Total node: " << BT1.numberOfBTreeNode( BT1.getNodePoint() ) << endl;
int m = 0;
cout << "Leaf node: " << BT1.numberOfBTreeLeafNode( BT1.getNodePoint(), m ) << endl;
int a = 0;
BT1.numberOfNodeDegreeTwo( BT1.getNodePoint(), a );
cout << "Node degree two: " << a << endl;
Sleep( 1000 * 60 );
system( "cls" );
cout << "Please input a character array that will be transformed to the elements of a binary tree.\nAttention the typed array must extend for the complete binary tree!" << endl;
}
}
void test5()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "The program will exchange the left subtree and right subtree of the file-inputed binary tree!" << endl;
cout << "The origin binary tree is as follow:" << endl;
cout << "The preorder traversal of sequence is" << endl;
BT1.PreOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT1.InOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT1.PostOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
BT1.exchangeLeftAndRightSibling( BT1.getNodePoint() );
cout << "The following for the exchange of binary tree:" << endl;
cout << "The preorder traversal of sequence is" << endl;
BT1.PreOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT1.InOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT1.PostOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
}
void test6()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "The program will copy the file-inputed binary tree to another empty one!" << endl;
_Binary_Tree BT2;
cout << "The origin binary tree is as follow:" << endl;
cout << "The preorder traversal of sequence is" << endl;
BT1.PreOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT1.InOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT1.PostOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
cout << "The empty binary tree is as follow:" << endl;
cout << "The preorder traversal of sequence is" << endl;
BT2.PreOrderTraverse(BT2.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT2.InOrderTraverse(BT2.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT2.PostOrderTraverse(BT2.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT2.levelOrderTraverse( BT2.getNodePoint() );
cout << endl;
cout << "The following for the copy of binary tree:" << endl;
BT1.copyBTree( BT2.getNodePoint(), BT1.getNodePoint() );
cout << "The preorder traversal of sequence is" << endl;
BT2.PreOrderTraverse(BT2.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT2.InOrderTraverse(BT2.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT2.PostOrderTraverse(BT2.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT2.levelOrderTraverse( BT2.getNodePoint() );
cout << endl;
}
void test7()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "The program will output the paths that each leaf node of the binary tree to the root node." << endl;
cout << "The origin binary tree is as follow:" << endl;
cout << "The preorder traversal of sequence is" << endl;
BT1.PreOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The middle order traversal of sequence is" << endl;
BT1.InOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The post order traversal of sequence is" << endl;
BT1.PostOrderTraverse(BT1.getNodePoint());
cout << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
int pathLength = 0;
elementType *path = new char[ BT1.numberOfBTreeNode( BT1.getNodePoint() ) ];
BT1.allLeafToRootPath( BT1.getNodePoint(), path, pathLength );
}
void test8()
{
_Binary_Tree BT1;
elementType strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "The program will ouput the level order traversal of the file-inputed binary tree." << endl;
cout << "The level order traversal of sequence is" << endl;
BT1.levelOrderTraverse( BT1.getNodePoint() );
cout << endl;
}
void test9()
{
_Binary_Tree BT1;
char strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "Please input two character and the program will output their nearset ancestor." << endl;
elementType ch1, ch2;
while( cin >> ch1 >> ch2 )
{
//BT1.nearestAncestor( binTree BT, bitNode *BNode1, bitNode *BNode2 );
bitNode *index1 = BT1.getNodePoint( BT1.getNodePoint(), ch1 );
if(!index1)
{
cout << ch1 << " is not in the binary tree!" << endl;
}
bitNode *index2 = BT1.getNodePoint( BT1.getNodePoint(), ch2 );
if(!index2)
{
cout << ch2 << " is not in the binary tree!" << endl;
}
if( index1 && index2 )
{
bitNode *target = BT1.nearestAncestor( BT1.getNodePoint(), index1, index2 );
cout << "The nearset ancestor of " << ch1 << " and " << ch2 << " is " << target->data << endl;
}
cout << "Please input two character and the program will output their nearset ancestor." << endl;
}
}
void test10()
{
_Binary_Tree BT1;
char strLine[100][3];
int nRow = 0, nLen = 0;
binTree index;
BT1.readFileToArray(strLine,nLen);
//BT1._Binary_Tree();
BT1.createBinaryTree( index,strLine, nLen, nRow);
cout << "The program will output the longest path of the binary tree." << endl;
int pathLength = 0, longestLength = 0;
elementType *path1 = new char[ BT1.numberOfBTreeNode( BT1.getNodePoint() ) ];
elementType *longestPath = new char[ BT1.numberOfBTreeNode( BT1.getNodePoint() ) ];
BT1.binaryTreeLongestPath( BT1.getNodePoint(), path1, pathLength, longestPath, longestLength );
cout << "Longest path:" << endl;
for( int i = longestLength; i >= 0; i -- )
{
if( i!= 0 )
cout << longestPath[i] << " --> ";
else
cout << longestPath[i] << endl;
}
}
int main(int argc, char* argv[])
{
//test1();
test2();
//test3();
//test4();
//test5();
//test6();
//test7();
//test8();
//test9();
//test10();
return 0;
}
6.6 调试过程中出现的bug总结
往事不堪回首。
刚开始应该写成将data写成string或者直接将整个函数写成模板的,写完了最后测试时才发现现在的写法有诸多不便;但修改的话就又要重构一遍,懒得整了。
刚开始尝试写英文注释的,后面知难而退了;不过原来的英文注释我保留了。
附:测试数据与对应的二叉树图形

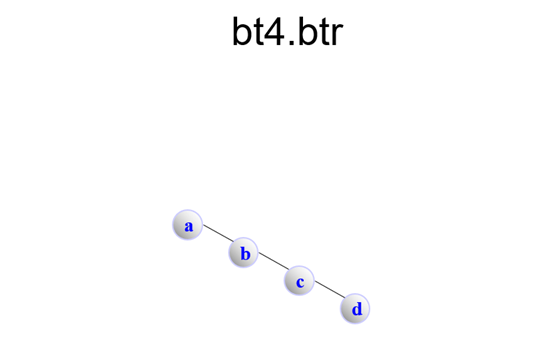

bt4.btr
BinaryTree
A 0 1
B 0 1
C 0 1
D 0 0

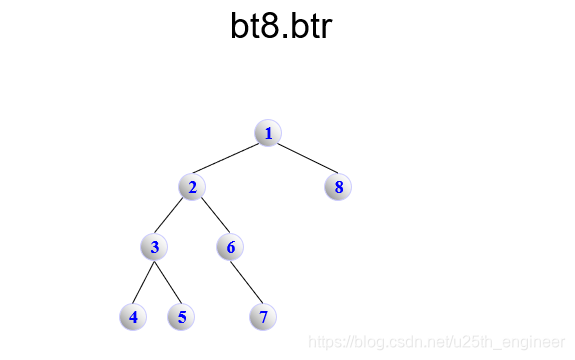

bt8.btr
BinaryTree
1 1 1
2 1 1
3 1 1
4 0 0
5 0 0
6 0 1
7 0 0
8 0 0

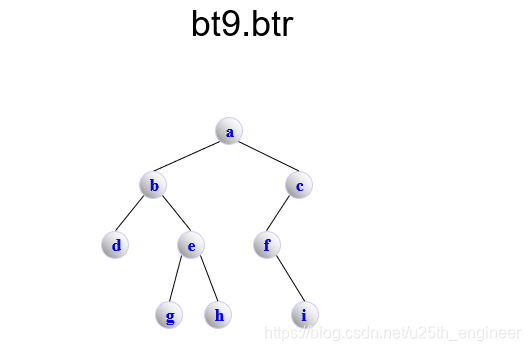

bt9.btr
BinaryTree
a 1 1
b 1 1
d 0 0
e 1 1
g 0 0
h 0 0
c 1 0
f 0 1
i 0 0
bt10.btr
BinaryTree
A 1 1
B 1 1
C 0 0
D 1 0
E 0 0
F 1 1
G 0 1
H 0 0
I 1 0
J 0 0
bt12.btr
BinaryTree
A 1 1
B 1 1
C 0 0
D 1 1
E 0 0
F 0 0
G 1 1
H 1 1
I 0 0
J 1 0
K 0 0
L 0 0
bt14.btr
BinaryTree
A 1 0
B 1 1
C 1 1
D 0 1
E 0 0
F 1 0
G 0 1
H 0 0
I 1 0
J 1 1
K 0 0
L 1 0
M 1 0
N 0 0
bt15.btr
BinaryTree
A 1 1
B 1 1
D 1 0
G 0 0
E 1 1
H 0 0
I 0 0
C 0 1
F 1 1
J 1 1
L 0 0
M 0 1
N 1 0
O 0 0
K 0 0
bt21.btr
BinaryTree
a 1 1
b 1 1
c 1 1
d 1 1
e 0 0
f 0 0
g 0 0
h 1 1
i 0 0
j 0 0
k 1 1
l 1 1
m 0 0
n 0 0
o 1 1
p 0 1
q 0 0
r 1 1
s 0 0
t 1 0
u 0 0
bt261.btr
BinaryTree
a 1 1
b 1 1
c 1 1
d 1 1
e 0 0
f 0 0
g 1 0
h 0 0
i 1 1
j 0 1
k 0 0
l 1 0
m 0 0
n 1 1
o 1 1
p 1 1
q 0 0
r 0 0
s 0 0
t 1 1
u 1 1
v 0 0
w 0 0
x 1 1
y 0 0
z 0 0
bt262.btr
BinaryTree
a 1 1
b 1 1
c 1 1
d 0 1
e 1 1
f 0 1
g 0 0
h 1 1
i 0 0
j 0 0
k 1 1
l 0 0
m 0 0
n 1 1
o 0 0
p 0 0
q 1 1
r 0 1
s 1 1
t 0 0
u 0 0
v 1 1
w 0 1
x 0 0
y 0 1
z 0 0

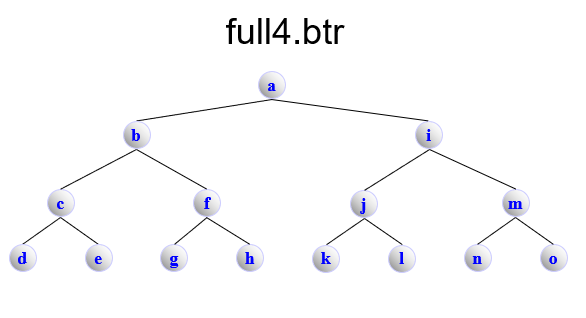

full4.btr
BinaryTree
a 1 1
b 1 1
c 1 1
d 0 0
e 0 0
f 1 1
g 0 0
h 0 0
i 1 1
j 1 1
k 0 0
l 0 0
m 1 1
n 0 0
o 0 0

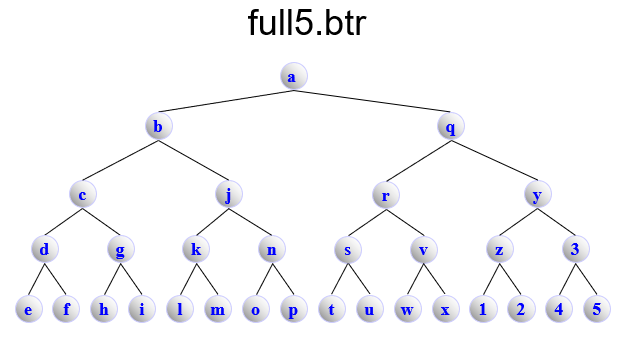

full5.btr
BinaryTree
a 1 1
b 1 1
c 1 1
d 1 1
e 0 0
f 0 0
g 1 1
h 0 0
i 0 0
j 1 1
k 1 1
l 0 0
m 0 0
n 1 1
o 0 0
p 0 0
q 1 1
r 1 1
s 1 1
t 0 0
u 0 0
v 1 1
w 0 0
x 0 0
y 1 1
z 1 1
1 0 0
2 0 0
3 1 1
4 0 0
5 0 0
